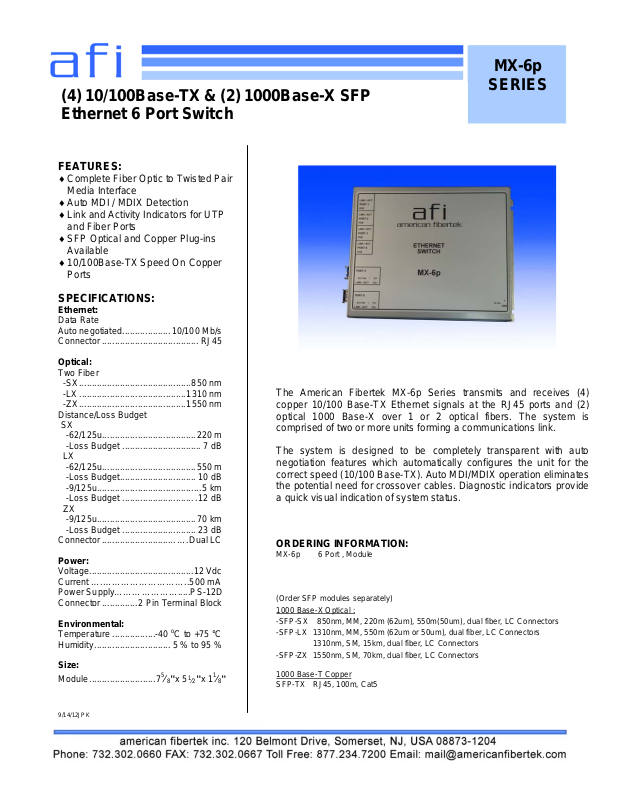

American Fibertek MX-6p Specsheet
(4) 10/100Base-TX & (2) 1000Base-X SFP
Ethernet 6 Port Switch
FEATURES:
Complete Fiber Optic to Twisted Pair
Media Interface
Auto MDI / MDIX Detection
Link and Activity Indicators for UTP
and Fiber Ports
SFP Optical and Copper Plug-ins
Available
10/100Base-TX Speed On Copper
Ports
SPECIFICATIONS:
Ethernet:
Data Rate
Auto negotiated...................10/100 Mb/s
Connector...................................... RJ45
Optical:
Two Fiber
-SX............................................850 nm
-LX..........................................1310 nm
-ZX..........................................1550 nm
Distance/Loss Budget
SX
-62/125u.....................................220 m
-Loss Budget ............................... 7 dB
LX
-62/125u.....................................550 m
-Loss Budget.............................. 10 dB
-9/125u.........................................5 km
-Loss Budget ............................ .12 dB
ZX
-9/125u.......................................70 km
-Loss Budget ............................. 23 dB
Connector.............................….Dual LC
Power:
Voltage.........................................12 Vdc
Current ….………………………..500 mA
Power Supply………………….....PS-12D
Connector..............2 Pin Terminal Block
Environmental:
Temperature.................-40
Humidity.............................. 5 % to 95 %
Size:
Module..........................7
9/14/12JPK
o
C to +75 °C
5
1
⁄ 8"
x 5
"
⁄2
x 11⁄ 8"
The American Fibertek MX-6p Series transmits and receives (4)
copper 10/100 Base-TX Ethernet signals at the RJ45 ports and (2)
optical 1000 Base-X over 1 or 2 optical fibers. The system is
comprised of two or more units forming a communications link.
The system is designed to be completely transparent with auto
negotiation features which automatically configures the unit for the
correct speed (10/100 Base-TX). Auto MDI/MDIX operation eliminates
the potential need for crossover cables. Diagnostic indicators provide
a quick visual indication of system status.
ORDERING INFORMATION:
MX-6p 6 Port , Module
(Order SFP modules separately)
1000 Base-X Optical :
-SFP-SX 850nm, MM, 220m (62um), 550m(50um), dual fiber, LC Connectors
-SFP-LX 1310nm, MM, 550m (62um or 50um), dual fiber, LC Connectors
1310nm, SM, 15km, dual fiber, LC Connectors
-SFP-ZX 1550nm, SM, 70km, dual fiber, LC Connectors
1000 Base-T Copper
SFP-TX RJ45, 100m, Cat5
MX-6p
SERIES
