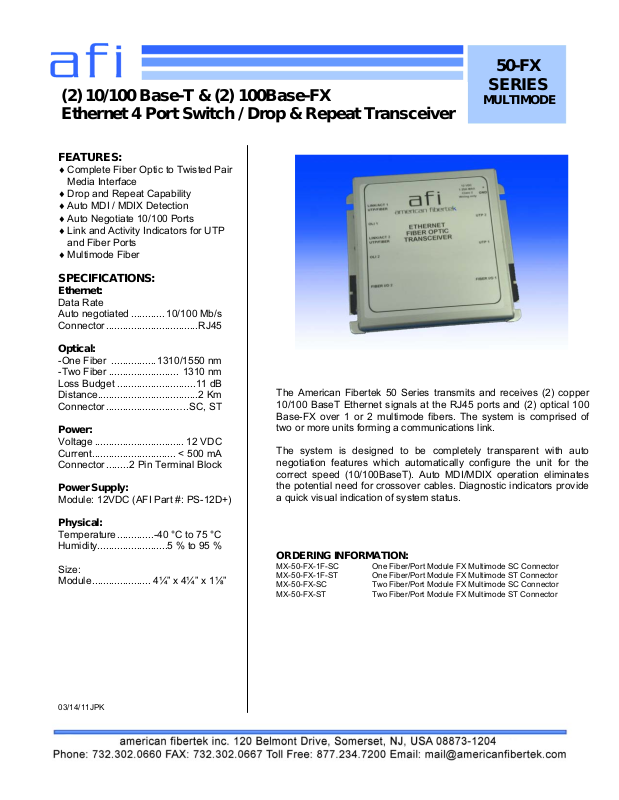

American Fibertek MX-50-FX-ST, MX-50-FX-SC, MX-50-FX-1F-ST, MX-50-FX-1F-SC, RX-50-FX-SC Specsheet
(2) 10/100 Base-T & (2) 100Base-FX
Ethernet 4 Port Switch / Drop & Repeat Transceiver
FEATURES:
♦ Complete Fiber Optic to Twisted Pair
Media Interface
♦ Drop and Repeat Capability
♦ Auto MDI / MDIX Detection
♦ Auto Negotiate 10/100 Ports
♦ Link and Activity Indicators for UTP
and Fiber Ports
♦ Multimode Fiber
SPECIFICATIONS:
Ethernet:
Data Rate
Auto negotiated ............ 10/100 Mb/s
Connector.................................RJ45
Optical:
-One Fiber ................1310/1550 nm
-Two Fiber ......................... 1310 nm
Loss Budget ............................11 dB
Distance....................................2 Km
Connector.........................….SC, ST
Power:
Voltage ................................ 12 VDC
Current.............................. < 500 mA
Connector........2 Pin Terminal Block
Power Supply:
Module: 12VDC (AFI Part #: PS-12D+)
Physical:
Temperature.............-40 °C to 75 °C
Humidity.........................5 % to 95 %
Size:
Module..................... 4¼” x 4¼” x 1⅛”
03/14/11JPK
The American Fibertek 50 Series transmits and receives (2) copper
10/100 BaseT Ethernet signals at the RJ45 ports and (2) optical 100
Base-FX over 1 or 2 multimode fibers. The system is comprised of
two or more units forming a communications link.
The system is designed to be completely transparent with auto
negotiation features which automatically configure the unit for the
correct speed (10/100BaseT). Auto MDI/MDIX operation eliminates
the potential need for crossover cables. Diagnostic indicators provide
a quick visual indication of system status.
ORDERING INFORMATION:
MX-50-FX-1F-SC One Fiber/Port Module FX Multimode SC Connector
MX-50-FX-1F-ST One Fiber/Port Module FX Multimode ST Connector
MX-50-FX-SC Two Fiber/Port Module FX Multimode SC Connector
MX-50-FX-ST Two Fiber/Port Module FX Multimode ST Connector
50-FX
SERIES
MULTIMODE
10/100 Base-T to 100 Base-FX Ethernet
Media Converter / 4 Port Switch
FEATURES:
Complete Fiber Optic to Twisted Pair
Media Interface
Auto Negotiate 10/100 Ports
Auto MDI/MDIX Detection
Link and Activity Indicators for UTP
and Fiber Ports
Singlemode and Multimode Fiber
Versions Available
SPECIFICATIONS:
Ethernet:
Data Rate
Auto negotiated..........10/100 Mb/s
Connector.................................RJ45
PoE (2 RJ45 ports)...............802.3af
Optical:
One Fiber...................1310/1550 nm
Two Fiber............................1310 nm
Source:
Multimode Two Fiber .............LED
Multimode One Fiber............Laser
Distance
FX 62/125u............................2 km
Loss Budget ...........................11 dB
Connector............................. SC, ST
Power:
Voltage ................................ 48 VDC
Current................................ 200 mA
Connector........2 Pin Terminal Block
Power Supply:
Module: 48VDC, 60W
(AFI Part #: PS-48V-60W)
Environmental:
Temperature...........-40 °C to +75 °C
Humidity.........................5 % to 95 %
Size:
Rack Card One Slot…….....6½” x 1” x 5”
ORDERING INFORMATION:
RX-50-FX-AA Two Fiber Per Port Rackcard
RRX-50-FX-AA One Fiber Per Port Rackcard
Replace AA with ST or SC to specify the desired
optical connector
10/11/11
The American Fibertek RX-50 Series transmits and receives (2) copper
10/100 Base-T Ethernet signals at the RJ45 ports and (2) optical 100 BaseFX at the fiber ports. Both single fiber and dual fiber versions of the optics are
available.
A single rackcard unit is capable of connecting up to (2) Series MX/MTX-46
(see separate datasheet) modules which provides the ben efit of reducing the
number of rackcards and corresponding subrack space and power supplies.
The system is designed to be completely transparent with auto negotiation
features which automatically configures the unit for the correct speed (10/100
Base-T). Auto MDI/MDIX operation eliminates the potential need for
crossover cables. Diagnostic indicators provide a quick visual indication of
system status.
Equipment may be ordered as stand alone modules or rack cards that are
mounted in the American Fibertek Card Cage: SR-20/2
MX-48
Series
MTX-46
Series
MTX-46
Series
Fibers
RRX-50
Series
RX-50
SERIES
MULTIMODE
