American Fibertek MX1M-FX-ST, MX1M-FX-SC Installation

MX 1MSeries:

10/100Mbps Multiport Media Converter

Installation and Operation Manual

MX1M-FX-SC (ST)

Models:

Standalone (Micro)

Multi Mode Multi Mode

MX1M-FX-SC MX1M-FX-ST

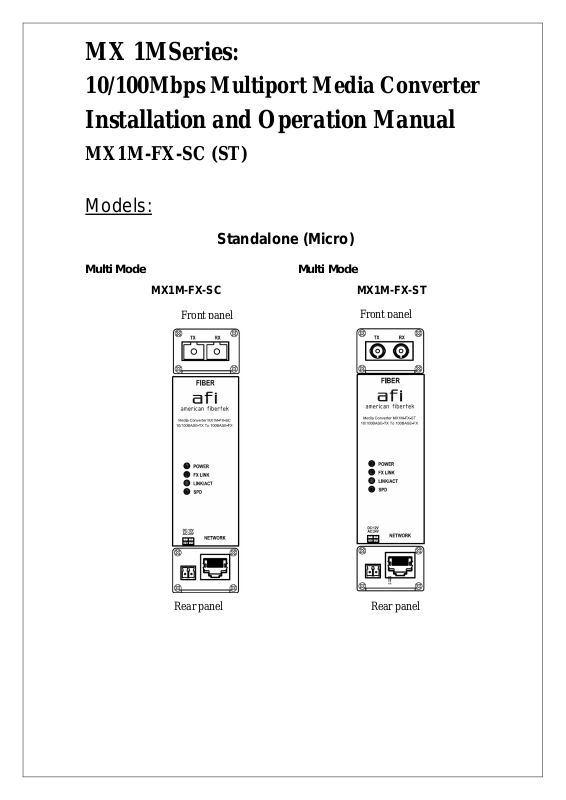

Front panel

Front panel



Rear panel

Rear panel

Instruction Manual & User Guide

MX1M-FX-SC (ST)Series:

Contents Page

1) Safety Instructions 3

(2) Product Overview 4

2.1 Introduction 4

2.2 Specifications: 4

(3) Installation 5

3.1 General 5

3.2 Installation requirements 5

3.3 Installation 5

3.4 Power Supply 5

(4) Cable connections & Set-up procedures 6

4.1 Cable Connections 6

4.2 setup procedure 7

(5) Operational Guides 8

5.1 Front Panel Indications: 8

5.2 Front Panel Drawings: 8

2

MX1M

1) Safety Instructions

Safety precautions applied in using the products:

The product manufactured has employed either the Class ONE Laser
or LED for the emission of an invisible light energy for the fibre-optic
transmitter. The following rules must be strictly abided to avoid any
accidental damage to human eye-sight or whatsoever.

1) Always make sure that the Fibre-optic connector is securely connected
to the product before and during the product is powered up, and never
disconnect the connector at any time in the working condition.

2) Never attempt to observe the Fibre-optic output port of the product or
have direct eyesight contact with it in any circumstances during the
power-up period.

3) Do not perform any testing, adjustment or alignment works other than
those specified in this manual. Or it may be hazardous to the personnel
involved or the product itself.

3

MX1M
