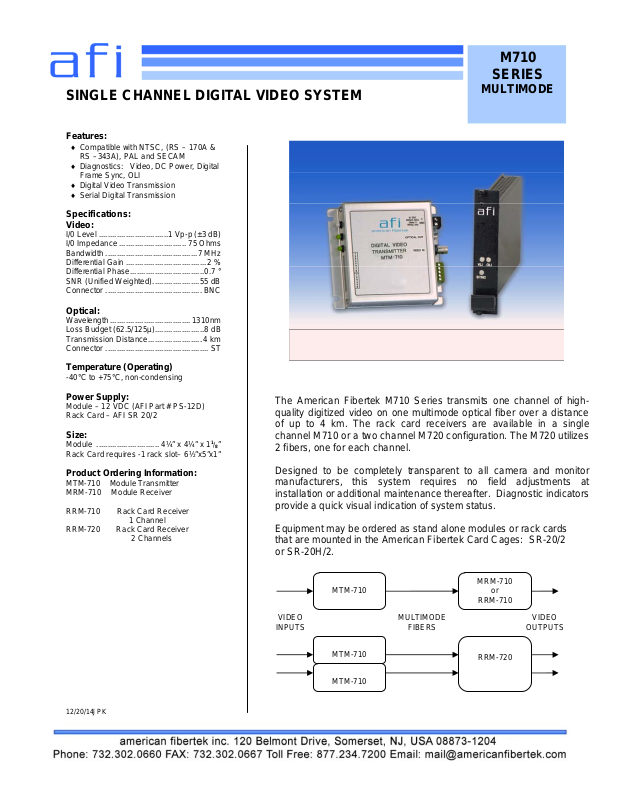

American Fibertek MTM-710, MRM-710, RRM-720, RRM-710 Specsheet
SINGLE CHANNEL DIGITAL VIDEO SYSTEM
M710
SERIES
MULTIMODE
Features:
Compatible with NTSC, (RS – 170A &
RS –343A), PAL and SECAM
Diagnostics: Video, DC Power, Digital
Frame Sync, OLI
Digital Video Transmission
Serial Digital Transmission
Specifications:
Video:
I/0 Level ...............................1 Vp-p (±3 dB)
I/0 Impedance ..............................75 Ohms
Bandwidth .........................................7 MHz
Differential Gain ....................................2 %
Differential Phase.................................0.7 °
SNR (Unified Weighted).....................55 dB
Connector ........................................... BNC
Optical:
Wavelength....................................1310nm
Loss Budget (62.5/125µ)......................8 dB
Transmission Distance........................ 4 km
Connector .............................................. ST
Temperature (Operating)
-40°C to +75°C, non-condensing
Power Supply:
Module – 12 VDC (AFI Part # PS-12D)
Rack Card – AFI SR 20/2
Size:
Module ............................4¼” x 4¼” x 1
Rack Card requires -1 rack slot– 6½”x5”x1”
1
/
8
Product Ordering Information:
MTM-710 Module Transmitter
MRM-710 Module Receiver
RRM-710 Rack Card Receiver
1 Channel
RRM-720 Rack Card Receiver
2 Channels
”
The American Fibertek M710 Series transmits one channel of highquality digitized video on one multimode optical fiber over a distance
of up to 4 km. The rack card receivers are available in a single
channel M710 or a two channel M720 configuration. The M720 utilizes
2 fibers, one for each channel.
Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at
installation or additional maintenance thereafter. Diagnostic indicators
provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards
that are mounted in the American Fibertek Card Cages: SR-20/2
or SR-20H/2.
12/20/14JPK
VIDEO
INPUTS
MTM-710
MTM-710
MTM-710
MULTIMODE
FIBERS
MRM-710
or
RRM-710
VIDEO
OUTPUTS
RRM-720
