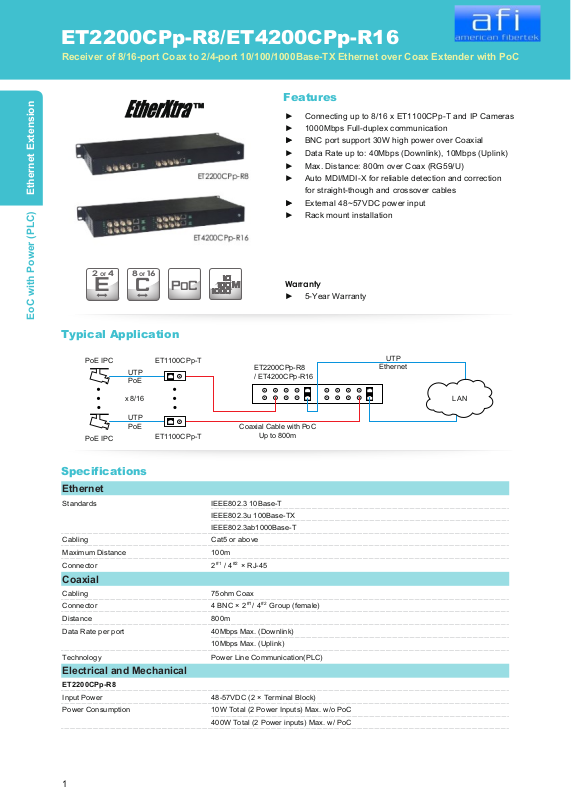

American Fibertek ET2200CPp-R8 Specsheet
ET2200CPp-R8/ET4200CPp-R16
Receiver of 8/16-port Coax to 2/4-port 10/100/1000Base-TX Ethernet over Coax Extender with PoC
Features
►
Connecting up to 8/16 x ET1100CPp-T and IP Cameras
►
1000Mbps Full-duplex communication
►
BNC port support 30W high power over Coaxial
►
►
Data Rate up to: 40Mbps (Downlink), 10Mbps (Uplink)
►
Max. Distance: 800m over Coax (RG59/U)
Auto MDI/MDI-X for reliable detection and correction
►
for straight-though and crossover cables
►
►
External 48~57VDC power input
►
Rack mount installation
Warranty
5-Year Warranty
►
Ethernet Extension
2 4
or
E
168
or
C
Po C
ET2200CPp-R8
ET4200CPp-R16
10
100
M
1000
EoC with Power (PLC)
Typical Application
PoE IPC
UTP
PoE
x8/16
UTP
PoE
PoE IPC
Specifications
Ethernet
Standards
Cabling
Maximum Distance
Connector
Coaxial
Cabling
Connector
Distance
Data Rate per port
Technology
Electrical and Mechanical
ET2200CPp-R8
Input Power
Power Consumption
ET1100CPp-T
ET1100CPp-T
ET2200CPp-R8
/ ET4200CPp-R16
Coaxial Cable with PoC
Up to 800m
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab1000Base-T
Cat5 or above
100m
#1 #2
2 / 4 × RJ-45
75ohm Coax
4 BNC × 2 / 4 Group (female)
800m
40Mbps Max. (Downlink)
10Mbps Max. (Uplink)
Power Line Communication(PLC)
48-57VDC (2 × Terminal Block)
10W Total (2 Power Inputs) Max. w/o PoC
400W Total (2 Power inputs) Max. w/ PoC
#1 #2
UTP
Ethernet
LAN
1
www.ot-systems.com
Specifications
ET4200CPp-R16
Input Power
Power Consumption
Protection
Reverse Polarity
Overload Protection
Dimensions (W x D x H)
Weight
Casing
Mounting
Environmental
Operation Temperature
Storage Temperature -20˚C to 75˚C (-4˚F to 167˚F)
Relative Humidity
MTBF
Regulatory Approvals
ISO9001
FCC Part 15 Class A
EN55022 Class A
Surge Protection
RJ45: 1KV
BNC: 2KV
Power: 500V
48-57VDC (4 × Terminal Block)
20W Total (4 Power Inputs) Max. w/o PoC
800W Total (4 Power inputs) Max. w/ PoC
Present
Present
483 × 220 × 44 mm (1RU)
#1 #2
1.5 / 2 Kg
Aluminum case
Rack Mount
0˚C to 50˚C (32˚F to 122˚F)
5% to 90% non-condensing
> 100,000 hrs
Ethernet Extension
EoC with Power (PLC)
#1
ET2200CP-R8
#2
ET4200CPp-R16
Ordering Information
Available Model Description
ET2200CPp-R8
ET4200CPp-R16
Optional Accessories (to be purchased separately)
Power Supply
Package Checklist
Receiver of Ethernet over Coax Extender with PoC
Quick Installation Guide
Receiver of 8-port Coax to 2-port 10/100/1000Base-TX Ethernet over Coax Extender with PoC
Receiver of 16-port Coax to 4-port 10/100/1000Base-TX Ethernet over Coax Extender with PoC
Please refer to the power supply information at the back of the catalogue, our website www.ot-systems.com,
or consult OTS sales at sales@ot-systems.com for your power system design properly.
x 1
x 1
OT Systems Ltd., May 2016
Due to continuous improvement, all product specifications are subject to change without further notice.
