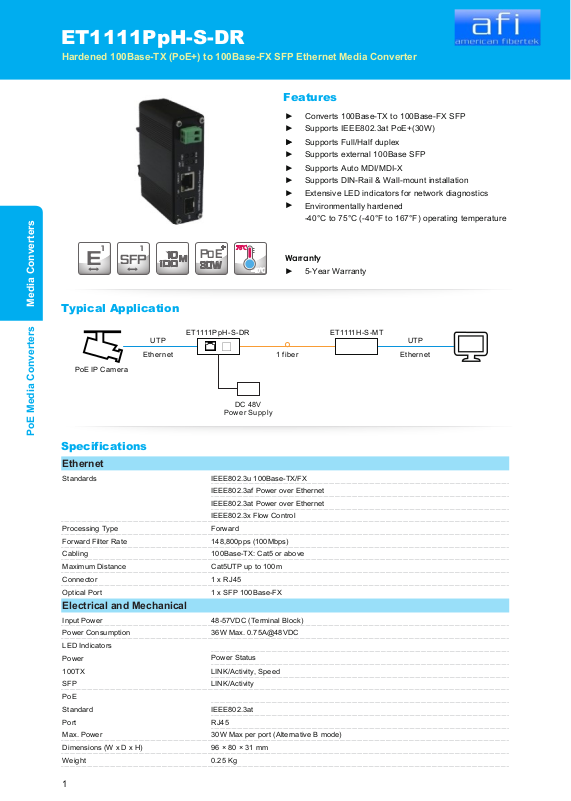

American Fibertek ET1111PpH-S-DR Specsheet
ET1111PpH-S-DR
Hardened 100Base-TX (PoE+) to 100Base-FX SFP Ethernet Media Converter
Features
►
Converts 100Base-TX to 100Base-FX SFP
►
Supports IEEE802.3at PoE+(30W)
►
Supports Full/Half duplex
►
►
Supports external 100Base SFP
►
Supports Auto MDI/MDI-X
►
Supports DIN-Rail & Wall-mount installation
►
Extensive LED indicators for network diagnostics
►
Environmentally hardened
-40°C to 75°C (-40°F to 167°F) operating temperature
1
E
Media Converters
Typical Application
IPoE P Camer a
SFP
PoE Media Converters
Specifications
Ethernet
Standards
Processing Type
Forward Filter Rate
Cabling
Maximum Distance
Connector
Optical Port
Electrical and Mechanical
Input Power
Power Consumption
LED Indicators
Power
100TX
SFP
PoE
Standard
Port
Max. Power
Dimensions (W x D x H)
Weight
1
10
M
100
UTP UTP
Etherne t Etherne t1 fiber
ET1111PpH-S -D R ET1111H-S-M T
+
PoE
30W
DC 48V
Power Sup pl y
IEEE802.3u 100Base-TX/FX
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3x Flow Control
Forward
148,800pps (100Mbps)
100Base-TX: Cat5 or above
Cat5UTP up to 100m
1 x RJ45
1 x SFP 100Base-FX
48-57VDC (Terminal Block)
36W Max. 0.75A@48VDC
Power Status
LINK/Activity, Speed
LINK/Activity
IEEE802.3at
RJ45
30W Max per port (Alternative B mode)
96 × 80 × 31 mm
0.25 Kg
Warranty
►
5-Year Warranty
1
www.ot-systems.com
Specifications
Casing
Mounting Options
Environmental
Operation Temperature
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity
MTBF
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI
EN55022:2010+AC:2011, Class A
EN61000-3-2:2006+A1: 2009+A2:2009
EN61000-3-3: 2013
EN55024:2010
EMS
IEC 61000-4-2:2008(ESD)
IEC 61000-4-3:2010(RS)
IEC 61000-4-4:2012(EFT)
IEC61000-4-5: 2014(Surge)
IEC61000-4-6:2013(CS)
IEC61000-4-8:2009(PFMF)
Aluminum case
DIN Rail / Wall Mount
-40˚C to 75˚C (-40˚F to 167˚F)
5% to 95% non-condensing
> 200,000 hrs
Media Converters
Ordering Information
Available Model Description
ET1111PpH-S-DR
Optional Accessories (to be purchased separately)
SFP
Power Supply
Package Checklist
Fast Ethernet PoE Media Converter
Din Rail Clip
Wall Mount Plate
Quick Installation Guide
Hardened 100Base-TX (PoE+) to 100Base-FX SFP Ethernet Media Converter
(S)=SFP Option. Please select your SFP on our SFP Modules page at the back of the catalogue
or our website www.ot-systems.com for details.
Please refer to the power supply information at the back of the catalogue, our website www.ot-systems.com,
or consult OTS sales at sales@ot-systems.com for your power system design properly.
PoE Media Converters
x 1
x 1
x 1
x 1
OT Systems Ltd., Oct 2015
Due to continuous improvement, all product specifications are subject to change without further notice.
