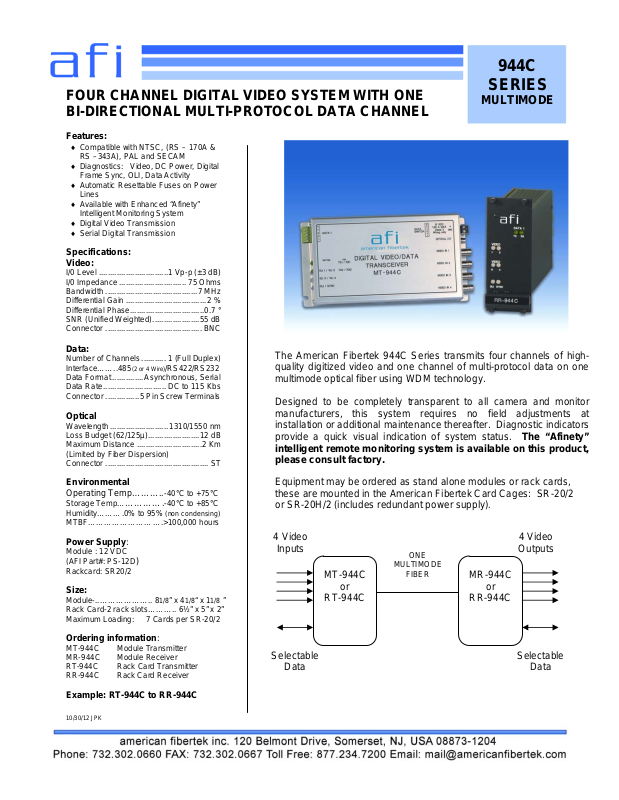

American Fibertek MT-944C, MR-944C, 944C, RR-944C Specsheet
944C
FOUR CHANNEL DIGITAL VIDEO SYSTEM WITH ONE
BI-DIRECTIONAL MULTI-PROTOCOL DATA CHANNEL
Features:
Compatible with NTSC, (RS – 170A &
RS –343A), PAL and SECAM
Diagnostics: Video, DC Power, Digital
Frame Sync, OLI, Data Activity
Automatic Resettable Fuses on Power
Lines
Available with Enhanced “Afinety”
Intelligent Monitoring System
Digital Video Transmission
Serial Digital Transmission
Specifications:
Video:
I/0 Level ...............................1 Vp-p (±3 dB)
I/0 Impedance ..............................75 Ohms
Bandwidth .........................................7 MHz
Differential Gain ....................................2 %
Differential Phase.................................0.7 °
SNR (Unified Weighted).....................55 dB
Connector ........................................... BNC
Data:
Number of Channels........... 1 (Full Duplex)
Interface……..485
Data Format..............Asynchronous, Serial
Data Rate............................ DC to 115 Kbs
Connector ...............5 Pin Screw Terminals
Optical
Wavelength..........................1310/1550 nm
Loss Budget (62/125µ).......................12 dB
Maximum Distance .............................2 Km
(Limited by Fiber Dispersion)
Connector .............................................. ST
Environmental
Operating Temp………..
Storage Temp…
Humidity……….0% to 95%
MTBF……………………….>100,000 hours
Power Supply:
Module : 12 VDC
(AFI Part#: PS-12D
Rackcard: SR20/2
Size:
Module-..……………….. 81/8” x 41/8“ x 11/8 ”
Rack Card-2 rack slots……….. 6½” x 5” x 2”
Maximum Loading: 7 Cards per SR-20/2
Ordering information:
MT-944C Module Transmitter
MR-944C Module Receiver
RT-944C Rack Card Transmitter
RR-944C Rack Card Receiver
Example: RT-944C to RR-944C
10/30/12 JPK
(2 or 4 Wire)/RS422/RS232
-40°C to +75°C
………….-40°C to +85°C
(non condensing)
)
The American Fibertek 944C Series transmits four channels of highquality digitized video and one channel of multi-protocol data on one
multimode optical fiber using WDM technology.
Designed to be completely transparent to all camera and monitor
manufacturers, this system requires no field adjustments at
installation or additional maintenance thereafter. Diagnostic indicators
provide a quick visual indication of system status. The “Afinety”
intelligent remote monitoring system is available on this product,
please consult factory.
Equipment may be ordered as stand alone modules or rack cards,
these are mounted in the American Fibertek Card Cages: SR-20/2
or SR-20H/2 (includes redundant power supply)
4 Video
Inputs
MT-944C
or
RT-944C
Selectable
Data
SERIES
MULTIMODE
.
4 Video
ONE
MULTIMODE
FIBER
MR-944C
or
RR-944C
Outputs
Selectable
Data
