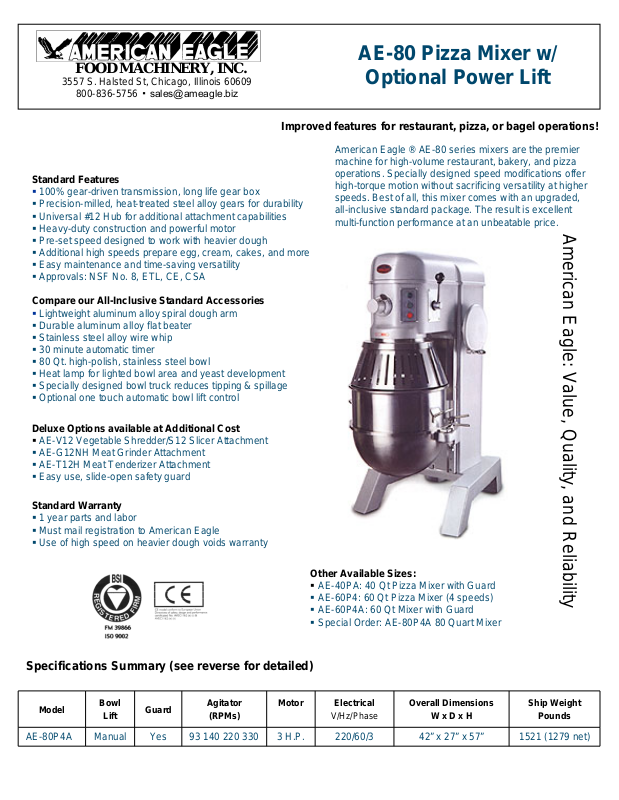

Page 1
FOOD MACHINERY, INC.
3557 S. Halsted St, Chicago, Illinois 60609
800-836-5756 ▪
Standard Features
100% gear-driven transmission, long life gear box
Precision-milled, heat-treated steel alloy gears for durability
Universal #12 Hub for additional attachment capabilities
Heavy-duty construction and powerful motor
Pre-set speed designed to work with heavier dough
Additional high speeds prepare egg, cream, cakes, and more
Easy maintenance and time-saving versatility
Approvals: NSF No. 8, ETL, CE , CSA
Compare our All-Inclusive Standard Accessories
Lightweight aluminum alloy spiral dough arm
Durable aluminum alloy flat beater
Stainless steel alloy wire whip
30 minute automatic timer
80 Qt. high-polish, stainless steel bowl
Heat lamp for lighted bowl area and yeast development
Specially designed bowl truck reduces tipping & spillage
Optional one touch automatic bowl lift control
Improved features for restaurant, pizza, or bagel operations!
AE-80 Pizza Mixer w/
Optional Power Lift
American Eagle ® AE-80 series mixers are the premier
machine for high-volume restaurant, bakery, and pizza
operations. Specially designed speed modifications offer
high-torque motion without sacrificing versatility at higher
speeds. Best of all, this mixer comes with an upgraded,
all-inclusive standard package. The result is excellent
multi-function performance at an unbeatable price.
American Eagle: Value, Quality, and Reliability
Deluxe Options availabl e a t Additional Cost
AE-V12 Vegetable Shredder/S12 Slicer Attachment
AE-G12NH Meat Grinder Attachment
AE-T12H Meat Tenderizer Attachment
Easy use, slide-open safety guard
Standard Warranty
1 year parts and labor
Must mail registration to American Eagle
Use of high speed on heavier dough voids warranty
Specifications Summary (see reverse for detailed)
Model
Bowl
Lift
Guard
Agitator
(RPMs)
Motor Electrical
Other Available Sizes:
AE-40PA: 40 Qt Pizza Mixer with Guard
AE-60P4: 60 Qt Pizza Mixer (4 speeds)
AE-60P4A: 60 Qt Mixer with Guard
Special Order: AE-80P4A 80 Quart Mixer
Overall Dimensions
V/Hz/Phase
W x D x H
Ship Weight
Pounds
AE-80P4A Manual Yes 93 140 220 330 3 H.P. 220/60/3 42” x 27” x 57” 1521 (1279 net)
Page 2
AE-80 Pizza Mixer w/
FOOD MACHINERY, INC.
3557 S. Halsted St, Chicago, Illinois 60609
800-836-5756 ▪
Optional Power Lift
Specifications
Due to continuous product improvement, specifications may change without notice
Motor: 3 HP motor has overload
protection for components. Machine
must be powered off and on after the
overload is triggered.
Transmission: Easy-to-maintain
transmission and grease packed ball
bearings last for years. Gears and
shaft made from heat-treated steel
alloy, and mounted on ball bearings.
Electrical: 6 ft. flexible three wire
cord. Installation must be made by
qualified electrician in accordance
with all applicable laws & codes.
4 Speed Machines:
220V /60 Hz / 3Ph
Base Finish: NSF approved enamel
gray paint. Heat treated to resist rust,
scratches, and dents.
Construction: High polish stainless
steel food surfaces meets industry
sanitation demands. Heavy duty
stainless steel and seamless
construction make this mixer easy to
maintain with low cost of ownership.
Agitator Speeds: Stop mixer to
change speed gears.
80 P 4 A
1 s t Stir 93
2 n d Low 144
3 r d Med 220
4 t h High 330
Upgraded Design Features
Safety Guard:
Heavy gauged metal safety guard
stands up to the toughest challenges.
High polish stainless steel meets food
industry sanitation needs. Interlocking
mechanism prevents mixing until
guard is fully closed.
Automatic Bowl Lift Control:
One touch of a button lifts and lowers
the bowl. Then, simply release the
bowl from arm and wheel the bowl
away.
Shipping Information:
Freight Class: 85
Net Weight: 1279 lbs. (580 kgs)
Shipping Weight: 1521 lbs. (690 kgs.)
Packing Crate: 52”L x 39”W x 67”H
(132 cm x 99 cm x 170 cm)
The weight and dimensions of this
skid are included above and may vary
from shipment to shipment.
Machine Dimensions:
Foot Print = 21” x 32”
(53 cm x 81 cm)
Overall Width = 27.9” (70.8 cm)
Overall Length = 42” (106.7 cm)
Overall Height = 57” (145 cm)
#12 Compatible Attachments
Your AE-80 mixer comes equipped
with a universal #12 hub capable of
extending the versatility and function
of your mixer. We recommend these
great American Eagle products:
AE-T12H Meat Tenderizer H ead
Attaches to the #12 Universal hub and
transforms tougher meats into
delicious, salable product. See meat
tenderizer spec sheet for details.
AE-V12 Shredder and Grater
Featuring interchangeable stainless
steel plates, the shredder/grater
attachment will handle a variety of
vegetables, fruits, and cheeses. See
specification sheet for details.
AE-S12 Vegetable Slicer
Featuring 100% Stainless steel plates,
this versatile slicer adjust s to 3 size s
for a variety of professional cuts. See
specification sheet for details.
AE-G12NH Meat Grinder Head
100% stainless st e el d eliver s
exceptional performance and
durability. Choose from 10 different
plate sizes and make everything from
hamburger to sausage. See meat
grinder sheet for details.
Dimensions (inches):
