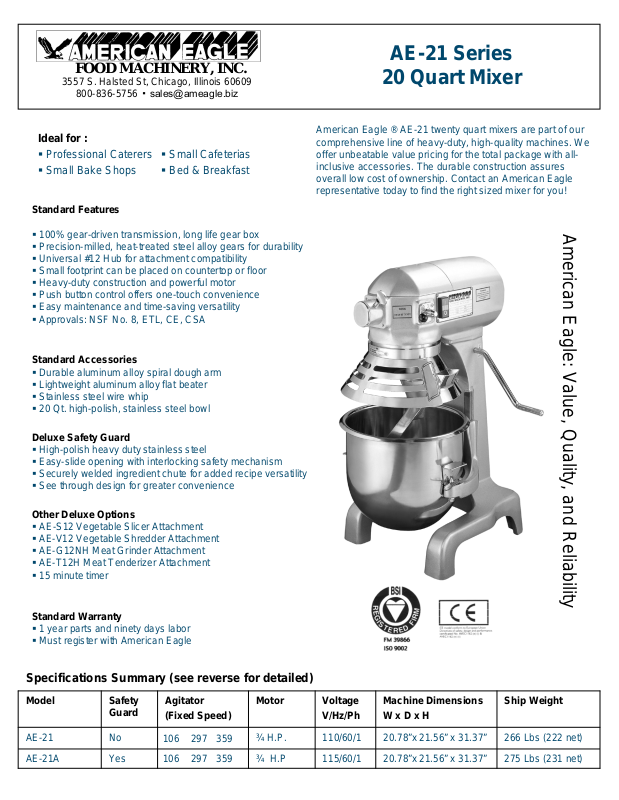

Page 1
FOOD MACHINERY, INC.
3557 S. Halsted St, Chicago, Illinois 60609
800-836-5756 ▪ [email protected]
AE-21 Series
20 Quart Mixer
Ideal for :
Professional Caterers
Small Bake Shops
Standard Features
100% gear-driven transmission, long life gear box
Precision-milled, heat-treated steel alloy gears for durability
Universal #12 Hub for attachment compatibility
Small footprint can be placed on countertop or floor
Heavy-duty construction and powerful motor
Push button control offers one-touch convenience
Easy maintenance and time-saving versatility
Approvals: NSF No. 8, ETL, CE, CSA
Standard Accessories
Durable aluminum alloy spiral dough arm
Lightweight aluminum alloy flat beater
Stainless steel wire whip
20 Qt. high-polish, stainless steel bowl
Small Cafeterias
Bed & Breakfast
American Eagle ® AE-21 twenty quart mixers are part of our
comprehensive line of heavy-duty, high-quality machines. We
offer unbeatable value pricing for the total package with allinclusive accessories. The durable construction assures
overall low cost of ownership. Contact an American Eagl e
representative today to find the right sized mixer for you!
American Eagle: Value, Quality, and Reliability
Deluxe Safety Guard
High-polish heavy duty stainless steel
Easy-slide opening with interlocking safety mechanism
Securely welded ingredient chute for added recipe versatility
See through design for greater convenience
Other Deluxe Options
AE-S12 Vegetable Slicer Att achm ent
AE-V12 Vegetable Shredder Attachment
AE-G12NH Meat Grinder Attachment
AE-T12H Meat Tenderizer Attachment
15 minute timer
Standard Warranty
1 year parts and ninety days labor
Must register with American Eagle
Specifications Summary (see reverse for detailed)
Model
Safety
Guard
(Fixed Speed)
MotorAgitator
Voltage
V/Hz/Ph
Ship WeightMachine Dimensions
W x D x H
106 297 359
106 297 359
266 Lbs (222 net)20.78”x 21.56” x 31.37”110/60/1¾H.P.NoAE-21
275 Lbs (231 net)20.78”x 21.56” x 31.37”115/60/1¾H.PYesAE-21A
Page 2
FOOD MACHINERY, INC.
3557 S. Halsted St, Chicago, Illinois 60609
800-836-5756 ▪ [email protected]
20 Quart Mixers
Specifications
Due to continuous product improvement, specifications may change without notice
AE-21 Series
Motor: ¾ HP & 11Amps. Motor
overload protection w/ reset button.
Machine must be powered off and on
after the overload is triggered.
Transmission: Easy-to-maintain
transmission and lubrication lasts for
years. Long lasting gears and shaft
made from heat-treated steel alloy,
and mounted on ball bearings.
Electrical:
6 ft. flexible three wire cord and
ground plug.
115V /60 Hz / 1Ph (11 Amps)
220V /60 Hz / 3Ph (2.2 Amps)*
*Special order only
Construction: High polish stainless
steel and aluminum alloy is sanitary,
lightweight, and durable. Quality
materials make this mixer easy to
maintain with low cost of ownership.
Base Finish: NSF approved enamel
gray paint. Heat treated to resist rust,
scratches, and dents.
Agitator Speeds:
Stop machine to shift speed gears
1st Low 106
2nd Med 297
3rd High 359
Deluxe Options
Safety Guard
Heavy gauged metal safety guard
stands up to the toughest challenges.
High polish stainless steel meets food
industry sanitation needs. Interlocking
mechanism prevents mixing until
guard is fully closed. Ingredient chute
securely welded and fully attached.
Weight & Dimensions
Shipping Information:
Freight Class:85
Net Weight: 222 lbs. (101 kgs.)
Shipping Weight: 266 lbs.(121 kgs.)
*Net Weight: 231 lbs. (105 kgs.)
*Shipping Weight: 275 lbs.(125 kgs.)
*Indicates weight inclusive of guard
Packed: 20.78” x 24.31” x 36.86”
(53 cm x 62 cm x 94 cm)
Crates are affixed to a skid (pall et).
The weight and dimensions of this
skid are not included above and may
vary from shipment to shipment.
Machine Dimensions:
Foot Print = 16” x 15.5”
(40.8cm x 39.4cm)
Overall Width = 20.78” (53 cm)
Overall Depth = 21.57” (55 cm)
Overall Height = 31.37” (80 cm)
#12 Compatible Attachments
Your AE-21 series mixer comes
equipped with a universal #12 hub
capable of extending the versatility
and function of your mixer. We
recommend these great American
Eagle products:
AE-T12H Meat Tenderizer Head
Attaches to the #12 Universal hub and
transforms tougher meats into
delicious, salable product. See meat
tenderizer spec sheet for details.
AE-V12 Shredder/AE-S12 Slicer
Featuring 100% Stainless steel plates,
both shredder and slicer fit into the
universal size #12 hub. Will handle
vegetables, fruits, and cheeses. See
shredder spec sheet for details.
AE-G12NH Meat Grinder Head
100% stainless steel delivers
exceptional performance and durability.
Choose from 10 different plate sizes
and make everything from hamburger
to sausage. See meat grinder spec
sheet for details.
Inches:
20.78 ”
31”
21.5 ”
Millimeters:
687
530 mm
287
395
550 mm
516
800
408
