American Dynamics AD1314, RTHOUTDR Specsheet

FEATURES

Indoor/outdoor housing

•

Housing length

•

accommodates most
cameras and zoom lenses

Cover opens 180˚ for

•

easy camera access
Tough, high-impact

•

polymer construction
IP4/NEMA-3R

•

protection

Automatic regulating

•

heater available
24 VAC blower, optional

•

24 VAC heater, optional

•

Tamper resistant

•

Electrically isolated

•

camera platform
Multiple cable pass

•

mounts available

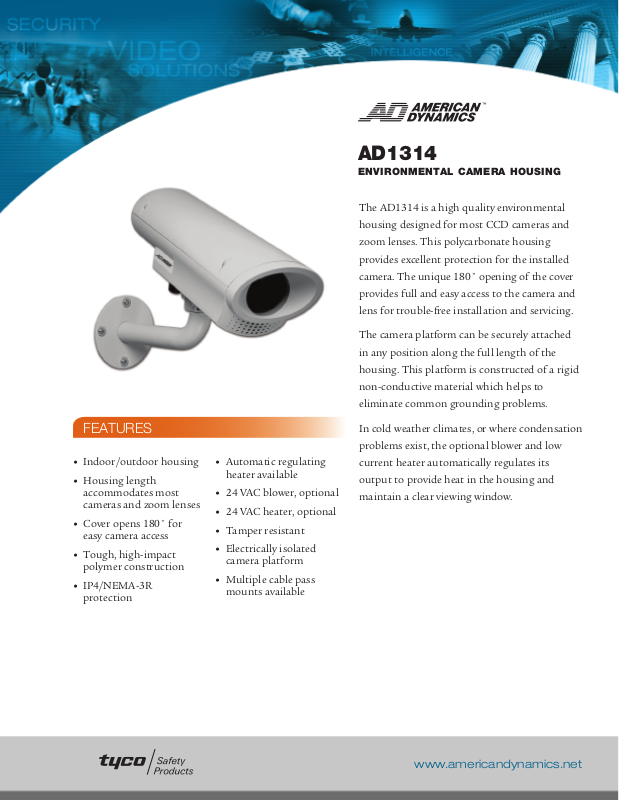

AD1314

ENVIRONMENTAL CAMERA HOUSING

The AD1314 is a high quality environmental
housing designed for most CCD cameras and
zoom lenses. This polycarbonate housing
provides excellent protection for the installed
camera. The unique 180˚ opening of the cover
provides full and easy access to the camera and
lens for trouble-free installation and servicing.

The camera platform can be securely attached
in any position along the full length of the
housing. This platform is constructed of a rigid
non-conductive material which helps to
eliminate common grounding problems.

In cold weather climates, or where condensation
problems exist, the optional blower and low
current heater automatically regulates its
output to provide heat in the housing and
maintain a clear viewing window.

www.americandynamics.net

SPECIFICATIONS

AMERICAN DYNAMICS ENVIRONMENTAL CAMERA HOUSING

158 mm

(6 7/32 in)

76 mm (3 in)

Window
Opening

Air Exhaust

141 mm

(5 9/16 in)

1/4 in - 20 x 1/2 in
Bolts (2)

41 mm

(1 5/8 in)

203 mm

(8 in)

6.3 mm
(1/4 in)

304 mm

(12 in)

Air Intake

8

2 1/2

1 1/2

8

Model Numbers

AD1314 . . . . . . . . . . . . . . . . . . . . . .Environmental Camera Housing

AD1314-HB24* . . . . . . . . . . . . . . .Environmental Camera Housing 24 VAC

RTHOUTDR* . . . . . . . . . . . . . . . .Environmental Camera Housing with wall

* This housing must be powered by a Class II source. This housing is to be used with a

camera that meets Class II requirements.

Mechanical

Construction

Housing . . . . . . . . . . . . . . . . . . .Magnum®941 Polymer

Viewing Window . . . . . . . . . . .4.8 mm (0.19 in) Lexan

Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray

Finish . . . . . . . . . . . . . . . . . . . . . . . .Epoxy

Dimensions (H x W x D) . . . . . . .141 x 158 x 449 mm

Unit Weight

Without Sunshield . . . . . . . . . .1.8 kg (4.0 lbs)

Shipping Weight . . . . . . . . . . . .2.4 kg (3.3 lbs)

With Sunshield . . . . . . . . . . . . .3.2 kg (7.0 lbs)

Shipping Weight . . . . . . . . . . . .3.8 kg (8.4 lbs)

Cable Entry . . . . . . . . . . . . . . . . . . .Via cable pass mount

Maximum Camera/

Lens Length . . . . . . . . . . . . . . . . . .304.8 mm (12 in)

Heater

Type . . . . . . . . . . . . . . . . . . . . . . .Thermostatically controlled pad heater

Supply Voltage . . . . . . . . . . . . .24 VAC

Power . . . . . . . . . . . . . . . . . . . . . .0.63 A

Weight . . . . . . . . . . . . . . . . . . . . .68 g (0.15 lbs)

heater and blower installed

mount and 24 VAC heater and blower
installed

®

(5.56 x 6.2 x 17.68 in)

Housing with Sunshield Housing in open position

Housing

Environmental

Weatherproof Standard . . . . . . . .IP4 (NEMA-3R)

Operating Temperature . . . . . . . .-23˚ to 43˚ C (-10˚ to 110˚ F) with heater

and blower 85% (non-condensing)

Accessories

AD1314-SS . . . . . . . . . . . . . . . . . . .Sunshield

AD1314-H24 . . . . . . . . . . . . . . . . .24 VAC heater

AD1314-B24 . . . . . . . . . . . . . . . . . .24 VAC blower

Recommended Housing Mounts

ADCHMTCEIL . . . . . . . . . . . . . . .Ceiling mount 9.6 kg (20 lbs) capacity

ADCHMTWALL . . . . . . . . . . . . . .Wall mount 9.6 kg (20 lbs) capacity

ADCHMTPOLE . . . . . . . . . . . . . .Pole mount 9.6 kg (20 lbs) capacity

ADCHMTCRNR . . . . . . . . . . . . . .Corner mount 9.6 kg (20 lbs) capacity

ADCHMTPED . . . . . . . . . . . . . . . .Pedestal mount 9.6 kg (20 lbs) capacity

Regulatory

Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044

Pole Mount Side View

Pedestal Mount Side View

ADCHMTPOLE

Wall Mount Side View

ADCHMTWALL

ADCHMTPED

Ceiling Mount Side View

ADCHMTCEIL

Mounts

Corner Mount Side View

ADCHMTCRNR

Product specifications and availability subject to change without notice.
Certain product names mentioned herein may be trade names and/or
registered trademarks of other companies.

©2003 Sensormatic Electronics Corporation

VS265-02 11/03 L
