American Dynamics ADMPLT32, ADMPLT16C2, ADMPLT32C2, ADMPLT16C3, ADMPLT32C3 Specifications
...
Matrix Switcher Solutions
“The capital expenditure is not the
issue. It is one thing to purchase
a matrix switcher; it is another
thing to maintain it. We bought
ours from American Dynamics
and have no regrets. I’m very
appreciative of the training
classes. The quality of instruction
and technical
support have helped us
immensely.”
- Ron Ackerman
Security Consultant
Regina Airport Authority, Canada

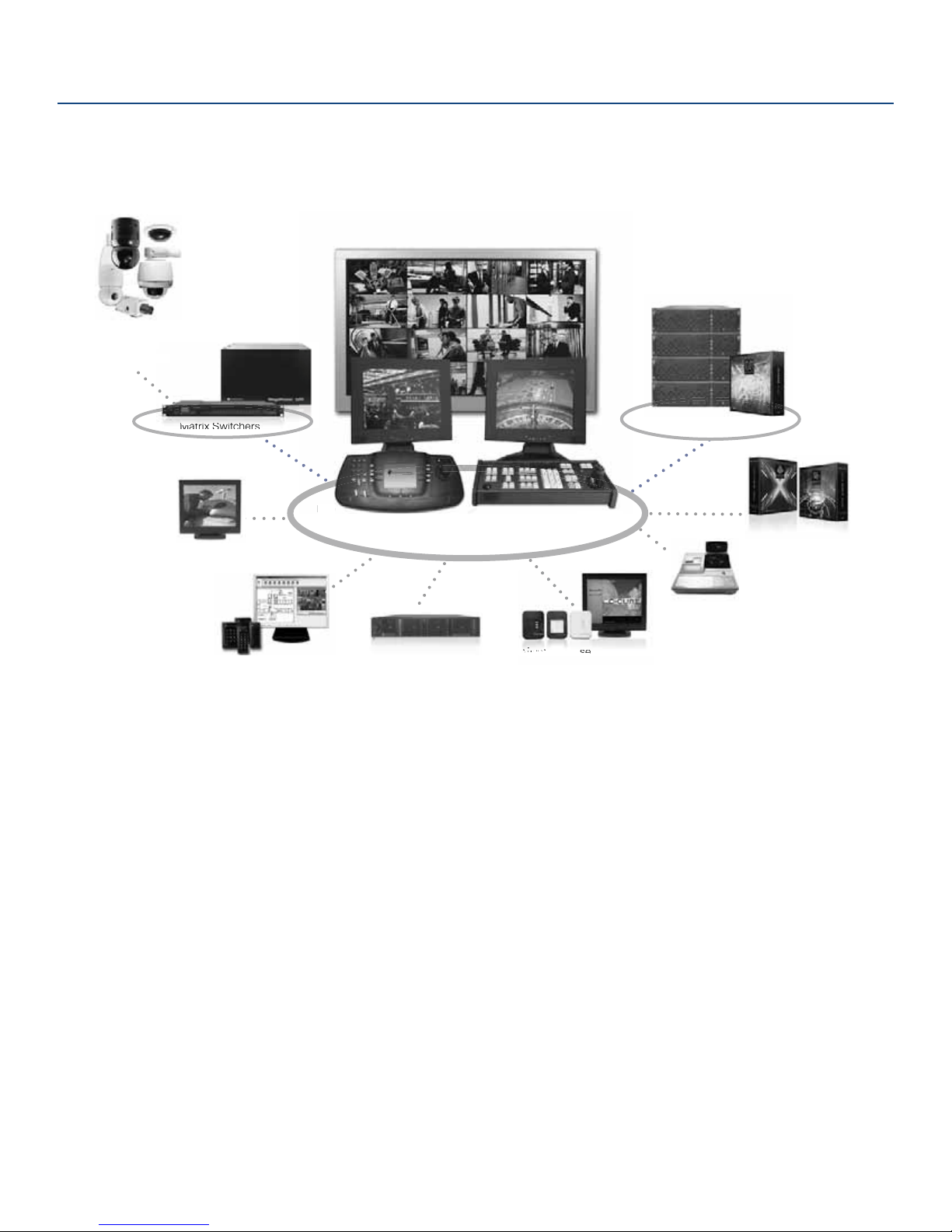

Matrix Switchers
ur matrix switchers give you the basic building blocks for developing a video surveillance
O
system tailored to the dimensions your situation dictates. Every one of our matrix switchers
are full cross point, equipped with dome control and sophisticated alarm handling. You can program a
variety of responses from one or multiple alarms to include any combination of salvos, presets, patterns,
auxiliary actions, and more. The greatest strength of our matrix switchers besides proven reliability, lies
with in their scalability, they start as small as 16 inputs by 4 outputs and grow your system to
accommodate thousands of cameras and domes.

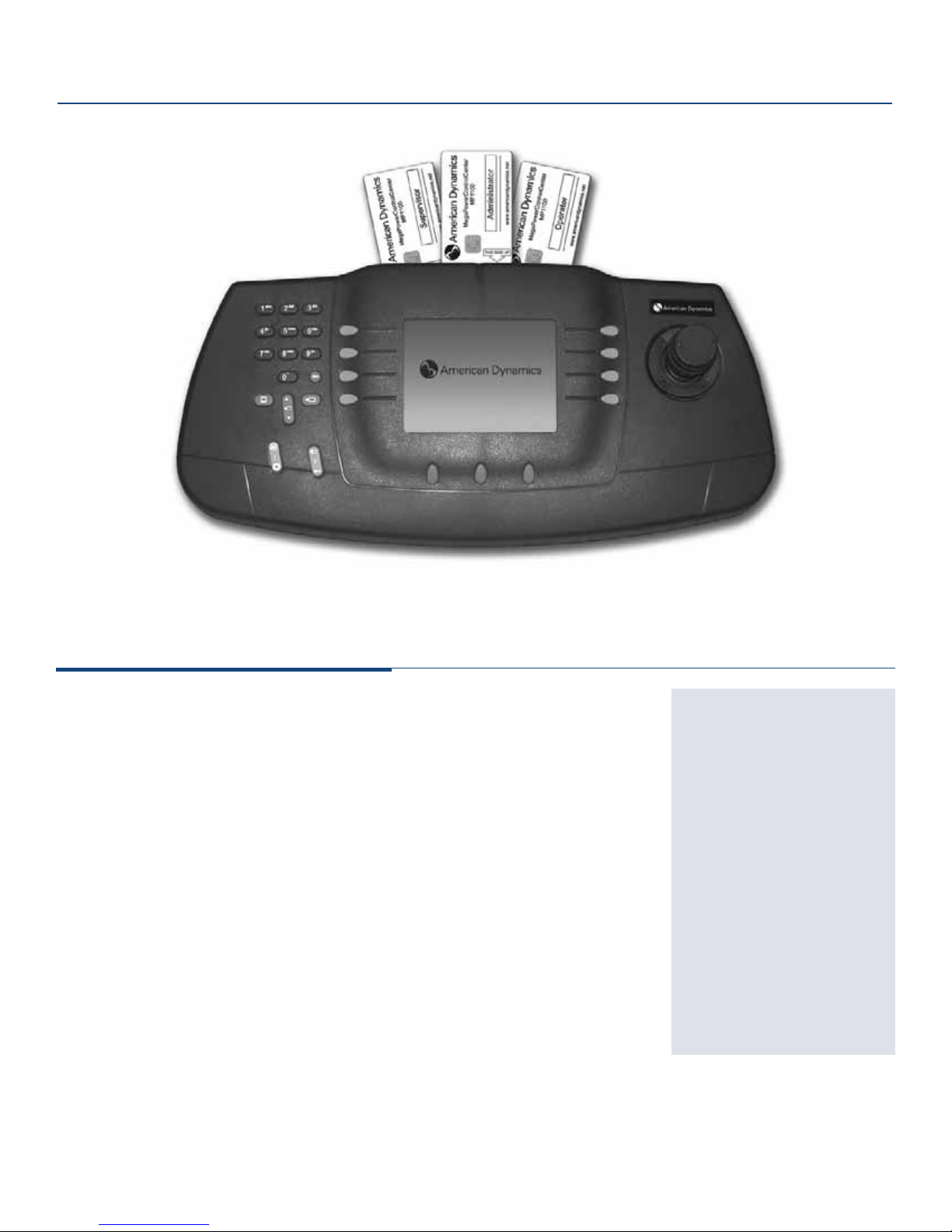

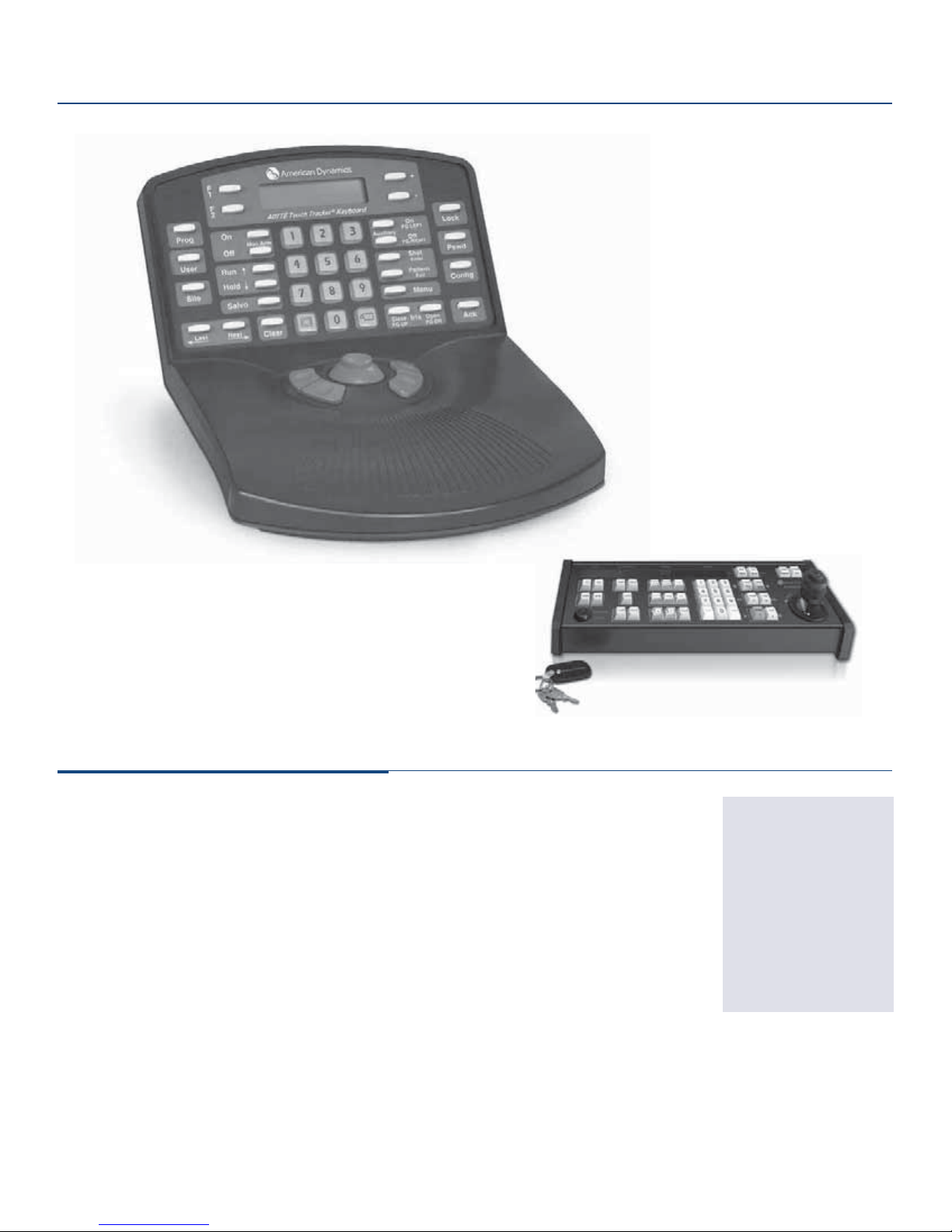

We also provide a complete selection of keyboards, from basic to the most feature-rich. Macros,
multifunction keys, and smart cards make them easy to use. Whether you prefer a small footprint or a
traditional industrial design, we have the right keyboard for you.
MegaPower LT
Created for busy environments like retail stores, hospitals, and
schools, the MegaPower LT provides a complete video surveillance
system at an affordable price. Small and versatile, it features
advanced alarm handling capabilities usually reserved for larger
systems as well as video loss detection on all channels. Ideal for
sites that require retrofitting, the MegaPower LT is compact and fits
just about anywhere - in racks or on walls, even under a desk.
Choose from 16 and 32 input models with 4 or 8 outputs.
MegaPower 48 Plus
Scaled to small and mid-sized operations, the MegaPower 48 Plus
incorporates features you would expect only in the largest of
systems: video loss detection with programmable responses,
wireless text messaging on alarm, a choice of keyboards, and more.
With our recorder control devices, you can integrate DVRs and play,
pause, stop, record, rewind, fast forward, and eject without ever
leaving the console. This matrix switcher provides 48 inputs, which
can be expanded to 288. Eight of its 16 video outputs include text
overlay.
MegaPower 3200
The MegaPower 3200 is the ultimate modular, scalable video matrix
switcher/controller system. This full-featured, pre-packaged system
is designed for the largest and most sophisticated users of CCTV’s
such as airports, corporate or government complexes, casinos, and
large medical centers. The system can start with a single CPU and
switcher bay. It will support upgrades and enhancements, including
more inputs and outputs, and is a bridge to the hybrid analog/digital
future. The MegaPower 3200 expands upon the time-proven
MegaPower 1024 matrix switcher technology, providing up to 3200
video inputs and 256 video outputs. The MegaPower 3200 supports
up to 64 keyboards in the single CPU configuration and 128
keyboards in the dual CPU configuration. Hot switch capability no
longer requires the accessor y Hot Switch unit. New features include
the re-designed EASY CPU configuration and monitoring software,
activity logging, and snap shot. The MegaPower 3200 suppor ts up
to 30 satellite systems.
American Dynamics 99
Matrix Switchers
MATRIX SWITCHERS COMPARISON TABLE
MegaPower LT MegaPower 48 Plus MegaPower 3200
Maximum System Size
(video input x video output)
Minimum System Size
(video input x video output)
Modular Design No No Yes, (16 x 4)
Looping Inputs Yes, Auto Termination No Yes, with ADULP
Maximum Keyboards/Users 8 244 (32 per unit) 128
Internal Video Loss Detection Yes Yes Yes ( AD2 010D B VL)
CPU Hot Switch Option No No Yes, inherent
Windows Setup Package No Yes Yes
System Programming Back-up Yes Yes Yes
Macro Control Via ADCC1100 & AD2089 Via ADCC1100 & AD2089 Via ADCC1100 & AD2089
Multiple Languages Ye s Yes Yes
Multi-Site Control Yes Yes Yes
Alarm Inputs 16 or 32
Alarm Tables 110 10
Alarm Titles Ye s Yes Yes
Text Messaging on Alarm No Yes Yes
On Screen Text Yes Ye s Ye s
Preset Titles No 4,096 No
Views/View Titles Yes No No
Individual Monitor Tours No Yes Yes
Universal Tours 16 64 64
Salvo Switching No 64 64
System Partitioning Yes Ye s Ye s
Priority Levels 88 8
User Passwords No 64 64
Event Timers No 35 (also includes alarm table) 35
Monitor Status Menu No Yes No
Dome Protocol
American Dynamics Data Line No No Yes
SensorNet, AD RS-422,
AD-UTC, and FSK
32 x 8
16 x 4 48 x 16 (8 with text) 16 x 4
144 via domes, 48 via video loss
SensorNet, and AD RS-422
288 x 8
(192 x 12 or 144 x 16)
512
(16 via patch panel,
and 512 via RS-232)
Manc hester,
3200 x 256
4,096 via AD2096,
AD2083 or RS-232
Manc hester,
SensorNet, and AD RS-422
American Dynamics 100
Matrix Switchers
Merchants get the goods on
shoplifting and internal theft with
the MegaPower LT and 48 Plus,
reducing shrinkage and increasing
MegaPower LT:
t Embedded menus support English,
French, Spanish, German, and Italian
t 16 x 4 or 32 x 8 models
t Looping inputs, auto terminated
t SensorNet or American Dynamics
UTC
t Control of RS-422 domes using the
SensorNet to RS-422 converter
t DirectSet function for changing dome
settings
t 128 views (camera/preset and
camera/pattern)
t 16 sequences/tours
t ADnet (RS-485) and RS-232
communication protocols
t Keyboard generated (soft alarm) and
RS-485 network events
t Up to eight keyboards with priority
settings
t Password protection for menu entry
t Network up to three matrix systems
on ADnet (RS-485) bus
t Dome ping test
t System partitioning
t Video loss detection on all channels
t 16 alarm inputs with 1 relay output
(16 channel model) 32 alarm inputs
with 2 relay outputs (32 channel
model)
t Alarm titles
t Five alarm display modes
t Three alarm response modes
t Send alarm messages to other
networked matrix systems
t 255 event messages
t Dimensions:
90 x 445 x 185 mm (3.5 x 17.5 x 7.3 in)
t Weight: 3.5 kg (7.7 lbs)
their bottom line.
MODEL NUMBERS
ADMPLT16
ADMPLT16C2
(with ControlCenter
200 Keyboard)
ADMPLT16C3
(with ControlCenter
300 Keyboard)
ADMPLT32
ADMPLT32C2
(with ControlCenter
200 Keyboard)
ADMPLT32C3
(with ControlCenter
300 Keyboard)
American Dynamics 101
Matrix Switchers
MegaPower 48 Plus:
t 3 flexible expansion modes using a
primary/secondary configuration of up
to 7 systems and 288 cameras
t Ethernet Cat 5 IP connection for multi-
matrix communications and system
setup
t EASY 48 configuration and monitoring
software for Windows based systems
t Dome ping test and status display
t Improved legacy RS-422 dome
support, including simplex RS-422
t SensorNet/RS-232 command for
DirectSet dome control menu with
ControlCenter 200 and 300 series
keyboards
t Modular microprocessor-based, high-
density matrix
t 48 video inputs by 16 video outputs, 8
video outputs with text overlay
t Supports both NTSC and PAL video
standards
t Slim, vertical wall-mount design;
optional rack mount kit available
t Tool-free removability of main
electronics unit (MEU) keeps system
wiring intact
t Optional Unshielded Twisted Pair (UTP)
adapter module allows installation with
simple UTP cable for video
t Full embedded system menus for easy
system setup
t Removable flash memory module for
data backup without a PC
t User-defined macros
t Supports wireless text messaging on
alarm for pagers and cellular phones
t 4096 preset titles, 250 alarm titles
t Dedicated alarm programming tables
that differentiate between alarm
sources
t Eight flexible RS-232 inputs,
expandable to 32 (per system)
t 64 system tours and 64 salvos
t Dimensions:
508 x 438 x 89 mm
(20 x 17.3 x 3.5 in)
t Weight:
Main Electronics Unit: 2.72 kg (6 lbs)
Wall Bracket: 1.54 kg (3.4 lbs)
Patch Panel Assembly: 1.72 kg (3.8 lbs)
MODEL NUMBERS
ADMP48-E
Accessory
VR48KIT
(Rack mount kit for MegaPower 48)
VRCMKIT
(Matrix cable management kit, rack or
wall mountable, includes 3 brackets)
American Dynamics 102
