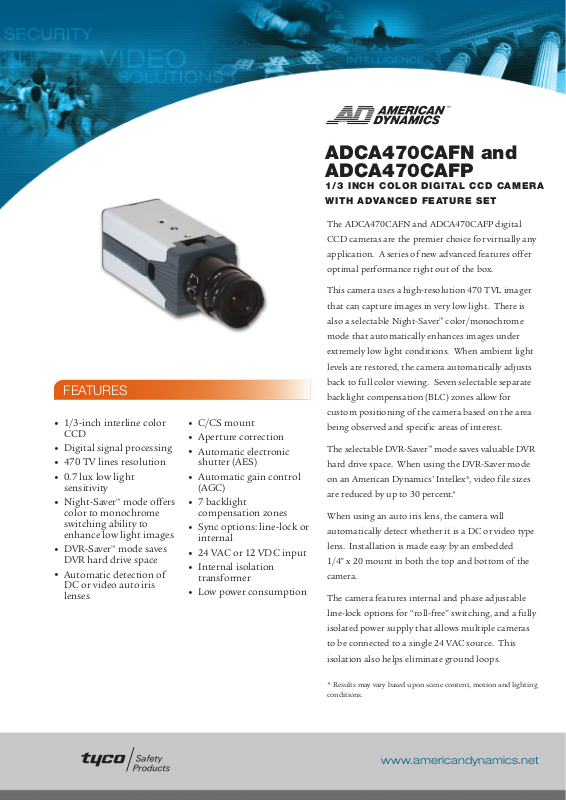

American Dynamics ADCA470CAFN, ADCA470CAFP User Manual

FEATURES

1/3-inch interline color

•

CCD Digital signal processing

•

470 TV lines resolution

•

0.7 lux low light

•

sensitivity Night-Saver™mode offers

•

color to monochrome switching ability to enhance low light images

DVR-Saver™mode saves

•

DVR hard drive space Automatic detection of

•

DC or video auto iris lenses

C/CS mount

•

Aperture correction

•

Automatic electronic

•

shutter (AES) Automatic gain control

•

(AGC) 7 backlight

•

compensation zones Sync options: line-lock or

•

internal 24 VAC or 12 VDC input

•

Internal isolation

•

transformer Low power consumption

•

ADCA470CAFN and ADCA470CAFP

1/3 INCH COLOR DIGITAL CCD CAMERA WITH ADVANCED FEATURE SET

The ADCA470CAFN and ADCA470CAFP digital CCD cameras are the premier choice for virtually any application. A series of new advanced features offer optimal performance right out of the box.

This camera uses a high-resolution 470 TVL imager that can capture images in very low light. There is also a selectable Night-Saver™color/monochrome mode that automatically enhances images under extremely low light conditions. When ambient light levels are restored, the camera automatically adjusts back to full color viewing. Seven selectable separate backlight compensation (BLC) zones allow for custom positioning of the camera based on the area being observed and specific areas of interest.

The selectable DVR-Saver™mode saves valuable DVR hard drive space. When using the DVR-Saver mode on an American Dynamics’ Intellex®, video file sizes are reduced by up to 30 percent.

When using an auto iris lens, the camera will automatically detect whether it is a DC or video type lens. Installation is made easy by an embedded 1/4” x 20 mount in both the top and bottom of the camera.

The camera features internal and phase adjustable line-lock options for “roll-free” switching, and a fully isolated power supply that allows multiple cameras to be connected to a single 24 VAC source. This isolation also helps eliminate ground loops.

* Results may vary based upon scene content, motion and lighting conditions.

www.americandynamics.net

ADCA470CAFN AND ADCA470CAFP 1/3 INCH COLOR DIGITAL CCD CAMERA WITH ADVANCED FEATURE SET

SPECIFICATIONS

Environmental

Operating Temperature . . . . . . . . . . . . . .-10° to 50° C (14° to 122° F)

Model Numbers

ADCA470CAFN . . . . . . . . . . . . . . . . . . . . .Camera, 1/3-inch, Color DSP,

470 TVL, Adv Features, 0.7 Lux, NTSC, 24 VAC/12 VDC

ADCA470CAFP . . . . . . . . . . . . . . . . . . . . .Camera, 1/3-inch, Color DSP,

470 TVL, Adv Features, 0.7 Lux, PAL, 24 VAC/12 VDC

Operational

Imager . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/3 inch interline transfer CCD

array

Video Output . . . . . . . . . . . . . . . . . . . . . . .1.0 V p-p/75 Ω composite

Active Pixel Count

NTSC . . . . . . . . . . . . . . . . . . . . . . . . . . .768 (H) x 494 (V) pixels

PAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .752 (H) x 582 (V) pixels

Minimum Scene Illumination . . . . . . . .0.7 lux (f1.2 lens)

Horizontal Resolution . . . . . . . . . . . . . . .470 TV lines

Light Compensation Modes . . . . . . . . . .Automatic electronic shutter,

(On/Off) (NTSC 1/60 - 1/100,000 sec)

(PAL 1/50 -1/100,000 sec)

Auto Iris Drive . . . . . . . . . . . . . . . . . . . . . .DC or EE-type (auto detect)

Backlight Compensation . . . . . . . . . . . . .7 zones, selectable

Aperture Correction . . . . . . . . . . . . . . . . .Yes

Synchronization Modes . . . . . . . . . . . . . .Internal or line-lock with 360°

phase adjustment

White Balance . . . . . . . . . . . . . . . . . . . . . . .Auto or manual modes

Geometric Distortion . . . . . . . . . . . . . . . .None

S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .> 50 dB

Storage Temperature . . . . . . . . . . . . . . . .-20° to 60° C (-4° to 140° F)

Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .90% RH (non-condensing)

Regulatory

Emissions . . . . . . . . . . . . . . . . . . . . . . . . . .FCC: Part 15, Class A

CE: EN55022, Class B

ICES-003

Immunity . . . . . . . . . . . . . . . . . . . . . . . . . .CE: EN50130-4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .UL2044

Controls

Night-Saver™(Nite - SVR) . . . . . . . . . . . .On/Off

DVR-Saver™(DVR - SVR) . . . . . . . . . . . . .On/Off

Backlight Compensation (BLC1) . . . . .On/Off

Backlight Compensation (BLC2) . . . . .On/Off

Backlight Compensation (BLC3) . . . . .On/Off

Automatic Gain Control (AGC) . . . . . . .On/Off

Automatic Electronic Shutter (AES) . . .On/Off

Synchronization Selection (Sync) . . . . .Int/LL

Automatic White Balance (AWB) . . . . .Man/Auto

White Balance/Phase Adjust. . . . . . . . . .WHT BAL/PHASE

Connectors

Input Power . . . . . . . . . . . . . . . . . . . . . . . .Screw terminal block

Composite Video . . . . . . . . . . . . . . . . . . . .BNC

Video Iris . . . . . . . . . . . . . . . . . . . . . . . . . . .4 pin square connector

DC Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 pin square connector

Electrical

AC Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .24 VAC (+33%, -15%) @ 50/60 Hz

(PAL/NTSC)

DC Voltage . . . . . . . . . . . . . . . . . . . . . . . . .12 VDC (+15%, -10%)

Power Consumption . . . . . . . . . . . . . . . . .4.2 watts maximum

Mechanical

Lens Mount . . . . . . . . . . . . . . . . . . . . . . . . .C or CS type

Camera Mount . . . . . . . . . . . . . . . . . . . . . .1/4 inch – 20 (top and bottom)

Dimensions (W x H x D) . . . . . . . . . . . . .52 x 60 x 123 mm

(2.05 x 2.36 x 4.84 in)

Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . .350 g (0.77 lbs)

Shipping Weight . . . . . . . . . . . . . . . . . . . .450 g (1.0 lbs)

Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Light gray (body), dark gray

(accents)

Side View

Recommended Housings

ADCH10, ADCH10B, ADCH10H, ADCH10HB, ADCH10MT8, ADCH10HBMT8, AD1301, AD1303, AD1305 and AD1314

Recommended Camera Mounts

ADMC1361, ADMC1362, ADMC1363, ADMC1365, ADMC100T, ADMC1366, ADCMU1312 and ADCMU

Recommended Camera “Pre-Packs”

Include camera, lens, housing and mount, and are available in multiple configurations. Check www.americandynamics.net for a complete list.

Rear View

Product specifications and availability subject to change without notice. Certain product names mentioned herein may be trade names and/or registered trademarks of other companies.

VS343-02 02/04 A4
