American Dryer A Series User Manual

STEP 1.

STEP 2.

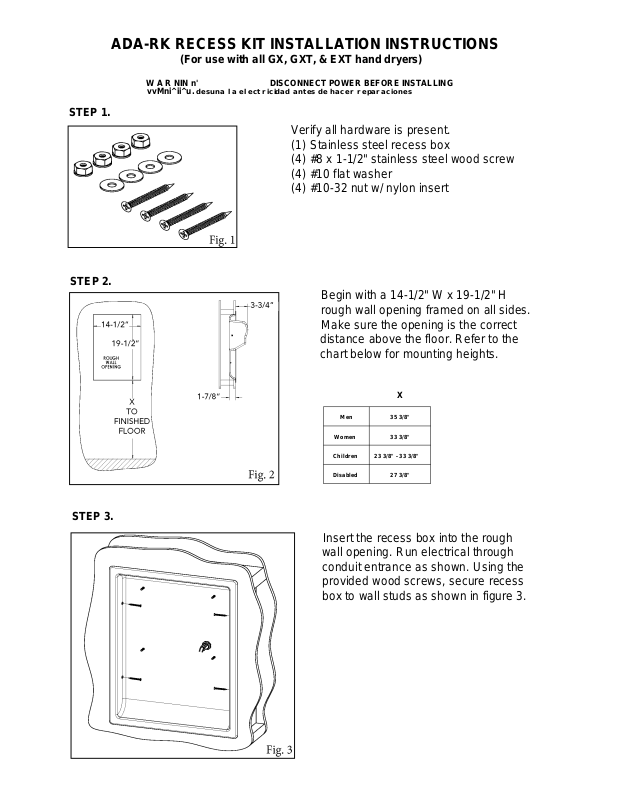

ADA-RK RECESS KIT INSTALLATION INSTRUCTIONS

(For use with all GX, GXT, & EXT hand dryers)

W A R NIN n' DISCONNECT POWER BEFORE INSTALLING

vvMni^ii^u. desuna la electricidad antes de hacer reparaciones

Verify all hardware is present.

(1) Stainless steel recess box
(4) #8 x 1-1/2" stainless steel wood screw
(4) #10 flat washer
(4) #10-32 nut w/ nylon insert

Begin with a 14-1/2" W x 19-1/2" H
rough wall opening framed on all sides.

Make sure the opening is the correct
distance above the floor. Refer to the
chart below for mounting heights.

STEP 3.

X

Men 35 3/8"

Women 33 3/8"

Children 23 3/8" - 33 3/8"

Disabled 27 3/8"

Insert the recess box into the rough
wall opening. Run electrical through
conduit entrance as shown. Using the
provided wood screws, secure recess
box to wall studs as shown in figure 3.

STEP 4.

WARNING:

DESUNA LA ELECTRICIDAD ANTES DE HACER REPARACIONES

DISCONNECT POWER BEFORE INSTALLING

Remove the hand dryer cover and

place dryer on the 4 mounting
studs. Secure using (4) #10 flat
washers and (4) #10-32 nuts.
Connect electrical wires to dryer
per the dryer schematic.

Place cover on dryer and
secure with (2) tamper proof
security screws (included
with dryer). Turn power on
at breaker and test.

American Dryer’

33067 INDUSTRIAL ROAD, LIVONIA, MI 48150, U.S.A.

Telephone [phone] • Fax [phone]

www.americandryer.com • Email: [e-mail]

AMERICAN DRYER, INC.

Revised November 2012
