PRO MIX
User Manual
22 pgs1.74 Mb0

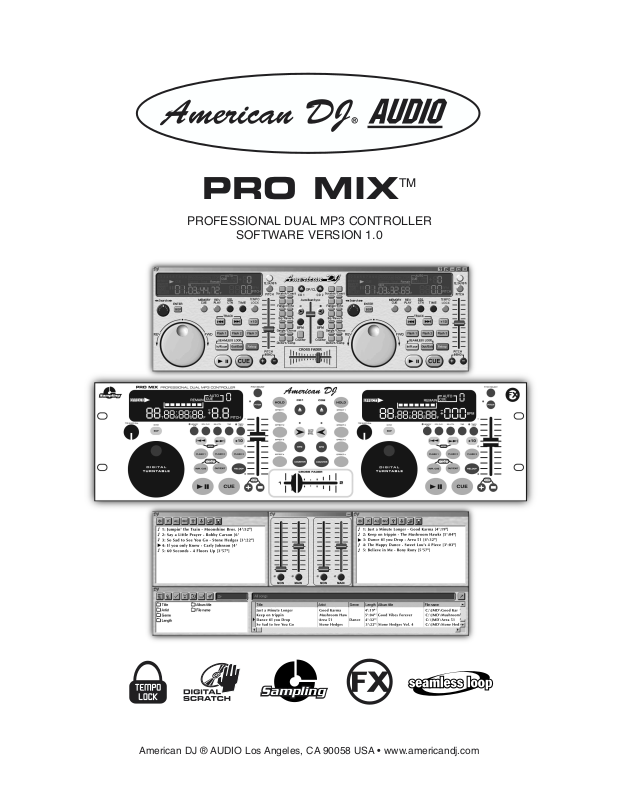

American Audio PRO MIX User Manual

PRO MIX
TM
PROFESSIONAL DUAL MP3 CONTROLLER
SOFTWARE VERSION 1.0
Sampling
Sampling
American DJ ® AUDIO Los Angeles, CA 90058 USA • www.americandj.com
CONTENTS
INTRODUCTION TO THE PRO MIX SYSTEM...........................................................................2
IMPORTANT SAFETY INSTRUCTIONS.................................................................................3-4
INSTALLING PRO MIX SOFTWARE..........................................................................................6
EFFECTS DETAILS............................................................................................................12-15
OTHER PRO MIX PLAYER FEATURES..............................................................................16-20
AUDIO FILE PREPARATIONS.............................................................................................21
CUSTOMER SUPPORT............................................................................................................21
SPECIFICATIONS....................................................................................................................21
MINIMUM SYSTEM REQUIREMENTS
PRO MIX
TM
System requirements:
Processor Speed: 400 Mhz Pentium II or compatible Memory: 128 MB RAM Operating System: Windows 98 CD-ROM Drive Sound Card: 1 (for main output)
Recommended System Requirements: Processor Speed: faster than a 400 Mhz Pentium II or compatible Memory: 256 MB RAM Operating System: Windows 2000 Sound Cards: 2 (1 card for main output and 1 card to monitor with headphones - Sound Card driver should support Microsoft Direct X 8) USB Connection: USB headphones may be use to monitor mix instead of the 2nd sound card Modem: 56K or faster
INTRODUCTION TO THE PRO MIX SYSTEM
The American DJ PRO MIX
TM
System is a Professional MP3 PLAYER and CONTROLLER
solution. The PRO MIX is comprised of the PRO MIX
TM
software program running on a Windows based computer that is connected to a PRO MIXTMhardware controller. With the unique ability to play and mix MP3, WAV, WMA, Digital Audio, and CD audio files directly from your computer via a hands on controller, American DJ brings you into the digital world like never before.
Because the Microsoft Windows® Operating System is needed to run the PRO MIX, we are assuming you are familiar with your computer and know how to navigate and use Windows. This manual will only give information on using the PRO MIX software and configuring the PRO MIX controller. If you have any questions concerning the use of the Windows OS, please consult your Windows documentation.
It is recommended that you close all other applications on your computer when using the PRO MIX program to improve system performance.
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 2
IMPORTANT SAFETY INSTRUCTIONS
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 3
The lightning flash with an arrow triangular symbol is intended to alert the user to the presence of uninsulated “dan­gerous voltage” within the prod­ucts enclosure, and may be of sufficient magnitude to consti­tute a risk of electric shock.
The exclamation point triangu­lar symbol is intended to alert the user to the presence of important operating and main­tenance (servicing) instructions in the user manual accompany­ing the Easy Play Player.
CAUTION
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED)PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE CAREFULLY INSERT­ED TO PREVENT BLADE EXPOSURE.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
NOTE:
This unit may cause interference to radio
and television reception.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OTHER THAN THOSE SPECIFIED HERE­IN MAY RESULT IN HAZARDOUS RADIA­TION EXPOSURE.
THE EASY PLAY MP3 PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALI­FIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE EASY PLAY CONTROLLER UNIT TO WATER OR MOISTURE.
CAUTION:
1. Handle the power supply cord carefully. Do not damage or deform; it may cause electric shock or malfunction when used. Hold plug attachment when removing from wall outlet. Do not pull on the cord.
2. To avoid electric shock, do not open the top cover when the unit is plugged in. If problems occur with the unit, call your local American DJ AUDIO dealer.
3. Do not place metal objects or spill liquid on the controller. Electric shock or malfunc­tion may occur.
Please record and retain the model name and serial number from your rating label.
Model No._______________________ Serial No. _______________________
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
THE COVER RACK.
THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICE TO
YOUR AUTHORIZED AMERICAN DJ
AUDIO DEALER.
IMPORTANT SAFETY INSTRUCTIONS - CONTINUED
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 4
I. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Save Instructions - The safety and oper­ating instructions should be saved for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and user instructions should be followed.
5. Water and Moisture -The appliance should not be used near water - for exam­ple, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool,etc.
6. Ventilation - The appliance should be sit­uated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situ­ated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
8.Power Sources -The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
9.Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.
10. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying par­ticular attention to cords at plugs, conven­ience receptacles, and the point where they exit from the appliance.
11.Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for extended periods of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liq­uids are not spilled onto the enclosure through openings.
14.Damage Requiring Service - The appli­ance should be serviced by qualified serv­ice personnel when:
A. The power-supply cord or the plug has
been damaged.
B. Objects have fallen, or liquid has been
spilled into the appliance.
C. The appliance has been exposed to
rain or water.
D. The appliance does not appear to oper-
ate normally or exhibits a marked change in performance.
E. The appliance has been dropped, or
the enclosure damaged.
15.Servicing -The user should not attempt to service the appliance beyond that de­scribed in the operating instructions. All other servicing should be referred to quali­fied service personnel.
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 5
HARDWARE CONTROLLER SET UP NOTES
1. Checking the contents
Check that the carton contains the following items:
1) PRO MIX Controller unit
2) 4-pin Power cord with adapter (6 feet / 1.8 meters)
3) Control cord - to attach unit to computer’s COM port (6 feet /1.8 meters)
4) Operating instructions (this booklet)
5) PRO MIX Player Software install CD
2. Connections
1) Make sure computer is off. Connect one end of the control cable to the computer’s COM port (or serial port). (Refer to computer’s documentation if you are unsure which port to use.)
2) Connect the other end of the control cable to the PRO MIX Controller port.
3) Connect the 4-pin power cord male plug into the PRO MIX female power socket.
4) Plug the power cord’s adapter into an electrical outlet.
5) Connect audio cables, speaker plugs, or headphone plug into the computer’s Sound card - depending on the Sound card’s output jacks and the desired audio set up.
Always check that the sound output levels are lowered before restarting the compu­ter to avoid possible hearing or speaker damage.
3. Installing the Unit Mount the unit on to your console or rack with 19" EIA rack rails or set on tabletop.
CAUTION:
Be sure to use the supplied control cables. Using another type of cable may result in damage or may compromise performance. Be sure the power is off to the unit and computer when connecting the control cable. Otherwise the unit may not work properly and may cause damage the computer.
Windows PC
PRO MIX Controller - Rear Panel
COM or serial port
Sound card 1
Sound card 2 (optional)
to electrical
outlet
to mixer, speakers,
or headphones
1
2
3
4
5
(See also pages 18-19 for computer system configuration using screen panel).
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 6
INSTALLING THE PRO MIX SOFTWARE
The PRO MIX Program
Installing the software
Turn off CD Auto Run (so software will function properly). Locate and run the file named “setup.exe” on the included CD-ROM. The installation will guide you through the process of placing the program on the computer’s hard drive. Make sure you have at least 7 MB of free space available on the hard drive to load the program. (Please note that the storing of MP3, WAV and other audio files will require much more hard drive space.) Consult your Windows manuals if you need further help installing software on your computer. Please visit the American DJ web site for updates and other information regarding this product.
If the introduction program does not start automatically after inserting the PRO MIX CD-Rom, do the following:
1. Turn off CD Auto Run (so software will function properly).
2. Insert the PRO MIX CD-Rom
2. Click the Windows ‘Start Menu’
3. Click ‘Run’
4. In the ‘Run dialog, click Browse.
5. In the ‘Browse’ dialog, look in list, double click ‘My Computer’
6. Under ‘My Computer’, double click the ‘PRO MIX American DJ CD’
7. Double click the ‘setup.exe’ file. The installation program will run a set-up wizard and you will be prompted for your set-up.
If the software installation was unsuccessful after following the set-up instructions, contact American DJ’s Customer Support Team Monday - Friday 9 a.m. - 5 p.m. Pacific Standard Time (PST) at:
Toll Free: 800-322-6337 (U.S. & Canada only) Fax: 323-582-2610 International: +1 323-582-2650 (ask for Customer Support) E-mail: support@americandj.com
American DJ ® AUDIO • PRO MIX™ INSTRUCTIONS MANUAL • PAGE 7
PRO MIX PLAYER CONTROLS AND FUNCTIONS
Screen View - PRO MIX DUAL MP3 PLAYER
A
B
D
B
E
C
The PRO MIX Program
Running the Program
When the computer’s and PRO MIX controller’s power are both ON the LED display will read “linking”. When the program is launched and the computer has located the PRO MIX con­troller the LED will read “linked”. The LED will then show the working LED screen (for more info on the LED see page 10 and 11). Five sections of the PRO MIX screen will be viewable. These are: the Main Player (A) section at the top, the Player A and B play lists (B) in the middle left/right, the Volume Controls (C) in the center, the File Manager (D) at the lower left, and the Track Selector (E) at the bottom right. Please read the following pages to become familiar with each PRO MIX section, its function, and what each of the on screen buttons (icons) do.
Loading...
