American Audio DCD-PR200 MK2 User Manual
TIME SGL PROG. LOOP PITCH
PLAY
PAUSE
OP/CL
DISC 1
PITCH BEND
SKIP
SEARCH
0
-
+
PITCH
TIME SGL PROG. LOOP PITCH
PLAY
PAUSE
OP/CL
DISC 1
PITCH BEND
SKIP
SEARCH
0
-
+
PITCH
American DJ®
REMOTE CONTOL UNIT
00
88:88.8
00
88:88.8
PROformer Series
© American DJ® AUDIO Los Angeles, CA 90058 USA
DISC 1
American DJ®
OP/CL
OP/CL
2
1
POWER
DISC 2
CONTENTS
SPECIFICATIONS.................................................................................................................................2
IMPORTANT SAFETY ITEMS...............................................................................................................3
SAFETY INSTRUCTIONS.....................................................................................................................4
GENERAL NOTES ON USE..................................................................................................................5
MAIN FEATURES...............................................................................................................................5-6
PREPARATIONS...................................................................................................................................7
NAMES AND FUNCTIONS.................................................................................................................8-9

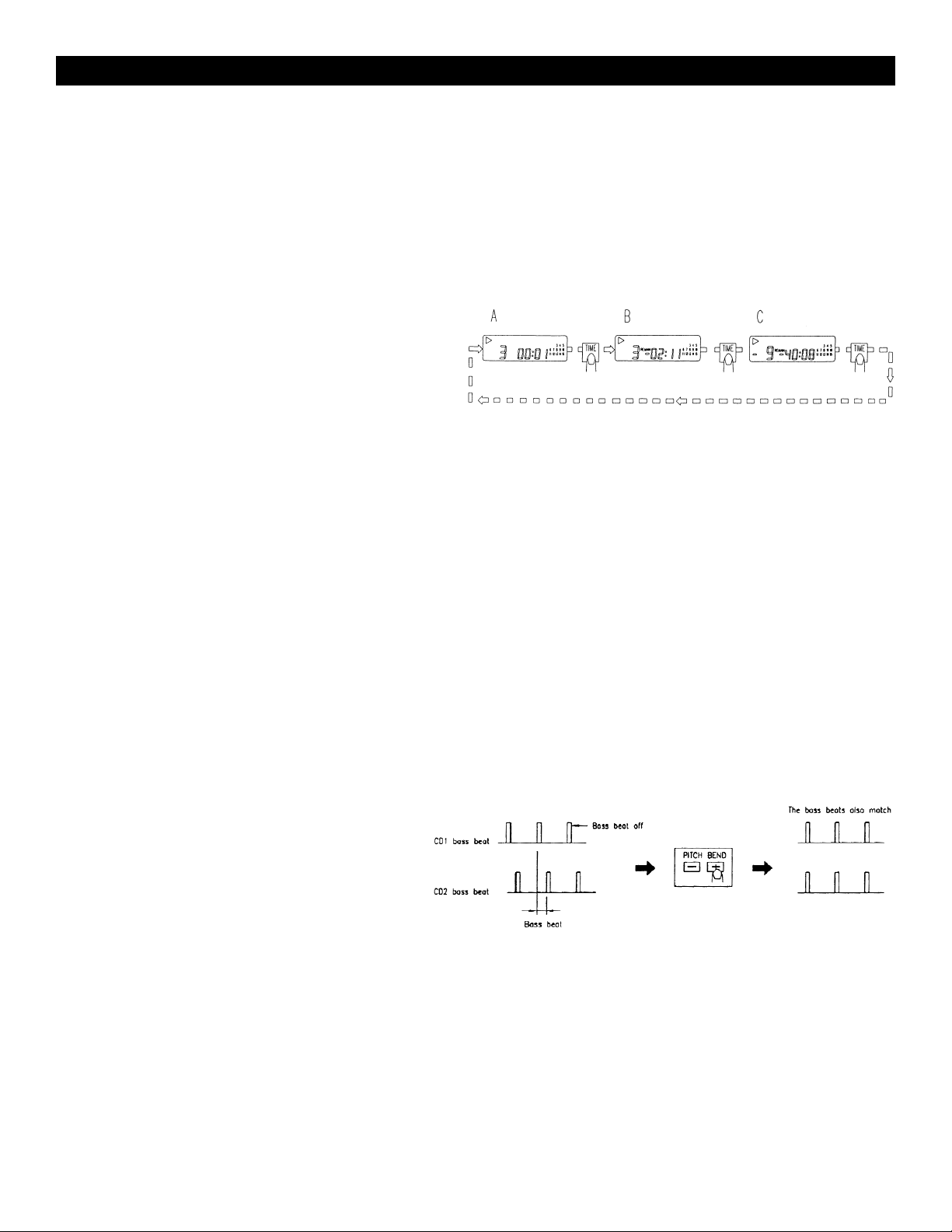

BASIC OPERATIONS.......................................................................................................................9-13
BEFORE SWITCHING OFF THE POWER..........................................................................................13
COMPACT DISCS...............................................................................................................................13
SPECIFICATIONS
GENERAL
Type: Twin mechanism compact disc player with wired controller.
Disc Type: Standard compact discs (5 in / 12 cm and 3 in / 8 cm discs)
Dimensions: Player Unit: 18 29/32” (W) x 3 27/64” (H) x 9 28/32” (D)
480mm (W) x 88.8mm (H) x 251mm (D)(without feet)
Control Unit: 18 29/32” (W) x 3 27/64” (H) x 2 12/32 (D)
480mm (W) x 88.8mm (H) x 40mm (D) (without feet)
Installation: 19-inch rack mountable - Player & Control units: 2U / 2 rack spaces
Weight: Player Unit: 11 lbs. / 5 kg. - Control Unit: 4.5 lbs. / 2kg.
Power Supply: 115/230V AC, 50/60 Hz
Power Consumption: 25W
Environmental Conditions: Operational temperature: 5 to 35°C (41 to 95°F)
Operational humidity: 25 to 85% (no condensation)
Storage temperature: -20 to 60°C (4 to 14°F)
Accessories: Connecting cord (1 set for left each channel) - Control cord (1.8m/6 ft)
AUDIO SECTION
Quantization: 16 bit linear per channel
Sampling rate: 44.1 kHz at normal pitch
Over sampling rate: 8 times
D/A conversion: 16 bit
Frequency response: 10 to .20000 Hz
Total harmonic distortion: 0.02%
Signal to noise ratio: 88dB
Channel separation: 80dB
Output level: 2.0V +/- 1dB
Load impedance: 47 kohm or more
FUNCTIONS
Variable pitch: +/- 10% or more
Search accuracy: 1/75 sec. (1 subcode frame)
A
merican DJ® AUDIO World Headquarters:
4295 Charter Street
Los Angeles, CA 90058 USA
Tel: 323-582-2650 - Fax: 323-582-2610
Web: www.americandj.com - E-mail: info@americandj.com
Specifications and design are subject to change without notice for purpose of improvement.
American DJ® AUDIO • DCD-PRO200™ INSTRUCTION MANUAL • PAGE 2
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS CD PLAYER TO
WATER OR MOISTURE.
NOTE:
This unit may cause interference to radio
and television reception.
CAUTION
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE CAREFULLY INSERTED TO PREVENT
BLADE EXPOSURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER RACK.
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICE TO YOUR
AUTHORIZED AMERICAN DJ AUDIO DEALER.
The lightning flash with an arrow triangular
symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the products enclosure, and may
be of sufficient magnitude to constitute a
risk of electric shock.
CAUTION:
1. Handle the power supply cord carefully. Do not
damage or deform; it may cause electric shock
or malfunction when used. Hold plug attach
ment when removing from wall outlet. Do not
pull on the cord.
2. To avoid electric shock, do not open the top
cover when the unit is plugged in. If problems
occur with the unit, call your local American DJ
AUDIO dealer.
3. Do not place metal objects or spill liquid inside
the CD player. Electric shock or malfunction
may occur.
Please record and retain the model name and
serial number from your rating label.
Model No.______________________________
Serial No.______________________________
Line Voltage Selection
(for multiple voltage model only)
• The desired voltage may be set with
the VOLTAGE SELECTOR switch
on the rear panel (using a screwdriver).
• Do not twist the VOLTAGE SELECTOR
switch with excessive force as this may
cause damage.
• If the VOLTAGE SELECTOR switch does
not move smoothly, please contact a
qualified service technician.
NOTE:
This CD player uses a semiconductor laser. It is
recommended for use in a room at the following
temperature: 41˚F - 95˚F / 5˚C - 35˚C
LABELS (for U.S.A. model only)
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS
OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE
ADJUSTED OR REPAIRED BY ANYONE EXCEPT
PROPERLY QUALIFIED SERVICE PERSONNEL.
IMPORTANT SAFETY ITEMS FOR U.S.A. &
CANADA MODEL ONLY
The exclamation point triangular symbol is
intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the user manual
accompanying the CD player.
CAUTION
Do not open -
risk of electric shock
CONNECT TO
REMOTE CONTROL 2
CONNECT TO
REMOTE CONTROL 1
DIGITAL OUT
SPDIF
AUDIO OUT AUDIO OUT
DIGITAL OUT
SPDIF
115V 230V
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
VOLTAGE SELECTOR SWITCH
115V
230V
DIGITAL OUT
SPDIF
CONNECT TO
REMOTE CONTROL 2
DIGITAL OUT
SPDIF
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
115V 230V
AUDIO OUT AUDIO OUT
CONNECT TO
REMOTE CONTROL 1
I. Read Instructions - All the safety and operating
instructions should be read before the appliance
is operated.
2. Save Instructions - The safety and operating
instructions should be saved for future
reference.
3. Heed Warnings - All warnings on the appliance
and in the operating instructions should be
adhered to.
4. Follow Instructions - All operating and user
instructions should be followed.
5. Water and Moisture - The appliance should not
be used near water - for example, near a bath
tub, washbowl, kitchen sink, laundry tub, in a
wet basement or near a swimming pool, etc.
6. Ventilation - The appliance should be situated
so that its location or position does not interfere
with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa,
rug, or similar surface that may block the
ventilation openings; or, placed in a built-in
installation, such as a bookcase or cabinet that
may impede the flow of air through the
ventilation openings.
7. Heat - The appliance should be situated away
from heat sources such as radiators, heat
registers, stoves, or other appliances (including
amplifiers) that produce heat.
8. Power Sources - The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.
9. Grounding or Polarization - Precautions should
be taken so that the grounding or polarization
means of an appliance is not defeated.
10. Power-Cord Protection - Power-supply cords
should be routed so that they are not likely
to be walked on or pinched by items placed
upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit
from the appliance.
11. Cleaning - The appliance should be cleaned
only as recommended by the manufacturer.
12. Non-use Periods - The power cord of the
appliance should be unplugged from the outlet
when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken
so that objects do not fall and liquids are not
spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance
should be serviced by qualified service
personnel when:
A. The power-supply cord or the plug has
been damaged.
B. Objects have fallen, or liquid has been
spilled into the appliance.
C. The appliance has been exposed to rain
or water.
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance.
E. The appliance has been dropped, or the
enclosure damaged.
15. Servicing - The user should not attempt to
service the appliance beyond that described in
the operating instructions. All other servicing
should be referred to qualified service
personnel.
SAFETY INSTRUCTIONS
American DJ® AUDIO • DCD-PRO200™ INSTRUCTIONS MANUAL • PAGE 4
