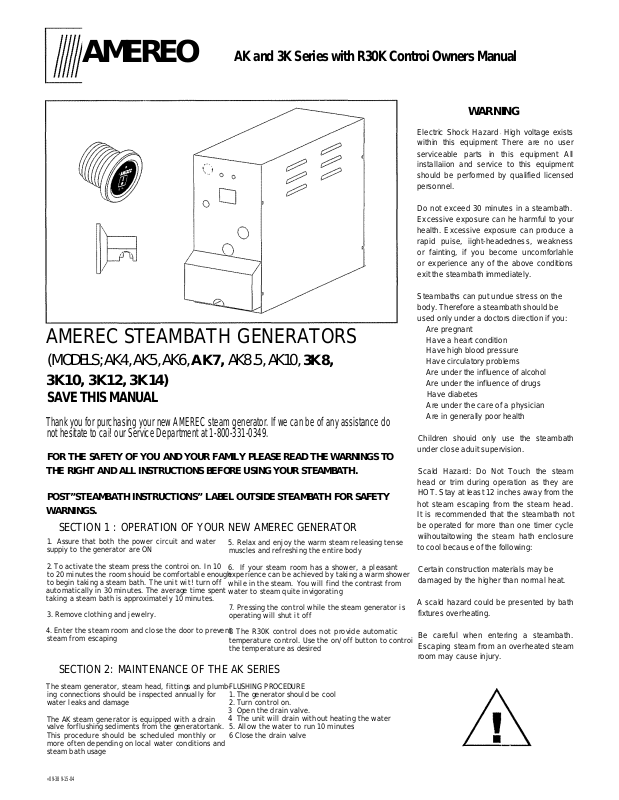

Page 1
AMEREO
AK and 3K Series with R30K Controi Owners Manual
AMEREC STEAMBATH GENERATORS
(MODELS; AK4, AK5, AK6, AK7, AK8.5, AK10, 3K8,
3K10, 3K12, 3K14)
SAVE THIS MANUAL
Thank you for purchasing your new AMEREC steam generator. If we can be of any assistance do
not hesitate to cai! our Service Department at 1-800-331-0349.
FOR THE SAFETY OF YOU AND YOUR FAMILY PLEASE READ THE WARNINGS TO THE RIGHT AND ALL INSTRUCTIONS BEFORE USING YOUR STEAMBATH.
POST”STEAMBATH INSTRUCTIONS” LABEL OUTSIDE STEAMBATH FOR SAFETY WARNINGS.
SECTION 1 : OPERATION OF YOUR NEW AMEREC GENERATOR
1. Assure that both the power circuit and water
suppiy to the generator are ON
2. To activate the steam press the controi on. In 10
to 20 minutes the room shouid be comfortable enough
to begin taking a steam bath. The unit wit! turn off
automatically in 30 minutes. The average time spent
taking a steam bath is approximately 10 minutes.
3. Remove clothing and jewelry.
4. Enter the steam room and close the door to prevent
steam from escaping
SECTION 2: MAINTENANCE OF THE AK SERIES
The steam generator, steam head, fittings and plumb
ing connections should be inspected annually for
water leaks and damage
The AK steam generator is equipped with a drain
valve forflushing sediments from the generatortank.
This procedure should be scheduled monthly or
more often depending on local water conditions and
steam bath usage
5. Relax and enjoy the warm steam releasing tense
muscles and refreshing the entire body
6. If your steam room has a shower, a pleasant
experience can be achieved by taking a warm shower
while in the steam. You will find the contrast from
water to steam quite invigorating
7. Pressing the control while the steam generator is
operating will shut it off
8 The R30K control does not provide automatic
temperature control. Use the on/off button to controi
the temperature as desired
FLUSHING PROCEDURE
1. The generator should be cool
2. Turn control on.
3 Open the drain valve.
4 The unit will drain without heating the water
5. Allow the water to run 10 minutes
6 Close the drain valve
WARNING
Electric Shock Hazard - High voltage exists
within this equipment There are no user
serviceable parts in this equipment All
installaiion and service to this equipment
should be performed by qualified licensed
personnel.
Do not exceed 30 minutes in a steambath.
Excessive exposure can he harmful to your
health. Excessive exposure can produce a
rapid puise, iight-headedness, weakness
or fainting, if you become uncomforlahle
or experience any of the above conditions
exit the steambath immediately.
Steambaths can put undue stress on the
body. Therefore a steambath should be
used only under a doctors direction if you:
Are pregnant
Have a heart condition
Have high blood pressure
Have circulatory problems
Are under the influence of alcohol
Are under the influence of drugs
Have diabetes
Are under the care of a physician
Are in generally poor health
Children shouid only use the steambath
under close aduit supervision.
Scald Hazard: Do Not Touch the steam
head or trim during operation as they are
HOT. Stay at least 12 inches away from the
hot steam escaping from the steam head.
It is recommended that the steambath not
be operated for more than one timer cycle
wiihoutaitowing the steam hath enclosure
to cool because of the following:
Certain construction materials may be
damaged by the higher than normal heat.
A scald hazard could be presented by bath
fixtures overheating.
Be careful when entering a steambath.
Escaping steam from an overheated steam
room may cause injury.
«09-38 9-15-04
Page 2
(AMEREG.
AK and 3K Series with R30K Controi Owners Manual
page 2
SECTION 3: TROUBLESHOOTING GUIDE
TheTroubleshooting Guide belowismeaniasageneral aid only. There are no user serviceable parts in the generator All repairs should be performed bya qualified service
person For additional assistance or the factory authorized service person nearest you call AMEREC's Service Department at 1-800-331-0349
SYMPTOMS PROBABLE CAUSES
Control 'ON'
jConlfOl Lighted)
No Steam
Control 'OFP
(Control light oil)
unit Stitt makes steam
Water runs out steam head
Nov/aierlo Generator
or
Control circuit is laulty
or
Generator is laulty
Control circuit is laulty
or
Generator is laulty
Generator is faulty 1 Turn oil circuit breaker
ACTION TO BE TAKEN
1 Wait at least 10 minutes after turntag on Control
2 Verily that the water is on,
3 Verily that the Generator's drain valve is closed.
4 jj the above A steps do not disctose the problem turn oft the Generator s circuit breaker Call AMEREC s Service Department
1 Turn otf circuit breaker
2 Call AMEREC s Service Departmcnl
1 Turn off vrater,
3. Call AMEREC’s Service Department.
PART HAMC
DtECRlPTlDM
FltCPrT WITH YiO LAOft.
ElEUfliT ACCESS
OPltOiJAi Altro FtUS» lERiimAl GIOCA
CAi», THREAD Ì^ROTECTOR
REhlACEUENT ElÈ^ClfT
:!iEl.F TItTHTEHtNG
MAItbtAl DRAtff
PfttÌCDAE RELtSf
PTUNÌED CmCOET I
COHTGOL HOUCItrC
CONTROL CARIE
Dt:iT>Eft£tON HEAD {MOT SHOWU)
CAFETT ìndi SHOWN}
WtRE OtAOTtAU
tift&S SLO Dto (HOT SNOWNJ
• For assistance or part orders please contact your local
AMEFlEC Dealer or call AMEREC at 1-800-331 -0340 Please
help us serve you better by:
1 Identifying the problem by using the troubleshooting guide
in this manual
2 Read number 12. the UL Rating Labe! to obtain your unit's
model and code number
•When ordering parts please provide the number, description
and quantity needed When ordering wire assemblies, please
describe the v/ires by color, location and/or their connection
points
• Do not return any materials to AMEREC without first
contacting AMEREC for a Return Authorization Number
Freight must be prepaid to AMEREC
4209-38 9-15-04
AMEREi
SAUNA & STEAM
17683 128th Place NE, Building C
Woodinville, Washington 98072, USA
425-951-1120 Fax: 425-951-1130
