AMD gx1_8.2.2_8.2.3_spec_update Datasheet

AMD Geode™ GX1 Processor
Silicon Revision 8.2.2/8.2.3
Specification Update

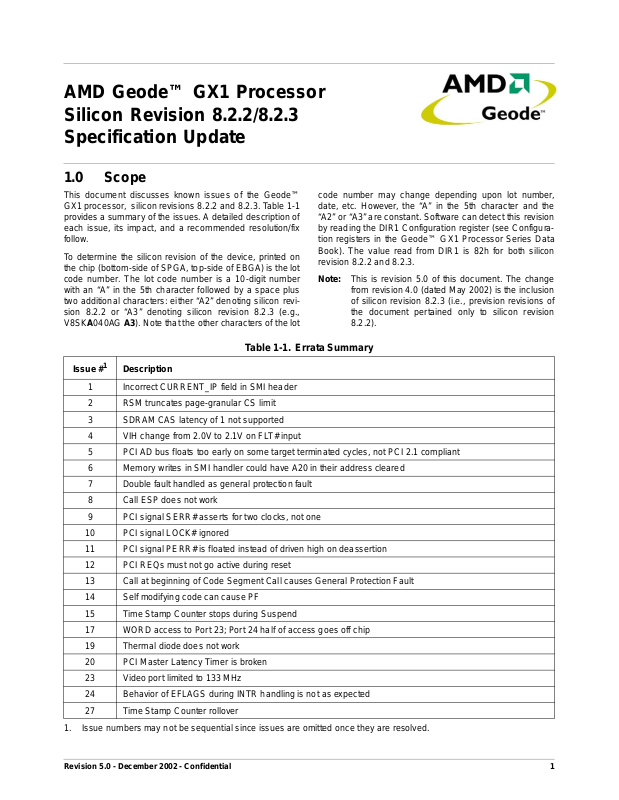

1.0 Scope

This document discusses known issues of the Geode™
GX1 processor, silicon revisions 8.2.2 and 8.2.3. Table 1-1
provides a summary of the issues. A detailed description of
each issue, its impact, and a recommended resolution/fix
follow.

To deter mine the silicon revision of the device, printed on
the chip (bottom-side of SPGA, top-side of EBGA) is the lot
code number. The lot code number is a 10-digit number
with an “A” in the 5th character followed by a space plus
two additional characters: either “A2” denoting silicon revi­sion 8.2.2 or “A3” denoting silicon revision 8.2.3 (e.g.,
V8SKA040AG A3). Note that the other characters of the lot

Table 1-1. Errata Summary

Issue #1 Description

1 Incorrect CURRENT_IP field in SMI header
2 RSM truncates page-granular CS limit
3 SDRAM CAS latency of 1 not supported
4 VIH change from 2.0V to 2.1V on FLT# input
5 PCI AD bus floats too early on some target terminated cycles, not PCI 2.1 compliant
6 Memory writes in SMI handler could have A20 in their address cleared
7 Double fault handled as general protection fault
8 Call ESP does not work

9 PCI signal SERR# asserts for two clocks, not one
10 PCI signal LOCK# ignored
11 PCI signal PERR# is floated instead of driven high on deassertion
12 PCI REQs must not go active during reset
13 Call at beginning of Code Segment Call causes General Protection Fault
14 Self modifying code can cause PF
15 Time Stamp Counter stops during Suspend
17 WORD access to Port 23; Port 24 half of access goes off chip
19 Thermal diode does not work
20 PCI Master Latency Timer is broken
23 Video port limited to 133 MHz
24 Behavior of EFLAGS during INTR handling is not as expected
27 Time Stamp Counter rollover

1. Issue numbers may not be sequential since issues are omitted once they are resolved.

code number may change depending upon lot number,
date, etc. However, the “A” in the 5th character and the
“A2” or “A3” are constant. Software can detect this revision
by reading the DIR1 Configuration register (see Configura­tion registers in the Geode™ GX1 Processor Series Data
Book). The value read from DIR1 is 82h for both silicon
revision 8.2.2 and 8.2.3.

Note: This is revision 5.0 of this document. The change

from revision 4.0 (dated May 2002) is the inclusion
of silicon revision 8.2.3 (i.e., prevision revisions of
the document pertained only to silicon revision

8.2.2).

Revision 5.0 - December 2002 - Confidential 1

2.0 Issues

Specification Update

Revision 5.0 - December 2002 - Confidential

1. Incorrect CURRENT_IP field in SMI header

Description: When two SMIs overlap, the

CURRENT_IP field of the SMI header for the second

SMI is wrong (contains EFLAGS instead of

CURRENT_IP).

Implications: None - The CURRENT_IP field is not

normally used in SMM code, so this has typically not

been a problem.

Resolution: If required, there is code available that

allows the SMM handler to calculate the

CURRENT_IP field.

2. RSM (Resume from SMM) truncates page-gran­ular CS (Code Segment) limit

Description: When RSM loads the CS segment limit

from the SMI header, it truncates it to 20 bits. If the
CS segment was page-granular, it shifts left 12 bits
and the upper 12 bits of the original limit are lost.

Implications: The system executes code at the
wrong location after an RSM to a page-granular CS
segment.

Resolution: There is a software workaround for this
issue that is implemented in the processor’s SMI
handlers. PAGE_GRAN (bit 31 of the CS segment
field) is tested in the middle of the handler. If set, the
limit field in the SMI header is shifted right by 12 bits.
If not set, nothing is done.

5. PCI AD bus floats too early on some target termi­nated cycles, not PCI 2.1 compliant

Description: The problem cycles are when the

processor is the target and the cycle is a read. The
AD bus goes TRI-STATE when TRDY# goes inactive.
The processor should TRI-STATE the AD bus when
IRDY goes inactive. However, under certain target
abort conditions IRDY# stays active longer then
TRDY#, leaving the AD bus undriven for a few PCI
clocks.

Implications: This breaks PCI compliance, however,
there are no functional problems with this issue.

Resolution: None

6. Memory writes in SMI handler could have A20 in
their address cleared

Description: If a memory write cycle occurs that has

A20 set near an RSM instruction, the write may be
posted and delayed. When the write cycle is actually
executed, the Force A20 logic is applied.

Implications: This can cause the data to go to the
wrong address. Unpredictable system behavior can
result.

Resolution: Avoid memory write cycles that have
A20 set near the RSM, or execute an I/O cycle before
the RSM, which forces any posted write to execute
before the RSM executes.

3. SDRAM CAS latency of 1 not supported

Description: When CAS latency is set to 1, the

memory controller does not pick up read data prop­erly.

Implications: CAS latency of 1 cannot be used.
Resolution: CAS latency of 1 is not supported. The

impact of this is minor, as there are very few (if any)
SDRAMs that support this setting.

4. VIH change from 2.0V to 2.1V on FLT# input

Description:: The Voltage Input High (VIH) on the

FLT# input has been changed from 2.0V to 2.1V.
Implications: None - In most systems FLT# is

normally unused and pulled to V

Resolution: None

2 AMD Geode™ GX1 Processor Silicon Revision 8.2.2/8.2.3 Specification Update

CC3

V.

7. Double fault handled as general protection fault
Description: A CLI is pending, causing a CPU privi-

lege level exception. The trap gate points to a “not
present” code segment. Both of these faults are
contributory class exceptions and a double fault
should be taken.

Implications: A double fault is not taken, however,
the “not present” fault is taken. This is not a functional
issue. This fault condition is a result of a coding error.
A fault is taken; just not the correct fault.

Resolution: None required.

Specification Update

Revision 5.0 - December 2002 - Confidential

8. Call ESP does not work

Description: Call ESP instruction is broken.
Implications: This instructi on exists because of the

way the call register instruction is created. This
instruction is never used. Using this call and
managing the stack becomes extremely difficult if not
impossible. Do not use this instruction.

Resolution: None

9. PCI signal SERR# asserts for two clocks, not one

Description: SERR# is asserted for two clocks.
Implications: This breaks PCI compliance. Fault

tolerant systems are the only systems that are
affected by this issue.

Resolution: None

10. PCI signal LOCK# ignored

Description: The processor ignores the LOCK#

signal when PCI bus masters assert LOCK# during a
bus transaction.

Implications: This breaks PCI compliance.
Resolution: None

11. PCI signal PERR# is floated instead of driven
high on deassertion

Description: PERR# is floated instead of driven high

and then set to TRI-STATE.
Implications: This breaks PCI compliance. If imple-

mented in a system, a strong pull-up should be used
on this signal.

Resolution: None

12. PCI REQs must not go active during reset
Description: If a PCI REQ# goes active during reset,

the processor’s arbiter may not function correctly
after reset goes inactive.

Implications: None as long as the PCI REQ# is
pulled up during reset.

Resolution: None

13. Call at beginning of Code Segment Call causes
General Protection Fault

Description: A segment exists that has a base

address that is not 16-byte aligned and the limit of
that segment is at the maximum (FFFFFFFFh). A call
instruction is made to the beginning o f the segment
which happens to be in the middle of the 16-byte line
fetch. The limit checking hardware assumes that the
limit has been crossed because the line fetch
contains both the beginning and the end of the
segment. The hardware is unable to discern that the
actual code execution does not cross the limit, hence
causing a general protection fault to occur.

Implications: This is a real coding hazard, however,
coding practices are such that when a maximum
segment is created the base is zero (which is 16-byte
aligned).

Resolution: None

14. Self modifying code can cause PF
Description: A memory write is generated due to an

STOS instruction that is on a page boundary which
modifies the STOS instruction. This is followed by a
JCC instruction, which takes the IP back to where the
STOS instruction was. The refetch occurs but the
address of the refetch is wrong.

Implications: Self modifying code that executes as
described fails.

Resolution: None

15. Time Stamp Counter stops during Suspend
Description: When the processor is in Suspend due

to SUSP#/SUSPA# or in HALT with the “Suspend on
Halt” bit set, the Time Stamp Counter stops.

Implications: This is different from other CPUs.
Resolution: None

17. WORD access to Port 23; Port 24 half of access
goes off chip

Description: Executing a WORD I/O cycle to Port 23

is a misaligned cycle which the processor converts
into two BYTE cycles. When MAPEN = 1 (Index
C3h[4]), one cycle goes to Port 23 and the other to
Port 24. The Port 23 access does not go off chip
since that is a CPU I/O port, however, the Port 24
cycle does go off chip.

Implications: None - There is typically nothing at
Port 24.

Resolution: Access Port 23 using byte wide I/O
instructions.

AMD Geode™ GX1 Processor Silicon Revision 8.2.2/8.2.3 Specification Update 3

Specification Update

Revision 5.0 - December 2002 - Confidential

19. Thermal diode does not work

Description: The thermal diode at pins E24 and D26

of the BGA package and F36 and E37 of the SPGA
package do not work. Treat these signals as no
connects.

Implications: The thermal diode cann ot be used.
Resolution: None - Do not use this feature.

20. PCI Master Latency Timer is broken

Description: PCI register 0Dh, the Master Latency

Timer, is broken. Setting this register to any value
other then 00h results in a system hang.

Implications: This breaks PCI compliance, however,
the Master Latency Timer is typically not used.

Resolution: None - Do not use this feature.

23 Video port limited to 133 MHz

Description: There is currently no I/O companion

solution that supports 150 MHz on the video port.
Implications: VID_CLK is created by dividing the

core frequency by 2 or 4. With this limitation an d a
core frequency of 300 MHz or 333 MHz, VID_CLK
can only be divided by 4. With VID_CLK limited to 75
MHz (for 300 MHz operation) or 83 MHz (for 333
MHz operation), the video window cannot be used if
the graphics resolution is 1280x1024x85 Hz.
1280x1024x75 Hz and lower functions correctly.

Resolution: None

24. Behavior of EFLAGS during INTR handling is not
as expected.

Description: If an IRQ occurs during EFLAGS style

CPU ID support detection, bit 21 gets cleared. This is
different from an Intel CPU.

Implications: Possible compatibility problems.
Resolution: Disable IRQs during manipulation of

upper bits in EFLAGS.

27 Time Stamp Counter rollover

Description: The upper 32 bits of the Time Stamp

Counter (TSC) increment three core clocks before
the lower 32 bits rollover. If the TSC is read and EAX
is FFFFFFFDh, FFFFFFFEh, or FFFFFFFFh, then
EDX will have incremented.

Implications: The TSC cannot be read reliably.
Resolution: (1) Use the TSC as a 3- bit counter. (2)

When the TSC is read and EAX equals FFFFFFFDh,
FFFFFFFEh, or FFFFFFFFh; then decrement the
EDX value by 1.

4 AMD Geode™ GX1 Processor Silicon Revision 8.2.2/8.2.3 Specification Update

© 2004 Advanced Micro Devices, Inc. All rights reserved.

The contents of this document are provided in connection with Advanced Micro
Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and
reserves the right to make changes to specifications and product descriptions at
any time without notice. No license, whether express, implied, arising by estoppel
or otherwise, to any intellectual property rights is granted by this publication.
Except as set forth in AMD’s Standard Terms and Conditions of Sale, AMD
assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to its products including, but not limited to, the implied warranty of mer­chantability, fitness for a particular purpose, or infringement of any intellectual
property right.

AMD’s products are not designed, intended, authorized or warranted for use as
components in systems intended for surgical implant into the body, or in other
applications intended to support or sustain life, or in any other application in which
the failure of AMD’s product could create a situation where personal injury, death,
or severe property or environmental damage ma y occur. AMD reserves the right to
discontinue or make changes to its products at an y time wi thout noti ce.

www.amd.com

One AMD Place
P.O. Box 3453,
Sunnyvale, CA 94088-3453 USA
Tel: [phone] or 800-538-8450
TWX: 910-339-9280
TELEX: 34-6306

TECHNICAL SUPPORT
USA & Canada: 800-222-9323 or 408-749-5703
USA & Canada: PC Microprocessor: 408-749-3060
USA & Canada Email: [email protected]

Latin America Email: [email protected]
Argentina: 001-800-200-1111, after tone 800-859-4478
Chile: 800-532-853
Mexico: 95-800-222-9323

Europe & UK: [phone]
Fax: [phone]
France: 0800-908-621
Germany: [phone]
Italy: 800-877224
Europe Email: [email protected]

Far East Fax: [phone]
Japan Fax: [phone]

TRADEMARKS
AMD, the AMD Arrow logo, and combinations
thereof, and Geode are trademarks of
Advanced Micro Devices, Inc.

Other product names used in this publication are
for identification purposes only and may be trade­marks of their respective companies.
