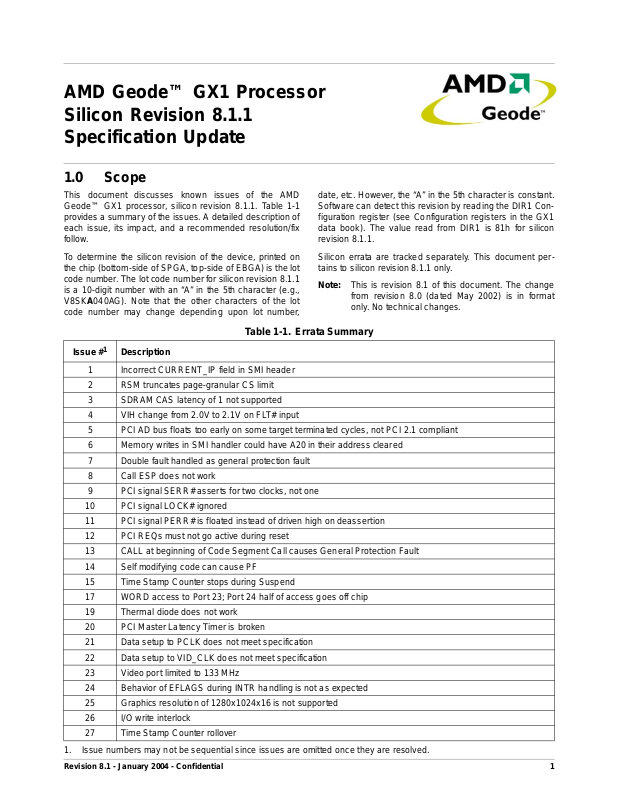

AMD Geode™ GX1 Processor
Silicon Revision 8.1.1
Specification Update
1.0 Scope
This document discusses known issues of the AMD
Geode™ GX1 processor, silicon revision 8.1.1. Table 1-1
provides a summary of the issues. A detailed description of
each issue, its impact, and a recommended resolution/fix
follow.
To determine the silicon revision of the device, printed on
the chip (bottom-side of SPGA, top-side of EBGA) is the lot
code number. The lot code number for silicon revision 8.1.1
is a 10-digit number with an “A” in the 5th character (e.g.,
V8SKA040AG). Note that the other characters of the lot
code number may change depending upon lot number,
Table 1-1. Errata Summary
Issue #1 Description
1 Incorrect CURRENT_IP field in SMI header
2 RSM truncates page-granular CS limit
3 SDRAM CAS latency of 1 not supported
4 VIH change from 2.0V to 2.1V on FLT# input
5 PCI AD bus floats too early on some target terminated cycles, not PCI 2.1 compliant
6 Memory writes in SMI handler could have A20 in their address cleared
7 Double fault handled as general protection fault
8 Call ESP does not work
9 PCI signal SERR# asserts for two clocks, not one
10 PCI signal LOCK# ignored
11 PCI signal PERR# is floated instead of driven high on deassertion
12 PCI REQs must not go active during reset
13 CALL at beginning of Code Segment Call causes General Protection Fault
14 Self modifying code can cause PF
15 Time Stamp Counter stops during Suspend
17 WORD access to Port 23; Port 24 half of access goes off chip
19 Thermal diode does not work
20 PCI Master Latency Timer is broken
21 Data setup to PCLK does not meet specification
22 Data setup to VID_CLK does not meet specification
23 Video port limited to 133 MHz
24 Behavior of EFLAGS during INTR handling is not as expected
25 Graphics resolution of 1280x1024x16 is not supported
26 I/O write interlock
27 Time Stamp Counter rollover
1. Issue numbers may not be sequential since issues are omitted once they are resolved.
Revision 8.1 - January 2004 - Confidential 1
date, etc. However, the “A” in the 5th character is constant.
Software can detect this revision by reading the DIR1 Configuration register (see Configuration registers in the GX1
data book). The value read from DIR1 is 81h for silicon
revision 8.1.1.
Silicon errata are tracked separately. This document pertains to silicon revision 8.1.1 only.
Note: This is revision 8.1 of this document. The change
from revision 8.0 (dated May 2002) is in format
only. No technical changes.
Page 2
2.0 Issues
Specification Update
Revision 8.1 - January 2004 - Confidential
1. Incorrect CURRENT_IP field in SMI header
Description: When two SMIs overlap, the
CURRENT_IP field of the SMI header for the second
SMI is wrong (contains EFLAGS instead of
CURRENT_IP).
Implications: None. The CURRENT_IP field is not
normally used in SMM code, so this has typically not
been a problem.
Resolution: If required, there is code available that
allows the SMM handler to calculate the
CURRENT_IP field.
2. RSM (Resume from SMM) truncates page-granular CS (Code Segment) limit
Description: When RSM loads the CS segment limit
from the SMI header, it truncates it to 20 bits. If the
CS segment was page-granular, it shifts left 12 bits
and the upper 12 bits of the original limit are lost.
Implications: The system executes code at the
wrong location after an RSM to a page-granular CS
segment.
Resolution: There is a software workaround for this
issue that is implemented in the processor’s SMI
handlers. PAGE_GRAN (bit 31 of the CS segment
field) is tested in the middle of the handler. If set, the
limit field in the SMI header is shifted right by 12 bits.
If not set, nothing is done.
5. PCI AD bus floats too early on some target terminated cycles, not PCI 2.1 compliant
Description: The problem cycles occur when the
processor is the target and the cycle is a read. The
AD bus goes TRI-STATE when TRDY# goes inactive.
The processor should TRI-STATE the AD bus when
IRDY# goes inacti ve. However, under cer tain target
abort conditions, IRDY# stays active longer then
TRDY#, leaving the AD bus undr iven for a few PCI
clocks.
Implications: This breaks PCI compliance, however,
there are no functional problems with this issue.
Resolution: None.
6. Memory writes in SMI handler could have A20 in
their address cleared
Description: If a memory write cycle occurs that has
A20 set near an RSM instruction, the write may be
posted and delayed. When the write cycle is actually
executed, the Force A20 logic is applied.
Implications: This can cause the data to go to the
wrong address. Unpredictable system behavior can
result.
Resolution: Avoid memory write cycles that have
A20 set near the RSM, or execute an I/O cycle before
the RSM forcing any posted write to execute before
the RSM executes.
3. SDRAM CAS latency of 1 not supported
Description: When CAS latency is set to 1, the
memory controller does not pick up read data properly.
Implications: CAS latency of 1 cannot be used.
Resolution: CAS latency of 1 is not supported. The
impact of this is minor, as there are very few (if any)
SDRAMs that support this setting.
4. VIH change from 2.0V to 2.1V on FLT# input
Description: The Voltage Input High (VIH) on the
FLT# input has been changed from 2.0V to 2.1V.
Implications: None. In most systems, FLT# is
normally unused and pulled to V
Resolution: None.
2 AMD Geode™ GX1 Processor Silicon Revision 8.1.1
CC3
.
7. Double fault handled as general protection fault
Description: A CLI is pending, causing a CPU privi-
lege level exception. The trap gate points to a “not
present” code segment. Both of these faults are
contributory class exceptions and a double fault
should be taken.
Implications: A double fault is not taken, however,
the “not present” fault is taken. This is not a functional
issue. This fault condition is a result of a coding error.
A fault is taken; just not the correct fault.
Resolution: None required.
Page 3
Specification Update
Revision 8.1 - January 2004 - Confidential
8. Call ESP does not work
Description: Call ESP instruction is broken.
Implications: This instructi on exists because of the
way the call register instruction is created. This
instruction is never used. Using this call and
managing the stack becomes extremely difficult if not
impossible. Do not use this instruction.
Resolution: None.
9. PCI signal SERR# asserts for two clocks, not one
Description: SERR# is asserted for two clocks.
Implications: This breaks PCI compliance. Fault
tolerant systems are the only systems affected by
this issue.
Resolution: None.
10. PCI signal LOCK# ignored
Description: The processor ignores the LOCK#
signal when PCI bus masters assert LOCK# during a
bus transaction.
Implications: This breaks PCI compliance.
Resolution: None.
11. PCI signal PERR# is floated instead of driven
high on deassertion
Description: PERR# is floated instead of driven high
and then set to TRI-STATE.
Implications: This breaks PCI compliance. If imple-
mented in a system, a strong pull-up should be used
on this signal.
Resolution: None.
12. PCI REQs must not go active during reset
Description: If a PCI REQ# goes active during reset,
the processor’s arbiter may not function correctly
after reset goes inactive.
Implications: None as long as the PCI REQ# is
pulled up during reset.
Resolution: None.
13. CALL at beginning of Code Segment Call causes
General Protection Fault
Description: A segment exists that has a base
address that is not 16-byte aligned and the limit of
that segment is at the maximum (FFFFFFFFh). A call
instruction is made to the begi nning of the segment,
that happens to be in the middle of the 16-byte line
fetch. The limit checking hardware assumes that the
limit has been crossed because the line fetch
contains both the beginning and the end of the
segment. The hardware is unable to discern that the
actual code execution does not cross the limit,
hence, causing a general protection fault to occur.
Implications: This is a real coding hazard, however,
coding practices are such that when a maximum
segment is created, the base is zero (which is 16byte aligned).
Resolution: None.
14. Self modifying code can cause PF
Description: A memory write is generated due to an
STOS instruction that is on a page boundary, which
modifies the STOS instruction. This is followed by a
JCC instruction that takes the IP back to where the
STOS instruction was. The refetch occurs but the
address of the refetch is wrong.
Implications: Self modifying code that executes as
described fails.
Resolution: None.
15. Time Stamp Counter stops during Suspend
Description: When the processor is in Suspend due
to SUSP#/SUSPA# or in HALT with the “Suspend on
Halt” bit set, the Time Stamp Counter stops.
Implications: This is different from other CPUs.
Resolution: None.
17. WORD access to Port 23; Port 24 half of access
goes off chip
Description: Executing a WORD I/O cycle to Port 23
is a misaligned cycle that the processor converts into
two BYTE cycles. When MAPEN = 1 (Index C3h[4]),
one cycle goes to Port 23 and the other to Port 24.
The Port 23 access does not go off chip since that is
a CPU I/O port, however, the Port 24 cycle does go
off chip.
Implications: None. There is typically nothing at Port
24.
Resolution: Access Port 23 using byte wide I/O
instructions.
AMD Geode™ GX1 Processor Silicon Revision 8.1.1 3
Page 4
Specification Update
Revision 8.1 - January 2004 - Confidential
19. Thermal diode does not work
Description: The thermal diode at pins E24 and D26
of the EBGA package and F36 and E37 of the SPGA
package do not work. Treat these signals as no
connects.
Implications: The thermal diode cann ot be used.
Resolution: None. Do not use this feature.
20. PCI Master Latency Timer is broken
Description: PCI register 0Dh, the Master Latency
Timer, is broken. Setting this register to any value
other then 00h results in a system hang.
Implications: This breaks PCI compliance, however,
the Master Latency Timer is typically not used.
Resolution: None. Do not use this feature.
21. Data setup to PCLK does not meet specification
Description: Symbol t4 in Table 6-19 (Video Inter-
face Signals) in the GX1 data book is out of specification. The timing of t4 is 5 ns, no t 3. 8 ns.
Implications: PCLK is limited to 135 MHz instead of
157 MHz. This limits maximum resolution to
1280x1024x75 Hz instead of 1280x1024x85 Hz.
Resolution: None.
22. Data setup to VID_CLK does not meet specification
Description: Symbol t8 in Table 6-19 (Video Inter-
face Signals) in the GX1 data book is out of specification. The timing of t8 is 5 ns, no t 3. 8 ns.
Implications: VID_CLK is limited to 133 MHz (266/2)
instead of 150 MHz (300/2). VID_CLK is created by
dividing the core frequency by 2 or 4. With this limitation and a core frequency of 300 MHz, VID_CLK can
only be divided by 4. With VID_CLK limited to 75
MHz, the video window cannot be used if the
graphics resolution is higher than 1024x768x85 Hz.
Resolution: None.
23 Video port limited to 133 MHz
Description: There is currently no I/O companion
solution that supports 150 MHz on the video port.
Implications: VID_CLK is created by dividing the
core frequency by 2 or 4. With this limitation and a
core frequency of 300 MHz, VID_CLK can only be
divided by 4. With VID_CLK limited to 75 MHz, the
video window cannot be used if the graphics resolution is 1280x1024x85 Hz. 1280x1024x75 Hz and
lower function correctly.
Resolution: None.
24. Behavior of EFLAGS during INTR handling is not
as expected.
Description: If an IRQ occurs during EFLAGS style
CPU ID support detection, bit 22 gets cleared. This is
different from an Intel CPU.
Implications: Possible compatibility problems.
Resolution: Disable IRQs during manipulation of
upper bits in EFLAGS.
25. Graphics resolution of 1280x1024x16 is not
supported
Description: If the horizontal resolution is greater
than 1024, the bits per pixel is limited to 8 instead of
16.
Implications: The standard resolution of
1280x1024x16 is not supported.
Resolution: None.
4 AMD Geode™ GX1 Processor Silicon Revision 8.1.1
Page 5
Specification Update
Revision 8.1 - January 2004 - Confidential
26 I/O write interlock
Description: I/O writes are non-postable instruc-
tions. Code execution is not supposed to continue
until the I/O write is completed. An I/O write instruction that is executed on the PCI bus can be retried in
a process called delayed transaction. This allows
external PCI bus masters to gain control of the bus,
even though a long cycle is in progress to a slow
device, such as ISA bus devices. If a bus master
gains control of the PCI bus during a delayed I/O
write and transfers data, the CPU core is signaled
that the delayed I/O write has completed. This allows
the CPU core to continue inadvertently.
Implications: The vast majority of I/O writes are not
affected by this issue, because they do not care if
code continues to execute even though they have not
completed. However, in extremely rare instances,
unexpected system behavior can result.
Resolution: If a critical I/O write exists, execute a
non-critical I/O read immediately after the I/O write.
27 Time Stamp Counter rollover
Description: The upper 32 bits of the Time Stamp
Counter (TSC) increment three core clocks before
the lower 32 bits rollover. If the TSC is read and EAX
is FFFFFFFDh, FFFFFFFEh, or FFFFFFFFh, then
EDX will have incremented.
Implications: The TSC cannot be read reliably.
Resolution: (1) Use the TSC as a 32 bit counter. (2)
When the TSC is read and EAX equals FFFFFFFD,
FFFFFFFEh, or FFFFFFFFh; then decrement the
EDX value by 1.
AMD Geode™ GX1 Processor Silicon Revision 8.1.1 5
Page 6
© 2004 Advanced Micro Devices, Inc. All rights reserved.
The contents of this document are provided in connection with Advanced Micro
Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and
reserves the right to make changes to specifications and product descriptions at
any time without notice. No license, whether express, implied, arising by estoppel
or otherwise, to any intellectual property rights is granted by this publication.
Except as set forth in AMD’s Standard Terms and Conditions of Sale, AMD
assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual
property right.
AMD’s products are not designed, intended, authorized or warranted for use as
components in systems intended for surgical implant into the body, or in other
applications intended to support or sustain life, or in any other application in which
the failure of AMD’s product could create a situation where personal injury, death,
or severe property or environmental damage ma y occur. AMD reserves the right to
discontinue or make changes to its products at any time without notice.
www.amd.com
One AMD Place
P.O. Box 3453,
Sunnyvale, CA 94088-3453 USA
Tel: 408-732-2400 or 800-538-8450
TWX: 910-339-9280
TELEX: 34-6306
TECHNICAL SUPPORT
USA & Canada: 800-222-9323 or 408-749-5703
USA & Canada: PC Microprocessor: 408-749-3060
USA & Canada Email: [email protected]
Latin America Email: [email protected]
Argentina: 001-800-200-1111, after tone 800-859-4478
Chile: 800-532-853
Mexico: 95-800-222-9323
Europe & UK: +44–0-1276-803299
Fax: +44–0-1276-803298
France: 0800-908-621
Germany: +49–89-450-53199
Italy: 800-877224
Europe Email: [email protected]
Far East Fax: 852-2956-0588
Japan Fax: 81-3-3346-7848
TRADEMARKS
AMD, the AMD Arrow logo, and combinations
thereof, and Geode are trademarks of
Advanced Micro Devices, Inc.
Other product names used in this publication are
for identification purposes only and may be trademarks of their respective companies.
Loading...
