AMD Advanced Micro Devices AM29LV160BT-80RWCC, AM29LV160BT-80RSI, AM29LV160BT-80RSEB, AM29LV160BT-80RSE, AM29LV160BT-80RSCB Datasheet

PRELIMINARY

Publication# 21358 Rev: F Amendment/+2
Issue Date: March 1998

Am29LV160B

16 Megabit (2 M x 8-Bit/1 M x 16-Bit)
CMOS 3.0 Volt-onl y Boot Sector Flash Memory

DISTINCTIVE CHARACTERISTICS

■ Single power supply operation

— Full voltage range: 2.7 to 3.6 volt read and write

operations for battery-powered applications

— Regulated voltage range: 3.0 to 3.6 volt read

and write operations and for compatibility with
high performance 3.3 volt microprocessors

■ Manufactured on 0.35 µm process technology

■ Supports Common Flash Memory Interface

(CFI)

■ High performance

— Full voltage range: access times as f ast as 90 ns
— Regulated voltage range: access times as fast

as 80 ns

■ Ultra low power consumption (typical values at

5 MHz)

— 200 nA Automatic Sleep mode current
— 200 nA standby mode current
— 9 mA read current
— 20 mA program/erase current

■ Flexible sector architecture

— One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and

thirty-one 64 Kbyte sectors (byte mode)

— One 8 Kword, two 4 Kword, one 16 Kword, and

thirty-one 32 Kword sectors (word mode)
— Supports full chip erase
— Sector Protection features:

A hardware method of locking a sector to

prevent any program or erase operations within

that sector

Sectors can be locked in-system or via

programming equipment

T emporary Sector Unprotect feat ure allows code

changes in previously locked sectors

■ Unlock Bypass Program Command

— Reduces overall programming time when

issuing multiple program command sequences

■ Top or bottom boot block configurations

available

■ Embedded Al gorithms

— Embedded Erase algorithm automatically

preprograms and erases the entire chip or any
combination of designated sectors

— Embedded Program algorithm automatically

writes and verifies data at specified addresses

■ Minimum 1,000,000 write cycle guarantee per

sector

■ Package option

— 48-ball FBGA
— 48-pin TSOP
— 44-pin SO

■ CFI (Common Flash Interface) compliant

— Provides device-specific information to the

system, allowing host software to easily
reconfigure for different Flash devices

■ Compatibility with JEDEC standards

— Pinout and software compatible with single-

power supply Flash

— Superior inadvertent write protection

■ Data# Polling and toggle bits

— Provides a software method of detecting

program or erase operation completion

■ Ready/Busy# pin (RY/BY#)

— Provides a hardware method of detecting

program or erase cycle completion (not
available on 44-pin SO)

■ Erase Suspend/Erase Resume

— Suspends an erase operation t o read data from,

or program data to, a sector that is not being
erased, then resumes the erase operation

■ Hardware reset pin (RESET#)

— Hardware method to reset the de vice to reading

array data

PRELIMINARY

2 Am29LV160B

GENERAL DESCRIPTION

The Am29LV160B is a 16 Mbit, 3.0 Vo lt-only Flash memor y
organized as 2,097,152 bytes or 1,048,576 words. The
device is offered in 48-ball FBGA, 44-pin SO, and 48-pin
TSOP packages. The word-wide data (x16) appears on

DQ15–DQ0; the byte -wide (x8) data appea rs on DQ7–DQ0 .
This device is designed to be progr ammed in-sys tem with
the standard syste m 3.0 volt V

CC

supply. A 12.0 V VPP or 5.0

V

CC

are not required for write or erase operations. The
device can also be programmed in standard
EPROM programmers.

The device offers access times of 80, 90, and 120 ns,
allowing high speed microprocessors to operate
without wait states. To eliminate bus contention the
device has separate chip enable (CE#), write enable
(WE#) and output enable (OE#) controls.

The device requires only a single 3. 0 v o lt po wer sup-
ply for both read and write functions. Internally gener­ated and regulated voltages are provided for the
program and erase operations.

The Am29LV160B is entirely command set compatible
with the JEDEC single-power-supply Flash
standard. Commands are written to t he command reg­ister using standard microprocessor write timings. Reg­ister contents ser ve as input to an internal state ­machine that controls the erase and programming cir­cuitry. Write cycles also internally latch addresses and
data needed for the programming and erase op era­tions. Reading data out of the device is similar to
reading from other Flash or EPROM devices.

Device programming occurs by executing the program
command sequence. This initiates the Embedded
Program algorithm—an internal algorithm that auto­matically times the program pulse widths and verifies
proper cell margin. The Unlock Bypass mode facili­tates faster programming times by requir ing only two
write cycles to program data instead of four.

Device erasure occurs by executing the erase com­mand sequence. This initiates the Embedded Erase
algorithm—an internal algorithm that automatically pre­programs the array (if it is not already progr ammed) be­fore executing the erase operation. During erase, the
device automatically times the erase pulse widths and
verifies proper cell margin.

The host system can detect whether a program or
erase operation is complete by observing the RY/BY#
pin, or by reading the DQ7 (Data# Polling) and DQ6
(toggle) status bits. After a program or erase cycle
has been completed, the device is ready to read array
data or accept another command.

The sector erase ar chitecture allo ws memo ry secto rs
to be erased and reprogrammed without affecting the
data contents of other sectors. The device is fully
erased when shipped from the factory.

Hardwar e data pr otecti on measures include a low V

CC

detector that automatically inhibits wr ite operations dur­ing power transitions. The hardware sector protection
feature disables both program and erase operatio ns in
any combination of the sectors of memor y. This can be
achieved in-system or via programming equipment.

The Erase Suspend/Erase Resume feature enables
the user to put erase on hold for any period of time to
read data from, or program data to, any sector that is
not selected for erasure. Tr ue background erase can
thus be achieved.

The hardware RESET# pin terminates any operation
in progress and resets the internal state machine to
reading array dat a. The RESET# pin ma y be tied to the
system reset circuitry. A system reset would thus also
reset the device, enabling the system microprocessor
to read the boot-up firmware from the Flash memory.

The device offers two power-saving features. When
addresses have been stable for a specified amount of
time, the device enters the automatic sleep m ode.
The system can also place the de vice into the standby
mode. Power consumption is greatly reduced in both
these modes.

AMD’s Flash technology combines years of Flash
memory manufacturing experience to produce the
highest lev els of quality, reliability and cost effect iv eness .
The device electrically erases all bits within a sector
simultaneously via Fowler-Nordheim tunneling. The
data is programmed us ing hot el ec tr on i nject ion.

PRELIMINARY

Am29LV160B 3

PRODUCT SELECTOR GUIDE

Note: See “AC Characteristics ” for full specifications.

BLOCK DIAGRAM

Family Part Number Am29LV160B

Speed Option

Regulated Voltage Range: VCC =3.0–3.6 V 80R

Full Voltage Range: VCC = 2.7–3.6 V 90 120

Max access time, ns (t

ACC

) 80 90 120
Max CE# access time, ns (tCE) 80 90 120
Max OE# access time, ns (tOE) 30 35 50

Input/Output

Buffers

X-Decoder

Y-Decoder

Chip Enable

Output Enable

Logic

Erase Voltage

Generator

PGM Voltage

Generator

Timer

VCC Detector

State

Control

Command

Register

V

CC

V

SS

WE#

BYTE#

CE#

OE#

STB

STB

DQ0

–

DQ15 (A-1)

Sector Switches

RY/BY#

RESET#

Data

Latch

Y-Gating

Cell Matrix

Address Latch

A0–A19

21358F-1

PRELIMINARY

4 Am29LV160B

CONNECTION DIAGRAMS

A1

A15

A18

A14
A13
A12
A11
A10
A9
A8
A19
NC
WE#
RESET#
NC
NC
RY/BY#

A17
A7
A6
A5
A4
A3
A2

1

16

2
3
4
5
6
7
8

17
18
19
20
21
22
23
24

9
10
11
12
13
14
15

A16

DQ2

BYTE#

V

SS

DQ15/A-1

DQ7

DQ14

DQ6

DQ13

DQ9
DQ1
DQ8
DQ0

OE#

V

SS

CE#

A0

DQ5

DQ12

DQ4

V

CC

DQ11

DQ3

DQ10

48

33

47
46
45
44
43
42
41
40
39
38
37
36
35
34

25

32
31
30
29
28
27
26

A1

A15

A18

A14
A13
A12
A11
A10

A9
A8

A19

NC

WE#

RESET#

NC
NC

RY/BY#

A17

A7
A6
A5
A4
A3
A2

1

16

2
3
4
5
6
7
8

17
18
19
20
21
22
23
24

9
10
11
12
13
14
15

A16

DQ2

BYTE#
V

SS

DQ15/A-1
DQ7
DQ14
DQ6
DQ13

DQ9
DQ1
DQ8
DQ0
OE#

V

SS

CE#
A0

DQ5
DQ12
DQ4
V

CC

DQ11
DQ3
DQ10

48

33

47
46
45
44
43
42
41
40
39
38
37
36
35
34

25

32
31
30
29
28
27
26

21358F-2

Reverse TSOP

Standard TSOP

PRELIMINARY

Am29LV160B 5

CONNECTION DIAGRAMS

Special Handling Instructions

Special handling is required for Flash Memory products
in FBGA packages.

Flash memory devices in FBGA packages may be
damaged if exposed to ultrasonic cleaning methods.
The package and/or data integrity may be compromised
if the package body is exposed to temperatures above
150°C for prolonged periods of time.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22

RESET#

A18
A17

A7
A6
A5
A4
A3
A2
A1
A0

CE#

V

SS

OE#
DQ0
DQ8
DQ1
DQ9
DQ2

DQ10

DQ3

DQ11

44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23

WE#
A19
A8
A9
A10
A11
A12
A13
A14
A15
A16
BYTE#
V

SS

DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
V

CC

SO

21358F-3

A1 B1 C1 D1 E1 F1 G1 H1

A2 B2 C2 D2 E2 F2 G2 H2

A3 B3 C3 D3 E3 F3 G3 H3

A4 B4 C4 D4 E4 F4 G4 H4

A5 B5 C5 D5 E5 F5 G5 H5

A6 B6 C6 D6 E6 F6 G6 H6

DQ15/A-1 V

SS

BYTE#A16A15A14A12A13

DQ13 DQ6DQ14DQ7A11A10A8A9

V

CC

DQ4DQ12DQ5A19NCRESET#WE#

DQ11 DQ3DQ10DQ2NCA18NCRY/BY#

DQ9 DQ1DQ8DQ0A5A6A17A7

OE# V

SS

CE#A0A1A2A4A3

FBGA

Bottom View

21358F-1

PRELIMINARY

6 Am29LV160B

PIN CONFIGURATION

A0–A19 = 20 addresses
DQ0–DQ14 = 15 data inputs/outputs
DQ15/A-1 = DQ15 (data input/output, word mode),

A-1 (LSB address input, byte mode)
BYTE# = Selects 8-bit or 16-bit mode
CE# = Chip enable
OE# = Output enable
WE# = Write enable
RESET# = Hardware reset pin
RY/BY# = Ready/Busy output

(N/A SO 044)
V

CC

= 3.0 volt-only single power supply

(see Product Selector Guide for speed

options and voltage supply toleranc es)
V

SS

= Device ground

NC = Pin not connected internally

LOGIC SYMBOL

21358F-4

20

16 or 8

DQ0–DQ15

(A-1)

A0–A19

CE#
OE#

WE#
RESET#
BYTE# RY/BY#

(N/A SO 044)

PRELIMINARY

Am29LV160B 7

ORDERING INFORMATION
Standard Pr od ucts

AMD standard products are available in several packages and operating ranges. The order number (Valid Combi­nation) is formed by a combination of the elements below.

Valid Combinations

Valid Combinations list configurations planned to be sup­ported in volume for this device. Consult the local AMD sales
office to confirm availability of specific valid combinations and
to check on newly released combinations.

DEVICE NUMBER/DESCRIPTION

Am29LV160B
16 Megabit (2M x 8-Bit/1M x 16-Bit) CMOS Flash Memory

3.0 Volt-only Read, Program, and Erase

CE80RAM29LV160B T

OPTIONAL PROCESSING

Blank = Standard Processing
B = Burn-in
(Contact an AMD representative for more information)

TEMPERATURE RANGE

C=Commercial (0°C to +70°C)
I = Industrial (–40°C to +85°C)
E = Extended (–55°C to +125°C)

PACKAGE TYPE

E = 48-Pin Thin Small Outline Package (TSOP)

Standard Pinout (TS 048)

F = 48-Pin Thin Small Outline Package (TSOP)

Reverse Pinout (TSR048)
S = 44-Pin Small Outline Package (SO 044)

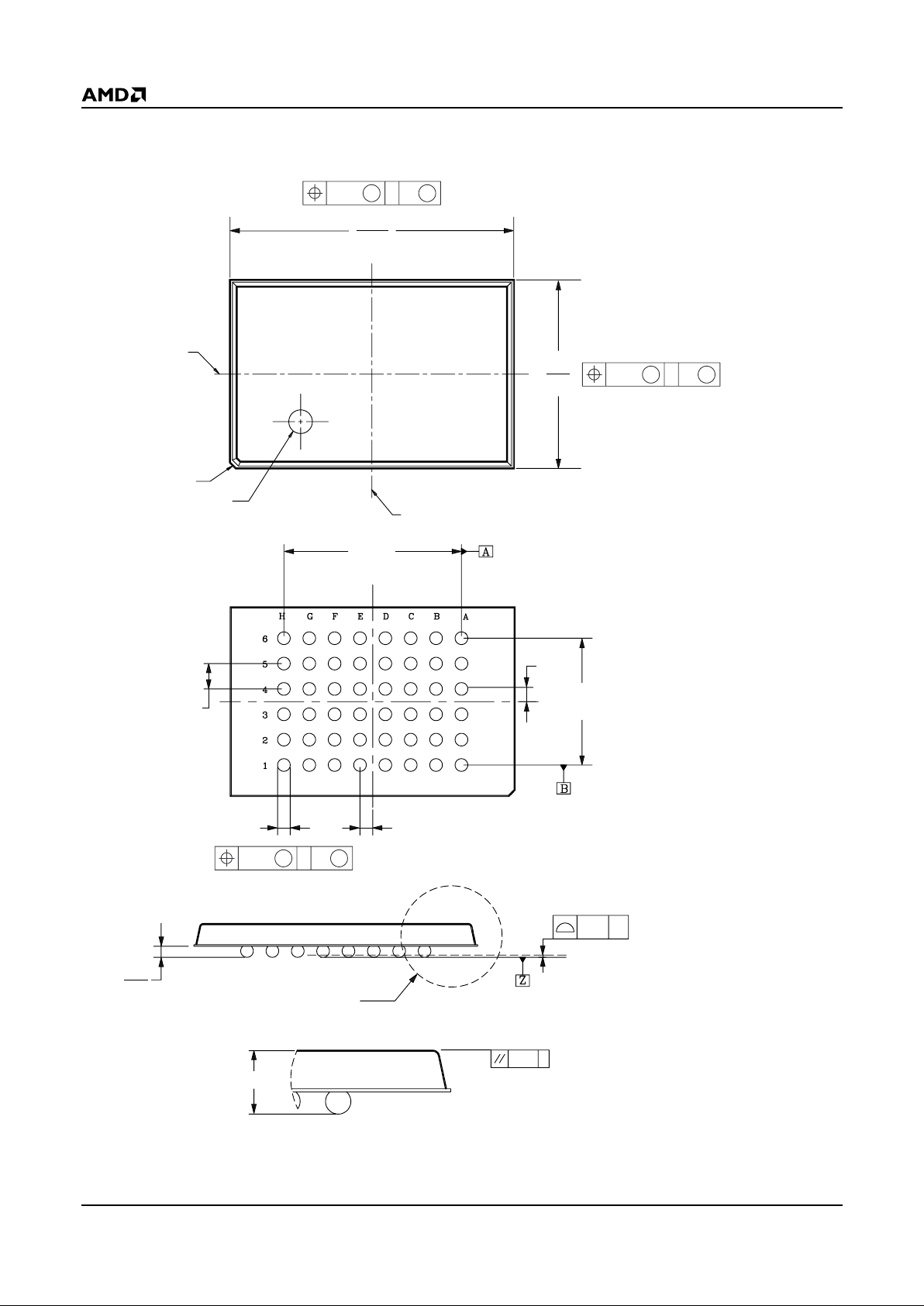

WC = 48-ball Fine-Pitch Ball Grid Array (FBGA)

0.80 mm pitch, 8 x 9 mm package

SPEED OPTION

See Product Selector Guide and Valid Combinations

BOOT CODE SECTOR ARCHITECTURE

T = Top Sector
B = Bottom Sector

Valid Combinations

AM29LV160BT80R,
AM29LV160BB80R

EC, FC, SC, WCC

AM29LV160BT90,
AM29LV160BB90

EC, EI, EE,

FC, FI, FE,

SC, SI, SE,

WCC, WCI, WCE

AM29LV160BT120,
AM29LV160BB120

PRELIMINARY

8 Am29LV160B

DEVICE BUS OPERATIONS

This section describes the requirements and use of the
device bus operations, which are initiated through the
internal command register. The command register itself
does not occupy any addressable memory loc ation.
The register is composed of latches that store the com­mands, along with the address and data information
needed to execute the command. The contents of the

register serve as inputs to the internal state machine.
The state machine outputs d ictate the function of the
device. Table 1 lists the device bus operations, the in­puts and control levels they require, and the resulting
output. The following subsections describe each of
these operations in further detail.

Table 1. Am29LV160B Device Bus Operations

Legend:

L = Logic Low = V

IL

, H = Logic High = VIH, VID = 12.0 ± 0.5 V, X = Don’t Care, AIN = Address In, DIN = Data In, D

OUT

= Data Out

Notes:

1. Addresses are A19:A0 in word mode (BYTE# = V

IH

), A19:A-1 in byte mode (BYTE# = VIL).

2. The sector protect and sector unprotect functions may also be implemented via programming equipment. See the “Sector
Protection/Unprotection” section.

Word/Byte Configuration

The BYTE# pin controls whether the device data I/O

pins DQ15–DQ0 operate in the by te or word configur a­tion. If the BYTE# pin is set at logic ‘1’, the device is in
word configuration, DQ15–DQ0 are activ e and c ontrol­led by CE# and OE#.

If the BYTE# pin is set at logic ‘0’, the device is in byte
configuration, and only data I/O pins DQ0–DQ7 are ac­tive and controlled by CE# and OE#. The data I/O pins
DQ8–DQ14 are tri-stated, and the DQ15 pin is used as
an input for the LSB (A-1) address function.

Requirements for Reading Array Data

To read array data from the outputs, the system must
drive the CE# and OE# pins to V

IL

. CE# is the power
control and selects the device. OE# is the output control
and gates array data to the output pins. WE# should re-

main at V

IH

. The BYTE# pin determines whether the de-

vice outputs array data in word s or b yt e s.
The internal state machine is set for reading array

data upon device po wer-u p , or after a hardw are res et.
This ensure s that no sp urious alteration of the mem­ory content occurs dur ing the power transition. No
command is nece ssary in this mode to ob tain array
data. Standard microprocessor read cycles that as­sert valid addresses on the de vice addr ess inputs pro­duce valid data on the device data outputs. The
device remains enab led f or read access until t he com­mand register contents are altered.

See “Reading Array Data” for more information. Refer
to the AC Read Operations table for timing specifica­tions and to Figure 13 for the timing diagram. I

CC1

in

the DC Characteristics table represents the active cur­rent specification for reading array data.

Operation CE# OE# WE# RESET#

Addresses

(Note 1)

DQ0–

DQ7

DQ8–DQ15

BYTE#

= V

IH

BYTE#

= V

IL

Read L L H H A

IN

D

OUT

D

OUT

DQ8–DQ14 = High-Z,

DQ15 = A-1

Write L H L H A

IN

D

IN

D

IN

Standby

V

CC

±

0.3 V

XX

VCC ±

0.3 V

X High-Z High-Z High-Z

Output Disable L H H H X High-Z High-Z High-Z
Reset X X X L X High-Z High-Z High-Z

Sector Protect (Note 2) L H L V

ID

Sector Address,

A6 = L, A1 = H,

A0 = L

D

IN

XX

Sector Unprotect (Note 2) L H L V

ID

Sector Address,
A6 = H, A1 = H,

A0 = L

D

IN

XX

Temporary Sector
Unprotect

XXX V

ID

A

IN

D

IN

D

IN

High-Z

PRELIMINARY

Am29LV160B 9

Writing Commands/Command Sequences

To wr ite a command or command sequence (which in­cludes programming data to the device and erasing
sectors of memory), the system must drive WE# and
CE# to V

IL

, and OE# to VIH.

For program operations, the BYTE# pin deter mines
whether the device accepts p rogram data in bytes

or words. Refer to “Word/Byte Configuration” for
more information.

The device features an Unlock Bypass mode to facili-
tate faster programming. Once the device enters the Un­lock Bypass mode, only two write cycles are required to
program a word or byte, instead of four. The “Word/Byte
Program Command Sequence” section has details on
programming data to the device using both standard and
Unlock Bypass command sequences.

An erase operation can erase one sect or, multiple sec­tors, or the entire device. Tables 2 and 3 i ndicate the
address space that each sector occupies. A “sector ad­dress” consists of the addres s bits required t o un iquely
select a sector. The “Command Definitions” section
has details on erasing a sector or the entire chip, or
suspending/resuming the erase operation.

After the system writes the autoselect command se­quence, the device enters the autoselect mode. The
system can then read autoselect codes from the inter­nal register (which is separate from the memory array)
on DQ7–DQ0. Standard read cycle timings apply in this
mode. Refer to the “Autoselect Mode” and “Autoselect
Command Sequence” sections for more information.

I

CC2

in the DC Characteristics table represents the ac­tive current specification for the w rite mode. The “AC
Characteristics” section contains timing specification
tables and timing diagrams for write operations.

Program and Erase Operation Status

During an erase or program operation, the system ma y
check the status of the operation by reading the status

bits on DQ7–DQ0. Standard read cycle timings and I

CC

read specifica tions apply. Refer to “Write Ope ration
Status” for more information, and to “AC Characteris­tics” for timing diagrams.

Standby Mode

When the system is not reading or writing to the device ,
it can place the device in the standby mode. In this
mode, current consumption is gr eatly reduced, and the
outputs are placed in the high impedance state, inde­pendent of the OE# input.

The device enters the CMOS standby mode when the
CE# and RESET# pins are both held at V

CC

± 0.3 V.
(Note that this is a more restricted voltage range than
V

IH

.) If CE# and RESET# ar e held at VIH, but not within

V

CC

± 0.3 V, the device will be in the standby mode, b ut
the standby current will be grea ter. The device req uires
standard access time (t

CE

) for read access when the
device is in either of these standby modes, before it is
ready to read data.

If the device is deselected during erasure or program­ming, the device draws active current until the
operation is completed.

In the DC Characteristics table, I

CC3

and I

CC4

repre-

sents the standby current specification.

Automatic Sleep Mode

The automatic sleep mode minimizes Flash device
energy consumption. The device automatically
enables this mode when addres ses remain stable for
t

ACC

+ 30 ns. The automatic sleep mode is
independent of the CE#, WE#, and OE# control
signals. Standard address access timings provide new
data when addresses are chan ged. While in sleep
mode, output data is latched and always available to
the system. I

CC4

in the DC Characteristics table
represents the automatic sleep mode current
specification.

PRELIMINARY

10 Am29LV160B

RESET#: Hardware Reset Pin

The RESET# pin provides a har dware method of reset­ting the device to readi ng arr ay data. When the system
drives the RESET# pin to V

IL

for at least a p eriod of tRP,
the device immediately terminates any operati on in
progress, tristates all data output pins, and ignores all
read/wri te attempts for the durati on of the RESET#
pulse. The device also resets the inter nal state ma­chine to reading array data. The operation that was in­terrupted should be reinitiated once the device is ready
to accept another command sequence, to ensure data
integrity.

Current is reduced for the duration of the RESET#
pulse. When RESET# is held at V

SS

±0.3 V, the device

draws CMOS standby current (I

CC4

). If RESET# is held

at V

IL

but not within VSS±0.3 V, the standby current will

be greater.
The RESET# pin may be tied to the system reset cir-

cuitry. A system reset would thus also reset the Flash

memory, enabling the system to read the boot-up
firmware from the Flash memory.

If RESET# is asserted during a program or erase op­eration, the RY/BY# pin remains a “0” (busy) until the
internal reset operation is complete, which requires a
time of t

READY

(during Embedded Algorithms). The
system can thus monitor RY/BY# to determine
whether the reset oper ation is c omplete . If RESE T# is
asserted when a program or erase oper ation is not e x­ecuting (RY/BY# pin is “1”), the reset operation is
completed within a time of t

READY

(not during Embed-

ded Algorithms). The system can read data t

RH

after

the RESET# pin return s to V

IH

.

Refer to the AC Characteristics tables for RESET# pa­rameters and to Figure 14 for the timing diagram.

Output Disable Mode

When the OE# input is at VIH, output from the device is
disabled. The output pins are placed in t he high imped­ance state.

PRELIMINARY

Am29LV160B 11

Table 2. Sector Address Tables (Am29LV160BT)

Note: Address range is A19:A-1 in byte mode and A19:A0 in word mode. See “Word/Byte Configuration” section for more

information.

Sector A19 A18 A17 A16 A15 A14 A13 A12

Sector Size

(Kbytes/
Kwords)

Address Range (in hexadecimal)

Byte Mode (x8) Word Mode (x16)

SA0 0 0 0 0 0 X X X 64/32 000000–00FFFF 00000–07FFF
SA1 0 0 0 0 1 X X X 64/32 010000–01FFFF 08000–0FFFF
SA2 0 0 0 1 0 X X X 64/32 020000–02FFFF 10000–17FFF
SA3 0 0 0 1 1 X X X 64/32 030000–03FFFF 18000–1FFFF
SA4 0 0 1 0 0 X X X 64/32 040000–04FFFF 20000–27FFF
SA5 0 0 1 0 1 X X X 64/32 050000–05FFFF 28000–2FFFF
SA6 0 0 1 1 0 X X X 64/32 060000–06FFFF 30000–37FFF
SA7 0 0 1 1 1 X X X 64/32 070000–07FFFF 38000–3FFFF
SA8 0 1 0 0 0 X X X 64/32 080000–08FFFF 40000–47FFF

SA9 0 1 0 0 1 X X X 64/32 090000–09FFFF 48000–4FFFF
SA10 0 1 0 1 0 X X X 64/32 0A0000–0AFFFF 50000–57FFF
SA11 0 1 0 1 1 X X X 64/32 0B0000–0BFFFF 58000–5FFFF
SA12 0 1 1 0 0 X X X 64/32 0C0000–0CFFFF 60000–67FFF
SA13 0 1 1 0 1 X X X 64/32 0D0000–0DFFFF 68000–6FFFF
SA14 0 1 1 1 0 X X X 64/32 0E0000–0EFFFF 70000–77FFF
SA15 0 1 1 1 1 X X X 64/32 0F0000–0FFFFF 78000–7FFFF
SA16 1 0 0 0 0 X X X 64/32 100000–10FFFF 80000–87FFF
SA17 1 0 0 0 1 X X X 64/32 110000–11FFFF 88000–8FFFF
SA18 1 0 0 1 0 X X X 64/32 120000–12FFFF 90000–97FFF
SA19 1 0 0 1 1 X X X 64/32 130000–13FFFF 98000–9FFFF
SA20 1 0 1 0 0 X X X 64/32 140000–14FFFF A0000–A7FFF
SA21 1 0 1 0 1 X X X 64/32 150000–15FFFF A8000–AFFFF
SA22 1 0 1 1 0 X X X 64/32 160000–16FFFF B0000–B7FFF
SA23 1 0 1 1 1 X X X 64/32 170000–17FFFF B8000–BFFFF
SA24 1 1 0 0 0 X X X 64/32 180000–18FFFF C0000–C7FFF
SA25 1 1 0 0 1 X X X 64/32 190000–19FFFF C8000–CFFFF
SA26 1 1 0 1 0 X X X 64/32 1A0000–1AFFFF D0000–D7FFF
SA27 1 1 0 1 1 X X X 64/32 1B0000–1BFFFF D8000–DFFFF
SA28 1 1 1 0 0 X X X 64/32 1C0000–1CFFFF E0000–E7FFF
SA29 1 1 1 0 1 X X X 64/32 1D0000–1DFFFF E8000–EFFFF
SA30 1 1 1 1 0 X X X 64/32 1E0000–1EFFFF F0000–F7FFF
SA31 1 1 1 1 1 0 X X 32/16 1F0000–1F7FFF F8000–FBFFF
SA32 1 1 1 1 1 1 0 0 8/4 1F8000–1F9FFF FC000–FCFFF
SA33 1 1 1 1 1 1 0 1 8/4 1FA000–1FBFFF FD000–FDFFF
SA34 1 1 1 1 1 1 1 X 16/8 1FC000–1FFFFF FE000–FFFFF

PRELIMINARY

12 Am29LV160B

Table 3. Sector Address Tables (Am29LV160BB)

Note: Address range is A19:A-1 in byte mode and A19:A0 in word mode. See “Word/Byte Configuration” section for more

information.

Sector A19 A18 A17 A16 A15 A14 A13 A12

Sector Size

(Kbytes/
Kwords)

Address Range (in hexadecimal)

Byte Mode (x8) Word Mode (x16)

SA00000000X 16/8 000000–003FFF 00000–01FFF

SA100000010 8/4 004000–005FFF 02000–02FFF

SA2 00000011 8/4 006000–007FFF 03000–03FFF

SA3 000001XX 32/16 008000–00FFFF 04000–07FFF

SA4 00001XXX 64/32 010000–01FFFF 08000–0FFFF

SA5 00010XXX 64/32 020000–02FFFF 10000–17FFF

SA6 00011XXX 64/32 030000–03FFFF 18000–1FFFF

SA7 00100XXX 64/32 040000–04FFFF 20000–27FFF

SA8 00101XXX 64/32 050000–05FFFF 28000–2FFFF

SA9 00110XXX 64/32 060000–06FFFF 30000–37FFF
SA1000111XXX 64/32 070000–07FFFF 38000–3FFFF
SA1101000XXX 64/32 080000–08FFFF 40000–47FFF
SA1201001XXX 64/32 090000–09FFFF 48000–4FFFF
SA1301010XXX 64/32 0A0000–0AFFFF 50000–57FFF
SA1401011XXX 64/32 0B0000–0BFFFF 58000–5FFFF
SA1501100XXX 64/32 0C0000–0CFFFF 60000–67FFF
SA1601101XXX 64/32 0D0000–0DFFFF 68000–6FFFF
SA1701110XXX 64/32 0E0000–0EFFFF 70000–77FFF
SA1801111XXX 64/32 0F0000–0FFFFF 78000–7FFFF
SA1910000XXX 64/32 100000–10FFFF 80000–87FFF
SA2010001XXX 64/32 110000–11FFFF 88000–8FFFF
SA2110010XXX 64/32 120000–12FFFF 90000–97FFF
SA2210011XXX 64/32 130000–13FFFF 98000–9FFFF
SA2310100XXX 64/32 140000–14FFFF A0000–A7FFF
SA2410101XXX 64/32 150000–15FFFF A8000–AFFFF
SA2510110XXX 64/32 160000–16FFFF B0000–B7FFF
SA2610111XXX 64/32 170000–17FFFF B8000–BFFFF
SA2711000XXX 64/32 180000–18FFFF C0000–C7FFF
SA2811001XXX 64/32 190000–19FFFF C8000–CFFFF
SA2911010XXX 64/32 1A0000–1AFFFF D0000–D7FFF
SA3011011XXX 64/32 1B0000–1BFFFF D8000–DFFFF
SA3111100XXX 64/32 1C0000–1CFFFF E0000–E7FFF
SA3211101XXX 64/32 1D0000–1DFFFF E8000–EFFFF
SA3311110XXX 64/32 1E0000–1EFFFF F0000–F7FFF
SA3411111XXX 64/32 1F0000–1FFFFF F8000–FFFFF

PRELIMINARY

Am29LV160B 13

Autoselect Mode

The autoselect mode provides manufacturer and de­vice identification, and sector protection verification,

through identifier codes output on DQ7–DQ0. This
mode is primarily intended for progr amming equipment
to automatically match a device to be progr ammed with
its correspondi ng programming al gorithm. However,
the autoselect codes can also be accessed in-system
through the command register.

When using programming equipment, the autoselect
mode requires V

ID

(11.5 V to 12.5 V) on address pin

A9. Address pins A6, A1, and A0 must be as shown in

Ta ble 4. In addition, when verifying s ector protection,
the sector address must appear on the appropriate
highest order address bits (see Tables 2 and 3). Table
4 shows the remaining address bits that are don’t care .
When all necessary bits have been set as required, the
programming equipment may then read the corre­sponding identifier code on DQ7-DQ0.

To access the autoselect codes in-system, the host
system can issue the autoselect command via the
command register, as shown in Table 9. This method
does not require V

ID

. See “Command Definitions” for

details on using the autoselect mode.

Table 4. Am29L V160B Autoselect Codes (High Voltage Method)

L = Logic Low = VIL, H = Logic High = VIH, SA = Sector Address, X = Don’t care.

Note: The autoselect codes may also be accessed in-system via command sequences. See Table 9.

Sector Protection/Unprotection

The hardware sector protection feature disables both
program and erase operations in any sect or. The hard­ware sector unprotection feature re-enables both pro­gram and erase operations in previously protected
sectors.

The device is shipped with all sectors unprotected.
AMD offers the option of programming and protecting
sectors at its factory prior to shipping the device

through AMD’s ExpressFlash™ Servic e. Contact an
AMD representative for details.

It is possible to determine whether a sector is protected
or unprotected. See “Autoselect Mode” for details.

Sector protection/unprotection can be implemented via
two methods.

The primary method requires V

ID

on the RESET# pin
only, and can be implemented either in-system or via
programming equipment. Figure 1 shows the algo­rithms and Figure 23 shows the timing diagram. This
method uses standard m icroprocessor bus cycle tim-

ing. For sector unprotect, all unprotected sectors must
first be protected prior to the first sect or unprotect write
cycle.

The alternate method intended o nly for programming
equipment requires V

ID

on address pin A9 and OE#.
This method is compatible with programmer routines
written for earlier 3.0 volt-only AMD flash devices. De­tails on this method are pro vided in a supplement, pub­lication number 21468. Contact an AMD representativ e
to request a copy.

Temporary Sector Unprotect

This feature allows temporary unprotection of previ­ously protected sectors to change data in-system. The
Sector Unprotect mode is activated by setting the RE­SET# pin to V

ID

. During this mode, formerly protected
sectors can be programmed or erased b y selecting the
sector addresses. Once V

ID

is removed from the RE­SET# pin, all the previously protected sectors are
protected again. Figure 2 shows the algorithm, and
Figure 22 shows the timing diagrams, for this feature.

Description Mode CE# OE# WE#

A19

to

A12

A11

to

A10 A9

A8

to

A7 A6

A5

to

A2 A1 A0

DQ8

to

DQ15

DQ7

to

DQ0

Manufacturer ID: AMD L L H X X V

ID

XLXLL X 01h

Device ID:
Am29LV160B
(Top Boot Block)

Word L L H

XXVIDXLXLH

22h C4h

Byte L L H X C4h

Device ID:
Am29LV160B
(Bottom Boot Block)

Word L L H

XXVIDXLXLH

22h 49h

Byte L L H X 49h

Sector Protection Verification L L H SA X V

ID

XLXHL

X

01h

(protected)

X

00h

(unprotected)

PRELIMINARY

14 Am29LV160B

Figure 1. In-System Sector Protect/Unprotect Algorithms

Sector Protect:

Write 60h to sector

address with

A6 = 0, A1 = 1,

A0 = 0

Set up sector

address

Wait 150 µs

Verify Sector

Protect: Write 40h

to sector address

with A6 = 0,

A1 = 1, A0 = 0

Read from

sector address

with A6 = 0,

A1 = 1, A0 = 0

START

PLSCNT = 1

RESET# = V

ID

Wait 1 µs

First Write

Cycle = 60h?

Data = 01h?

Remove V

ID

from RESET#

Write reset

command

Sector Protect

complete

Yes

Yes

No

PLSCNT

= 25?

Yes

Device failed

Increment

PLSCNT

Temporary Sector

Unprotect Mode

No

Sector Unprotect:

Write 60h to sector

address with

A6 = 1, A1 = 1,

A0 = 0

Set up first sector

address

Wait 15 ms

Verify Sector

Unprotect: Write

40h to sector
address with

A6 = 1, A1 = 1,

A0 = 0

Read from

sector address

with A6 = 1,

A1 = 1, A0 = 0

START

PLSCNT = 1

RESET# = V

ID

Wait 1 µs

Data = 00h?

Last sector

verified?

Remove V

ID

from RESET#

Write reset

command

Sector Unprotect

complete

Yes

No

PLSCNT

= 1000?

Yes

Device failed

Increment

PLSCNT

Temporary Sector

Unprotect Mode

No

All sectors
protected?

Yes

Protect all sectors:

The indicated portion

of the sector protect

algorithm must be

performed for all

unprotected sectors

prior to issuing the

first sector

unprotect address

Set up

next sector

address

No

Yes

No

Yes

No

No

Yes

No

Sector Protect

Algorithm

Sector Unprotect

Algorithm

First Write

Cycle = 60h?

Protect another

sector?

Reset

PLSCNT = 1

21358F-5

PRELIMINARY

Am29LV160B 15

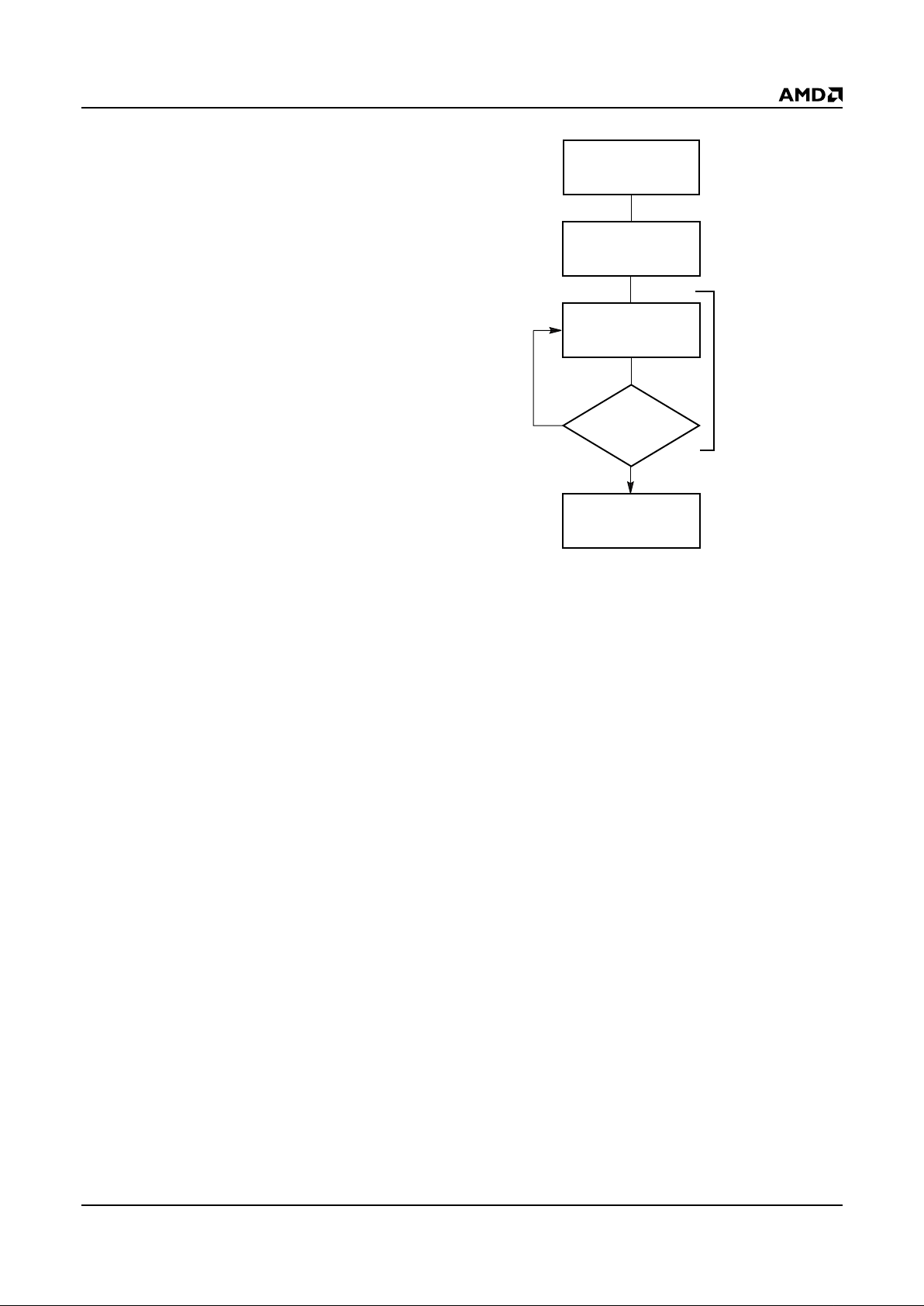

Figure 2. Temporary Sector Unprotect Operation

COMMON FLASH MEMORY INTERFACE
(CFI)

The Common Flash Interface (CFI) specification o ut­lines device and host system software interrogation
handshake, which allows specific vendor-specified
software algorithms to be used for entire families of
devices. Software suppor t can then be device-inde­pendent, JEDEC ID-independent, and forward- and
backward-compatible for the specified flash device
families. Flash vendors can standard ize their existing
interfaces for long-term compatibility.

This device enters the CFI Query mode when the
system writes the CFI Query command, 98h, to
address 55h in word mode (or address AAh in byte
mode), any time the device is ready to read arr ay data.
The system can read CFI information at the addresses

given in Tables 5–8. In word mode, the upper address
bits (A7–MSB) must be all zeros. To terminate reading
CFI data, the system must write the reset command.

The system can also write the CFI query command
when the device is in the autoselect mode. The device
enters the CFI query mode, and the system can read
CFI data at the addresses given in Tables 5–8. The
system must write the reset command to return the
device to the autoselect mode.

For further information, please refer to the CFI Specifi­cation and CFI Publication 100, a vailable via the W orld
Wide Web at http://www.amd.com/products/nvd/over­view/cfi.html. Alternatively, contact an AMD represent­ative for copies of these documents.

START

Perform Erase or

Program Operations

RESET# = V

IH

Temporary Sector

Unprotect Completed

(Note 2)

RESET# = V

ID

(Note 1)

Notes:

1. All protected sectors unprotected.

2. All previously protected sectors are protected once
again.

21358F-6

Table 5. CFI Query Identification String

Addresses

(Word Mode)

Addresses

(Byte Mode) Data Description

10h
11h
12h

20h
22h
24h

0051h
0052h
0059h

Query Unique ASCII string “QRY”

13h
14h

26h
28h

0002h
0000h

Primary OEM Command Set

15h
16h

2Ah
2Ch

0040h
0000h

Address for Primary Extended Table

17h
18h

2Eh
30h

0000h
0000h

Alternate OEM Command Set (00h = none exists)

19h

1Ah

32h
34h

0000h
0000h

Address for Alternate OEM Extended Table (00h = none exists)

PRELIMINARY

16 Am29LV160B

Table 6. System Interface String

Addresses

(Word Mode)

Addresses

(Byte Mode) Data Description

1Bh 36h 0027h

V

CC

Min. (write/erase)

D7–D4: volt, D3–D0: 100 millivolt

1Ch 38h 0036h

VCC Max. (write/erase)
D7–D4: volt, D3–D0: 100 millivolt

1Dh 3Ah 0000h V

PP

Min. voltage (00h = no VPP pin present)

1Eh 3Ch 0000h V

PP

Max. voltage (00h = no VPP pin present)

1Fh 3Eh 0004h Typical timeout per single byte/word write 2

N

µs

20h 40h 0000h Typical timeout for Min. size buffer write 2

N

µs (00h = not supported)

21h 42h 000Ah Typical timeout per individual block erase 2

N

ms

22h 44h 0000h Typical timeout for full chip erase 2

N

ms (00h = not supported)

23h 46h 0005h Max. timeout for byte/word write 2

N

times typical

24h 48h 0000h Max. timeout for buffer write 2

N

times typical

25h 4Ah 0004h Max. timeout per individual block erase 2

N

times typical

26h 4Ch 0000h Max. timeout for full chip erase 2

N

times typical (00h = not supported)

Table 7. Device Geometry Definition

Addresses

(Word Mode)

Addresses

(Byte Mode) Data Description

27h 4Eh 0015h Device Size = 2N byte
28h

29h

50h
52h

0002h
0000h

Flash Device Interface description (refer to CFI publication 100)

2Ah
2Bh

54h
56h

0000h
0000h

Max. number of byte in multi-byte write = 2

N

(00h = not supported)
2Ch 58h 0004h Number of Erase Block Regions within device
2Dh

2Eh

2Fh
30h

5Ah
5Ch
5Eh
60h

0000h
0000h
0040h
0000h

Erase Block Region 1 Information

(refer to the CFI specification or CFI publication 100)

31h
32h
33h
34h

62h
64h
66h
68h

0001h
0000h
0020h
0000h

Erase Block Region 2 Information

35h
36h
37h
38h

6Ah
6Ch
6Eh
70h

0000h
0000h
0080h
0000h

Erase Block Region 3 Information

39h
3Ah
3Bh
3Ch

72h
74h
76h
78h

001Eh
0000h
0000h
0001h

Erase Block Region 4 Information

PRELIMINARY

Am29LV160B 17

Hardware Data Protection

The command sequence requirement of unlock cycles
for programming or erasing provides data protection
against inadvertent wri tes (refer to Table 9 for com­mand definitions). In additio n, the following hardware
data protection mea sures prevent accidental erasure
or programming, which might otherwise be caused by
spurious system level signals during V

CC

power-up

and power-down transitions, or from system noise.

Low V

CC

Write Inhibit

When V

CC

is less than V

LKO

, the device does not ac-

cept any write cycles. This protects data during V

CC

power-up and power-down. The command register and
all internal program/erase circuits are disabled, and the
device resets. Subsequent writes are ignored until V

CC

is greater than V

LKO

. The system must provide the
proper signals to the control pins to prevent uninten­tional writes when V

CC

is greater than V

LKO

.

Write Pulse “Glitch” Protection

Noise pulses of less than 5 ns (typical) on OE#, CE# or
WE# do not initiate a write cycle.

Logical Inhibit

Write cycles are inhibited by holding any one of OE# =
V

IL

, CE# = VIH or WE# = VIH. To initiate a wr ite cycle,
CE# and WE# must be a logical zero while OE# is a
logical one.

Power-Up Write Inhibit

If WE# = CE# = V

IL

and OE# = VIH during power up , the
device does not accept commands on the rising edge
of WE#. The internal state mac hine is automatically
reset to reading array data on power-up.

Table 8. Primary Vendor-Specific Extended Query

Addresses

(Word Mode)

Addresses

(Byte Mode) Data Description

40h
41h
42h

80h
82h
84h

0050h
0052h
0049h

Query-unique ASCII string “PRI”

43h 86h 0031h Major version number, ASCII
44h 88h 0030h Minor version number, ASCII

45h 8Ah 0000h

Address Sensitive Unlock
0 = Required, 1 = Not Required

46h 8Ch 0002h

Erase Suspend
0 = Not Supported, 1 = To Read Only, 2 = To Read & Write

47h 8Eh 0001h

Sector Protect
0 = Not Supported, X = Number of sectors in per group

48h 90h 0001h

Sector Temporary Unprotect
00 = Not Supported, 01 = Supported

49h 92h 0004h

Sector Protect/Unprotect scheme
01 = 29F040 mode, 02 = 29F016 mode,
03 = 29F400 mode, 04 = 29LV800A mode

4Ah 94h 0000h

Simultaneous Operation
00 = Not Supported, 01 = Supported

4Bh 96h 0000h

Burst Mode Type
00 = Not Supported, 01 = Supported

4Ch 98h 0000h

Page Mode Type
00 = Not Supported, 01 = 4 Word Page, 02 = 8 Word Page

PRELIMINARY

18 Am29LV160B

COMMAND DEFINITIONS

Writing specific addre ss and data commands or se­quences into the command register initiates device op­erations. Table 9 defines the valid registe r command
sequences. Writing incorrect address and data val-
ues or writing them in the improper sequence resets
the device to reading array data.

All addresses are latched on the falling edge of WE# or
CE#, whichever happens later. All data is latched on
the rising edge of WE# or CE#, whichever happens
first. Refer to the appropriate timing diagrams in the

“AC Characteristics” section.

Reading Array Data

The device is automatically set to reading array data
after device power-up. No commands are required to
retrieve data. The device is also ready to read array
data after comp leting an Embe dded Program or Em­bedded Erase algorithm.

After the device accepts an Erase Suspend com­mand, the device enters the Erase Suspend mode.
The system can read array data using the standard
read timings, except that if it reads at an address
within erase-suspended sectors, the device outputs
status data. After completing a programming opera­tion in the Erase Suspend mode, the system may
once again read array data with the same exception.
See “Erase Suspend/Erase Resume Commands” for
more information on this mode.

The system

must

issue the reset command to re-ena­ble the device for reading array data if DQ5 goes high,
or while in the autoselect mode. See the “Reset Com­mand” section, next.

See also “Requirements for Reading Arr a y Data” in the
“Device Bus Operations” section for more information.
The Read Operations table provides the read parame­ters, and Figure 13 shows the timing diagram.

Reset Command

Writing the reset command to the devi ce resets the de­vice to reading array data. Address bits are don’t care
for this command.

The reset command may be written between the se­quence cycles in an erase command sequence before
erasing begins. This resets the device to reading array
data. Once erasure begins, however, the device ig­nores reset commands until the operation is complete.

The reset command may be written between the se­quence cycles in a program command sequence be­fore programming begins. This resets the device to
reading array data (also applies to programming in
Erase Suspend mode). Once programming begins,
however, the device ignores reset commands until the
operation is complete.

The reset command may be written between the se­quence cycles in an autoselect command sequence.
Once in the autoselect mode, t he reset c ommand

must

be written to return to reading array data (also applies
to autoselect during Erase Suspend).

If DQ5 goes high during a program or erase operation,
writing the reset command returns the device to read­ing array data (also applies during Erase Suspend).

See “AC Characteristics” for parameters, and t o Figure
14 for the timing diagram.

Autoselect Command Sequence

The autoselect c ommand sequenc e allows the host
system to access the manufacturer and devices codes,
and determine whether or not a sector is protected.
T ab le 9 shows the address and data requirements. This
method is an alternative to that shown in Table 4, which
is intended for PROM programmers and requi res V

ID

on address bit A9.
The autoselect command sequence is initiated by writ-

ing two unlock cycles, followed by the autoselect com­mand. The device then enters the autoselect m ode,
and the system may read at any address any number
of times, without initiating anot her command sequence.

A read cycle at address XX00h retrieves the manufac­turer code. A read cycle at address XX01h returns the
device code. A read cycle containing a sector address
(SA) and the address 02h in word mode (or 04h in byte
mode) returns 01h if that sector is protected, or 00h if it
is unprotected. Refer to Tables 2 and 3 for valid sector
addresses.

The system must write the reset command to exit the
autoselect mode and return to reading array data.

Word/Byte Program Command Sequence

The system may program the device by word or byte,
depending on the state of the BYTE# pin. Program­ming is a fou r-b us -cyc le oper at ion . The prog ram com­mand sequence is initiated by writing tw o unloc k write
cycles, followed by the program set-up command.
The program address and data are written ne xt, which
in turn initiate the Embedded Program algorithm. The
system is

not

required to provide fur ther controls or
timin gs. The device automatic ally generates the pro­gram pulses and verifies the programmed cell margin.
Table 9 shows the address and data requirements for
the byte program command sequence.

When the Embedded Program algorithm is complete,
the device then returns to reading array data and ad­dresses are no longer latched. The system can deter­mine the status of the program operation by using
DQ7, DQ6, or RY/BY#. See “Write Operation Status”
for information on these status bits.

PRELIMINARY

Am29LV160B 19

Any commands written to the device during the Em­bedded Program Algorithm are ignored. Note that a
hardware reset immediately terminates the program­ming operation. The Byte Program command se­quence should be reinitiated once the device has reset
to reading array data, to ensure data integrity.

Programming is allowed in any sequence an d across
sector boundaries. A bit cannot be programmed
from a “0” back to a “1”. Attempting to do so may halt

the operation and set DQ5 to “1,” or cause the Data#
Polling algorithm to indicate the op eration was suc­cessful. However, a succeeding read will show that the
data is still “0”. Only erase operations can convert a “0”
to a “1”.

Unlock Bypass Command Sequence

The unlock bypass feature allows the system to pro­gram bytes or words to the de vice f aster than using the
standard program command sequence. The unloc k b y­pass command sequence is initiated by first writing two
unlock cycles. This is followed by a third write cycle
containing the unlock bypass command, 20h. The de­vice then enters the unlock bypass mode. A two-cycle
unlock bypass program command sequence is all that
is required to program in this mode. The first cycle in
this sequence contains the unlock bypass program
command, A0h; the second cycle contains the prog ram
address and data. Additional data is programmed in
the same manner. This mode dispenses with the initial
two unlock cycles required in the standard program
command sequence, resulting in faster total program­ming time. Table 9 shows the requirements for the com­mand sequence.

During the unlock bypass mode, o nly the Unlock By­pass Program and Unlock Bypass Reset commands
are valid. To exit the unlock bypass mode, the system
must issue the two-cycle unlock bypass reset com­mand sequence. The first cycle must contain the data
90h; the second cycle the data 00h. Add resses are
don’t care for both cycles. The device then returns to
reading array data.

Figure 3 illustrates the algorithm for the program oper­ation. See the Erase/Program Operations table in “AC
Characteristics” for parameters, and to Figure 17 for
timing diagrams.

Note: See Table 9 for program command sequence.

Figure 3. Program Operation

Chip Erase Command Sequence

Chip erase is a six bus cycle opera tion. The chip er ase
command sequence is initiated by writing two unlock
cycles, followed by a set-up command. Two additional
unlock write cycles are then followed by the chip erase
command, which in turn invokes the Embedded Erase
algorithm. The device does

not

require the system to
preprogram prior to erase. The Embedded Erase algo­rithm automatically preprograms and verifies the entire
memory for an all zero data patter n prior to electr ical
erase. The system is not required to provide any con­trols or timings during these operations. Table 9 shows
the address and data requirements for the chip erase
command sequence.

Any commands written to the chip during the Embed­ded Erase algorithm are ignored. Note that a ha rd ware
reset during the chip erase operation immediately ter­minates the operation. The Chip Erase command se­quence should be reinitiated once the device has
returned to reading array data, to ensure data int eg rity.

START

Write Program

Command Sequence

Data Poll

from System

Verify Data?

No

Yes

Last Address?

No

Yes

Programming

Completed

Increment Address

Embedded

Program

algorithm

in progress

21358F-7

PRELIMINARY

20 Am29LV160B

The system can determine the status of the erase op­eration by using DQ7, DQ6, DQ2, or RY/BY#. See

“Write Operation Status” for information on these sta­tus bits. When the Embedded Erase algorithm is com­plete, the device returns to reading array data and
addresses are no longer latched.

Figure 4 illustrates the algorithm for the erase opera­tion. See the Erase/Program Operations tables in “AC
Characteristics” for parameters, and to Figure 18 for
timing diagrams.

Sector Erase Command Sequence

Sector erase is a six bus cycle operation. The sector
erase command sequence is initiated by writing two
unlock cycles, followed by a set-up command. Two ad­ditional unlock write cycles are then f ollow ed b y the ad­dress of the sector to be erased, and the sector erase
command. Table 9 shows the address and data re­quirements for the sector erase command sequence.

The device does

not

require the system to preprogram
the memory prior to erase. The Embedded Erase algo­rithm automatically programs and verifies the sector f or
an all zero data pattern prior to electrical erase. The
system is not required to provide a ny controls or tim­ings during these operations.

After the command sequence is written, a sector erase
time-out of 50 µs begi ns. During the time-out per iod,
additional sector addresses and sector erase com­mands may be written. Loading the sector erase buffer
may be done in any sequence, and the number of sec­tors may be from one sector to all secto rs. The time be­tween these additional cycl es must be less than 50 µs ,
otherwise the last address and command might not be
accepted, and erasure may begin. It is recommended
that processor interrupts be disab led during this time to
ensure all commands are accepted. The interrupts can
be re-enabled after the last Sector Erase command is
written. If the time between additional sector erase
commands can be assumed to be less than 50 µs, the
system need not monitor DQ3. Any command other

than Sector Erase or Erase Suspend during the
time-out period resets the device to reading array
data. The system must rewrite the command sequence

and any additional sector addresses and commands.
The system can monitor DQ3 to determine if the sector

erase timer has timed out. (See the “DQ3: Sec tor Erase
Timer” section.) The time-out be gins from the rising
edge of the final WE# pulse in the command sequence .

Once the sector erase operation has begun, onl y the
Erase Suspend command is valid. All other commands
are ignored. Note th at a hardware reset during the
sector erase operation immediately terminates the op­eration. The Sector Erase command sequence should
be reinitiated once the device has returned to reading
array data, to ensure data integrity.

When the Embedded Erase algorithm is complete, the
device returns to reading arra y data and addr esses are
no longer latched. The system can determine the sta­tus of the erase operation b y using DQ7, DQ6, DQ2, or
RY/BY#. ( Refer to “Write Ope ration St atus” f or info rma­tion on these status bits.)

Figure 4 illustrates the algorithm for the erase opera­tion. Refer to the Erase/Program Operations tables in
the “AC Characteristics” section for parameters , and to
Figure 18 for timing diagrams.

Erase Suspend/Erase Resume Commands

The Erase Suspend command allows t he syste m to in­terrupt a sector erase ope ration and then read data
from, or program data to, any sector not selected for
erasure. This command is valid only during the sector
erase operation, including the 50 µs time-out period
during the sector erase c ommand sequence. The
Erase Suspend command is ignored if written during
the chip erase operation or Embedded Program algo­rithm. Writing the Erase Suspend command during the
Sector Erase time-out immediately terminates the
time-out period and suspends the er ase oper at ion. Ad­dresses are “don’t-cares” when writing the Erase Sus­pend command.

When the Erase Suspend command is written during a
sector erase operation, the de vice requires a maximum
of 20 µs to suspend the erase operation. However,
when the Erase Suspend command is written during
the sector erase time-out, the device immediately ter­minates the time-out period and suspends the erase
operation.

After the erase operation has been suspended, the
system can read array data from or program data to
any sector not selected for erasu re. (The de vice “er ase
suspends” all sectors selected for erasure.) Normal
read and write timings and command definitions apply.
Reading at any address within erase-suspended sec­tors produces status data on DQ7–DQ0. The system
can use DQ7, or DQ6 and DQ2 together, to determine
if a sector is actively erasing or is erase-suspended.
See “Write Operation Status” for information on these
status bits.

After an erase-suspended program operation is com­plete, the system c an once again r ead arra y d ata within
non-suspended sectors. The system can dete rmine the
status of the program operation using the DQ7 or DQ6
status bits, just as in the standard program operation.
See “Write Operation Status” for more information.

The system may also write the autoselect command
sequence when the device is in the Erase Suspend
mode. The device allows reading autoselect codes
even at addresses within erasing sectors, since the
codes are not stored in the memory array. When the
device exits the autoselect mode, the device reverts to
the Erase Suspend mode, and is ready for another

PRELIMINARY

Am29LV160B 21

valid operation. See “Autoselect Command Sequence”
for more information.

The system must write the Erase Resume command
(address bits are “don’t care”) to exit the erase suspend
mode and continue the sector erase operat ion. Further
writes of the Resume command are ignored. Another
Erase Suspend command can be written after the de­vice has resumed erasing.

Notes:

1. See Table 9 for erase command sequence.

2. See “DQ3: Sector Erase Timer” for more information.

Figure 4. Erase Operation

START

Write Erase

Command Sequence

Data Poll

from System

Data = FFh?

No

Yes

Erasure Completed

Embedded
Erase
algorithm
in progress

21358F-8

PRELIMINARY

22 Am29LV160B

Table 9. Am29L V160B Command Definitions

Legend:

X = Don’t care
RA = Address of the memory location to be read.
RD = Data read from location RA during read operation.
PA = Address of the memory location to be programmed.

Addresses latch on the falling edge of the WE# or CE# pulse,
whichever happens later.

PD = Data to be programmed at location PA. Data latches on the
rising edge of WE# or CE# pulse, whichever happens first.

SA = Address of the sector to be verified (in autoselect mode) or
erased. Address bits A19–A12 uniquely select any sector.

Notes:

1. See Table 1 for description of bus operations.

2. All values are in hexadecimal.

3. Except for the read cycle and the fourth cycle of the

autoselect command sequence, all bus cycles are write
cycles.

4. Data bits DQ15–DQ8 are don’t ca res for unlock and

command cycles.

5. Address bits A19–A11 are don’t cares for unlock and

command cycles, unless SA or PA required.

6. No unlock or command cycles required when reading array

data.

7. The Reset command is required to return to reading array

data when device is in the autoselect mode, or if DQ5 goes
high (while the device is providing status da ta).

8. The fourth cycle of the autoselect command sequence is a

read cycle.

9. The data is 00h for an unprotected sector and 01h for a
protected sector. See “Autoselect Command Sequence” for
more information.

10. Command is valid when device is ready to read array data or
when device is in autoselect mode.

11. The Unlock Bypass command is required prior to the Unlock
Bypass Program command.

12. The Unlock Bypass Reset command is required to return to
reading array data when the device is in the unlock bypass
mode.

13. The system may read and program in non-erasing sectors, or
enter the autoselect mode, when in the Erase Suspend
mode. The Erase Suspend command is valid only during a
sector erase operation.

14. The Erase Resume command is valid only during the Erase
Suspend mode.

Command

Sequence

(Note 1)

Bus Cycles (Notes 2–5)

First Second Third Fourth Fifth Sixth

Addr Data Addr Data Addr Data Addr Data Addr Data Addr Data

Read (Note 6) 1 RA RD
Reset (Note 7) 1 XXX F0

Manufacturer ID

Word

4

555

AA

2AA

55

555

90 X00 01

Byte AAA 555 AAA

Device ID,
Top Boot Block

Word

4

555

AA

2AA

55

555

90

X01 22C4

Byte AAA 555 AAA

X02 C4

Device ID,
Bottom Boot Block

Word

4

555

AA

2AA

55

555

90

X01 2249

Byte AAA 555 AAA

X02 49

Sector Protect Verify
(Note 9)

Word

4

555

AA

2AA

55

555

90

(SA)

X02

XX00
XX01

Byte AAA 555 AAA

(SA)

X04

00
01

CFI Query (Note 10)

Word

1

55

98

Byte AA

Program

Word

4

555

AA

2AA

55

555

A0 PA PD

Byte AAA 555 AAA

Unlock Bypass

Word

3

555

AA

2AA

55

555

20

Byte AAA 555 AAA
Unlock Bypass Program (Note 11) 2 XXX A0 PA PD
Unlock Bypass Reset (Note 12) 2 XXX 90 XXX 00

Chip Erase

Word

6

555

AA

2AA

55

555

80

555

AA

2AA

55

555

10

Byte AAA 555 AAA AAA 555 2AA
Sector Erase

Word

6

555

AA

2AA

55

555

80

555

AA

2AA

55 SA 30

Byte AAA 555 AAA AAA 555
Erase Suspend (Note 13) 1 XXX B0
Erase Resume (Note 14) 1 XXX 30

Cycles

Autoselect (Note 8)

PRELIMINARY

Am29LV160B 23

WRITE OPERATION STATUS

The device provides several bits to determine the sta­tus of a write operation: DQ2, DQ3, DQ5, DQ6, DQ7,
and RY/BY#. Table 10 and the following subsections
describe the functions of thes e bits . DQ7, RY/BY#, and
DQ6 each offer a method for determining whether a
program or erase operation is complete or in progress.
These three bits are discussed first.

DQ7: Data# Polling

The Data# Polling bit, DQ7, indicates to the host system
whether an Embedded Algorithm is in progress or com­pleted, or whether the device is in Erase Suspend.
Data# Polling is valid after the rising edge of the final
WE# pulse in the program or erase command se­quence.

During the Em bedded Program algor ithm, the device
outputs on DQ7 the complement of the datum pro­grammed to DQ7. This DQ7 status also applies to pro­gramming during Erase Suspend. When the
Embedded Program algorithm is complete, the device
outputs the datum programmed to DQ7. The system
must provide the program address to read valid status
information on DQ7. If a program address falls within a
protected sector, Data# Polling on DQ7 is acti ve f or ap­proximately 1 µs, then the device returns to reading

array data.
During the Embedded Erase algorithm, Data# Polling

produces a “0” on DQ7. When the Embedded Erase al­gorithm is complete, or if the device enters the Erase
Suspend mode, Data# Polling produces a “1” on DQ7.
This is analogous to the complement/true datum output
described for the Embedded Program algorithm: the
erase function changes all the bits in a sector to “1”;
prior to this, the device outputs the “complement,” o r
“0.” The system must provide an address within any of
the sectors selected for erasure to read valid status in­formation on DQ7.

After an erase command sequence is written, if all s ec­tors selected for erasing are protected, Data# Polling
on DQ7 is active f or appro ximately 100 µs , the n the de­vice returns to reading array data. If not all selected
sectors are protected, the Embedded Erase algorithm
erases the unprotected sectors, and ignores the se­lected sectors that are protected.

When the system detects DQ7 has changed from the
complement to true data, it can read va lid data at DQ7–
DQ0 on the

following

read cycles. This is because DQ7
may change asynchronously with DQ0–DQ6 while
Output Enable (OE#) is as serted low. Figure 19, Data#
Polling Timings (During Embedded Algorithms), in the
“AC Characteristics” section illustrates this.

Table 10 shows the outputs for Data# Polling on DQ7.
Figure 5 shows the Data# Polling algorithm.

DQ7 = Data?

Yes

No

No

DQ5 = 1?

No

Yes

Yes

FAIL

PASS

Read DQ7–DQ0

Addr = VA

Read DQ7–DQ0

Addr = VA

DQ7 = Data?

START

Notes:

1. VA = Valid address for programming. During a sector
erase operation, a valid address is an address within any
sector selected for erasure. During chip erase, a valid
address is any non-protected sector address.

2. DQ7 should be rechecked even if DQ5 = “1” because

DQ7 may change simultaneously with DQ5.

21358F-9

Figure 5. Data# Polling Algorithm

PRELIMINARY

24 Am29LV160B

RY/BY#: Ready/Busy#

The RY/BY# is a dedicated, open-drain output pin that
indicates whether an Embedded Algorithm is in
progress or complete. The RY/BY# status is valid after
the rising edge of the final WE# pulse in the command
sequence. Since RY/BY# is an open-drain output, sev­eral RY/BY# pins can be tied together in parallel with a
pull-up resistor to V

CC

. (The RY/BY# pin is not availa-

ble on the 44-pin SO package.)
If the output is low (Busy ), the de vice is activ ely er asing

or programming. (T his includes programming in the
Erase Suspend mode.) If th e output is high (Ready) ,
the device is ready to read array data (including during
the Erase Suspend mode), or is in the standby mode.

T ab le 10 shows the outputs f or R Y/BY#. Figures 13, 14,
17 and 18 shows R Y/BY# for read, reset, prog ram, and
erase operations, respectively.

DQ6: Toggle Bit I

To ggle Bit I on DQ6 indi cates whether an Embe dded
Program or Erase algorithm is in progress or complete,
or whether the device has entered the Erase Suspend
mode. Toggle Bit I may be read at any address, and is
valid after the rising edge of the final WE# pulse in the
command sequence (prior to the program or eras e op­eration), and during the sector erase time-out.

During an Embedded Program or Erase algorithm op­eration, successive read cycles to any address cause
DQ6 to toggle. (The system may use either OE# or
CE# to control the read cycles.) When the operation is
complete, DQ6 stops toggling.

After an erase command sequence is written, if all s ec­tors selected for eras ing are protected , DQ6 toggles for

approximately 100 µs, then returns to readi ng array
data. If not all selected sectors are protected, the Em­bedded Erase algorithm erases the unprotected sec­tors, and ignores the selected sectors that are
protected.

The system can use DQ6 and DQ2 together to deter­mine whether a sector is actively erasing or is erase­suspended. When the device is actively erasing (that
is, the Embedded Erase algorithm is in progress), DQ6
toggles. When the device enters the Erase Suspend
mode, DQ6 stops toggling. However, the system must
also use DQ2 to determine which sectors are erasing
or erase-suspended. Alternatively, the system can use
DQ7 (see the subsection on “DQ7: Data# Polling”).

If a program address falls within a pro tected sector,
DQ6 toggles for approximately 1 µs after the program
command sequence is written, then returns to reading
array data.

DQ6 also toggles during the erase-suspend-program
mode, and stops toggling once the Embedded Pro­gram algorithm is complete.

T ab le 10 shows the outputs f or Toggle Bit I on DQ6. Fig­ure 6 shows the toggle bit algorithm in flowchart form,
and the section “Reading Toggle Bits DQ6/DQ2” ex­plains the algorithm. Figure 20 in the “AC Characteris­tics” section shows the toggle bit timing dia grams.
Figure 21 shows the differences between DQ2 and
DQ6 in graphical form. See also the subsection on
“DQ2: Toggle Bit II”.

DQ2: Toggle Bit II

The “Toggle Bit II” on DQ2, when used with DQ6, indi­cates whether a par ticular sect or is actively erasing
(that is, the Embedded Erase algo rithm is in pro gress),
or whether that sector is erase-suspended. Toggle Bit
II is valid after the rising edge of t he final WE# pulse in
the command sequence.

DQ2 toggles w hen the system reads at addresses
within those sectors that have been selected for eras­ure. (The system may use either OE# or CE# to control
the read cycles.) But DQ2 cannot distinguish whether
the sector is actively erasing or is erase-suspended.
DQ6, by comparison, indicates whether the device is
actively erasing, or is in Erase Suspend, but cannot
distinguish which s ectors are selected for erasure.
Thus, both status bits are requ ired f or sector and mode
information. Refer to Table 10 to compare ou tputs for
DQ2 and DQ6.

Figure 6 shows the toggle bit algorithm in flowchar t
form, and the section “Reading Toggle Bits DQ6/DQ2”
explains the algorithm. See also the DQ6: Toggle Bit I
subsection. Figure 20 shows the toggle bit timing dia­gram. Figure 21 shows the differences between DQ2
and DQ6 in graphical form.

Reading Toggle Bits DQ6/DQ2

Refer to Figure 6 for the following discussion. When­ever the system initially begins reading toggle bit sta­tus, it must read DQ7–DQ0 at least twice in a row to
determine whether a toggle bit is toggling. Typically,
the system would note and store the value of the tog­gle bit after the first read. After the second read, the
system would compare t he new value of th e togg le bi t
with the first. If the toggle bit is not toggling, the device
has completed the program or erase operation. The
system can read array data on DQ7–DQ0 on the fol­lowing read cycle.

However, if after the initial two read cycles, the system
determines that the toggle bit is still toggling, the sys­tem also should note whether the value of DQ5 is high
(see the section on DQ5). If it is, the system should
then determine again whether the toggle bit is toggling,
since the toggle bit may have stopped toggling just as
DQ5 went high. If the toggle bit is no longer toggling,
the device has successfully completed the program or
erase operation. If it is still toggling, the device did not
complete the operation successfully, and the system

PRELIMINARY

Am29LV160B 25

must write the reset command to return to readin g
array data.

The remaining scenario is that the system initially de­termines that the toggle bit is toggling and DQ5 has not
gone high. The system may continue to monitor the
toggle bit and DQ5 through success ive read cycle s, de­termining the status as described in the previous para­graph. Alterna tively, it may choose to perform other
system tasks. In this case, the system must start at the
beginning of the algorithm when it returns to determine
the status of the operation (top of Figure 6).

DQ5: Exceeded Timing Limits

DQ5 indicates whether the program or erase time has
exceeded a specified internal pulse count limit. Under

these conditions DQ5 produces a “1.” This is a failure
condition that indicates the prog ram or er ase cycle was
not successfully completed.

The DQ5 failure condition may appear if the system
tries to program a “1” to a location that is previously
programmed to “0.” Only an erase operation can

change a “0” back to a “1.” Under this condition, the
device halts the oper ation, and when th e operati on has

exceeded the timing limits, DQ5 produces a “1.”
Under both these conditions, the system must issue

the reset command to return the device to reading
array data.

DQ3: Sector Erase Timer

After writing a sector erase command sequence, the
system may read DQ3 to determin e whether or not an
erase operation has begun. (The sector erase timer
does not apply to the chip erase command.) If additional
sectors are selected for erasure, the entire time-out also
applies after each additional sector erase command.
When the time-out is complete, DQ3 switches from “0”
to “1.” The system may ignore DQ3 if the system can
guarantee that the time between additional sector
erase commands will always be less than 50 µs. See
also the “Sector Erase Command Sequence” section.

After the sector erase command sequence is written,
the system should read the status on DQ7 (Data# Poll­ing) or DQ6 (Toggle Bit I) to ensure the device has ac­cepted the command sequence, and then read DQ3. If
DQ3 is “1”, the internally controlled erase cycle has be­gun; all further commands (other than Erase Su spend)
are ignored u ntil the erase operation is complete. If
DQ3 is “0”, the device will accept additional sector
erase commands. To ensure the command has been
accepted, the system software should ch eck the s tatus
of DQ3 prior to and following each subsequent sector
erase command. If DQ3 is high on the second status
check, the last command m ight not have been ac­cepted. Table 10 shows the outputs for DQ3.

START

No

Yes

Yes

DQ5 = 1?

No

Yes

Toggle Bit

= Toggle?

No

Program/Erase

Operation Not
Complete, Write
Reset Command

Program/Erase

Operation Complete

Read DQ7–DQ0

Toggle Bit

= Toggle?

Read DQ7–DQ0

Twice

Read DQ7–DQ0

Notes:

1. Read toggle bit twice to determine whether or not it is
toggling. See text.

2. Recheck toggle bit because it may stop toggling as DQ5

changes to “1”. See text.

21358F-10

Figure 6. Toggle Bit Algorithm

(Note 1)

(Notes
1, 2)

PRELIMINARY

26 Am29LV160B

Table 10. Write Operation Status

Notes:

1. DQ5 switches to ‘1’ when an Embedded Program or Embedded Erase operation has exceeded the maximum timing limits.
See “DQ5: Exceeded Timing Limits” for more information.

2. DQ7 and DQ2 require a valid address when reading status information. Refer to the appropriate subsection for further details.

Operation

DQ7

(Note 2) DQ6

DQ5

(Note 1) DQ3

DQ2

(Note 2) RY/BY#

Standard
Mode

Embedded Program Algorithm DQ7# Toggle 0 N/A No toggle 0
Embedded Erase Algorithm 0 Toggle 0 1 Toggle 0

Erase
Suspend
Mode

Reading within Erase
Suspended Sector

1 No toggle 0 N/A Toggle 1

Reading within Non-Erase
Suspended Sector

Data Data Data Data Data 1

Erase-Suspend-Program DQ7# Toggle 0 N/A N/A 0

PRELIMINARY

Am29LV160B 27

ABSOLUTE MAXIMUM RATINGS

Storage Temperature

Plastic Packages . . . . . . . . . . . . . . . –65°C to +150°C

Ambient Temperature

with Power Applied. . . . . . . . . . . . . . –65°C to +125°C

Voltage with Respect to Ground

V

CC

(Note 1) . . . . . . . . . . . . . . . . . .–0.5 V to +4.0 V

A9, OE#, and RESET# (Note 2). .–0.5 V to +12.5 V

All other pins (Note 1). . . . . . . –0.5 V to V

CC

+0.5 V

Output Short Circuit Current (Note 3) . . . . . . 200 mA

Notes:

1. Minimum DC voltage on input or I/O pins is –0.5 V . During
voltage transitions, input or I/O pins may undershoot V

SS

to –2.0 V for periods of up to 20 ns. See Figure 7.
Maximum DC voltage on input or I/O pins is

V

CC

+0.5 V.
During voltage transitions, input or I/O pins may overshoot
to V

CC

+2.0 V for periods up to 20 ns. See Figure 8.

2. Minimum DC input voltage on pins A9, OE#, and RESET#
is -0.5 V. During voltage transitions, A9, OE#, and
RESET# may undershoot V

SS

to –2.0 V for periods of up
to 20 ns. See Figure 7. Maximum DC input voltage on pin
A9 is +12.5 V which may overshoot to 14.0 V for periods
up to 20 ns.

3. No more than one output may be shorted to ground at a
time. Duration of the short circuit should not be greater
than one second.

Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device. This is
a stress rating only; functional operation of the device at
these or any other conditions above those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to absolute maximum rating
conditions for extended periods may affect device reliability.

Figure 7. Maximum Negative Overshoot

Waveform

Figure 8. Maximum Positive Overshoot

Waveform

OPERATING RANGES

Commercial (C) Devices

Ambient Temperature (T

A

) . . . . . . . . . . . 0°C to +70°C

Industrial (I) Devices

Ambient Temperature (T

A

) . . . . . . . . . –40°C to +85°C

Extended (E) Devices

Ambient Temperature (T

A

) . . . . . . . . –55°C to +125°C

VCC Supply Voltages

V

CC

for regulated voltage range. . . . . . . 3.0 V to 3.6 V

V

CC

for full v oltage range. . . . . . . . . . . .2.7 V to 3.6 V

Operating ranges define those limits between which the func­tionality of the device is guaranteed.

20 ns

20 ns

+0.8 V

–0.5 V

20 ns

–2.0 V

21358F-11

20 ns

20 ns

V

CC

+2.0 V

V

CC

+0.5 V

20 ns

2.0 V

21358F-1

PRELIMINARY

28 Am29LV160B

DC CHARACTERISTICS
CMOS Compatible

Notes:

1. The I

CC

current listed is typically less than 2 mA/MHz, with OE# at VIH. Typical VCC is 3.0 V.

2. I

CC

active while Embedded Erase or Embedded Program is in progress.

3. Automatic sleep mode enables the low power mode when addresses remain stable for t

ACC

+ 30 ns. Typical sleep mode

current is 200 nA.

4. Not 100% tested.

Parameter Description Test Conditions Min Typ Max Unit

I

LI

Input Load Current

V

IN

= VSS to VCC,

V

CC

= VCC

max

±1.0 µA

I

LIT

A9 Input Load Current VCC = V

CC max

; A9 = 12.5 V 35 µA

I

LO

Output Leakage Current

V

OUT

= VSS to VCC,

V

CC

= V

CC max

±1.0 µA

I

CC1

VCC Active Read Current
(Note 1)

CE# = V

IL,

OE#

= VIH,

Byte Mode

5 MHz 9 16

mA

1 MHz 2 4

CE# = V

IL,

OE#

= VIH,

Word Mode

5 MHz 9 16
1 MHz 2 4

I

CC2

VCC Active Write Current
(Notes 2 and 4)

CE# = V

IL,

OE# = V

IH

20 30 mA

I

CC3

VCC Standby Current

V

CC

= V

CC max

;

CE#, RESET# = V

CC

±0.3 V

0.2 5 µA

I

CC4

VCC Standby Current During Reset

VCC = V

CC max

;

RESET# = V

SS

± 0.3 V

0.2 5 µA

I

CC5

Automatic Sleep Mode (Note 3)

V

IH

= V

CC

± 0.3 V;

V

IL

= V

SS

± 0.3 V

0.2 5 µA

V

IL

Input Low Voltage –0.5 0.8 V

V

IH

Input High Voltage 0.7 x V

CC

VCC + 0.3 V

V

ID

Voltage for Autoselect and
Temporary Sector Unprotect

VCC = 3.3 V 11.5 12.5 V

V

OL

Output Low Voltage IOL = 4.0 mA, VCC = V

CC min

0.45 V

V

OH1

Output High Voltage

I

OH

= -2.0 mA, VCC = V

CC min

0.85 x V

CC

V

V

OH2

IOH = -100 µA, VCC = V

CC min

VCC–0.4

V

LKO

Low VCC Lock-Out Voltage (Note 4) 2.3 2.5 V

PRELIMINARY

Am29LV160B 29

DC CHARACTERISTICS (Continued)
Zero Power Flash

Note: Addresses are switching at 1 MHz

21358F-13

Figure 9. I

CC1

Current vs. Time (Showing Active and Automatic Sleep Currents)

25

20

15

10

5

0

0 500 1000 1500 2000 2500 3000 3500 4000

Supply Current in mA

Time in ns

10

8

2

0

12345

Frequency in MHz

Supply Current in mA

Note: T = 25 °C

21358F-14

Figure 10. Typical I

CC1

vs. Frequency

2.7 V

3.6 V

4

6

PRELIMINARY

30 Am29LV160B

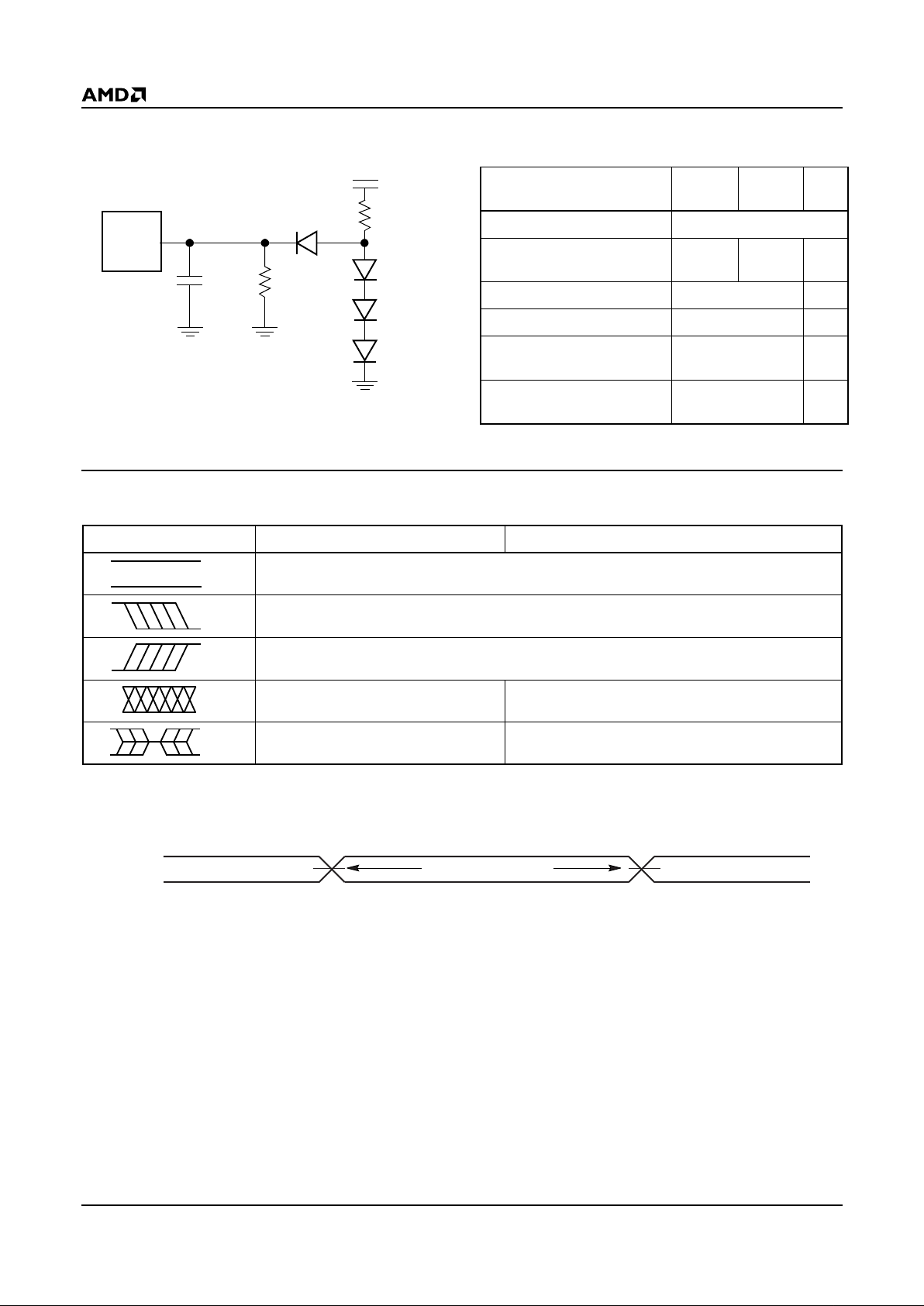

TEST CONDITIONS

Table 11. Test Specifications

KEY TO SWITCHING WAVEFORMS

2.7 kΩ

C

L

6.2 kΩ

3.3 V

Device

Under

Test

21358F-15

Figure 11. Test Setup

Note: Diodes are IN3064 or equivalent

Test Condition 80R

90,
120 Unit

Output Load 1 TTL gate
Output Load Capacitance, C

L

(including jig capacitance)

30 100 pF

Input Rise and Fall Times 5 ns
Input Pulse Levels 0.0–3.0 V

Input timing measurement
reference levels

1.5 V

Output timing measurement
reference levels

1.5 V

KS000010-PAL

WAVEFORM INPUTS OUTPUTS

Steady

Changing from H to L

Changing from L to H

Don’t Care, Any Change Permitted Changing, State Unknown

Does Not Apply Center Line is High Impedance State (High Z)

3.0 V

0.0 V

1.5 V 1.5 V

OutputMeasurement LevelInput

21358F-16

Figure 12. Input Waveforms and Measurement Levels

PRELIMINARY

Am29LV160B 31

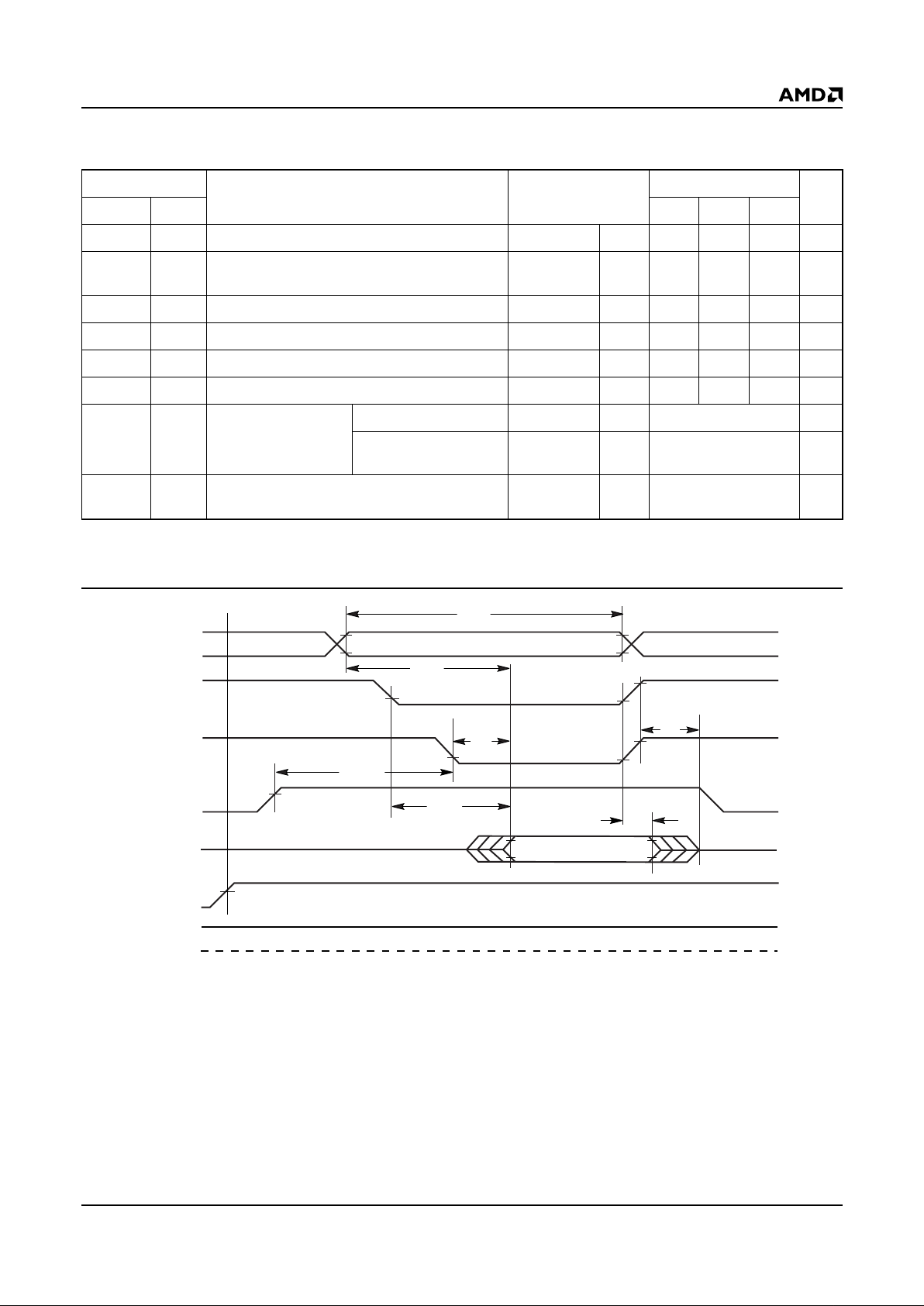

AC CHARACTERISTICS
Read Operations

Notes:

1. Not 100% tested.

2. See Figure 11 and Table 11 for test specifications.

Parameter

Description

Speed Option

JEDEC Std Test Setup 80R 90 120 Unit

t

AVAV

t

RC

Read Cycle Time (Note 1) Min 80 90 120 ns

t

AVQV

t

ACC

Address to Output Delay

CE# = V

IL

OE# = V

IL

Max 80 90 120 ns

t

ELQV

t

CE

Chip Enable to Output Delay OE# = V

IL

Max 80 90 120 ns

t

GLQV

t

OE

Output Enable to Output Delay Max 30 35 50 ns

t

EHQZ

t

DF

Chip Enable to Output High Z (Note 1) Max 25 30 30 ns

t

GHQZ

t

DF

Output Enable to Output High Z (Note 1) Max 25 30 30 ns

t

OEH

Output Enable
Hold Time (Note 1)

Read Min 0 ns
Toggle and

Data# Polling

Min 10 ns

t

AXQX

t

OH

Output Hold Time From Addresses, CE# or OE#,
Whichever Occurs First (Note 1)

Min 0 ns

t

CE

Outputs

WE#

Addresses

CE#

OE#

HIGH Z

Output Valid

HIGH Z

Addresses Stable

t

RC

t

ACC

t

OEH

t

OE

0 V

RY/BY#

RESET#

t

DF

t

OH

21358F-17

Figure 13. Read Operations Timings

PRELIMINARY

32 Am29LV160B

AC CHARACTERISTICS
Hardware Reset (RESET#)

Note: Not 100% tested.

Parameter

Description

Speed Option

JEDEC Std Test Setup 80R 90 120 Unit

t

READY

RESET# Pin Low (During Embedded Algorithms)
to Read or Write (See Note)

Max 20 µs

t

READY

RESET# Pin Low (NOT During Embedded
Algorithms) to Read or Write (See Note)

Max 500 ns

t

RP

RESET# Pulse Width Min 500 ns

t

RH

RESET# High Time Before Read (See Note) Min 50 ns

t

RPD

RESET# Low to Standby Mode Min 20 µs

t

RB

RY/BY# Recovery Time Min 0 ns

RESET#

RY/BY#

RY/BY#

t

RP

t

Ready

Reset Timings NOT during Embedded Algorithms

t

Ready

CE#, OE#

t

RH

CE#, OE#

Reset Timings during Embedded Algorithms

RESET#

t

RP

t

RB

21358F-18

Figure 14. RESET# Timings

PRELIMINARY

Am29LV160B 33

AC CHARACTERISTICS
Word/Byte Configuration (BYTE#)

Parameter

80R 90 120JEDEC Std Descri ption Unit

t

ELFL/tELFH

CE# to BYTE# Switching Low or High Max 5 ns

t

FLQZ

BYTE# Switching Low to Output HIGH Z Max 25 30 30 ns

t

FHQV

BYTE# Switching High to Output Active Min 80 90 120 ns

DQ15

Output

Data Output

(DQ0–DQ7)

CE#

OE#

BYTE#

t

ELFL

DQ0–DQ14

Data Output

(DQ0–DQ14)

DQ15/A-1

Address

Input

t

FLQZ

BYTE#

Switching

from word

to byte

mode

DQ15

Output

Data Output
(DQ0–DQ7)

BYTE#

t

ELFH

DQ0–DQ14

Data Output

(DQ0–DQ14)

DQ15/A-1

Address

Input

t

FHQV

BYTE#

Switching

from byte

to word

mode

21358F-19

Figure 15. BYTE# Timings for Read Operations

Note: Refer to the Erase/Program Operations table for tAS and tAH specifications.

21358F-20

Figure 16. BYTE# Timings for Write Operations

CE#

WE#

BYTE#

The falling edge of the last WE# signal

t

HOLD

(tAH)

t

SET

(tAS)

PRELIMINARY

34 Am29LV160B

AC CHARACTERISTICS
Erase/Program Operations

Notes:

1. Not 100% tested.

2. See the “Erase and Programming Performance” section for more information.

Parameter

80R 90 120JEDEC Std Description Unit

t

AVAV

t

WC

Write Cycle Time (Note 1) Min 80 90 120 ns

t

AVWL

t

AS

Address Setup Time Min 0 ns

t

WLAX

t

AH

Address Hold Time Min 45 45 50 ns

t

DVWH

t

DS

Data Setup Time Min 35 45 50 ns

t

WHDX

t

DH

Data Hold Time Min 0 ns

t

OES

Output Enable Setup Time Min 0 ns

t

GHWL

t

GHWL

Read Recovery Time Before Write
(OE# High to WE# Low)

Min 0 ns

t

ELWL

t

CS

CE# Setup Time Min 0 ns

t

WHEH

t

CH

CE# Hold Time Min 0 ns

t

WLWH

t

WP

Write Pulse Width Min 35 35 50 ns

t

WHWL

t

WPH

Write Pulse Width High Min 30 ns

t

WHWH1tWHWH1

Programming Operation (Note 2)

Byte Typ 9

µs

Word Typ 11

t

WHWH2tWHWH2

Sector Erase Operation (Note 2) Typ 0.7 sec

t

VCS

VCC Setup Time (Note 1) Min 50 µs

t

RB

Recovery Time from RY/BY# Min 0 ns

t

BUSY

Program/Erase Valid to RY/BY# Delay Min 90 ns

PRELIMINARY

Am29LV160B 35

AC CHARACTERISTICS

Notes:

1. PA = program address, PD = program data, D

OUT

is the true data at the program address.

2. Illustration shows device in word mode.

Figure 17. Program Operation Timings

OE#

WE#

CE#

V

CC

Data

Addresses

t

DS

t

AH

t

DH

t

WP

PD

t

WHWH1

t

WC

t

AS

t

WPH

t

VCS

555h

PA PA

Read Status Data (last two cycles)

A0h

t

GHWL

t

CS

Status

D

OUT

Program Command Sequence (last two cycles)

RY/BY#

t

RB

t

BUSY

t

CH

PA

21358F-21

PRELIMINARY

36 Am29LV160B

AC CHARACTERISTICS

Notes:

1. SA = sector address (for Sector Erase), VA = Valid Address for reading status data (see “Write Operation Status”).

2. Illustration shows device in word mode.

Figure 18. Chip/Sector Erase Operation Timings

OE#

CE#

Addresses

V

CC

WE#

Data

2AAh SA

t

GHWL

t

AH

t

WP

t

WC

t

AS

t

WPH

555h for chip erase

10 for Chip Erase

30h

t

DS

t

VCS

t

CS

t

DH

55h

t

CH

In

Progress

Complete

t

WHWH2

VA

VA

Erase Command Sequence (last two cycles) Read Status Data

RY/BY#

t

RB

t

BUSY

21358F-22

PRELIMINARY

Am29LV160B 37

AC CHARACTERISTICS

WE#

CE#

OE#

High Z

t

OE

High Z

DQ7

DQ0–DQ6

RY/BY#

t

BUSY

Complement

True

Addresses

VA

t

OEH

t

CE

t

CH

t

OH

t

DF

VA VA

Status Data

Complement

Status Data

True

Valid Data

Valid Data

t

ACC

t

RC

Note: VA = Valid address. Illustration shows first status cycle after command sequence, last status read cycle, and array data
read cycle.

21358F-23

Figure 19. Data# Polling Timings (During Embedded Algorithms)

WE#

CE#

OE#

High Z

t

OE

DQ6/DQ2

RY/BY#

t

BUSY

Addresses

VA

t

OEH

t

CE

t

CH

t

OH

t

DF

VA VA

t

ACC

t

RC

Valid DataValid StatusValid Status

(first read) (second read) (stops toggling)

Valid Status

VA

Note: VA = V alid address; not required for DQ6. Illustration shows first two status cycle after command sequence, last status read
cycle, and array data read cycle.

21358F-24

Figure 20. Toggle Bit Timings (During Embedded Algorithms)

PRELIMINARY

38 Am29LV160B

AC CHARACTERISTICS

Temporary Sector Unprotect

Note: Not 100% tested.

Parameter

80R 90 120JEDEC Std. Description Unit

t

VIDR

VID Rise and Fall Time (See Note) Min 500 ns

t

RSP

RESET# Setup Time for Temporary Sector
Unprotect

Min 4 µs

Note: The system may use CE# or OE# to toggle DQ2 and DQ6. DQ2 toggles only when read at an address within an
erase-suspended sector.

21358F-25

Figure 21. DQ2 vs. DQ6 for Erase and Erase Suspend Operations

Enter

Erase

Erase

Erase

Enter Erase

Suspend Program

Erase Suspend

Read

Erase Suspend

Read

Erase

WE#

DQ6

DQ2

Erase

Complete

Erase

Suspend

Suspend

Program

Resume

Embedded

Erasing

RESET#

t

VIDR

12 V

0 or 3 V

CE#

WE#

RY/BY#

t

VIDR

t

RSP

Program or Erase Command Sequence

21358F-26

Figure 22. Temporary Sector Unprotect Timing Diagram

PRELIMINARY

Am29LV160B 39

AC CHARACTERISTICS

Sector Protect: 100 µs

Sector Unprotect: 10 ms

1 µs

RESET#

SA, A6,

A1, A0

Data

CE#

WE#

OE#

60h 60h 40h

Valid* Valid* Valid*

Status

Sector Protect/Unprotect Verify

V

ID

V

IH

Note: For sector protect, A6 = 0, A1 = 1, A0 = 0. For sector unprotect, A6 = 1, A1 = 1, A0 = 0.

21358F-27

Figure 23. Sector Protect/Unprotect Timing Diagram

PRELIMINARY

40 Am29LV160B

AC CHARACTERISTICS
Alternate CE# Controlled Erase/Program Operations

Notes:

1. Not 100% tested.

2. See the “Erase and Programming Performance” section for more information.

Parameter

80R 90 120JEDEC Std Description Unit

t

AVAV

t

WC

Write Cycle Time (Note 1) Min 80 90 120 ns

t

AVEL

t

AS

Address Setup Time Min 0 ns

t

ELAX

t

AH

Address Hold Time Min 45 45 50 ns

t

DVEH

t

DS

Data Setup Time Min 35 45 50 ns

t

EHDX

t

DH

Data Hold Time Min 0 ns

t

OES

Output Enable Setup Time Min 0 ns

t

GHEL

t

GHEL

Read Recovery Time Before Write
(OE# High to WE# Low)

Min 0 ns

t

WLEL

t

WS

WE# Setup Time Min 0 ns

t

EHWH

t

WH

WE# Hold Time Min 0 ns

t

ELEH

t

CP

CE# Pulse Width Min 35 35 50 ns

t

EHEL

t

CPH

CE# Pulse Width High Min 30 ns

t

WHWH1

t

WHWH1

Programming Operation (Note 2)

Byte Typ 9

µs

Word Typ 11

t

WHWH2

t

WHWH2

Sector Erase Operation (Note 2) Typ 0.7 sec

PRELIMINARY

Am29LV160B 41

AC CHARACTERISTICS

t

GHEL

t

WS

OE#

CE#

WE#

RESET#

t

DS

Data

t

AH

Addresses

t

DH

t

CP

DQ7# D

OUT

t

WC

t

AS

t

CPH

PA

Data# Polling

A0 for program
55 for erase

t

RH

t

WHWH1 or 2

RY/BY#

t

WH

PD for program
30 for sector erase
10 for chip erase

555 for program
2AA for erase

PA for program
SA for sector erase
555 for chip erase

t

BUSY

Notes:

1. P A = program address, PD = program data, DQ7# = complement of the data written to the device, D

OUT

= data written to the

device.

2. Figure indicates the last two bus cycles of the command sequence.

3. Word mode address used as an example.

21358F-28

Figure 24. Alternate CE# Controlled Write Operation Timings

PRELIMINARY

42 Am29LV160B

ERASE AND PROGRAMMING PERFORMANCE

Notes:

1. Typical program and erase times assume the following conditions: 25

°

C, 3.0 V VCC, 1,000,000 cycles. Additionally,

programming typicals assume checkerboard pattern.

2. Under worst case conditions of 90°C, V

CC

= 2.7 V, 1,000,000 cycles.

3. The typical chip programming time is considerably less than the maximum chip programming time listed, since most bytes
program faster than the maximum program times listed.

4. In the pre-programming step of the Embedded Erase algorithm, all bytes are programmed to 00h before erasure.

5. System-level overhead is the time required to execute the two- or four-bus-cycle sequence for the program command. See
Table 9 for further information on command definitions.

6. The device has a minimum erase and program cycle endurance of 1,000,000 cycles.

LATCHUP CHARACTERISTICS

Includes all pins except VCC. Test conditions: VCC = 3.0 V, one pin at a time.

TSOP AND SO PIN CAPACITANCE

Notes:

1. Sampled, not 100% tested.

2. Test conditions T

A

= 25°C, f = 1.0 MHz.

DATA RETENTION

Parameter Typ (Note 1) Max (Note 2) Unit Comments

Sector Erase Time 0.7 15 s

Excludes 00h programming
prior to erasure (Note 4)

Chip Erase Time 25 s
Byte Programming Time 9 300 µs

Excludes system level
overhead (Note 5)

Word Programming Time 11 360 µs
Chip Programming Time

(Note 3)

Byte Mode 18 54 s

Word Mode 12 36 s

Description Min Max

Input voltage with respect to V

SS

on all pins except I/O pins

(including A9, OE#, and RESE T#)

–1.0 V 12.5 V

Input voltage with respect to VSS on all I/O pins –1.0 V VCC + 1.0 V
V

CC

Current –100 mA +100 mA

Parameter

Symbol Parameter Description Test Setup Typ Max Unit

C

IN

Input Capacitance VIN = 0 6 7.5 pF

C

OUT

Output Capacitance V

OUT

= 0 8.5 12 pF

C

IN2

Control Pin Capacitance VIN = 0 7.5 9 pF

Parameter Test Conditions Min Unit

Minimum Pattern Data Retention Time

150°C 10 Years
125°C 20 Years

PRELIMINARY

Am29LV160B 43

PHYSICAL DIMENSIONS*

TS 048—48-Pin Standard TSOP (measured in millimeters)

* For reference only. BSC is an ANSI standard for Basic Space Centering.

TSR048—48-Pin Reverse TSOP (measured in millimeters)

* For reference only. BSC is an ANSI standard for Basic Space Centering.

48

25

1

24

18.30

18.50

19.80

20.20

11.90

12.10

0.05

0.15

0.50 BSC

0.95

1.05

16-038-TS48-2
TS 048
DT95
8-8-96 lv

Pin 1 I.D.

1.20

MAX

0.50

0.70

0.10

0.21

0.25MM (0.0098") BSC

0˚
5˚

0.08

0.20

48

25

1

24

18.30

18.50

19.80

20.20

11.90

12.10

SEATING PLANE

0.05

0.15

0.50 BSC

0.95

1.05

16-038-TS48
TSR048
DT95
8-8-96 lv

Pin 1 I.D.

1.20
MAX

0.50

0.70

0.10

0.21

0.25MM (0.0098") BSC

0˚
5˚

0.08

0.20

PRELIMINARY

44 Am29LV160B

PHYSICAL DIMENSIONS

FGC—48-Ball Fine-Pitch Ball Grid Array (FBGA) 8 x 9 mm (measured in millimeters)

7.80

8.20

8.80

9.20

DATUM B

DATUM A

INDEX

0.025

CHAMFER

0.15

M

Z

B

M

0.15

M

Z

B

M

5.60

BSC

0.40

4.00

BSC

0.08

M

ZA

B

0.10 Z

0.25

0.45

0.80

DETAIL A

0.20 Z

DETAIL A

1.20 MAX

0.40 ± 0.08 (48x) 0.40

16-038-FGC-2
EG137
12-2-97 lv

PRELIMINARY

Am29LV160B 45

PHYSICAL DIMENSIONS

SO 044—44-Pin Small Outline Package (measured in millimeters)

44

23

1

22

13.10

13.50

15.70

16.30

1.27 NOM.

28.00

28.40

2.17

2.45

0.35

0.50

0.10

0.35

2.80

MAX.

SEATING
PLANE

16-038-SO44-2
SO 044
DF83
8-8-96 lv

0.10

0.21

0.60

1.00

0˚
8˚

END VIEW

SIDE VIEW

TOP VIEW

PRELIMINARY

46 Am29LV160B

REVISION SUMMARY FOR AM29LV160B
Revision F

Distinctive Characteristics

Changed typical read and program/era se current spec­ifications.

Device now has a guaranteed minimum endurance of
1,000,000 write cycles.

Figure 1, In-System Sector Protect/Unprotect
Algorithm

Corrected A6 to 0, Changed wait specification to 150

µs on sector protect and 15 ms on sector unprotect.

DC Characteristics

Changed typical read and program/era se current spec­ifications.

AC Characteristics

Alternate CE# Controlled Erase/Program Operations:

Changed tCP to 35 ns for 70R, 80, and 90 speed
options.

Erase and Programming Performance

Device now has a guaranteed minimum endurance of
1,000,000 write cycles.

Physical Dimensions

Corrected dimensions for package length and width in
FBGA illustration (standalone data sheet version).

Revision F+1

Table 9, Command Definitions

Corrected the byte-mode address in the sixth write
cycle of the chip erase command sequence to AAAh.

Revision F+2

Figure 1, In-System Sector Protect/Unprotect
Algorithms

In the sector protect algorithm, added a “Reset
PLSCNT=1” box in the path from “Protect anot her sec­tor?” back to setting up the next sector address.

DC Characteristics

Changed I

CC1

test conditions and Note 1 to indicate

that OE# is at V

IH

for the listed current.

AC Characteristics

Erase/Program Operations; Altern ate CE# Controlled
Erase/Program Operations:

Corrected the notes refer-

ence for t

WHWH1

and t

WHWH2

. These parameters are

100% tested. Corrected the note reference for t

VCS

.

This parameter is not 100% tested.

Temporary Sector Unprotect Table

Added note reference for t

VIDR

. This parameter is not

100% tested.

Figure 23, Sector Protect/Unprotect Timing
Diagram

A valid address is not required for the first write cycle;
only the data 60h.

Erase and Programming Performance

In Note 2, the worst case endurance is now 1 million cy­cles.

Trademarks

Copyright © 1998 Advanced Micro Devices, Inc. All rights reserved.
AMD, the AMD logo, and combinations thereof are registered trademarks of Advanced Micro Devices, Inc.
ExpressFlash is a trademark of Advanced Micro Devices, Inc.
Product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
