Am29DL400B
4 Megabit (512 K x 8-Bit/256 K x 16-Bit)
CMOS 3.0 Volt-only, Simultaneous Operation Flash Memory
DISTINCTIVE CHARACTERISTICS
■ Simultaneous Read/Write operations
— Host system can program or erase in one bank,
then immediately and simultaneously read from
the other bank
— Zero latency between read and write operations
— Read-while-erase
— Read-while-program
■ Single power supply operation
— 2.7 to 3.6 volt read and write operations for
battery-powered applications
■ Manufactured on 0.35 µm process technology
■ High performance
— Access times as fast as 70 ns
■ Low current consumption (typical values
at 5 MHz)
— 7 mA active read current
— 21 mA active read-while-program or read-while-
erase current
— 17 mA active program-while-erase-suspended
current
— 200 nA in standby mode
— 200 nA in automatic sleep mode
— Standard t
CE
chip enable access time applies to
transition from automatic sleep mode to active
mode
■ Flexible sector architecture
— Two 16 Kword, two 8 Kword, four 4 Kword, and
six 32 Kword sectors in word mode
— Two 32 Kb yt e, two 16 Kbyte, four 8 Kbyte, and
six 64 Kbyte sectors in byte mode
— Any combination of sectors can be erased
— Supports full chip erase
■ Unlock Bypass Program Command
— Reduces overall progr amming time when
issuing multiple program command sequences
■ Sector protection
— Hardware method of locking a sector to prevent
any program or erase operation within that
sector
— Sectors can be locked in-system or via
programming equipment
— T emporary Sector Unprotect f eature allows code
changes in previously locked sectors
■ Top or bottom boot block configurations
available
■ Embedded Al gorithms
— Embedded Erase algorithm automatically
pre-programs and erases sectors or entire chip
— Embedded Program algorithm automatically
programs and verifies data at specified address
■ Minimum 1 million program/erase cyc les
guaranteed per sector
■ Package options
— 44-pin SO
— 48-pin TSOP
■ Compatible with JEDEC standards
— Pinout and software compatible with
single-power-supply flash standard
— Superior inadvertent write protection
■ Data# Polling and Toggle Bits
— Provides a software method of detecting
program or erase cycle completion
■ Ready/Busy# output (RY/BY#)
— Hardware method for detecting program or
erase cycle completion
■ Erase Suspend/Erase Resume
— Suspends or resumes erasing sectors to allow
reading and programming in other sectors
— No need to suspend if sector is in the other bank
■ Hardware reset pin (RESET#)
— Hardware method of resetting the device to
reading array data
2 Am29DL400B
PRELIMINARY
GENERAL DESCRIPTION
The Am29DL 400B is an 4 Mb it, 3.0 volt-only flas h
memory device, organized as 262,144 words or
524,288 bytes. The device is offered in 44-pin SO and
48-pin TSOP packages. The word-wide (x16) data ap-
pears on DQ0–DQ15; the byte-wide (x8) data appears
on DQ0–DQ7 . This device requir es only a single 3. 0
volt V
CC
supply to perform read , program, and erase
operations. A standard EPROM programmer can also
be used to program and erase the device.
The standard device offers access times of 70, 80, 90,
and 120 ns, allowing high-speed microprocessors to
operate without wait states. Standard control pins—
chip enable (CE#), write enable (WE#), and out put enable (OE#)—control read and write operations, and
avoid bu s contention issues.
The device requires only a single 3. 0 v o lt po wer sup-
ply for both read and write functions. Internally generated and regulated voltages are provided for the
program and erase operations.
Simultaneous Read/Write Operations with
Zero Latency
The Simultaneous Read/Write architecture provides simultaneous operation by dividing the memory space
into two banks. Bank 1 contains boot/parameter sectors, and Bank 2 consists of larger, code sectors of uniform size. The device can improve overall system
performance by allowing a host system to program or
erase in one bank, then immediately and simultaneously read from the other bank, with zer o la tenc y. This
releases the system from waiting for the completion of
program or erase operations.
Am29DL400B Features
The device offers complete compatibility with the
JEDEC single-power-supply Flash command set
standard. Commands are written to the command
register using standard micr oprocessor write timings.
Register contents serve as input to an internal state
machine that controls the erase and programming
circuitry. Write cycles also internally latch addresses
and data needed for the programming and erase
operations. Reading data out of the device is similar to
reading from other Flash or EPROM devices.
Device programming occurs by executing the program
command sequence. This initiates the Embedded
Program algorithm—an internal algorithm that automatically times the program pulse widths and verifies
proper cell margin. The Unlock Bypass mode facilitates faster programming times by requir ing only two
write cycles to program data instead of four.
Device erasure occurs by executing the erase command sequenc e. This initiates the Embedded Erase
algorithm—an in ternal algorithm that auto matically
preprograms the arra y (if it is not already progr ammed)
before e xecuting the er ase operation. During erase, the
device automatically times the erase pulse widths and
verifies proper cell margin.
The host system can detect whether a program or
erase operation is complete by observing the RY/BY#
pin, or by reading the DQ7 (Data# Polling) and DQ6
(toggle) status bits. After a program or erase cycle has
been completed, the device automatically returns to
reading array data.
The sector erase ar chitecture allo ws memo ry secto rs
to be erased and reprogrammed without affecting the
data contents of other sectors. The device is fully
erased when shipped from the factory.
Hardware data protection measures include a low
V
CC
detector that automatically in hibits write operations during power transitions. The hardware sector
protection feature disables both program and erase
operations in any combination of the sectors of memory. This can be achieved in-system or via programming equipment.
The Erase Suspend feature enables the user to put
erase on hold for any period of time to read data from,
or program data to, any sector within that bank that is
not selected for erasure. True background erase can
thus be achieved. There is no need to suspend the
erase operation if the read data is in the other bank.
The hardware RESET# pin term inates any operation
in progress and resets the internal state machine to
reading array dat a. The RESET# pin ma y be tied to the
system reset circuitry. A system reset would thus also
reset the device to reading array data, enab ling the system microprocessor to read the boot-up firmware from
the Flash memory.
The device off ers two power-sa ving f eatures. When addresses have been stable for a specified amount of
time, the device enters the automatic sleep m ode.
The system can also place the de vice into the standby
mode. Power consumption is greatly reduced in both
these modes.
AMD’s Flash technology combines years of Flash memory manufacturin g experience to produce th e highest
levels of quality, reliability, and cost effectiveness. The
device electrically erases all bits within a sector simultaneously via Fowler-Nordheim tunneling. The bytes are
programmed one byte or word at a time using hot electron injection.
Am29DL400B 3
PRELIMINARY
PRODUCT SELECTOR GUIDE
Note: See “AC Characteristics” for full specifications.
BLOCK DIAGRAM
Family Part Number Am29DL400B
Speed Options (Full Voltage Range: V
CC
= 2.7 – 3.6 V) -70 -80 -90 -120
Max Access Time (ns) 70 80 90 120
CE# Access (ns) 70 80 90 120
OE# Access (ns) 30 30 35 50
V
CC
V
SS
Upper Bank Address
A0–A17
RESET#
WE#
CE#
BYTE#
DQ0–DQ15
STATE
CONTROL
&
COMMAND
REGISTER
RY/BY#
Upper Bank
X-Decoder
Y-Decoder
Latches and Control Logic
OE# BYTE#
DQ0–DQ15
Lower Bank
Y-Decoder
X-Decoder
Latches and
Control Logic
Lower Bank Address
Status
Control
A0–A17
A0–A17
A0–A17A0–A17
DQ0–DQ15 DQ0–DQ15
OE# BYTE#
21606C-1
4 Am29DL400B
PRELIMINARY
CONNECTION DIAGRAMS
1
16
2
3
4
5
6
7
8
17
18
19
20
21
22
23
24
9
10
11
12
13
14
15
48
33
47
46
45
44
43
42
41
40
39
38
37
36
35
34
25
32
31
30
29
28
27
26
A15
NC
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE#
RESET#
NC
NC
RY/BY#
A1
A17
A7
A6
A5
A4
A3
A2
A16
DQ2
BYTE#
V
SS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ9
DQ1
DQ8
DQ0
OE#
V
SS
CE#
A0
DQ5
DQ12
DQ4
V
CC
DQ11
DQ3
DQ10
1
16
2
3
4
5
6
7
8
17
18
19
20
21
22
23
24
9
10
11
12
13
14
15
48
33
47
46
45
44
43
42
41
40
39
38
37
36
35
34
25
32
31
30
29
28
27
26
A15
NC
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE#
RESET#
NC
NC
RY/BY#
A1
A17
A7
A6
A5
A4
A3
A2
A16
DQ2
BYTE#
V
SS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ9
DQ1
DQ8
DQ0
OE#
V
SS
CE#
A0
DQ5
DQ12
DQ4
V
CC
DQ11
DQ3
DQ10
Reverse TSOP
Standard TSOP
21606C-2
Am29DL400B 5
PRELIMINARY
CONNECTION DIAGRAMS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
RY/BY#
NC
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE#
V
SS
OE#
DQ0
DQ8
DQ1
DQ9
DQ2
DQ10
DQ3
DQ11
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
RESET#
WE#
A8
A9
A10
A11
A12
A13
A14
A15
A16
BYTE#
V
SS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
V
CC
SO
21606C-3
6 Am29DL400B
PRELIMINARY
PIN DESCRIPTION
A0-A17 = 18 Addresses
DQ0-DQ14= 15 Data Inputs/Outputs
DQ15/A-1 = DQ15 (Data Input/Output, word mode),
A-1 (LSB Address Input, byte mode)
CE# = Chip Enable
OE# = Output En able
WE# = Write Enable
BYTE# = Selects 8-bit or 16-bit mode
RESET# = Hardware Reset Pin, Active Low
RY/BY# = Ready/Busy Output
V
CC
= 3.0 volt-only single power supply
(see Product Selector Guide for speed
options and voltage supply tolerances)
V
SS
= Device Ground
NC = Pin Not Connected Internally
LOGIC SYMBOL
21606C-4
18
16 or 8
DQ0–DQ15
(A-1)
A0–A17
CE#
OE#
WE#
RESET#
BYTE# R Y/BY#
Am29DL400B 7
PRELIMINARY
ORDERING INFORMATION
Standard Pr od ucts
AMD standard products are available in several packages and operating ranges. The order number (Valid Combination) is
formed by a combination of the following:
Valid Combinations
Valid Combinations list configurations planned to be supported in volume for this device. Consult the local AMD sales
office to confir m availability of specifi c valid combinations to
check on newly released combinations.
DEVICE NUMBER/DES CR IPT IO N
Am29DL400B
4 Megabit (512 K x 8-Bit/256 K x 16-Bit) CMOS Flash Memory
3.0 Volt-only Read, Program, and Erase
Am29DL400B -70 E C
T
OPTIONAL PROCESSING
Blank = Standa rd Pro ces sin g
B = Burn-in
(Contact an AMD representative for more information)
TEMPERATURE RANGE
C=Commercial (0°C to +70°C)
I = Industrial (–40°C to +85°C)
E = Extended (–55°C to +125°C)
PACKAGE TYPE
E = 40-Pin Thin Small Outline Package (TSOP)
Standard Pinout (TS 040)
F = 40-Pin Thin Small Outline Package (TSOP)
Reverse Pinout (TSR040)
S = 44-Pin Small Outline Package (SO 044)
SPEED OPTION
See Product Selector Guide and Valid Combinations
BOOT CODE SECTOR ARCHITECTURE
T = Top Sector
B = Bottom Sector
Valid Combinations
Am29DL400BT-70
Am29DL400BB-70
EC, EI, FC, FI,
SC, SI
Am29DL400BT-80
Am29DL400BB-80
EC, EI, EE,
FC, FI, FE,
SC, SI, SE
Am29DL400BT-90
Am29DL400BB-90
Am29DL400BT-120
Am29DL400BB-120
8 Am29DL400B
PRELIMINARY
DEVICE BUS OPERATIONS
This section describes the requirements and use of the
device bus operations, which are initiated through the
internal c ommand register. The command register itself does not occupy any addressable memory location. The register is a latch used to store the
commands, along with the address and data information needed to execute the command. The contents of
the register serve as inputs to the internal state machine. The state machine outputs dictate the function of
the device. Table 1 lists the device bus operations, the
inputs and control lev els t he y requ ire , and t he resulting
output. The following subsections describe each of
these operations in further detail.
Table 1. Am29DL400B Device Bus Operations
Legend:
L = Logic Low = V
IL
, H = Logic High = VIH, VID = 12.0 ± 0.5 V, X = Don’t Care, AIN = Address In, DIN = Data In, D
OUT
= Data Out
Notes:
1. Addresses are A17:A0 in word mode (BYTE# = V
IH
), A17:A-1 in byte mode (BYTE# = VIL).
2. The sector protect and sector unprotect functions may also be implemented via programming equipment. See the “Sector
Protection/Unprotection” section.
Word/Byte Configuration
The BYTE# pin controls whether the device data I/O
pins operate in the byte or word configuration. If the
BYTE# pin is set at logic ‘1’, the device is in word con-
figuration, DQ0-15 are active and controlled by CE#
and OE# .
If the BYTE# pin is set at logic ‘0’, the device is in byte
configuration, and only data I/O pins DQ0–DQ7 are active and controlled by CE# and OE#. The data I/O pins
DQ8–DQ14 are tri-stated, and the DQ15 pin is used as
an input for the LSB (A-1) address function.
Requirements for Reading Array Data
To read array data from the outputs, the system must
drive the CE# and OE# pins to V
IL
. CE# is the power
control and selects the device. OE# is the output control and gates arra y data to the output pins . WE# should
remain at V
IH
. The BYTE# pin determines whether the
device outputs array data in words or bytes.
The internal state machine is set for reading array
data upon device po wer-u p , or after a hardw are res et.
This ensure s that no sp urious alteration of the memory content occurs dur ing the power transition. No
command is nece ssary in this mode to ob tain array
data. Standard microprocessor read cycles that assert valid addresses on the de vice addr ess inputs produce valid d ata on th e de vice data outputs . Each ban k
remains enabled for read access until the command
register contents are altered.
See “Reading Array Data” for more information. Refer
to the AC Read-Only Operations table for timing specifications and to Figure 13 for the timing diagram. I
CC1
in the DC Characteristics table represents the active
current specification for reading array data.
Writing Commands/Command Sequences
To write a command or command sequence (which includes programming data to the device and erasing
Operation CE# OE# WE# RESET#
Addresses
(Note 1)
DQ0–
DQ7
DQ8–DQ15
BYTE#
= V
IH
BYTE#
= V
IL
Read L L H H A
IN
D
OUT
D
OUT
DQ8–DQ14 = High-Z,
DQ15 = A-1
Write L H L H A
IN
D
IN
D
IN
Standby
VCC ±
0.3 V
XX
VCC ±
0.3 V
X High-Z High-Z High-Z
Output Disable L H H H X High-Z High-Z High-Z
Reset X X X L X High-Z High-Z High-Z
Sector Protect (Note 2) L H L V
ID
Sector Address,
A6 = L, A1 = H,
A0 = L
D
IN
XX
Sector Unprotect (Note 2) L H L V
ID
Sector Address,
A6 = H, A1 = H,
A0 = L
D
IN
XX
Temporary Sector Unprotect X X X V
ID
A
IN
D
IN
D
IN
High-Z
Am29DL400B 9
PRELIMINARY
sectors of memory), the system must drive WE# and
CE# to V
IL
, and OE# to VIH.
For program operations, the BYT E# pin determin es
whether the device accepts program data in bytes or
words. Refer to “Word/Byte Configuration” for more information.
The device features an Unlock Bypass mode to facili-
tate faster programming. Once a bank enters the Unlock
Bypass mode, only two write cycles are required to program a word or byte, instead of four. The “Byte/Word
Program Command Sequence” section has details on
programming data to the device using both standard and
Unlock Bypass command sequences.
An erase operation can erase one sect or, multiple sectors, or the entire device. Tables 2 and 3 indicate the
address space that each sector occupies. The device
address space is divided into two banks: Bank 1 contains the boot/parameter sectors, and Bank 2 contains
the larger, code sectors of uniform size. A “bank address” is the address bits required to uniquely select a
bank. Similarly, a “sector address” is the address bits
required to uniquely select a sector.
If the system writes the autoselect co mmand sequence, the device enters the autoselect mode. The
system can then read autoselect codes from the internal register (which is separate from the memory array)
on DQ7–DQ0. Standard read cycle timings apply in this
mode. Refer to the Autoselect Mode and Autoselect
Command Sequence sections for more information.
I
CC2
in the DC Characteristics table represents the active current specification for the write mode. The AC
Characteristics section contains timing specification tables and timing diagrams for write operations.
Simultaneous Read/Write Operations with
Zero Latency
This device is capable of readin g data from one bank of
memory while programming or erasing in the other
bank of memory. An erase operation may also be suspended to read from or pro gram to another location
within the same bank (except the sector being erased).
Figure 19 shows how read and write cycles may be initiated for simultaneous operation with zero latency.
I
CC6
and I
CC7
in the DC Characteristics table represent
the current specificatio ns for read-while-program and
read-while-erase, respectively.
Standby Mode
When the system is not reading or writing to the device ,
it can place the device in the standby mode. In this
mode, current consumption is gr eatly reduced, and the
outputs are placed in the high impedance state, independent of the OE# input.
The device enters the CMOS standby mode when the
CE# and RESET# pins are both held at V
CC
± 0.3 V.
(Note that this is a more restricted voltage range than
V
IH
.) If CE# and RESET# ar e held at VIH, but not within
V
CC
± 0.3 V, the device will be in the standby mode , b ut
the standby current will be grea ter. The device requires
standard access time (t
CE
) for read access when the
device is in either of these standby modes, before it is
ready to read data.
The device also enters the standb y mode when the RESET# pin is driven low. Refer to the next section, “RESET#: Hardware Reset Pin”.
If the device is deselected during erasure or programming, the device draws active current until the
operation is completed.
I
CC3
in the DC Characteristics table represents the
standby current specification.
Automatic Sleep Mode
The automatic sleep mode minimizes Flash device
energy consumption. The de vice automatically enables
this mode when addresses remain stable f or t
ACC
+ 30
ns. The automatic sleep mode is independent of the
CE#, WE#, and OE# control signals. Standard addres s
access timings provide new data when addresses are
changed. While in sleep mode, output data is latched
and always available to the system. I
CC4
in the DC
Characteristics table represents the automatic sleep
mode current specification.
10 Am29DL400B
PRELIMINARY
RESET#: Hardware Reset Pin
The RESET# pin provides a har dware method of resetting the device to reading array data. When the RESET# pin is driven low for at least a period of t
RP
, the
device immediately terminates any operation in
progress, tristates all output pins, and ignores all read/
write commands for the duration of the RESET# pulse .
The device also resets the internal state machine to
reading array data. The operation that was interrupted
should be reinitiated once the de vi ce is ready to accept
another command sequence, to ensure data integrity.
Current is reduced for the duration of the RESET#
pulse. When RESET# is held at V
SS
±0.3 V, the device
draws CMOS standby current (I
CC4
). If RESET# is held
at V
IL
but not within VSS±0.3 V, the standby current will
be greater.
The RESET# pin may be tied to the system reset cir-
cuitry. A system reset would thus also reset the Flash
memory, enabling the system to read the boot-up
firmware from the Flash memory.
If RESET# is asserted during a program or erase operation, the RY/BY# pin remains a “0” (busy) until the internal reset operatio n is complete, which requires a
time of t
READY
(during Embedded Algorithms). The
system can thus monitor RY/BY# to determine whether
the reset operation is complete. If RESET# is asserted
when a program or erase operation is not executing
(RY/BY# pin is “1”), the reset operation is completed
within a time of t
READY
(not during Embe dded Algo-
rithms). The system can read data t
RH
after the RE-
SET# pin returns to V
IH
.
Refer to the AC Characteristics tables for RESET# parameters and to Figure 14 for the timing diagram.
Output Disable Mode
When the OE# input is at VIH, output from the device is
disabled. The output pins are placed in t he high impedance state.
Am29DL400B 11
PRELIMINARY
Table 2.
Am29DL400BT Top Boot Sector Architecture
Note: The address range is A17:A-1 if in byte mode (BYTE# = VIL). The address range is A17:A0 if in word mode (BYTE# = VIH).
Bank Sector
Sector Address
Sector Size
(Kbytes/
Kwords)
(x8)
Address Range
(x16)
Address Range
Bank
Address
A15 A14 A13 A12A17 A16
Bank 2
SA0 0 0 0 X X X 64/32 00000h–0FFFFh 00000h–07FFFh
SA1 0 0 1 X X X 64/32 10000h–1FFFFh 08000h–0FFFFh
SA2 0 1 0 X X X 64/32 20000h–2FFFFh 10000h–17FFFh
SA3 0 1 1 X X X 64/32 30000h–3FFFFh 18000h–1FFFFh
SA4 1 0 0 X X X 64/32 40000h–4FFFFh 20000h–27FFFh
SA5 1 0 1 X X X 64/32 50000h–5FFFFh 28000h–2FFFFh
Bank 1
SA6 1 1 0 0 0 X 16/8 60000h–63FFFh 30000h–31FFFh
SA7 1 1 0
01X
32/16 64000h–6BFFFh 32000h–35FFFh
10X
SA8 1 1 0 1 1 0 8/4 6C000h–6DFFFh 36000h–36FFFh
SA9 1 1 0 1 1 1 8/4 6E000h–6FFFFh 37000h–37FFFh
SA10 1 1 1 0 0 0 8/4 70000h–71FFFh 38000h–38FFFh
SA11 1 1 1 0 0 1 8/4 72000h–73FFFh 39000h–39FFFh
SA12 1 1 1
01X
32/16 74000h–7BFFFh 3A000h–3DFFFh
10X
SA13 1 1 1 1 1 X 16/8 7C000h–7FFFFh 3E000h–3FFFFh
12 Am29DL400B
PRELIMINARY
Tab le 3. Am29DL400BB Bottom Boot Sector Architecture
Note: The address range is A17:A-1 if in byte mode (BYTE# = VIL). The address range is A17:A0 if in word mode (BYTE# = VIH).
Autoselect Mode
The autoselect mode provides manufacturer and device identification, and sector protection verification,
through identifier codes output on DQ7–DQ0. This
mode is primarily intended for progr amming equipment
to automatically match a device to be progr ammed with
its correspondi ng programming al gorithm. However,
the autoselect codes can also be accessed in-system
through the command register.
When using programming equipment, the autoselect
mode requires V
ID
(11.5 V to 12.5 V) on address pin
A9. Address pins A6, A1, and A0 must be as shown in
Table 4. In a ddition, when verifying sector protection,
the sector address must appear on the appropriate
highest order address bits (see Tables 2 and 3). Table
4 shows the remaining address bits that are don’t care .
When all necessary bits have been set as required, the
programming equipment may then read the corresponding identifier code on DQ7-DQ0.
To access the autoselect codes in-system, the host
system can issue the autoselect command via the
command register, as shown in Table 5. This method
does not require V
ID
. Refer to the Autoselect Command
Sequence section for more information.
Bank Sector
Sector Address
Sector Size
(Kbytes/Kwords)
(x8)
Address Range
(x16)
Address Range
Bank
Address
A15 A14 A13 A12A17 A16
Bank 2
SA13 1 1 1 X X X 64/32 70000h–7FFFFh 38000h–3FFFFh
SA12 1 1 0 X X X 64/32 60000h–6FFFFh 30000h–37FFFh
SA11 1 0 1 X X X 64/32 50000h–5FFFFh 28000h–2FFFFh
SA10 1 0 0 X X X 64/32 40000h–4FFFFh 20000h–27FFFh
SA9 0 1 1 X X X 64/32 30000h–3FFFFh 18000h–1FFFFh
SA8 0 1 0 X X X 64/32 20000h–2FFFFh 10000h–17FFFh
Bank 1
SA7 0 0 1 1 1 X 16/8 1C000h–1FFFFh 0E000h–0FFFFh
SA6 0 0 1
10X
32/16 14000h–1BFFFh 0A000h–0DFFFh
01X
SA5 0 0 1 0 0 1 8/4 12000h–13FFFh 09000h–09FFFh
SA4 0 0 1 0 0 0 8/4 10000h–11FFFh 08000h–08FFFh
SA3 0 0 0 1 1 1 8/4 0E000h–0FFFFh 07000h–07FFFh
SA2 0 0 0 1 1 0 8/4 0C000h–0DFFFh 06000h–06FFFh
SA1 0 0 0
10X
32/16 04000h–0BFFFh 02000h–05FFFh
01X
SA0 0 0 0 0 0 X 16/8 00000h–03FFFh 00000h–01FFFh
Am29DL400B 13
PRELIMINARY
Table 4. Am29DL400B Autoselect Codes (High Voltage Method)
Note: L = Logic Low = VIL, H = Logic High = VIH, BA = Bank Address, SA = Sector Address, X = Don’t care.
Sector Protection/Unprotection
The hardware sector protection feature disables both
program and erase operations in any sect or. The hardware sector unprotection feature re-enables both program and erase operations in previously protected
sectors. Sector protection/unprotecti on can be implemented via two methods.
The primary method requires V
ID
on the RESET# pin
only, and can be implemented either in-system or via
programming equipment. Figure 2 shows the algorithms and Figure 24 shows the timing diagram. This
method uses standard m icroprocessor bus cycle timing. For sector unprotect, all unprotected sectors must
first be protected prior to the first sector unpro tect write
cycle.
The alternate method intended on ly for programming
equipment requires V
ID
on address pin A9 and OE#.
This method is compatible with programmer routines
written for earlier 3.0 v olt-only AMD flash de vices. Publication number 22145 contains further details; contact
an AMD representative to request a copy.
The device is shipped with all sectors unprotected.
AMD offers the option of programming and protecting
sectors at its factory prior to shipping the device
through AMD’s ExpressFlash™ Servic e. Contact an
AMD representative for details.
It is possible to determine whether a sector is protected
or unprotected. See the Autoselect Mode section for
details.
Temporary Sector Unprotect
This feature allows temporary unpr otection of previously protected sectors to change data in-system. The
Sector Unprotect mode is activated by setting the RE-
SET# pin to V
ID
(11.5 V – 12.5 V). During this mode,
formerly protected sectors can be programmed or
erased by selecting the sector addresses. Once V
ID
is
removed from the RESET# pin, all the previously protected sectors are protected again. Figure 1 shows the
algorithm, and Figur e 23 shows the timing diagrams,
for this feature.
Figure 1. Temporary Sector Unprotect Operation
Description Mode CE# OE# WE#
A17
to
A12
A11
to
A10 A9
A8
to
A7 A6
A5
to
A2 A1 A0
DQ8
to
DQ15
DQ7
to
DQ0
Manufacturer ID: AMD L L H BA X V
ID
XLXLL X 01h
Device ID:
Am29DL400B
(Top Boot Block)
Word L L H
BA X V
ID
XLXLH
22h 0C
Byte L L H X 0C
Device ID:
Am29DL400B
(Bottom Boot Block)
Word L L H
BA X V
ID
XLXLH
22h 0F
Byte L L H X 0F
Sector Protection Verification L L H SA X V
ID
XLXHL
X
01h
(protected)
X
00h
(unprotected)
START
Perform Erase or
Program Operations
RESET# = V
IH
Temporary Sector
Unprotect Completed
(Note 2)
RESET# = V
ID
(Note 1)
Notes:
1. All protected sectors unprotected.
2. All previously protected sectors are protected once
again.
21606C-5
14 Am29DL400B
PRELIMINARY
Figure 2. In-System Sector Prot ect/Unprotect Algorithms
Sector Protect:
Write 60h to sector
address with
A6 = 0, A1 = 1,
A0 = 0
Set up sector
address
Wait 150 µs
Verify Sector
Protect: Write 40h
to sector address
with A6 = 0,
A1 = 1, A0 = 0
Read from
sector address
with A6 = 0,
A1 = 1, A0 = 0
START
PLSCNT = 1
RESET# = V
ID
Wait 1 µs
First Write
Cycle = 60h?
Data = 01h?
Remove V
ID
from RESET#
Write reset
command
Sector Protect
complete
Yes
Yes
No
PLSCNT
= 25?
Yes
Device failed
Increment
PLSCNT
Temporary Sector
Unprotect Mode
No
Sector Unprotect:
Write 60h to sector
address with
A6 = 1, A1 = 1,
A0 = 0
Set up first sector
address
Wait 15 ms
Verify Sector
Unprotect: Write
40h to sector
address with
A6 = 1, A1 = 1,
A0 = 0
Read from
sector address
with A6 = 1,
A1 = 1, A0 = 0
START
PLSCNT = 1
RESET# = V
ID
Wait 1 µs
Data = 00h?
Last sector
verified?
Remove V
ID
from RESET#
Write reset
command
Sector Unprotect
complete
Yes
No
PLSCNT
= 1000?
Yes
Device failed
Increment
PLSCNT
Temporary Sector
Unprotect Mode
No
All sectors
protected?
Yes
Protect all sectors:
The indicated portion
of the sector protect
algorithm must be
performed for all
unprotected sectors
prior to issuing the
first sector
unprotect address
Set up
next sector
address
No
Yes
No
Yes
No
No
Yes
No
Sector Protect
Algorithm
Sector Unprotect
Algorithm
First Write
Cycle = 60h?
Protect another
sector?
Reset
PLSCNT = 1
21606C-6
Am29DL400B 15
PRELIMINARY
Hardware Data Protection
The command sequence requirement of unlock cycles
for programming or erasing provides data protection
against inadvertent wri tes (refer to Table 5 for command definitions). In additio n, the following hardware
data protection mea sures prevent accidental erasure
or programming, which might otherwise be caused by
spurious system level signals during V
CC
power-up and
power-down transitions, or from system noise.
Low V
CC
Write Inhibit
When VCC is less than V
LKO
, the device does not accept
any write cycles. This protects data during V
CC
power-up and power-down. The command register and
all internal program/erase circuits are disabled, and the
device resets to reading array data. Subsequent writes
are ignored until V
CC
is greater than V
LKO
. The system
must provide the proper signals to the con trol pins to
prevent unintentional writes when V
CC
is greate r than
V
LKO
.
Write Pulse “Glitch” Protection
Noise pulses of less than 5 ns (typical) on OE#, CE# or
WE# do not initiate a write cycle.
Logical Inhibit
Write cycles are inhibited by holding any one of OE# =
V
IL
, CE# = VIH or WE# = VIH. To initiate a write cycle,
CE# and WE# must be a logical zero while OE# is a
logical one.
Power-Up Write Inhibit
If WE# = CE# = V
IL
and OE# = VIH during power up , the
device does not accept commands on the rising edge
of WE#. The internal state mac hine is automatically
reset to reading array data on power-up.
COMMAND DEFINITIONS
Writing specific addre ss and data commands or sequences into the command register initiates device operations. Table 5 defines the valid regist er command
sequences. Writing incorrect address and data val-
ues or writing them in the improper sequence resets
the device to reading array data.
All addresses are latched on the falling edge of WE# or
CE#, whichever happens later. All data is latched on
the rising edge of WE# or CE#, whichever happens
first. Refer to the appropriate ti ming diagrams in the A C
Characteristics section.
Reading Array Data
The device is automatically set to reading array data
after device power-up. No commands are required to
retrieve data. Each bank is ready to read array data
after completing an Embedded Program or Embedded
Erase algorithm.
After the device accepts an Er ase Suspend command,
the corresponding bank enters the erase-suspendread mode, after which the system can read data from
any non-erase-suspended sector within the same
bank. After completing a programming operat ion in the
Erase Suspend mode, the system may once again
read array data with the s ame exception. See the Er ase
Suspend/Erase Resume Commands section for more
information.
The system
must
issue the reset command to return a
bank to the read (or erase-s uspend-read) mode if DQ5
goes high during an active program or erase operat ion,
or if the bank is in the autoselect mode. See the next
section, Reset Command, for more information.
See also Requirements for Reading Array Data in the
Device Bus Operations section for more information.
The Read-Only Operations table provides the rea d parameters, and Figure 13 shows the timing diagram.
Reset Command
Writing the reset command resets the banks to the
read or erase-suspend-read mode. Address bits are
don’t cares for this command.
The reset command may be written between the se-
quence cycles in an erase command sequence before
erasing begins. This resets the bank to which the system was writing to reading array data. Once erasure
begins, however, the device ignores reset commands
until the operation is complete.
The reset command may be written between the sequence cycles in a program command sequence before programming begins. This resets the bank to
which the system was writing to the reading array data.
If the program command sequence is written to a bank
that is in the Erase Suspend mode, writing the reset
command returns that bank to the erase-suspend-read
mode. Once programming begins, however, the device
ignores reset commands unti l the operation is complete.
The reset command may be written between the sequence cycles in an autoselect command sequence.
Once in the autoselect mode, t he reset c ommand must
be written to return to reading array data. If a bank entered the autoselect mode while in the Erase Suspend
mode, writing the reset command returns that bank to
the erase-suspend-read mode.
If DQ5 goes high during a program or erase operation,
writing the reset command returns the banks to reading
array data (or erase-suspend-read mode if that bank
was in Erase Suspend).
16 Am29DL400B
PRELIMINARY
Autoselect Command Sequence
The autoselect command sequence allows the host
system to access the manufacturer and devices codes,
and determine whether or not a sector is protected.
T ab le 5 shows the address and data requirements . This
method is an alternative to that shown in Table 4, which
is intended for PROM programmers and requires V
ID
on address pin A9. The autoselect command sequence
may be written to an address within a bank that is either
in the read or erase-suspend-read mode. The autoselect command may not be written while the device is
actively programming or erasing in the other bank.
The autoselect command sequence is initiated by first
writing two unlock cycles. This is followed by a third
write cycle that contains the bank address and the autoselect command. The addressed bank then enters
the autoselect mode. The system may read at any address within the same bank any number of times without initiating another autoselect command sequence:
■ A read cycle at address (BA)XX00h (where BA is
the bank address) returns the manufacturer code.
■ A read cycle at address (BA)XX01h in word mode
(or (BA)XX02h in byte mode) returns the device
code.
■ A read cycle to an address containing a sector ad-
dress (SA) within the same bank, and the address
02h on A7–A0 in word mode (or the address 04h on
A6–A-1 in byte mode) returns 01h if the sector is
protected, or 00h if it is unprotected. Refer to Tables
2 and 3 for valid sector addresses.
The system may continue to read array data from the
other bank while a bank is in the autoselect mode. To
exit the autoselect mode, the system must write the
reset command to return both banks to reading array
data. If a bank enters the autoselect mode while erase
suspended, a reset command returns that bank to the
erase-suspend-read mode. A subsequent Erase
Resume command returns the bank to the er ase operation.
Byte/Word Program Command Sequence
The system may program the device by word or byte,
depending on the state of the BYTE# pin. Programming is a four-bus-cycle operation. The program command sequence is initiated by writing two unlock write
cycles, followed by the program set-up command. The
program address and data are written nex t, which in
turn initiate the Embedded Program algorithm. The
system is
not
required to provide further controls or timings. The device automatically generates the program
pulses and verifies the programmed cell margin. Table
5 shows the address and da ta requirements for the
byte program command sequence.
When the Embedded Program algorithm is complete,
that bank then returns to reading array data and addresses are no longer latched. The system can determine the status of the program operation b y using DQ7,
DQ6, or RY/BY#. Note that while the Embedded Program operation is in progress, the system can read
data from the non-programming bank. Refer to the
Write Operation Status section for information on these
status bits.
Any commands written to the device during the Embedded Program Algorithm are ignored. Note that a
hardware reset immediately ter minates the program
operation. The program command sequence should be
reinitiated once that bank has returned to reading arra y
data, to ensure data integrity.
Programming is allowed in any sequence an d across
sector boundaries. A bit cannot be programmed
from “0” back to a “1.” Attempting to do so ma y cause
that bank to set DQ5 = 1, or cause the DQ7 and DQ6
status bits to indicate the operation was successful.
However, a succeeding read will show that the data is
still “0.” Only erase operations c an convert a “0” to a
“1.”
Unlock Bypass Command Sequence
The unlock bypass feature allows the system to program bytes or words to a bank faster than using the
standard program command sequence. The unloc k b ypass command sequence is initiated by first writing two
unlock cycles. This is followed by a third write cycle
containing the unlock bypass command, 20h . That
bank then enters the unlock bypass mode. A two-cy cle
unlock bypass program command sequence is all that
is required to program in this mode. The first cycle in
this sequence contains the unlock bypass program
command, A0h; the second cycle contains the prog ram
address and data. Additional data is programmed in
the same manner. This mode dispenses with t he i nitial
two unlock cycles required in the standard program
command sequence, resulting in faster total programming time. Table 5 shows t he requirements f or the command sequence.
During the unlock bypass mode, only the Unlock Bypass
Program and Unlock Bypass Reset commands are
valid. To exit the unlock bypass mode, the system must
issue the two-cycle unlock bypass reset command sequence. The first cycle must conta in the bank address
and the data 90h. The second cycle need only con tain
the data 00h. The bank the n returns to readin g array
data.
Am29DL400B 17
PRELIMINARY
Figure 3 illustrates the algorithm for the program operation. Refer to the Er ase and Program Operation s table
in the AC Characteristics section for parameters, and

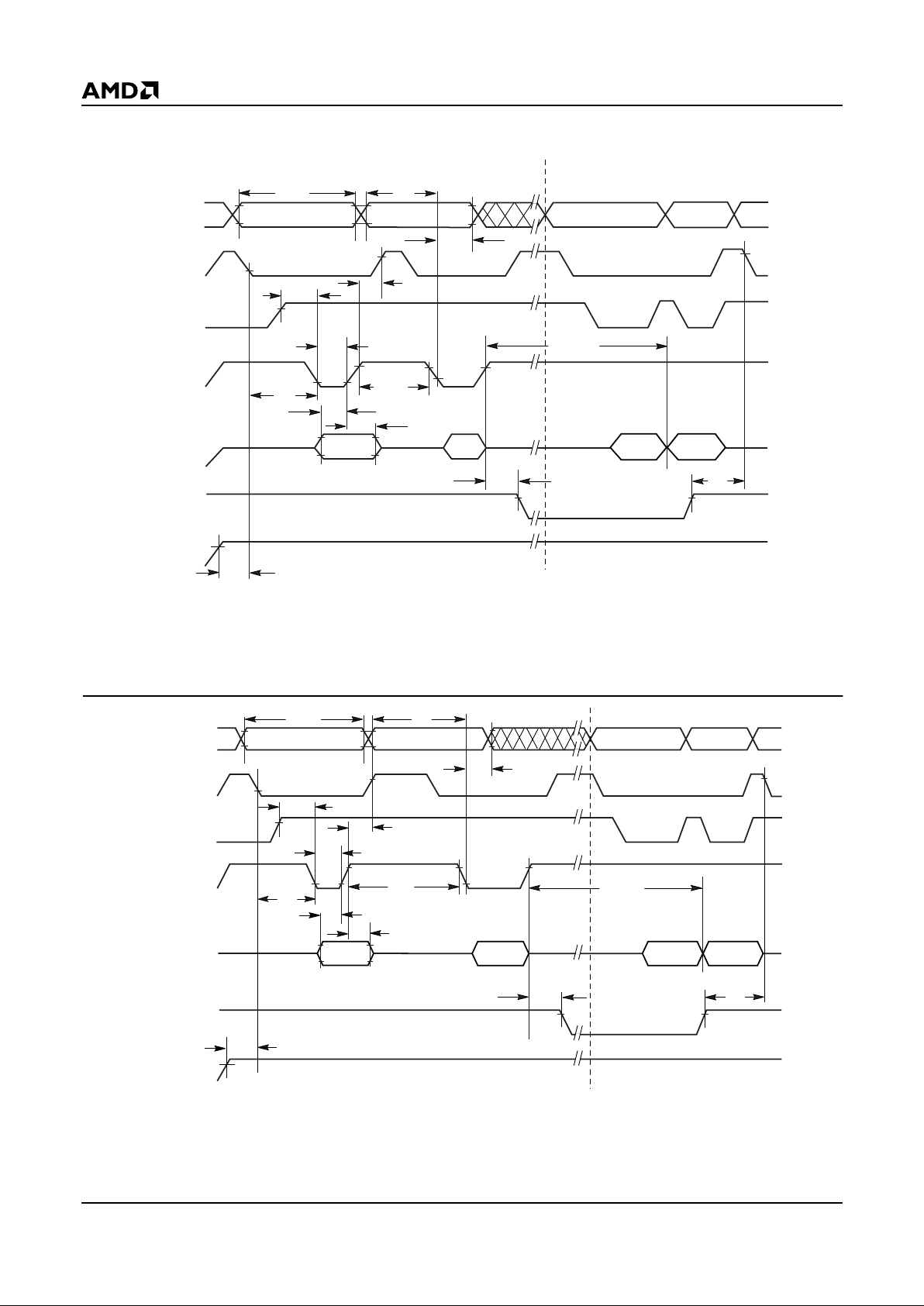

Figure 17 for timing diagrams.
Note: See Table 5 for program command sequence.
Figure 3. Program Operation
Chip Erase Command Sequence
Chip erase is a six bus cycle oper ation. The chip er ase
command sequence is initiated by writing two unlock
cycles, followed by a set-up command. Two additional
unlock write cycles are then followed by the chip erase
command, which in turn invokes the Embedded Erase
algorithm. The device does
not
require the system to
preprogram prior to erase. The Embedded Erase algorithm automatically preprograms and ve rifies the entire
memory for an all zero data patter n prior to electr ical
erase. The system is not required to provide any controls or timings during these operations. Table 5 shows
the address and data requirements for the chip erase
command sequence.
When the Embedded Erase algorithm is complete , that
bank returns to reading array data and addresses are
no longer latched. The system can determine the sta-
tus of the erase operation b y using DQ7, DQ6, DQ2, or
RY/BY#. Ref er to the Write Operation Stat us section for
information on these status bits.
Any commands written during the chip erase operation
are ignored. However, note that a hardware reset im-
mediately terminates the erase operation. If that occurs, the chip erase command sequence should be
reinitiated once that bank has returned to reading arra y
data, to ensure data integrity.
Figure 4 illustrates the algorithm for the erase operation. Refer to the Erase and Prog ram Oper ations tab les
in the AC Characteristics section for parameters, and
Figure 18 section for timing diagrams.
Sector Erase Command Sequence
Sector erase is a six bus cycle operation. The sector
erase command sequence is initiated by writing two unlock cycles, followed by a set-up command. Two additional unlock cycles are written, and are then followed
by the address of the sector t o be er ased, and t he sector erase command. Table 5 shows the address and
data requirements for the sector erase comma nd sequence.
The device does
not
require the system to preprogram
prior to erase. The Embedded Erase algorithm automatically programs and verifies the entire memory for
an all zero data pattern prior to electrical erase. The
system is not required to provide a ny controls or timings during these operations.
After the command sequence is written, a sector erase
time-out of 50 µs occurs. Duri ng the time-out period,
additional sector addresses and sector erase commands may be written. Loading the sector erase buffer
may be done in any sequence, and the number of sectors may be from one sector to all sector s. The time between these additional cycl es must be less than 50 µs,
otherwise the last address and command may not be
accepted, and erasure may begin. It is recommended
that processor interrupts be disab led during this time to
ensure all commands are accepted. The interrupts can
be re-enabled after the last Sector Erase command is
written. Any command other than Sector Erase or
Erase Suspend during the time-out period resets
that bank to reading array data. The system must re-
write the c ommand sequ ence and any a dditional addresses and commands.
The system can monitor DQ3 (in the erasing bank) to
determine if the sec tor erase timer has timed out (See
the section on DQ3: Sector Erase Timer.). The time-out
begins from the rising edge of the final WE# pulse in the
command sequence.
When the Embedded Erase algorithm is complete, the
bank returns to reading array data and addresses are
no longer latched. Note that while the Embedded Erase
operation is in progress, the system can read data from
START
Write Program
Command Sequence
Data Poll
from System
Verify Data?
No
Yes
Last Address?
No
Yes
Programming
Completed
Increment Address
Embedded
Program
algorithm
in progress
21606C-7
18 Am29DL400B
PRELIMINARY
the non-erasing bank. The system can determine the
status of the erase operation by reading DQ7, DQ6,
DQ2, or RY/BY# in the eras ing bank. Ref er to the Write
Operation Status section for infor mation on these status bits.
Once the sector erase operation has begun, onl y the
Erase Suspend command is valid. All other commands
are ignored. However, note that a hardware reset im-
mediately terminates the erase operation. If that occurs, the sector erase command sequence should be
reinitiated once that bank has returned to reading arra y
data, to ensure data integrity.
Figure 4 illustrates the algorithm for the erase operation. Refer to the Erase and Program Operation s tables
in the AC Characteristics section for parameters, and
Figure 18 section for timing diagrams.
Erase Suspend/Erase Resume Commands
The Erase Suspend command, B0h, allows the system to interrupt a sector erase operation and then
read data from, or progr a m dat a to, any sector not selected for er asure . The bank addres s is required when
writing this command. This command i s valid only during the sector erase operation, including the 50 µs
time-out period during the sector erase command sequence. The Erase Suspend comma nd is ignored if
written during the chip erase operation or Embedded
Program algorithm.
When the Erase Suspend command is written during
the sector erase operation, the device requires a maximum of 20 µs to suspend the erase operation. However, when the Erase Suspend command is written
during the sector erase time-out, the device immediately terminates the time-out period and suspends the
erase operation.
After the erase operation has been suspended, the
bank enters the erase-suspend-read mode. The system can read data from or program data to any sector
not selected for erasure . (The de vice “er ase suspends”
all sectors selected for erasure.) Reading at any address within erase-suspended sectors produces status
information on DQ7–DQ0. The system can use D Q7,
or DQ6 and DQ2 together, to determine if a sector is
actively erasing or is erase-suspended. Refer to the
Write Operation Status section f or inf ormation on these
status bits.
After an erase-suspended program operation is complete, the bank returns to the erase-suspend-read
mode. The system can determine the status of the pro-
gram operation using the DQ7 or DQ6 status bits, just
as in the standard Byte Program oper ation. Ref er to the
Write Operation Status section for more information.
In the erase-suspend-read mode, the system can also
issue the autoselect command sequence. Refer to the
Autoselect Mode and Autoselect Command Sequence
sections for details.
To resume the sector erase operation, the system must
write the Erase Resume command. The bank address
of the erase-suspended bank is required when writing
this command. Further writes of the Resume command
are ignored. Another Erase Suspend command can be
written after the chip has resumed erasing.
Notes:
1. See Table 5 for erase command sequence.
2. See the section on DQ3 for information on the sector
erase timer.
Figure 4. Erase Operation
START
Write Erase
Command Sequence
(Notes 1, 2)
Data Poll to Erasing
Bank from System
Data = FFh?
No
Yes
Erasure Completed
Embedded
Erase
algorithm
in progress
21606C-8
Am29DL400B 19
PRELIMINARY
Table 5. Am29DL400B Command Definitions
Legend:
X = Don’t care
RA = Address of the memory location to be read.
RD = Data read from location RA during read operation.
PA = Address of the memory location to be programmed.
Addresses latch on the falling edge of the WE# or CE# pulse,
whichever happens later.
PD = Data to be programmed at location PA. Data latches on the
rising edge of WE# or CE# pulse, whichever happens first.
SA = Address of the sector to be verified (in autoselect mode) or
erased. Address bits A17–A12 uniquely select any sector.
BA = Address of the bank th at is being switched to autoselect
mode, is in bypass mode, or is being erased. Address bits A17–
A16 select a bank.
Notes:
1. See Table 1 for description of bus operations.
2. All values are in hexadecimal.
3. Except when reading array or autoselect data, all bus cycles
are write operations.
4. Data bits DQ15–DQ8 are don’t cares for unlock and command
cycles in word mode.
5. Address bits A17–A11 are don’t cares for unlock and
command cycles, unless bank address (BA) is required.
6. No unlock or command cycles required when bank is in read
mode.
7. The Reset command is required to return to reading array
data (or to the erase-suspend-read mode if previously in
Erase Suspend) when a bank is in the autoselect mode, or if
DQ5 is goes high (while the bank is providing status
information).
8. The fourth cycle of the autoselect command sequence is a
read cycle. The system must provide the bank address to
obtain the manufacturer or device ID information.
9. The data is 00h for an unprotected sector and 01h for a
protected sector. See the Autoselect Command Sequence
section for more information.
10. The Unlock Bypass command is required prior to the Unlock
Bypass Program command.
11. The Unlock Bypass Reset command is required to return to
reading array data when the bank is in the un lock bypass
mode.
12. The system may read and program in non-erasing sectors, or
enter the autoselect mode, when in the Erase Suspend mode.
The Erase Suspend command is valid only during a sector
erase operation, and requires the bank address.
13. The Erase Resume command is valid only during the Erase
Suspend mode, and requires the bank address.
Command
Sequence
(Note 1)
Bus Cycles (Notes 2–5)
First Second Third Fourth Fifth Sixth
Addr Data Addr Data Addr Data Addr Data Addr Data Addr Data
Read (Note 6) 1 RA RD
Reset (Note 7) 1 XXX F0
Manufacturer ID
Word
4
555
AA
2AA
55
(BA)555
90 (BA)X00 01
Byte AAA 555 (BA)AAA
Device ID,
To p Boot Block
Word
4
555
AA
2AA
55
(BA)555
90
(BA)X01 220C
Byte AAA 555 (BA)AAA (BA)X02 0C
Device ID,
Bottom Boot Block
Word
4
555
AA
2AA
55
(BA)555
90
(BA)X01 220F
Byte AAA 555 (BA)AAA (BA)X02 0F
Sector Protect
Verify (Note 9)
Word
4
555
AA
2AA
55
(BA)555
90
(SA)
X02
XX00
XX01
Byte AAA 555 (BA)AAA
(SA)
X04
00
01
Program
Word
4
555
AA
2AA
55
555
A0 PA PD
Byte AAA 555 AAA
Unlock Bypass
Word
3
555
AA
2AA
55
555
20
Byte AAA 555 AAA
Unlock Bypass Program (Note 10) 2 XXX A0 PA PD
Unlock Bypass Reset (Note 11) 2 BA 90 XXX 00
Chip Erase
Word
6
555
AA
2AA
55
555
80
555
AA
2AA
55
555
10
Byte AAA 555 AAA AAA 555 AAA
Sector Erase
Word
6
555
AA
2AA
55
555
80
555
AA
2AA
55 SA 30
Byte AAA 555 AAA AAA 555
Erase Suspend (Note 12) 1 BA B0
Erase Resume (Note 13) 1 BA 30
Cycles
Autoselect (Note 8)
20 Am29DL400B
PRELIMINARY
WRITE OPERATION STATUS
The device provides several bits to determine the status of a write operation in the bank where a program or
erase operation is in progress: DQ2, DQ3, DQ5, DQ6,
DQ7, and RY/BY#. Table 6 and the following subsections describe the function of these bits . DQ7, RY/BY#,
and DQ6 each offer a method for determining whether
a program or erase operation is complete or in
progress. These three bits are discussed first.
DQ7: Data# Polling
The Data# Polling bit, DQ7, indicates to the host system whether an Embedded Program or Erase algorithm is in progress or completed, or whether a bank is
in Erase Suspend. Data# P olli ng is valid after the rising
edge of the final WE# pulse in the command sequence .
During the Em bedded Program algor ithm, the device
outputs on DQ7 the complement of the datum programmed to DQ7. This DQ7 status also applies to programming during Erase Suspend. When the
Embedded Program algorithm is complete, the device
outputs the datum programmed to DQ7. The system
must provide the program address to read valid status
information on DQ7. If a program address falls within a
protected sector, Data# Polling on DQ7 is active for approximatel y 1 µs, then that bank returns to reading
array data.
During the Embedded Erase algorithm, Data# Polling
produces a “0” on DQ7. When the Embedded Erase algorithm is complete, or if the bank enters the Erase
Suspend mode, Data# Polling produces a “1” on DQ7.
The system must provide an address within any of the
sectors selected for erasure to read valid status information on DQ7.
After an erase command sequence is written, if all s ectors selected for erasing are protected, Data# Polling
on DQ7 is active for approximately 100 µs, then the
bank returns to rea ding array data. If not all selected
sectors are protected, the Embedded Erase algorithm
erases the unprotected sectors, and ignores the selected sectors that are protected. However, if the system reads DQ7 at an address within a protected sector ,
the status may not be valid.
Just prior to the completion of an Embedded Program
or Erase operation, DQ7 may change asynchronously
with DQ0–DQ6 while Output Enable (OE#) is asserted
low . That is , the d e vice ma y chan ge from pro viding status information to valid data on DQ7. Depending on
when the system samples the DQ7 output, it may read
the status or valid data. Even if the device has completed the program or erase operation and DQ7 has
valid data, the data outputs on DQ0–DQ6 may be still
invalid. Valid data on DQ0–DQ7 will appear on successive read cycles.
Table 6 shows the outputs for Data# Polling on DQ7.
Figure 5 shows the Data# Polling algorithm. Figure 20
in the AC Characteristics section shows the Data# Polling timing diagram.
Notes:
1. VA = Valid address for programming. During a sector
erase operation, a valid address is any sector address
within the sector being erased. During chip erase, a valid
address is any non-protected sector address.
2. DQ7 should be rechecked even if DQ5 = “1” because
DQ7 may change simultaneously with DQ5.
Figure 5. Data# Polling Algorithm
DQ7 = Data?
Yes
No
No
DQ5 = 1?
No
Yes
Yes
FAIL
PASS
Read DQ7–DQ0
Addr = VA
Read DQ7–DQ0
Addr = VA
DQ7 = Data?
START
21606C-9
Am29DL400B 21
PRELIMINARY
RY/BY#: Ready/Busy#
The RY/BY# is a dedicated, open-drain output pin that
indicates whether an Embedded Algorithm is in
progress or complete. The RY/BY# status is valid after
the rising edge of the final WE# pulse in the command
sequence. Since RY/BY# is an open-drain out put, several RY/BY# pins can be tied together in parallel with a
pull-up resistor to V
CC
.
If the output is low (Busy ), the de vice is activ ely er asing
or programming. (T his includes programming in the
Erase Suspend mode.) If th e output is high (Ready) ,
the device is ready to read ar ray data, is in the standb y
mode, or one of the banks is in the erase-suspend-read
mode.
Table 6 shows the outputs for RY/BY#.
DQ6: Toggle Bit I
Toggle Bit I on DQ6 indicates w hether an Embedded
Program or Erase algorithm is in progress or complete,
or whether the device has entered the Erase Suspend
mode. Toggle Bit I may be read at any address within
the programming or erasing bank , and is valid after the
rising edge of the final WE# pulse in the command sequence (prior to the program or erase operation), and
during the sector erase time-out.
During an Embedded Program or Erase algorithm operation, successive read cycles to any address within
the programming or erasing bank cause DQ6 to tog gle.
The system may use either OE# or CE# to control the
read cycles. When the operation is complete, DQ6
stops toggling.
After an erase command sequence is written, if all s ectors selected for eras ing are protected , DQ6 toggles for
approximately 100 µs, then returns to readi ng array
data. If not all selected sectors are protected, the Embedded Erase algorithm erases the unprotected sectors, and ignores the selected sectors that are
protected.
The system can use DQ6 and DQ2 together to determine whether a sector is actively erasing or is erasesuspended. When a bank is a ctively erasing (tha t is,
the Embedded Erase algorithm is in progress), DQ6
toggles. When that ba nk enters the Erase Suspen d
mode, DQ6 stops toggling. However, the system must
also use DQ2 to determine which sectors are erasing
or erase-suspended. Alternatively, the system can use
DQ7 (see the subsection on DQ7: Data# Polling).
If a program address falls within a pro tected sector,
DQ6 toggles for approximately 1 µs after the program
command sequence is written, then returns to reading
array data.
DQ6 also toggles during the erase-suspend-program
mode, and stops toggling once the Embedded Program algorithm is complete.
Table 6 shows the outputs for Toggle Bit I on DQ6. Figure 6 shows the toggle bit algorithm. Figure 21 in the
“AC Characteristics” section shows the toggle bit ti ming
diagrams. Figure 22 shows the differences between
DQ2 and DQ6 in graphical form. See also the subsection on DQ2: Toggle Bit II.
DQ2: Toggle Bit II
The “Toggle Bit II” on DQ2, when used with DQ6, indicates whether a par ticular sect or is actively erasing
(that is, the Embedded Erase algo rithm is in pro gress),
or whether that sector is erase-suspended. Toggle Bit
II is valid after the rising edge of t he final WE# pulse in
the command sequence.
DQ2 toggles w hen the system reads at addresses
within those sectors that have been selected for erasure. (The system may use either OE# or CE# to control
the read cycles.) But DQ2 cannot distinguish whether
the sector is actively erasing or is erase-suspended.
DQ6, by comparison, indicates whether the device is
actively erasing, or is in Erase Suspend, b ut cannot distinguish which sectors are selected for erasure. Thus,
both status bits are required for sector and mode information. Refer to Table 6 to compare outputs for DQ2
and DQ6.
Figure 6 shows the toggle bit algorithm in flowchar t
form, and the section “DQ2: Toggle Bit II” explains the
algorithm. See also the DQ6: Toggle Bit I subsection.
Figure 21 shows the toggle bit timing diagram. Figure
22 shows the differences between DQ2 and DQ6 in
graphical form.
Reading Toggle Bits DQ6/DQ2
Refer to Figure 6 for the following discussion. Whenever
the system initially begins rea ding toggle bit status, it
must read DQ7–DQ0 at least twice in a row to determine
whether a toggle bit is toggling. Typically, the system
would note and store the value of the toggle bit after the
first read. After the second read, the system would compare the new value of the toggle bit with the first. If the
toggle bit is not toggling, the device has completed the
program or erase operation. The system can read array
data on DQ7–DQ0 on the following read cycle.
However, if after the initial two read cycles, the system
determines that the toggle bit is still toggling, the system also should note whether the value of DQ5 is high
(see the section on DQ5). If it is, the system should
then determine again whether the toggle bit is toggling,
since the toggle bit may have stopped toggling just as
DQ5 went high. If the toggle bit is no longer toggling,
the device has successfully completed the program or
erase operation. If it is still toggling, the device did not
22 Am29DL400B
PRELIMINARY
completed the operation successfully, and the system
must write the reset command to return to readin g
array data.
The remaining scenario is that the system initially determines that the toggle bit is toggling and DQ5 has not
gone high. The system may continue to monitor the
toggle bit and DQ5 through success ive read cycle s, determining the status as described in the previous paragraph. Alterna tively, it may choose to pe rform other
system tasks. In this case, the system must start at the
beginning of the algorithm when it returns to determine
the status of the operation (top of Figure 6).
Note: The system should recheck the toggle bit even if DQ5
= “1” because the toggle bit may stop toggling as DQ5
changes to “1.” See the subsections on DQ6 and DQ2 for
more information.
Figure 6. Toggle Bit Algorithm
DQ5: Exceeded Timing Limits
DQ5 indicates whether the program or erase time has
exceeded a specified internal pulse count limit. Under
these conditions DQ5 produces a “1,” indicating that
the program or erase cycle was not successfully completed.
The device ma y output a “1” on DQ5 if the s yst em tries
to program a “1” to a location that was previously programmed to “0.” Only an erase operation can change
a “0” back to a “1.” Under this condition, the device
halts the operation, and when the t iming limi t has been
exceeded, DQ5 produces a “1”.
Under both these conditions, th e system must write the
reset command to return to reading array dat a (or to the
erase-suspend-read mode if a bank was previously in
the erase-suspend-program mode).
DQ3: Sector Erase Timer
After writin g a sector erase comm and sequence, the
system may read DQ3 to determine whether or not
erasure has begun. (The sector erase timer does not
apply to the chip erase command.) If additional se ctors
are selected for erasure, the entire time-out also applies after each additional sector erase command.
When the time-out per iod is complete, DQ3 switches
from a “0” to a “1”. If the system can guar antee the time
between additional sector erase commands to be less
than 50 µs, it need not monitor DQ3. See also the Sector Erase Command Sequence section.
After the sector erase command is written, the system
should read the status of DQ7 (Data# Polling) or DQ6
(Toggl e Bit I) to ensure that the device has ac cepted
the command sequence, and then read DQ3. If DQ3 is
“1”, the Embedded Erase algorithm has begun; all further commands (except Erase Suspend) are ignored
until the erase operation is complete. If DQ3 is “0”, the
device will accept additional sector erase commands.
To ensure the command has been accepted, the system software should check the status of DQ3 prior to
and following each subsequent sector erase command.
If DQ3 is high on the second status check, the las t command might not have been accepted.
Table 6 shows the status of DQ3 relative to the other
status bits.
START
No
Yes
Yes
DQ5 = 1?
No
Yes
Toggle Bit
= Toggle?
No
Program/Erase
Operation Not
Complete, Write
Reset Command
Program/Erase
Operation Complete
Read DQ7–DQ0
Toggle Bit
= Toggle?
Read DQ7–DQ0
Twice
Read DQ7–DQ0
Am29DL400B 23
PRELIMINARY
Table 6. Write Operation Status
Notes:
1. DQ5 switches to ‘1’ when an Embedded Program or Embedded Erase operation has exceeded the maximum timing limits.
Refer to the section on DQ5 for more information.
2. DQ7 and DQ2 require a valid address when reading status information. Refer to the appropriate subsection for further details.
3. When reading write operation status bits, the system must always provide the bank address where the Embedded Algorithm
is in progress. The device outputs array data if the system addresses a non-busy bank.
Status
DQ7
(Note 2) DQ6
DQ5
(Note 1) DQ3
DQ2
(Note 2) RY/BY#
Standard
Mode
Embedded Program Algorithm DQ7# Toggle 0 N/A No toggle 0
Embedded Erase Algorithm 0 Toggle 0 1 Toggle 0
Erase
Suspend
Mode
Erase-SuspendRead
Erase
Suspended Sector
1 No toggle 0 N/A Toggle 1
Non-Erase
Suspended Sector
Data Data Data Data Data 1
Erase-Suspend-Program DQ7# Toggle 0 N/A N/A 0
24 Am29DL400B
PRELIMINARY
ABSOLUTE MAXIMUM RATINGS
Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . –65°C to +150°C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . . –65°C to +125°C
Voltage with Respect to Ground
V
CC
(Note 1) . . . . . . . . . . . . . . . . .–0.5 V to +4.0 V
A9, OE#,
and RESET# (Note 2). . . . . . . . .–0.5 V to +12.5 V
All other pins
(Note 1). . . . . . . . . . . . . . . . . –0.5 V to V
CC
+0.5 V
Output Short Circuit Current (Note 3) . . . . . . 200 mA
Notes:
1. Minimum DC voltage on input or I/O pins is –0.5 V . During
voltage transitions, input or I/O pins may undershoot V
SS
to –2.0 V for periods of up to 20 ns. Maximum DC voltage
on input or I/O pins is V
CC
+0.5 V. See Figure 7. During
voltage transitions, input or I/O pins may overshoot to V
CC
+2.0 V for periods up to 20 ns. See Figure 8.
2. Minimum DC input voltage on pins A9, OE#, and RESET#
is –0.5 V. During voltage transitions, A9, OE#, and
RESET# may undershoot V
SS
to –2.0 V for periods of up
to 20 ns. See Figure 7. Maximum DC input voltage on pin
A9 is +12.5 V which may overshoot to 14.0 V for periods
up to 20 ns.
3. No more than one output may be shorted to ground at a
time. Duration of the short circuit should not be greater
than one second.
Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a
stress rating only; functional operation of the device at these
or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of
the device to absolute maximum rating conditions for extended periods may affect device reliability.
Figure 7. Maximum Negative
Overshoot Waveform
Figure 8. Maximum Positive
Overshoot Waveform
OPERATING RANGES
Commercial (C) Devices
Ambient Temperature (T
A
) . . . . . . . . . . . 0°C to +70°C
Industrial (I) Devices
Ambient Temperature (T
A
) . . . . . . . . . –40°C to +85°C
Extended (E) Devices
Ambient Temperature (T
A
) . . . . . . . . –55°C to +125°C
VCC Supply Voltages
V
CC
for all devices . . . . . . . . . . . . . . . . .2.7 V to 3.6 V
Operating ranges define those limits between which the functionality of the device is guaranteed.
20 ns
20 ns
+0.8 V
–0.5 V
20 ns
–2.0 V
21606C-11
20 ns
20 ns
V
CC
+2.0 V
V
CC
+0.5 V
20 ns
2.0 V
21606C-12
Am29DL400B 25
PRELIMINARY
DC CHARACTERISTICS
CMOS Compatible
Notes:
1. The I
CC
current listed is typically less than 2 mA/MHz, with OE# at VIH.
2. I
CC
active while Embedded Erase or Embedded Program is in progress.
3. Automatic sleep mode enables the low power mode when addresses remain stable for t
ACC
+ 30 ns. Typical sleep mode
current is 200 nA.
4. Not 100% tested.
Parameter
Symbol Parameter Description Test Conditions Min Typ Max Unit
I
LI
Input Load Current
V
IN
= VSS to VCC,
V
CC
= VCC
max
±1.0 µA
I
LIT
A9 Input Load Current VCC = V
CC max
; A9 = 12.5 V 35 µA
I
LO
Output Leakage Current
V
OUT
= VSS to VCC,
V
CC
= V
CC max
±1.0 µA
I
CC1
VCC Active Read Current
(Note 1)
CE# = V
IL,
OE# = VIH,
Byte Mode
5 MHz 7 12
mA
1 MHz 2 4
CE# = V
IL,
OE# = VIH,
Word Mode
5 MHz 7 12
1 MHz 2 4
I
CC2
VCC Active Write Current
(Note 2)
CE# = V
IL,
OE# = VIH, WE# = V
IL
15 30 mA
I
CC3
VCC Standby Current
(CE# Controlled)
VCC = V
CC max
; OE# = VIL;
CE#, RESET# = V
CC
± 0.3 V
0.2 5 µA
I
CC4
VCC Reset Current
(RESET# Controlled)
VCC = V
CC max
;
RESET# = V
SS
± 0.3 V
0.2 5 µA
I
CC5
Automatic Sleep Mode (Note 3)
VIH = V
CC
± 0.3 V;
V
IL
= V
SS
± 0.3 V
0.2 5 µA
I
CC6
VCC Active Read-WhileProgram Current (Notes 1, 4)
CE# = V
IL,
OE# = V
IH
Byte 21 45
mA
Word 21 45
I
CC7
VCC Active Read-While-Erase
Current (Notes 1, 4)
CE# = V
IL,
OE# = V
IH
Byte 21 45
mA
Word 21 45
I
CC8
VCC Active Program-WhileErase-Suspended Current
(Note 4)
CE# = V
IL,
OE# = V
IH
17 35 mA
V
IL
Input Low Voltage –0.5 0.8 V
V
IH
Input High Voltage 0.7 x V
CC
VCC + 0.3 V
V
ID
Voltage for Autoselect and
Temporary Sector Unprotect
VCC = 3.0 V ± 10% 11.5 12.5 V
V
OL
Output Low Voltage IOL = 4.0 mA, VCC = V
CC min
0.45 V
V
OH1
Output High Voltage
I
OH
= –2.0 mA, VCC = V
CC min
0.85 V
CC
V
V
OH2
IOH = –100 µA, VCC = V
CC min
VCC–0.4
V
LKO
Low VCC Lock-Out Voltage
(Note 4)
2.3 2.5 V
26 Am29DL400B
PRELIMINARY
DC CHARACTERISTICS
Zero-Power Flash
20
15
10
5
0
0 500 1000 1500 2000 2500 3000 3500 4000
Supply Current in mA
Time in ns
Note: Addresses are switching at 1 MHz
21606C-13
Figure 9. I
CC1
Current vs. Time (Showing Active and Automatic Sleep Currents)
10
8
2
0
12345
Frequency in MHz
Supply Current in mA
Note: T = 25 °C
21606C-14
Figure 10. Typical I
CC1
vs. Frequency
2.7 V
3.6 V
4
6
Am29DL400B 27
PRELIMINARY

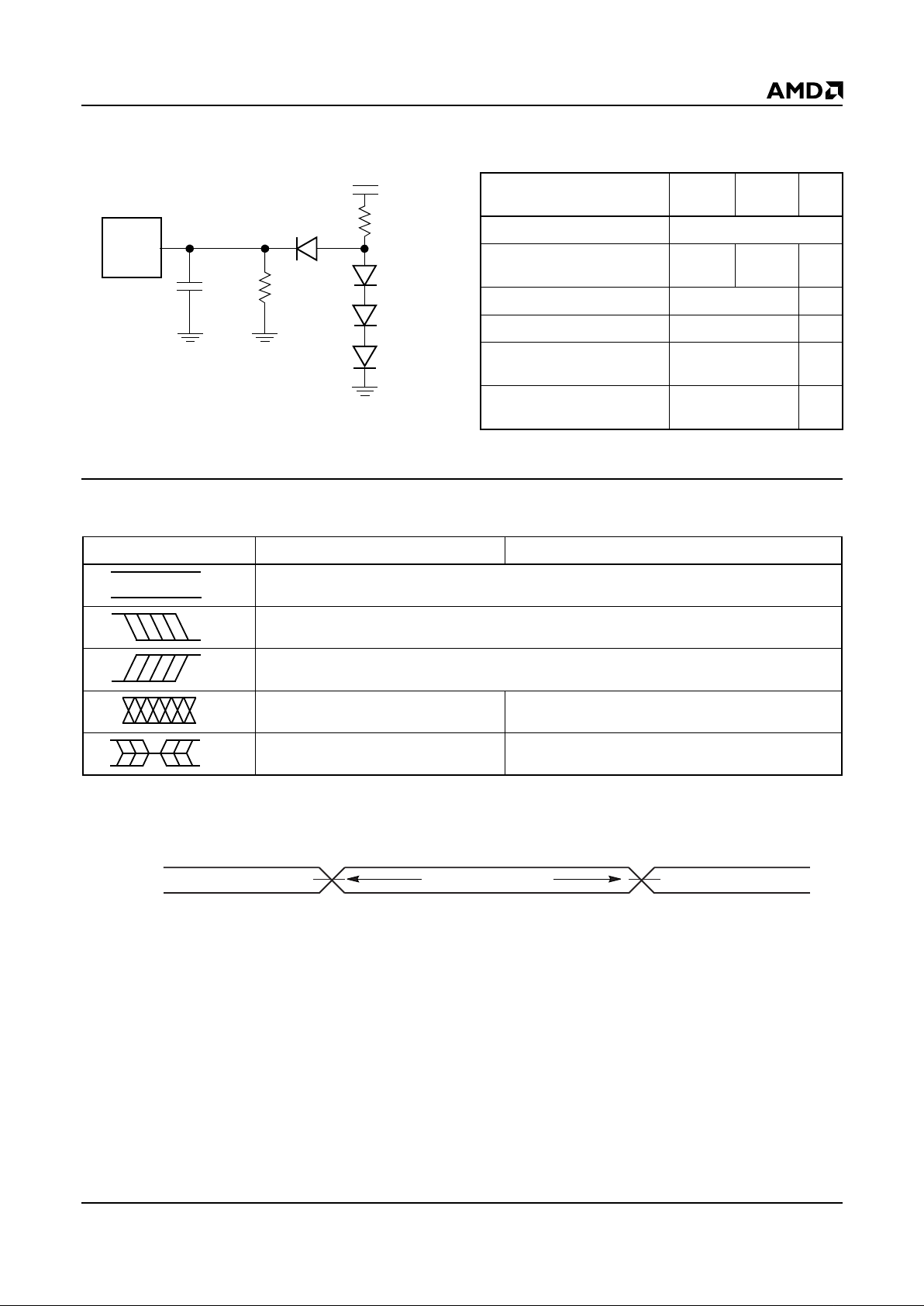

TEST CONDITIONS
Table 7. Test Specifications
KEY TO SWITCHING WAVEFORMS
2.7 kΩ
C
L
6.2 kΩ
3.3 V
Device
Under
Test
21606C-15
Figure 11. Test Setup
Note: Diodes are IN3064 or equivalent
Test Condition -70, -80
All
others Unit
Output Load 1 TTL gate
Output Load Capacitance, C
L
(including jig capacitance)
30 100 pF
Input Rise and Fall Times 5 ns
Input Pulse Levels 0.0–3.0 V
Input timing measurement
reference levels
1.5 V
Output timing measurement
reference levels
1.5 V
KS000010-PAL
WAVEFORM INPUTS OUTPUTS
Steady
Changing from H to L
Changing from L to H
Don’t Care, Any Change Permitted Changing, State Unknown
Does Not Apply Center Line is High Impedance State (High Z)
3.0 V
0.0 V
1.5 V 1.5 V
OutputMeasurement LevelInput
21606C-16
Figure 12. Input Waveforms and Measurement Levels
28 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
Read-Only Operations
Notes:
1. Not 100% tested.
2. See Figure 11 and Table 7 for test specifications.
Parameter
Description Test Setup
Speed Options
JEDEC Std. -70 -80 -90 -120 Unit
t
AVAV
t
RC
Read Cycle Time (Note 1) Min 70 80 80 120 ns
t
AVQVtACC
Address to Output Delay CE#, OE# = VILMax 70 80 80 120 ns
t
ELQV
t
CE
Chip Enable to Output Delay OE# = V
IL
Max 70 80 80 120 ns
t
GLQV
t
OE
Output Enable to Output Delay Max 30 30 35 50 ns
t
EHQZ
t
DF
Chip Enable to Output High Z (Note 1) Max 25 25 30 30 ns
t
GHQZtDF
Output Enable to Output High Z (Note 1) Max 25 25 30 30 ns
t
AXQXtOH
Output Hold Time From Addresses, CE# or
OE#, Whichever Occurs First
Min 0 ns
t
OEH
Output Enable Hold
Time (Note 1)
Read Min 0 ns
Toggle and
Data# Polling
Min 10 ns
t
OH
t
CE
Outputs
WE#
Addresses
CE#
OE#
HIGH Z
Output Valid
HIGH Z
Addresses Stable
t
RC
t
ACC
t
OEH
t
RH
t
OE
t
RH
0 V
RY/BY#
RESET#
t
DF
21606C-17
Figure 13. Read Operation Timings
Am29DL400B 29
PRELIMINARY
AC CHARACTERISTICS
Hardware Reset (RESET#)
Note: Not 100% tested.
Parameter
Description All Speed Options Un itJEDEC Std
t
Ready
RESET# Pin Low (During Embedded Algorithms)
to Read Mode (See Note)
Max 20 µs
t
Ready
RESET# Pin Low (NOT During Embedded
Algorithms) to Read Mode (See Note)
Max 500 ns
t
RP
RESET# Pulse Width Min 500 ns
t
RH
Reset High Time Before Read (See Note) Min 50 ns
t
RPD
RESET# Low to Standby Mode Min 20 µs
t
RB
RY/BY# Recovery Time Min 0 ns
RESET#
RY/BY#
RY/BY#
t
RP
t
Ready
Reset Timings NOT during Embedded Algorithms
t
Ready
CE#, OE#
t
RH
CE#, OE#
Reset Timings during Embedded Algorithms
RESET#
t
RP
t
RB
21606C-18
Figure 14. Reset Timings
30 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
Word/Byte Configuration (BYTE#)
Parameter
-70 -80 -90 -120JEDEC Std. Description Unit
t
ELFL/tELFH
CE# to BYTE# Switching Low or High Max 5 ns
t
FLQZ
BYTE# Switching Low to Output HIGH Z Max 25 25 30 30 ns
t
FHQV
BYTE# Switching High to Output Active Min 70 80 90 120 ns
DQ15
Output
Data Output
(DQ0–DQ7)
CE#
OE#
BYTE#
t
ELFL
DQ0–DQ14
Data Output
(DQ0–DQ14)
DQ15/A-1
Address
Input
t
FLQZ
BYTE#
Switching
from word
to byte
mode
DQ15
Output
Data Output
(DQ0–DQ7)
BYTE#
t
ELFH
DQ0–DQ14
Data Output
(DQ0–DQ14)
DQ15/A-1
Address
Input
t
FHQV
BYTE#
Switching
from byte
to word
mode
21606C-19
Figure 15. BYTE# Timings for Read Operations
Note: Refer to the Erase/Program Operations table for tAS and tAH specifications.
21606C-20
Figure 16. BYTE# Timings for Write Operations
CE#
WE#
BYTE#
The falling edge of the last WE# signal
t
HOLD
(tAH)
t
SET
(tAS)
Am29DL400B 31
PRELIMINARY
AC CHARACTERISTICS
Erase and Program Operations
Notes:
1. Not 100% tested.
2. See the “Erase and Programming Performance” section for more information.
Parameter
-70 -80 -90 -120JEDEC Std. Description Unit
t
AVAV
t
WC
Write Cycle Time (Note 1) Min 70 80 90 120 ns
t
AVWL
t
AS
Address Setup Time Min 0 ns
t
ASO
Address Setup Time to OE# low during toggle bit polling Min 45 45 45 50 ns
t
WLAX
t
AH
Address Hold Time Min 45 45 45 50 ns
t
AHT
Address Hold Time From CE# or OE# high
during toggle bit polling
Min 0 ns
t
DVWH
t
DS
Data Setup Time Min 35 35 45 50 ns
t
WHDX
t
DH
Data Hold Time Min 0 ns
t
OEPH
Output Enable High during toggle bit polling Min 20 20 20 25 ns
t
GHWL
t
GHWL
Read Recovery Time Before Write
(OE# High to WE# Low)
Min 0 ns
t
ELWL
t
CS
CE# Setup Time Min 0 ns
t
WHEH
t
CH
CE# Hold Time Min 0 ns
t
WLWH
t
WP
Write Pulse Width Min 35 35 35 50 ns
t
WHDL
t
WPH
Write Pulse Width High Min 30 ns
t
SR/W
Zero Latency Between Read and Write Operations Min 0 ns
t
WHWH1tWHWH1
Programming Operation (Note 2)
Byte Typ 9
µs
Word Typ 11
t
WHWH2tWHWH2
Sector Erase Operation (Note 2) Typ 0.7 sec
t
VCS
VCC Setup Time (Note 1) Min 50 µs
t
RB
Write Recovery Time from RY/BY# Min 0 ns
t
BUSY
Program/Erase Valid to RY/BY# Delay Min 90 ns
32 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
OE#
WE#
CE#
V
CC
Data
Addresses
t
DS
t
AH
t
DH
t
WP
PD
t
WHWH1
t
WC
t
AS
t
WPH
t
VCS
555h
PA PA
Read Status Data (last two cycles)
A0h
t
GHWL
t
CS
Status
D
OUT
Program Command Sequence (last two cycles)
RY/BY#
t
RB
t
BUSY
t
CH
PA
Notes:
1. PA = program address, PD = program data, D
OUT
is the true data at the program address.
2. Illustration shows device in word mode.
21606C-21
Figure 17. Program Operation Timings
OE#
CE#
Addresses
V
CC
WE#
Data
2AAh SA
t
GHWL
t
AH
t
WP
t
WC
t
AS
t
WPH
555h for chip erase
10 for Chip Erase
30h
t
DS
t
VCS
t
CS
t
DH
55h
t
CH
In
Progress
Complete
t
WHWH2
VA
VA
RY/BY#
t
RB
t
BUSY
Notes:
1. SA = sector address (for Sector Erase), VA = Valid Address for reading status data (see “Write Operation Status”).
2
. Illustration shows device in word mode.
21606C-22
Figure 18. Ch ip/Sector Erase Operation Timings
Am29DL400B 33
PRELIMINARY
AC CHARACTERISTICS
OE#
CE#
WE#
Addresses
t
OH
Data
Valid
In
Valid
In
Valid PA
Valid RA
t
WC
t
WPH
t
AH
t
WP
t
DS
t
DH
t
RC
t
CE
Valid
Out
t
OE
t
ACC
t
OEH
t
GHWL
t
DF
Valid
In
CE# Controlled Write CyclesWE# Controlled Write Cycle
Valid PA
Valid PA
t
CP
t
CPH
t
WC
t
WC
Read Cycle
t
SR/W
21606C-23
Figure 19. Back-to-Back Read/Write Cycle Timings
Note: VA = Valid address. Illustration shows first status cycle after command sequence, last status read cycle, and array data
read cycle.
21606C-24
Figure 20. Data# Polling Timings (During Embedded Algorithms)
WE#
CE#
OE#
High Z
t
OE
High Z
DQ7
DQ0–DQ6
RY/BY#
t
BUSY
Complement
True
Addresses
VA
t
OEH
t
CE
t
CH
t
OH
t
DF
VA VA
Status Data
Complement
Status Data
True
Valid Data
Valid Data
t
ACC
t
RC
34 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
OE#
CE#
WE#
Addresses
t
OEH
t
DH
t
AHT
t
ASO
t
OEPH
t
OE
Valid Data
(first read) (second read) (stops toggling)
t
CEPH
t
AHT
t
AS
DQ6/DQ2 Valid Data
Valid
Status
Valid
Status
Valid
Status
RY/BY#
Note: VA = V alid address; not required for DQ6. Illustration shows first two status cycle after command sequence, last status read
cycle, and array data read cycle
21606C-25
Figure 21. Toggle Bit Timings (During Embedded Algorithms)
Note: DQ2 toggles only when read at an address within an erase-suspended sector. The system may use OE# or CE# to toggle
DQ2 and DQ6.
21606C-26
Figure 22. DQ2 vs. DQ6
Enter
Erase
Erase
Erase
Enter Erase
Suspend Program
Erase Suspend
Read
Erase Suspend
Read
Erase
WE#
DQ6
DQ2
Erase
Complete
Erase
Suspend
Suspend
Program
Resume
Embedded
Erasing
Am29DL400B 35
PRELIMINARY
AC CHARACTERISTICS
Temporary Sector Unprotect
Note: Not 100% tested.
Parameter
All Speed OptionsJEDEC Std. Description Unit
t
VIDR
VID Rise and Fall Time (See Note) Min 500 ns
t
RSP
RESET# Setup Time for Temporary Sector
Unprotect
Min 4 µs
t
RRB
RESET# Hold Time from RY/BY# High for
Temporary Sector Unprotect
Min 4 µs
RESET#
t
VIDR
12 V
0 V or 3 V
CE#
WE#
RY/BY#
t
VIDR
t
RSP
Program or Erase Command Sequence
0 V or 3 V
t
RRB
21606C-27
Figure 23. Temporary Sector Unprotect Timing Diagram
36 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
Sector Protect: 100 µs
Sector Unprotect: 10 ms
1 µs
RESET#
SA, A6,
A1, A0
Data
CE#
WE#
OE#
60h 60h 40h
Valid* Valid* Valid*
Status
Sector Protect/Unprotect Verify
V
ID
V
IH
* For sector protect, A6 = 0, A1 = 1, A0 = 0. For sector unprotect, A6 = 1, A1 = 1, A0 = 0.
21606C-28
Figure 24. Sector Protect/Unprotect Timing Diagram
Am29DL400B 37
PRELIMINARY
AC CHARACTERISTICS
Alternate CE# Controlled Erase/Program Operations
Notes:
1. Not 100% tested.
2. See the “Erase and Programming Performance” section for more information.
Parameter
-70 -80 -90 -120JEDEC Std. Description Unit
t
AVAV
t
WC
Write Cycle Time (Note 1) Min 70 80 90 120 ns
t
AVWL
t
AS
Address Setup Time Min 0 ns
t
ELAX
t
AH
Address Hold Time Min 45 45 45 50 ns
t
DVEH
t
DS
Data Setup Time Min 35 35 45 50 ns
t
EHDX
t
DH
Data Hold Time Min 0 ns
t
GHEL
t
GHEL
Read Recovery Time Before Write
(OE# High to WE# Low)
Min 0 ns
t
WLEL
t
WS
WE# Setup Time Min 0 ns
t
EHWH
t
WH
WE# Hold Time Min 0 ns
t
ELEH
t
CP
CE# Pulse Width Min 35 35 35 50 ns
t
EHEL
t
CPH
CE# Pulse Width High Min 30 ns
t
WHWH1tWHWH1
Programming Operation (Note 2)
Byte Typ 9
µs
Word Typ 11
t
WHWH2tWHWH2
Sector Erase Operation (Note 2) Typ 0.7 sec
38 Am29DL400B
PRELIMINARY
AC CHARACTERISTICS
t
GHEL
t
WS
OE#
CE#
WE#
RESET#
t
DS
Data
t
AH
Addresses
t
DH
t
CP
DQ7# D
OUT
t
WC
t
AS
t
CPH
PA
Data# Polling
A0 for program
55 for erase
t
RH
t
WHWH1 or 2
RY/BY#
t
WH
PD for program
30 for sector erase
10 for chip erase
555 for program
2AA for erase
PA for program
SA for sector erase
555 for chip erase
t
BUSY
Notes:
1. Figure indicates last two bus cycles of a program or erase operation.
2. PA = program address, SA = sector address, PD = program data, DQ7# = complement of the data written to the device,
D
OUT
= data written to the device.
3. Waveforms are for the word mode.
21606C-29
Figure 25. Alternate CE# Controlled Erase/Program Operation Timings
Am29DL400B 39
PRELIMINARY
ERASE AND PROGRAMMING PERFORMANCE
Notes:
1. Typical program and erase times assume the following conditions: 25
°
C, 3.0 V VCC, 1,000,000 cycles. Additionally,
programming typicals assume checkerboard pattern.
2. Under worst case conditions of 90°C, V
CC
= 2.7 V, 1,000,000 cycles.
3. The typical chip programming time is considerably less than the maximum chip programming time listed, since most bytes
program faster than the maximum program times listed.
4. In the pre-programming step of the Embedded Erase algorithm, all bytes are programmed to 00h before erasure.
5. System-level overhead is the time required to execute the two- or four-bus-cycle sequence for the program command. See
Table 5 for further information on command definitions.
6. The device has a guaranteed minimum erase and program cycle endurance of 1,000,000 cycles.
LATCHUP CHARACTERISTICS
Includes all pins except VCC. Test conditions: VCC = 3.0 V, one pin at a time.
TSOP AND SO PIN CAPACITANCE
Notes:
1. Sampled, not 100% tested.
2. Test conditions T
A
= 25°C, f = 1.0 MHz.
DATA RETENTION
Parameter Typ (Note 1) Max (Note 2) Unit Comments
Sector Erase Time 0.7 15 sec
Excludes 00h programming
prior to erasure (Note 4)
Chip Erase Time 10 sec
Byte Program Time 9 300 µs
Excludes system level
overhead (Note 5)
Word Program Time 11 360 µs
Chip Program Time
(Note 3)
Byte Mode 4.5 13.5
sec
Word Mode 2.9 8.7
Min Max
Input voltage with respect to V
SS
on all pins except I/O pins
(including A9, OE#, and RESE T#)
–1.0 V 12.5 V
Input voltage with respect to V
SS
on all I/O pins –1.0 V VCC + 1.0 V
V
CC
Current –100 mA +100 mA
Parameter
Symbol Parameter Description Test Setup Typ Max Unit
C
IN
Input Capacitance VIN = 0 6 7.5 pF
C
OUT
Output Capacitance V
OUT
= 0 8.5 12 pF
C
IN2
Control Pin Capacitance VIN = 0 7.5 9 pF
Parameter Description Test Conditions Min Unit
Minimum Pattern Data Retention Time
150°C 10 Years
125°C 20 Years
40 Am29DL400B
PRELIMINARY
PHYSICAL DIMENSIONS*
TS 048—48-Pin Standard TSOP (measured in millimeters)
* For reference only. BSC is an ANSI standard for Basic Space Centering
TSR048—48-Pin Reverse TSOP (measured in millimeters)
* For reference only. BSC is an ANSI standard for Basic Space Centering.
48
25
1
24
18.30
18.50
19.80
20.20
11.90
12.10
0.05
0.15
0.50 BSC
0.95
1.05
16-038-TS48-2
TS 048
DT95
8-8-96 lv
Pin 1 I.D.
1.20
MAX
0.50
0.70
0.10
0.21
0.25MM (0.0098") BSC
0°
5°
0.08
0.20
48
25
1
24
18.30
18.50
19.80
20.20
11.90
12.10
SEATING PLANE
0.05
0.15
0.50 BSC
0.95
1.05
16-038-TS48
TSR048
DT95
8-8-96 lv
Pin 1 I.D.
1.20
MAX
0.50
0.70
0.10
0.21
0.25MM (0.0098") BSC
0°
5°
0.08
0.20
Am29DL400B 41
PRELIMINARY
PHYSICAL DIMENSIONS (continued)
SO 044—44-Pin Small Outline (measured in millimeters)
44
23
1
22
13.10
13.50
15.70
16.30
1.27 NOM.
28.00
28.40
2.17
2.45
0.35
0.50
0.10
0.35
2.80
MAX.
SEATING
PLANE
16-038-SO44-2
SO 044
DF83
8-8-96 lv
0.10
0.21
0.60
1.00
0°
8°
END VIEW
SIDE VIEW
TOP VIEW
42 Am29DL400B
PRELIMINARY
REVISION SUMMARY
Revision B
Expanded data sheet from Advance Inf ormation to Preliminary version.
Revision C
Global
Changed -70R speed option to -70.
Figure 1, In-system Sector Protect/Unprotect
Algorithm
Added “PSLSCNT=1” to sector protect algorithm.
Reset Command
Deleted last paragraph; applies only to hardw are reset.
DQ6: Toggle Bit I
First and second para., clarified that the toggle bit may
be read “at any address within the programming or
erasing bank,” not at “any address.” Fourth para., clarified “device” to “bank”
Operating Ranges
Deleted reference to regulated voltage range
DC Characteristics
Added Note 4 reference to I
CC6
and I
CC7
.
Erase and Program Operations
Corrected note references for t
WHWH1
, t
WHWH2
, and
t
VCS
Temporary Sector Unprotect
Added note reference to t
VIDR
.
Figure 24, Sector Protect/Unprotect Timing
Diagram
Updated figure to correct addr ess w avef orm—vali d address not required in first cycle.
Alternate CE# Controlled Erase/Program
Operations
Corrected note references for t
WHWH1
, t
WHWH2
Erase and Programming Performance
In Note 2, changed worst case endurance to 1 million
cycles.
Trademarks
Copyright © 1998 Advanced Micro Devices, Inc. All rights reserved.
AMD, the AMD logo, and combinations thereof are registered trademarks of Advanced Micro Devices, Inc.
ExpressFlash is a trademark of Advanced Micro Devices, Inc.
Product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
Loading...
