Ambient WS-1171A User Manual

Ambient Weather WS-1171A Advanced Weather Station
User Manual
Table of Contents
1 Introduction ..................................................................................................................................... 2
2 Getting Started ................................................................................................................................ 2
2.1 Parts List ....................................................................................................................................... 2
2.2 Recommend Tools ......................................................................................................................... 2
2.3 Thermo-Hygrometer Sensor Set Up .............................................................................................. 2
2.4 Display Console Set Up ................................................................................................................ 3
3 Remote Sensor Installation ............................................................................................................. 5
3.1 Sensor Placement ................................................................................................................... 5
3.2 Wireless Reception Considerations ........................................................................................ 5
4 Console Operation........................................................................................................................... 6
4.1 Quick Display Mode ..................................................................................................................... 6
4.2 Set (Program) Mode ...................................................................................................................... 6
4.3 Alarm Mode ......................................................................................................................... 10
4.4 Min/Max Mode ........................................................................................................................... 12
4.5 Other Console Features ........................................................................................................ 12
5 Glossary of Terms ......................................................................................................................... 14
6 Specifications ................................................................................................................................ 15
6.1 Wireless Specifications ............................................................................................................... 15
6.2 Measurement Specifications ....................................................................................................... 15
6.3 Power Consumption .................................................................................................................... 15
7 Troubleshooting Guide .................................................................................................................. 15
8 Accessories ................................................................................................................................... 17
9 Product Revisions ......................................................................................................................... 17
10 Liability Disclaimer .................................................................................................................. 17
11 FCC Statement .......................................................................................................................... 18
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 1
QTY
Item
1
Display Console Frame Dimensions (LxWxH): 7.25 x 4 x 1.25 in LCD Dimensions (LxW): 4.25 x 2.50”
1
Thermo-hygrometer transmitter (WH2B) with mounting bracket Dimensions (LxWxH): 3.5” x 2.5” x 0.9”
12 Warranty Information ............................................................................................................... 18
13 Appendix .................................................................................................................................. 19
13.1 Quick Set Mode .................................................................................................................... 19
13.2 Set Mode ................................................................................................................................... 20
1 Introduction
Thank you for your purchase of the Ambient Weather WS-1171A Advanced Weather Station with Temperature, Humidity, Barometer and Advanced Forecasting. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit:
http://ambientweather.wikispaces.com/ws1170
2 Getting Started
Note: The power up sequence must be performed in the order shown in this section (remote
transmitter first, Display Console second).
The WS-1171A weather station consists of a display console (receiver), and a thermo-hygrometer (remote transmitter).
2.1 Parts List
2.2 Recommend Tools
Philips precision screwdriver Drill for mounting bracket
2.3 Thermo-Hygrometer Sensor Set Up
Note: To avoid permanent damage, please take note of the battery polarity before inserting the
batteries.
Remove the battery door on the back of the sensor with a Philips screwdriver (there is only one screw, at the bottom of the unit). Insert two AAA batteries as shown in Figure 1 (we recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for most climates).
Replace the battery door and set screw. Note that the temperature and humidity will be displayed on the LCD display. Looking at the back of the unit from left to right, the polarity is (-) (+) for the top battery and (+) (-) for the bottom battery.
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 2
Figure 1
2.4 Display Console Set Up
Note: To avoid permanent damage, please take note of the battery polarity before inserting the
batteries.
Place the remote thermo-hygrometer about 5 to 10’ away from the display console (if the sensor is too close, it may not be received by the display console).
Remove the battery door on the back of the display. Insert three AA (alkaline or lithium, avoid rechargeable) batteries in the back of the display console. Looking at the back of the unit (left to right), the polarity is (+) (-) for the top battery, (-) (+) for the middle battery and (+) (-) for the bottom battery.
The display will beep once and all of the LCD segments will light up for a few seconds to verify all segments are operating properly.
Replace the battery door, and fold out the desk stand and place the console in the upright position.
The console will instantly display indoor temperature, humidity, barometer, tendency, date and time. The remote search icon will turn on in the OUT section of the display . The outdoor temperature
and humidity will update on the display within a few minutes. Do not touch any buttons until the remote sensor reports in, otherwise the remote sensor search
mode will be terminated and the search icon will turn off. When the remote sensor data has been received, the console will automatically switch to the normal mode, and all further settings can be performed.
If the remote does not update, please reference the troubleshooting guide in Section 7.
2.4.1 Radio Controlled Clock (RCC)
The RCC is received by the main console. After the remote sensor is powered up, the sensor will transmit weather data for 30 seconds, and then the sensor will begin radio controlled clock (RCC)
reception and the RCC search icon will turn on. During the RCC time reception period (maximum 10 minutes), no weather data will be transmitted to avoid interference.
If the signal reception is not successful within 1 minute, the signal search will be cancelled, the outdoor temperature and humidity will update as normal, the RCC icon will turn off, and the RCC
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 3
1. DST (daylight savings time)
2. WWVB Radio Controlled Time Signal
3. Time
4. Radio Controlled Time icon
5. Alarm ON indicator
6. Day of week/ time zone
7. Date
8. Indoor humidity display
9. Indoor temperature and humidity low alarm and high alarm
10. Indoor temperature display
11. Temperature display units
16. Outdoor humidity display
17. Outdoor temperature and humidity low alarm and high alarm
18. Temperature display units
19. Outdoor temperature display
20. General outdoor alarm icon

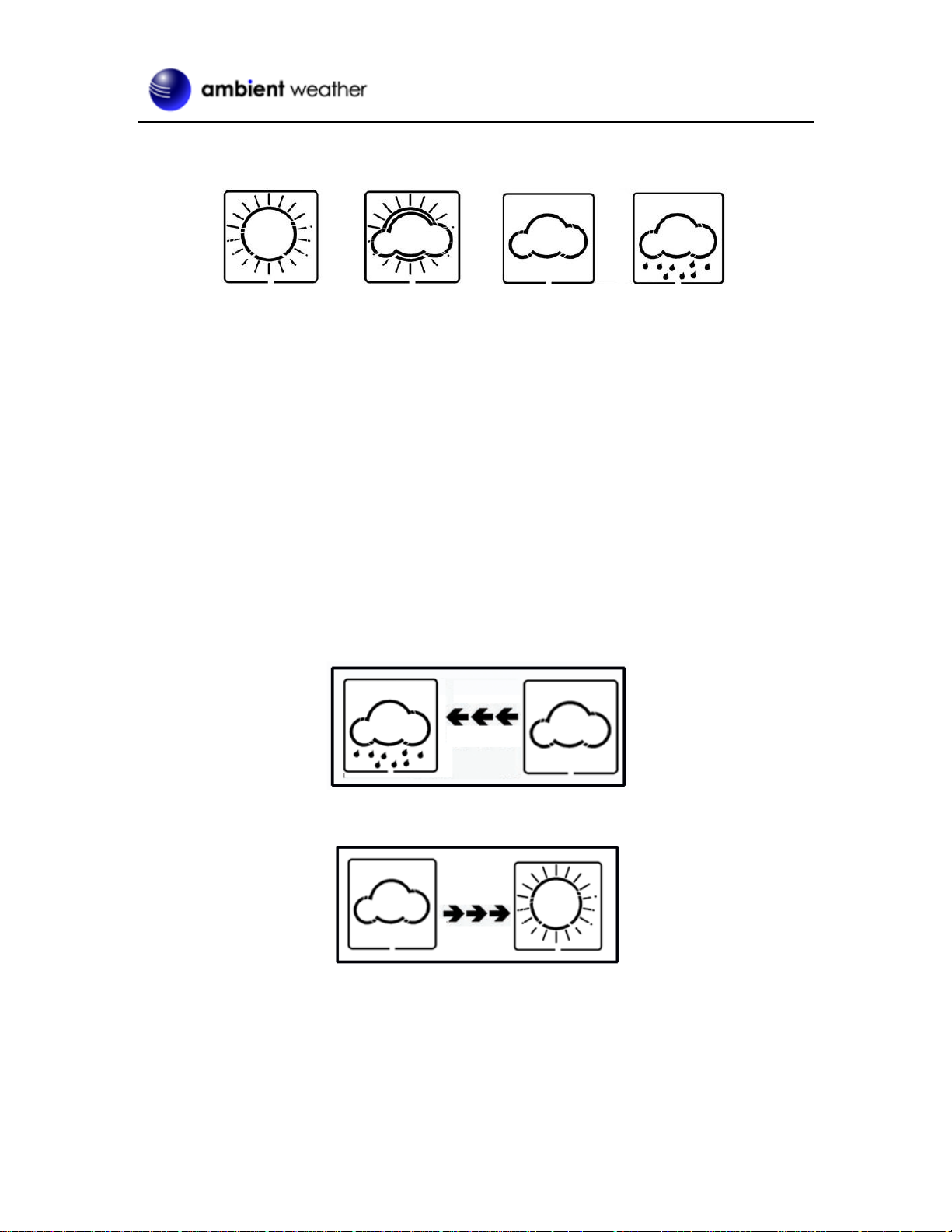

21. Weather forecast icon
22. Weather tendency indicator
23. Pressure with 24 hour history graph
24. Pressure high alarm
25. Pressure low alarm
26. Absolute or relative air pressure selection
search will automatically resume every two hours until the signal is successfully captured. The regular RF link will resume once RCC reception routine is finished. In some locations, RCC reception may take a couple of days to receive the signal. The temperature and humidity data will continue to transmit during this period.
Once the radio controlled time is received the WWVB icon will be present above the time (reference Figure 2).
Note: The RCC search icon is normally off and will momentarily flash when updated. The
signal is passed from the outdoor sensor to the console, and will not update if the outdoor sensor is not updating properly.
2.4.2 Display Console Layout
Note: The following illustration shows the full segments of the LCD for description purposes
only and will not appear like this during normal operation.
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 4
Figure 2
12. Indoor temperature and humidity alarm on indicator
13. Remote sensor transmit signal indicator
14. MIN/MAX information
15. Dew point temperature display
27. Barometer air pressure
28. Pressure display unit (inHg or hPa)
29. Pressure alarm ON indicator NOTE: The snooze key is on the top of the display console
2.4.3 Sensor Operation Verification
Verify the indoor and outdoor humidity match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 10% (the accuracy is ± 5%). Allow about 30 minutes for both sensors to stabilize.
Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 4°F (the accuracy is ± 2°F). Allow about 30 minutes for both sensors to stabilize.
3 Remote Sensor Installation
3.1 Sensor Placement
It is recommended you mount the remote sensor on a north facing wall, in a shaded area, at a height at or above the receiver. Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is weatherproof, it is best to mount in a well protected area, such as an eve.
Use 3 screws (included) to affix the mounting bracket to the wall with a precision screwdriver. Connect the remote sensor to the wall bracket. It is recommended to drill pilot holes first.
Figure 2
Note: Make sure the sensor is mounted vertically and not lying down on a flat surface. This will
insure optimum reception.
3.2 Wireless Reception Considerations
Wireless signals are impacted by distance, interference (other weather stations, wireless phones, wireless routers, TVs and computer monitors), and transmission barriers, such as walls. In general, wireless signals will not penetrate solid metal and earth (down a hill, for example).
The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 5
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
decreases the transmission range by the factor shown below.
4 Console Operation
Note: The console has four keys for easy operation: SET key, ALARM key, MIN/MAX key and
+ key. There are four program modes: Quick Display Mode, Set Mode, Alarm Mode and Min/Max
Mode. Any program mode can be exited at any time by either pressing the SNOOZE/LIGHT key (on the top
of the display console), or waiting for the 10-second time-out to take effect.
4.1 Quick Display Mode
A quick reference guide for the Quick Set Mode is available in Section 13.1.
While in Normal Mode, press the SET key to enter the Quick Display Mode as follows (once for outdoor temperature and dew point and twice for absolute pressure and relative pressure):
1. Display Outdoor Temperature and Dew Point. Press the MIN/MAX or + key to toggle
between outdoor temperature and dew point.
2. Absolute Pressure and Relative Pressure. Press the MIN/MAX or + key to toggle between
absolute pressure and relative pressure.
4.2 Set (Program) Mode
A quick reference guide for the Set Mode is available in Section 13.2. While in Normal Mode, press and hold the SET key for at least three seconds to enter the Set Mode.
The first setting will begin flashing. You can press the SET key again to skip any step, as defined below.
Note: In the Set mode, press the + key or MIN/MAX key to change or scroll the value. Hold
the + key or MIN/MAX key for 3 seconds to increase/decrease rapidly.
Note: Press the SNOOZE key (or wait 30 seconds for the programming mode to timeout), and
the Set Mode will return to Normal Mode.
1. Daylight Savings Time (DST). The DST (ON or OFF) setting will begin flashing. Press the
+ key to toggle between DST ON and DST OFF.
2. Time Zone Settings. Press the SET key again to adjust the Time Zone (TZ) setting.
Version 1.10 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 6
