Page 1

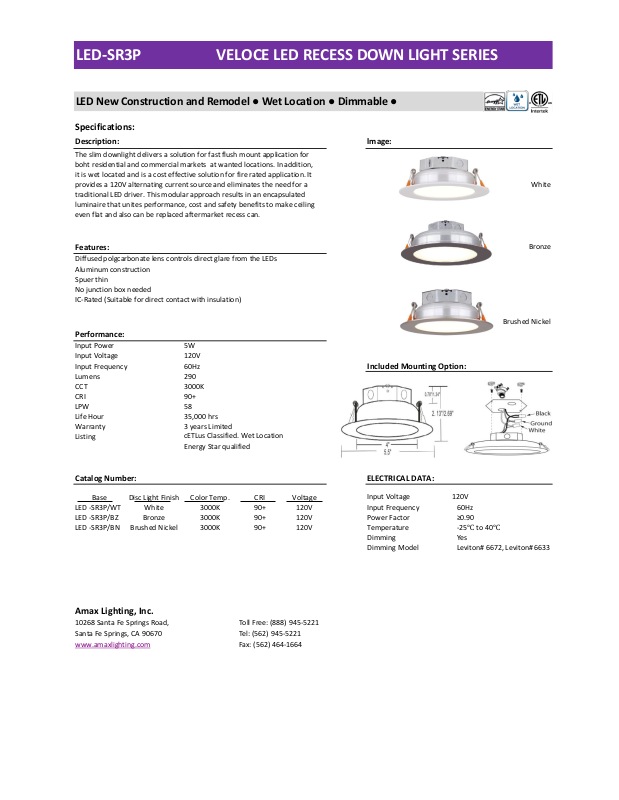

LED-SR3P VELOCE LED RECESS DOWN LIGHT SERIES
Specifications:
Description: lmage:
The slim downlight delivers a solution for fast flush mount application for
boht residential and commercial markets at wanted locations. In addition,
it is wet located and is a cost effective solution for fire rated application. It
provides a 120V alternating current source and eliminates the need for a
White
traditional LED driver. This modular approach results in an encapsulated
luminaire that unites performance, cost and safety benefits to make ceiling
even flat and also can be replaced aftermarket recess can.
Features:
Bronze
Diffused polgcarbonate lens controls direct glare from the LEDs
Aluminum construction
Spuer thin
No junction box needed
IC-Rated (Suitable for direct contact with insulation)
Brushed Nickel
Performance:
Input Power 5W
Input Voltage 120V
Input Frequency 60Hz
Included Mounting Option:
Lumens 290
CCT 3000K
CRI 90+
LPW 58
Life Hour 35,000 hrs
Warranty 3 years Limited
Listing
Energy Star qualified
Catalog Number: ELECTRICAL DATA:
Base Disc Light Finish Color Temp. CRI Voltage
LED -SR3P/WT White 3000K 90+ 120V Input Frequency 60Hz
LED -SR3P/BZ Bronze 3000K 90+ 120V Power Factor ≥0.90
LED -SR3P/BN Brushed Nickel 3000K 90+ 120V Temperature -25℃ to 40℃
Dimming Yes
Dimming Model Leviton# 6672, Leviton# 6633
Amax Lighting, Inc.
10268 Santa Fe Springs Road, Toll Free: (888) 945-5221
Santa Fe Springs, CA 90670 Tel: (562) 945-5221
www.amaxlighting.com Fax: (562) 464-1664
LED New Construction and Remodel ● Wet Location ● Dimmable ●
cETLus Classified. Wet Location
Input Voltage 120V
