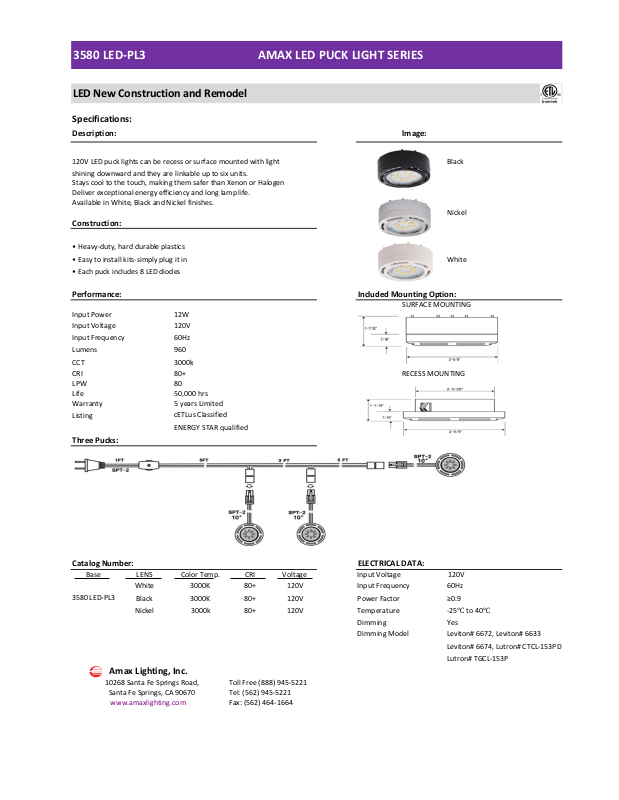

3580 LED-PL3 AMAX LED PUCK LIGHT SERIES
Specifications:
Description: lmage:
120V LED puck lights can be recess or surface mounted with light Black
shining downward and they are linkable up to six units.
Stays cool to the touch, making them safer than Xenon or Halogen
Deliver exceptional energy efficiency and long lamp life.
Available in White, Black and Nickel finishes.
Nickel
Construction:
• Heavy-duty, hard durable plastics
• Easy to install kits-simply plug it in White
• Each puck includes 8 LED diodes
Performance: Included Mounting Option:
SURFACE MOUNTING
Input Power 12W
Input Voltage 120V
Input Frequency 60Hz
Lumens 960
CCT 3000k
CRI 80+ RECESS MOUNTING
LPW 80
Life 50,000 hrs
Warranty 5 years Limited
Listing
ENERGY STAR qualified
Three Pucks:
Catalog Number: ELECTRICAL DATA:
Base LENS Color Temp. CRI Voltage
White 3000K 80+ 120V Input Frequency 60Hz
Black 3000K 80+ 120V Power Factor ≥0.9
Nickel 3000k 80+ 120V Temperature -25℃ to 40℃
Dimming Yes
Dimming Model Leviton# 6672, Leviton# 6633
Leviton# 6674, Lutron# CTCL-153PD
Lutron# TGCL-153P
Amax Lighting, Inc.
10268 Santa Fe Springs Road, Toll Free (888) 945-5221
Santa Fe Springs, CA 90670 Tel: (562) 945-5221
www.amaxlighting.com Fax: (562) 464-1664
LED New Construction and Remodel
cETLus Classified
Input Voltage 120V
3580 LED-PL3
