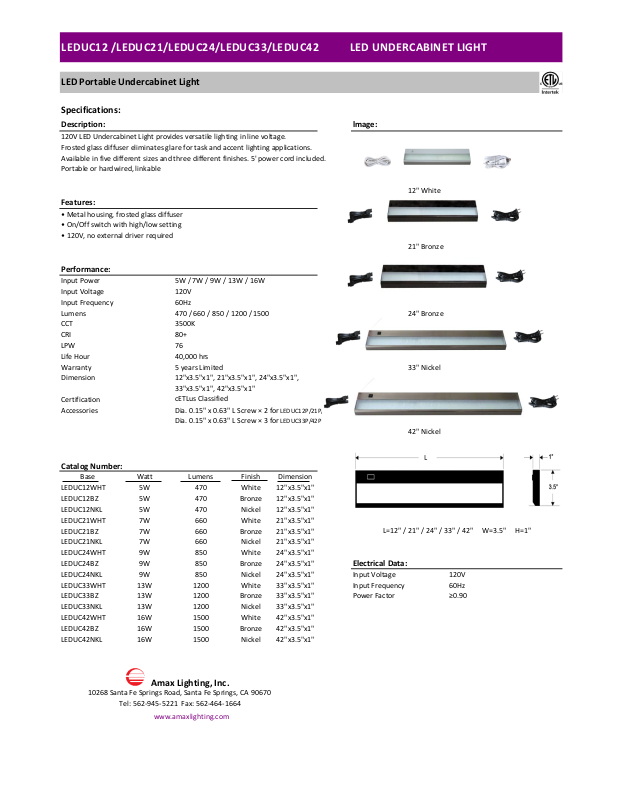

LEDUC12 /LEDUC21/LEDUC24/LEDUC33/LEDUC42 LED UNDERCABINET LIGHT
Specifications:
Description: lmage:
120V LED Undercabinet Light provides versatile lighting in line voltage.
Frosted glass diffuser eliminates glare for task and accent lighting applications.
Available in five different sizes and three different finishes. 5' power cord included.
Portable or hardwired, linkable
Features:
• Metal housing, frosted glass diffuser
• On/Off switch with high/low setting
• 120V, no external driver required
21" Bronze
Performance:
Input Power 5W / 7W / 9W / 13W / 16W
Input Voltage 120V
Input Frequency 60Hz
Lumens 470 / 660 / 850 / 1200 / 1500 24" Bronze
CCT 3500K
CRI 80+
LPW 76
Life Hour 40,000 hrs
Warranty 5 years Limited 33" Nickel
Dimension 12"x3.5"x1", 21"x3.5"x1", 24"x3.5"x1",
33"x3.5"x1", 42"x3.5"x1"
Certification
Accessories
Dia. 0.15" x 0.63" L Screw × 2 for LEDUC12P/21P/24P
Dia. 0.15" x 0.63" L Screw × 3 for LEDUC33P/42P
42" Nickel
Catalog Number:
Base Watt Lumens Finish Dimension
LEDUC12WHT
5W 470 White 12"x3.5"x1"
LEDUC12BZ
5W 470 Bronze 12"x3.5"x1"
LEDUC12NKL
5W 470 Nickel 12"x3.5"x1"
LEDUC21WHT
7W 660 White 21"x3.5"x1"
LEDUC21BZ
7W 660 Bronze 21"x3.5"x1"
LEDUC21NKL
7W 660 Nickel 21"x3.5"x1"
LEDUC24WHT
9W 850 White 24"x3.5"x1"
LEDUC24BZ
9W 850 Bronze 24"x3.5"x1"
Electrical Data:
LEDUC24NKL
9W 850 Nickel 24"x3.5"x1" Input Voltage 120V
LEDUC33WHT
13W 1200 White 33"x3.5"x1" Input Frequency 60Hz
LEDUC33BZ
13W 1200 Bronze 33"x3.5"x1" Power Factor ≥0.90
LEDUC33NKL
13W 1200 Nickel 33"x3.5"x1"
LEDUC42WHT
16W 1500 White 42"x3.5"x1"
LEDUC42BZ
16W 1500 Bronze 42"x3.5"x1"
LEDUC42NKL
16W 1500 Nickel 42"x3.5"x1"
Amax Lighting, Inc.
www.amaxlighting.com
LED Portable Undercabinet Light
12" White
cETLus Classified
L=12" / 21" / 24" / 33" / 42" W=3.5" H=1"
10268 Santa Fe Springs Road, Santa Fe Springs, CA 90670
Tel: 562-945-5221 Fax: 562-464-1664
