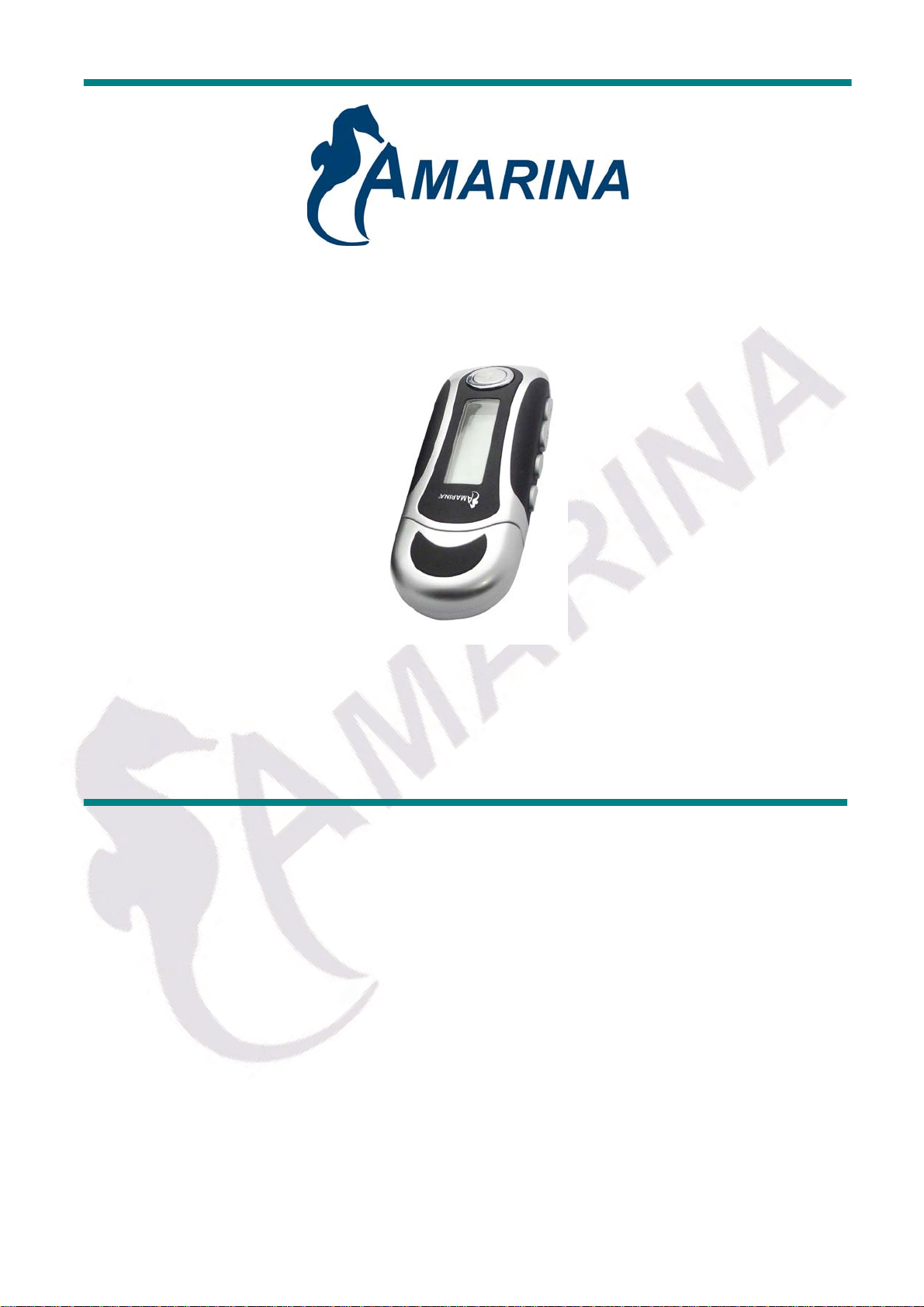

Amarina MOBILITY CLASSIC MP3 User Manual

LECTEUR MOBILITY CLASSIC MP3

www.amarina.fr USER MANUAL

Security Advice

1 Do not use any liquid or aerosol products. Clean with a damp cloth.
2 Never use the device near water.
3 Ensure that no furniture or any other object is touching the cord.
4 All repairs must be carried out by qualified technicians.
5 Follow the installation instructions provided by the manufacturer.

Warranty conditions

x AMARINA products are sold with a 12-month factory guarantee dating from the time of purchase.
x If the product is faulty, return it in its entirety, plus proof of purchase, to your dealer. Specify the nature of the

fault.

x If parts, such as manual, software or any other part, is missing, please contact your dealer or email our

technical service department ([email protected]).

x The warranty will be void if this product is altered, damaged, used incorrectly, modified, neglected, repaired

by a third party agent or used for any purpose other than that for which it was designed.

The following are not covered under warranty

x Damage caused by natural disasters and accidents such as fire, flood, earthquakes, war, vandalism or theft.
x Incompatibility with other software or computer material not mentioned in the minimum system requirements.
x Accessories such as batteries and fuses, headset
x The manufacturer cannot be held responsible for any accidental or consequential damages, including the

loss of income or any other commercial loss that may be a result of using this product.

TABLE OF CONTENTS

FEATURES SUMMARY ................................................................................. 4

INTRODUCTION ............................................................................................. 5

x Buttons and controls definition .......................................................... 5

x Display screen ................................................................................. 6

x Battery indicator ........................................................................... 6

MAIN FUNCTIONS ....................................................................................... 6

x Enter the menu ................................................................................ 6

x Display preview ................................................................................ 6

x Volume adjustment .......................................................................... 7

x Power ON/OFF ................................................................................ 7

x Play/Pause ...................................................................................... 8

x Record/Pause ................................................................................. 8

x Music playback…………................................................................ 8

x Display song name ……………….................................................. 8

x Voice recording ................................................................................ 9

R Recording……………………………............................................. 9

R Select record type………………................................................ 10

R Playback Recorded file………………......................................... 11

x .ACT file convert to .WAV……………….......................................... 11

SYSTEM SETTINGS …………………………………..................................... 14

x Entry on system settings …………….............................................. 14

x System settings list ……………….................................................... 14

x System settings explanation ............................................................ 15

x Use MP3 player as a USB Disk …................................................ 16

x Update MP3 player firmware …....................................................... 17

OTHER SETTINGS …………………………………......................................... 20

x Select different directory ……………................................................... 20

x Delete file .......................................................................................... 20

x Repeat Mode (Playback submenu) ................................................. 22

x Play speed ………………................................................................... 22

x Repeat Mode ..................................................................................... 23

R A-B Repeat ……………….............................................................. 23

R Compare function ………………………........................................ 24

R Repeat time …………………........................................................ 25

R Repeat interval …………………................................................... 25

x Disk encryption function ………………………....................................... 25

TROUBLESHOOTING …………………………................................................ 28

SPECIFICATIONS …………………………………………….............................. 29

This product represents a new generation of MP3 players supporting MP1, MP2, MP3, WMA,
WAV.

FEATURES SUMMARY

Ɣ Compact size.
Ɣ Supports virtually all music file formats such as: MP1,MP2,MP3,WMA,
Ɣ Supports firmware update.
Ɣ Supports FM radio. Using Auto-search or manual search, the player can save up to 40

different radio stations. The frequency varies from 87Khz to 108Khz.
Ɣ No need to have any driver for Windows 2000 or above. The MP3 player can be used as a
removable USB disk
Ɣ Disk encrypt and Disk partition. Using the enclosed software tools it is possible to encrypt
and partition the disk space as you like.
Ɣ Record/Repeat. With built-in voice recorder the recorded files can be saved in WAV or ACT
file formats. It is possible to mark a recorded segment for subsequent compare or repeat;
useful feature for the language self-study.

Ɣ Equalizer settings include Natural, Rock, Pop, Classic, Soft, Jazz, DBB
Ɣ 7-color backlight display.
Ɣ Music repeat modes include Normal, Folder, Repeat one, Repeat folder, Repeat all, Random,

Introduction.
ƔTiming off. Automatic off time and sleep time can be set.

INTRODUCTION

Congratulations on purchasing of this MP3 player! Before starting to use it please, read this
manual carefully. Due to the constant production improvement, the MP3 Player you have
purchased might be slightly different from the one described in this manual.

x Buttons and controls definition

- Express Forward; - Express Backward; - Play/Pause

1� “Play/Pause”: Power ON/PLAY/STOP/OFF.
2� “Mode”: General confirmation button.
3� “VOL+”: Increase volume. Speed up.
4� “VOL–”: Decrease volume. Speed down.
5� “Forward”: Next one. Fast Forward. Next
6� “Backward”: Previous one. Fast Backward. Last
7� “USB”: USB plug.
8� “Earphone jack”: Standard earphone connector.

Buttons usage definition

The buttons can be used in 3 different ways:
Press: Press the button then release it immediately.
Long time press: Press and hold the button for about 2 seconds, then release it.
Press and hold: Press and keep holding the button.

x Display screen

x Battery indicator

Displays the battery current charging status.

When the battery is fully charged it will be displayed as on the picture (black square).
When the battery is low the square will became empty.

MAIN FUNCTIONS

x Enter the Menu

Press “Mode” button to enter the menu. There is the main menu and lots of submenus.

x Display preview

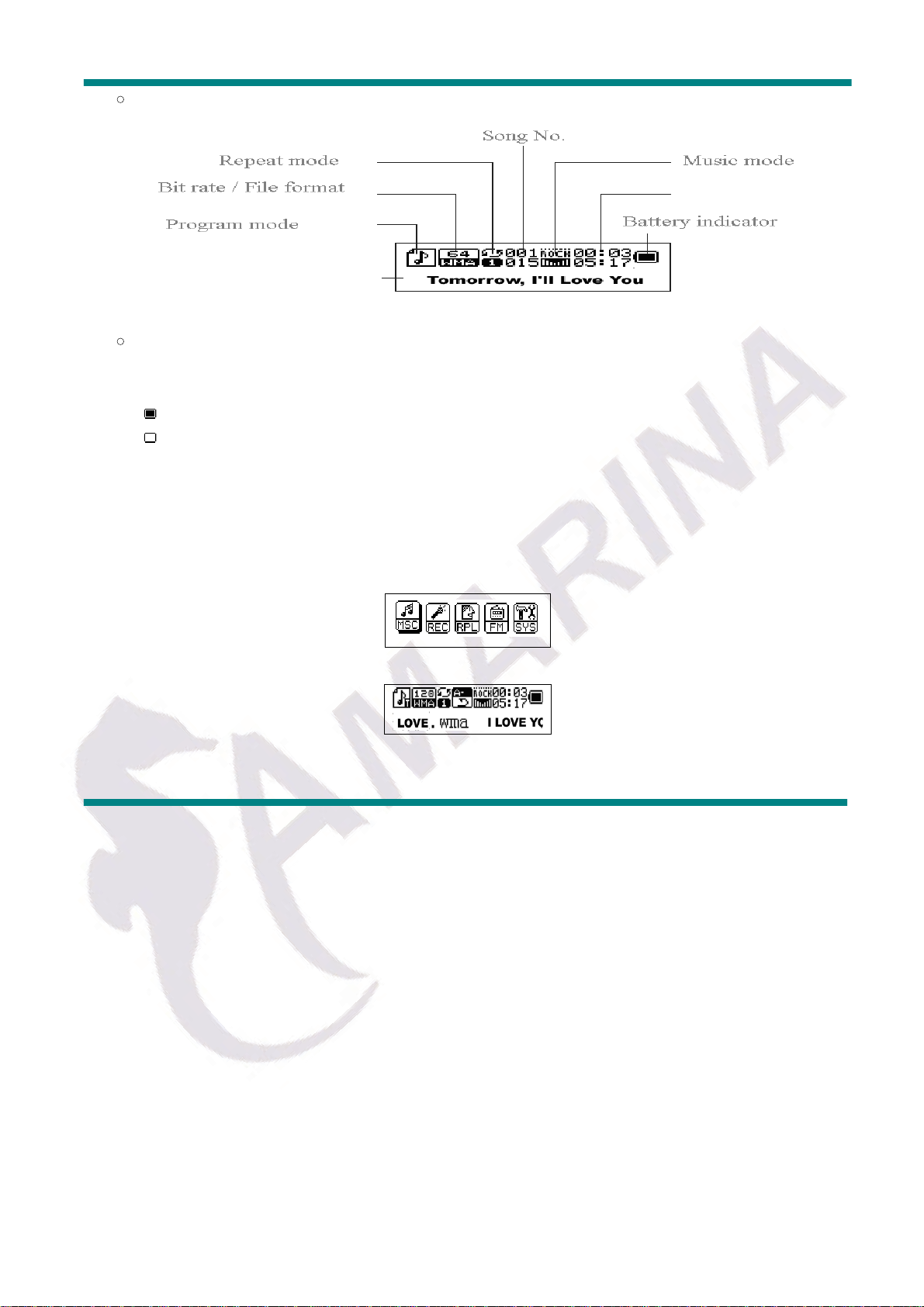

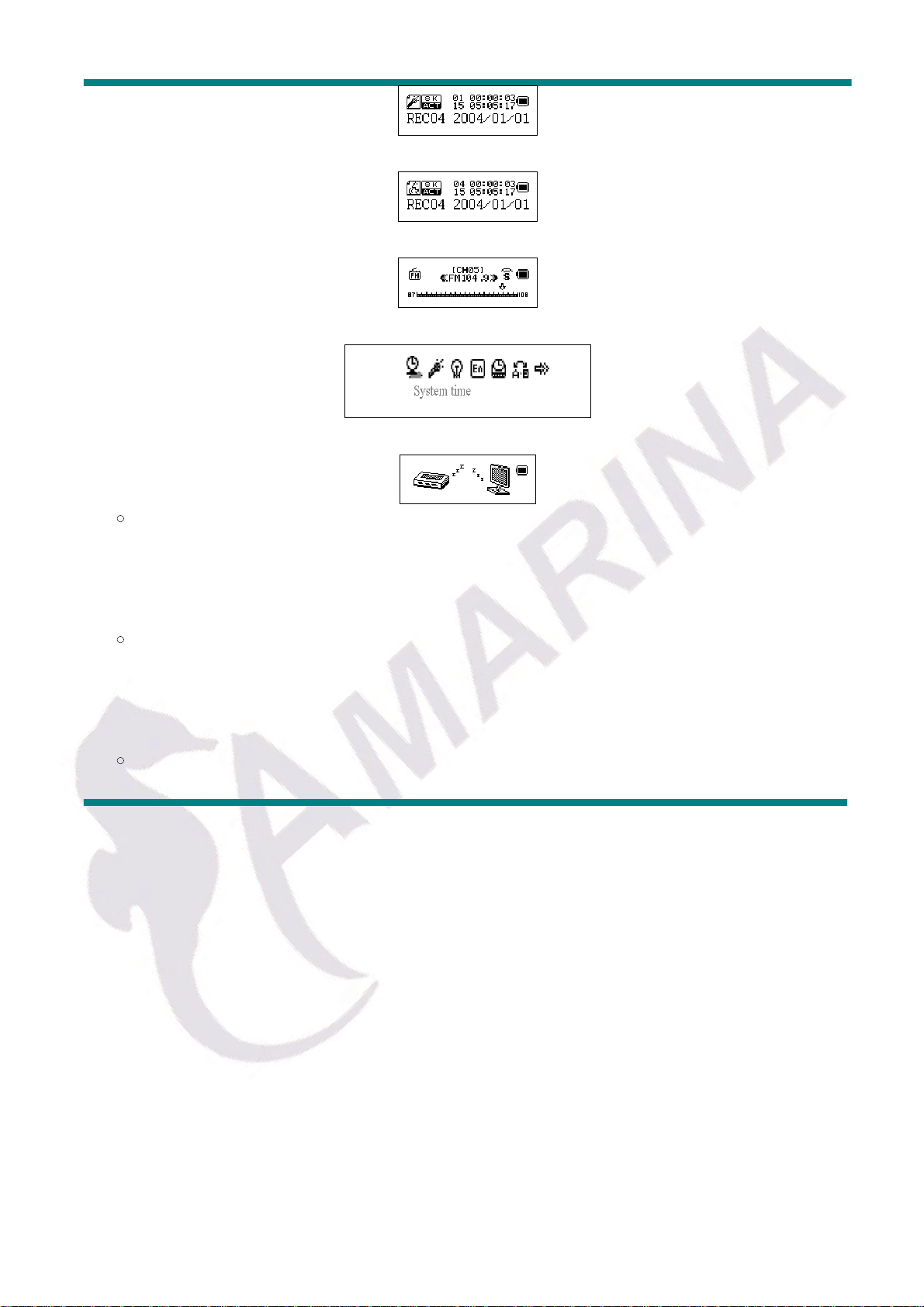

o The main menu screen looks like that:

o Music mode screen:

o Record mode screen:

o Recording playback mode screen:

o FM mode screen:

o System settings screen:

o Connection with PC screen:

x Volume adjustment

Press “VOL+” to increase the volume.
Press “VOL–” to decrease the volume.

x Power ON/OFF

Press and hold “Play/Pause” button to turn the Mp3 player on.

While the MP3 is playing, press and hold the “Play/Pause” to turn the MP3 player
off.

x Play/Pause

In the Music mode press the “Play/Pause” button to playback the music.

x Record/Pause

In the Record mode press this button to start or stop recording, press the button for
more than 2 seconds (long time press) to stop the recording.

In any mode press the “Mode” button for 2 seconds (long time press) to enter the

main menu.

x Music playback

Please, follow the steps below

1. Connect your earphone to the earphone jack of the MP3 player.

2. Press the “Play/Pause” button for 2 seconds (long time press) to turn your MP3
player on, enter the Music mode, then press “Play/Pause” again to playback the
music.

3. Select music: Press the
one.

4. Volume control: VOL+ : Increase the volume VOL� : Decrease the volume

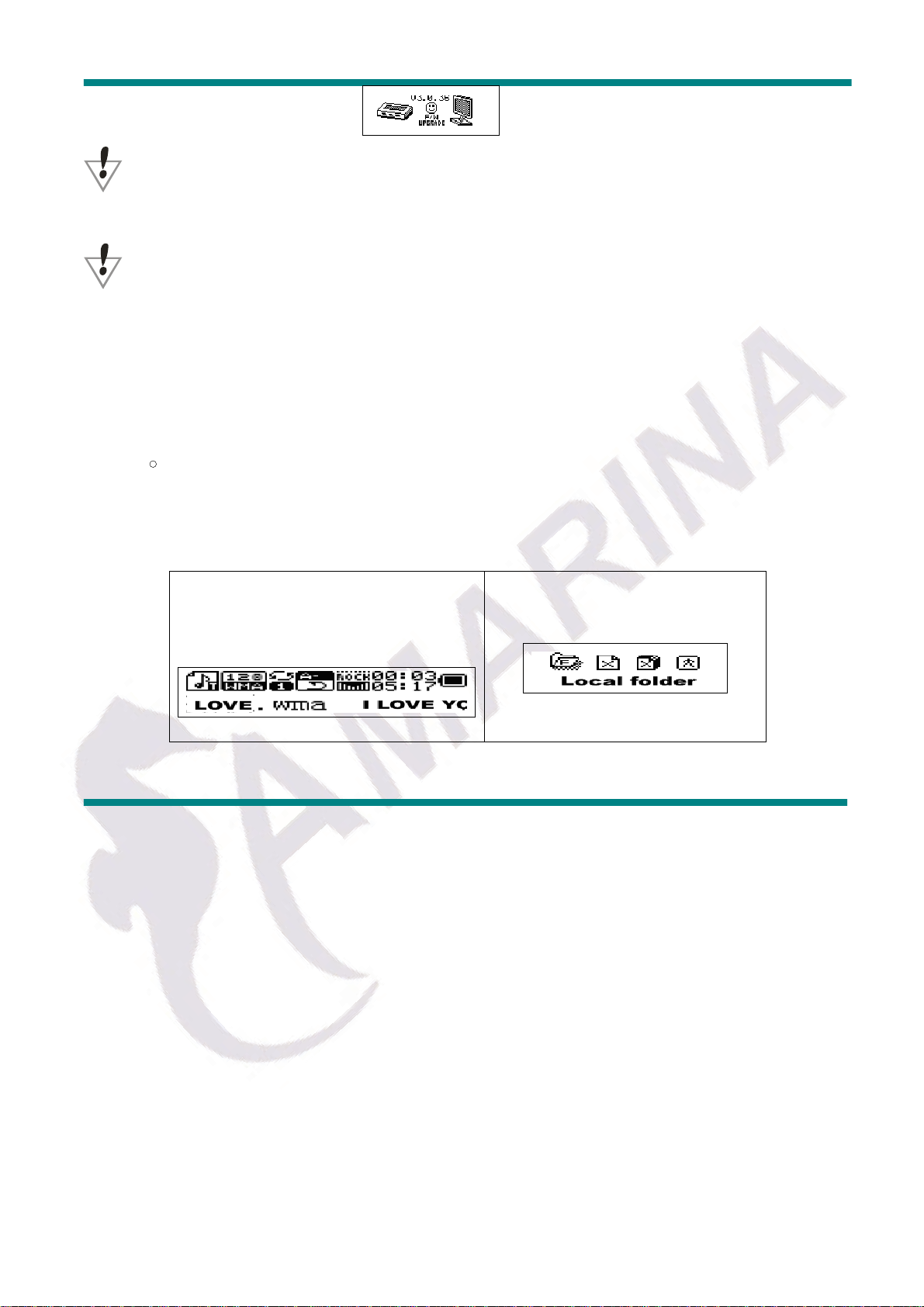

x Display of the song name and song text

This MP3 Player supports “*.LRC” file format song text, with the .LRC file the MP3 player

can display the song text synchronously with the song playback.

o How to use the song text file (*.LRC)?

The .LRC should have the same file name as the song.
For example:

button to select the next, to select the previous

If the song name is: Love.mp3
Then the song text file should be: Love.lrc

o How to make sure the MP3 player has recognized the .LRC file with the song text?

The icon in the left corner of the screen during the music playback will look like

the song has the text, otherwise the icon will look like “ ”.

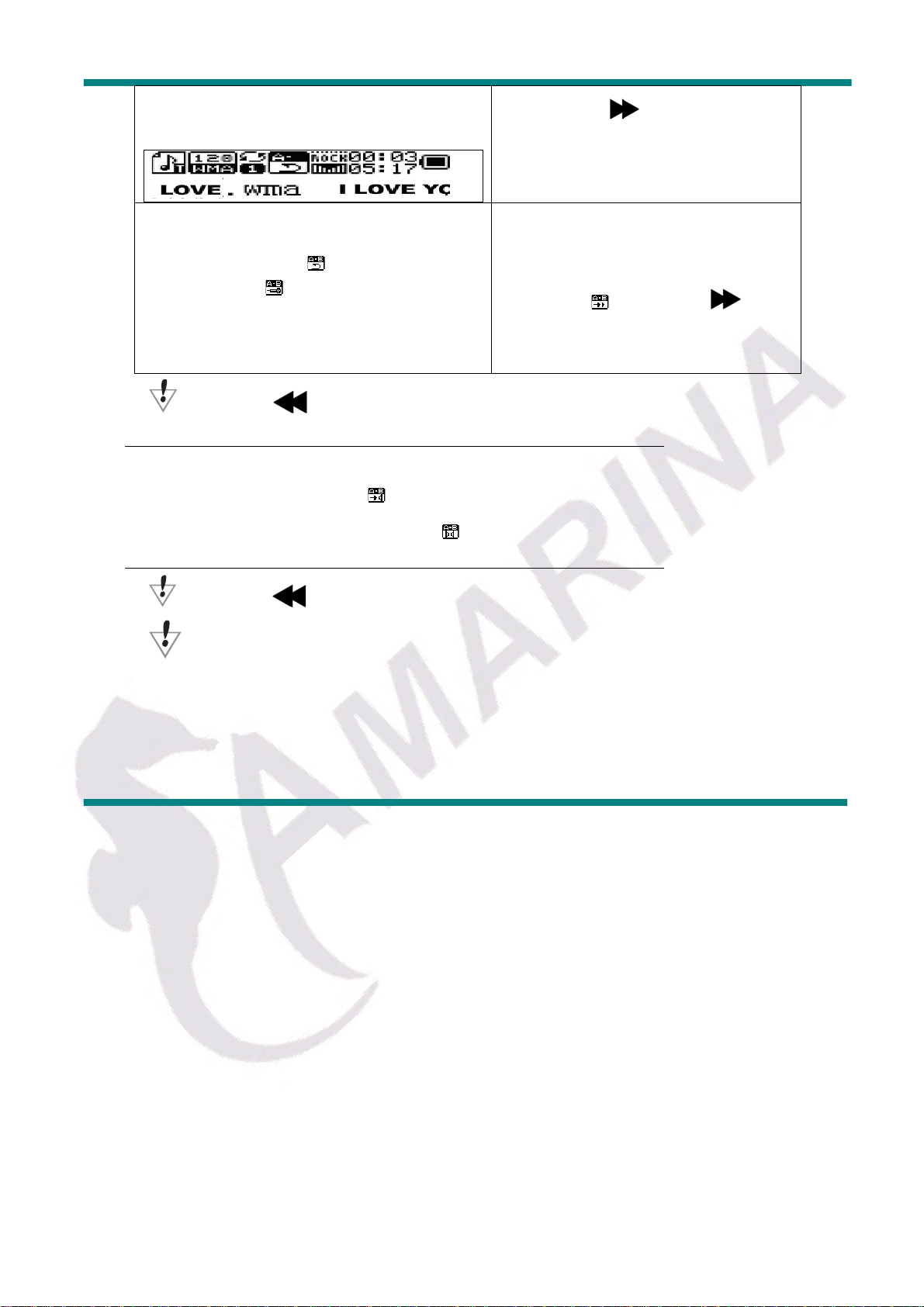

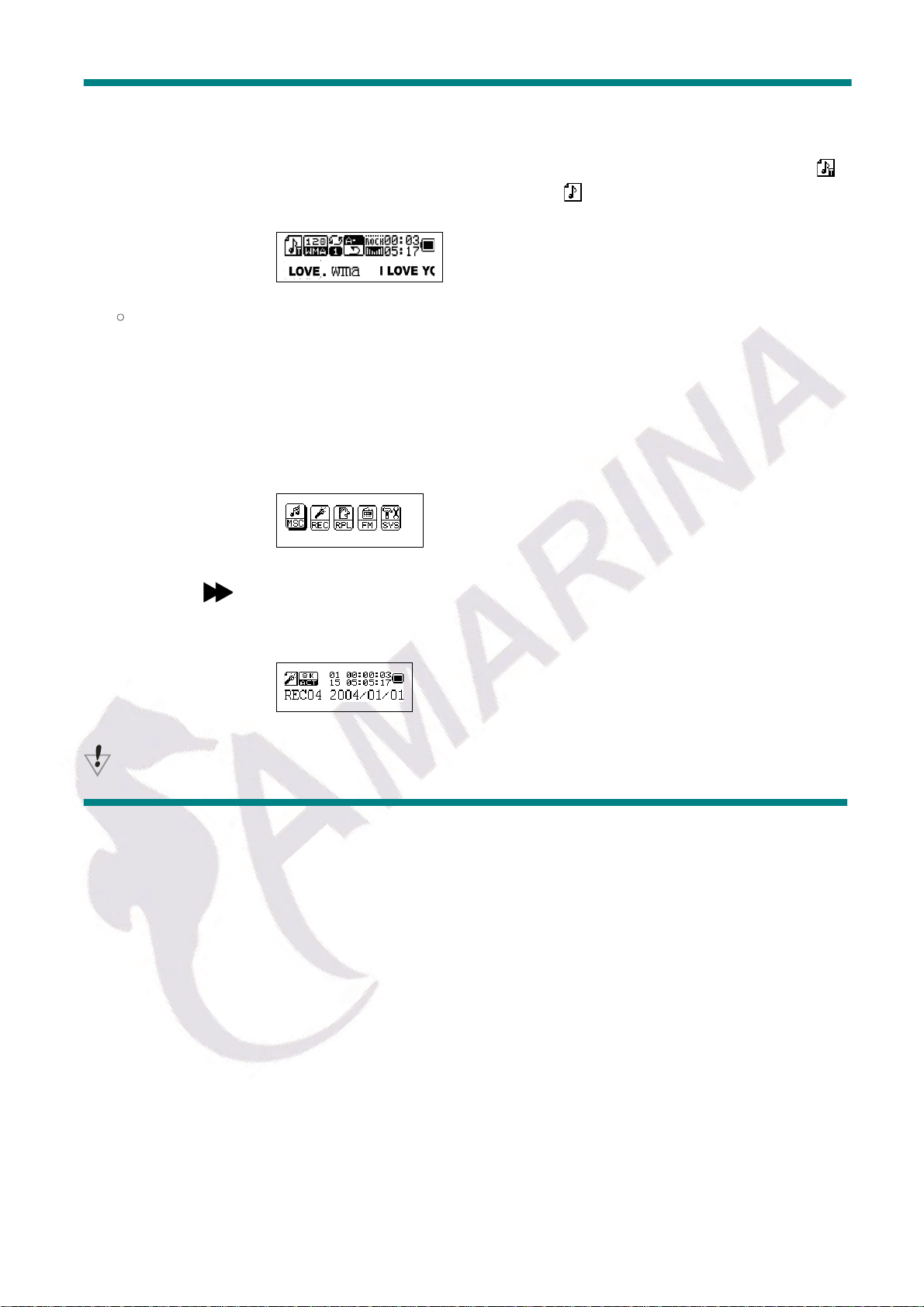

Below is the example of the screen with the song text:

x Voice recording

The MP3 player can save up to 99 recorded files in its memory.

R Recording

1. Enter the Main menu:

if

2. Press the ”

3. Press the “Mode” button to enter the record mode:

4. Press the “Play/Pause” to start recording.

Recorded file can be saved either in the root directory or in the sub-directory.

button to select the record mode.

If you get the message “Disk full” on the screen, that means there is not enough space to

save the recorded file, you should delete the file to get the space.

If you get the message “Directory full” on the screen, that means that the recorded files

quantity exceeded 99, you should save the recorded file to another directory.

During the recording, only the “Play/Pause” button can be used.

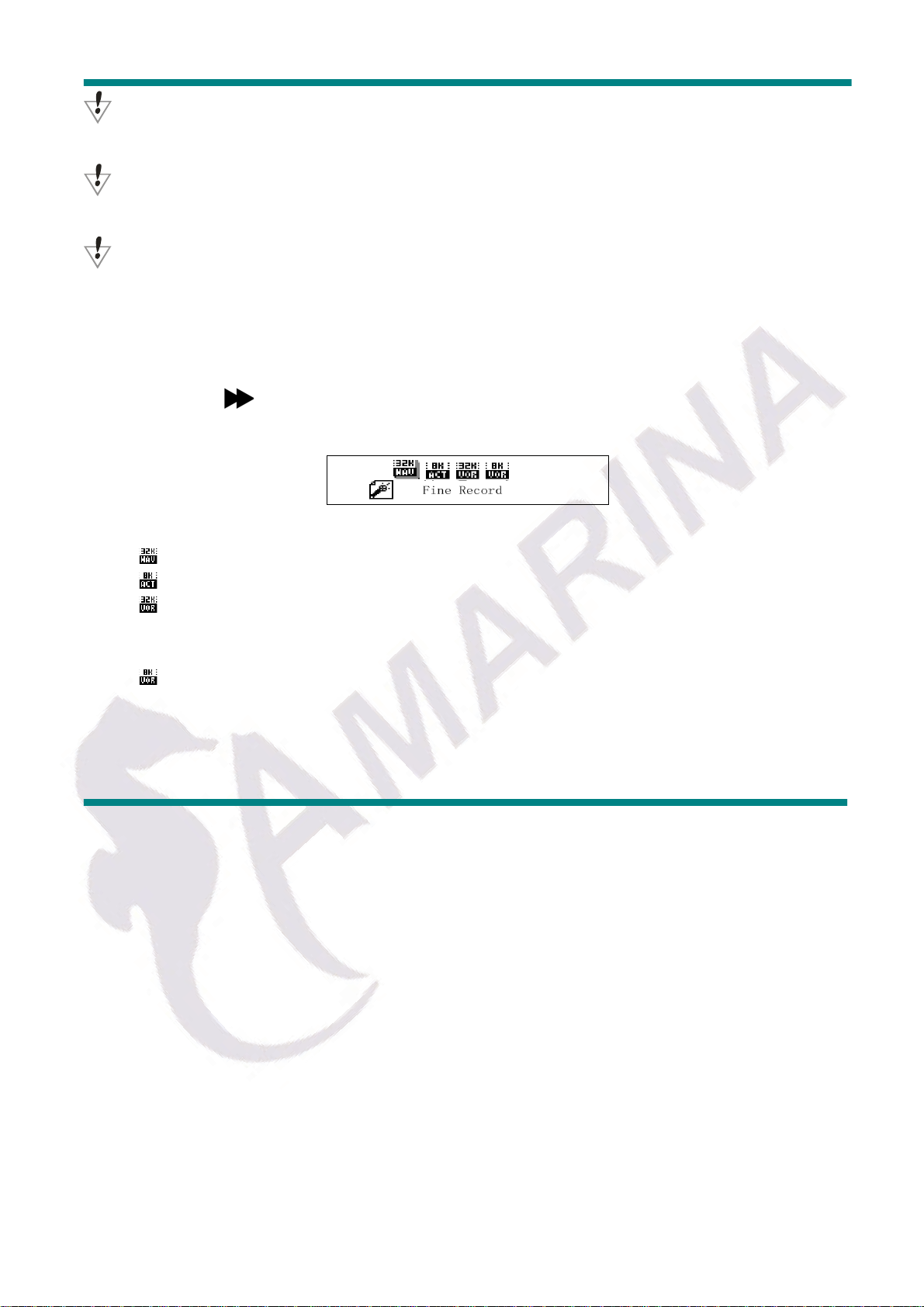

R Select recording type

1. Enter the Record submenu pressing the “Mode” button

2. Press the “ ” button to select the record type, press “Mode” button to confirm the

choice:

R The record type can be one of the following:

: Fine Record, .WAV file format, the best quality sound but creates much bigger files.
: Long time record, .act file format, average quality sound.

: High quality voice control recording, .WAV format. In this mode the MP3 will not
record anything if there is no sound around. Recording is performed in .WAV file format for the
best quality sound.

: The same as above but .ACT file format.

5. Press the “Play” button to start recording.

R Playback the recorded file

1. Enter the main menu.

2. Press the button until you select “RPL”

3. Press the “Mode” button to enter the submenu.

4. Press the “Play” button to start the playback.

5. Press “ / ” to select the recorded file.

6. Volume control

VOL+ : Increase volume

VOL� :Decrease volume

x File recorded in .ACT format can be converted to .WAV

Use the supplied utility software to convert the recorded .ACT file to the .WAV file.

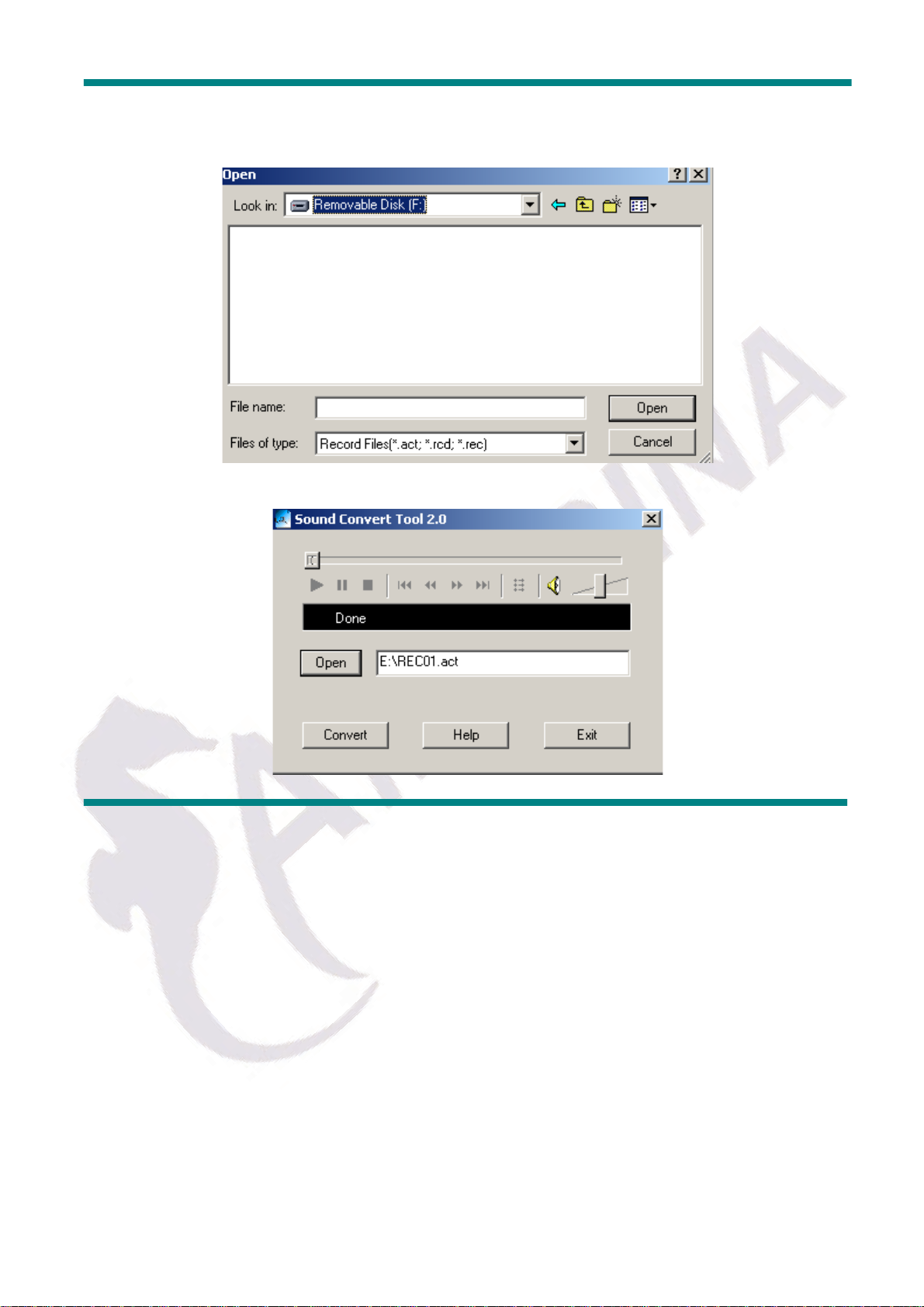

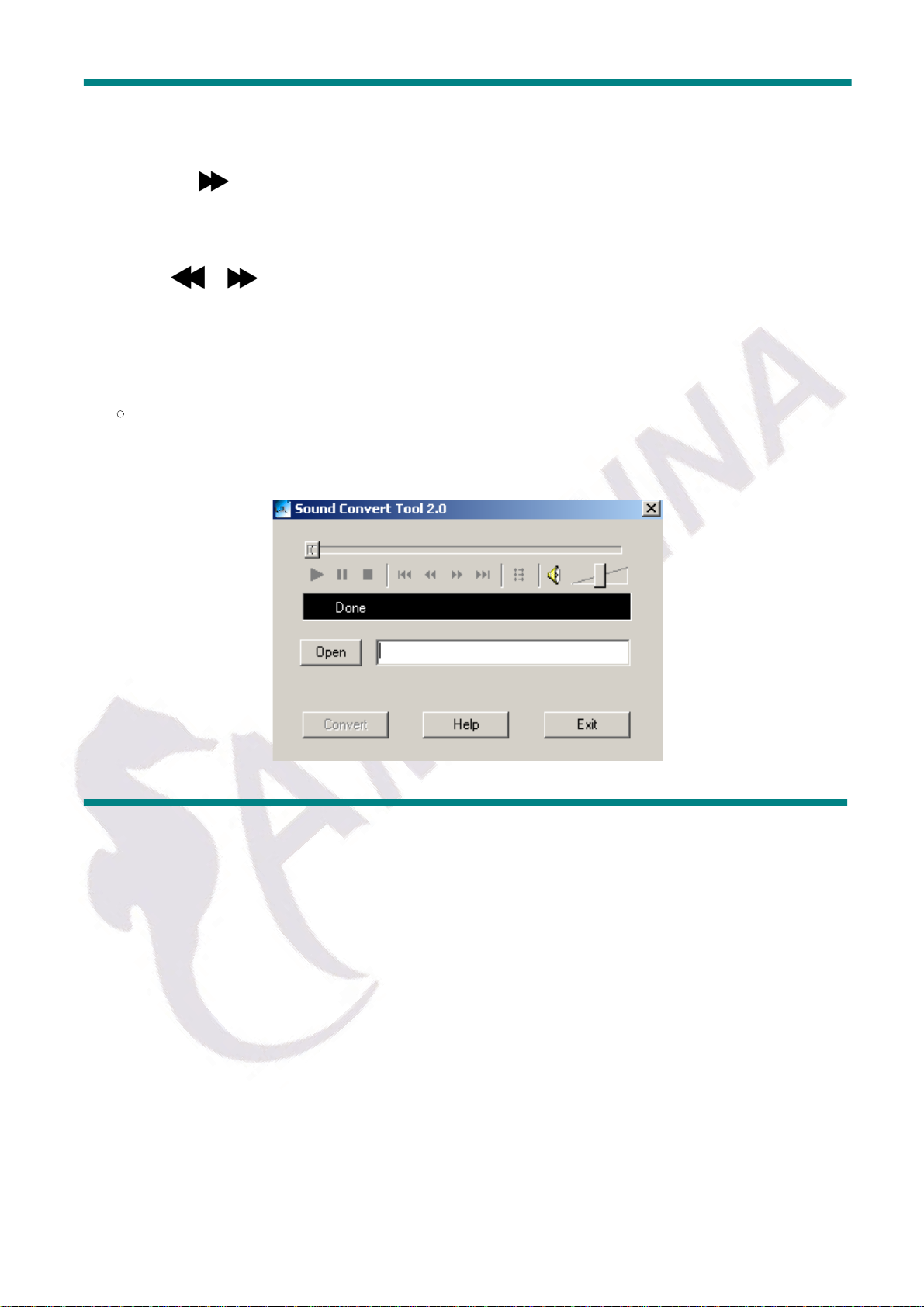

1. Run the “Sound Converter” software utility. You will see the following dialog box:

2. Select the recorded file.

3 .Click “Convert” to create .WAV file.

You can also convert the .WAV file to MP3 format using the same utility.

FM Radio

To use the FM radio please, follow the steps below:

1. Enter the main menu

2. Press the

3. Press the “Mode” button to enter the “FM” menu.

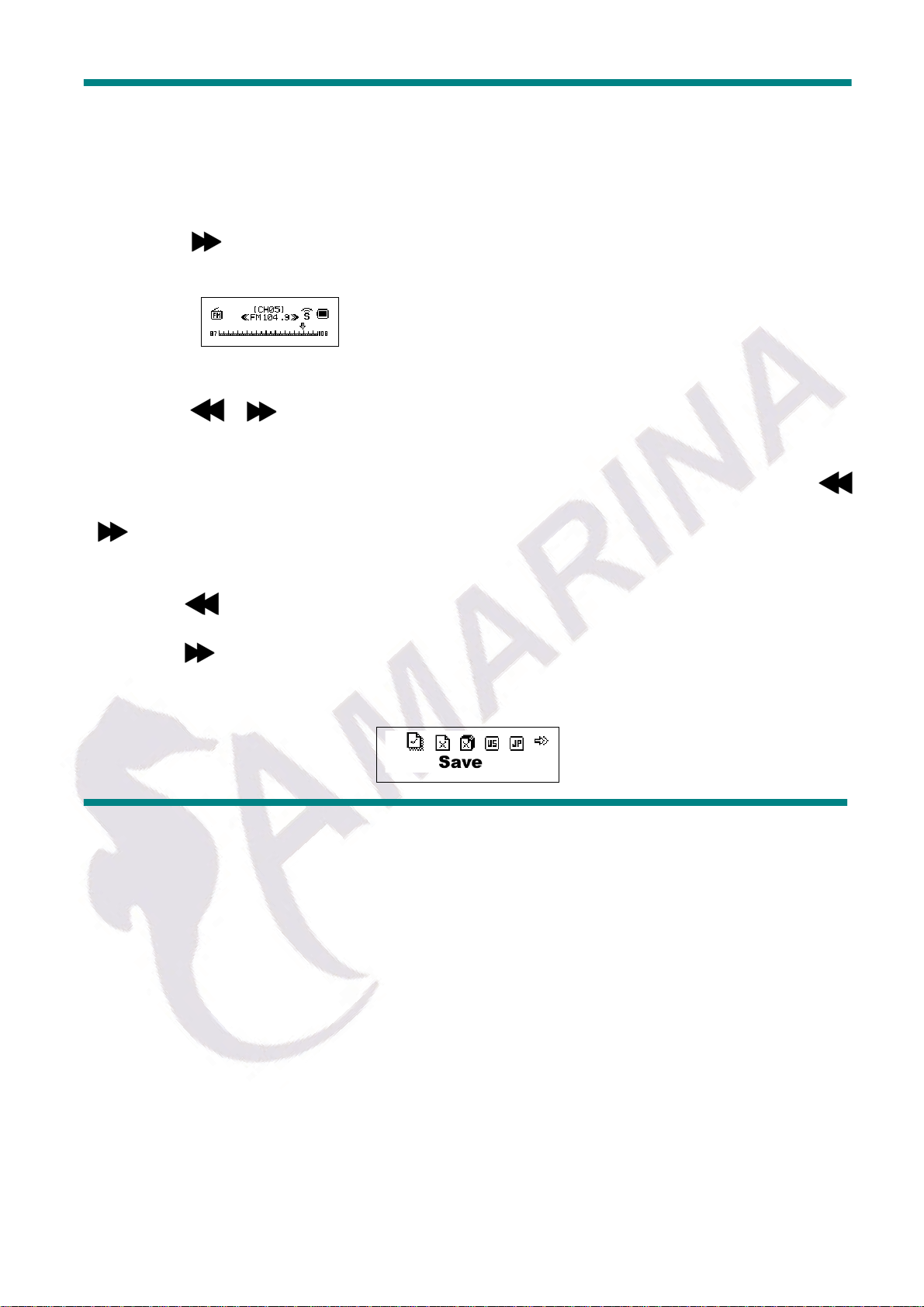

4. Auto search for the Radio station

Press the “

the next Radio station with the 100KHz increment forward or backward, it will not stop until the
a clear radio station has been found. If you want to cancel the auto search, just press the “

/ ” button again.

5. Manual search

Press the button to try the next FM frequency backwards

Press the button to try the next FM frequency forwards

6. Save Radio Station

Press the “Mode” button enter the “FM” submenu

button until you select “FM”

/ ” button for 2 seconds (long time press), the player will auto search for

Press the “Mode” button to save this radio station.

7. To choose the previously saved radio station

Press the “Play/Pause” button to select and listen to the saved radio station.

8. Volume Control
Press Vol+ or Vol- to increase or decrease the volume.

: You can save up to 20 radio stations in your MP3 player.

: To delete the radio station please refer to the section Delete file below.

SYSTEM SETTINGS

x How to change the System settings

1. Enter the main menu

2. Press the button to select “SYS”

3. Press “Mode” button to enter the “SYS” system settings submenu.

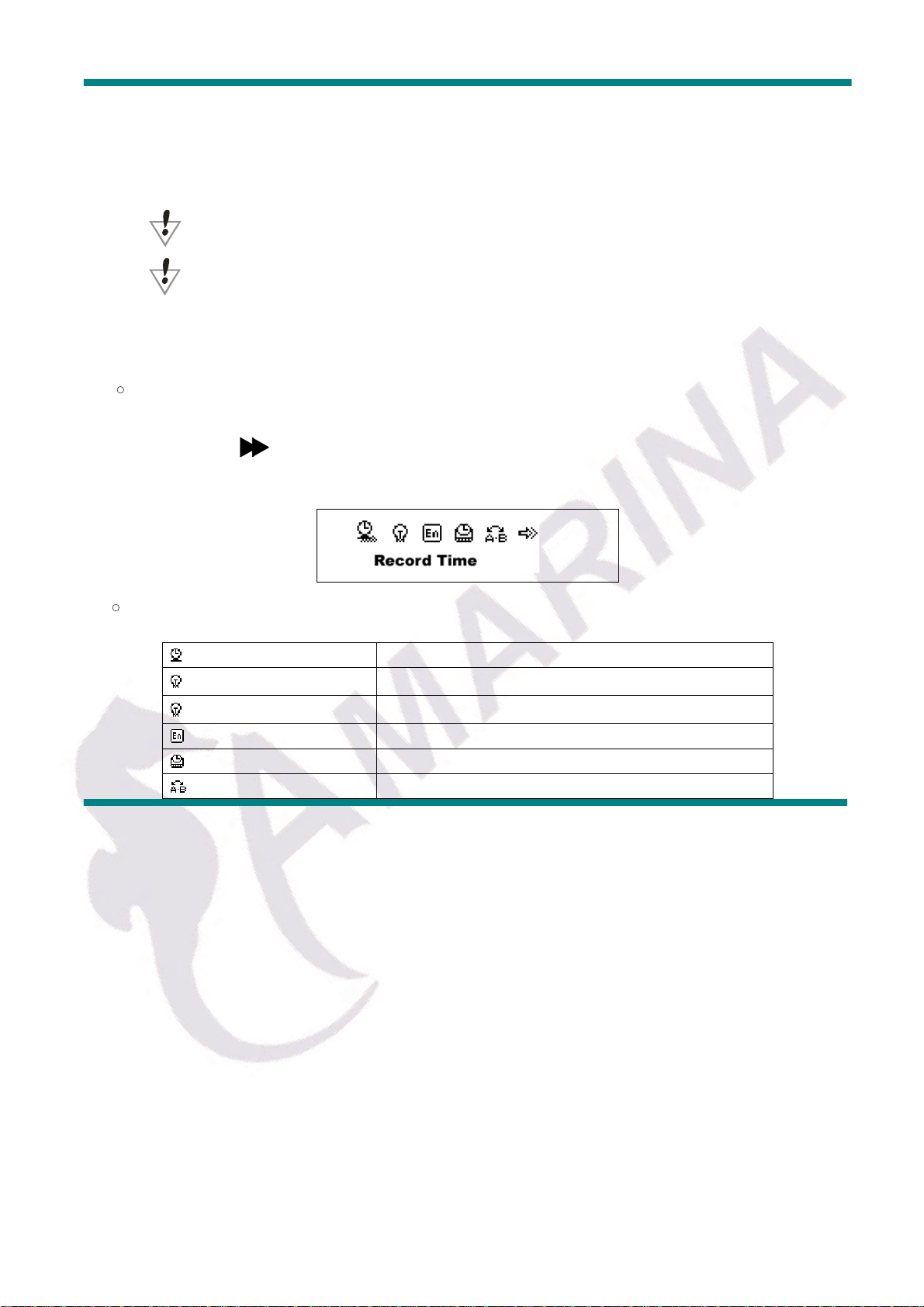

x The system settings are listed below

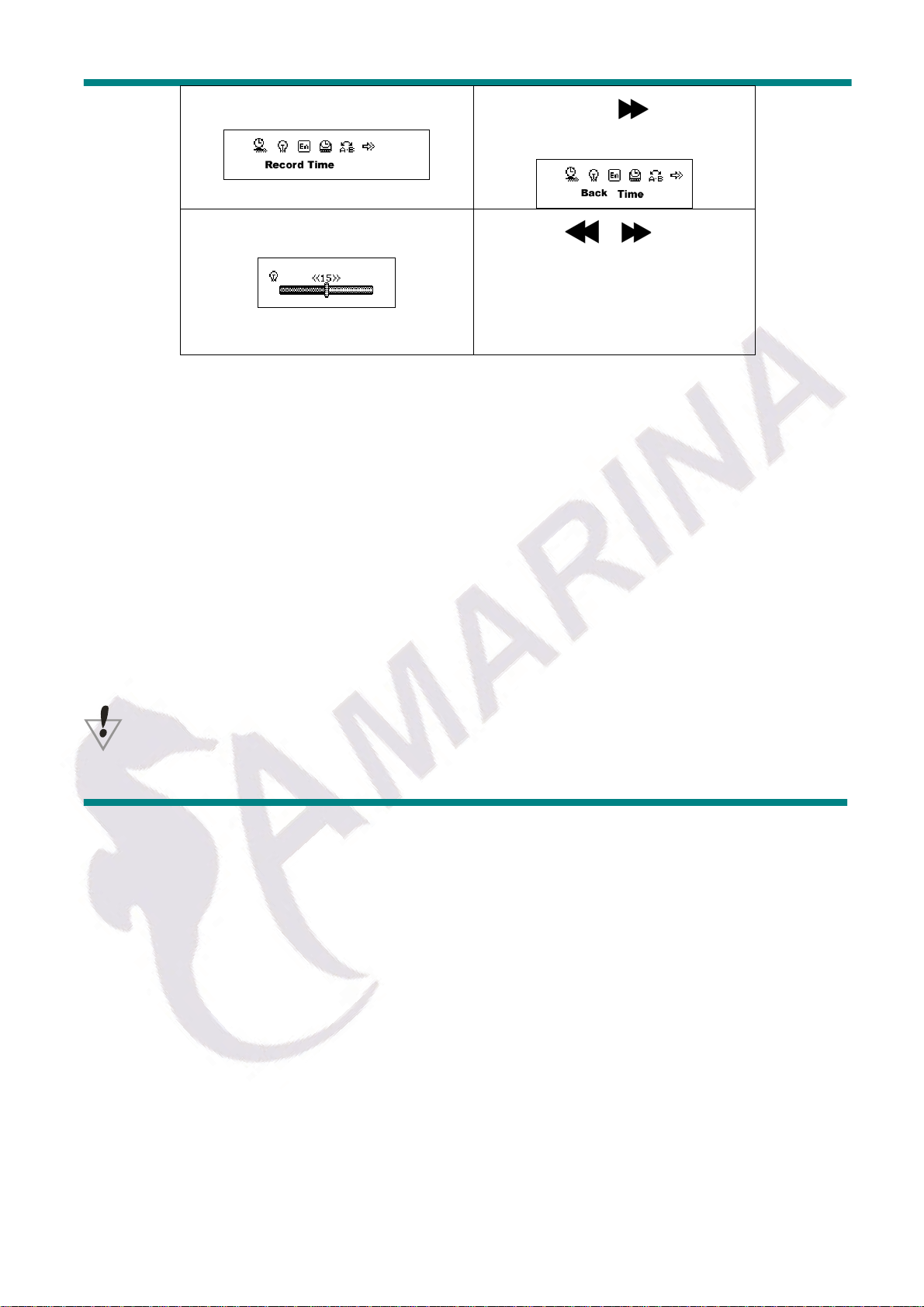

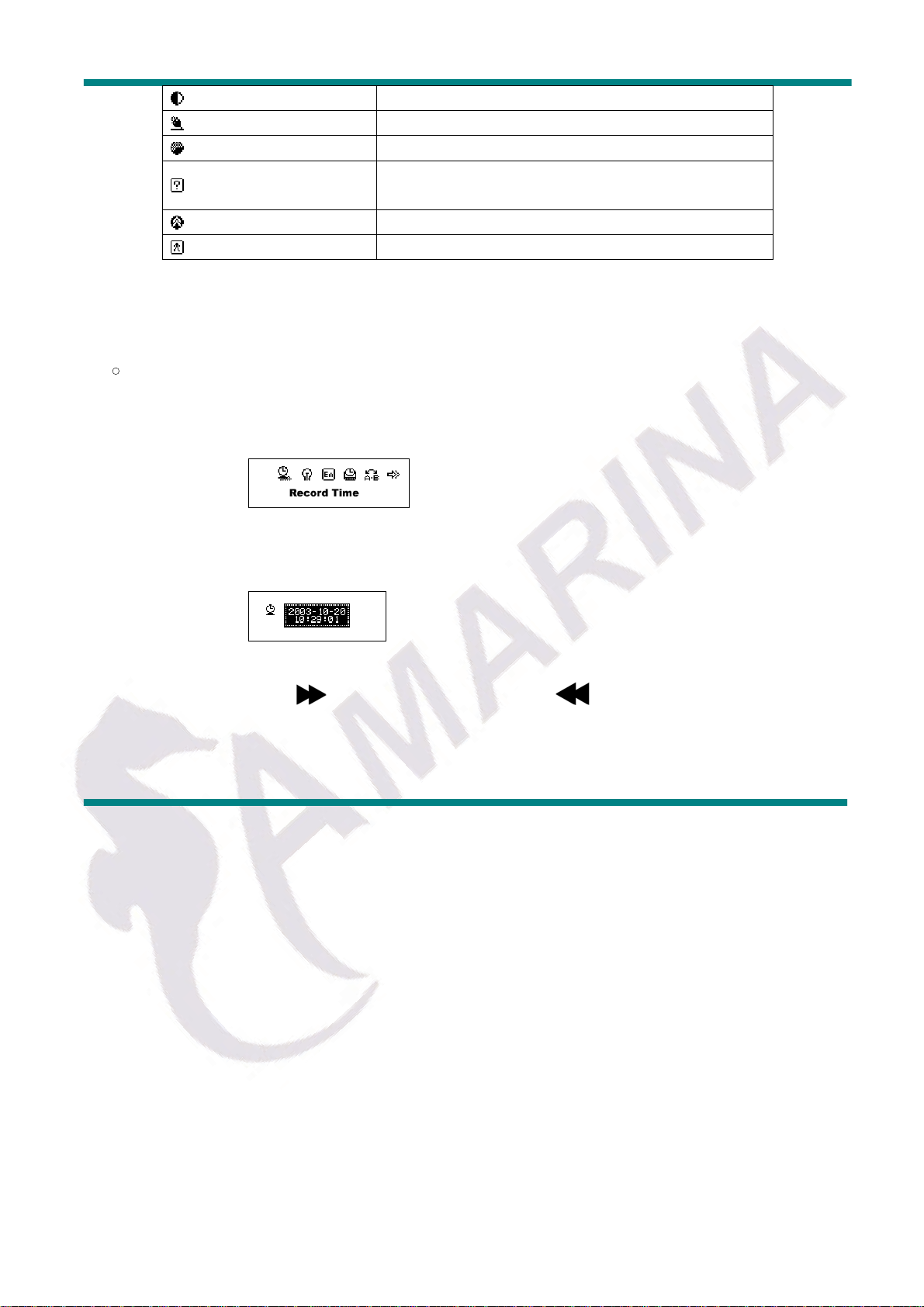

(Record Time) Sets the date and time of the recorded files.
(Back Light)

(Back Light Mode)

(Language) Sets the language
(Power off ) Sets the time of the auto-power off.

(Replay Mode) Sets the Replay mode.

Sets the timing of the backlight.
Sets backlight color

(Contrast) Sets the Contrast of your LCD
(Online Mode) Sets the function of the MP3 removable disk
(Memory Info) Checks capacity of the flash memory

(Firmware Version)
(Firmware Update) Use this setting for the firmware update

(Exit) Exit the submenu

x System settings explanation

ż Setting “Record Time”

1. The screen will look as shown below:

2. Press the “Mode” button to enter the submenu.

The screen will look as shown below:

Displays the date of the current firmware
version

3. Press “VOL+” (VOL-)to select the date and time.

4. Press the

5. Having finished adjusting the time, Press the “Mode” button to confirm.

ż Setting “Back Time”

button to increase or press to decrease.

1.Enter the system settings menu

2. Press the button to

select ”Back time”

3. Press “Mode” enter the setting

as shown below:

ż Setting “Language”. Please, operate in a similar fashion as the “Back time” setting.

ż Setting “Power off“. The same as the “Back time”. There are two settings here:

Off time: Set your auto-off time, the unit is in seconds
Sleep time: Set your sleep mode time, the unit is in minutes, the max setting is 120
minutes.

ż Settings “Replay mode”/ “Contrast”/“Online mode”. The same as the “Back time”.

ż “Memory Info.” Shows the percentage of the disk storage space which is currently used

and free.

ż “Firmware Version”. Displays the current Firmware Version.

4. Press “ / ” buttons to

set the time.

5. Press the “Mode” button to

confirm and exit.

ż “Firmware Update”. Use this setting only if you want to perform the firmware update.

Press “Mode” button to confirm your setting, then press “Play/Pause” button to exit the

submenu.

x Use MP3 player as a USB Disk

This MP3 player can be used as a USB disk. There is no need to install any driver (with
exception of Windows 98) under Windows 2000/XP, Mac OS 10.3 or above, Linux Reshat 8.0
or above.
The MP3 player can use the USB port power, so when it is connected to the PC the battery
is not used. If you want to playback the music when MP3 player is connected to the computer,
during the “wait mode” press the “Mode” button, then you will enter the main menu.

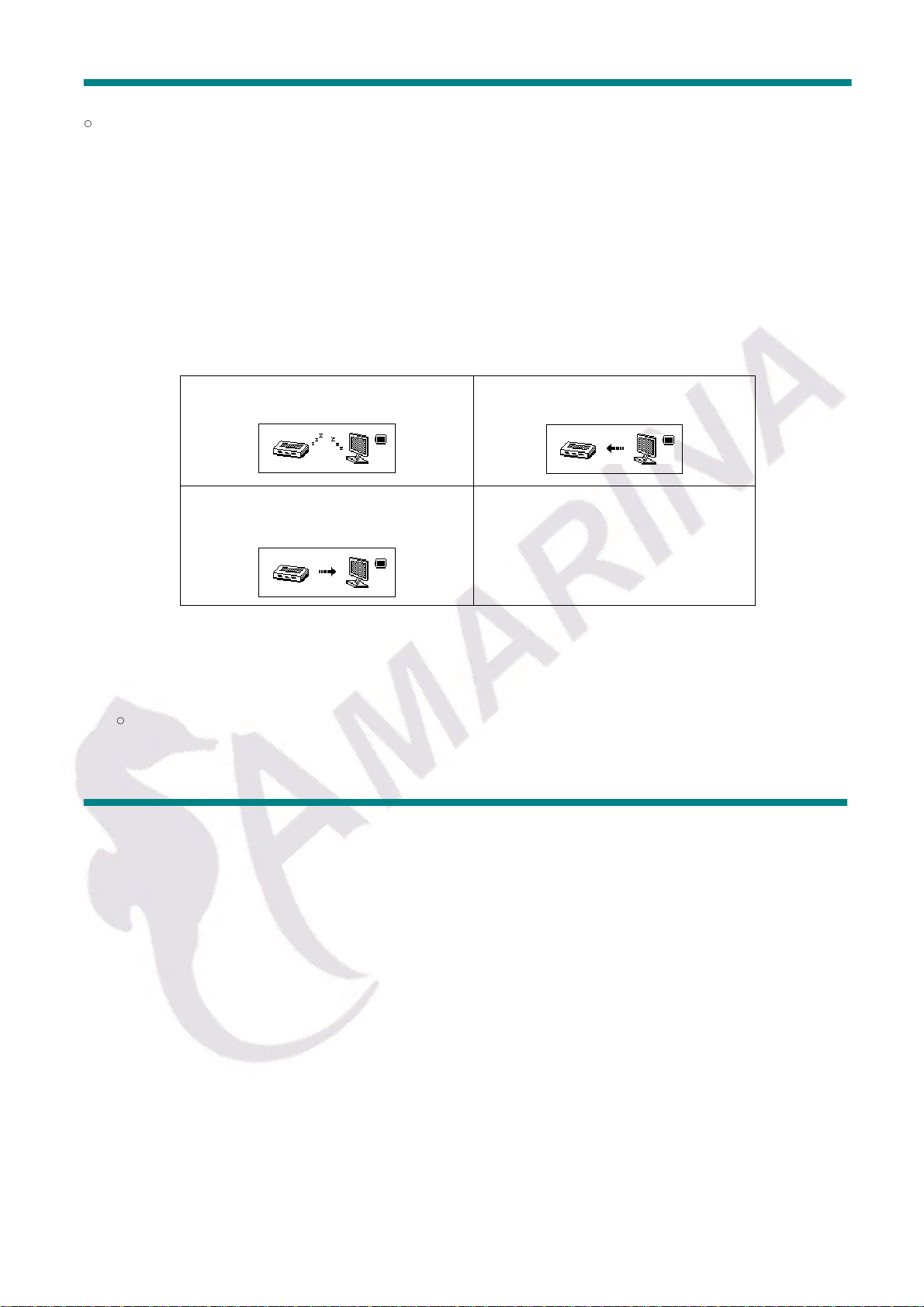

After connection with the PC has been established, there are three kinds of MP3 modes which
are shown on the screen in the following way:

2.A file being downloaded 1.Waiting status

3. A file being uploaded

x MP3 player firmware update

Your MP3 player can be updated use the utility software supplied with it. To upgrade the
MP3 player firmware please, follow the steps below:

1. Enter the main menu

2. Press the button to select “Sys Set”

3. Press the “Mode” button to enter the “Sys Set” submenu.

4. Press the button to select the “firmware update”, then press the “Mode” button to
enter the submenu.

5. Connect your MP3 player to PC.

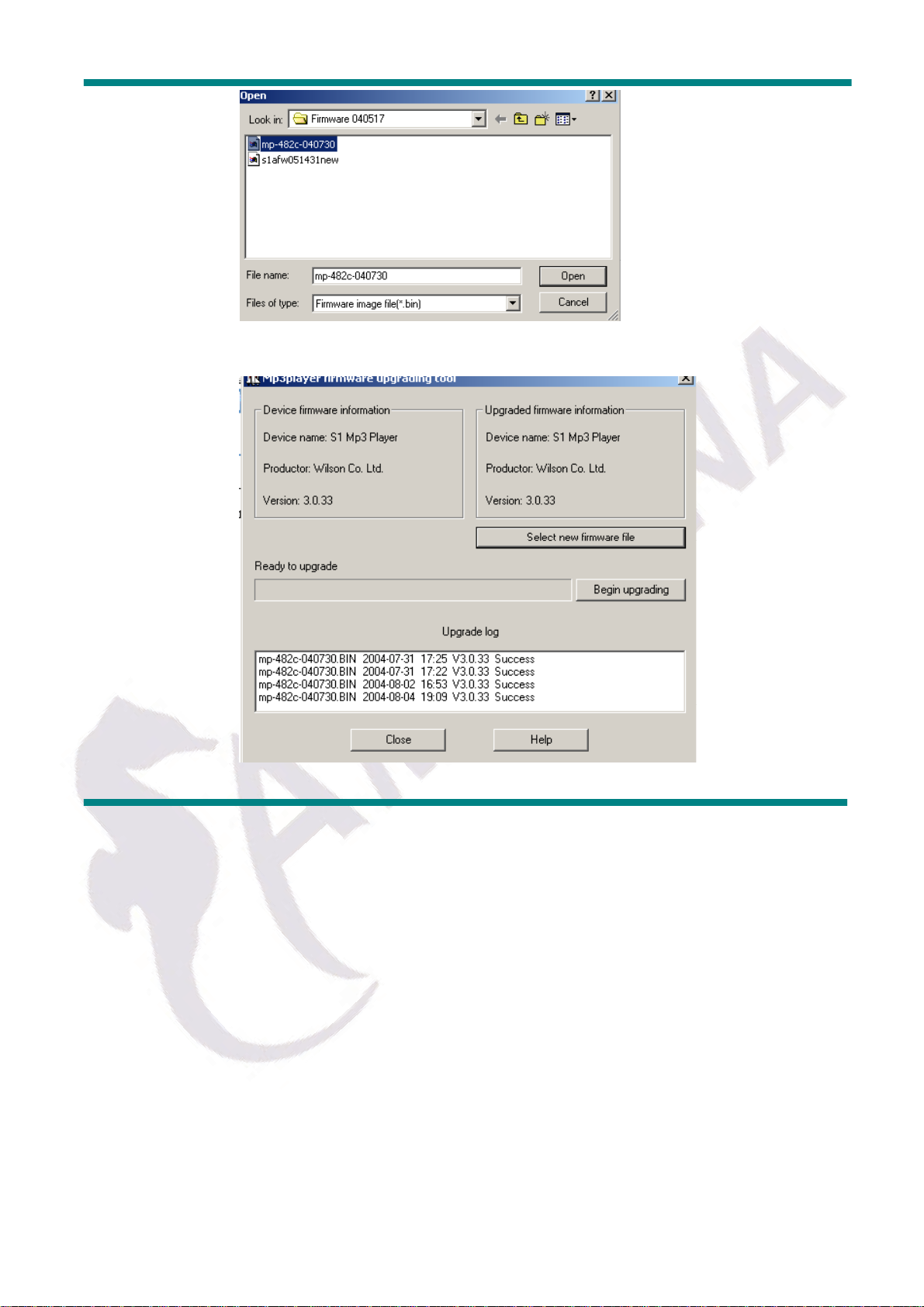

6. Run“MP3 Player Update” utility

8. Select the new firmware file (you can download it from the www.gembird.nl website)

9. Click the “Begin Upgrading” button to update the player.

If update is successful the mp3 player will display the following:

Firmware update is to improve the mp3 player, however it is not necessary to do that,

your MP3 player will work normally without any update.

Firmware update used in a wrong way might damage your MP3 player! Before updating

please, read the instruction carefully. Make sure that the uploaded file does correspond to your
model of the MP3 player. The person performing update is supposed to have some experience
in working with computers.

OTHER SETTINGS

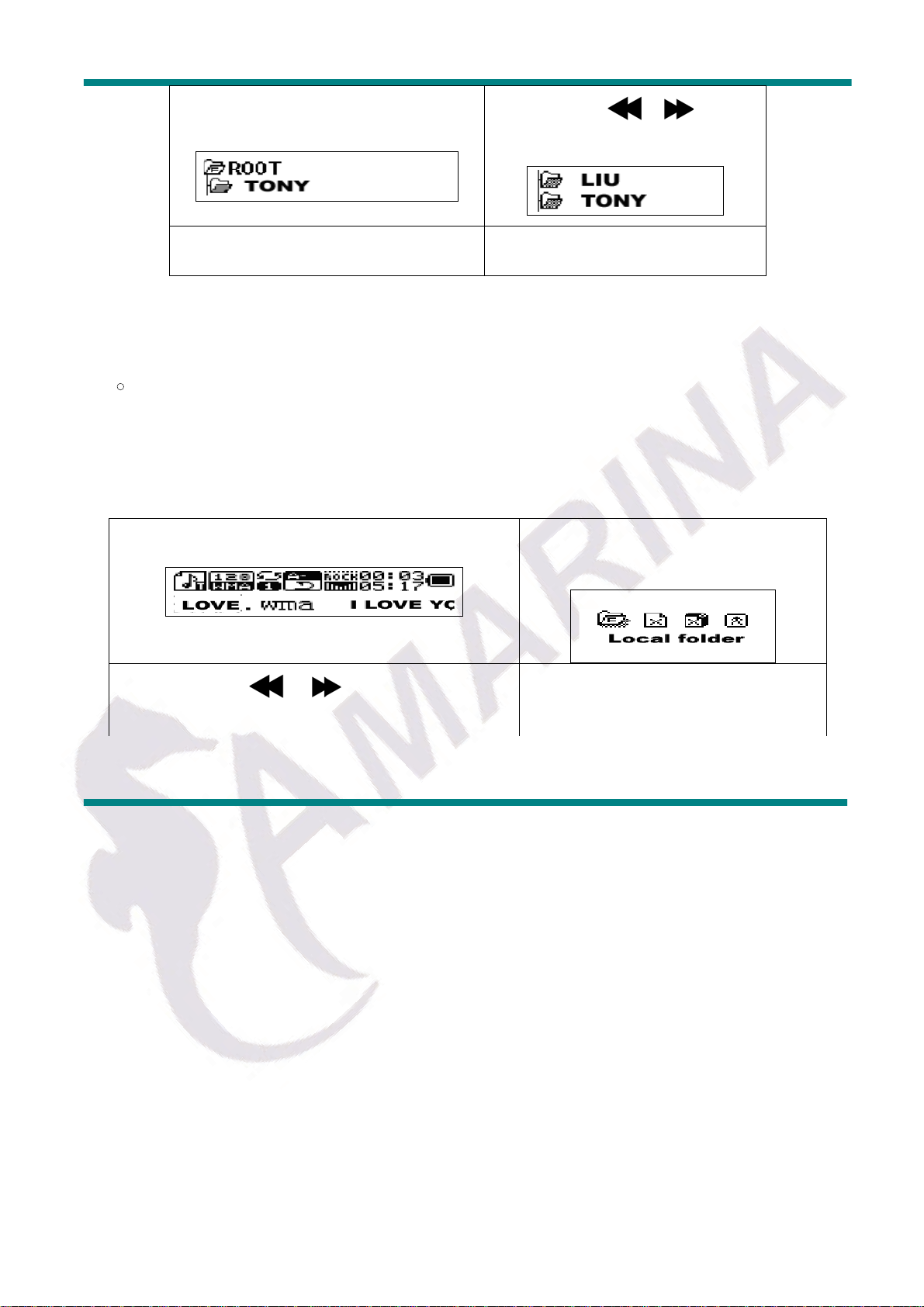

x Select different directory

It is possible to use a different directory rather than the root directory for the recording or
music playback. The MP3 player can support up to 9 directories which the MP3 can use to
playback files in there. To do that please, follow the steps below

.

1. The player should be stopped in
music mode (shown below),
recording or playback mode.

2. Press the “Mode” button to

enter the following menu.

3. Press the “Mode” button again to

enter the directory choice

5. Press the “Mode” button to

confirm the choice

Note: You can set different directories for “Music Mode”, “Record Mode” and “Playback

Mode”.

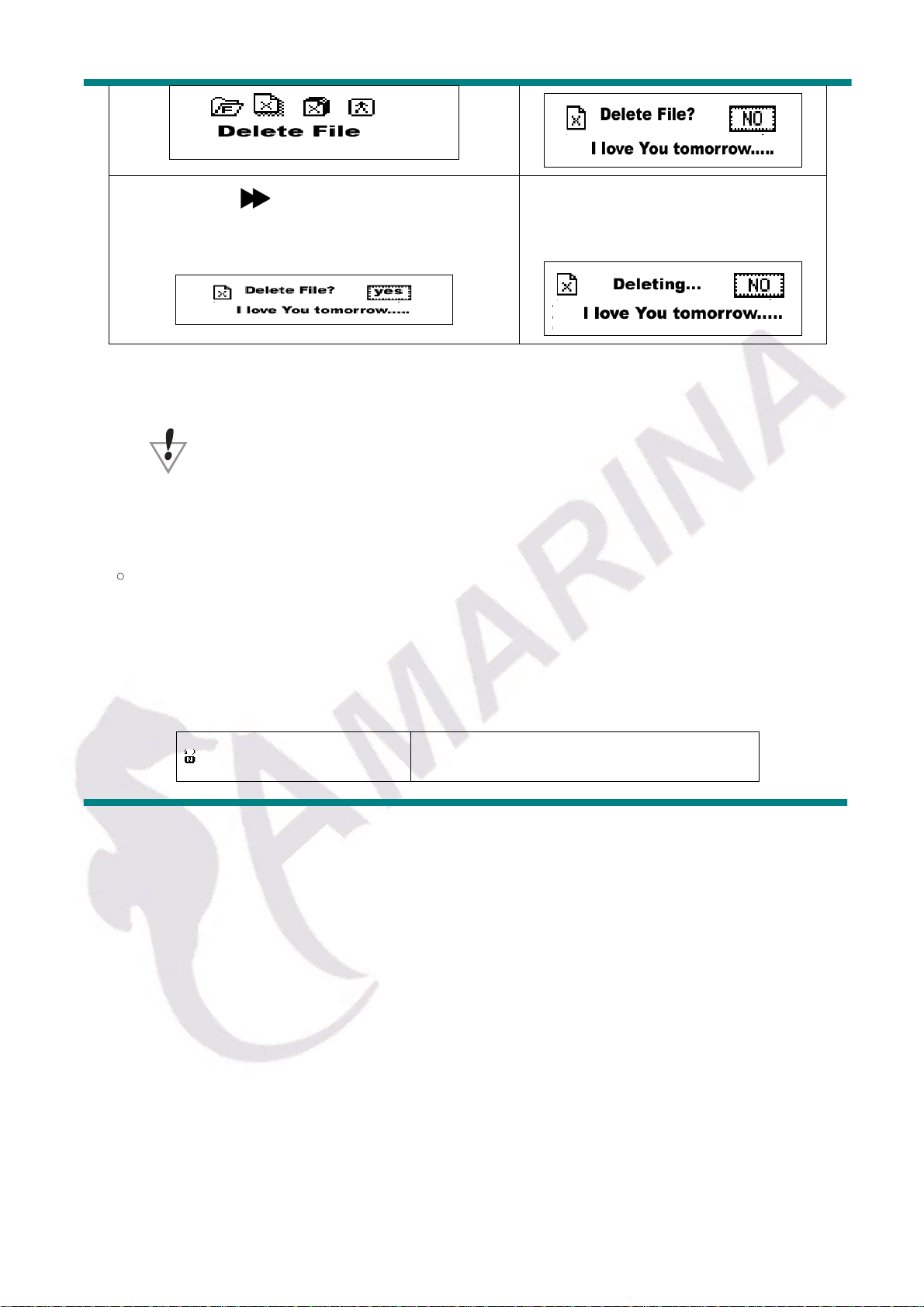

x Delete file

In “Music Mode”, “Record Mode”, “Playback Mode” you can delete files and the Radio

stations.

To do that, follow the steps below:

4. Press the “ / ” button

to select the desired directory

1. The MP3 should be stopped.(In all modes
excluding FM)

3. Press the “ / ” button to select

“single file” or “all files”.

2. Press “Mode” button to choose

the directory

4. Press “Mode” button to get the

following screen:

5. Press the button to change “NO” to

“YES”

The choice “Delete All” will delete all the files in the selected directory for the chosen mode
(e.g. if the MP3 is in the “Music mode” it will delete all the music files, but not the other ones,

such as recorded files)

If you prefer to delete the files from your PC when MP3 is connected to the USB

port, make sure you use the Safely Remove Device wizard of Windows before you unplug the
MP3 player from the USB port. Otherwise some data might get corrupted.

x Repeat Mode(Playback submenu)

During music and recorded file playback, it is possible to choose a number of special

“playback modes” (e.g. repeat, shuffle etc.)
During the music playback, press the “Mode” button to enter the “repeat” submenu,

then press the “Mode” button again to select one of the following options:

ż REPEAT

(Normal)

Playback one song one after another.
Having finished all of them, stop.

6. Press “Mode” button to confirm

the choice

(Repeat One) Repeat one song.
(Folder) Play all the songs in this folder
(Repeat Folder) Repeat all the songs in the same folder
(Repeat All) Repeat all the songs in the MP3 player

ż SHUFFLE

(Random) Play the songs at random

ż (INTRO)

(Preview,Intro)

x Playback speed

During the music playback (only for the MP3 file), it is possible to choose different playback

speed (speed up or slow down), the volume will not change.

1. During the music playback press the “Mode” button to enter the menu.

2. Press the button to select “Play Speed” menu.

Play 10 first seconds of each song in the
current folder

3. Press the “Mode” button to enter the “Play Speed” submenu.

4. Press the button to “speed up” or press the to slow down.

Note: The playback speed will be saved in the MP3 player memory and it won‘t

change until you set it again.

x Repeat Mode

Ŷ During the music playback press the “Mode” button to enter the “repeat mode”.
Ŷ The following choices are possible:

R A-B Repeat

Using this function it is possible to mark the music fragment for subsequent playback. To do

that, please follow the steps below:

1. During the music or recorded file playback press the “Mode” button to enter the submenu.

2. Press the button to select the “repeat mode” submenu.

3. Press the “Mode” button to enter the “repeat mode”. You will see the icon and the letter

“A” will blink.

4. Press the ” button to confirm the point A. On the icon the letter “B” will now start
blinking.

5. Press the button to confirm the point B.

The MP3 will now start to repeat the playback from the point A to the point B. Having repeated
the marked fragment for a number of times (this number can be set) the playback will stop.
When the player is in the repeat mode it is possible to renew the setting of the points A and B.

During the “repeat mode”, you can press the VOL+ or VOL- button to set the “playback

speed”.

ż “Compare” function (this function is only available with the music playback) is designed
to let you compare recorded voice with the original MP3 file (tip – this feature is especially
useful for the language self-study). To use this function, please, follow the steps below:

1. The player should be in the A-B
segment repeat mode

3. The repeat icon“ ”will change to the
following icon“ ”. Now the MP3 player

will record the voice, the recording time is
the same as the playback time from the
point A to the point B.

Press the button to return back to the “A-B repeat” mode.

2. Press the button to enter the

“Repeat Mode”.

4. After recording is finished, the
MP3 player will first play the original
MP3 file. The icon on the screen will

change to “

to listen to your recorded file and to
enter the compare mode.

”. Press the button

1.After you enter the Compare

Mode, the icon will display “

then the MP3 player will
playback the original MP3 file.

Press the button to return back.

During the “compare mode”, press “Mode” button to exit the “repeat mode”.

R The number of repeat times

Please refer to the “backlight time” system setting.

R Repeat interval

2. Having finished the
playback of the original

”,

fragment the icon will change

to“

playback your recording.

” and the MP3 will

Please refer to the “backlight time” system setting. Repeat interval is the time between

two consequent playbacks in the repeat mode (the unit is set in seconds).

IMPORTANT! Disk encryption function IMPORTANT!

With the supplied utility you can divide the MP3 player into two sections (public and
encrypted). Under Windows 2000 SP4 and above you will see 2 disks in this case. Under older
operating systems only one removable disk will be seen on your computer. If you still want to
see the other, you should enter the “SYS” menu of your MP3 player and select “Multi Drive” for
“Online Mode”. To encrypt the MP3 player please, follow the steps below:

1. Connect the MP3 player to your computer.

2. Run the “MP3 Player Disk Tool” utility

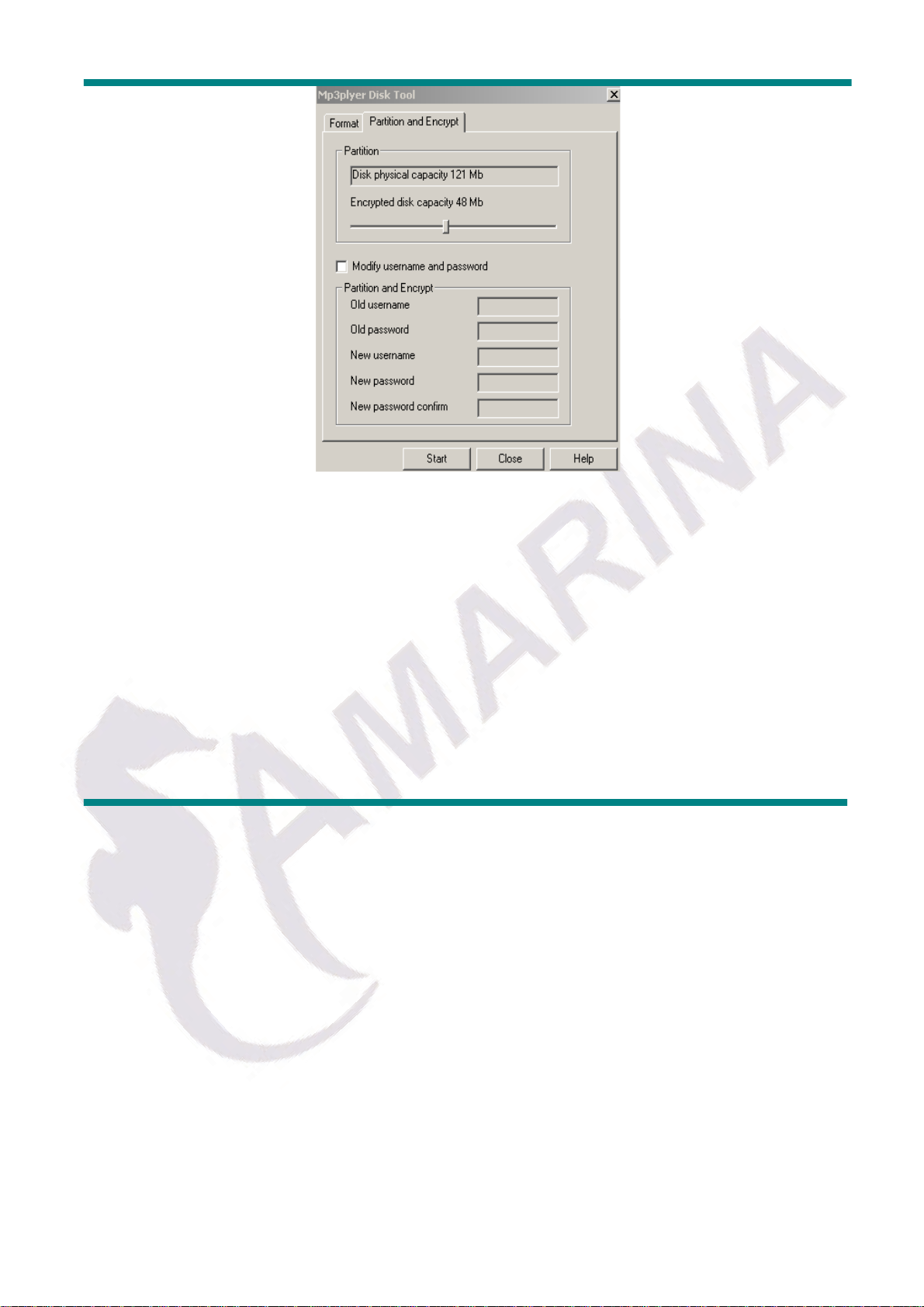

3. The following window will be displayed:

4. You can select the size of the encrypted part of the disk, then press the “Start” button

5. Press “OK” and then restart your computer.

6. After computer finishes the reboot, you will see two removable disks on your computer
(see the comments above about the operating systems before Windows 2000 SP4). Choose
the encrypted disk, you will see only three files there (two of which will be hidden), one of them
is the .exe file, the size of the disk will appear to be only 300Kb.

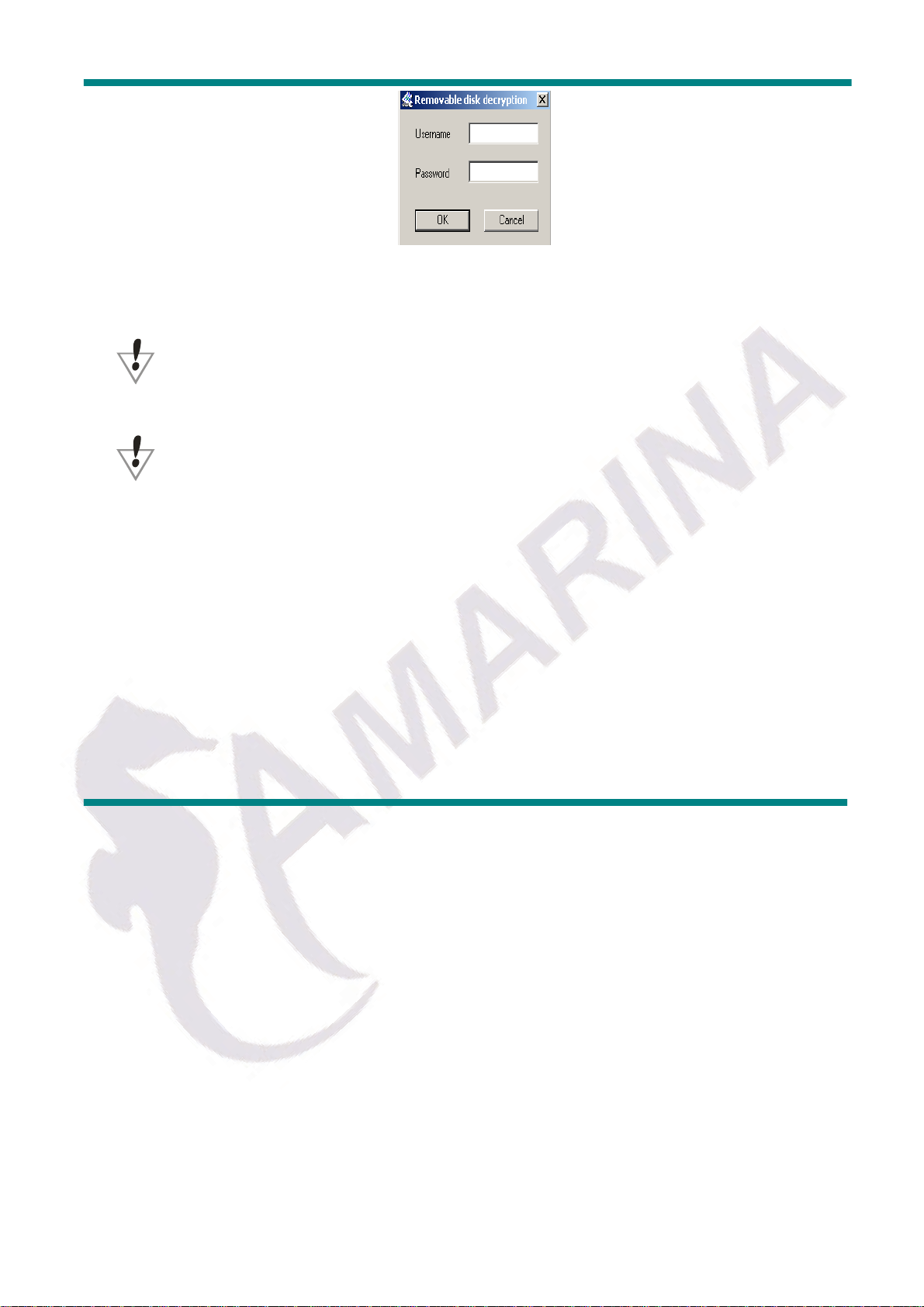

7. Run the “RdiskDecrypt.exe”, in the dialog box which will appear enter your user name
and password, then you will be able to access your whole disk and copy files to it.

.

8. Now whenever you connect your MP3 player to the computer, you won’t be able to use it
until you enter the user name and the password.

Note: If you want to encrypt the disk in the way described above, please, first

backup your files, all the data will be lost after the encryption.

Warning: Don‘t forget your password and the user name, otherwise you won’t be

able to use your disk. In case the password is lost, you can only format the disk to regain the
access, but then all your files will be lost.

TROUBLESHOOTING

No power Check battery

Check your power switch
No music is heard in
the earphones

Wrong language Set correct language

Can‘t download music 1. Check if the USB cable properly connected

1. Check the Volume level

2. Check the connection (earphone to the

earphone jack)

3. Check if the music file can be played by the

MP3 player.

to your computer

2. Check if you have installed the driver (under

Windows 98)

3. Check if you have enough disk space to

download the music file

SPECIFICATIONS

Outside Dimensions 31mm×70mm×17mm
Weight 25g (not including battery)
Display area Lattice (128×32) EL Backlight
Computer interface High speed USB2.0
Memory Flash memory: 128M - 1GB
Battery lifetime Playback up to 10 hours.

Rate 8KHz

Recording

MP3,WMA,WMV,ASF

Music formats supported MP1, MP2, MP3, WMA, WMV, ASF, WAV
Temperature range -5 ~ +40 Degree
Language support English, German, Chinese, …
Operating system Windows98SE/ME/2000/XP,Mac OS 10, Linux

Record format WAV(32K bps),ACT(8K bps)
Record time 35 Hours(ACT for 128M Flash)
Earphone max
power

MP3 bit rate 8Kbps – 320Kbps

WMA, WMV,
ASF bit rate
Frequency
response
Signal to Noise
ratio

2.4.2

(L)10mW + (R)10mW(32Ohm)

5Kbps – 384Kbps

20Hz - 20KHz

85dB
