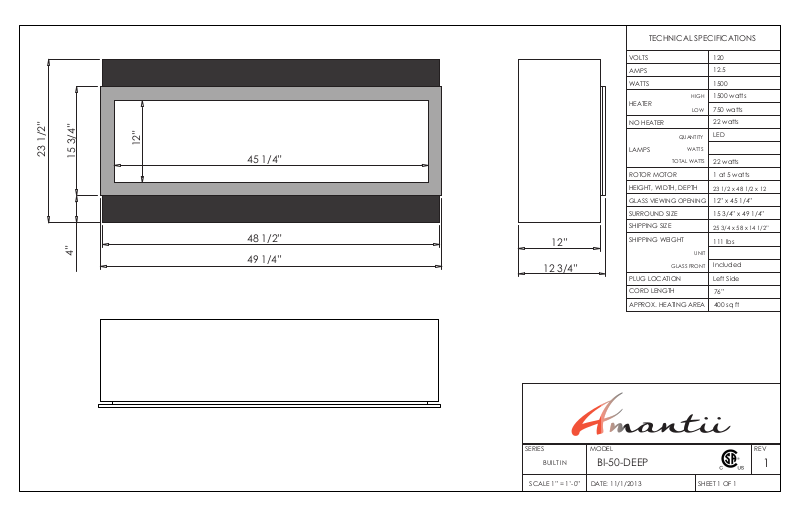

Page 1
TECHNICAL SPECIFICATIONS
23 1/2”
15 3/4”
4”
12”
45 1/4”
48 1/2”
49 1/4”
12”
12 3/4”
VOLTS
AMPS
WATTS
HIGH
HEATER
NO HEATER
LAMPS
TOTAL WATTS
ROTOR MOTOR
HEIGHT, WIDTH, DEPTH
GLASS VIEWING OPENING
SURROUND SIZE
SHIPPING SIZE
SHIPPING WEIGHT
GLASS FRONT
PLUG LOCATION
LOW
QUANTITY
WATTS
UNIT
120
12.5
1500
1500 watts
750 watts
22 watts
LED
22 watts
1 at 5 watts
23 1/2 x 48 1/2 x 12
12” x 45 1/4”
15 3/4” x 49 1/4”
25 3/4 x 58 x 14 1/2”
111 lbs
Included
Left Side
SERIES MODEL
BUILT IN
BI-50-DEEP
CORD LENGTH
APPROX. HEATING AREA
76”
400 sq ft
REV
1
SCALE 1” = 1’-0”
DATE: 11/1/2013
SHEET 1 OF 1
Page 2
TECHNICAL SPECIFICATIONS
600 mm
402 mm
99 mm
302 mm
1149 mm
1235 mm
1249 mm
302 mm
322 mm
VOLTS
AMPS
WATTS
HIGH
HEATER
NO HEATER
LAMPS
TOTAL WATTS
ROTOR MOTOR
HEIGHT, WIDTH, DEPTH
GLASS VIEWING OPENING
SURROUND SIZE
SHIPPING SIZE
SHIPPING WEIGHT
GLASS FRONT
PLUG LOCATION
LOW
QUANTITY
WATTS
UNIT
120
12.5
1500
1500 watts
750 watts
22 watts
LED
22 watts
1 at 5 watts
60 x 123.5 x 30.2 cm
30.2 x114.9 cm
40.1 x 124.9 cm
64 x 146.3 x 36.8 cm
50 kg
Included
Left Side
SERIES MODEL
BUILT IN
BI-50-DEEP
CORD LENGTH
APPROX. HEATING AREA
193 cm
37 sqm
REV
1
SCALE 1:12
DATE: 11/1/2013
SHEET 1 OF 1
