Repair
List
NUMBER
Parts
MODEL NUMBER
RFS10SW2
MANUFACTURING
P1327709M
COMMERCIAL
MICROWAVE
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
December 15 2006
Page 2
Section: OUTER CASE
Model:
RFS10SW2_P1327709M
12/06
MWA11-2
1
Page 3
Section:
OUTER CASE
No. Part No. Description
1 D7684903 WRAPPER 1
2 M0231717 SCREW , TF 6
3 A3263904 GASKET 2
4 M0229716 SCREW 4
5 M0231717 SCREW , TF 2
6 B8379401 CLIP 1
7 M0231717 SCREW , TF 1
8 A3263907 GASKET - EACH 1
9 M0118705 CLIP, GUIDE 1
10 M0275501 SEALER 1
11 M0249632 SCREW , T F 2
12 59001119 LABEL, RFS10SW 2 1
13 N 12667401 ESCUTCHEON,SIDE 1
14 10169101 FILTER PREFORM 1
15 D7740902 BRACKET 1
16 R9900591 ASSY, TOUCH PANEL 1
17 59001021 HV/LV BD-AMANA PROG 1
- RS2240001 SVC MNL, COMM'L MICRO 1
- 59001023 SHEET, TECH DATA 1
Series Qty
12/06
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
2
Page 4
Section: DOOR
Model:
RFS10SW2_P1327709M
12/06
MWA12-2
3
Page 5
Section:
DOOR
No. Part No. Description
- R0193574 MAGNETIC Y-DRIVE BIT 1
1 M0232218 SCREW ,HI/LO Y DRIVE 10
2 D7784901 INNER DOOR/GLASS ASSY 1
3 D7683729 WELDMENT-INNER DOOR (BLK) 1
- M0229716 SCREW 5
4 C8961811 HINGE-DOOR 1
5 A4539601 POP RIVET 2
6 R0000282 LATCH KIT 1
7 R0131711 ASSY,OUTER DOOR 1
8 N 59001007 HOLE, PLUG 1
9 5051032202 SET SCREW #10 X .25 1
10 12490901 HANDLE, DOOR 1
11 M0208342 SCREW , SET 1
12 M0310305 PLUG, BUTTON (WHT) 1
13 C8893502 SPRING, DOOR LATCH 1
Series Qty
12/06
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
4
Page 6
Section: ELECTRICAL COMPONENTS
Model:
RFS10SW2_P1327709M
12/06
MWA14-2
5
Page 7
Section:

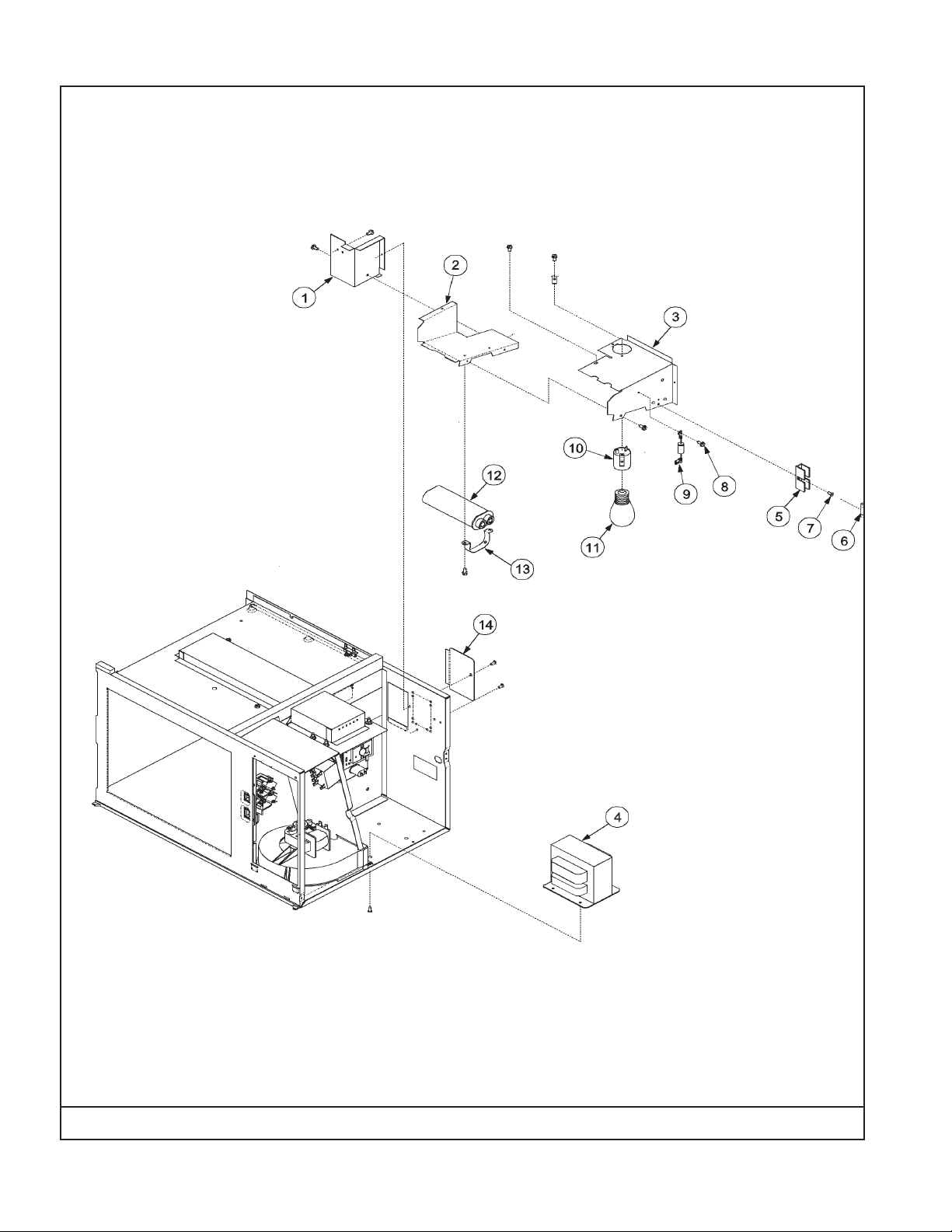

ELECTRICAL COMPONENTS
No. Part No. Description
- M0216515 SCREW 2
1 D7772101 SHIELD, LIGHT 1
2 D7772202 AIR DUCT. BOTTOM 1
- M0216703 SCREW *** 3
3 D7772007 DUCT, TOP AIR 1
4 10426612 TRANSFORMER 1
5 10091101 FUSE HOLDER 1
6 M0805205 FUSE- 30A 1
7 M0216703 SCREW *** 1
8 M0231717 SCREW , TF 1
9 B8383101 RECTIFIER 1
10 B8371401 RECEPTACLE, LAMP 1
11 10664502 LAMP 41W 1
12 D8547928 CAPACITOR-.74 1
13 A4055405 STRAP, CAPACITOR 1
- M0216515 SCREW 2
14 B8370701 COVER, LIGHT 1
- M0216703 SCREW *** 2
Series Qty
12/06
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
6
Page 8
Section: BLOWER AND CAVITY RFS10SW2 & RFS12SW2
Model:
RFS10SW2_P1327709M
12/06
MWA13-2
7
Page 9
Section:
BLOWER AND CAVITY RFS10SW2 & RFS12S
No. Part No. Description
1 B8369901 GASKET, OVEN TOP 1
2 10489401 MAGNETRON 1
- M0234029 SCREW 1
3 B5795305 FUSE, THERMAL 1
4 10172901Q SNUBBER ASSEMBLY 1
5 B5684106 THERMAL PROTECTOR 1
- M0229916 SCREW T.C 2
6 B8367701 WINDOW, OVEN LIGHT 1
7 10098918 POWER CORD 1
8 A3030302 GASKET 1
9 D7685413 BLOWER PARTITION,BLACK E CT 1
10 M0370003 STRAIN RELIEF 1
11 M0231717 SCREW , TF 1
12 12360506 SWITCH, INTERLOCK 1
13 R0157373 KIT, TRIAC ASSY 1
- M0216515 SCREW 2
14 A3030302 GASKET 1
- N M0213123 SCREW 2
15 D7670306 MOTOR, BLOWER 1
16 D7684601 SCROLL, BLOWER 1
17 C8793501 BLOWER W HEEL 1
- M0216703 SCREW *** 4
18 C8942501 BRKT SCROLL 1
19 M0118903 CLIP-BLW R RET 1
20 M0254706 SCREW 2
- M0231617 SCREW ,TF 2
21 12667301 TRIM,OC 1
22 C8960601 FOOT, OUTER CASE 4
23 M0571201 EYELET 4
24 M0213147 SCREW 4
25 B8374901 SUPPORT, SHELF 2
26 C8943002Q ASSY, ANTENNA 1
27 D7685505 CRADLE, ANTENNA 1
- M0275598 SEALER 1
28 D7692501 GREASE SHIELD 1
29 C8936902 TRAY-GLASS FLOOR 1
30 A3030301 GASKET (INCH) 1
- M0231717 SCREW , TF 2
31 C8935903 BRKT,HINGE SUPPORT 1
Series Qty
12/06
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
8
Page 10
Section:
SUPPLEMENTAL INFORMATION
No. Part No. Description
1 16021520 MANUAL, SERVICE COM MICRO 1
2 N 59001619 USE & CARE MANUAL 1
3 16021523 TECH SHEET, COM MICRO 1
Series Qty
12/06
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
9
