Amana GUID045CA30, GUID090CA30, GUID070CA30, GUID070CA40, GUID090CA50 Technical Information

C E R T I F I E D

Technical
Information

40" 80% Gas Furnaces
GUID

• Refer to Service Manual RS6600001 Rev. 1 for installa-

tion, operation, and troubleshooting information.

• All safety information must be followed as provided in

the Service Manual.

• Refer to the appropriate Parts Catalog for part number

information.

Model and Manufacturing
numbers listed on page 3.

G

I

S

E

N

D

C

D

E

E

R

I

F

T

I

&Air Conditionin gHeating

Built Better Than It Has To Be

This manual replaces RT6621004 Rev. 0 April 2000.
REV. 1 - Corrections made to manual, no new models added.

®

This manual is to be used by qualified HVAC technicians only. Amana
does not assume any responsibility for property damage or personal injury
due to improper service procedures performed by an unqualified person.

RT6621004

Revision 1

September 2000

PRODUCT IDENTIFICATION

The model and manufacturing number are used for positive identification of component parts used in manufacturing.
When engineering and manufacturing changes take place where interchangeability of components are affected, the manu­facturing number will change.

It is very important to use the model and manufacturing numbers at all times when requesting service or parts information.

G U I D 045 C A 30

Product Type

G: Gas Furnace

Supply Type

U: Upflow/Horizontal

Furnace Type

I: Induced Draft (80%)

Model Family

D: Air Command 80 SV Category 1

Airflow Capability

30: 3.0 Tons
40: 4.0 Tons
50: 5.0 Tons

Additional Features *

A: Not NOx Certified
X: NOx Models

Design Series

C: Third Design Series
D: Fourth Design Series

Nominal Input

045: 45,000 Btuh
070: 70,000 Btuh
090: 90,000 Btuh
115: 115,000 Btuh
140: 140,000 Btuh

IF REPAIRS ARE ATTEMPTED BY UNQUALIFIED PERSONS, DANGEROUS

WARNING

WARNING

CAUTION

DURES. IF YOU PERFORM SERVICE ON YOUR OWN PRODUCT, YOU ASSUME RESPONSIBILITY FOR
ANY PERSONAL INJURY OR PROPERTY DAMAGE WHICH MAY RESULT.

CONDITIONS (SUCH AS EXPOSURE TO ELECTRICAL SHOCK) MAY RE­SULT. THIS MAY CAUSE SERIOUS INJURY OR DEATH.

AMANA WILL NOT BE RESPONSIBLE FOR ANY INJURY OR PROPERTY
DAMAGE ARISING FROM IMPROPER SERVICE OR SERVICE PROCE-

2 Rev. 1

PRODUCT IDENTIFICATION

The model and manufacturing number are used for positive identification of component parts used in manufacturing.
When engineering and manufacturing changes take place where interchangeability of components are affected, the manu­facturing number will change.

It is very important to use the model and manufacturing numbers at all times when requesting service or parts information.

MODEL M/N

GUID045CA30 P1212401F
GUID070CA30 P1212402F
GUID070CA40 P1212403F
GUID090CA30 P1212404F
GUID090CA50 P1212405F
GUID115CA50 P1212407F

GUID045CX30 P1212501F
GUID070CX30 P1212502F
GUID070CX40 P1212503F
GUID090CX30 P1212504F
GUID090CX50 P1212505F
GUID115CX50 P1212507F

GUID045CX30 P1220501F
GUID070CX30 P1220502F
GUID070CX40 P1220503F
GUID090CX30 P1220504F
GUID090CX50 P1220505F
GUID115CX50 P1220507F

GUID045CA30 P1220601F
GUID070CA30 P1220602F
GUID070CA40 P1220603F
GUID090CA30 P1220604F
GUID090CA50 P1220605F
GUID115CA50 P1220607F

MODEL M/N

GUID045DX30 P1227001F
GUID070DX30 P1227002F
GUID070DX40 P1227003F
GUID090DX50 P1227005F
GUID115DX50 P1227007F
GUID070DX40 P1227009F

GUID045CA30 P1229401F
GUID070CA30 P1229402F
GUID070CA40 P1229403F
GUID090CA30 P1229404F
GUID090CA50 P1229405F
GUID115CA50 P1229407F

GUID045CA30 P1229501F
GUID070CA30 P1229502F
GUID070CA40 P1229503F
GUID090CA30 P1229504F
GUID090CA50 P1229505F
GUID115CA50 P1229507F

GUID045CX30 P1229601F
GUID070CX30 P1229602F
GUID070CX40 P1229603F
GUID090CX30 P1229604F
GUID090CX50 P1229605F
GUID115CX50 P1229607F

GUID045DA30 P1226901F
GUID070DA30 P1226902F
GUID070DA40 P1226903F
GUID090DA30 P1226904F
GUID090DA50 P1226905F
GUID115DA50 P1226907F
GUID090DA50 P1226910F

GUID045CX30 P1229701F
GUID070CX30 P1229702F
GUID070CX40 P1229703F
GUID090CX50 P1229705F

3 Rev. 1

PRODUCT DESIGN

General Operation

This GUID furnace is equipped with an electronic ignition
device to light the burners and an induced draft blower to
exhaust combustion products.

An interlock switch prevents furnace operation if the blower
door is not in place. Keep the blower access doors in place
except for inspection and maintenance.

This furnace is also equipped with a self-diagnosing elec­tronic control module. In the event a furnace component is
not operating properly, the control module LED will flash on
and off in a factory-programmed sequence, depending on
the problem encountered. This light can be viewed through
the observation window in the blower access door. Refer to
the

Troubleshooting Chart

LED codes and

Control

section in the Service Instructions for an explana-

Abnormal Operation - Integrated Ignition

for further explanation of the

tion of the possible problem.
The rated heating capacity of the furnace should be greater

than or equal to the total heat loss of the area to be heated.
The total heat loss should be calculated by an approved
method or in accordance with “ASHRAE Guide” or “Manual
J-Load Calculations” published by the Air Conditioning Con­tractors of America.

*Obtain from: American National Standards Institute 1430
Broadway New York, NY 10018

Location Considerations

• The furnace should be as centralized as is practical
with respect to the air distribution system.

• Do not install the furnace directly on carpeting, tile,
or combustible material other than wood flooring.

• When suspending the furnace from rafters or joists,
use 3/8" threaded rod and 2” x 2” x 3/8” angle as
shown in the Installation and Service Instructions. The
length of the rod will depend on the application and
clearance necessary.

• When installed in a residential garage, the furnace
must be positioned so the burners and ignition source
are located not less than 18 inches (457 mm) above
the floor and protected from physical damage by ve­hicles.

Accessibility Clearances (Minimum)

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

(INCHES)

UPFLOW

FRONT

RIGHT

LEFT 0126

REAR 000

TOP 166

FLUE

FLOOR CCC

1

= 3 inch when us i ng Type B-1 vent is used.

2

= 1 inch when Type B-1 vent is used.

C = If placed on combustible floor, floor MUST be wood ONLY.

1

6

0612

2

6

HORIZONTAL

LEFT

Alcove Alcove

2

6

HORIZONTAL

RIGHT

2

6

36" at front is required for servicing or cleaning.
Note: In all cases accessibility clearance shall take prece-

dence over clearances from the enclosure where accessi­bility clearances are greater. All dimensions are given in
inches.

High Altitude Derate

When this furnace is installed at high altitude, the appropri­ate High Altitude orifice kit must be installed. This is re­quired due to the natural reduction in the density of both the
gas fuel and combustion air as altitude increases. The kit
will provide the proper design certified input rate within the
specified altitude range.

PROPANE AND HIGH ALTITUDE KITS

MODEL

NUMBER

GUID

0 to

6000 ft.

LPTK09

Propane

Conversion Kit

(#55 Orifice)

6001 to

11000 ft.

HANG07

High Altitude

Natural Gas Kit

(#45 Orifice)

6001 to

11000 ft.

HALP09

High Altitude

Propane Gas Kit

(#56 Orifices)

High altitude kits are purchased according to the installa­tion altitude and usage of either natural or propane gas.
Refer to the chart above for a tabular listing of appropriate
altitude ranges and corresponding manufacturer’s high al­titude Natural Gas and Propane Gas kits. For a tabular list­ing of appropriate altitude ranges and corresponding
manufacturer's High Altitude Pressure Switch kits, refer to
either the
this manual or the

Pressure Switch Trip Points & Usage Chart

Accessory Charts

in Service Instruc-

in

tions.

4 Rev. 1

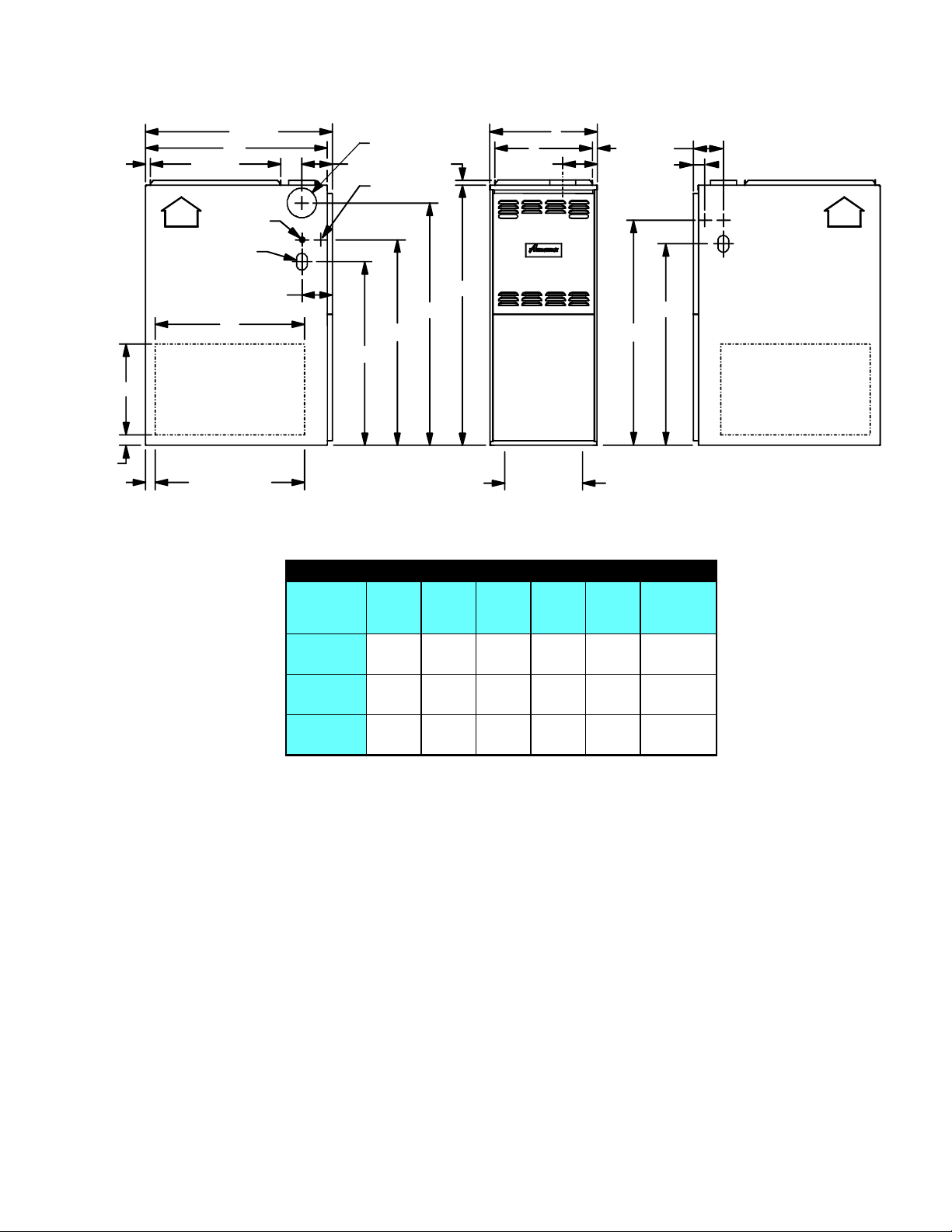

PRODUCT DIMENSIONS

UPFLOW

LEFT SIDE VIEW

3/4

SUPPLY

20 1/8

28 3/4

28

ELECTRICAL

HOLE "L OW

VOLTAGE"

GAS

SUPPLY

HOLE

KNOCK-OUT

FOR HORIZONTAL

4 3/4

ELECTRICAL

HOLE "HIGH

VOLTAGE"

VENTING

3/4

UPFLOW

FRONT VIEW

A

B

C

A Raytheon Co mpany

3/4

UPFLOW

RIGHT SIDE VIEW

4 5/8
1 3/4

SUPPLY

1 5/8

1 5/8

4 5/8

23

14

SIDE
KNOCK-OUT

23

BOTTOM

KNOCK-OUT

31 5/8

28 1/4

37 3/8

40

31

34 5/8

SIDE
KNOCK-OUT

D

BOTTOM

KNOCK-OUT

GUID DIMENSIONS

FURNACE

MODEL

GUID045
GUID070

ABCDE

16-1/2 15 5-1/4 12-5/8 4 4

Minimum

Vent

Diameter

GUID090 20-1/2 19 7-1/4 14-5/8 4 4

GUID115 24-1/2 23 9-1/4 18-5/8 4 5

All dimensions are in inches.

5 Rev. 1

PRODUCT DESIGN

PRESSURE SWITCH TRIP POINTS AND USAGE CHART

MINIMUM

NEGATIVE

MODEL

GUID 10727920

Note: Replacement pressure switch number is listed below High Altitude Pressure Switch Kit number.
Note: All negative pressure readings are in inches of water column (" w.c.).

PRESSURE
WITH FLUE

NOT FIRING

TYPICAL SEA

LEVEL DATA

-0.85

MINIMUM

NEGATIVE
PRESSURE
WITH FLUE

FIRING

TYPICAL SEA

LEVEL DATA

TRIP

PRESSURE SWITCH

POINT

PRESSURE SWITCH TRIP POINTS AND USAGE

0 to 6000 ft. 6000 to 8500 ft. 8500 to 11000 ft.

(Prod.)

LABEL

COLOR

TRIP

POINT

ALTITUDE

HAC1PS11

10727915

T.O.D. PRIMARY LIMIT

Part Number 10728304 10728322 10728325 10728326 10728331 10728332 10728338

Open Setting °F 190 230 170 220 160 150 215

Style 2333333

Sleeve Colors

Yellow Orange Blue Black Tan Green

GUID045**30 1
GUID070**30
GUID070**40

1

1

GUID070**40

(10x8 Blo wer)

GUID090**30
GUID090**50
GUID115**50

1

1*1
1

HIGH

KIT

LABEL

COLOR

LT BLUE-0.60 -0.55 DK BLUE -0.50

TRIP

POINT

-0.41

1 Green

1 Yellow

1

HIGH

ALTITUDE

KIT

HAC1PS12

10727916

LABEL

COLOR

ORANGE

*1 = The GUID090**30 furnaces can also use primary limit part #10728332 (150°F) in pla ce of limit
part #10728331 (160°F).

ROLLOUT LIMIT SWITCHES

Part Number

10123509

or

10123528

10123510

or

10123529

10123511

or

10123530

Open Setting °F 275 300 250

Color

GUID045**30
GUID070**30/40
GUID090**30/50

GUID115**50

PINK GREEN LT PURPLE

1
1
1

1

AUXILIARY LIMIT SWITCHES

10123506

Part Number

or

10123525

Open Setting °F 160

Color Orange

GUID045**30
GUID070**30/40
GUID090**30/50

GUID115**50

1
1
1
1

6 Rev. 1

PRODUCT DESIGN

Coil Matches:

A large array of Amana coils are available for use with the GUID furnaces, in either upflow or horizontal applications. These
coils are available in both cased and uncased models, with or without a TXV expansion device. These 80% furnaces match
up with the existing Amana coils as shown in the chart below.

Btuh

Input

45,000 16 1/2" 1 1/2 - 3

70,000 16 1/2" 2 - 3 1/2

90,000 20 1/2" 2 1/2 - 4

115,000 24 1/2" 3 - 5

Cabinet

Width

Air Flow

(tons)

CAA_F*C

Cased

A-Coils

CCA18FCC
CCA24FCC
CCA30FCC
CCA36FCC
CCA42FCC

CCA30FDC
CCA36FDC
CCA42FDC
CCA48FCC

CCA36FKC
CCA48FDC
CCA54FCC
CCA57FCC
CCA60FCC

CCA_FSC

Uncased

A-Coils

CCA18FSC
CCA24FSC
CCA30FSC
CCA36FSC
CCA42FSC

CCA48FSC CHA42TCC CHA42TSC

CCA54FSC
CCA57FSC
CCA60FSC

CHA_TCC

Cased

TXV A-Coils

CHA18TCC
CHA24TCC
CHA30TCC
CHA36TCC

CHA48TCC
CHA54TCC
CHA57TCC
CHA60TCC

CHA_TSC

Uncased

TXV A-Coils

CHA18TSC
CHA24TSC
CHA30TSC
CHA36TSC

CHA48TSC
CHA54TSC
CHA57TSC
CHA60TSC

CCF_F*C

Horiz.

A-Coils

CCF24FCC
CCF30FCC
CCF36FCC

CCF24FDC
CCF36FDC
CCF42FCC
CCF48FCC

CCF48FDC
CCF60FCC

CHF_TCC

Horiz.

A-Coils

CHF18TCC
CHF24TCC
CHF30TCC

CHF36TCC
CHF42TCC

CHF48TCC

Thermostats:

The following Amana Thermostats are suggested for use with the GUID Furnace Models:

Thermostats

Thermostat Man/Auto Programmable Cool Heat Batt. Powered Batt. Bkup* Shape Color

1213401

1213402

1213408

Man. Changeover Yes
Man. Changeover No

Man. or Auto Changeover Yes

1 1 Yes No Rectangular White
1 1 Yes No Rectangular White
1 1 No Yes Rectangular White

7 Rev. 1

FURNACE SPECIFICATIONS

GUID045CA30

MODEL

Btuh Input (US)
Output (US)
A.F.U.E.
Rated External Static (" w.c.)
Temperature Rise (°F)
Pressure Switch Trip Point (" w.c.)
Blower Wheel (D" x W")
Blower Horsepower
Blower Speeds
Max CFM @ 0.5 E.S.P.
Power Supply
Minimum Circuit Ampacity (MCA)
Maximum Overcu r r ent Device
Transformer (VA)
Heat Anticipator
Primary Limit Setting (°F)
Auxiliary Limit Setting (°F)
Rollout Limit Setting (°F)
Fan Delay On
Off Heating *
Off Cooling
Gas Supply Pressure (Natura l /Propane) ("w.c.)
Manifold Pressure (Natural/Propane) ("w.c.)
Orifice Size (Natural/Propane)
Number of Burners
Vent Connector Diameter (inches)

Shipping Weight (lbs.)
* Off Heating - This fan delay timing is adjustable (60, 90, 120 or 180 seconds), 90 seconds as shipped.

*150 = The GUID090**30 furnaces were ch anged from primary limit part #10728331 (160°F) to limit part #10728332 (150°F) per ECN60850 effective June 6, 2000.

GUID045CX30
GUID045DA30
GUID045DX30

46,000 69,000 69,000 92,000 92,000 115,000
36,800 55,200 55,200 73,600 73,600 92,000

80% 80% 80% 80% 80% 80%

.10 - .50 .12 - .50 .12 - .50 .15 - .50 .15 - .50 .20 - .50

35 - 65 35 - 65 35 - 65 40 - 70 40 - 70 40 - 70

-0.55 -0.55 -0.55 -0.55 -0.55 -0.55
9 x 8 9 x 8 10 x 6 10 x 8 10 x 8 10 x 9

1/3 1/3 1/2 1/2 3/4 3/4

444444

1200 1290 1529 1380 1975 1985

115-60-1 115-60-1 115-60-1 115-60-1 115-60-1 115-60-1

8.6 8.5 10.4 8.2 14.6 13.1

15 15 15 15 15 15
40 40 40 40 40 40

0.7 0.7 0.7 0.7 0.7 0.7
230 220 170 *150 160 190
160 160 160 160 160 160
250 300 300 300 300 275

30 secs. 30 secs. 30 secs. 30 secs. 30 secs. 30 secs.
90 secs. 90 secs. 90 secs. 90 secs. 90 secs. 90 secs.
45 secs. 45 secs. 45 secs. 45 secs. 45 secs. 45 secs.

11-Jul 11-Jul 11-Jul 11-Jul 11-Jul 11-Jul

3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10 3.5 / 10

#43 / #55 #43 / #55 #43 / #55 #43 / #55 #43 / #55 #43 / #55

233445
444444

140 151 152 169 178 194

GUID070CA30
GUID070CX30
GUID070DA30
GUID070DX30

GUID070CA40
GUID070CX40
GUID070DA40
GUID070DX40

GUID090CA30
GUID090CX30
GUID090DA30

GUID090CA50

GUID090CX50

GUID090DA50

GUID090DX50

GUID115CA50
GUID115CX50
GUID115DA50
GUID115DX50

1. These furnaces are manufactured for natural gas operation. Optional kits are available for conversion to propane opera­tion.

2. For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not
be derated, orifice changes should only be made if necessary for altitude.

3. The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufacturers
method or in accordance with the "A.S.H.R.A.E. GUIDE" or "MANUAL J-LOAD CALCULATIONS" published by the AIR
CONDITIONING CONTRACTORS OF AMERICA. The total heat loss calculated should be equal to or less than the
heating capacity. Output based on D.O.E. test procedures, steady state efficiency times output.

4. Minimum Circuit Ampacity calculated as: (1.25 x Circulator Blower Amps) + I.D. Blower Amps.

8 Rev. 1

FURNACE SPECIFICATIONS

MODEL

Btuh Input (US)
Output (US)
A.F.U.E.
Rated External Static (" w.c.)
Temperature Rise (°F)
Pressure Switch Trip Point (" w.c.)
Blower Wheel (D" x W")
Blower Horsepower
Blower Speeds
Max CFM @ 0.5 E.S.P.
Power Supply
Minimum Circuit Ampacity (MCA)
Maximum Overcurrent Device
Transformer (VA)
Heat Anticipator
Primary Limit Setting (°F)
Auxiliary Limit Setting (°F)
Rollout Limit Setting (°F)
Fan Delay On
Off Heating *
Off Cooling
Gas Supply Pressure (Natural/Propane) (" w.c.)
Manifold Pressure (Natural/Propane) (" w.c.)
Orifice Size (Natural/Propane)
Number of Burners
Vent Connector Diameter (inches)

Shipping Weight (lbs.)
* Off Heating - This fan delay timing is adjustable (60, 90, 120 or 180 seconds), 90 seconds as shipped.

** Note: The two models above use 10x8 blower assembly instead of 10x6 to achieve a full 4 tons of airflow.

GUID070DA40 GUID070DX40

69,000 69,000
55,200 55,200

80% 80%

.12 - .50 .12 - .50

35 - 65 35 - 65

-0.55 -0.55

10 x 8 10 x 8

1/2 1/2

44

1529 1529

115-60-1 115-60-1

9.9 9.9
15 15
40 40

0.7 0.7
215 215
160 160
250 250

30 secs. 30 secs.
90 secs. 90 secs.
45 secs. 45 secs.

7 / 11 7 / 11

3.5 / 10 3.5 / 10

#43 / #55 #43 / #55

33
44

152 152

1. These furnaces are manufactured for natural gas operation. Optional kits are available for conversion to propane opera­tion.

2. For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not
be derated, orifice changes should only be made if necessary for altitude.

3. The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufacturers
method or in accordance with the "A.S.H.R.A.E. GUIDE" or "MANUAL J-LOAD CALCULATIONS" published by the AIR
CONDITIONING CONTRACTORS OF AMERICA. The total heat loss calculated should be equal to or less than the
heating capacity. Output based on D.O.E. test procedures, steady state efficiency times output.

4. Minimum Circuit Ampacity calculated as: (1.25 x Circulator Blower Amps) + I.D. Blower Amps.

9 Rev. 1

BLOWER PERFORMANCE SPECIFICATIONS

GUID Blower Performance

(CFM & Temperature Rise vs. External Static Pressure)

Model

Heating Speed

(

As Shipped

GUID045**30

(Low) MED-LO 2.0 935 36 910 37 885 39 845 40 790 43 710 48

GUID070**30

(Med-Lo) MED-LO 2.5 1090 47 1080 47 1055 48 1020 50 970 52 905 56

GUID070**40

(Low) MED-LO 3.0 1235 41 1200 42 1180 43 1140 44 1115 45 1050 48

GUID090**30

(High) MED-LO 2.0 920 --- 920 --- 900 --- 890 --- 850 --- 800 ---

GUID090**50

(Med-Lo) MED-LO 3.5 1320 52 1315 52 1315 52 1315 52 1280 53 1240 55

GUID115**50

(Med) MED-LO 4.0 1875 45 1840 46 1800 47 1735 49 1685 50 1600 53

MOTOR
SPEED

)

HIGH 3.0 1460 --- 1400 --- 1345 --- 1280 --- 1200 --- 1110 ---

MED 2.5 1200 --- 1150 --- 1100 --- 1050 --- 980 35 900 38

LOW 1.5 700 49 685 50 665 51 635 54 575 59 425 ---

HIGH 3.0 1555 - 1505 --- 1440 35 1365 37 1290 39 1180 43

MED 3.0 1325 38 1305 39 1250 41 1200 42 1140 44 1060 48

LOW 2.0 760 --- 750 --- 750 --- 735 --- 700 --- 645 ---

HIGH 3.5 1695 --- 1625 --- 1580 --- 1520 --- 1450 35 1365 37

MED 3.0 1485---145035140036135038129539123541

LOW 2.5 1095 46 1070 47 1050 48 1025 49 975 52 950 53

HIGH 3.5 163042156044155044146547138049127553

MED 3.0 1360 50 1325 51 1290 53 1215 56 1155 59 1070 64

LOW 1.5 770 --- 750 --- 740 --- 730 --- 690 --- 660 ---

HIGH 5.0 2250 --- 2185 --- 2120 --- 2030 --- 1975 --- 1885 ---

MED 4.0 1775 --- 1750 --- 1735 --- 1690 40 1650 41 1600 43

LOW 3.0 1180 58 1180 58 1175 58 1170 58 1140 60 1120 61

HIGH 5.0 233036224538216539206541198543188545

MED 5.0 2120 40 2070 41 2020 42 1940 44 1850 46 1775 48

LOW 3.0 1290 --- 1275 --- 1250 --- 1235 --- 1210 --- 1170 ---

TONS AC

@ 0.5"

ESP CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise

0.1 0.2 0.3 0.4

External St atic Pressure (Inches Water Column)

0.5 0.6

1. CFM in chart is without filters(s). Filters do not ship with this furnace, but must be provided by the installer. If the
furnace requires two return filters, this chart assumes both filters are installed.

2. All furnaces ship as high speed cooling. Installer must adjust blower cooling speed as needed.

3. For most jobs, about 400 CFM per ton when cooling is desirable.

4. INSTALLATION IS TO BE ADJUSTED TO OBTAIN TEMPERATURE RISE WITHIN THE RANGE SPECIFIED ON
THE RATING PLATE.

5. The chart is for information only. For satisfactory operation, external static pressure must not exceed value shown
on rating plate. The shaded area indicates ranges in excess of maximum external static pressure allowed when
heating.

6 The dashed (---) areas indicate a temperature rise not recommended for this model.

7. The above chart is for U.S. furnaces installed at 0-2000 feet. At higher altitudes, a properly derated unit will have
approximately the same temperature rise at a particular CFM, while the ESP at that CFM will be lower.

10 Rev. 1

BLOWER PERFORMANCE SPECIFICATIONS

(

)

GUID070**40 Blower Performance

CFM & Temperature Rise vs. External Static Pressure

Model

MOTOR

Heating Speed

As Shipped

(

GUID070**40

(Med-Lo) MED-LO 2.5 1113 46 1096 47 1078 47 1067 48 1018 50 967

Note: The models listed in the above airflow table use 10x8 blower assembly instead of 10x6 to achieve a full 4 tons of airflow. Listed below are the model
numbers along with the manufacturing numbers of the two units using the 10x8 blower assembly.

GUID070DA40 P1226909F
GUID070DX40 P1227009F

SPEED

)

HIGH 4.0 1799 --- 1742 --- 1694 --- 1622 --- 1529 --- 1444

MED 3.5 1720 --- 1590 --- 1542 --- 1483 --- 1404 36 1330

LOW 2 967 53 954 54 941 54 913 56 885 58 826

TONS AC

@ 0.5" 0.1 0.2 0.3 0.4 0.5 0.6

ESP CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM

External Static Pressure, Inches Water Column

1. CFM in chart is without filters(s). Filters do not ship with this furnace, but must be provided by the installer. If the
furnace requires two return filters, this chart assumes both filters are installed.

2. All furnaces ship as high speed cooling. Installer must adjust blower cooling speed as needed.

3. For most jobs, about 400 CFM per ton when cooling is desirable.

4. INSTALLATION IS TO BE ADJUSTED TO OBTAIN TEMPERATURE RISE WITHIN THE RANGE SPECIFIED ON
THE RATING PLATE.

5. The chart is for information only. For satisfactory operation, external static pressure must not exceed value shown
on rating plate. The shaded area indicates ranges in excess of maximum external static pressure allowed when
heating.

6 The dashed (---) areas indicate a temperature rise not recommended for this model.

7. The above chart is for U.S. furnaces installed at 0-2000 feet. At higher altitudes, a properly derated unit will have
approximately the same temperature rise at a particular CFM, while the ESP at that CFM will be lower.

11 Rev. 1

12 Rev. 1

BLOWER PERFORMANCE SPECIFICATIONS

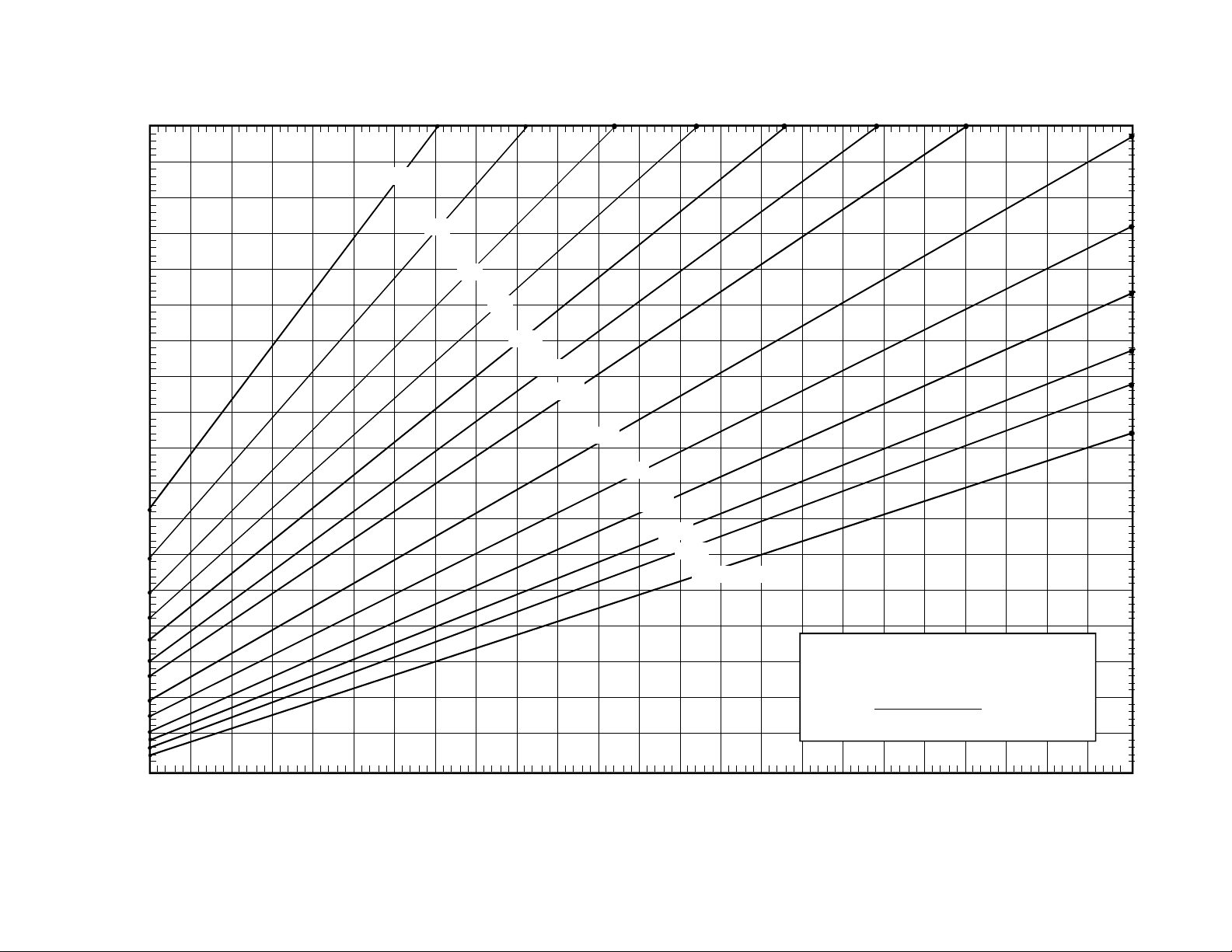

BTU OUTPUT vs TEMPERATURE RISE CHART

100

600 CFM

90

700

TEMPERATURE RISE

80

70

60

50

40

30

20

800

900

1000

1100

1200

1400

1600

1800

2000

2200

2400 CFM

FORMULAS

BTU OUTPUT = CFM x 1.08 x RISE

RISE =

BTU OUTPUT

1.08

÷ CFM

10

30 40 50 60 70 80 90 110 120

100

OUTPUT BTU/HR x 1000

130 140 150

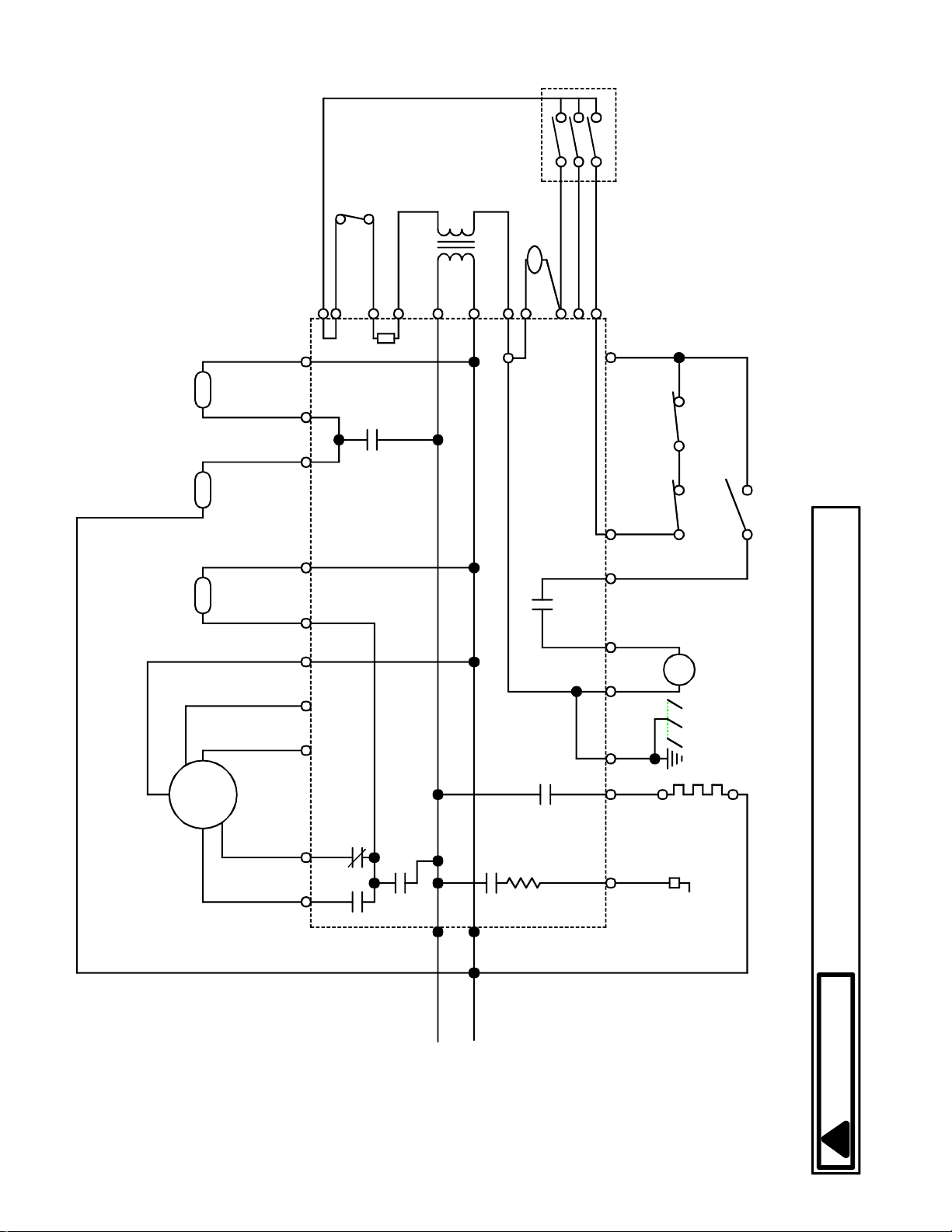

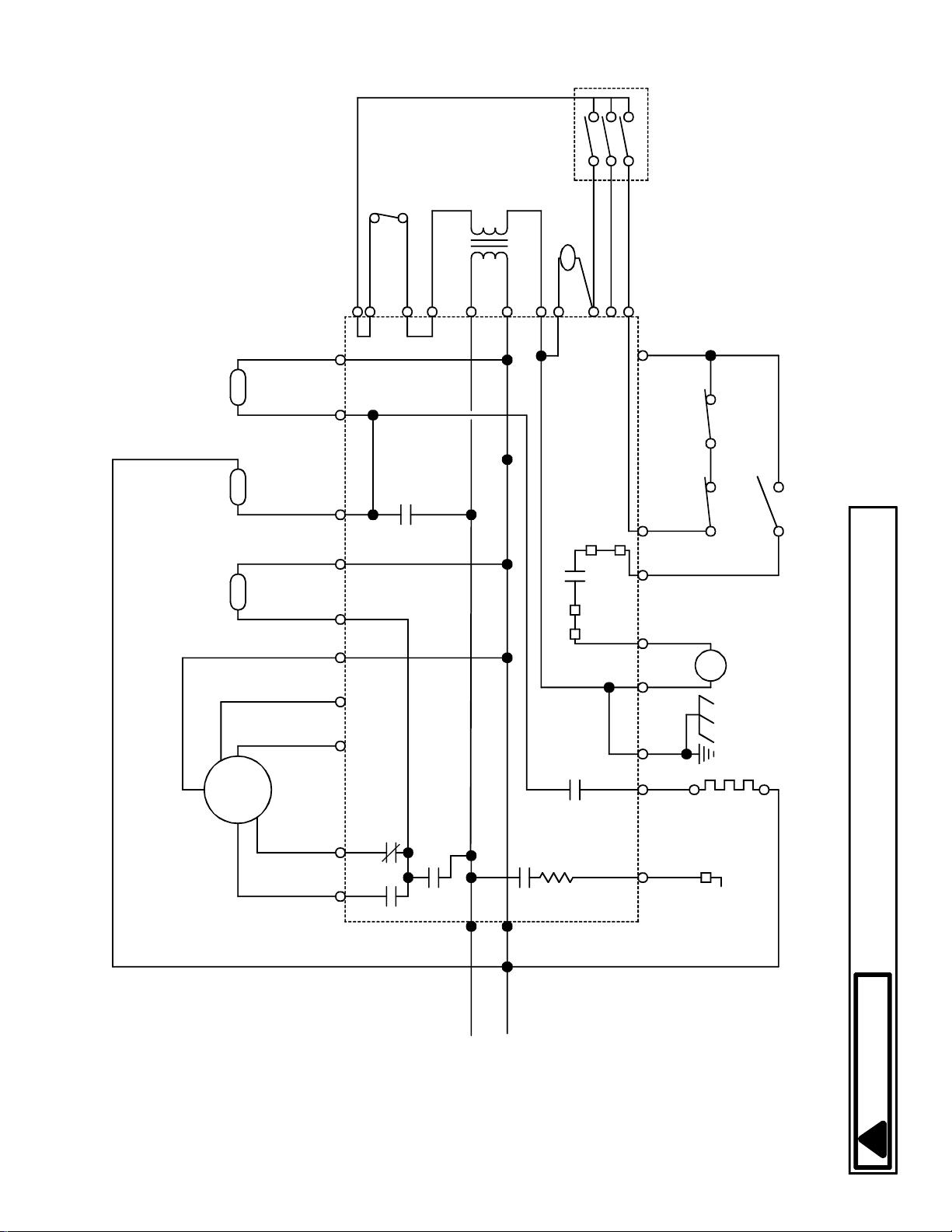

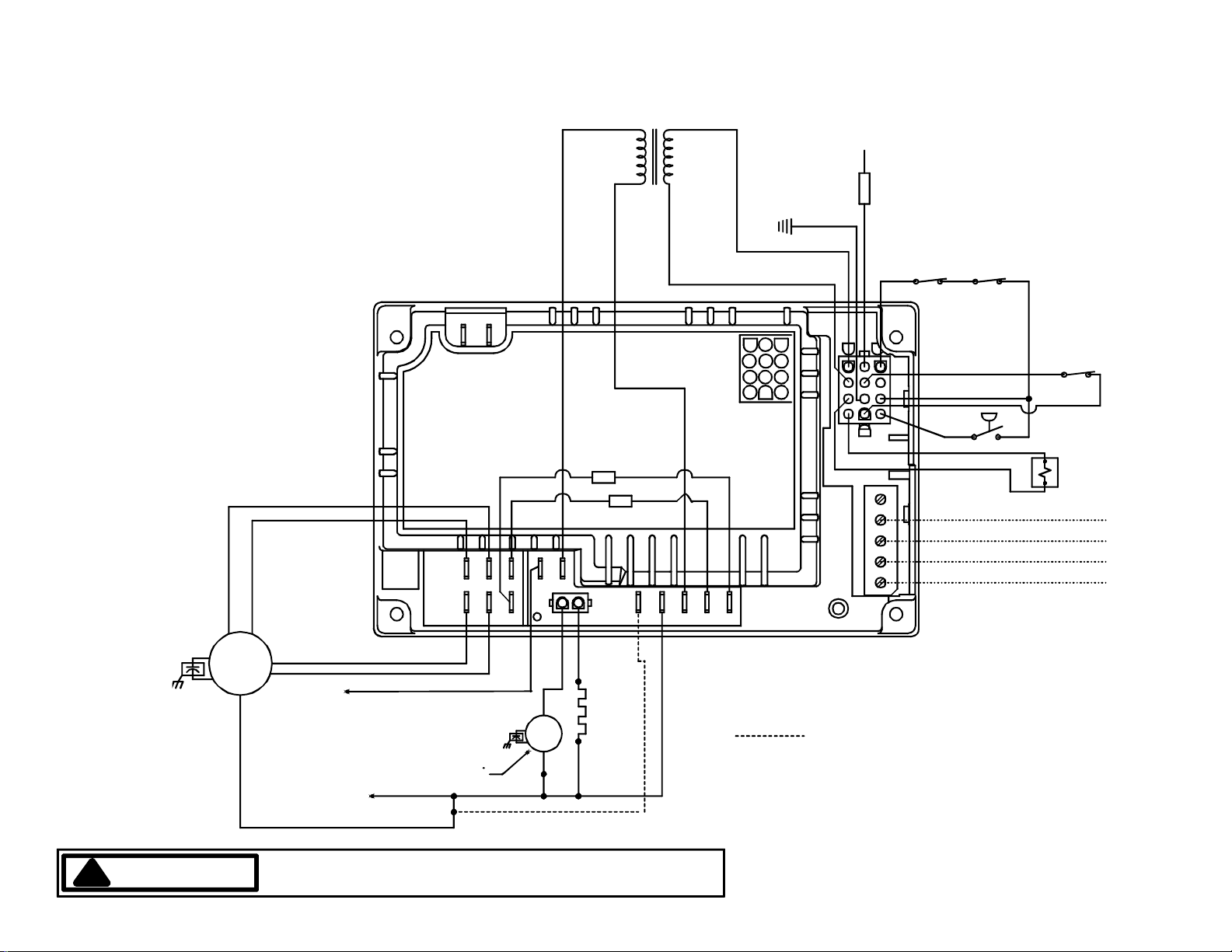

THERMOSTAT

Y

CONNECTIONS

W
R
G
C

TERMINAL ORDER REARRANGED FOR CLARITY

E

E

H

H

L

A

A

U

U

I

C

C

M

M

N
E

N

H

N

H

H

E

O

E

O

O

U

T

U

T

T

GUID (See specific models above)

TRANS­FORMER

PS

CAP

C

NO

SWITCH

L1

CONTROL

X

X

F

F

M

M

R

R

N

H

EUTRTHPSMVM

O
T

120 V

24 V

NO

C

NC

GV

DOOR

WARNING:DISCONNECT POWER BEFORE
SERVICING.WIRING TO UNIT MUST BE
PROPERLY POLARIZED AN D GROUNDED.

H
L
I

PRIMARY

RL

ACB

GND

** *

H
L
O

A
U
X

L
I
M
I
T

L
I
M
I
T

5

V

H

C

E

O

A

O

T

L

IGNITOR

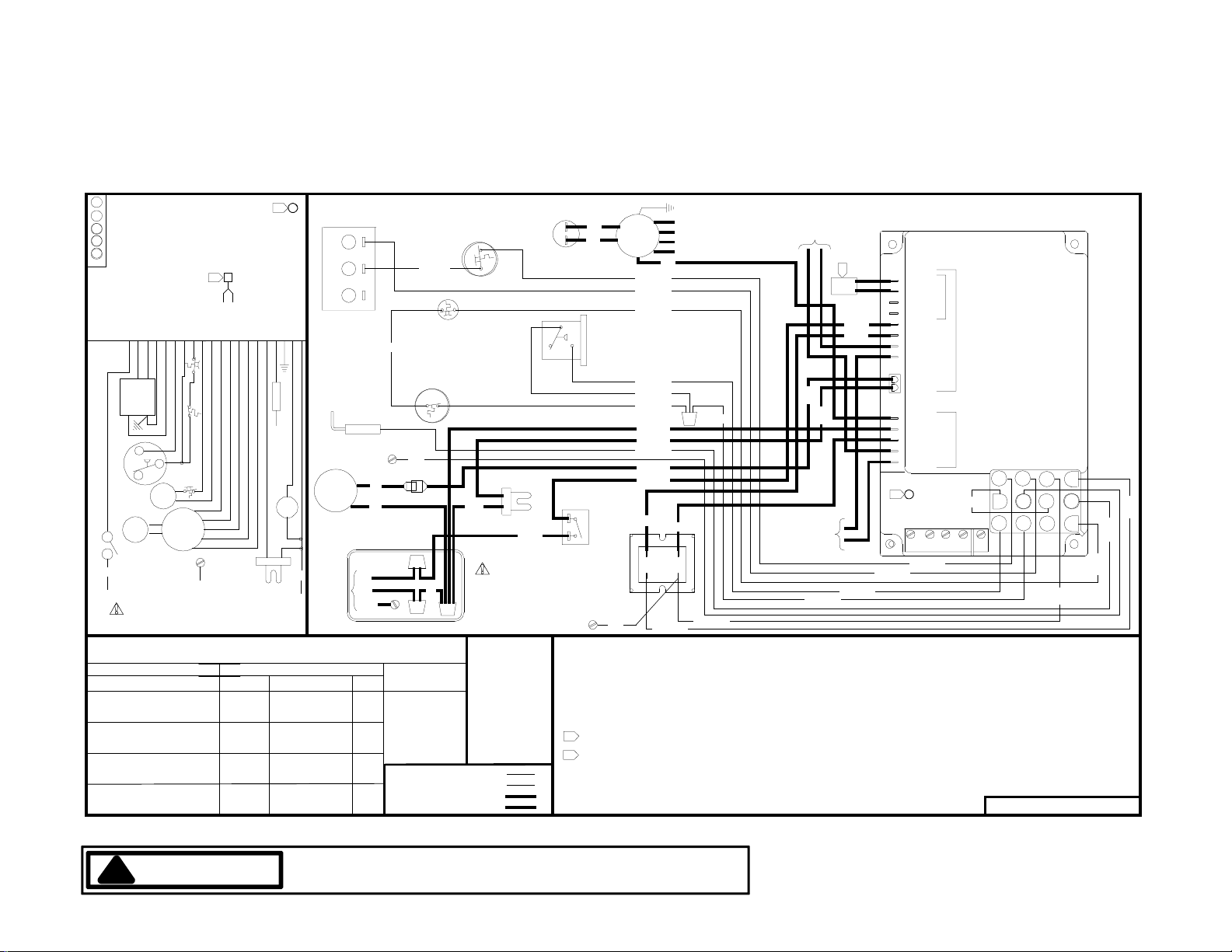

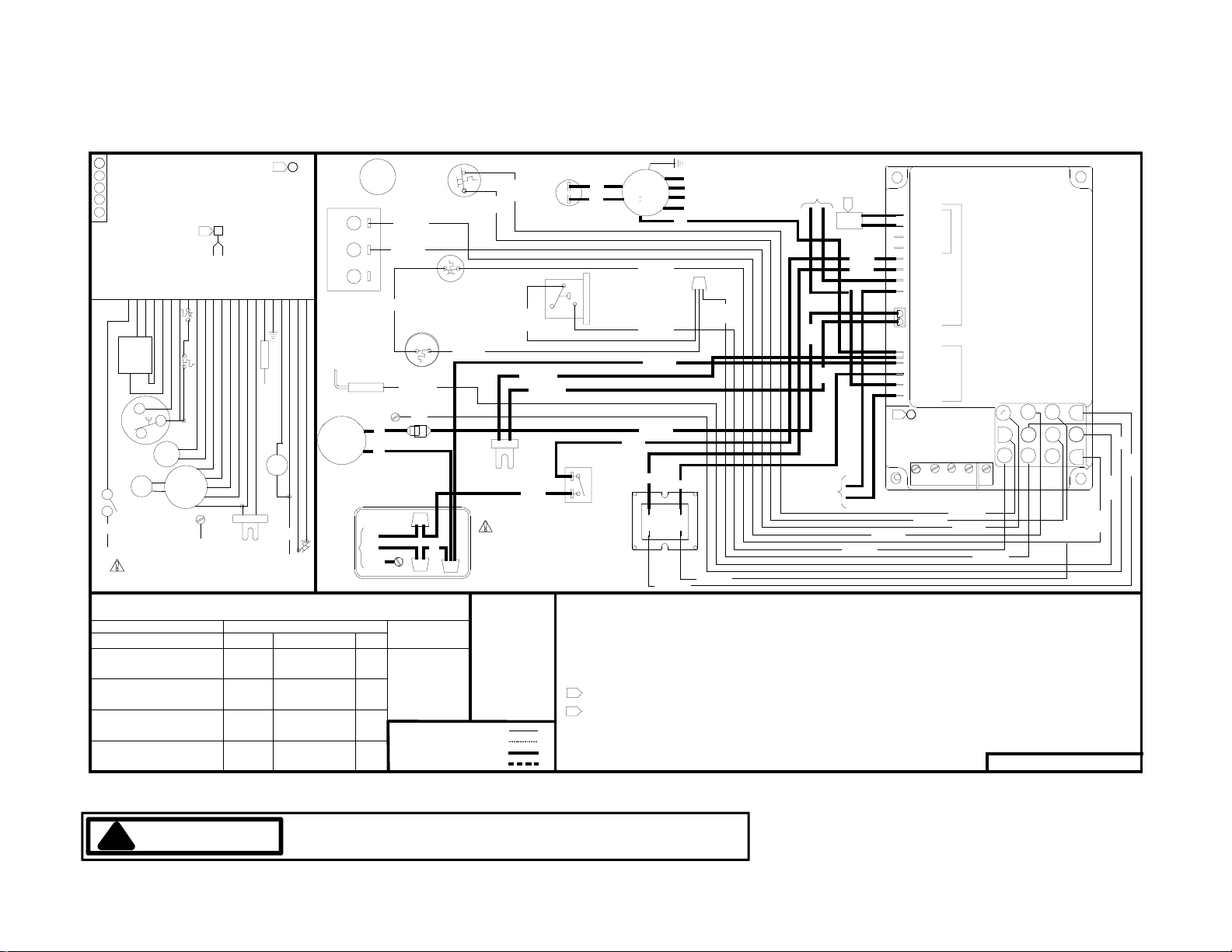

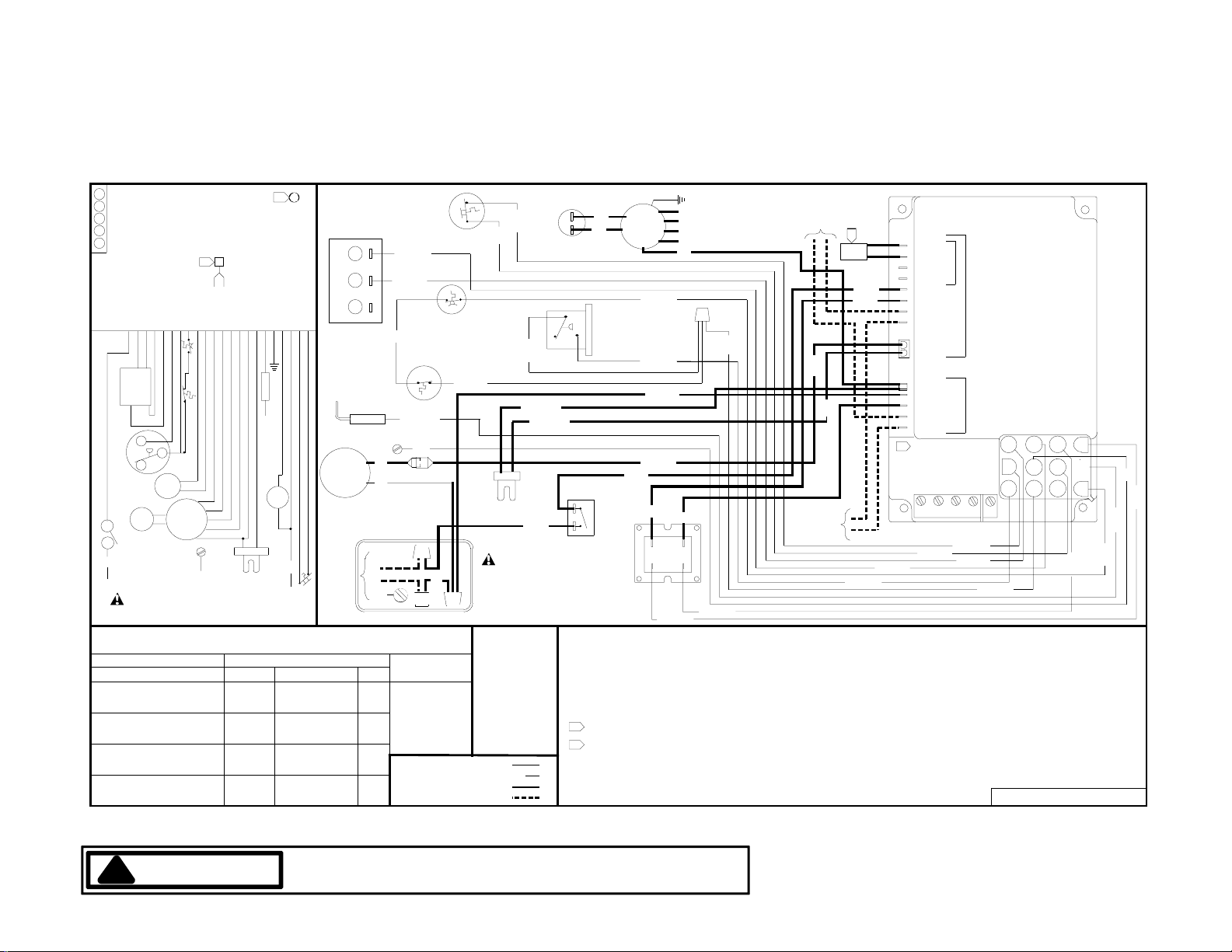

FACTORY WIRED BLOWER MOTOR TO CONTROL CONNECTIONS

FURNACE MODEL

MANUFA CTURER'S

*

VARIABLE LETTER

GUI*,G CI*: 045*30,
070*40

GUI*,G CI*: 070*30,
090*50

GUI*,GCI*: 115*50 BU-23 4MED

GUI*,G CI*: 090*30,
115*40,140*50

HEATING BLOWER SPEED

*

SPEED

13 Rev. 1

P

P

A

A

R

R

K

K

HI

6

C
I
R
R

I

I

N

G

N

G

EUF

N

D

N

P

D

S

F

E

L

N

A

S

M

O

E

R

CB

MOTOR TO "HEAT"

GAS VALVE

(GV)

M

1

C

P

COMBUSTION

BLOWER

(CB)

115V

FIELD

CONNECT

2

3

FLAME
SENSOR

MOTOR

SPEEDS

L
I
N
E

N
E
U

N

RD-24LOW 4

OR-29MED LO W 4

BK-26 4

VT-14

PRIMARY LIMIT

BK

WH

L1
N

GND

ELECTRICAL BOX

COOLING

**

BLOWER SPEED

SEE
INSTALLATION
INSTRUCTIONS
TO DETERMINE
PROPER
COOLING
BLOWER SPEED.

LOW VOLTAGE FIELD

HI VOLTAGE FIELD

BR-27

AUX LIMIT
CONTROL

CONTROL

LIMIT

GN

WH

PRIMARY
ROLLOUT
LIMIT (RL)

WH-

23

IGNITOR

WARNING:DISCONNECT POWER
BEFORE SERVICING .WIRING TO
UNIT MUST BE PROPERLY
POLARIZED AND GROUNDED.

COLOR CODE
YL YELLOW
OR ORANGE
VT VIOLET
GN GREEN
BK BLACK
BR BROWN
WH WHITE
BU BLUE
GY GRAY
RD RED

LOW VOLTAGE

HI VOLTAGE

CAPACITOR

(CAP)

COM

NC

NO

BK-3

DOOR SWITCH (CLOSED
WHEN DOOR IN PLACE)

IMPORTANT:

READ BEFORE OPERATI NG OR SERVICING THIS UNIT.

1. SET HEAT ANTICIPAT OR ON ROOM THERMOSTAT AT 0.7 AMPS.

2. MANUFACTURER' S SPECIFIED REPLACEMENT PAR TS MUST BE USED WHEN SERVICING

3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE FURNACE MUST BE
REPLACED, IT MUST BE REPLACED WITH WIRING MATERIAL HAVIN G A TE MPE RATURE RATING OF AT LEAST
105°C. USE COPPE R CONDUCTORS ONLY.

4. UNUSED BLOWER MOTO R LEADS MUST BE PLACED ON "PARK" TERM IN ALS OF CONTROL OR TAPED.

5 IF HEATING AND C O OLING BLOWER SPEEDS ARE NOT THE SAME DISCARD JUM PE R BEFORE CONNECTING

BLOWER LEADS.
6 DIAGNOSTIC LIGHT:STEADY=REPLACE CONTROL;1 FLASH=LOCKOUT;2 FLASHES=PS STUCK CLOSE;
3 FLASHES=PS STUCK OPEN;4 FLASHES=OPEN HIGH LIMIT SWI TC H; 5 FL ASHES=RED WIRE ON CONTROL
CONNECTOR OPEN

BR

CIRCUL.

BR

PRESSURE
SWITCH (PS)

GN

AIR

BLOWER

(ACB)

BR-21
GY-47

VT-20

YL-11
OR-16
BU-15

WH-33
RD-22
BU-36

VT-55

BK-6

BK-1

TRANSFORMER

#26 BK (HI)
#23 BU (MED)
#29 OR (MED LOW)
#24 RD (LOW)

WH

WH-2

LINE

LOAD

OR-3

BU-25

GY-25

115V FIELD

CONNECT
ELECTRONIC
AIR CLEANER

VT

-55
RD

-22

115V FIELD

CONNECT

HUMIDIFIER

BU-25

5

YL-11

BK-6
BK-1

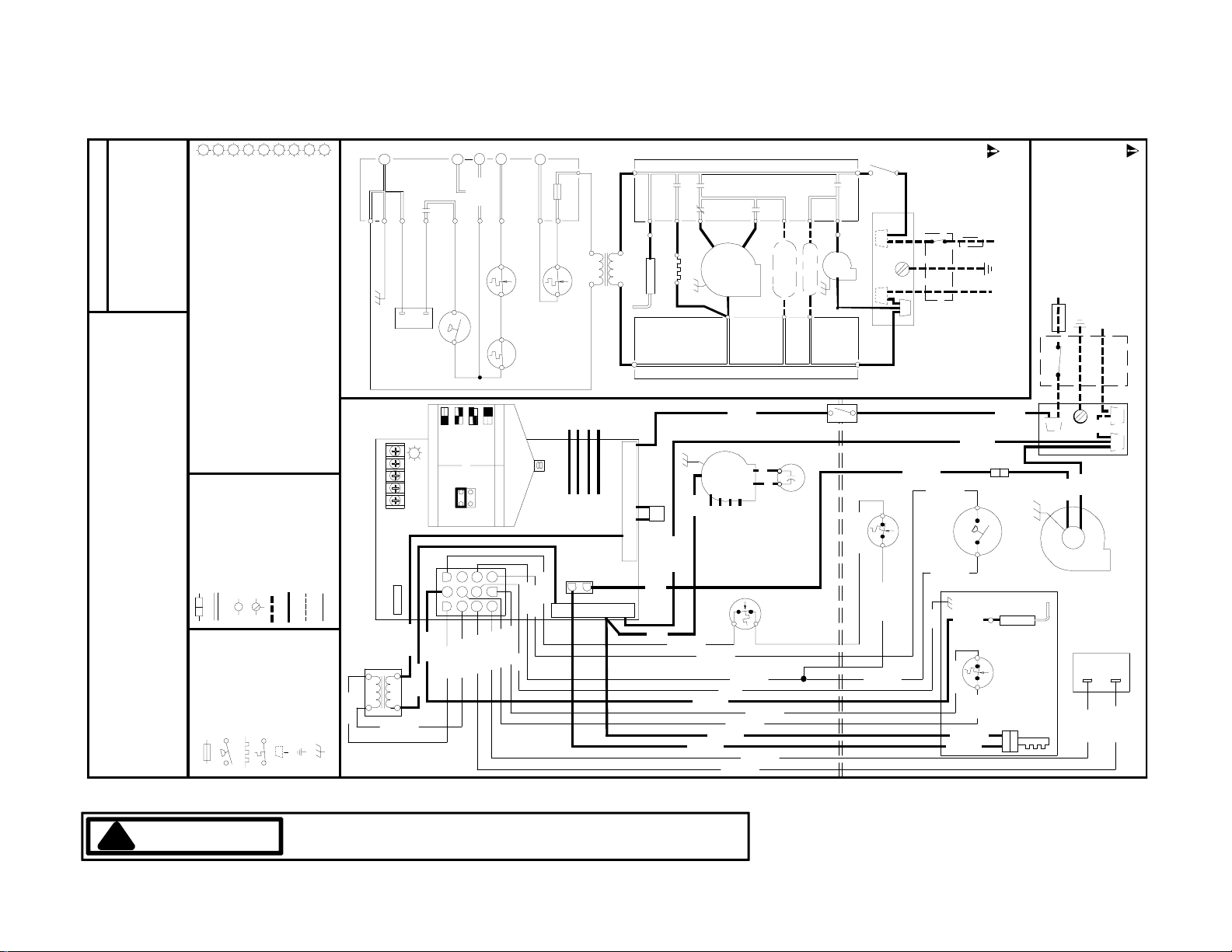

WIRING DIAGRAMS

**
*

6

GY-47

CIRCULATO R BLO WE R

COO

L

HEA

T

PAR

K

PAR

K

LIN

E

XFM

R

EAC
HUM

IND
IGN

CIR
LIN

E

XFM

R

EAC
HUM

THERMOSTAT

CONNECTIONS

WY

RGC

BR-21

HOT 120VAC

CONTROL

NEUTRAL 120VAC

PSRO2MV

12

RD-44

11 8 5 2

11072901 REV. 0

MV GND HLI

TH FP HLO

RO1TR

369

OR

14710

GY

-25

-3

BU

-36

VT

-20

WARNING

!

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,
OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

14 Rev. 1

THERMOSTAT

Y

CONNECTIONS

W
R
G
C

TERMINAL ORDER REARRANGED FOR CLARITY

L

E

H

H

E

I

U

U

A

A

N

M

M

C

C

E
H

N

H

N

H

O

E

O

E

O

T

U

T

U

T

GUID (See specific models above)

120 V

TRANS-

FORMER

24 V

PS

C

NO

DOOR

SWITCH

L1

WARNING:DISCONNECT POWER BEFORE
SERVICING.WIRING TO UNIT MUST BE
PROPERLY POLARIZED AND GROUNDED.

FACTORY WIRED BLOWER MOTOR TO CONTROL CONNECTIONS

FURNACE MODEL

MANUFACTURER'S

*

VARIABLE LETTER

GUI*,GCI*: 045*30,
070*40

GUI*,GCI*: 070*30,
090*50

GUI*,GCI*: 115*50 BU-23 4MED

GUI*,GCI*: 090*30,
115*40,140*50

X
F
M
R

H
O
T

CAP

NO

NC

X
F
M
R

N

T

EUTHP

R

C

S

A
U
X

L
I
M
I
T

GV

CONTROL

**

H

H

LOMVM

L
I

L
I
M
I
T

ACB

GND

5

*

P

H

C

A

E

O

R

A

O

K

T

L

V

6

C

L

I

I

R

N

I

N

GNF

E
U

F
L
A
M
E

HI

E

R

G

N

I

0

N

E

N

1

D

P

U

D

S
E
N
S
O
R

CB

N

PRIMARY

RL

MOTOR TO "HEAT"

R
0
2

COMBUSTION

CONNECT

RD-24LOW 4

OR-29MED LOW 4

BK-26 4

P
A
R
K

IGNITOR

HEATING BLOWER SPEED

*

SPEED

GAS VA LVE

M

C

P

BLOWER

(CB)

115V

FIELD

(GV)

1

2

3

FLAME
SENSOR

BK

WH

L1
N

GND

ELECTRICAL BOX

MOTOR

SPEED S

PRIMARY
ROLLOUT
LIMIT (RL)

GY-47

BR-21

VT-14

PRIMARY LIMIT

CONTROL

LIMIT

BU-36

GN

**

COOLING
BLOWER SPEED

SEE
INSTALLATION
INSTRUCTIONS
TO DETERMINE
PROPER
COOLING
BLOWER SPEED.

LOW VOLTAGE FIELD

HI VOLTAGE FIELD

AUX LIMIT
CONTROL

BU-15

WH

LOW VOLTAGE

HI VOLTAGE

RD­44

RD­44

IGNITOR

WARNING:DISCONNECT POWER
BEFORE SERVICING.WIRIN G TO
UNIT MUST BE PROPERLY
POLA RI Z ED AN D GRO U N DED .

COLOR CODE
YL YELLOW
OR ORANGE
VT VIOLET
GN GREEN
BK BLACK
BR BROWN
WH WHITE
BU BLUE
GY GRAY
RD RED

CAPACITOR

(CAP)

COM

NC

OR-

DOOR SWITCH (CLOSED
WHEN DOOR IN PLACE)

NO

16

WH-23

RD-22

BK-3

IMPORTANT:

READ BEFORE OPERATING OR SERVICING THIS UNIT.

1. SET HEAT ANTICIPATOR ON ROOM THERMOS T AT AT 0.7 AMPS.

2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED WHEN SERVICING.

3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE FURN ACE MUS T BE
REPLACED, IT MUST BE REPLACED WITH WIRING MATERIAL HAVIN G A TEMPE RATURE RATING OF AT LEAST
105°C. USE COPPER CONDUCTORS ONLY.

4. UNUSED BLOWER MOTOR LEADS MUST BE PLACED ON "PARK" TERMINALS OF CONTROL OR TAPED.
5 IF HEATING AND COOLING BLOWER SPEEDS ARE NOT THE SAM E DIS CARD JUM PER BEFORE CONNECTING
BLOWER LEADS.
6 DIAGNOSTIC LIGHT:STEADY=R EPLACE CONTROL;1 FLASH=LOCKOUT;2 FLASHES=PS STUCK CLOSED;
3 FLASHES=PS STUCK OPEN;4 FLASHES=OPEN HIGH LIMIT SWI TCH; 5 FLASH E S=OP EN ROLLOUT CONTROL,
CONTINUOUS FLASHING=FLAME-NO CAL L F OR HEAT .

BR
BR

PRESSURE
SWITCH (PS)

AIR
CIRCUL.

BLOWER

(ACB)

BK-6

VT-20

YL-11

WH-33

VT-55

BK-1

LINE

TRANSFORMER

LOAD

OR-3

#26 BK (HI)
#23 BU (MED)
#29 OR (MED LOW)
#24 RD (LOW)

WH

WH-2

GY-25

BU­25

115V FIELD

CONNECT
ELECTRONIC
AIR CLEANER

VT

-55

RD

-22

115V FIELD

CONNECT

HUMIDIFIER

5

BK-6
BK-1

YL-11

**
*

GY-47

L
T
K
K
E
R

E
R

6

THERMOSTAT

CONNECTIONS

RD-44

COO
HEA
PAR
PAR
LIN
XFM
EAC
HUM

IND
IGN

CIR
LIN
XFM
EAC
HUM

RGC

WY

CIRCULATOR BLOWER

HOT 120VAC

CONTROL

NEUTRAL 120VAC

12

11 8

RD-44
BR-21

BU-25

11094601 REV.03

WIRING DIAGRAMS

MV GND HLI

PSRO2MV

710

TH FP HLO

RO1TR

69

3

2

5

4

GY

-25

GN

1

OR

-3

BU

-36

VT

-20

WARNING

!

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,
OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

WIRING DIAGRAMS

THERMOSTAT

Y

CONNECTIONS

W
R
G
C

TERMINAL ORDER REARRANGED FOR CLARITY

L

H

H

E

E

I

U

U

A

A

N

M

M

C

C

E
H

N

H

N

H

O

E

O

E

O

T

U

T

U

T

GUID (See specific models above)

NO

L1

C

120 V

TRANS-

FORMER

24 V

PS

DOOR

SWITCH

CONTROL

X

X

F

F

M

M

R

R

H

N

H

T

L

P

T

E

O

R

I

S

H

U

T

A
U
X

L
I

M

I

T

NO

C

NC

GV

CAP ACB

GND

WARNING:DISCONNECT POWER BEFORE
SERVICING.WIRING TO UNIT MUST BE
PROPERLY POLARIZED AND GROUNDED.

5

* *

*

P

H

C

A

E

O

H

R

A

O

M

M

L

K

T

L

V

V

O

L
I

M

I
T

C
I
R

P

N

A

E

R

U

K

IGNITOR

6

L
I
N
E

R

G

I

N

I

0

N

F

G

E

N

1

D

P

N

U

D

F

S

L

E

A

N

M

S

E

O

R

CB

N

PRIMARY

RL

FACTORY WIRED BLOWER MOTOR TO CONTROL CONNECTIONS

FURNACE MODEL

MANUFACTURER'S

*

VARIABLE LETTER

GUI*,GCI*: 045*30,

070*40

GCI*:
GUI*,GCI*: 070*30,

090*50
070*40

GUI*:

GUI*,GCI*: 115*50 BU-23 4MED

GUI*,GCI*: 090*30,

115*40,140*50

HEATING BLOWER SPEED

*

MOTOR TO "HEAT"

SPEED

HI

GAS VALVE

(GV)

1

M

2

C

R

3

P
0
2

FLAME
SENSOR

COMBUSTION

BLOWER

(CB)

115V

FIELD

CONNECT

SPEEDS

RD-24LOW 4

OR-29MED LOW 4

BK-26 4

GY-47

BR-21

VT-14

BK

WH

L1
N
GND

ELECTRICAL BOX

* *

MOTOR

BLOWER SPEED

SEE
INSTALLATION
INSTRUCTIONS
TO DETERMINE
PROPER
COOLING
BLOWER SPEED.

PRIMARY
ROLLOUT
LIMIT (RL )

AUX LIMIT
CONTROL

PRIMARY LIMIT

CONTROL

LIMIT

BU-15

BU-36

GN

WH

COOLING

LOW VOLTAGE

LOW VOLTAGE FIELD

HI VOLTAGE

HI VOLTAGE FIELD

RD­44

RD­44

IGNITOR

WARNING:DISCONNECT POWER
BEFORE SERVICING.WIRING TO
UNIT MUST BE PROPERLY
POLARIZED AND GROUNDED.

COLOR CODE
YL YELLOW
OR ORANGE
VT VIOLET
GN GREEN
BK BLACK
BR BROWN
WH WHITE
BU BLUE
GY GRAY
RD RED

CAPACITOR
(CAP)

COM

NC

OR-

DOOR SWITCH (CLOSED
WHEN DOOR IN PLACE)

NO

16

WH-23

RD-22

BK-3

IMPORTANT:

READ BEFORE OPERATING OR SERVICING THIS UNIT.

1. SET HEAT ANTICIPATOR ON ROOM THERMOSTAT AT 0.7 AMPS.

2. MANUFACTURER'S SPECIFI ED REPLACEMENT PARTS MUST BE USED WHEN SERVICING.

3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE FURNACE MUST BE
REPLACED, IT MUST BE REPLACED WITH WIRING MATERIAL HAVING A TEMPERATURE RATING OF AT LEAST
105C. USE COPPER CONDUCTORS ONLY.

4. UNUSED BLOWER MOTOR LEADS MUST BE PLACED ON "PARK" TERMINALS OF CONTROL OR TAPED.

5 IF HEATING AND COOLING BLOWER SPEEDS ARE NOT THE SAME DISCARD JUMPER BEFORE CONNECTING

BLOWER LEADS.

6 DIAGNOSTIC LIGHT:STEADY=REPLACE CONTROL;1 FLASH=LOCKOUT;2 FLASHES=PS STUCK CLOSED;

3 FLASHES=PS STUCK OPEN;4 FLASHES=OPEN HIGH LIMIT SWITCH;5 FLASHES=OPEN ROLLOUT CONTROL;

CONTINUOUS FLASHING=FLAME-NO CALL FOR HEAT.

BR
BR

PRESSURE

SWITCH (PS)

AIR

CIRCULATION

BLOWER

(ACB)

VT-20

YL-11

WH-33

VT-55

BK-6

BK-1

TRANSFORMER

#26 BK (HI)
#23 BU (MED)
#29 OR (MED LOW)
#24 RD (LOW)

WH

WH-2

LINE

LOAD

OR-3

GY-25

BU­25

115V FIEL D

CONNECT
ELECTRONIC
AIR CLEANER

VT

-55

RD

-22

115V FIEL D

CONNECT

HUMIDIFIER

5

YL-11

BK-6
BK-1

* *

*

GY-47

T
K
K
E
R

E
R

6

HEA
PAR
PAR
LIN
XFM
EAC
HUM

IND
IGN

CIR
LIN
XFM
EAC
HUM

THERMOSTAT

CONNECTIONS

WY

RGC

RD-44

RD-44

BR-21

HOT 120VAC

NEU TRA L 120 VAC

CONTROL

PSRO2MV

12

11

BU-25

MV GND HLI

RO1TR

69

85

4710

TH FP HLO

3

2

GN

1

GY

-25

OR

-3

BU

-36

VT

-20

CIRCULAT OR BLOWER

COO

L

20242401 RE V. 0

15 Rev. 1

WARNING

!

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,
OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

16 Rev. 1

C

7

6

5

4

3

2

1

BK BLACK

20255601 REV.00

RD RED

COLOR CODES:

GN GREEN

VT VIOLET

OR ORANGE

YL YELLOW

CONTINUOUS FLASH ES = UNAN TI CI PA T ED FLAM E PRESENT

7 FLASHES = LOW FLAME SENSE SIGNAL

5 FLASHE S = OPE N R O LLOU T LIMI T

4 FLASHES = OPEN PRIMARY OR AUXILIARY LIMIT

6 FLASHES =
115V AC POWER REVERSED OR POOR UNIT GROUND

GY GRAY

BU BLU E

WH WHITE

BR BRO WN

GUID (Models using WR50A55 Ignition Control)

5. UNIT MUST BE PERMANENTLY GROUNDED AND CONFORM TO N.E.C. AND LOCAL CODE S .

"PARK" TERMINALS OF INTEGRATED CONT RO L OR TA PED.

4. IF HEATING AN D COOL IN G BLO W ER SP EE D S ARE NOT T HE SAME DI SC A R D JU MPER

3. IF AN Y OF T HE ORIGIN AL W IRE AS SUPPL IED WITH THE FURNA CE MUST BE

2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED WHEN SERVICING.

1. SET HE AT ANTICIPATOR ON RO O M T HERMOS TAT AT 0.7 AM PS.

BEFORE CONNECTING BLOW ER LEADS. UNUS ED BLOWER LEADS MUST BE PLA CED ON

NOTES:

RATING OF AT LEAST 105C. US E COPP ER CON DUCTO RS ONLY.

REPLACED, IT MUST BE REP LACE D WIT H WIRING MATERI AL HA VI NG A TEMPE RATURE

INTEGRATED CONTROL

INTERNAL TO

PLUG CONNECTION

SWITCH (PRESS.)

PROT. DEVICE

OVERCURREN T

HI VOLTAGE FIEL D

JUNCTION

TERMINAL

SWIT CH ( TEMP.)

IGNITER

0

STEADY ON = REPLACE CONTROL

3 FLASHES = PR ESSURE SW ITCH STU C K O PEN

2 FLASHES = PR ESSURE SW ITCH STU C K CL OSED

1 FLASH

= SYSTEM LOCKOUT (RETRIES/RECYCLES EXCEEDED)

LOW VOLTAGE FIELD

HI VOLTAGE (115 V)

LOW VOLTAG E (24V )

EQUIPMENT GND

FIELD SPLICE

FIELD GND

WIRING DIAGRAMS

AND GROUNDED.

POLARIZED

PROPERLY

MUST BE

WIRING TO UNIT

BEFO R E SERVICI NG .

24V THERMOSTAT CONNECTIONS

W

Y

C

INTEGR ATED CON TROL MO DULE

TR (6)

GND (8)

MVC (9)

GND

M1

VALVE

24V T HE RM O STAT

Y

CONNECTIONS

W

LED

R
G
C

G

MICRO

TO

PS (10)

MV (12)

P3

C2

GAS

SWITCH

*

AS SHIPPED FROM FACTORY

DIAGNOS TIC

HLI (7)

NO

PRES SU RE

C

ON

OFF

ON

ON

ON

OFF

OFF

OFF

180

120

90

60

*

OR

60

90

180

*

120

R

TH (3)

FUSE 3 A

HLO (1)

RO2 (1 1)

RO1 (5)

MANUAL RESET

LIMIT CO N TRO L

AUXILIARY

MANUAL RESET ROLLOUT

LIMIT CO N TRO L

AUTO RESET PRIMARY

LIMIT CO N TRO L

DIP SWITC HE S

OFF DELAY SELECTOR

BLOWER HEAT

(SECONDS)

PIN JUMPER

INTEGRATED

CONTROL

MODULE

HUM-H

HUM-N

XFMR-H

FP (2)

IGN

COOL-H

FL AM E SEN SOR

HOT SURFA C E

115 VA C

24 VA C

TRANSFORMER

40 VA

EAC-H

EAC-N

IGNITER

XFMR-N

FIELD CO NNNECTIO N S
ELECTRON IC AIR CLEA NER
115 V H UMID I FIER AN D

LINE -H

115 V AC HOT AND PAR K TERM INALS

GND

NOTE 4

SEE

COOL-H

WH

HEAT- H

XFMR-H

HEAT

COOL

CIRCULATION

BLOWER

INDOOR

AIR

CIR-N

CIRCULATION

BLOW ER

INDOOR

AIR

RD (LOW)

BK (HI)

BU (MED)

OR (MED LOW)

WH-33

10

7

4

1

24VAC

FUSE

3A

40 VA

TRANSFORMER

115 VAC

24 VAC

BK-1

BU-36

11

5

8

2

12

9

6

3

RD-44

RD-44

BR-21

GY-47

GY-25

OR-3

XFMR-N

VT-20

BU-25

YL-11

CIRC-N

GN

-55
VT

TERMINALS
115 V AC NEUT RAL

LIN E-N

WH

VT-20

YL-11

WH-2

GN

OR-3

GY-25

BU-36

WH-23

RD-22

INTEGR ATED CON TROL MO DULE

SWITCH

DOOR

HUM-H

EAC-H

HEAT- H

AIR CLEA NE R

ELECTRONIC

HUMIDIFIER

HUM-N

EAC-N

INTEGR ATED CON TROL MO DULE

LINE -H

IND

JUNCTIO N BOX

BLWR

ID

GND

LINE -N

BK-6

CAPACITOR

BR

BR

UNUSED MOTOR

LEAD S TO BE

PLAC ED ON

PARK TER M INALS

OR TAPED

VT-14

BURNER COMPARTMENT

BLOWER COMPARTMENT

AUXILIARY

MANUAL

RESET

LIMI T

BU-25

RD-44

RD-44

BR-21

GY-47

AUTO RESET PRIMARY

LIMIT CONTROL

BU-15

GN

OR-16

DISCONNECT POWER

WARNING:

PROTECTION DEVICE

WITH OVERCURRENT

POWER SUPPLY

TO 115 VAC/ 1Ø /60 HZ

POLARIZED AND GROUNDED.

TO UNIT MUST BE PRO PERLY

BEFORE SERVICING. WIRING

WARNING:DISCONNE CT POWE R

TO 115VAC/ 1Ø /60 HZ POWER SUPPLY WITH

OVERCURRE NT PROTECTION DEVICE

L

GND

N

DISCONN ECT

L

GND

N

DISCONNECT

BK-3

(OPEN WHEN DOOR OPEN)

DOOR SWITCH

WH-33

VT-55

YL-11

NO

PRES SU RE

SWITCH

GND

WH

BK

JUNCTION BOX

WH

INDUCED DRA FT

BLOWER

C

OR-16

GND

BU-36

MANUAL RESET

ROLLOUT LIMIT

CONTROL

RD-44

RD

-44

WH-23

RD-22

BURNER BOX

SENSOR

FLAME

C2

SURFACE

IGNITER

HOT

BR-21

GAS VALVE

P3

M1

GY-47

WARNING

!

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,
OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

This schematic is for reference only. Not all wiring is as shown above, refer

to the appropriate wiring diagram for the unit being serviced.

TRANSFORMER

120V 24V

TR

GND

TH

FLAME

SENSOR

FP

HLO

PRIMARY

LIMIT

AUX

LIMIT

SCHEMA TICS

17 Rev. 1

HSI 1-1A INTEGRATED IGNITION CONTROL

GUID

COOL

HEAT

BLOWER

MOTOR

PARK

LINE
HOT

120 VAC

LINE

NEUTRAL

PARK

COMBUSTION
AIR BLOWER

ACB
LOW

ACB
COOL

PARK

ACB

HEAT

PARK

F+F-

TH H LO

EAC

HUM

LINE

120VAC

TX

CMB IGN

BLWR

HUMIDIFIER

ELECTRONIC

AIR CLEANER

FP

RO1PSTR

MV HL1GND
MV

RO2

MV

MV

N

N

HUMEACXFMRLINECI R

NNN

RO1
HL1

CN1

PS

C

G

R

W

Y

BLOWER (G)

24V POWER (R)

HEAT (W)
COOL (Y)

ROLLOUT

SWITCH

RO2

PRESSURE
SWITCH

GAS VALVE

IGNITOR

OPTIONAL

WARNING

!

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,
OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

SCHEMA TICS

R

THERMOSTAT

G

W

COMPRESSOR

ROLLOUT

SWITCH

R

TH

RO1

RO2

24 VAC

XFMR

HOT

CONTACTOR

XFMR

NEU

TR

Y

COIL

C

YGW

GND

HLO

PS

MVC MV

HLI

AUX

LIMIT

HIGH

LIMIT

GAS

VALVE

PRESSURE

SWITCH

HUM

NEUHUM

HUMIDIFIER

INDUCER

ELECTRONIC

AIR CLEANER

IND

EAU

NEU

EAC

CIR

NEU

FUSE

18 Rev. 1

BLOWER

CIRCULATOR

HEAT COOL PARK PARK

LINE HOT

120 VAC

LINE NEU

GUID

HSI-2 INTEGRATED IGNITION CONTROL

This schematic is for reference only. Not all wiring is as shown above, refer

to the appropriate wiring diagram for the unit being serviced.

IGN

FP

FLAME

IGNITER

SENSOR

PROBE

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,

OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

WARNING

!

SCHEMA TICS

R

THERMOSTAT

G

W

COMPRESSOR

XFMR

CONTACTOR

NEU

TR

ROLLOUT

SWITCH

R

TH

RO1

RO2

XFMR

24 VAC

HOT

Y

COIL

C

YGW

JUMPER

PS

GND

HLI

HLO

MV MV

AUX

HIGH

LIMIT

LIMIT

GAS

VALVE

PRESSURE

SWITCH

HUM

NEU

EAU

CIR

IND

IND

NEU

EAC

NEU

K3

K8

FACTORY

FACTORY

JUMPER

K5

HUMIDIFIER

INDUCER

ELECTRONIC

AIR CLEANER

IGN

.0005

3M

120 VAC

LINE NEU

CIRCULATOR

BLOWER

K2

HEAT COOL PARK PARK

K1

LINE HOT

GUID

WR50A55 INTEGRATED IGNITION CONTROL

This schematic is for reference only. Not all wiring is as shown above, refer

to the appropriate wiring diagram for the unit being serviced.

FP

IGNITOR

FLAME

SENSOR

PROBE

TO AVOID POSSIBLE ELECTRICAL SHOCK, PERSONAL INJURY,

OR DEATH, DISCONNECT THE POWER BEFORE SERVICING.

WARNING

!

19 Rev. 1
