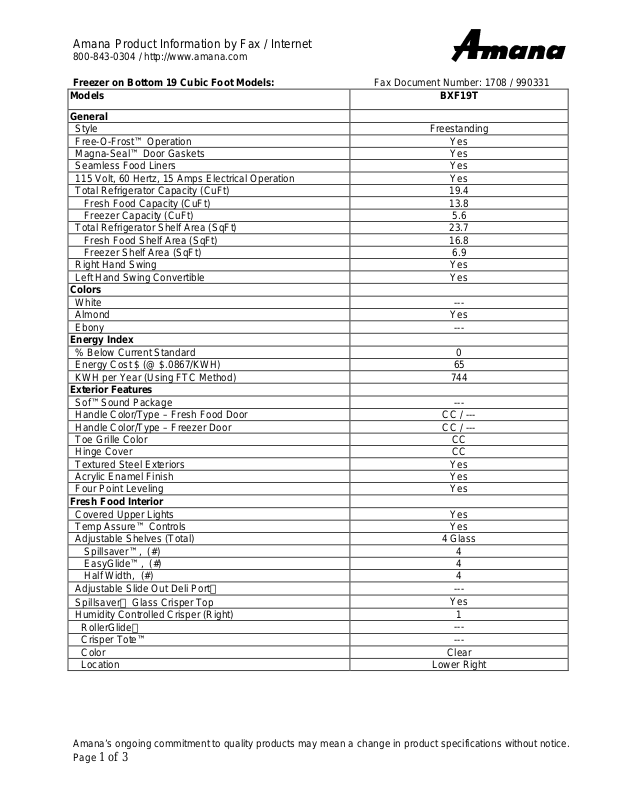

Amana BXF19T Specification Sheet
Amana Product Information by Fax / Internet
800-843-0304 / http://www.amana.com
Freezer on Bottom 19 Cubic Foot Models: |
Fax Document Number: 1708 / 990331 |
|
Models |
|
BXF19T |
|
|
|
General |
|
|
Style |
|
Freestanding |
Free-O-Frost™ Operation |
Yes |
|
Magna-Seal™ Door Gaskets |
Yes |
|
Seamless Food Liners |
Yes |
|
115 Volt, 60 Hertz, 15 Amps Electrical Operation |
Yes |
|
Total Refrigerator Capacity (CuFt) |
19.4 |
|
Fresh Food Capacity (CuFt) |
13.8 |
|
Freezer Capacity (CuFt) |
5.6 |
|
Total Refrigerator Shelf Area (SqFt) |
23.7 |
|
Fresh Food Shelf Area (SqFt) |
16.8 |
|
Freezer Shelf Area (SqFt) |
6.9 |
|
Right Hand Swing |
Yes |
|
Left Hand Swing Convertible |
Yes |
|
Colors |
|
|
White |
|
--- |
Almond |
|
Yes |
Ebony |
|
--- |
Energy Index |
|
|
% Below Current Standard |
0 |
|
Energy Cost $ (@ $.0867/KWH) |
65 |
|
KWH per Year (Using FTC Method) |
744 |
|
Exterior Features |
|
|
Sof™Sound Package |
--- |
|
Handle Color/Type – Fresh Food Door |
CC / --- |
|
Handle Color/Type – Freezer Door |
CC / --- |
|
Toe Grille Color |
CC |
|
Hinge Cover |
|
CC |
Textured Steel Exteriors |
Yes |
|
Acrylic Enamel Finish |
Yes |
|
Four Point Leveling |
Yes |
|
Fresh Food Interior |
|
|
Covered Upper Lights |
Yes |
|
Temp Assure™ Controls |
Yes |
|
Adjustable Shelves (Total) |
4 Glass |
|
Spillsaver™, |
(#) |
4 |
EasyGlide™, |
(#) |
4 |
Half Width, |
(#) |
4 |
Adjustable Slide Out Deli Port™ |
--- |
|
Spillsaver™ Glass Crisper Top |
Yes |
|
Humidity Controlled Crisper (Right) |
1 |
|
RollerGlide™ |
--- |
|
Crisper Tote™ |
--- |
|
Color |
|
Clear |
Location |
|
Lower Right |
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice. Page 1 of 3
Amana Product Information by Fax / Internet
800-843-0304 / http://www.amana.com
Models |
BXF19T |
|
|
Fresh Food Interior Continued |
|
Chiller™Fresh Deli Drawer (Left) |
1 |
RollerGlide™ |
--- |
Color |
Clear |
Location |
Lower Left |
Fresh Food Door |
|
Removable Dairy with Door |
1 |
Glass Butter Dish |
Yes |
Door Containers (Buckets) |
5 |
Door Shelves |
1 |
Gallon Containers Stored, # of |
4 |
Tall Bottle Retainer |
--- |
Shelf Dividers |
--- |
Storage Bucket w/Lid & Egg Divider |
1 |
Deepfreezeâ Interior |
|
Covered Upper Light |
Yes |
Flex-Action™ Ice Cube Trays |
4 |
Ice Service Rack |
1 Wire |
Ice Bucket/Slide Out |
Yes |
Glide out Freezer Basket |
Yes |
Shelves |
1 Glass |
Slide & Serve Ice™ |
Yes |
Full Width - Ice Portion Slides Out |
1 |
Deepfreezeâ Door |
|
Pivot Bin™ Storage |
Yes |
Accessories |
|
IceMaker |
IC7 |
Trim Kits 1/4” |
N/A |
Factory Installed Door Panels |
--- |
1/4” Panel Size Freezer Door (h x w in inches) |
--- |
1/4” Panel Size Fresh Food Door (h x w in inches) |
--- |
|
1/16” panel requires a backer panel using the |
1/16” Panel Size Freezer Door (h x w in inches) |
same dimensions as the ¼” panels. |
|
1/16” panel requires a backer panel using the |
1/16” Panel Size Fresh Food Door (h x w in inches) |
same dimensions as the ¼” panels. |
Maximum Panel Weight – Refrigerator (lbs) |
--- |
Maximum Panel Weight – Freezer (lbs) |
--- |
Handle Clearance for Fresh Food Door - |
|
Raised Panel Installation (in) |
|
Raised panel clearance for remaining 3 sides is 1/4” |
--- |
External Water Filter Kit (Optional) |
WF60 |
Installation Specification |
|
Power Cord Length (ft) |
9 |
Water Line Location |
See Diagram |
Approximate Shipping Weight (lbs) |
301 |
Top / Back Clearance (in) |
1/4 |
Side Clearance, Each Side (in) |
1/8 |
Kitchen Cabinet Width Opening (in) |
36 |
Clearance from Side Wall at 90° Door Opening (in) |
2 5/16 |
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice. Page 2 of 3
