CABINET PARTS
REFRIGERATOR
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
12−07 Litho In U.S.A. (jdc)
1
Part No. W10182979 Rev. A
CABINET PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10162442
W10142157
W10169610
628370 Modular Icemaker
2216001 Instruction Sheet−
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
9 2203771 Hinge Top RC
10 8281227 Screw
11 Hinge Cover FC
2203407W White
2203407B Black
W10138965
12
Use & Care Guide
Service & Wiring
Sheet
Energy Guide
Service Sheet
Door Removal
Hinge Bottom
Illus. Part
No. No. DESCRIPTION
13 Filler, Wrapper
2304846 White
2304848 Black
14 Grille
2260500W White
2260500B Black
15 489497 Screw
16 489464 Screw
17 2304888 Drain Fitting
18 1108438 Extension Tube
19 2188735 Cover, Unit
20 Hinge Cover RC
2203408W White
2203408B Black
21 549193 Clamp, Service
Cord
23 2155311 Door Closer,
Lower Cam (2)
24 489483 Screw
25 Cabinet (Not a
Serviceable Part)
Illus. Part
No. No. DESCRIPTION
26 2203770 Hinge Top, FC
27 2260519 Block, Housing
Support
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 489500 Screw
31 Cap, Water
Filter
2260502W White
2260502B Black
32 3400113 Screw
33 2304708 Tube, Filter
Outlet
34 2319867 Tube, Filter
Inlet
35 Button, Filter
2260503W White
2260503B Black
36 1108439 Clip, Drain Tube
2
W10182979
REFRIGERATOR LINER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide, Meat
Pan Control
4 2257741 Louver
5 2311637 Wire Harness,
Dual Crisper
6 489290 Screw (2)
7 2256035 Bracket,
Dual Crisper
Light
8 2319866 Shelf Ladder
9 489478 Screw
10 2152019 Air Diffuser
Cover
11 2256085 Bracket Retainer
W10151374
12
13 2150331 Cover, Conduit
W10004810
14
15 2162085 Socket
16 2307107 Reservoir
17 527949 Light Bulb
18 2209769 Light Lens
19 2172840 Strap
20 488280 Screw (2)
Air Diffuser
Assembly
Screw
W10182979
3
REFRIGERATOR SHELF PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1
W10141749
2 2209698 Cover, Crisper
3 2179259 Glass, Cover
4 2179350 Deflector
5 2311726 Cover, Meat Pan
6 2188661 Crisper Pan
7 2188665 Meat Pan
8 2196485 Stud Assembly
9 3400894 Screw
10 2196483 Stud Assembly
11 8281158 Screw
12 2174150 Glass, Cover
Shelf,
Cantilever
4
W10182979
FREEZER LINER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
5
FREEZER LINER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171713K Door, Ice
Compartment
3 842534 Clip, Air Duct (2)
4 2196206 Support, Stud (4)
5 3400893 Screw
6 2176134 Grommet
7 2182971 Freezer Bin
8 Slide, Basket
2261449 Right Side
2261448 Left Side
W10004810
9
10 1115373 Switch, Rocker Arm
11 8281158 Screw
12 2196483 Stud Assembly
13 3400893 Screw
14 2171714K Shelf, Top
15 2171705 Lens, Light
16 527949 Light Bulb
17 2162085 Light Socket
18 2196207 Stud, Rear
19 Slide, Container
1119237 Left Side
1119293 Right Side
20 489100 Screw
21 2174268K Shelf (2)
2174267K Shelf (1)
Screw
Compartment
6
W10182979
MOTOR AND ICE CONTAINER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
7
MOTOR AND ICE CONTAINER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Soleniod
6 1115374 Clip, Wiring
7 2206501 Wiring Assembly,
Ice Dispenser
8 489399 Screw
W10169511
9
10 489478 Screw
11 2162085 Socket, Light
12 2196091 Ice Container
13 1119005 Spacer, Step (3)
14 1119007 Spacer, Flat (2)
15 2257022 Blade, Rotary
16 2257023 Blade, Rotary
17 2257024 Blade, Rotary
18 489235 Washer, Plain
19 1119009 Blade, Fixed (2)
20 2157405 Block, Blade
21 489229 Roll Pin
22 2196295 Auger
23 2305377 Drum
24 2171682 Floating Baffle
25 1119018 Nut, Bearing
26 2155231 Control Arm
27 1119020 Spring, Return
28 1119021 Retainer Clip, Rod
29 488886 Screw
30 2180348 Housing, Crusher
31 1119017 Deflector, Ice
32 489234 Washer, Plain
33 489236 Retainer Ring
34 2204321 Front Cover,
35 527949 Light Bulb
36 2171706 Light Lens,
100 2209780 Ice Container
Coupling, Motor
Ice Container
Dispenser
Assembly
8
W10182979
REFRIGERATOR DOOR PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
9
REFRIGERATOR DOOR PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
W10169867
W10169868
W10171245
W10173663
2 2256101 Door, Compartment
3 2187172K Door Bin (3)
4 2326016 Screw, Handle
5 Door Gasket,
2221302 Mist Beige
2221313 Black
6 Handle Assy
W10119663
W10119665
7 2182178 Door Closer,
8 489420 Screw
9 Bracket, Door Stop
2206629 Chrome
2206629B Black
10 12528501 Nameplate
11 2308091 Thimble, Top
12 2177962K Trivet
13 3400012 Screw
White
Black
Stainless
Universal Silver
Magnetic (Repair)
White
Black
Upper Cam
10
W10182979
FREEZER DOOR PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
11
FREEZER DOOR PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes Item 8
And Dispenser
Front Parts)
W10169599
W10169600
W10171251
W10173666
2 Handle Assy
W10119666
W10119668
3 2326016 Screw, Handle
4 2313199K Trim, Door (4)
5 3400012 Screw
6 Door Gasket,
2221303 Mist Beige
2221314 Black
7 2209681 Trim, Door Shelf
8 488500 Screw
9 2206601 Wire Harness
10 2182179 Door Closer,
11 489420 Screw
12 Bracket, Door Stop
2206629 Chrome
2206629B Black
13 2195917 End Cap (8)
14 2182181 Thimble, Top
15 2154473 Connector
White
Black
Stainless
Universal Silver
White
Black
Magnetic (Repair)
Upper Cam
12
W10182979
DISPENSER FRONT PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
13
DISPENSER FRONT PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2195089W White
2195089B Black
12 2180224 Guide, Ice
13 2180200 Lamp Holder
14 2162361 Switch (4)
15 2183771 Bracket, Control
16 3406124 Bulb, Light
17 Lever, Water
Dispenser
2195090W White
2195090B Black
18 Switch Assembly
(Not Available,
Order #23)
19 Overlay, Front
Cover
(Not Available
Order #23)
20 2311640 Wire Assembly
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
18, 19, 20 & 21)
W10169591
W10169593
24 625834 Spacer, Switch (2)
25 2195051 Strain Relief
26 2304673 Bracket, Dispenser
White
Black
14
W10182979
UNIT PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
15
UNIT PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 2225834 Fan, Blade
3
W10121487
4 489464 Screw
5 2208280 Clip, Wire
6 8533993 Screw
7
W10132427
8 2161302 Sleeve
9 2255130 Capacitor
10 2216914 Clip, Condenser
11 2212996 Strap, Bale
12 2313162 Start−Device,
13 2313230 Tube Suction
14 489478 Screw
15 2188823 Evaporator
16 2161324 Clamp
17
W10130108
18 1105523 Tray, Evaporator
19 2217194 Heat Shield
20 Drier
2319825 Production
W10143759
Condenser
Assembly
(Also Order #7)
Bushing,
Compressor
Combination
(Start Relay and
Overload)
Fan, Motor
(Includes #26)
Service
Illus. Part
No. No. DESCRIPTION
W10140971
21
22 2304904 Unit Mounting
23 4389205 Unit, Harness
24 2181929 Fan, Motor Bracket
25 2323198 Heater, Defrost
26 2304287 Clip
27 489373 Screw (4)
28 4388295 Grommet (4)
29 489340 Screw
30 2196202 Air Baffle
31 2155547 Clip, Heat Shield
32 2304899 Unit Cover, Bottom
33 489396 Clip
34 2305374 Unit Mounting
35 8281232 Screw
36 2260517 Guard, Fan
37 489427 Screw
38 488649 Screw
39 2320322 Connector, Water
Compressor
(Includes Items
9, 12, 20 & 28)
(Also Order
876765 Tube Kit)
Frame
Rail
Tube
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)
16
W10182979
AIR FLOW PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 2321799 Bi−Metal, Defrost
5 2203593 Air Duct Freezer
6 2304241 Gasket
W10131845
7
8 2169142 Fan Blade
9 2176759 Fan Grommet (2)
10 2182146 Duct, Icemaker
W10129821
11
12 2155789 Gasket Cover
13 2172840 Wire Tie
14 2203876 Gasket
15 2203841 Cover, Evaporator
16 8281159 Screw
17 489478 Screw
18 2203595 Support, R.S
19 2203596 Support, L.S
Fan Motor
Harness, Fan
Evaporator
(Includes #4)
W10182979
17
CONTROL PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 2200137 Control Box
2 1110629 Mounting Bracket
3 3196537 Screw (4)
4 2149705 Light Switch
6 2188375 Defrost Timer
7 489398 Screw (2)
8 940014 Hole Plug
9 2198202 Thermostat
Assembly
10 487869 Screw
Illus. Part
No. No. DESCRIPTION
11 2182195 Cam Assembly
12 1110560 Bearing Body
13 2196062 Clip, Damper
Control
14 1110559 Pivot Arm
15 627068 Screw
16 2162085 Light Socket
17 2196001 Thermostat,
Barrier
18 527949 Light Bulb
19 2206512 Control Box
Harness
18
Illus. Part
No. No. DESCRIPTION
20 1115374 Clip, Wiring
21 1115375 Clip, Wiring
22 1123960 Connecting Rod
23 489285 Fastener, Push−On
W10127380
24
25 2182111 Thermostat knob
26 2197871 Knob, Air Control
27 489203 Spring Washer
Escutcheon,
Control Box
W10182979
ICEMAKER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
W10182979
19

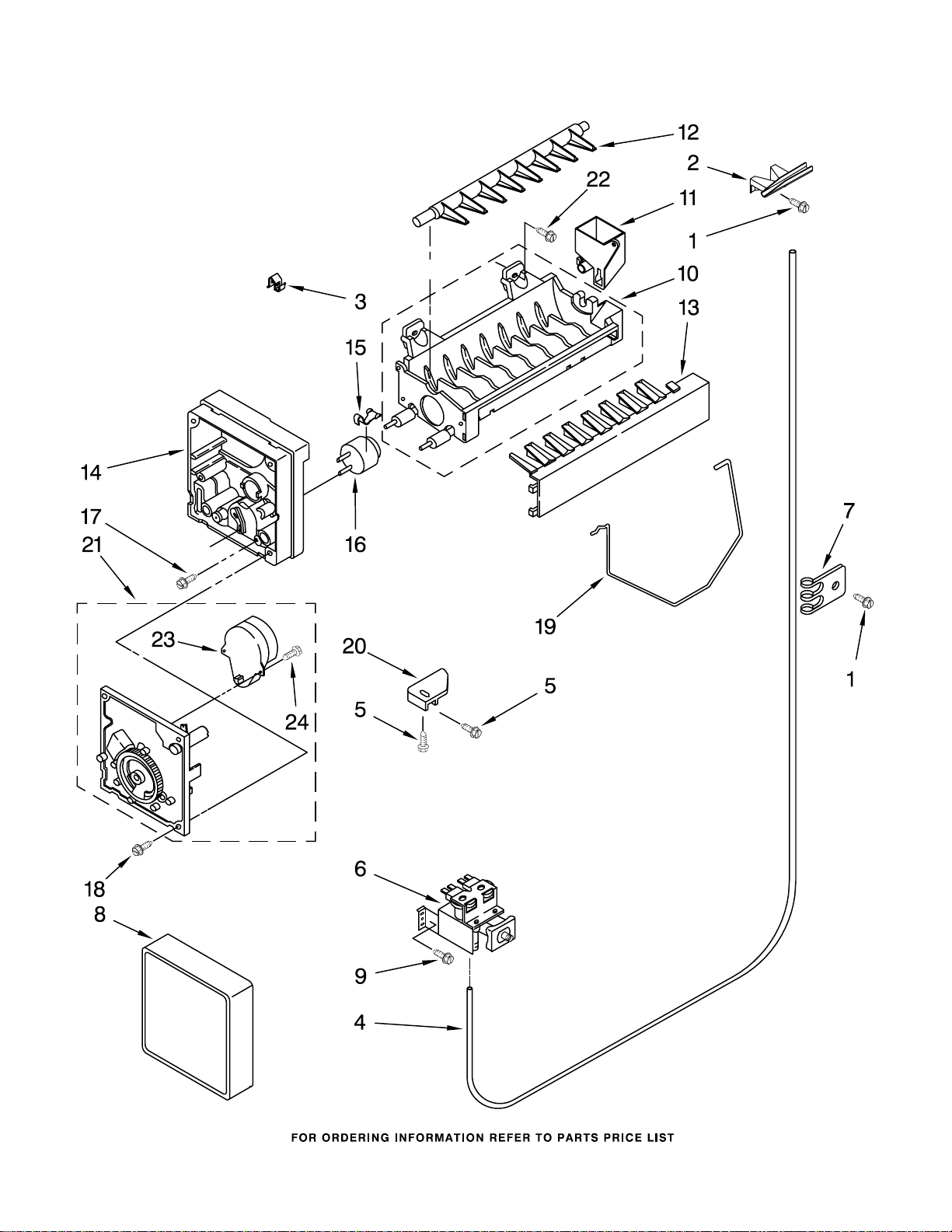

ICEMAKER PARTS
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2209774 Chute, Water
3 628379 Clip, Fuse
4 2223137 Tube, Water
5 489478 Screw
6 2315534 Filter Valve Asm
7 2208136 Tube Clip
8 2174155 Cover
9 488649 Screw
10
W10122527
11 628515 Cup, Water Fill
12 627843 Ejector
13 2182124 Ice Striper
14 2194712 Support
15 2315522 Retainer,
16 628397 Thermostat (Also
17 8533917 Screw
18 489276 Screw
19 2304354 Shut Off Arm
20 628320 Bracket
21 626691 Module Assembly
22 488208 Screw
23 626683 Motor
24 489136 Screw
100
W10122507
Mold & Heater
Assembly (Also
Order 542638
Thermostat
Order 542369
Cement
Alumilastic)
(Includes Items
23 and 24)
Complete Icemaker
Assembly
20
W10182979
OPTIONAL PARTS (NOT INCLUDED)
For Model: ASD2522VRW00, ASD2522VRB00, ASD2522VRS00, ASD2522VRD00
(White) (Black) (Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−up Kit
(Black)
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
Illus. Part
No. No. DESCRIPTION
Miscellaneous
8129 Coil Brush
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
876370 Kit, Insulation
(2 Pcs. x 3" x 24"
X 48")
876305 Kit, Insulation
(14 Pcs. x 3"
x 24" x 48")
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
X 2−5/8)
876029 Kit, Foam Slab
(30" x 32−1/2"
x 1−1/2")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
W10182979
TORX SCREW WRENCH
1117510 Torx Key
21
Loading...
