WARRANTY COVERAGE
1 Year Full warranty on parts and labor
5 Years Full warranty on sealed system
components and interior liners
Amana’s ongoing commitment to quality products may mean a change in
product specifications without notice.

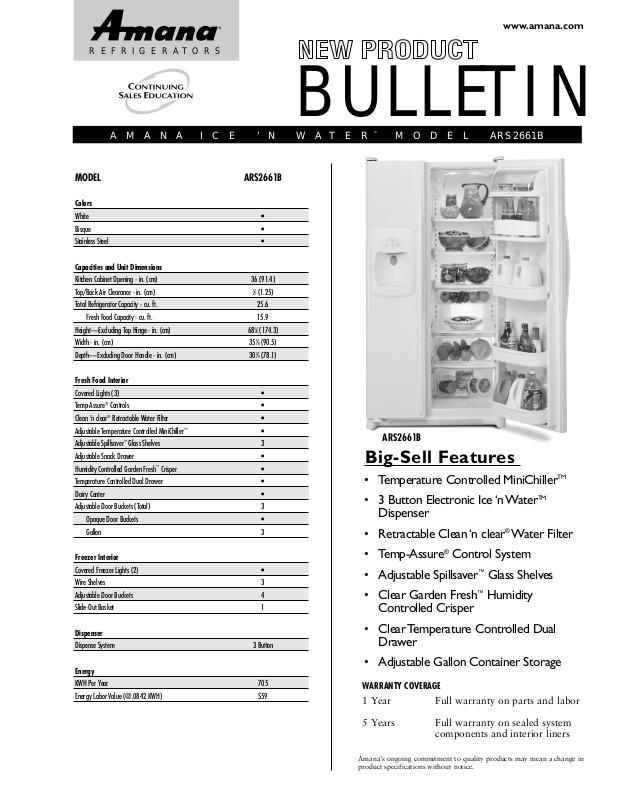

AMANA ICE ’N WATER
™
MODEL ARS2661B
Big-Sell Features
• Temperature Controlled MiniChiller
TM
• 3 Button Electronic Ice ‘n Water
TM
Dispenser
• Retractable Clean ‘n clear
®
Water Filter
• Temp-Assure
®
Control System
• Adjustable Spillsaver
™
Glass Shelves
• Clear Garden Fresh
™
Humidity
Controlled Crisper
• Clear Temperature Controlled Dual
Drawer
• Adjustable Gallon Container Storage
MODEL ARS2661B
Colors
White •
Bisque •
Stainless Steel •
Capacities and Unit Dimensions
Kitchen Cabinet Opening - in. (cm) 36 (91.4)
Top/Back Air Clearance - in. (cm)
1
⁄2 (1.25)
Total Refrigerator Capacity - cu. ft. 25.6
Fresh Food Capacity - cu. ft. 15.9
Height—Excluding Top Hinge - in. (cm) 685⁄8 (174.3)
Width - in. (cm) 355⁄8 (90.5)
Depth—Excluding Door Handle - in. (cm) 303⁄4
(78.1)
Fresh Food Interior
Covered Lights (3) •
Temp-Assure®Controls •
Clean ’n clear®Retractable Water Filter •
Adjustable Temperature Controlled MiniChiller
™*
•
Adjustable Spillsaver™Glass Shelves 3
Adjustable Snack Drawer •
Humidity Controlled Garden Fresh™Crisper •
Temperature Controlled Dual Drawer •
Dairy Center •
Adjustable Door Buckets (Total) 3
Opaque Door Buckets •
Gallon 3
Freezer Interior
Covered Freezer Lights (2) •
Wire Shelves 3
Adjustable Door Buckets 4
Slide-Out Basket 1
Dispenser
Dispense System 3 Button
Energy
KWH Per Year 705
Energy Labor Value (@.0842 KWH) $59
ARS2661B
BULLETIN
www.amana.com
REFRIGERATORS
