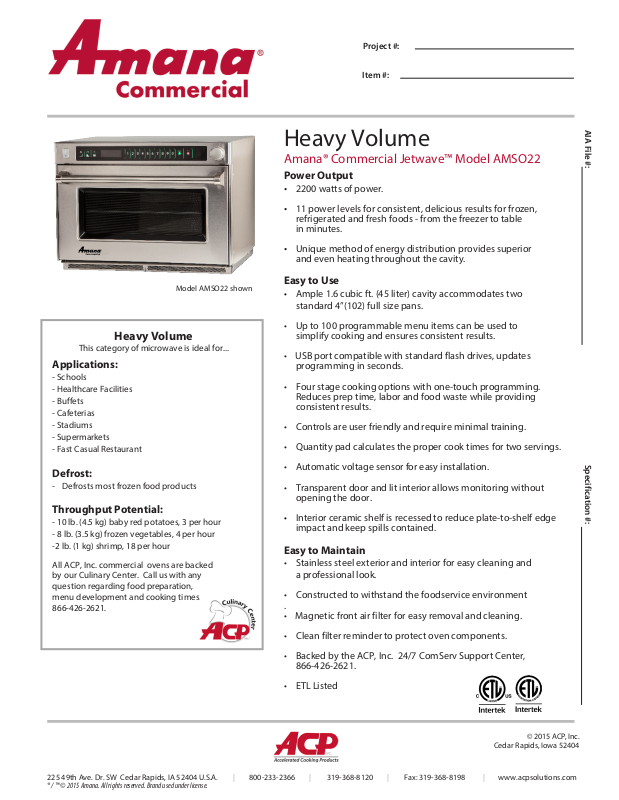

Page 1
Project #:
Item #:
Heavy Volume
Amana® Commercial Jetwave™ Model AMSO22
Power Output
• 2200 watts of power.
• 11 power levels for consistent, delicious results for frozen,
refrigerated and fresh foods - from the freezer to table
in minutes.
• Unique method of energy distribution provides superior
and even heating throughout the cavity.
AIA File #:
Model AMSO22 shown
Heavy Volume
This category of microwave is ideal for...
Applications:
- Schools
- Healthcare Facilities
- Buffets
- Cafeterias
- Stadiums
- Supermarkets
- Fast Casual Restaurant
Defrost:
- Defrosts most frozen food products
Throughput Potential:
- 10 lb. (4.5 kg) baby red potatoes, 3 per hour
- 8 lb. (3.5 kg) frozen vegetables, 4 per hour
-2 lb. (1 kg) shrimp, 18 per hour
All ACP, Inc. commercial ovens are backed
by our Culinary Center. Call us with any
question regarding food preparation,
menu development and cooking times.
866-426-2621.
Easy to Use
• Ample 1.6 cubic ft. (45 liter) cavity accommodates two
standard 4”(102) full size pans.
• Up to 100 programmable menu items can be used to
simplify cooking and ensures consistent results.
• USB port compatible with standard flash drives, updates
programming in seconds.
• Four stage cooking options with one-touch programming.
Reduces prep time, labor and food waste while providing
consistent results.
• Controls are user friendly and require minimal training.
• Quantity pad calculates the proper cook times for two servings.
• Automatic voltage sensor for easy installation.
• Transparent door and lit interior allows monitoring without
opening the door.
• Interior ceramic shelf is recessed to reduce plate-to-shelf edge
impact and keep spills contained.
Easy to Maintain
• Stainless steel exterior and interior for easy cleaning and
a professional look.
• Constructed to withstand the foodservice environment
.
• Magnetic front air filter for easy removal and cleaning.
Specification #:
• Clean filter reminder to protect oven components.
• Backed by the ACP, Inc. 24/7 ComServ Support Center,
866-426-2621.
• ETL Listed
Cedar Rapids, Iowa 52404
225 49th Ave. Dr. SW Cedar Rapids, IA 52404 U.S.A. | 800-233-2366 | 319-368-8120 | Fax: 319-368-8198 | www.acpsolutions.com
® / ™ © 2015 Amana. All rights reserved. Brand used under license.
© 2015 ACP, Inc.
Page 2
Amana® Commercial Jetwave™ Model AMSO22 | Heavy Volume
23 ½” (597)**
25 ⁵/₈” (650)
18 ⁵/₈” (472)
33 ¾” (857)
Front View
Installation Clearance: 2” (5.1) top and sides
Specifications
Model AMSO22 UPC Code TBD
Configuration Countertop
Control System Touch w/ dial
Programmable Control Pads 10
Settings Programmable 100
Max. Cooking Time 60 minutes
Power Levels 11
Defrost Yes, power level 2
Specification #:
Dial Time Entry Yes
Time Entry Option Yes
Microwave Distribution Top and bottom antennas
Magnetrons 4
Display LCD
Stage Cooking Yes, 4
Interior Light Yes, LED
Door Opening Pull Down
Door Construction Window
Latch Number 2
Window Material Glass
Air Filter w/Reminder Yes
Stackable Yes
Signal Yes
Automatic Voltage Sensor Yes
Multiple Portion Setting Yes, x2
Exterior Dimensions H 18 ⁵/₈” (472) W 25 ⁵/₈” (650) D** 23 ¹/₂” (597)
Cavity Dimensions H 9 ⁷/₈” (251) W 21” (535) D 13” (330)
Door Depth 33 ¾” (857), drop down door
Usable Cavity Space 1.6 cubic ft. (45 liter)
Exterior Finish Stainless steel
Interior Finish
Power Consumption 3500 W
Power Output* 2200 W* Microwave
Power Source 208/240V, 60 Hz, 20A single phase
Plug Configuration / Cord NEMA 6-20 5 ft. (1.5m)
Frequency 2450 MHz
Product Weight 146 lb. (66 kg)
AIA File #:
Ship weight (approx.) 161 lbs. (73 kg)
Shipping Carton Size L 26 ¼” (667) W 30 ¼” (768) H 22 ¼” (565)
Stainless steel with recessed ceramic tray and
removable shelf
8 3/4” (222)
8” (203)
Side View
19 ¼” (489)
Drawings available from KCL CADlog - [email protected]
Back View
Specifications
Commercial microwave 10 touch pad control panel shall be
programmable with the ability to program up to 100 menu
items and shall have automatic cooking capability for up
to two servings. Cooking timer shall be no more than 60
minutes, countdown style with a time entry option and an
adjustable end of cycle audible signal. LCD display shall be
a backlit. There shall be 11 power levels, 4 cooking stages
and defrost mode at 20% power. Microwave output shall
be 2200 watts distributed by four magnetrons, each with a
rotating antenna to provide even heating throughout the
cavity. An automatic voltage sensor shall accommodate
both 208 and 240 volts. Heavy duty door shall have a
tempered glass window and a pull down door for easy
access. An interior light shall facilitate monitoring without
opening the door. The large 1.6 cubic ft. (45 liter) cavity shall
accommodate two 4” (102) full size pans. Interior ceramic
shelf shall be recessed to reduce plate-to-shelf edge impact.
Oven shall have a stainless steel interior and exterior and be
stackable to save counter and shelf space. Oven shall have a
“clean filter” reminder feature. Microwave oven shall comply
with standards set by the U.S Department of Health and
Human Services, UL for safety and NSF for sanitation.
Service
All products are backed by the ACP, Inc. 24/7 ComServ Support
Center.
Warranty
Warranty Certificate for this product can be found on the ACP,
Inc. website at: www.acpsolutions.com/warranty
Measurements in ( ) are millimeters
* IEC 60705 Tested
** Includes handle
Part No. 20154901
Updated 8/21/14
