Amana A CO15ZOA User Manual

®
,\,
IBUILT IBETTEIR THAN _T HAS TO IBE_
Owner's Manual
Covering model A CO15ZOA
Electric Microwave
Keep instructions for future reference. Be sure manual stays with microwave.
importantSafety instructions......................................3
Installation....................................................................6

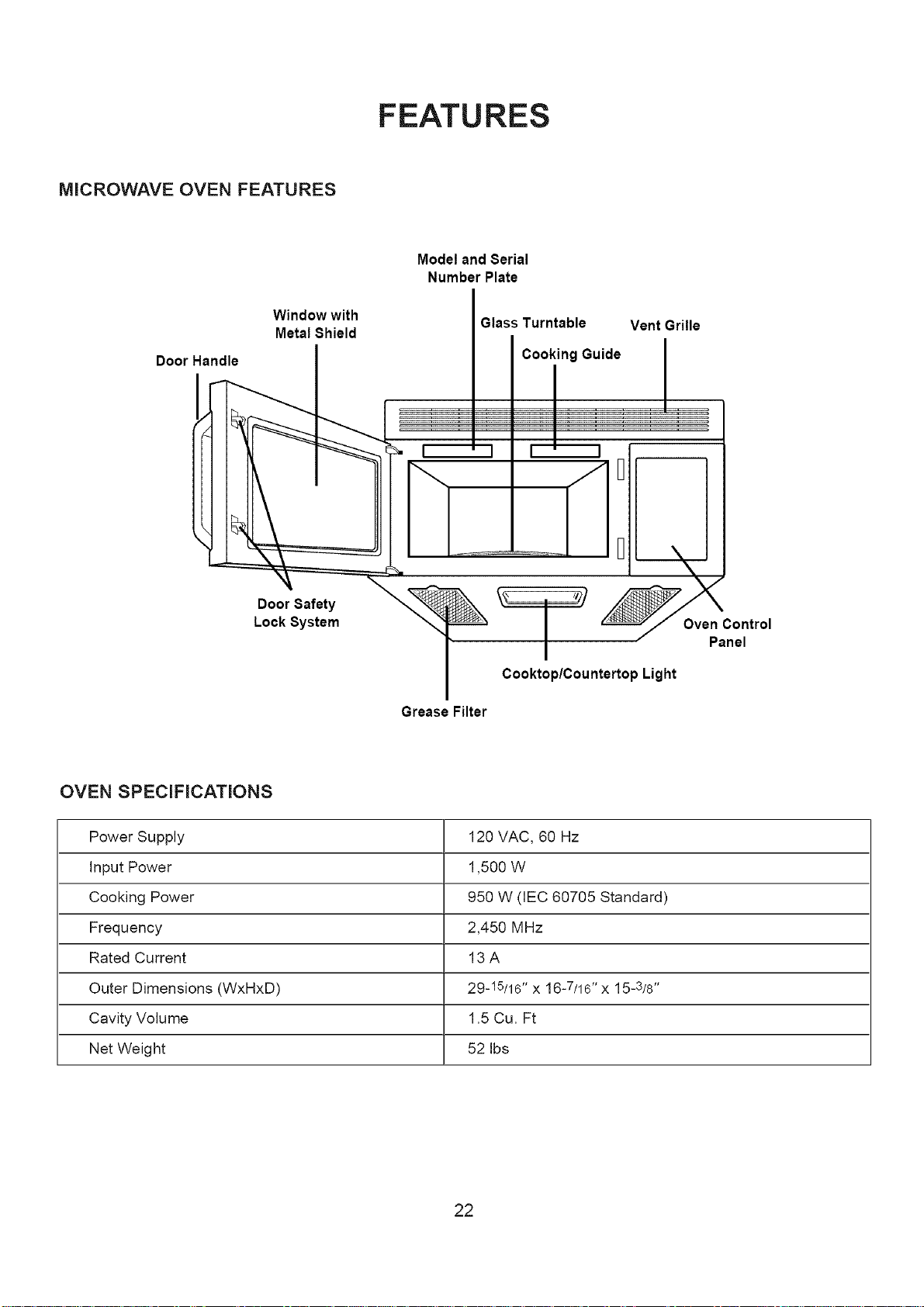

Features .....................................................................22
Operation....................................................................25
Cooking ......................................................................36
Maintenance ..............................................................41
Recommended Utensil ..............................................43
Troubleshooting.........................................................44
Amana Warranty........................................................46
Part No. 3828W5A2026
Thank you for buying an Amana M|crowave.
" l
Please take the time to complete the registration card and return promptly. If the registration card is missing, call Amana Consumer Affairs Department.
When contacting Amana, provide product information from serial plate:
Model Number Manufacturing (P) Number Serial Number (S/N)
Purchase Date Dealer Name Dealer Address Dealer Phone
Keep this manual and your sales receipt together in a safe place for
future reference or if warranty service is required.
For answers to questions or to locate an authorized servicer, call 1-800- NAT-LSVC(1-800-628-5782) inside USA or 319-622-5511 outside USA.
Warranty service must be performed by an authorized servicer. Amana Appliances also recommends contacting an authorized servicer if
service is required after warranty expires.
ir Questions on cooking, cleaning or usage? _
Asure TM Extended
Service Plan
Amana Appliances offers long-term
service protection for this new microwave. Asure TM Extended Service
Plan, covering functional parts, labor, and travel charges, is specially
designed to supplement a strong
warranty.
Call 1-800-528-2682 for information.
Parts and Accessories Purchase replacement part and
additional accessories by phone. To order accessories for your Amana
product, call 1-800-843-0304 inside USA or 319-
622-5511 outside USA.
Save Time and Money If something seems unusual, please
check "Troubleshooting" section,
which is designed to help you solve
problems before calling service. Ifyou have a question, call us at
(800) 843-0304 or write us at:
Refer to
Product Assistance at www.amana.com
or
L. call Consumer Affairs at 1-800-843-0304
What You Need to Know About Safety Instructions
Warning and Important Safety
Instructions appearing in this manual are not meant to cover all
possible conditions and situations
that may occur. Common sense,
caution, and care must be
exercised when installing,
maintaining, or operating microwave.
Always contact your dealer, distributor, service agent, or
manufacturer about problems or conditions you do not understand.
Recognize Safety Symbols, Words, Labels
DANGER - Immediate hazards which WILL result in severe personal injury
or death.
WARNING - Hazards or unsafe practices which COULD result in severe
personal injury or death,
CAUTION - Hazards or unsafe practices which COULD result in minor
personal injury or product or property damage.
Consumer Affairs Department
Amana Appliances
2800-220th Trail
Amana, Iowa 52204
Remember to include model number of your appliance and your phone
number.
DANGER
WARNING
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
&
Recognize this symbol as a SAFETY message
WARNING
When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shock, fire, or injury to persons or exposure to excessive microwave energy.
1. READ all instructions before using oven.
2. READ AND FOLLOW the specific "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on this page.
3. This oven MUST BE GROUNDED. Connect only to properly GROUNDED outlet. See "EARTHING
INSTRUCTIONS" on page 6.
4. Install or locate this oven ONLY in accordance with the installation instructions in this manual.
5. Some products such as whole eggs and sealed containers--for example, closed glass jars--are
able to explode and SHOULD NOT be HEATED in this oven.
6. Use this oven ONLY for its intended use as described in this manual. Do not use corrosive
chemicals or vapors in this oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, CLOSE SUPERVISION is necessary when used by CHILDREN or INFIRM
PERSONS.
8. See door cleaning instructions in Care and Cleaning section of manual on page 42.
9. Baby food jars shall be open when heated and contents stirred or shaken before consumption, in
order to avoid burns.
10. Do not use this oven for commercial purposes. It is made for household use only.
11.
DO NOT heat baby bottles in oven.
12.
DO NOT operate this oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
13.
This oven, including power cord, must be serviced ONLY by qualified service personnel. Special tools are required to service oven. Contact nearest authorized service facility for examination, repair, or adjustment.
14.
DO NOT cover or block filter or other openings on oven.
15.
DO NOT store this oven outdoors. DO NOT use this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming pool or similar locations.
16.
DO NOT immerse cord or plug in water.
17.
Keep cord AWAY from HEATED surfaces.
18.
DO NOT let cord hang over edge of table or counter.
19. Clean the ventilating hood frequently.
20. Do not allow grease to accumulate on the hood or filters.
21. Use care when cleaning the ventilating hood filters. Corrosive cleaning agents usch as lye- based oven cleaners may damage the filters.
22. When flaming foods under the hood, turn the fan on.
23. Suitable for use above both gas and electric cooking equipment 36 inches or less wide.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
A. DO NOT attempt to operate this oven with door open since open door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with safety interlocks.
B. DO NOT place any object between oven front face and door to allow soil or cleaner residue to accumulate on
sealing surfaces.
C. DO NOT operate oven if it is damaged. It is particularly important that oven door close properly and that there
is no damage to:
1. door (bent)
2. hinges and latches (broken or loosened)
3. door seals and sealing surfaces.
D. Oven should not be adjusted or repaired by anyone except properly qualified service personnel.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To avoid risk of fire in the oven cavity: a. DO NOT overcook food. Carefully attend oven
when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c. If materials inside the oven ignite, keep oven door
CLOSED, turn oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
d. DO NOT use the cavity for storage. DO NOT leave
paper products, cooking utensils, or food in the cavity when not in use.
A WARNING
To avoid risk of fire in the oven cavity: Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to be boiling due to surface tension of the
liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A
SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:
i) Do not overheat the liquid. ii) Stir the liquid both before and halfway through
heating it.
iii) Do not use straight-sided containers with narrow
necks.
iv) After heating, allow the container to stand in the
microwave oven for a short time before removing the container.
v) Use extreme care when inserting a spoon or
other utensil into the container.
A CAUTION
To avoid personal injury or property damage, observe the following:
1. Do not deep fat fry in oven. Fat could overheat and 7. be hazardous to handle. 8.
2. Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin
is pierced, steam escapes evenly.
4. Do not operate oven without load or food in oven cavity.
5. Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch
or burn. Do not leave oven unattended.
6. Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and
may cause an electrical arc, malfunction, or damage to oven.
Do not use metal utensils in oven. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
.
When cooking with paper, plastic, or other
combustible materials, follow manufacturer's recommendations on product use.
10.
Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
11.
Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open
container or bag before cooking.
12.
To avoid pacemaker malfunction, consult
physician or pacemaker manufacture about effects of microwave energy on pacemaker.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE
STATEMENT ( U.S.A. ONLY)
This equipment generates and uses tSM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential
installation. However, there is no guarantee that interference will
not occur in a particular installation, tf this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:
SAVE THESE INSTRUCTIONS
Reorient the receiving antenna of the radio or television.
Relocate the Microwave Oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this microwave oven. tt is the responsibility of the user to correct such interference.
INSTALLATION
A. GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded.
/
Ensure proper ground
exists before use
WARNING
C. RADIO INTERFERENCE
1. Microwave oven operation may interfere with TV or
radio reception.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
a. Clean the door and the sealing surfaces of the oven. b. Reorient the receiving antenna of radio or television.
c. Relocate the microwave oven in relation to the TV or
radio.
d. Move the microwave oven away from the receiver. e. Plug the microwave oven into a different outlet so that
microwave oven and receiver are on different branch circuits.
To avoid risk of electrical shock or death, this oven must be earthed.
A WARNING
To avoid risk of electrical shock or death, do not alter the plug.
B. UNPACKING OVEN
Inspect oven for damage such as dents in door or inside oven cavity.
Report any dents or breakage to source of purchase immediately.
Do not attempt to use oven if damaged.
Remove all materials from oven interior.
If oven has been stored in extremely cold area, wait a
few hours before connecting power.
INSTALLATION
YOUR SAFETY FIRST
Read this entire manual before you begin.
BEFORE YOU START
Proper installation is the installer's responsibility!
- Write the model & serial numbers on the owner's manual. The model number label is located on the oven front. The mounting plate is located on the back side of the microwave oven. See Figure 1.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
Mounting
plate
( Remove from
oven to install. )
Back of oven
Figure 1
[ WARNING ]
To avoid risk of personal injury, electrical shock or death:
* Note where electrical outlets and electrical wires are before you drill into the wall. * Locate and disconnect power to any electrical circuits that could be affected by installing this oven. * Microwave must have a dedicated 120V, 60 Hz, AC, 15 or 20A fused electrical supply located in the cabinet
above the microwave, as close as possible to the microwave.
[ CAUTION ]
To avoid risk of personal injury or property damage, you will need two people to install this microwave oven.
INSTALLATION
YOUR SAFETY FIRST
[ CAUTION ]
To avoid risk of personal injury, install microwave oven only as instructed.
[ CAUTION ]
To avoid risk of personal injury, place a piece of the carton or other heavy material, such as a blanket, over the countertop or cooktop to protect it. DO NOT use a plastic cover.
MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
- Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
- DO NOT mount the microwave oven to an island or peninsula cabinet.
- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of any items you
place inside the oven or upper cabinet.
- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
- BE SURE you have enough space. See Figure 3 below for minimum vertical and horizontal clearance.
- This microwave oven can be installed over gas or electric cooking products no more than 36 inches wide.
- IF cabinet depth EXCEEDS 13 1/2", microwave oven must be uninstalled to gain access to the two vent grille
mounting screws on top of unitl. Grille must be removed to replace the oven light bulb and charcoal filter. See Maintenance section for more information.
_Grounded Plug
====4 (inside upper cabinet)
/
30" min. cabinetopening width
30" min. clearancefrombottom of cabinet to cooking surface
or countertop (Use templates included
with installation instructions)
/
Power Supply Cord Hole
P_9
Figure 3
INSTALLATION
PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Backdraft damper / duct connector
(for roof-venting or wall-venting installation)
Not Actual Size ( 2 pieces must be
assembled as shown )
Two self - tapping screws - Actual Size
(for attaching the damper duct connector)
One power cord clamp bushing - Actual Size
(for the cord hole in a metal upper cabinet)
One power cord clamp and One dark-colored mounting screw
(to hold the power cord)
Actual Size
One lock pin and one washer-Not Actual size
Four 1/4" x 2" lag screws - Actual Size
(for wall stud holes)
Two 1/4" x 2" or 3" bolts - Actual Size
(for securing to the upper cabinet)
Two washers - Actual Size
(for the two upper cabinet bolts)
NOTE: You need to install at least 2 lag screws into one 2" x 4" stud and four anchor bolts into the wall.
The mounting area must meet the 150 Ibs. weight requirement.
Four 1/4" x 3" toggle bolts - Actual Size
(for drywall holes)
Four spring toggle heads - Actual Size
(for the toggle bolts)
INSTALLATION
PARTS, TOOLS, MATERIALS
YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:
Carton or other heavy material for covering the counter top.
Clear tape
(for taping the templates to the wall)
Saber saw (for cutting vent holes for roof or wall venting)
Phillips screwdriver (for the screws)
Pencil _ _,
Flat blade screwdriver (for the toggle bolts)
Stud finder or thin nail.
Keyhole saw (for the power cord hole)
3/8" and 3/4" wood drill bits ,__.
1/2" and 3/16"
drill bits
Plumb line
r--.,_=---a_J
Measuring tape (metal preferred) Duct Tape
Small side cutters or tin snips Caulking gun
If you have brick or masonry walls, you will need special hardware and tools.
The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft damper.
I
10
INSTALLATION
STEP 1: PREPARE THE ELECTRICAL CONNECTIONS
[ CAUTION ]
To avoid risk of personal injury, electrical shock or death, this oven must be grounded.
DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUNDING PRONG! This appliance MUST be grounded!
1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4.
NOTE: The outlet should be on a circuit dedicated to the microwave
oven (120V, 60Hz., AC only) with a
15 or 20A fused electrical supply.
IMPORTANT: tf you do not have the proper wall outlet, you MUST have
one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in Figure 4) later when you prepare the wall and upper cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Upper IIII
Cabinet
............ ........................._ GIroUdnedecdaOUetI; t
Power-Supply-Cord Hole
Figure 4
11
INSTALLATION
STEP 2: PREPARE THE VENTING SYSTEM
[ _ CAUTION ]
To avoid risk of personal injury, property damage, or fire this microwave oven must be properly vented.
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings
and length are shown in Figure 9.
You may vent your oven in one of three ways. However, do NOT vent into a wall cavity, an attic, or an unused area.
Roof-venting If your oven is located on an outside wall near the roof, as in Figures 6 (31/4" X 10" duct) and Figure 8
(6" round duct.)
Wall-venting If your oven is located on an outside wall of your house, as in Figure 5 (3I/4" X 10" duct) and Figure 8 (6"
round duct.)
Room-venting If your oven is located on an inside wall of your house, as in Figure 7.
NOTE: If you choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance within the
wall for the exhaust duct.
Wall Venting
cabinet
_-walI cap
/
oven 3 1/4"x10" through-the-wall
Wall venting
DO NOT exhaust air into a wall, ceiling or a concealed space of a building.
DO NOT install 2 elbow fittings next to each other. This creates unusual air patterns and can result in poor ventilation.
ALWAYS vent outside. Do not vent into an attic or crawlspace.
Seal all joints in venting system with duct tape to avoid smoke or odor in home.
DO NOT use laundry wall caps.
" duct
Figure 5
cab_ / roof cap
oven ; II through-the-roof
Roof venting
RoomVenting
cabine_
ove:
Figure 7
Roof Venting
3 !/4"x10" I I
duct _
Figure 6
roof cap
6" min.
diameter wall cap
round duct
elbow
3 1/4"to round _J
duct transition
3 1/4"to round
ductworktransition
Figure 8
12
INSTALLATION
STEP 2: PREPARE THE VENTING SYSTEM
STANDARD FITTINGS
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust damper's sticking.
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows, and keep length as short as possible. Below are the standard fittings and their equivalent length in feet.
4
90° elbow
=lOft.
3 1/4"x10"
to 6"=5ft.
2
3 !/4"x10"
wall cap
=40ft.
3 1/4"x!0" roof
cap=24ft.
6
45 °elbow
=5ft.
3
3 1/4"x!0" 90°
elbow=25ft.
7
3 1/4"x10"
fiat elbow
=lOft.
Figure 9
To calculate the equivalent length of each ductpiece used, see the examples below.
I
Examples
For 3 1/4"x10" SYSTEMS
3 1/4"x10" _ 6ft. _ wall cap
90 elbow _.,_ I [_
H2_t.
For 6" ROUND SYSTEMS
90 elbows _ 6ft.
transi_ / "---11¢
wall cap
1-3 1/4" x 10" 90 °elbow = 25 ft. 1-Wall Cap 40 ft.
8 feet straight duct 8 ft.
TOTAL LENGTH 73 ft.
1-transition = 5 ft. 2-90 °elbows = 20 ft.
1-Wall Cap = 40 ft. 8 feet straight = 8 ft.
TOTAL LENGTH = 73 ft.
13
INSTALLATION
STEP 3: PREPARE THE VENTING BLOWER
[ CAUTION ]
To avoid risk of property damage, unplug the microwave oven or disconnect power at source by removing fuse or throwing circuit breaker.
[ CAUTION ]
To avoid risk of personal injury, wear protective gloves when handling mounting plate.
Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if you want wall-venting or room-
vented (recirculating) installation.
DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in electrical shock.
Remove two screws that attach mounting plate to microwave oven cabinet. See Figure 10.
Remove mounting plate and set aside. Replace the screws.
ROOF-VENTED INSTALLATION:
1. Insert one side of exhaust adaptor and attach with the one tapping screw on the other side of exhaust adaptor to the blower
plate. See Figure 1 1. Go to STEP 4 on page 12.
WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and two blower plate screws. Remove the blower plate from cabinet.
See Figure 12.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove knockouts parts "B" from Back plate. Discard knockouts.
Be careful not to distort the plate. See Figure 13.
4. Rotate the unit so that the exhaust ports face the rear of the cabinet. See Figure 14. When you insert blower unit, blower wire must be like figure 14.
5. Place blower unit back into cabinet. Check that the exhaust ports face towards the rear of the cabinet.
See Figure 15.
6. Reattach the blower plate to cabinet so the exhaust ports and blower plate opening are aligned.
Attach with one blower unit mounting screw and then two blower plate
mounting screws.
See Figure 16. back Plate
Control panel side
blower unit
mounting scre_
blower unit ,_<_
F
\
Mounting plate screws
Dampe
t
_ Figure 12
Parts "B"
Mounting plate
Figure 10
_ Tapping screw
(Bright color)
adaptor
i
J Exhaust
back plate
Figure 11
blower plate
unting screw
blower plate
back plate
-Knockouts Parts "B"
Parts "B"
Figure 13 Figure 14
14
unit
exhaust po_s
Loading...
+ 32 hidden pages
