CABINET PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
05−08 Litho in U.S.A. (MAT) (eeb)
1
Part No. W10205146 Rev. B
CABINET PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10175445
W10183296
W10165418
2 Cabinet (Not a
3 Plug, Button (3)
67001131 Black
4 67005064 Label, Fill Tube
5 67006118 Roller Assembly
6 12627302 Clip, Grille
7 67006642 Pin, Center Hinge
8 67006611 Bolt, Adjusting
9 67006521 Screw
10 67001098 Cover, Fill Tube
11 67006380 Screw
12 67006473 Screw (8)
13 A3076901 Plug, Button
14 67006303 Screw (3)
15 Hinge, Center
67007043 Black
16 67003868 Foot Brake (2)
17 Cover, Corner
67003485 Black
12566604ED
18
19 12479901 Plate, Cover
20 67006564 Screw (8)
21 Cover, Hinge
67001012 Black
22 Grille Assembly
67006886 Black
24 67006662 Screw
25 67006425 Screw (9)
26 67007174 Bracket, Foot
27 67001173 Cover, Water Valve
28 67006101 Cover, Unit
29 67003796 Insulation, Sound
W10164397
30
W10157973
31
33 B5759649 Gasket
Owners Manual
Energy Tag
Tech Sheet
Servicable Part)
(Rear)
Hinge, Top
(Includes Clips)
Tube, Drain
Clip, Drain Tube
(Stainless Steel)
2
W10205146
REFRIGERATOR LINER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
3
REFRIGERATOR LINER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
Y67003896
2
3 67004279 Overlay
W10185244
4
W10165748
5
6 C3680310 Switch, Light
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
Y12570701
10
11 67003900 Insert,
12 67006602 Screw (2)
13 67003899 Cover, Damper
14 67006604 Insulation
W10127429
15
16 12002355 Thermistor
17 M0310343 Plug Button
Bracket, Control
and Lights
Housing,
Electronic Control
Board, Control
Socket, Light (2)
Damper Cover
Control, Damper
(Stainless Steel)
Following Parts Not Illustrated
67004033 Harness, Controls
(Refrigerator)
(Includes # 16)
4
W10205146
FREEZER LINER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
5
FREEZER LINER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam (2)
3 12002497 Gear (2)
(Includes RH & LH)
4 67003905 Cover, Light
5 67004067 Shaft
Y12570701
6
8 67006473 Screw (8)
9 A0282812 Bulb, Light
10 67001035 Housing, Frz. Light
11 67005871 Cover, Evaporator
12 67005822 Screw (7)
13 Bracket, Door
W10122147
W10122148
14 67003906 Housing, Lighting
W10167028
15
16 67005653 Switch, Light
18 Bracket, Basket
W10187668
W10187667
W10120018
19
20 67002286 Gasket, Bottom
21 Bracket, Slide
W10128118
W10128119
W10175909
22
W10167023
23
24 2169142 Fan, Evaporator
W10121318
25
26 67003636 Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
32 67006406 Screw (6)
33 67006530 Screw
Socket, Light
Left
Right
Clip, Evap. Motor
Left
Right
Slide, Drawer (2)
Left
Right
Cover, Fan Shroud
Shroud, Evap.Fan
Grommet (2)
(Incl. # 28 & 29)
(Stainless Steel)
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)
6
W10205146

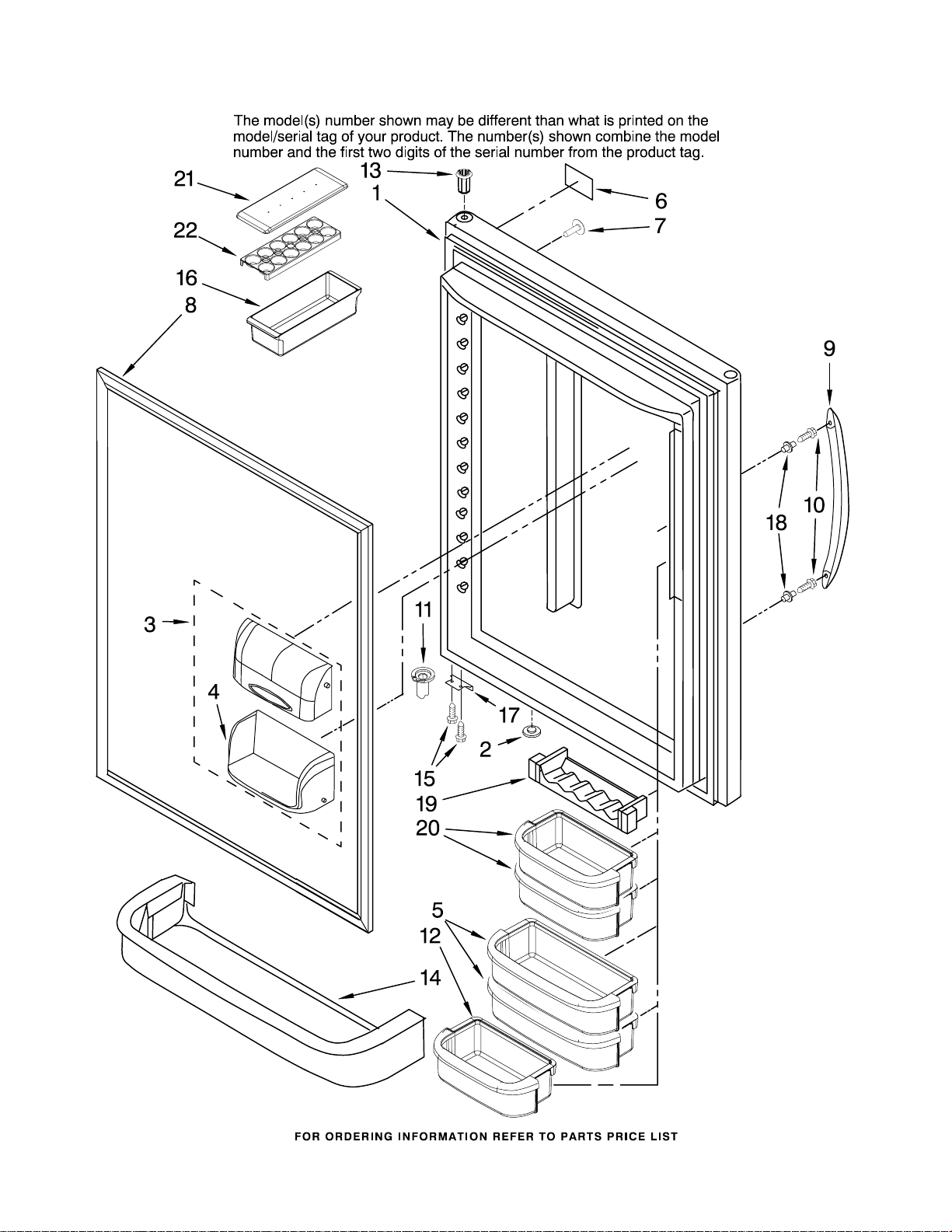

REFRIGERATOR DOOR PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
7
REFRIGERATOR DOOR PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/ Insulation)
Stainless Steel
W10203482
W10182772
2 Plug, Vent
67004838 Black
3 67003819 Door, Compartment
4 67001279 Tray, Dairy
5 67001021 Bucket (2)
Y12528501
6
7 Plug, Button (2)
67001131 Black
8 Gasket, Door
12683815B
9 Handle, Door
W10159105
10 67002935 Screw
11 Closure, Door
67003639 Black
12 67004124 Bucket (1)
13 Bushing
67004978 Black
14 67001296 Retainer, Door
15 67006287 Screw
16 10423131 Bin, Utility
17 Stop, Door
67003780 Black
18 67006113 Mount, Handle
19 67005626 Caddy, Can
20 67001141 Bucket (2)
21 10436404 Lid, Utility
22 10436506 Tray, Egg
Left
Right
(Medium)
Nameplate
Magnetic
Black
Stainless Steel
(Short)
(Small)
(Stainless Steel)
8
W10205146
FREEZER DOOR PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
9
FREEZER DOOR PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
W10174587
2 Handle, Door
W10159105
3 67006113 Mount, Handle
4 Gasket, Door
W10153328
5 67006682 Screw
6 Plug, Vent (2)
67004838 Black
Stainless Steel
Stainless Steel
Black
(Stainless Steel)
10
W10205146
SHELF PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
11
SHELF PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 67002690 Ladder, Side
2 67006400 Screw (6)
3 67001073 Ladder, Center
4 67006360 Screw (2)
5 12204808 Glass, Shelf (4)
6 67006626 Screw (4)
7 67006877 Glass, Crisper
8 67001153 Frame, Crisper
9 10946012 Trim, Rear (4)
10 67005864 Knob, Control
11 D7725402 Tray, Ice Cube
12 67001057 Rail, Center
Crisper
13 67001155 Brace, (2)
Crisper Frame
14 67003884 Trim, Crisper
15 67002569 Pan, Crisper (2)
16 67004985 Basket, Freezer
(Upper)
17 12646501 Rack, Ice
18 67004127 Divider,
Upper Basket
19 67006608 Screw
W10143560
20
21 67006644 Divider,
24 10972101 Spacer, Rack
25 67003400 Frame, Shelf (4)
26 67006908 Screw (2)
27 67001308 Pan, Deli
28 10459930 Trim, Front (4)
Basket, Freezer
(Lower)
Lower Basket
(Stainless Steel)
12
W10205146
UNIT PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
13
UNIT PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 67006433 Screw (3)
W10162928
2
3 67006914 Basepan
4 67006425 Screw (2)
5 67004954 Screw (3)
W10130129
6
W10119856
7
8 67004713 Drain Pan
9 61004743 Grommet (3)
10 67002135 Evaporator Heater
11 67005562 Capacitor
W10174592
12
13 61003210 Gasket
W10165425
14
W10137529
15
W10158508
16
W10131991
17
18 67006133 Condenser
W10174591
19
20 67001133 Tray, Drip
21 10623002 Clip, Evaporator
Blade, Fan
Compressor
Harness,
Evap. Heater
Overload/Relay
(Capacitor Incl.)
Thermostat
Grommet (4)
Shroud, Condenser
Clip, Capacitor
Tube, Discharge
Illus. Part
No. No. DESCRIPTION
22 12002051 Evaporator
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060301 Harness, Unit
Includes Cord
27 Drier
10743203 (Production)
2317845 (Service)
28 10547003 Clip, Drier
29 67004953 Bracket, Fan
W10169124
30
31 67006432 Screw (2)
32 67006573 Screw (4)
33 67006737 Screw
34 67005680 Grommet (2)
35 67005491 Block, Condenser
36 67005149 Roller (2)
37 67006434 Axle, Roller (2)
Grommet (3)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 Ozs.
(R−134A)
14
W10205146
ICEMAKER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
W10205146
15
ICEMAKER PARTS
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Mold & Heater
Assembly
(Not Available
Order D7824706Q)
2 67004028 Arm, Shutoff
3 628356 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2195914 Support & Motor
Assembly
7 2315522 Retainer,
Thermostat
8 Thermostat
(Not Available
Order D7824706Q)
9 681249 Screw (2)
10 67001255 Pan, Ice
11 67004101 Bracket, Tube
Support
12 67006531 Valve, Water
Inlet
13 A3223101 Insert, Tube
14 B5705307 Tubing, Plastic
W10146389
15
16 625910 Bracket
17 67006662 Screw
18 67004710 Cover
19 Module Assembly
20 67006287 Screw
21 67005603 Funnel, Fill
100 67001740 Complete Icemaker
Harness, Icemaker
(Not Available
Order D7824706Q)
Tube
(Stainless Steel)
Following Parts Not Illustrated
18001005 Icemaker Install
Kit
16
W10205146
OPTIONAL PARTS (NOT INCLUDED)
For Model: ABL1922FES12, ABR1922FES12
(Stainless Steel)
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350939 Black
350942 Primer, White
Important:
not to be used where the paint
may make contact with the door
gaskets.
The spray paint is
Illus. Part
No. No. DESCRIPTION
PAINT, BULK (1 qt.)
799344 White (Uncut)
799340 Black (Uncut)
Miscellaneous
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4 x 108")
505587 Sealer, Mastic
(1 Qt.)
503695 Cork, Sealer
(1/4 Pound)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
833938 Kit, Terminal
Connector
Illus. Part
No. No. DESCRIPTION
TORX SCREW WRENCH
1117510 Torx Key
ACCESSORIES
4396920 Cleaner,
Stainless Steel
W10205146
17
