Alwarerc Streak 800Pro Hexacopter Combo User Manual

STREAK 800Pro HEXACOPTER

Instruction Manual

Contents

1. Safety Notes........................................................................................................................................................3

2. Equipment Required For Assembly....................................................................................................................4

3. Check List............................................................................................................................................................5

4.1 Assembly Steps - Flight direction indicator......................................................................................................8

4.2 Assembly Steps – Motor....................................................................................................................................9

4.3 Assembly Steps – Motor Mount .....................................................................................................................10

4.4 Soldering Job...................................................................................................................................................11

4.5 Assembly Steps – ESC and ESC board...........................................................................................................12

4.6 Assembly Steps – Motors & Propellers...........................................................................................................14

4.7 Assembly Steps – Bipod Landing Gear...........................................................................................................16

5. Quick Collapsible Illustration...........................................................................................................................18

6. Gimbal Mounting..............................................................................................................................................20

7. Multicopter Controller Mounting Illustration...................................................................................................22

8. Specification......................................................................................................................................................23

End Of Manual......................................................................................................................................................24

1. Safety Notes

Do fly only in safe areas and always away from other people! Do not operate RC aircraft within the vicinity of homes or crowds of people. RC machine are prone to accidents, failures, and crashes due to a variety of reasons including pilot error, radio interference, and lack of maintenance. Pilot are responsible for their actions and damage or injury occuring during the operation of RC aircraft machine.

When flying the aicraft, the fast rotating props of Streak 800 may cause serious injuries with any accident occurred. Therefore please keep in mind that safety at first during the flight.

The ONLY Flying direction suitable for Streak 800:

Make sure you have installed your own Hexacopter Controller and the Props in the correct direction according to the factory's manual of the Controller.

2. Equipment Required For Assembly

6pcs-- 40A ESC(6S

22.2V) (e.g. HobbyWing FlyFun 40A ESC)

18pcs-- 3.5mm Bullet Connector (Female) for 6pcs ESC

1pcs-- “+” Mode Hexacopter Controller (e.g. DJI WK-M)

2pcs-- 6S LiPo Battery 3500-7500mAh 22.2V ( Will be connected in Parallel)

2pair-- Connectors For Batteries and Power Board

1pcs-- Transmitter 1pcs-- Receiver 1pcs-- Lipo Charger &

the connector to fit the Lipo Battery.

3. Check List

Please Check the Follow parts.

Alware Multicopter Brushless Motor 3515-15 KV400 (Not included unless otherwise

specified.) 6 Set

Screw set come with Motor.

6 Set

Apc Propeller 14x4.7SFP (CW) 3 Pcs

Apc Propeller 14x4.7SFP (CCW) 3 Pcs

Large Current Power/ESC Board (Black/ Blue color) with 2 pairs Battery Cable.

Servo Extension Wire ( 15cm ) 6 pcs

AWG wire Black ( 33cm ) 6 pcs

AWG wire Red ( 33cm ) 6 pcs

Frame parts.

Motor Mount 6 Pcs

Carbon Fiber Leading Gear Assembly 2 Pcs

Landing Gear Skid (420 mm) 2 Pcs

FPV & GPS Mounting Assembly 1Pcs (left) Landing Gear Frame Assembly 1 Pcs (right)

Other parts :

Spare Hex Cap Screw M2x6mm Spare Hex Cap Screw M3x8mm Spare Hex Cap Screw

M3x10mm

Spare Hex Cap Screw M3x12mm

Spare Round Cap Screw 8pcs x Battery Support Damper

1pcs x Direction Indicating Sticker

4.1 Assembly Steps - Flight direction indicator

Step 1. Cut the Direction Indicating Sticker with a width of around 100mm.

Step 2. Tear the cover layer of the Sticker before stick to the front Carbon Arm Boom.

Step 3. Stick the Direction Indicating Sticker to the Fixed Carbon Arm Boom as to indicate the Forward Flying Direction.

Step 4. Use three pieces of Adhesive Tape to secure the Direction Indicating Sticker.

Step 5. Prepare the FPV & GPS Mounting Assembly.

Step 6. Insert the FPV & GPS Mounting Assembly into the opposite boom of the Direction Indicating Sticker.

4.2 Assembly Steps – Motor

Step 1. You will received 6 motors in ALS800-CB.

Step 2. For new motors, Thread Lock must be applied to the two M3 Set Screws which is pre-inserted in the motor.

(This is a must for safety flying.)

Step 3. Install the Porp Mount to the motor using 3pcs M3 Hex Cap Screw. (Apply little

amount of Thread Locker when assembly metal to metal parts.)

Step 4. Double check the prop mount which must be installed to the motor securely.

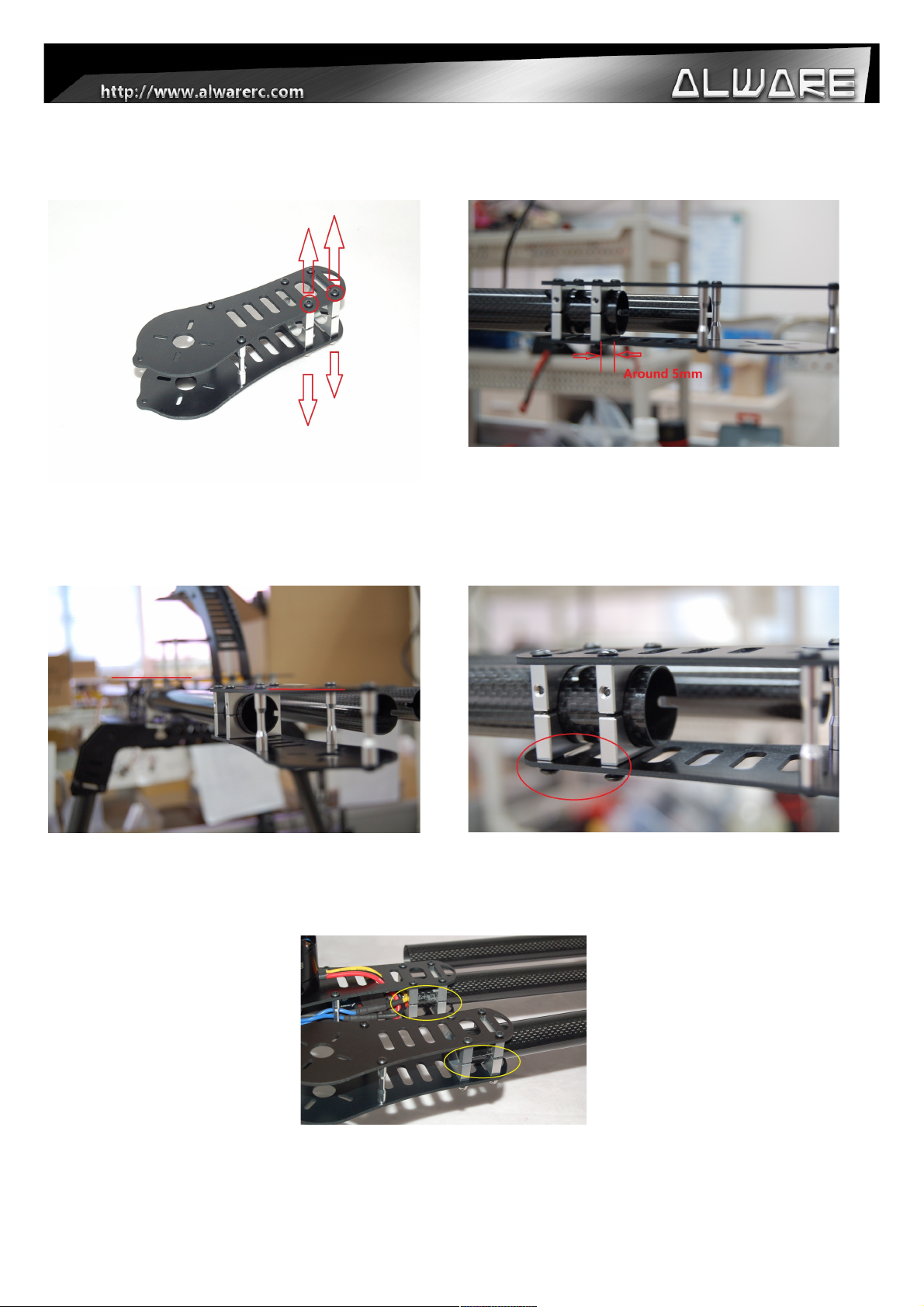

4.3 Assembly Steps – Motor Mount

Step 1. Loosen the two screws before insert the motor mount to the Carbon Arm Boom.

Step 2. Insert the Motor Mount to the carbon boom and stop until the boom edge is around 5mm to the Inner Motor Metal Mount surface.

Step 3. Adjust the Motor Mount to parallel to the Streak 800Pro body before tighten the screws.

Step 4. Secure the Motor Mount by tighten the screws on the Metal Mount.

Repeat Step 1 to 4 to install other Motor Mounts to the Carbon Boom Arms.

4.4 Soldering Job

Solder 2 pairs Battery Cable to the Large Current Power/ESC Board and connect the other end to the Battery Connectors. (Red = +ve , Black = -ve)

Do not short circuit two polarities!!

1.) Solder Black and Red AWG wires to the ESC.

2.)Solder 3pcs 3.5mm Bullet Connectors (Female) to the ESC.

3.)Connect Servo Extension Wire to the Signal Connector of ESC and secure it using Adhesive Tape.

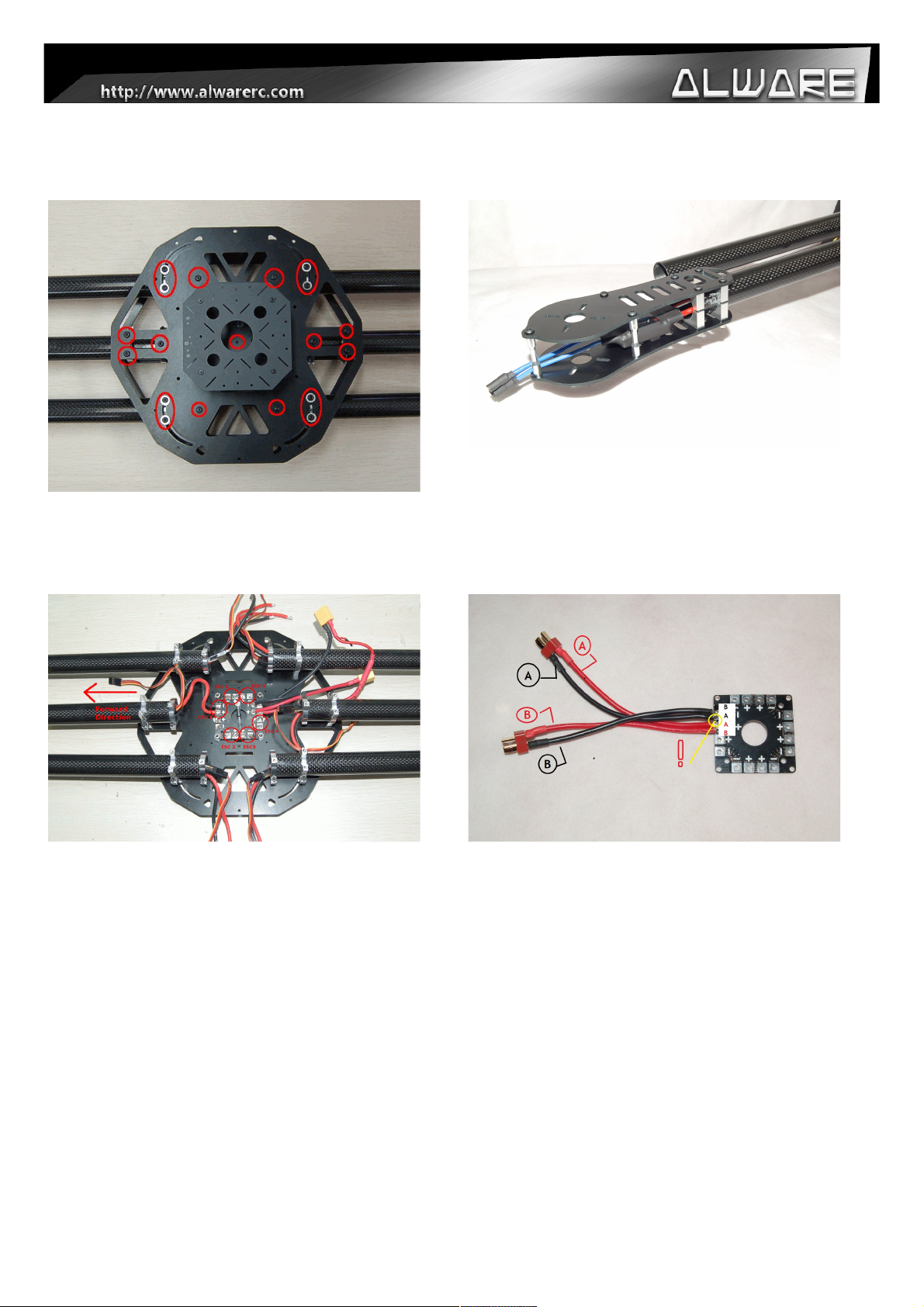

4.5 Assembly Steps – ESC and ESC board.

Step 1. Uninstall the Upper Main Frame of Streak 800Pro by loosing 18pcs M3 Screws as shown above.

Step 2. Insert the Battery Power Cable and Signal Wire of the ESC into the Carbon Boom Arm. Same for all 6pcs ESCs.

Step 3. Solder the Battery Power Wires of the ESC to the ESC Board. (Red wire = +ve , Black wire = -ve)

Step 4. Solder 2 pairs Battery Cable to the Large Current Power/ESC Board and connect the other end to the Battery Connectors. (Red = +ve , Black = -ve) Do not short circuit two

polarities!!

Step 5. Install the Upper Main Frame back to the body. (Apply little amount of Thread Locker

when installing Screws to metal part.)

Step 6.

Insert the FPV & GPS Mounting Assembly completely to touch the Upper Main Frame and secure it by tighten the M3 Screw circled above.

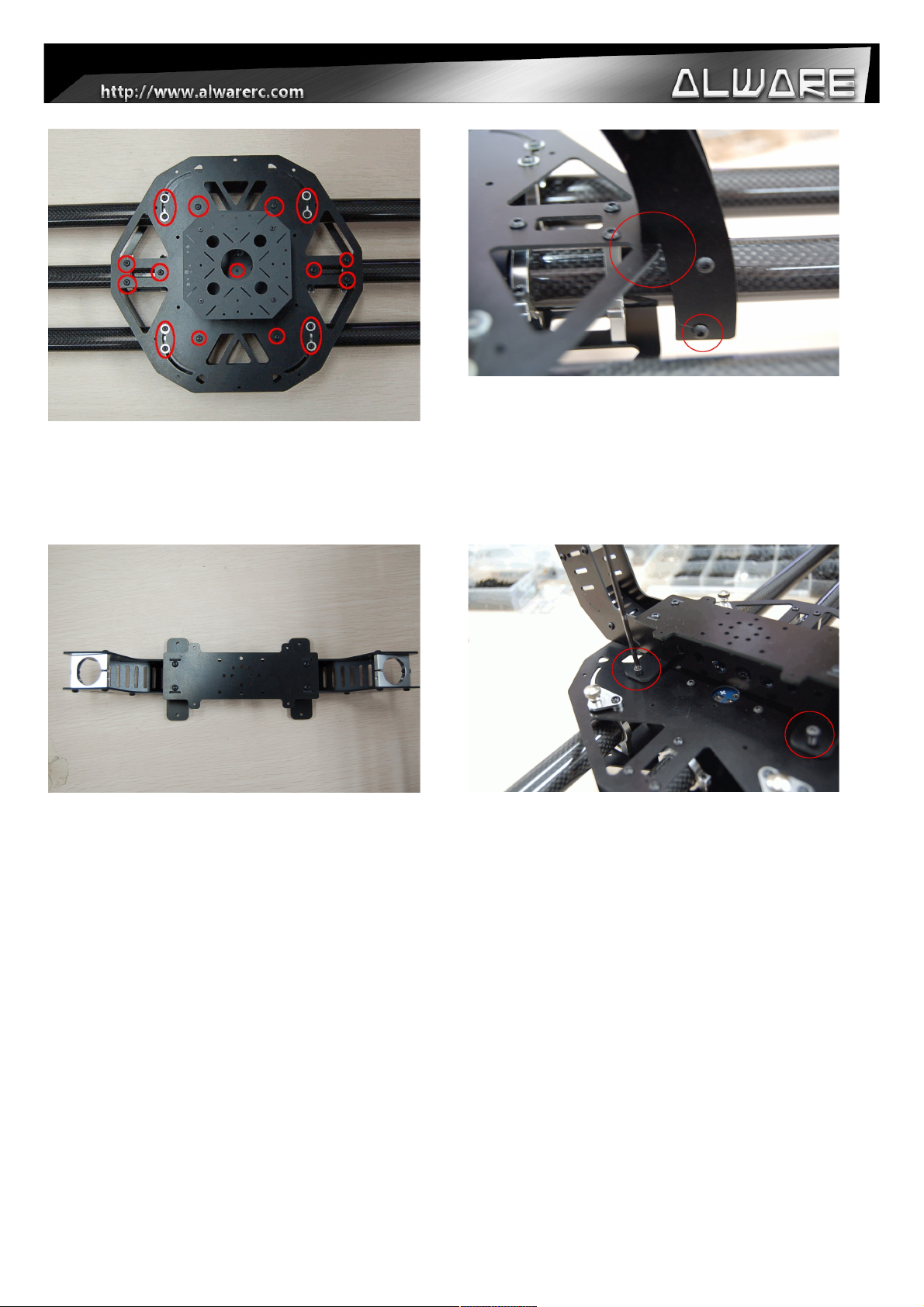

Step 7. Prepare the Landing Gear Frame Assembly.

Step 8. Install the Landing Gear Frame Assembly to the Lower Main Frame of the body using four M3x10 Hex Cap Screws. (Apply little amount

of Thread Locker when installing Screws to metal part.)

4.6 Assembly Steps – Motors & Propellers.

Step 1. Prepare 4pcs M3x8mm HexCap Screws with 4pcs 3mm Washers to install the motors to the Motor Mounts.

Step 2. Insert a M3x8mm Screw into a 3mm Washer then insert to the motor mount slot as to mount the Motor to it. (Apply little amount of Thread

Locker when assembly metal to metal parts.)

Step 3. Secure the motor to the motor mount with 4pcs screws and washers.

Step 4. Insert the Motor Wires into the slot of motor mount and connect with motors.

Step 5. Repeat Step 1 to 4 for other 5 motors. Test the motor first without propellers as to ensure the rotating direction is correct. Exchange any two motor wires to the ESC as to reverse the direction if needed.

Step 6. After ensuring the motors are running in the correct direction, prepare the APC Props and Prop mounting screw and washer from the motors.

Step 7. Insert the Root Hole Adapter (with 6mm inner diameter) to the bottom side of APC Prop.

Step 8. Install the Propeller to the motors and secure it with Prop mount Screw and Washer. (Please

refer to your Multicopter Controller Manual to install the CCW & CW Props in the correct direction.)

4.7 Assembly Steps – Bipod Landing Gear.

Step 1. Insert the Landing Gear Skid into the mounting hole of Carbon Fiber Leading Gear Assembly. (Tips: You can rotate the Landing Gear Skid into the hole with less effort.)

Step 2. Adjust the length of the Landing Gear Skid. Each side of the Landing Gear Skid should be about 195mm.

Step 3. Secure Landing Gear Skid onto the Carbon Fiber Leading Gear Assembly using the M3 Set Screw which is pre-installed on the Landing Gear Skid Metal Mount.

Step 4. Repeat Step 1-3 to complete another side of Bipod Landing Gear Assembly. (Remarks: Two set of Bipod Landing Gear Assemblies are not exactly the same but is in symmetry direction.)

Step 5. Correct two Bipod Landing Gear Assemblies.

Step 6. Insert the Carbon Boom of Bipod Landing Gear Assembly into the metal mount of Landing Gear Frame Assembly with the depth of approximately 5mm.

Step 7. Adjust the Bipod Landing Gear Assembly to make the Landing Gear Skid be parallel to the Fixed Arm and secure the Landing Gear Frame Assembly with the M3 Screw.

5. Quick Collapsible Illustration

With the Quick Collapsible Design, you can fold four arms of Streak 800 easily for easy transportation and storage. However you

must follow the coming step by step to fold the arms correctly, otherwise the Lock System may damaged!

Step 1. Four Arms of Streak 800Pro are locked with four Thumb Screws with Split Lock Washers.

Step 2. Loosen the Thumb Screw and make sure it is not touching the Fiber Frames. Then the Arm can be folded or opened.

Step 3. Make sure the Arm is fully folded or opened, and then tighten the Thumb Screw completely. It should throught two layer of fiber frames as shown above.

Step 4. Always check the above Screws are not loosen, but not tighten completely too, otherwise the Arms will not be foldable. If you found that it is getting loosen, secure it

with Thread Locker for secure flight. Adjust

the tightness of these screws for the smoothness of folding the arms, loosen it a little bit if your folding arms are too tight.

***Always check if the above four Screws are secured tightened completely for secure flight. If you found that it is getting loosen, secure it with Thread Locker.

Step 5. Same as Step 4., check the above eight screws for secure flying.

6. Gimbal Mounting

Step 1. Indicate the Multi-Gimbal Mount which is installed with Landing Gear Frame Assembly.

Step 2. Mounting position for GAUI CRANE 3 and CRANE 2 Gimbals.

Step 3. Mounting positions for other Gimbals such as STO S-903(3-axis) Gimbal, STO Camera Mount Kit S-550 etc.

Mounting with Lensman-18A 3-Axis Gimbal:

Step 1. Prepare the Lensman-18 Gimbal Mounting Frame Model: ALLENS-18GMF (optional

item, not included) if you want to install with

Lensman-18A Gimbal.

Step 2. Install the Lensman-18 Gimbal Mounting Frame onto the Lensman-18A Gimbal.

Step 3. Replaced the installed Landing Gear Frame Assembly(Step 8) from the Lower Main Frame of the body with the Lensman-18A Gimbal with the Mounting Frame installed (Step 2) using four M3x 14mm Hex Cap Screws with 3x5x3mm Collars.

Step 3. Side view.

7. Multicopter Controller Mounting Illustration.

Overall electronics mounting for reference. Installation of WK-M, Front View.

Back View. GPS Compass mounting for reference.

8. Specification

Kit:

-Diagonal Wheelbase: 800mm

-Carbon Arm Boom Length: 281mm

-Carbon Arm Boom Weight: 23.6g

-Motor Mounting Frame Size: Φ13x22-34mm(Shaft x Screw Diagonal Distance)

-System Platform Frame Dimension: 105x66x42mm (LxWxH)

-Bipod Landing Gear Dimension:

188mm(Top Width) x 466mm(Lower Width) x 348mm(Height)

-Landing Skid Pipe: Φ10x420mm

-Bipod Landing Gear Weight: 136g

-Total Kit Weight: 1110g (Without Electronics & Props)

-Total Kit Weight With Motors & Props: 2330g

Propeller:

-Manufacturer: APC PROPELLERS in USA

-Size: 14×4.7 Inch

-Root Hole Diameter: 5-6mm

-Center hub thickness: 6mm

-Weight: 25.3g/pcs

Motor:

-Model: Alware Multicopter Brushless Motor 3515-15

-KV value: 400KV

-Stator Diameter: Φ35mm

-Stator Length: 15mm

-Propellwe Mount Diameter: 6mm

-Motor Dimension: Φ42.5x35mm

-Weight: 178g (with 3.5mm Bullet Connectors and Prop Mount)

-Input voltage: 22.2V 6S LiPo Battery

-Max continuous current: 35A(180sec)

-Max output power: 750W(180sec)

-Internal resistance: 175mOHM

-Recommended ESC: HobbyWing 40A/ 60A

Speed Controller/ ESC:

-Current: 40A or Above

-Voltage: 22.2V 6S LiPo

-Largest Dimension: 30x80x25mm (WxLxH)

-Recommended ESC: HobbyWing 40A ESC(for 22.2V 6S Lipo)

Flying Parameters:

-Max. Takeoff Weight: 7.0Kg

-Max. PayLoad Weight: 2.3Kg (With 12600mAh Lipo-1.7Kg)

-Power Battery: 9000-15000mAh 22.2V 6S LiPo (Minimum 15C)

-Hover Power Consumption: 1300W (Takeoff Weight 6.5Kg)

-Max. Hover Time: 15 min (With 12600 mAh & 6.5Kg Takeoff Weight)

Items Included:

1x Streak 800 Hexacopter Kit

1x Bipod Landing Gear System

1x Large Current Power/ESC Board

3x APC Propeller 14x4.7SF (CCW)

3x APC Propeller 14x4.7SFP (CW)

6x Alware Multicopter Brushless Motor 3515-15 KV400

# Report any mistakes or ask for amy queries, please email to: info@alwarerc.com
