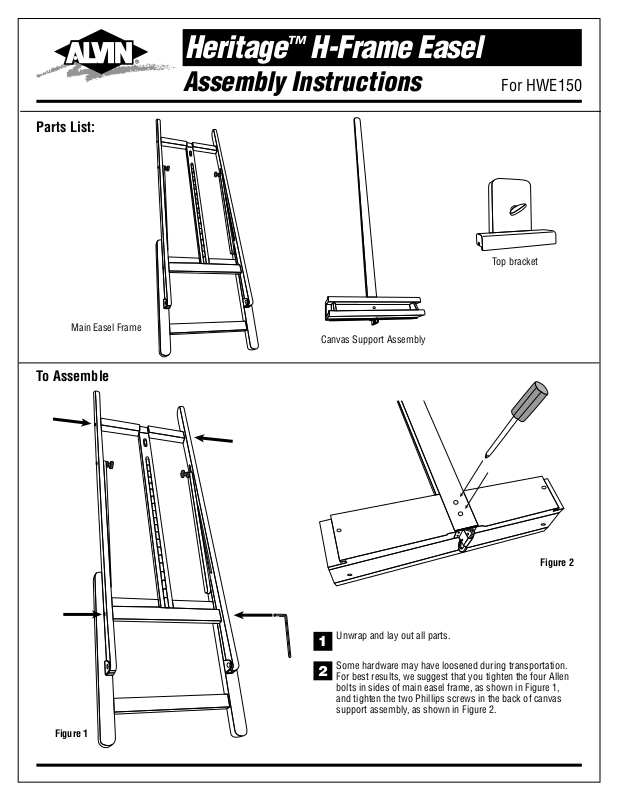

Alvin HWE150 User Manual

Heritage™ H-Frame Easel

Parts List:

Main Easel Frame

To Assemble

Assembly Instructions

Canvas Support Assembly

For HWE150

Top bracket

Figure 1

Unwrap and lay out all parts.

1

Some hardware may have loosened during transportation.

2

For best results, we suggest that you tighten the four Allen
bolts in sides of main easel frame, as shown in Figure 1,
and tighten the two Phillips screws in the back of canvas
support assembly, as shown in Figure 2.

Figure 2

Angle
Adjustment
Knobs

Brass
Thumbscrew

Brass
Thumbscrew

Angle
Adjustment
Knobs

Figure 3

Height Adjustment Ring

Lay main easel frame flat on floor with brass height

3

adjustment track facing up.

Carefully slide canvas support assembly from below into

4

slots and tracks in main frame, as shown in Figure 3.
Pull spring-loaded height-adjustment ring and set in the
third track position for the time being.

Loosen the two angle adjustment knobs and slowly lift

5

frame into the vertical position, as shown in Figure 4.
Tighten knobs when desired angle is reached.

Slide top bracket down over main vertical track and

6

secure with brass thumbscrew at desired height, as
shown in Figure 4.

Your easel is now ready to use. Enjoy!

7

To Adjust Height

Loosen brass thumbscrew on back of main vertical track.

1

Pull spring-loaded height-adjustment ring to release

2

locking mechanism from brass track. Slide canvas
support assembly up or down until desired height
is reached.

Retighten brass thumbscrew.

3

Please save these instructions for future reference.

Figure 4
