Page 1
Your Washing Equipment Solution
032011
Job No. _____________________
Item No. ____________________

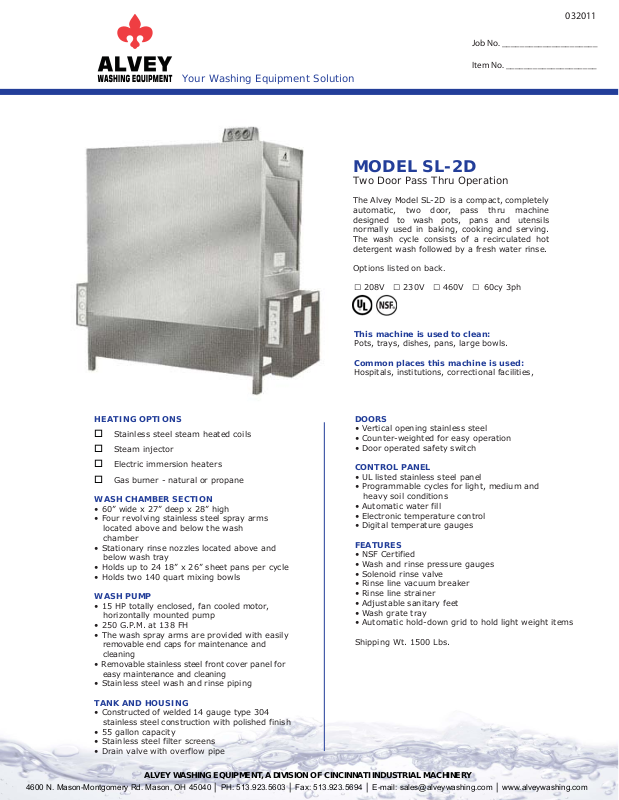

MODEL SL-2D
Two Door Pass Thru Operation
The Alvey Model SL-2D is a compact, completely
automatic, two door, pass thru machine
designed to wash pots, pans and utensils
normally used in baking, cooking and serving.
The wash cycle consists of a recirculated hot
detergent wash followed by a fresh water rinse.
Options listed on back.
□ 208V □ 230V □ 460V □ 60cy 3ph
HEATING OPTIONS
Stainless steel steam heated coils
Steam injector
Electric immersion heaters
Gas burner - natural or propane
WASH CHAMBER SECTION
• 60” wide x 27” deep x 28” high
• Four revolving stainless steel spray arms
located above and below the wash
chamber
• Stationary rinse nozzles located above and
below wash tray
• Holds up to 24 18” x 26” sheet pans per cycle
• Holds two 140 quart mixing bowls
WASH PUMP
• 15 HP totally enclosed, fan cooled motor,
horizontally mounted pump
• 250 G.P.M. at 138 FH
• The wash spray arms are provided with easily
removable end caps for maintenance and
cleaning
• Removable stainless steel front cover panel for
easy maintenance and cleaning
• Stainless steel wash and rinse piping
This machine is used to clean:
Pots, trays, dishes, pans, large bowls.
Common places this machine is used:
Hospitals, institutions, correctional facilities,
DOORS
• Vertical opening stainless steel
• Counter-weighted for easy operation
• Door operated safety switch
CONTROL PANEL
• UL listed stainless steel panel
• Programmable cycles for light, medium and
heavy soil conditions
• Automatic water fill
• Electronic temperature control
• Digital temperature gauges
FEATURES
• NSF Certified
• Wash and rinse pressure gauges
• Solenoid rinse valve
• Rinse line vacuum breaker
• Rinse line strainer
• Adjustable sanitary feet
• Wash grate tray
• Automatic hold-down grid to hold light weight items
Shipping Wt. 1500 Lbs.
TANK AND HOUSING
• Constructed of welded 14 gauge type 304
stainless steel construction with polished finish
• 55 gallon capacity
• Stainless steel filter screens
• Drain valve with overflow pipe
ALVEY WASHING EQUIPMENT, A DIVISION OF CINCINNATI INDUSTRIAL MACHINERY
4600 N. Mason-Montgomery Rd. Mason, OH 45040 │ PH: 513.923.5603 │ Fax: 513.923.5694 │ E-mail: [email protected] │ www.alveywashing.com
Page 2
Your Washing Equipment Solution
Accessories & Optional Equipment for Model SL-2D
Booster Options for Rinse Water
Steam Heated Rinse Water Booster
System will elevate rinse water temperature up to 180˚. This unit
comes equipped with Shuto Valve, Steam Strainer, and Steam Trap.
(approx. weight of 200lbs.)
Electric Heated Rinse Water Booster
System will elevate temperature of incoming rinse water to 180˚. This unit is equipped with :
temperature pressure relief valve, pressure reducing valve and temperature-pressure gauge
(approx. 200lbs.)
Gas Heated Rinse Water Booster
System will elevate temperature of incoming rinse water to 180˚. This unit is equipped with :
temperature pressure relief valve, pressure reducing valve and temperature-pressure gauge
(approx. 200lbs.)
Booster Mounting Options
Top
Floor
Options for Model SL-2D
Custom Designed Racks & Baskets
Insulated Housing
Exhaust Fan
Detergent Dispenser
Third Door Option
Racks & Baskets for Model SL-2D
RO1035 - 4 Pocket Steam Table Insert Rack
RO1078 - 12 Pocket Bun Pan Rack
B18311 - Utensil Basket with Lid
B18320 - Miscellaneous Pan Basket with Lid
R01035
B18320
R01078
