Alumax L-CSSY User Manual

L-CSSY

Walk-in ● Shower System

08/10

L012

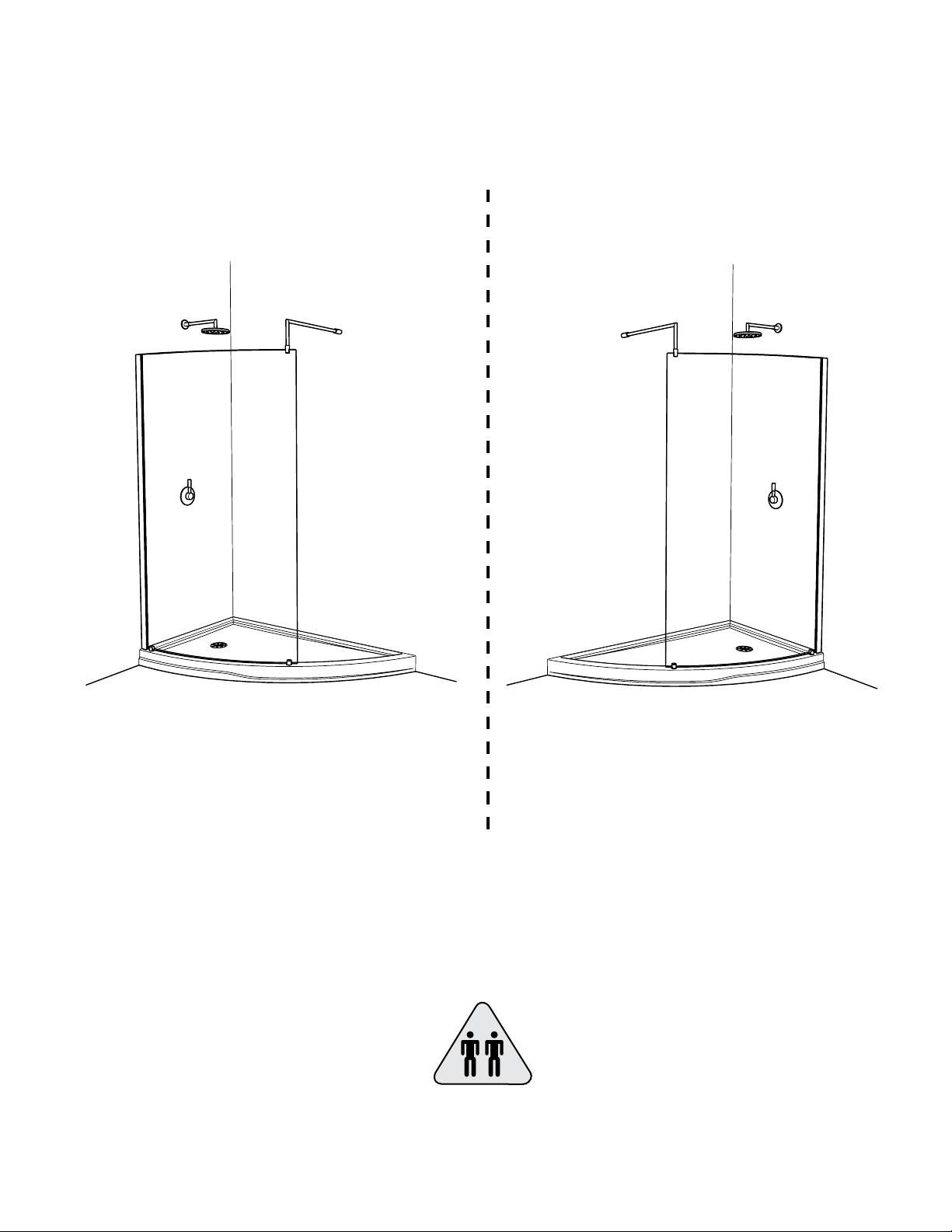

ABSL66-18L

ABSL66-18R

Left side base

Right side base

2 PEOPLE REQUIRED

Please keep this manual and product code number for future reference and replace-

ment parts ordering if necessary.

GENERAL INSTRUCTIONS

• Read this manual carefully and completely before
proceeding.

• It is recommended that you wear safety glasses at
all times during the installation.

INSTALLATION OVER CERAMIC TILES

• Silicone should be used to seal the gap where the
ceramic tiles meet the panel.

• If your shower door is to be installed over ceramic
tiles, the tiles should lay completely under the wall
jamb.

NOTICE

• Caulking: no sealant is required inside the shower.
Unless otherwise stated.

• Some models are equipped with clear sealing gas­kets.

CARE FOR YOUR SHOWER DOOR

• Never use scouring powder pads or sharp instru­ments on metal pieces or glass panels. An occa­sional wiping down with a mild soap diluted in water
is all that is needed to keep the panels and metal
parts looking new.

• We recommend wiping the glass panels with a
squeegee after each use.

Product are subject to change without

notice.

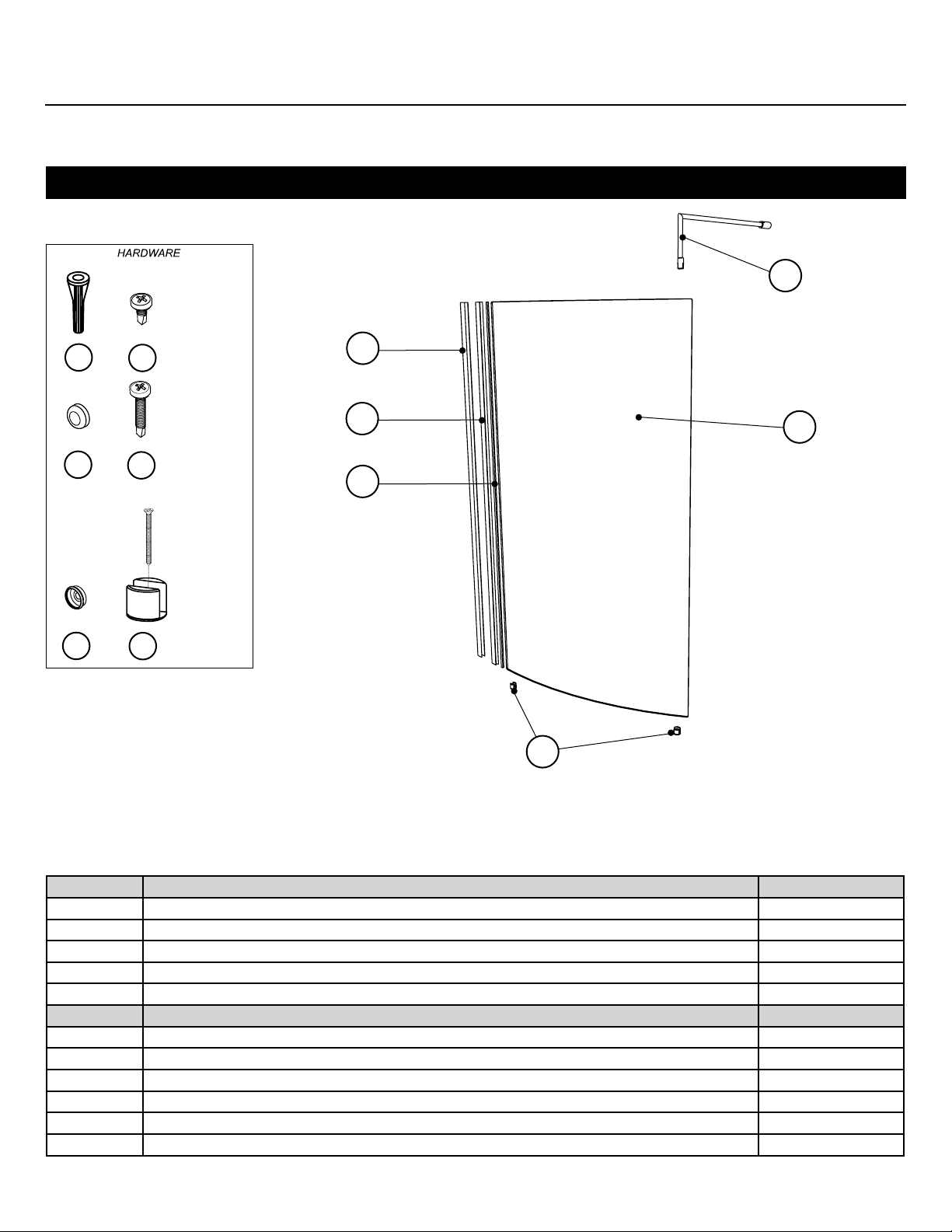

PARTS LISTING

INSTALLATION MANUAL

1

6

7

8

9

10

11

2

4

5

11

3

ITEM PARTS QTY

1 SUPPORT BAR 1

2 WALL JAMB 1

3 PANEL 1

4 EXPANDER 1

5 GASKET 1

ITEM HARDWARE QTY

6 WALL PLUG 4

7 SCREW CAP 4

8 BACK SCREW CAP 4

9 PAN SELF DRILLING SCREW# 8- 3/8” 3

10 PAN SELF-DRILLING SCREW # 8- 1-1/4” 3

11 BOTTOM GLASS CLIP 2

4

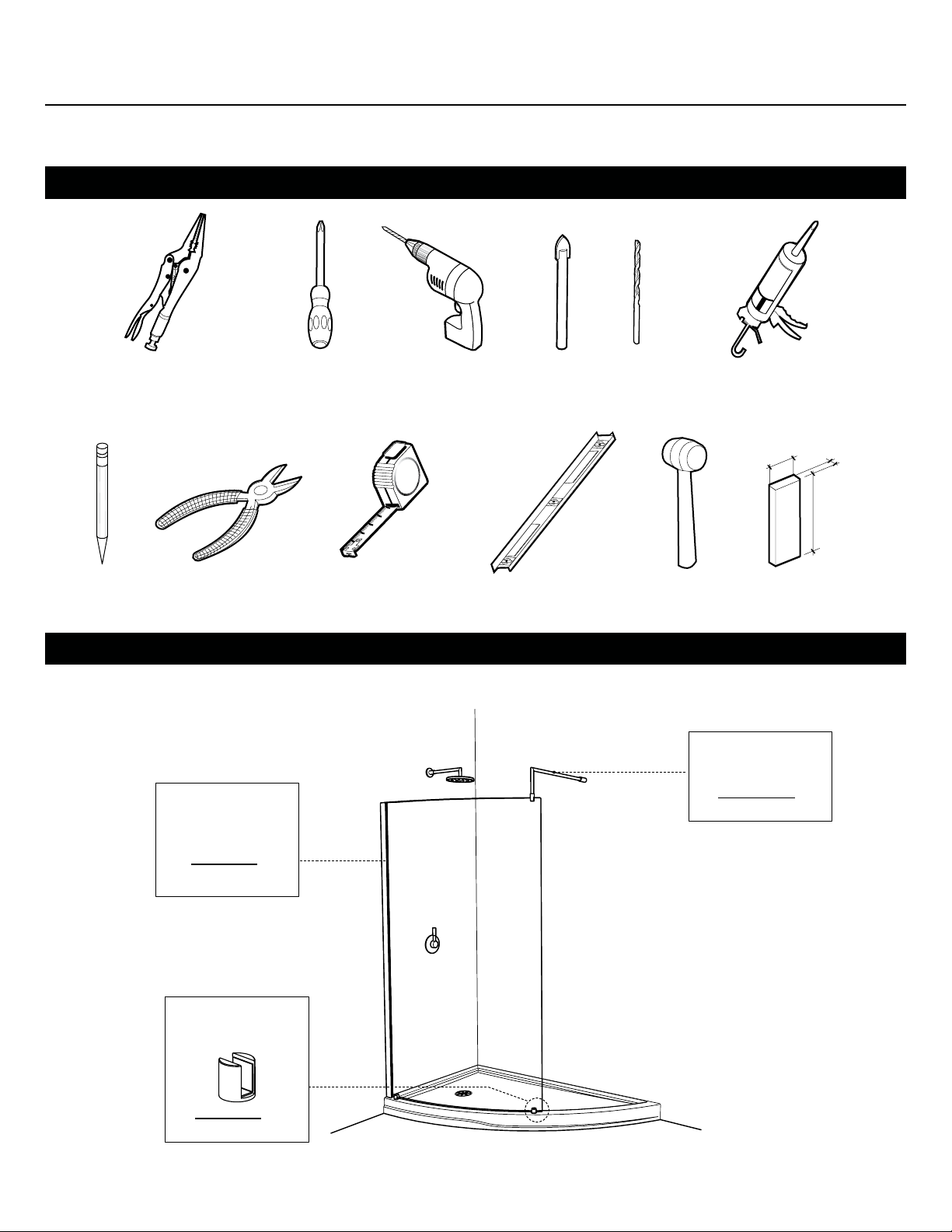

TOOLS REQUIRED

INSTALLATION MANUAL

LONG NOSE LOCKING PLIER

PENCIL

CUTTING PLIER LEVELTAPE MEASURE

• Wall jamb

DRILL SILICONESCREWDRIVERS

Ø1/4˝& Ø1/8˝ DRILL BITS

2˝

1/2˝

6˝

MALLET BLOCK

COMPONENTS INSTALLATION

• Lani bar

See page 8-9

See page 6

• Return panel

• Bottom clips

See page 7

5

FIXED PANEL INSTALLATION

1

1a.

Using a measuring tape, mark the center of the
threshold of the base.

1b.

Using the marking established in the previous step,
run a second line up the wall. Use a level to ensure
verticality of this line.

1c.

Place the wall jamb onto the wall while ensuring
that the wall jamb slotted holes are centered to the
center line. The side holes of the wall jamb should
face the interior of the shower. Proceed to drilling,
using a Ø1/8˝ drill bit, through the wall using the wall
jamb slotted holes as reference.

INSTALLATION MANUAL

1a

1d.

Insert a drop of silicone into each hole made in the
previous step. Insert a wall plug into each hole and
from there the wall jamb can be repositioned and
permanently fastened using #8-1 1/4.

INTERIOR

SHOWER SIDE

1b

1c

1d

6

INSTALLATION MANUAL

INSTALLATION MANUAL

1

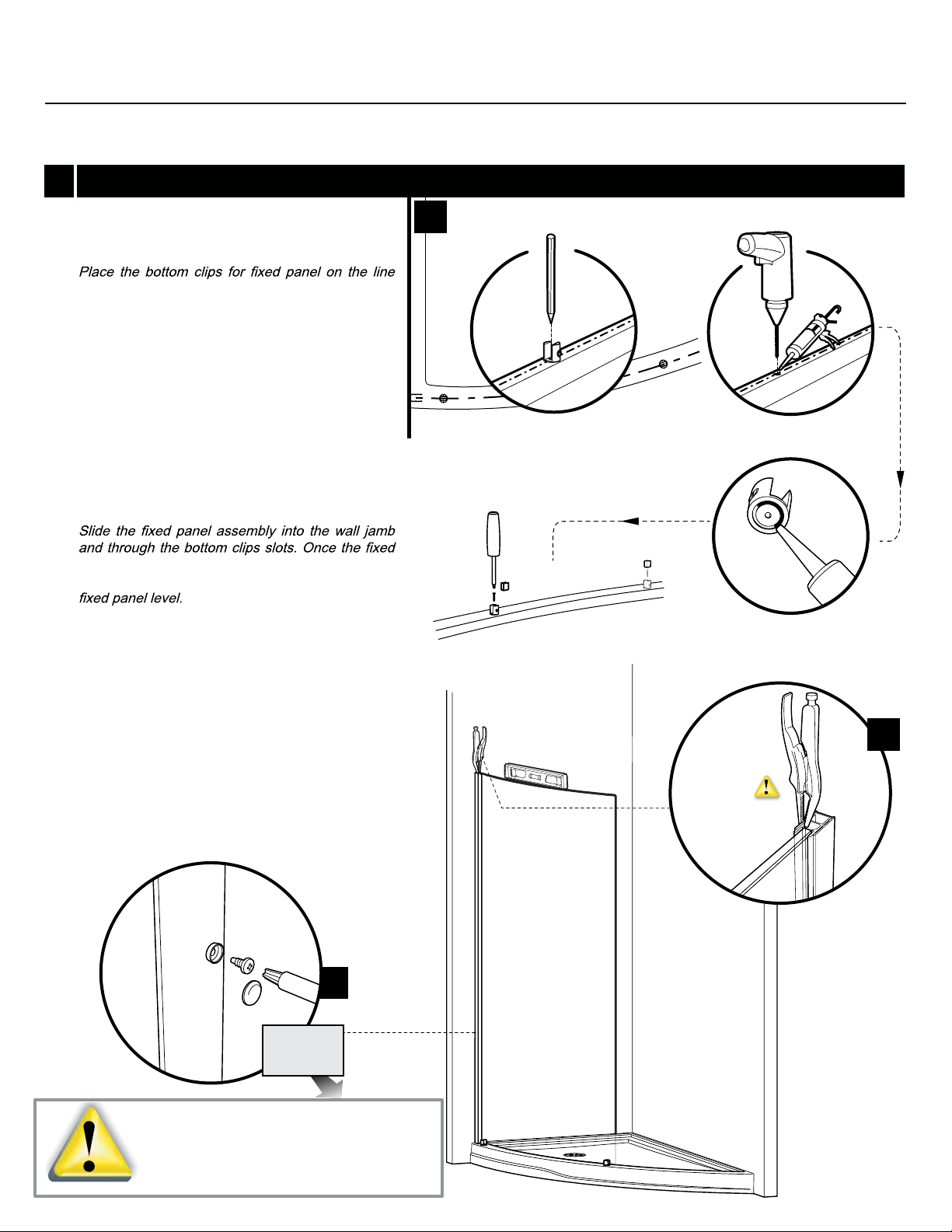

1e.

traced previously. Mark the screw location. The clips
should be placed 1” from the edge of the glass.
Remove temporary the bottom clips to drill the
base using Ø1/8” drill bit. Put silicone onto the bot­tom clip bottom face groove and around the hole.
Finally, fasten the bottom clips to the base using
the provided screws.Place the gaskets into bottom
clips slots.

1f.

panel has been adjusted, secure the expander to
the wall jamb by way of a clamp so as to keep the

CONTINUED

*

1e.

By way of #8- 3/8 screws, as well as screw caps

1g.

secure the wall jamb to the
expander.

INTERIOR

SHOWER SIDE

*

*

COVER THE PLIER’S TEETH BEFOREHAND TO

AVOID SCRATCHING THE ALUMINUM PARTS.

1f

8

3.1

1g

7

INSTALLATION MANUAL

2

2a.

Take apart the end component (A) of the support
bar with the provided Allen Key.

2b.

Place the bar on the glass temporary and level the
bar. Mark the location of the bar on the wall then
remove the support bar.

2c.

Drill the back wall using a Ø1/4”drill bit.

Apply a bead of silicone in the hole and insert the

2d.

wall plug.
Proceed to fasten the wall end components (A) onto
the wall.

SUPPORT BAR INSTALLATION

2a

A

B

Wall end component

2b

2c

A

2d

2e.

To ease subsequent installation on the front panel.
Insert bar in the wall end component (A) on a hori­zontal plane as shown.Tighten the set screws.

A

2e

B

8

INSTALLATION MANUAL

2

2f.

Loosen and rotate support bar to grab the front
panel. Make sure you insert the clear gasket as
shown.

Level support bar. Tighten the set screws.

2g.

CONTINUED

2f

B

Clear gasket

A

2g

B

.

B

INTERIOR

SHOWER SIDE

INTERIOR

SHOWER SIDE

9

V4302Q V4303Q V56302Q V56303Q V4302M V4303M V56302M V56303M

3

CAULKING

3a.

Silicone seal the exterior of the shower along the wall. Fill
gap between glass panels and base surrounding the bottom
clips.

INSTALLATION MANUAL

HOURS

10

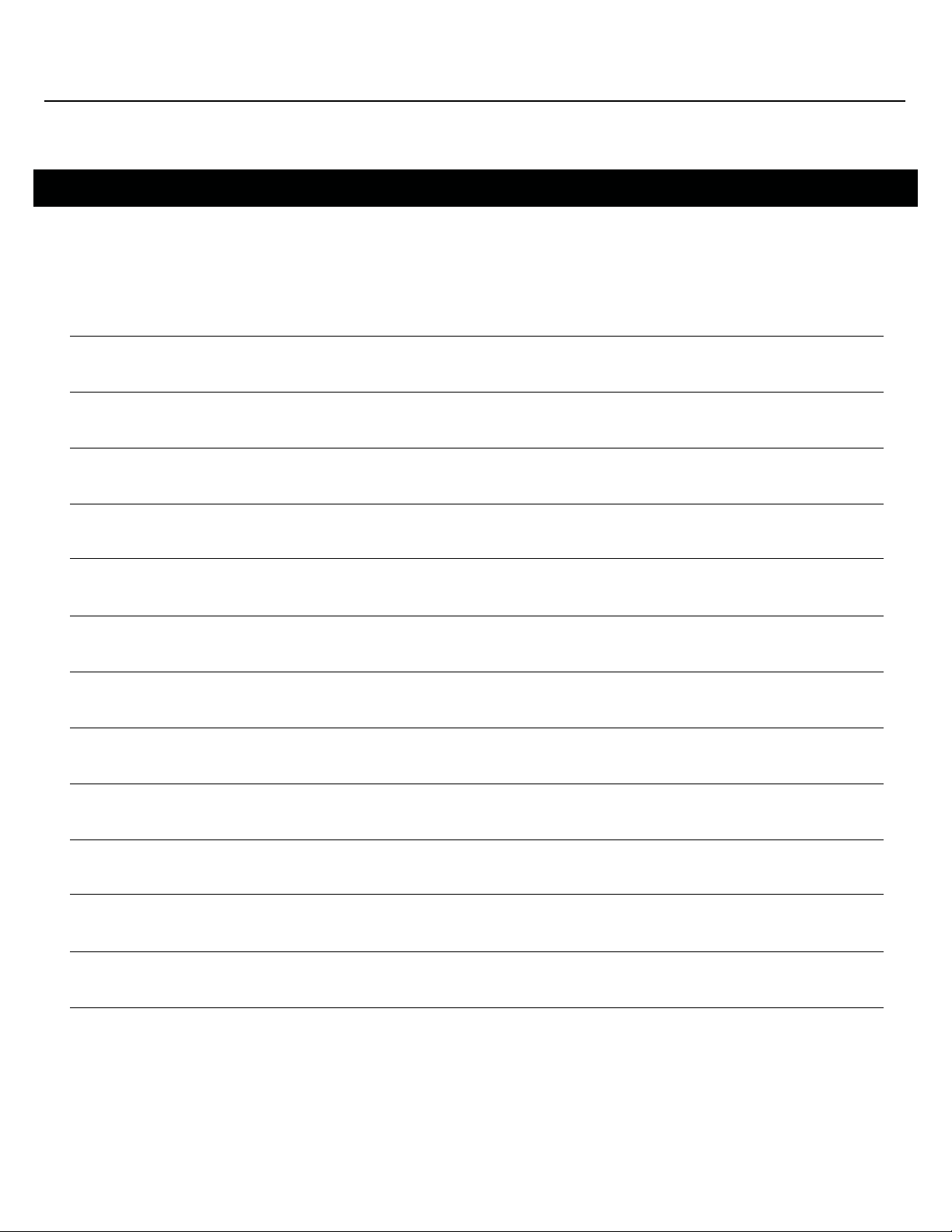

Notes

INSTALLATION MANUAL
