Page 1

Dishwasher

User’s Manual

ADF140W

ADF140S

15 8709 0100_A6AU_EN/ 24-05-21.(14:47)

Page 2

Please read this user manual first!

Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this User Manual the following symbols are used:

Important information or useful

hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

Page 3

CONTENTS

1 INSTRUCTIONS FOR SAFETY AND ENVIRONMENT 4

General safety .......................................4

Intended use ..........................................4

Children’s safety ....................................5

Disposing of packaging material ........5

Transportation of the product ............6

Compliance with WEEE Directive and

Disposing of the Waste Product .........6

Compliance with RoHS Directive ........6

Package information ............................6

2 DISHWASHER 7

Overview ................................................7

Fan drying system .................................8

Technical specications .......................8

3 INSTALLATION 9

Appropriate installation location .......9

Connecting water supply .....................9

Connection to the drain .................... 10

Adjusting the feet .............................. 10

Aquasafe+ ...........................................11

Electrical connection ..........................11

Initial use ..............................................11

4 PREPARATION 13

Tips for energy saving ........................13

Detergent .............................................13

Tablet detergents ...............................14

Rinse aid ...............................................15

Items not suitable for washing in the

dishwasher ...........................................15

Placing the dishes into the

dishwasher ...........................................16

Cutlery basket .................................... 18

Collapsible lower basket tines ......... 19

Tray Wash Supports ........................... 20

SoftTouch Accessory ......................... 20

Lower Basket Glass Holder ............... 20

Lower basket multipurpose / height

adjustable service rack ......................21

Lower basket bottle wire .................. 22

Upper basket height adjustable

rack ....................................................... 22

Upper basket multipurpose service

rack ....................................................... 22

Adjusting the height of the upper

basket .................................................. 23

Collapsible upper basket wires ........ 24

Height setting with empty basket .. 24

Ceiling cutlery basket ........................ 25

5 OPERATION OF THE PRODUCT 26

Keys .......................................................27

On-O / Program Selection knob ....27

Preparation of the machine ..............27

Program selection ...............................27

Auxiliary functions ............................ 29

Programming the Washing Period ...31

Starting of the program .....................31

Monitoring of Program .......................31

Setting the Rinse aid Amount .......... 32

Cancelling the program ..................... 32

Low Rinse Aid Warning indicator ..... 32

End of Program ................................... 33

6 MAINTENANCE AND CLEANING 34

Cleaning the outer surface of the

product ................................................ 34

Cleaning the interior of the machine 34

Cleaning the lters ............................ 34

Cleaning the hose lter ..................... 35

Cleaning the impellers ...................... 36

Lower impeller .................................... 36

Upper impeller ................................... 36

7 TROUBLESHOOTING 37

Page 4

Mandatory Warnings

Dishwashers

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.

• Young children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Capacity standard place settings

• Please do not leave the door open as this will cause a tripping hazard

• The dishwasher must always be connected to the water system using

new hose sets.

• Water Supply Min: 0.03 MPa - Max: 1.0 MPa

• If the appliance is installed on a carpet floor, take care that the openings

in its base are not obstructed

• WARNING - Knives and other utensils with sharps points must be loaded in the basket with the points down or placed in a horizontal position.

• WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE. THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT WITH SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN.

• This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments;

Farm houses;

By clients in hotels, motels and other residential type environments;

Bed and Breakfast type environments

Page 5

instructions for safety and environment

This section contains safety instructions that will help to get protected from risk of personal injury or property damage. Failure to follow these instructions shall void all warranties.

General safety

• Never place the product on a carpet-covered floor; otherwise, lack of airflow beneath the product will cause electrical parts to overheat. This will cause problems with your product.

• Do not operate the product if the power cable / plug is damaged! Call the Authorised Service Agent.

• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. Do not neglect to have the grounding installation made by a qualified electrician. The manufacturer shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• The water supply and draining hoses must be securely fastened and remain undamaged.

• Unplug the product when not in use.

• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!

• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.

• The product must be unplugged during installation, maintenance, cleaning and repairing procedures.

• Always have the installation and repairing procedures carried out by the Authorised Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

• Never use chemical solvents in the product. They bring forth the risk of explosion.

• When you pull the upper and lower baskets out completely, the door of the product will bear all the weight of the baskets. Do not put other loads on the door; otherwise, the product may tilt.

• Never leave the door of the product open apart from loading and unloading procedures.

• Do not to open the door of the product when it is running unless necessary. Be careful for the rush of hot steam when you open the door.

Intended use

• This product has been designed for domestic use.

• It must be used to do the domestic type dishes only.

4 Dishwasher / User’s Manual/41 EN

Page 6

instructions for safety and environment

• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments

• Only dishwasher safe detergents, rinse aids and additives must be used.

• The manufacturer waives any responsibility arisen from incorrect usage or transportation.

• The service life of your product is 10 years. During this period, original spare parts will be available to operate the product properly.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING:

Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle. (AS/NZS 60335.2.5:2014)

Chldren’s safety

• Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product.

• Do not forget to close the door of the product when leaving the room where it is located.

• Store all detergents and additives in a safe place away from the reach of the children.

Dsposng of packagng materal

Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. Packaging materials of the product are manufactured from recyclable materials. Dispose of them properly and sort in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.

Dishwasher / User’s Manual

5 / 41

Page 7

instructions for safety and environment

Transportaton of the product

If you need to move the

1. Unplug the product before

2. Remove water drainage and

3. Drain the remaining water in

product, do it in upright position and hold from the rear side. Slanting the product onto its front side may cause the electronic parts in it get wet and damaged.

transporting it.

water supply connections.

the product completely.

Complance wth WEEE Drectve and Dsposng of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product

bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to

learn about these collection centers.

Complance wth RoHS Drectve

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package nformaton

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

6 Dishwasher / User’s Manual/41 EN

Page 8

Dishwasher

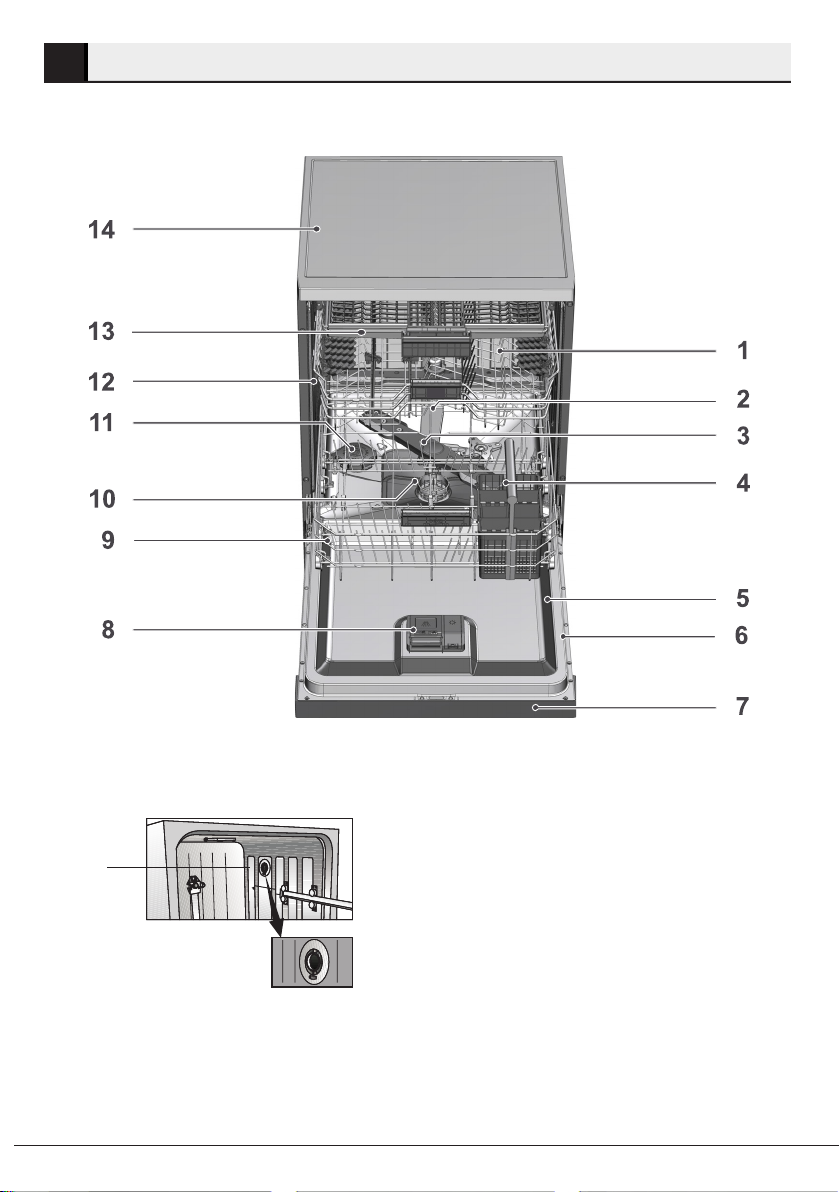

Overvew

Dishwasher / User’s Manual

1. Upper basket

2. Upper impeller

3. Lower impeller

4. Silverware basket (depends on model)

5. Door

6. Rating Label

7. Control panel

8. Detergent dispenser

9. Lower basket

10. Filters

11. Salt reservoir lid

12. Upper basket rail

13. Upper cutlery basket (depends on model)

14. Tabletop (depends on model)

15. Fan drying system (depends on model)

7 / 41

Page 9

Dishwasher

Techncal specfcatons

Compliance to standards and test data / EC declaration of conformity

This product complies with the following EU directives;

Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242

Power input 220-240 V, 50 Hz (see rating label)

Total power consumption 1800-2100 W (see rating label)

Heater power consumption 1800 W (see rating label)

Total current (depends on the model) 10 A (see rating label)

Drain pump power consumption 30 W (see rating label)

Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.03-1.0

Mpa)

Technical specifications may be changed without prior notice to improve the

quality of the product.

Figures in this manual are schematic and may not match the product exactly.

Values stated on the markings of the product or in the printed documents

Fan dryng system

(depends on model) Fan drying system ensures efficient drying of your dishes. It is normal to hear a different sound than that of washing cycle during fan operation.

Note for test institutions:

Data required for performance tests shall be provided upon request. Requests can be e-mailed to the following address:

dishwasher@standardloading.com

Do not forget to provide the code, stock and serial numbers of the product to be tested in your request e-mail along with your contact information. Code, stock and serial numbers of the product may be found on the type label attached to the side wall of the door.

8 Dishwasher / User’s Manual/41 EN

accompanying the product are obtained in the laboratory on basis of the relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

Page 10

Installation

Refer to the nearest Authorised Service Agent for installation of your product. To make the product ready for use, make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorised Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

Preparation of the location and

electrical, tap water and waste water installations at the place of installation is the customer's responsibility.

Installation and electrical connections must be carried out by the Authorised Service Agent. Manufacturer shall not be held responsible for damages arising from processes carried out by unauthorised persons.

Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

Approprate nstallaton locaton

• Place the product on a solid and flat floor that has sufficient load carrying capacity! The product must be installed on a flat surface in order for the door to be closed comfortably and securely.

• Do not install the product at places where temperature may fall below 0ºC.

• Place the product at least 1 cm away from the edges of other furniture.

• Place the product on a rigid floor. Do not place it on a long pile rug or similar surfaces.

Do not place the product on the

• Make sure that you select a location

• Install the product in a place close to

power cable.

that will allow you to load and unload the dishes in a fast and comfortable manner.

the tap and the drain hole. Select the installation location by considering that it will not be changed after the connections are made.

Make sure that the water inlet

When placing the product, pay attention not to damage the floor, walls, piping, etc. Do not hold the product by its door or panel to move it.

Dishwasher / User’s Manual

and discharge hoses are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

Connectng water supply

We recommend attaching a

filter on the house/apartment supply water inlet to protect the machine from damages that may arise from impurities (sand, dirt, rust, etc.) coming from the urban water supply system or from your own water system as well as to prevent complaints such as yellowing or sludge accumulation at the end of washing.

9 / 41

Page 11

Installation

min

300

min

120

max 1000

min 500

Permitted water temperature: up to 25°C ( 60°C for products equipped with Aquasafe+; please refer toAquasafe+ section )

The dishwasher may not be connected to open warm water devices or flow-through water heaters. The dishwasher should be connected to cold water inlet.

• Do not use old or used water inlet hose on the new product. Use the new water inlet hose supplied with the product.

• Connect the water inlet hose directly to the water tap. Pressure coming from the tap should be minimum 0.3 and maximum 10 bars. If the water pressure exceeds 10 bars, a pressure relief valve should be installed in between.

• Open the taps completely after making the connections to check for water leaks.

For your safety, close the water

inlet tap completely after the washing programme is over.

Connecton to the dran

Water discharge hose can directly be connected to the drain hole or sink’s drainage. The length of this connection must be min. 50 cm and max. 100 cm from the floor. A discharge hose longer than 4 meters causes dirty washing. Attach the water discharge hose to the drainpipe without bending it. Tightly fix the water discharge hose to the drainpipe in order to prevent any dislocation of the water discharge hose during operation of the product.

10 Dishwasher / User’s Manual/41 EN

Use a screw-on hose connector to connect the water inlet hose to a water tap with a ¾ inch external thread. If required, use a filter insert to filter deposits from the pipes.

Drainpipe must be connected

to the sewage system and it should not be connected to any surface water.

Adjustng the feet

If the door of the product cannot be closed properly or if the product swings when you push it slightly, then you need to adjust

Page 12

Installation

Aquasafe+

(depends on model) The Aquasafe+ system protects against water leaks that may occur at the hose inlet.Water contact with the valve box of the system must be avoided to prevent damage to the electrical system. If the Aquasafe+ system is damaged, unplug the product and call the Authorised Service Agent.

As the hose set contains

electrical connections and assemblies, never shorten or lengthen the hose with extension hoses.

liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.

• Power cable plug must be within easy reach after installation.

Unplug the product after the

• The voltage and allowed fuse or breaker

• The specified voltage must be equal to

• Do not make connections via extension

washing programme is over.

protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.

your mains voltage.

cables or multi-plugs.

Damaged power cables must be replaced by the Authorised Service Agent.

the feet of the product. Adjust the feet of the product as illustrated in the installation manual supplied with the product.

Dishwashers door must be

Electrcal connecton

Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The manufacturer shall not be

Dishwasher / User’s Manual

aligned properly otherwise hot steam can escape! Danger of serious burns, other injury or may damage furniture.

If your dishwasher is equipped

Intal use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections “Important safety instructions” and “Installation”.

• To prepare the product to do the dishes,

with internal illumination, lamp should only be replaced by the Authorised Service Agent in case of failures that may occur on the lamp.

If the product has a failure, it should not be operated unless it is repaired by the Authorised Service Agent! There is the risk of electric shock!

11 / 41

Page 13

Installation

perform first operation in the shortest programme with detergent while the machine is empty. During the initial use, fill the salt reservoir with 1 litre of water prior to filling it with salt.

There might be a small amount

of water left in the product after factory quality control tests. This has no harm on the product.

12 Dishwasher / User’s Manual/41 EN

Page 14

Preparation

Tps for energy savng

Following information will help you use the product in an ecological and energyefficient manner. Wipe away any coarse food remnants on the dishes before putting them in the product. Operate the product after filling it completely. When selecting a programme, consider the table of “Programme data and average consumption values”. Do not put more detergent than suggested on the detergent package.

Detergent

You can use powder, liquid/gel or tablet detergents in the machine.

Only use in the machine

the detergents produced particularly for use with dishwashers. We recommend you not use detergents that contain chlorine and phosphate as they are harmful for the environment.

detergent dispenser lid (A).

2. Put suggested amount of powder, liquid/gel or tablet detergent in the reservoir.

Inside the detergent dispenser

there are level markings that help you use appropriate amount of powder detergent. When brimful, detergent dispenser will contain 45 cm³ of detergent. Fill detergent up to 15 cm³ or 25 cm³ level marks in the detergent dispenser according to fullness of the machine and/or soiling degree of the dishes. One tablet is enough if you are using detergent tablets.

Adding detergent

Pay attention to the warnings

Put the detergent into the detergent dispenser just before operating the machine as illustrated below.

1. Push the latch to right to open the

Dishwasher / User’s Manual

on the detergent packaging to get better washing and drying results. Contact the manufacturer of the detergent for further questions.

Do not put solvents into the detergent dispenser. There is the risk of explosion!

3. Push the lid of the detergent dispenser to close it. A “click” will be heard when the lid is closed.

13 / 41

Page 15

Preparation

The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually.

Use powder or liquid/gel

Tablet detergents

In addition to the conventional tablet detergents, there are also commercially available detergent tablets that show water softening salt and/or rinse aid effect. Some types of these detergents contain specialpurpose components such as glass and stainless steel protectors. These tablets show their effects up to a certain water hardness level (21°dH). Water softening salt and rinse aid must also be used together with the detergent if the water hardness level is above the mentioned level.

detergent in short programmes without prewash since the solubility of the tablet detergent changes depending on the temperature and time.

Observe the instructions of the

C C

When you switch to powder detergent from tablet detergent:

1. Make sure that salt and rinse aid

2. Set the water hardness to the highest

3. After the empty washing cycle, review

4. Make the appropriate rinse aid settings.

detergent manufacturer on the package when using tablet detergents.

Contact the detergent manufacturer if your dishes are wet and/or if you notice limescale spots particularly on your glasses after the washing programme is over when using a tablet detergent.

reservoirs are full.

level and perform an empty run.

the user manual and readjust the water hardness level so as to suit the water supply.

14 Dishwasher / User’s Manual/41 EN

Page 16

Preparation

Rnse ad

The rinse aid used in

1. Open the lid of the rinse aid reservoir

2. Fill the reservoir until “MAX” level.

3. Slightly press the point (B) of the

dishwashers is a special combination that aims to increase drying efficiency and prevent water or lime stains on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.

with the help of the latch.

reservoir lid to close it.

4. If there are stains on tableware items after washing, level must be increased and if there is a blue trace after wiping them by hand, it must be decreased. This is set to position 3 as factory default.

The rinse aid adjustment is

described under "Adjusting the amount of rinse aid" in the section for operating the machine.

Wipe clean any spilled rinse aid outside the reservoir. Rinse aid that spilled accidentally will cause foaming and it will eventually decrease washing performance.

Items not sutable for washng n the dshwasher

• Never wash dishes soiled by cigarette ash, candle remnants, polish, dyestuff, chemicals, etc. in your dishwasher.

• Do not wash silverware and cutlery with wooden or bone stems, glued pieces, or pieces that are not resistant to heat, as well as copper and tinplated containers in the dishwasher.

Decorative prints of chinaware

as well as aluminium and silver items may get discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. We strongly recommend you to check if the tableware you are going to purchase is suitable for washing especially in the dishwasher.

Dishwasher / User’s Manual

15 / 41

Page 17

Preparation

Placng the dshes nto the dshwasher

You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way.

• Wipe away any coarse food remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher.

• Place thin, narrow pieces in the middle sections of baskets if possible.

• Place the heavily soiled and bigger items in the lower basket and smaller, delicate and light items in the upper basket.

• Place the hollowed dishes such as bowls, glasses and pans upside down in the dishwasher. Thus, accumulation of water in deep hollows is prevented.

To prevent possible injuries,

always place the sharp and pointed dishes such as service fork, bread knife, etc. upside down so as their pointed ends will face down or they will lie horizontally in the dish basket.

Unload dishes in the lower basket first and then the dishes in the upper basket.

16 Dishwasher / User’s Manual/41 EN

Page 18

Installation

Suggestions for loading the dishwasher

Lower basket

Improper Loading Of Dishware

Upper basket

Improper Loading Of Dishware

Dishwasher / User’s Manual

17 / 41

Page 19

Installation

Cutlery basket

(depends on model) Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an efficient manner. Since the cutlery basket can be moved (A, B), you can create more space while placing your dishes in the lower basket and free up space for your dishes of different sizes.

Cutlery basket

18 Dishwasher / User’s Manual/41 EN

Page 20

Installation

Collapsble lower basket tnes

(depends on model) There are foldable tines (A) located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. You can create larger spaces by folding each tines individually or all of them at once.

To bring the collapsible tines into horizontal position, grab the tines from mid position and push them in the directions of arrows (B). To bring the tines back to vertical position, just lift them up. Collapsible tines will click into the latch again (C).

Bringing the tines to the horizontal position by holding

them from the tips may cause them to bend. Therefore, it will be appropriate to bring the tines in the middle to horizontal or vertical position by holding them from their stems and pushing in the direction of arrow.

Collapsble lower basket tnes

Dishwasher / User’s Manual

19 / 41

Page 21

Installation

Bringing the tines to the horizontal position by holding

Tray Wash Supports

(depends on model) Use the supports to wash trays in the bottom basket. See the Auxiliary functions section for appropriate programme and function selection.

SoftTouch Accessory

(depends on model) The SoftTouch Accessory found in the lower basket of your machine enables a safe washing for your fragile glasses.

Lower Basket Glass Holder

(depends on model) Lower Basket Glass Holder found in the lower basket of your machine enables a safe washing for your oversized and tall glasses.

20 Dishwasher / User’s Manual/41 EN

Page 22

Installation

Lower basket multpurpose / heght adjustable servce rack

(depends on model) This accessory located at the lower basket of your machine allows you to easily wash pieces such as extra glasses, long ladles and bread knives.

Make sure that the impeller

To close the racks:

1. Fold the rack (A).

2. Slide the rack up (B).

3. Put the rack in vertical position (C).

4. Slide the rack down and lock it by the

To adjust the height of the racks:

1. Fold the rack (E).

2. Slide the rack up (F).

3. Open the rack at the desired level (G).

does not touch the dishes you placed on the racks.

tabs (D).

You may open the racks in the same process in reverse order.

You may use the racks as

Dishwasher / User’s Manual

required by moving them to lower or upper position, or close them to create a wider space in your lower basket.

21 / 41

Page 23

Installation

Lower basket bottle wre

(depends on model) The bottle wire is designed for easier washing of long pieces with wide mouths. You may take out the bottle wire from the basket when not in use by pulling it out from both sides (H).

Upper basket heght adjustable rack

(depends on model) Use the lower and upper parts of the height adjustable racks in the upper basket of the machine by sliding them down or up according to the heights of the glasses, cups or etc. (A, B, C).

Upper basket multpurpose servce rack

(depends on model) This accessory located at the upper basket of your machine allows you to easily wash pieces such as extra long ladles and bread knives.

You can lift up the upper basket multipurpose service rack to remove it if you do not want to use it.

22 Dishwasher / User’s Manual/41 EN

If you want to use the upper basket multipurpose service rack again, you can easily attach it to the side section of your upper basket.

Page 24

Installation

Adjustng the heght of the upper basket

(depends on model) Upper basket height adjustment mechanism is designed so that you can create wide spaces on the upper or lower compartment of the machine by adjusting the basket upwards or downwards either while it is empty or full. Thanks to this mechanism, you may use your basket in three different positions, namely lower, center or upper positions. To lower the basket, perform the following while the basket is at uppermost position;

1. Hold the wires of the upper basket and raise the handle of the mechanism upwards as shown in the figure (A).

2. Lower the basket to the next lower position.

3. Release the basket when it catches on to the next lower position.

Repeat the same operation if the height is not adequate.

1. To raise the basket, hold the wires of the basket and pull the basket upwards with both hands while the basket is at the lowermost position (B)

2. Release the basket when it catches on to the next upper position with a “Click” that may be heard from the right and left mechanisms.

Repeat the same operation if the height is not adequate.

The movement mechanism may not

work properly when the upper basket is overloaded or when the load is unbalanced. And it may fall to the next lower position in heavier conditions.

Ensure that the adjustment

mechanisms on the right and left of the upper basket are aligned.

Dishwasher / User’s Manual

23 / 41

Page 25

Installation

Collapsble upper basket wres

(depends on model) You can use collapsible wires when you need a larger space for your dishes in the upper basket of your machine. To bring the collapsible wires into horizontal position, grab the wire from the middle position and push them in the direction of arrow in the figure. Place your larger dishes into the area created. To bring the wires back to vertical position, just lift them up.

Bringing the wires to the

horizontal position by holding them from the tips may cause them to bend. Therefore, hold the wires from their stems while bringing them to the horizontal or vertical positions.

Heght settng wth empty basket

(depends on model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right and left tracks of the upper basket by pushing them outwards. Pull the basket out completely. Place the basket back into the tracks at the desired height. Push the latches back into the correct position.

24 Dishwasher / User’s Manual/41 EN

Page 26

Installation

Celng cutlery basket

(depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket.

When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. on the tray. When the side trays lean on two side walls, the handle can be pulled to allow the central tray to rise and the system to be locked.

Celng cutlery basket

(depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket.

In models with partial movement feature, pushing the bar (1) on the handle enables the central tray of the basket to get to the lower position and the system gets unlocked. Thus right and left side trays can be used as moving parts. The free space enabled by the side trays allows long parts to be loaded in the upper basket.

Dishwasher / User’s Manual

25 / 41

Page 27

Operation of the product

1. On-Off / Program Selection knob

2. Rinse aid ( ) indicator

3. Low salt ( ) warning indicator

Half load indicator

( depends on model )

5. Delay indicator

Child Lock Indicator

7. On/Off Control light

8. Program Monitoring Indicator a) Washing Indicator b) Drying Indicator c) Program Ended Indicator

9. Start / Hold / Cancel key

10. Delay function key / Half Load function/

11.

12.

Tablet detergent indicator

Child Lock Key 3 sec

Tablet detergent function

2 3 4 5 6 7

9101112

3 sec

26 Dishwasher / User’s Manual/41 EN

Page 28

Operation of the product

Keys

On-O / Program Selecton knob

When you select a program with the OnOff / Program Selection knob, On Warning control light is illuminated, and it is turned off when you bring the knob to Off position.

Start / Pause / Cancel key

Used for starting, holding or cancelling the selected program.

Time Delay key

It is used to set the time delay duration.

Preparaton of the machne

1. Open the door of the dishwasher.

2. Load your dishes as described in the

user manual.

3. Ensure that lower and upper propellers

are rotating freely.

4. Add adequate amount of detergent in

the detergent compartment.

5. Inspect whether low salt and low rinse

aid indicators are illuminated; and add salt and/or rinse aid if required.

6. Close the door of the dishwasher.

Program selecton

1. Turn on your dishwasher with the On-

Off / Program Selection knob.

2. Select the proper washing program for

your dishes considering the program information and average consumption values table.

3. Select the program you have

determined with the program selection knob.

Dishwasher / User’s Manual

27 / 41

Page 29

Operation of the product

12345

Eco * Intensive Clean&Dry QuickWash Mini

45 ºC 70 ºC 65 ºC 60 ºC 35 ºC

Most economical

washing program

for the normally

soiled daily dishes

that are kept

waiting.

Suitable for heavily

soiled dishes, pots

and pans.

Daily washing

programme for

medium soiled

dishes.

Daily washing

program

at which the medium

soiled dishes that

are kept waiting are

cleaned and dried in

the fastest

way.

Suitable for lightly

soiled daily dishes

that are scraped or

pre-cleaned.

Medium High Medium Medium Low

+++ -

+++ +

+++ -

125 170 120 58 30

15.3 16.8 16.2 11.8 11.8

0.88 1.65 1.38 1.20 0.80

Programme Data and Average Consumption Values Table

* AS/NZS 2007.1: Information for comparability. This program used for testing AS/NZS 2007.1:

The values given for programmes other than Eco 45°C programme are indicative only.

Loading Capacity: 14

Programme number

Programme name

Cleaning temperature

Degree of Soiling

Energy (kWh)

Prewash

Wash

Dry

Duration (min)

Water (I)

28 Dishwasher / User’s Manual/41 EN

Page 30

Operation of the product

Auxlary functons

Washing programmes of your dishwasher are designed to obtain the best cleaning effect, considering the type of the soil, soiling degree and properties of the dishes to be washed. Auxiliary functions are provided in order to enable you to save time, water and energy and to perform a more comfortable washing with conditions specific to you.

Auxiliary functions may cause

C C

To add auxiliary function to the programme:

1. Select the desired washing programme

2. In the selected washing programme,

3. Selection will be cancelled when you

Tablet detergent function

(depends on model) Allows to obtain a better drying performance from the multi-purpose detergents called as all in one detergents such as 2in1, 3in1, 4in1, 5in1 and etc., depending on the hardness level of the tap water.

changes in the programme duration.

Auxiliary functions are not suitable for all washing programmes. Indicator of the auxiliary function that is not compatible with the programme will not be active.

by pressing the programme selection key.

if auxiliary function is selected, its symbol will be displayed on the screen. If the function button is pressed again the symbol will disappear and selection is cancelled.

press the function key again.

Press and hold the tablet function buttons on the panel to activate the tablet function for appropriate programmes. Selecting the tablet function will light the Tablet Detergent indicator.

If you have used the Tablet features

during the last washing programme you used, Tablet function will remain active in the next washing programme you will select. If you do not want to use these functions in the new program you have selected, press the Tablet Detergent key until the indicator of the relevant function turns off.

Tablet Detergent function may cause

change in the programme duration.

Half Load function

(Depends on model) It is used to operate the machine without loading it completely.

1. Load your dishes in the machine as you like.

2. Turn the machine on with On/Off key.

3. Select the desired programme and press the Half Load key.

While the function is enabled, the Half Load indicator will come on in the function selection indicator and on the display.

4. Start the programme by pressing Start / Pause / Cancel key.

With the Half Load function you can

save both water and power while using the lower and upper baskets of the machine.

Dishwasher / User’s Manual

29 / 41

Page 31

Operation of the product

Child (Key) Lock

(Depends on the Model) You may prevent other persons from affecting and changing the program flow and delay time during the operation of the machine.

To activate the child lock:

1. Press and hold the Child (Key) Lock key for three seconds.

2. Child (Key) Lock indicator is illuminated and the key lock shall be activated.

Child Lock prevents changing of the

selected functions and deactivates the Start / Hold / Cancel key.

Child lock does not lock the door of the

machine.

Child lock automatically deactivates if

you turn off your machine with the Onoff key.

To cancel the child lock:

1. Press and hold the Child (Key) Lock key for three seconds.

2. Child (Key) Lock indicator shall be turned off and the key lock shall be cancelled.

Interior Lighting

(depends on the model) Some models have interior lighting to illuminate the interior when the door is opened.

SelfDry

(Depends on the Model) “SelfDry” feature of your machine increases drying efficiency of your machine and saves energy. There are two options: "OFF" and "ON".

To activate the feature of SelfDry:

1. Press SelfDry button. When the function is active, the indicator showing the selection of the function lights up.

2. SelfDry is activated.

When you activate this function, the door of your machine opens automatically at the end of the washing program.

To deactivate the feature of SelfDry:

1. Press the button of SelfDry. When the function is deactivated, the indicator showing the selection of the function turns off.

Floor illumination Warning to show that machine is in washing phase

(depends on the model) Your machine reflects a light to the floor during the washing process. This light turns off after the washing process is complete.

Floor illumination is activated

30 Dishwasher / User’s Manual/41 EN

automatically when the washing programme starts and remains lit until the end of the programme.

Floor illumination cannot be cancelled by the user.

2. SelfDry is deactivated.

SelfDry opens the door of the machine

at the end of the washing circle, thanks to the "door opening shafts". This process takes approximately 2 minutes. If the power fails while the shafts are moving out, do not force to close the door. When the power is back, the process shall be completed, and the shafts shall return to their initial position.

The function of SelfDry may change

the duration of the selected program.

Page 32

Operation of the product

Programmng the Washng Perod

Time Delay key

You may delay the start time of the program up to 9 hours with the Delay key. Press the Start / Pause / Cancel key after delaying. Program starts automatically when the delay period is over.

With each press on the Delay key, 3-6-9 hours indicators start to flash. When you press the Start / Pause / Cancel key while the delay indicator you have selected is flashing, the delay indicator illuminated continuously and the count down starts. When the delay period is over, the delay indicator is turned off and the washing program you have selected starts.

The delay indicators are turned off

if you press the Delay key while the 9-hour delay lamp is flashing. When you press the Start / Pause / Cancel key while the delay indicators are off, the program you have selected shall start without delay.

You may monitor the remaining time on

the delay from the delay indicators. For example: When you select the 9-hour delay option, 6-hour indicator shall start to illuminate when the remaining time for the start of washing program

is 6 hours.

To cancel the delay function:

When you press the Start / Pause / Cancel key for 3 seconds while the delay function is active, the delay process shall be cancelled.

Startng of the program

Press the Start / Pause / Cancel key to start your machine after selecting the program and additional functions.

Machine softens the water as per the

hardness of the mains water. The washing period may differ due to the water softening process. Moreover, program period may also change while the program is being executed as a result of the room temperature, mains water temperature and the amount of dishes.

Care to avoid opening of the door

while the machine is being operated. If you need to open the door, stop the machine by pressing the Start / Pause / Cancel key. Then open the door of the machine. Be careful as steam may come out when you open the door of the machine. Press the Start / Pause / Cancel key again after closing the machine door. Program shall be resumed.

To ensure that the water remaining

on the dishes and inside the machine is completely drained and that the water softener is removed after rinsing operation, your machine resumes operation at drying cycle after keeping silent for a while.

Montorng of Program

You may monitor the current program step of the program you have selected from the program step monitoring indicators on the control panel.

If the drying indicator is illuminated,

machine shall perform drying silently for approximately 30 to 60 minutes. After this period, the drying indicator is turned off and End indicator shall be illuminated. The End light is illuminated when the washing program you have selected is complete.

Dishwasher / User’s Manual

31 / 41

Page 33

Operation of the product

Cancellng the program

1. Press the Start / Pause / Cancel key for 3 seconds to cancel the program.

2. Release the key when Washing and Drying indicators start to flash. The water inside the machine shall be drained within 45 seconds. Program shall be cancelled when the Washing and Drying indicators are turned off and End indicator is illuminated. Then, you may select a new program and start it.

Detergent or rinse aid may remain

inside the machine and/or the dishes being washed as per the step of the program you have cancelled.

When the Program Selection Knob is

brought to “Off” position, the washing program is ended and machine becomes ready for selection of program again. Water and detergent may remain inside the machine if the washing is ended in such a way.

Settng the Rnse ad Amount

1. While the Program Selection Knob is “Off”, press and hold the Half Load/ Tablet function key of your machine and rotate the Program Selection Knob one step clockwise and keep the function key pressed for 3 seconds. Machine switches to rinse aid setting mode.

2. When the rinse aid setting mode is activated, the rinse aid level in the memory is indicated by the program monitoring LEDs for 5 seconds.

3. Bring the Program selection knob to the proper position for the new rinse aid amount setting.

4. Press the Start / Pause / Cancel key once to record the selected setting in the memory.

5. Machine returns to normal mode when you bring the Program Selection knob to “Off” position again.

Low Rnse Ad Warnng ndcator

Check the low rinse aid warning indicator to determine if the rinse aid available in your machine is adequate. You shall add rinse aid to the rinse aid compartment when the low rinse aid warning indicator starts to illuminate.

32 Dishwasher / User’s Manual/41 EN

Page 34

Operation of the product

Rinse Aid Amount

Applies 1 dose of rinse aid.

Applies 2 dose of rinse aid.

Applies 3 dose of rinse aid.

Applies 4 dose of rinse aid. 4

No dose of rinse aid is applied.

Level of program selection knob

Rinse Aid Setting Indicator

The washing indicator on the panel illuminates.

The drying indicator on the panel illuminates.

The End indicator on the panel illuminates.

The Washing, Drying and End indicators on the panel illuminate.

The Washing, Drying and End indicators on the panel

ashes with intervals of 1

second.

End of Program

Program End indicator illuminates when the washing program has ended.

1. Turn off your machine with the On-Off / Program Selection knob.

2. Turn off the tap.

3. Remove the plug from the outlet.

After washing your dishes, keep them

inside the machine for cooling for approximately 15 minutes. Your dishes shall dry faster if you leave the door of your machine ajar within this period. This shall improve the drying efficiency of the machine.

Dishwasher / User’s Manual

33 / 41

Page 35

Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if it is cleaned at regular intervals.

Unplug the product and turn off

C C

the tap before attempting any cleaning procedures.

Do not use abrasive substances for cleaning.

Clean the filter and impellers at least once a week in order for the machine operates efficiently.

Cleanng the outer surface of the product

Wipe the outer surface and door gaskets of the product gently with a mild cleaning material and damp cloth. Wipe the "Control panel" only with a slightly damp cloth.

Cleanng the nteror of the machne

• Clean the interior of the machine and the tank by running a programme with or without detergent based on the degree of soil.

• If water has remained in the machine, drain the water by performing the procedures under the topic "Canceling a programme". If the water cannot be discharged, remove the filters as specified in the "Cleaning the filters" section and check if there are any leftover deposits that have accumulated at the bottom of the machine, blocking the water path. Clean if necessary.

Cleanng the flters

Clean the filters at least once a week in order for the machine operates efficiently. Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water.

1. Turn the micro filter (1) and coarse filter (2) assembly counter clockwise and pull it out from its seating.

2. Pull out the metal/plastic filter (3) from the seating.

3. Press the two pawls on the coarse filter inwards and separate the coarse filter from the assembly.

34 Dishwasher / User’s Manual/41 EN

Page 36

Maintenance and cleaning

4. Clean all three filters under tap water by means of a brush.

5. Place the metal/plastic filter.

6. Place the coarse filter into the micro filter. Make sure that it is properly seated. Turn the coarse filter clockwise until a "click" sound is heard.

Do not use the dishwasher without

filter.

Incorrect placement of the filters will

reduce washing efficiency.

Cleanng the hose flter

Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary.

1. Turn off the tap and remove the hose.

2. After taking out the filter, clean it under running tap water.

3. Place the cleaned filter back to its seat in the hose.

4. Install the hose to tap.

(depends on model)

Dishwasher / User’s Manual

35 / 41

Page 37

Maintenance and cleaning

Cleanng the mpellers

Clean the impellers at least once a week in order for the machine operates efficiently.

Lower mpeller

Check if the holes on the lower impeller (1) are clogged. If they are clogged, remove and clean the impeller. You can pull the lower impeller up to remove it.

Upper mpeller

Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller. Make sure that the nut is tightened well when installing the upper impeller.

36 Dishwasher / User’s Manual/41 EN

Page 38

Troubleshooting

Machine does not start.

• Power cable is unplugged. >>> Check if the power cable is plugged in.

• Fuse is blown. >>> Check the fuses in your house.

• Water is cut. >>> Make sure that the water inlet tap is open.

• Door of the machine is open. >>> Make sure that you have closed the door of the machine.

• On / Off button is not pressed. >>> Make sure that you have turned on the machine by pressing the On / Off button.

Dishes are not washed clean

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual.

• Selected programme is unsuitable. >>> Select a programme with a higher temperature and cycle time.

• Impellers are stuck. >>> Prior to starting the programme, turn the lower and upper impellers by hand to make sure that they rotate freely.

• Impeller holes are clogged. >>> Lower and upper impeller holes might be clogged with food remnants such as lemon pips. Clean the impellers regularly as illustrated in section “Cleaning and Care”.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.

• Filters are installed incorrectly. >>> Check the filter system and make sure that it is installed correctly.

• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.

• Detergent is not sufficient. >>> If you are using powder detergent, adjust the amount of detergent according to the soiling degree of your dishes and/or programme definitions. We recommend you to use tablet detergents for optimum results.

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.

• Detergent dispenser lid is left open. >>> Make sure that the detergent dispenser lid is closed tightly after adding detergent.

Dishes are not dry at the end of cycle

• Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no water will accumulate in them.

Dishwasher / User’s Manual

37 / 41

Page 39

Troubleshooting

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.

• Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket. Thus, dropping of water remained on a piece at upper basket onto the pieces at lower basket is prevented.

• Selected programme is unsuitable. >>> Since rinsing temperature is low at programmes with short duration, drying performance will also be low. Select programmes with longer duration for a higher drying performance.

• Surface quality of the kitchen utensils is deteriorated. >>> Desired washing performance can not be obtained on kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. Also, water can not flow easily on deteriorated surfaces. It is not recommended to wash such kitchen utensils in dishwasher.

It is normal that drying complaints can be experienced with Teflon kitchen utensils. It is associated with the structure of Teflon. Since the surface tensions

Tea, coffee or lipstick stains remain on dishes.

• Selected programme is unsuitable. >>> Select a programme with a higher temperature

• Surface quality of the kitchen utensils is deteriorated. >>> Tea and coffee stains

• Detergent is stored under unsuitable conditions. >>> If you are using powder

Lime traces remain on dishes and glassware gains a misty appearance

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if

• Water hardness setting is low or salt level is insufficient >>> Measure the hardness of

of Teflon and water are different, water droplets will remain as beads on the Teflon surface.

and cycle time.

or other dye spots may not be cleaned in dishwasher when they have penetrated in deteriorated surfaces. Desired washing performance can not be obtained on kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. It is not recommended to wash such kitchen utensils in dishwasher.

detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.

necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.

the supply water appropriately and check the water hardness setting.

38 Dishwasher / User’s Manual/41 EN

Page 40

Troubleshooting

There is a different odour in the machine

A new machine has a peculiar odour. It will fade out after a couple of washes.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.

• Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going to start the machine right after you have put the dishes into it, remove the remnants on the dishes and run the Prewash programme without detergent every 2 days. In such cases, do not close the door of the machine completely in order to avoid odour build up in machine. You can also use commercially available odour removers or machine cleaners.

Rust, discoloration or surface deterioration occurs on dishes

• Salty food remnants have remained on dishes for a long time. >>> If cutlery soiled with such foods will be kept waiting in machine, dirt must be removed by prewash or dishes must be washed without being kept waiting.

• Electric installation is not grounded. >>>Check if your machine is connected to the actual grounding line. Otherwise, the static electric created in the product causes arcs on the surfaces of metal items creating pores, removing the protective cover on the surface and causing discoloration.

• Intensive cleansers such as bleaches are used. >>> Protective cover on metal surfaces gets damaged and looses its efficiency in time when it gets in contact with cleansers such as bleach. Do not wash your dishes with bleach.

• Metal items particularly knives are used for purposes other then their intended uses. >>> Protective cover on the edges of knives may get damaged when they are used for purposes such as opening cans. Do not use metal kitchen utensils out of their intended uses.

• Cutlery are made of low quality stainless steel. >>> Corrosion on such items is inevitable; they should not be washed in dishwashers.

• Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers.

Detergent remains in detergent dispenser.

• Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent.

• Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.

• Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.

Dishwasher / User’s Manual

39 / 41

Page 41

Troubleshooting

Decorations and ornaments on kitchen utensils are being erased.

Decorated glasses and decorated lustre porcelains are not suitable for washing in the dishwasher. Manufacturers of some glassware and porcelain tableware

Dishes are scratched.

• Water hardness setting is low or salt level is insufficient >>> Measure the hardness of

• Dishes are not placed orderly in the machine. >>> When placing the glasses and other

A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light.

• Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when

• Corrosion has occurred on glass due to soft water. >>> Measure the hardness of the

Foam forms in the machine.

• Dishes are washed with hand-wash detergent by hand but not rinsed before placing

• Rinse aid has spilled into the machine when adding rinse aid. >>> Take care that rinse

40 Dishwasher / User’s Manual/41 EN

items do not recommend washing such kitchen utensils in the dishwashers either.

Kitchen utensils that contains or are made of aluminium should not be washed in dishwasher.

the supply water appropriately and check the water hardness setting.

glassware into the basket lean them not against other dishes but the edges or racks of the basket or the glass support tines. Striking of the glasses to each other or to other dishes due to the impact of water during washing can cause breaks, or scratches on their surfaces.

adding rinse aid.

supply water appropriately and check the water hardness setting. If your supply water is soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g. 60-65°C). You can also use glass protective detergents that are commercially available.

them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.

aid is not spilled in the machine when you are filling it. Clean any spilled rinse ait with the help of a tissue paper/towel.

Page 42

Troubleshooting

• Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the rinse aid reservoir is closed after adding rinse aid.

Kitchen utensils are broken.

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual.

• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

Water remains in the dishwasher at the end of the programme.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.

• Discharge hose is clogged/blocked. >>> Check the discharge hose. If necessary, remove the discharge hose, clear the blockage and insert is as illustrated in the user manual.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised Service Agent. Never try to repair

a nonfunctional product yourself.

Dishwasher / User’s Manual

41 / 41
