Altronix VertiLine8CD Installation Instructions

CCTV Rack Mount Power Supplies

Installation Guide

Models Include:

Vertiline8C Vertiline8CD

- 24VAC or 28VAC @ 5 amp - 24VAC or 28VAC @ 5 amp

- Eight (8) fuse protected outputs - Eight (8) PTC protected outputs

Vertiline83C Vertiline83CD

- 24VAC or 28VAC @ 10 amp - 24VAC or 28VAC @ 10 amp

- Eight (8) fuse protected outputs - Eight (8) PTC protected outputs

Rev. 031808

More than just power.

TM

Overview:

Altronix Vertiline CCTV Rack Mount Power Supplies provide 8 power outputs in a space saving 1U EIA 19” rack mount
chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power
outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in sixteen (16) and twenty­four (24) output models with various power ratings.

Specifications:

• 115VAC 60 Hz input.

• Eight (8) individually selectable 24VAC or 28VAC
power outputs with OFF position.

• Eight (8) power LED indicators.

• External blade fuses or PTC protected outputs.

• Surge suppression.

• Illuminated power disconnect circuit breaker with
manual reset.

• IEC 320 - 3-wire grounded line cord (detachable).

• Removable terminal blocks with locking screw flange.

• Ease of installation saves time and eliminates costly labor.

• Compact 1U rack mount chassis.

• Fits standard EIA 19” rack.

• Units can be rack, wall or shelf mounted.

Eight (8) Output Rack Mount Configuration Reference Chart:

Altronix
Model
Number

Vertiline8C

Vertiline8CD

Vertiline83C

Vertiline83CD

Voltage (VAC)

Output

24VAC or

28VAC

24VAC or

28VAC

24VAC or

28VAC

24VAC or

28VAC

Total Output Current (Power)

5 amp 8

5 amp 8

10 amp 8

10 amp 8

Number of Outputs

Fused -- 3 amp 3 amp

-- PTC 2.5 amp --

Fused -- 3 amp 3 amp

-- PTC 2.5 amp --

Output Protection

Output Protection

Class 2 Rated Power Limited

(max. per output)

Current

Fuse Rating

10 amp 1.5 amp

15 amp 3 amp

Main Fuse Rating

Input Current

115VAC 60Hz

Agency Listings

UL Listed for Commercial

CCTV Equipment (UL 2044).

CUL Listed - CSA Standard

C22.2 No.1-04,

Audio, Video and Similar Equipment.

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. This installation should be made by qualified service personnel and should conform to
all local codes and in accordance with the National Electrical Code.

Installation Instructions:

1. Attach mounting brackets to Vertiline unit for rack or wall mount installation (Figs. 4-5, pg. 7). Affix rubber pads to

Vertiline for shelf installation (Fig. 6, pg. 7).

2.

Secure the unit in a rack, mount unit to a wall or place unit on a shelf as desired (unit should be spaced at least
3” from any video monitors). When installing the unit in a rack allow for one half of a U spacing above the unit
for ventilation.

3. Plug the grounded AC line cord (included) into the IEC 320 connector of the Vertiline unit (Fig. 1f, pg. 4).

Inser

t the plug end of the line cord into a grounded AC receptacle.

4. Set illuminated master power disconnect circuit breaker to the (ON) position (Fig

5. Select 24VAC or 28VAC power output for cameras 1-8 with the corresponding voltage adjustment switches

(Fig. 1b, pg. 4).

6.

Measure output voltage before connecting cameras. This helps avoid potential damage.
All terminals with common suffix (P) “1P, 2P ...” are the same polarity.

7. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 3, pg. 6).

8. Connect the power outputs of terminals mark

ed [1P & 1N] to the power inputs of camera 1 (Fig. 2, pg. 5).
Repeat this step for each additional camera (Outputs 2-8). After wiring is completed insert terminal block into the
cor

responding connector and secure by tightening the screws.

- 2 - Vertiline8C

. 3, pg. 6).

9. Upon completion of wiring, set illuminated master power disconnect circuit breaker to the
ON (RESET) position (F

ig. 3, pg. 6).

10. The power LEDs (Green) on the faceplate for Outputs 1-8 will illuminate when AC power is present

(F

ig. 1a, pg. 4). If any of these LEDs are off, a loss of AC power output may be due to a blown fuse or a

tripped PTC caused by a short circuit or overload condition. If all of the LEDs are OFF there may be a complete
loss of supply power to the Vertiline unit or the illuminated master power disconnect circuit breaker is in the OFF
position or the main fuse 1-8 is blown (Fig. 1c, pg. 4).*

To restore the power output for Vertiline8C or Vertiline83C:

1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2-

Eliminate the trouble condition.
3- Replace the corresponding automotive blade fuse.*
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).

To restore the power output for Vertiline8CD or Vertiline83CD:

1- Switch corresponding output voltage switch to the OFF position (Fig. 1b, pg. 4).
2-

Eliminate the trouble condition.
3- Allow 1 minute for PTC to cool off.
4- Switch output voltage switch to the 24VAC or 28VAC position as desired (Fig. 1b, pg. 4).

*Note: Replace fuses with same type and rating:

Output fuses are rated @ 3 amp for all models.

Main fuse ratings:

10 amp for

Vertiline8C and Vertiline8CD.

Automotive
Blade Fuse

15 amp for Vertiline83C and Vertiline83CD.

Vertiline8C - 3 -

AC POWER

1

2

3 4 5

6

7 8

28VAC

OFF

24VAC

Main Fuse

1-8

12345678

12345678

N

P

N

P

N

P

N

P

N

P

N

P

N

P

N

P

OFF

RESET

AC POWER

Main Fuse

1-8

N

P

N

P

N

P

N

P

N

P

N

P

N

P

N

P

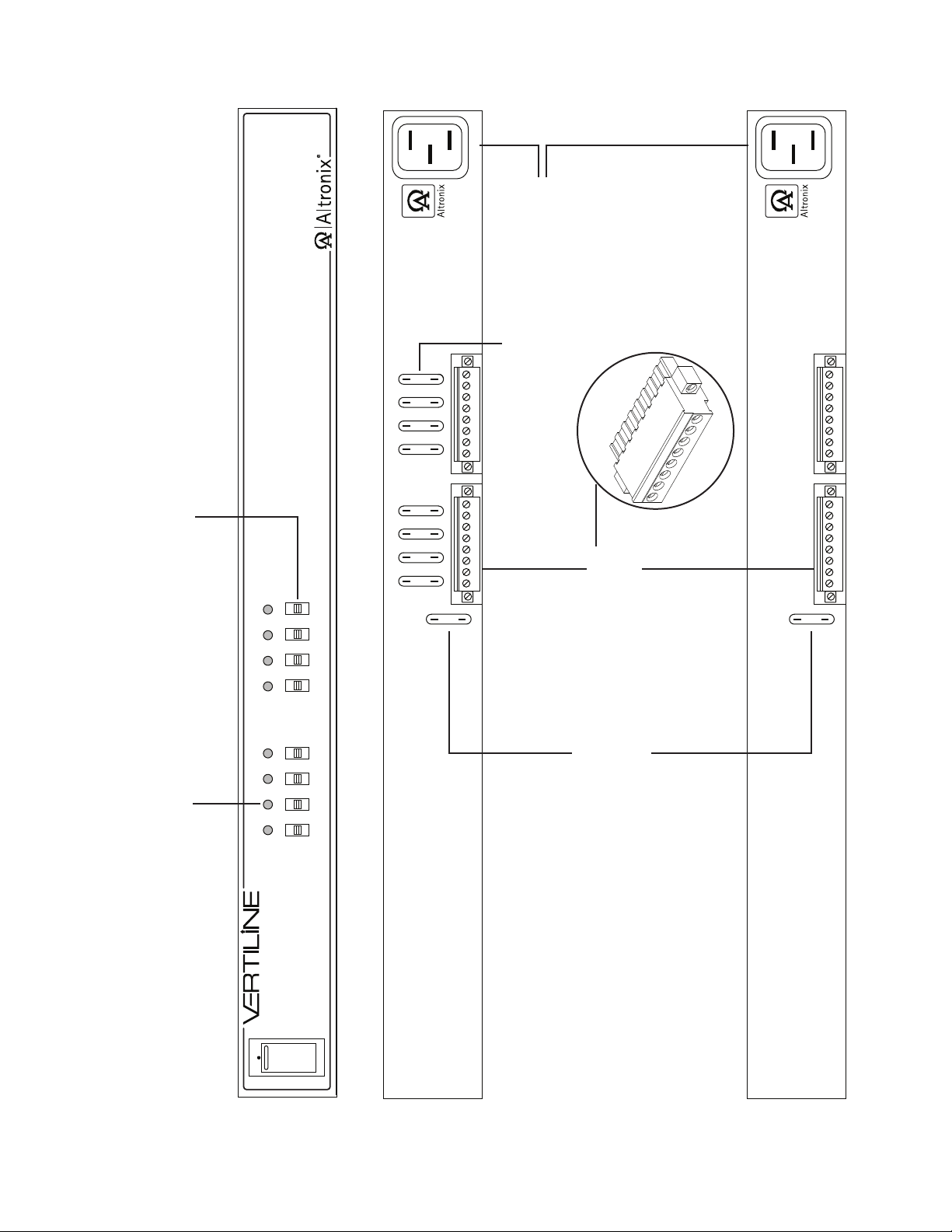

1f - IEC 320

Connector:

115VAC 60Hz

(grounded line

1e - Output Fuses:

Automotive

cord included).

blade fuses.

1b - Output voltage switches:

Selects 24VAC or 28VAC

1a - LED(s) 1-8:

or OFF for each output.

Power LED indicators.

1d - Power

Outputs: 24VAC

or 28VAC.

1c - Main Fuse:

Protects the

transformer

against overload.

Vertiline8C, Vertiline8CD,

Vertiline83C or Vertiline83CD (front)

Vertiline8C or Vertiline83C (rear)

Vertiline8CD or Vertiline83CD (rear)

Fig. 1

- 4 - Vertiline8C

chassis. The output PTCs are located on the inside of the rack mount chassis.

Vertiline8CD and Vertiline83CD do not have output fuses on the rear of the rack mount

AC POWER

Main Fuse

1-8

12345678

N

P

N

P

N

P

N

P

N

P

N

P

N

P

N

P

1

2

3 4 5

6

7 8

28VAC

OFF

24VAC

OFF

RESET

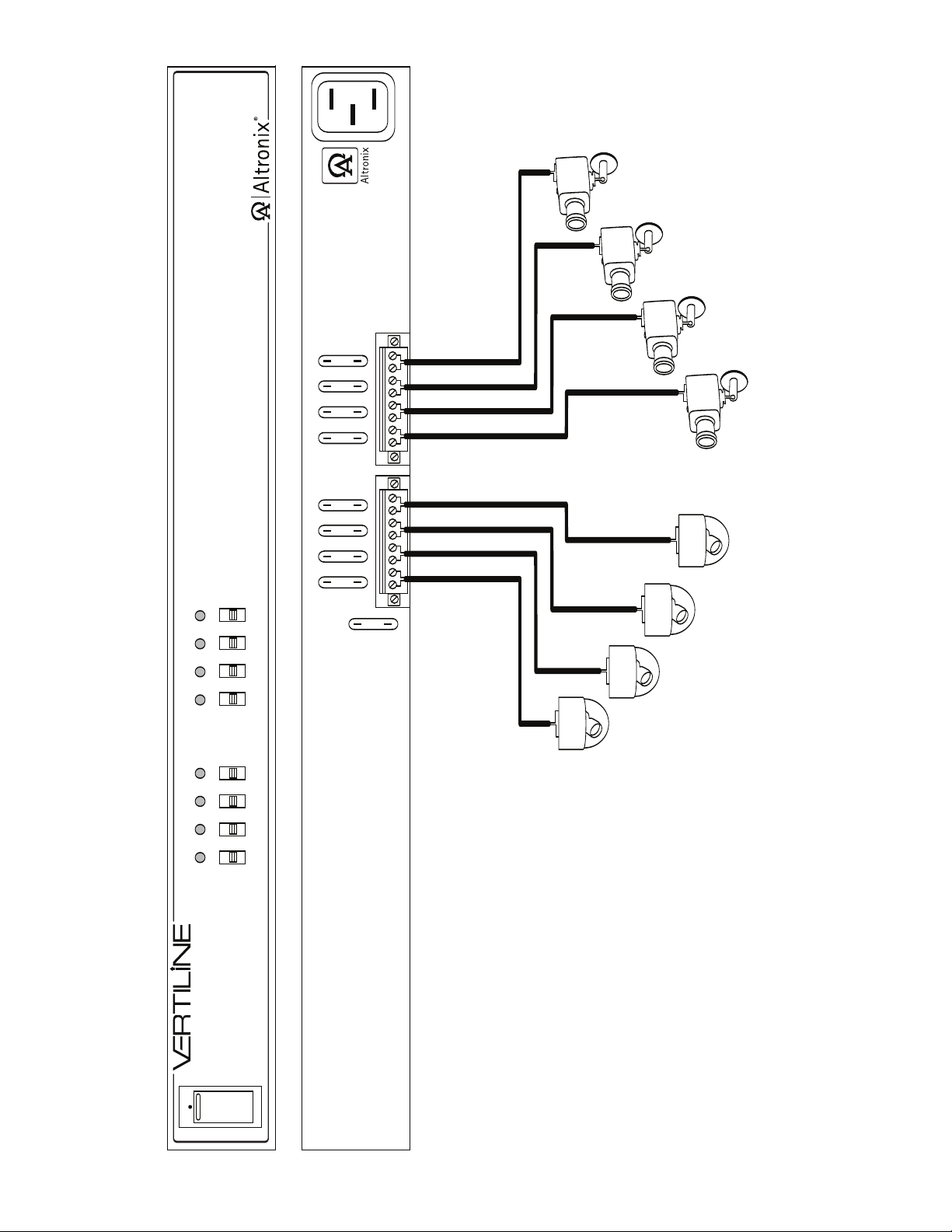

Typical Hookup:

Fig. 2

Vertiline8C - 5 -

1.625"

8.5"

.75"

19.125"

17.625"

(ON)

AC POWER

1

2

34 5678

28VAC

OFF

24VAC

Main Fuse

1

-8

NPNPNPN

P

NPNPNPN

P

OFF

RESET

5678 1234

The lightning flash with ar
presence of an insulated “DANGEROUS VOLTAGE” within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.

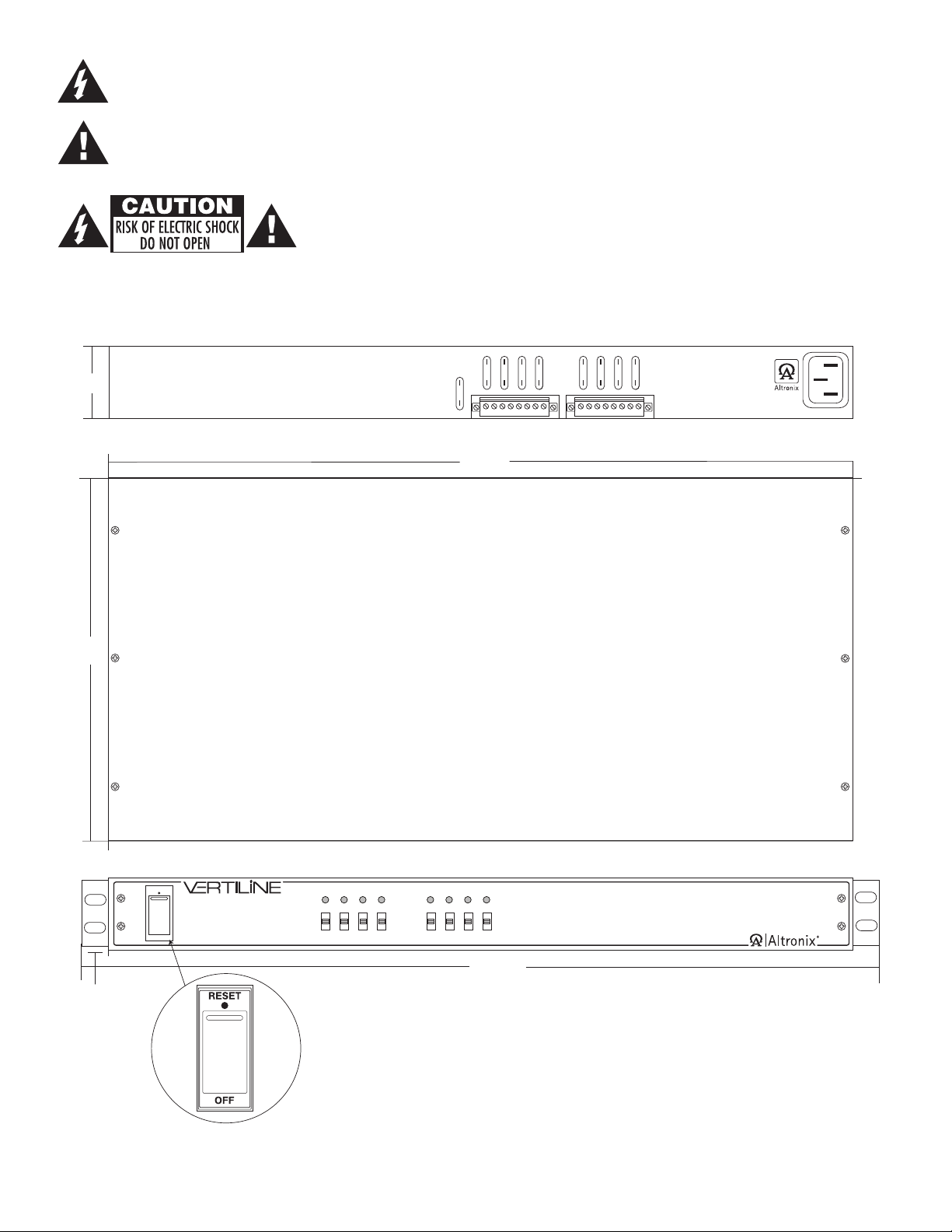

1U EIA 19” Rack Mount Chassis Mechanical Drawing & Dimensions:

1.625”H x 19.125”W x 8.5”D

row head symbol within an equilateral triangle is intended to alert the user to the

CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user ser

viceable parts inside. Refer servicing to qualified service personnel.

REAR

TOP & BOTTOM

FRONT

Fig. 3

Power switch with built-in circuit breaker:

OFF position - Switch not Illuminated. Outputs not po
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not Illuminated. Power LEDs on faceplate
are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position
(Fig. 3, pg. 6).

wered.

- 6 - Vertiline8C

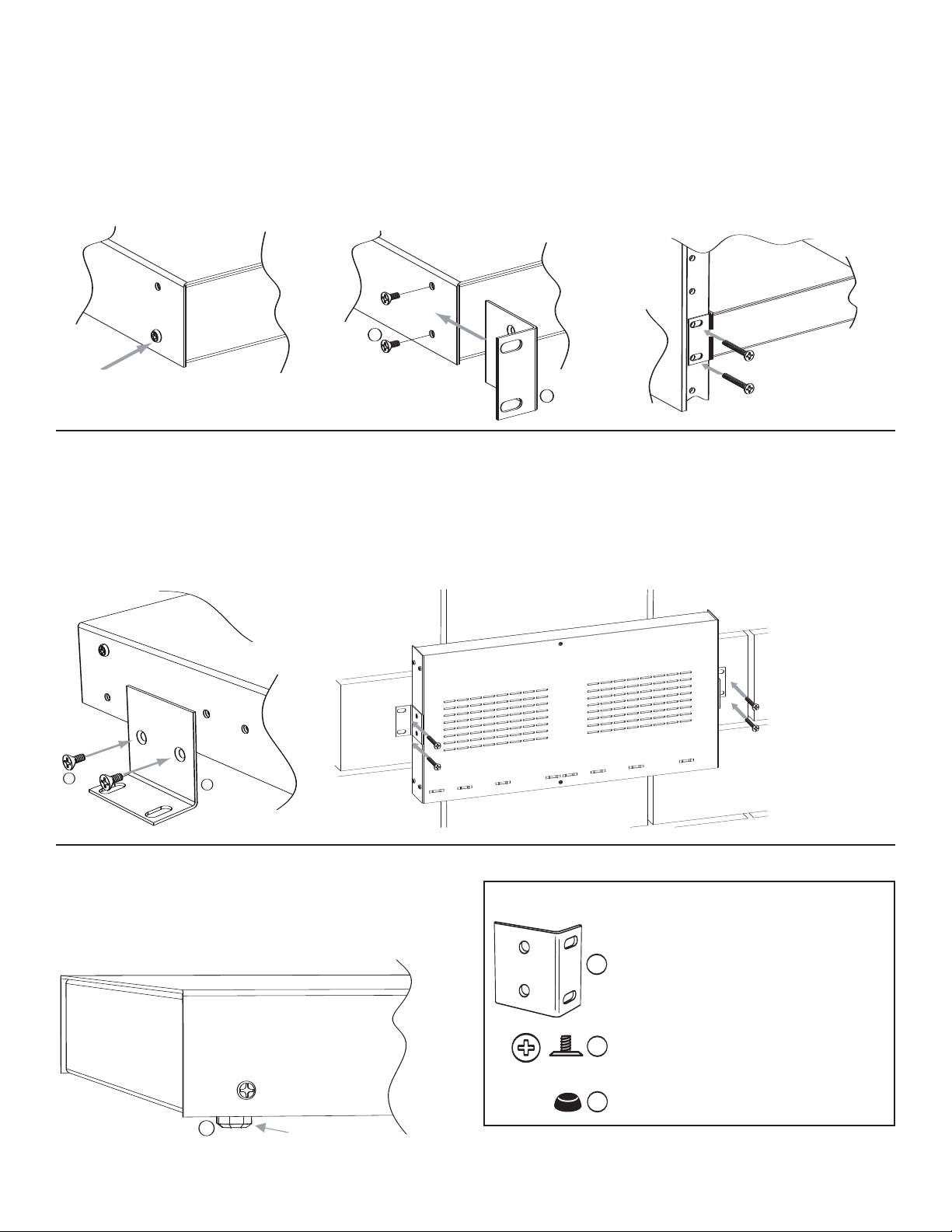

Mounting Options:

B

A

C

B

A

C

A

B

Rack Mount Installation

1- Remove factory installed screws from both sides of rack chassis (Fig. 4a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the

two (2) flat head screws (B) (included) (Fig. 4b).

3-

Place unit into desired EIA 19” rack position and secure with mounting screws (not included) (Fig. 4c).

Fig. 4

Fig. 4a

Top Top

Fig. 4b

Fig. 4c

To

Front

Front
Left

Left

Front Left

Remove

Wall Mount Installation

1- Install mounting brackets (A) on the left and right side of rack chassis using

two (2) flat head screws (B) (included) (Fig. 5a).

2-

Place unit at desired location and secure with mounting screws (not included) (Fig. 5b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing.

Fig. 5

Fig. 5a

Fig. 5b

p

Shelf Installation

1- Position and affix rubber pads (C) (included) at each

corner on the bottom of the unit (Fig. 6).

2-

Place unit in desired location.

F

ig. 6

Left Side

Mounting Hardware (Included):

Two (2) mounting brackets

Six (6) flat head screws
for mounting brackets.

Four (4) rubber pads.

Rubber Pad

Vertiline8C - 7 -

Notes:

Altronix is not responsible for any typographical errors.

Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: [phone]
web site: www.altronix.com, e-mail: [e-mail], Lifetime Warranty, Made in U.S.A.
IIVertiline8CSeries B03I

- 8 - Vertiline8C
