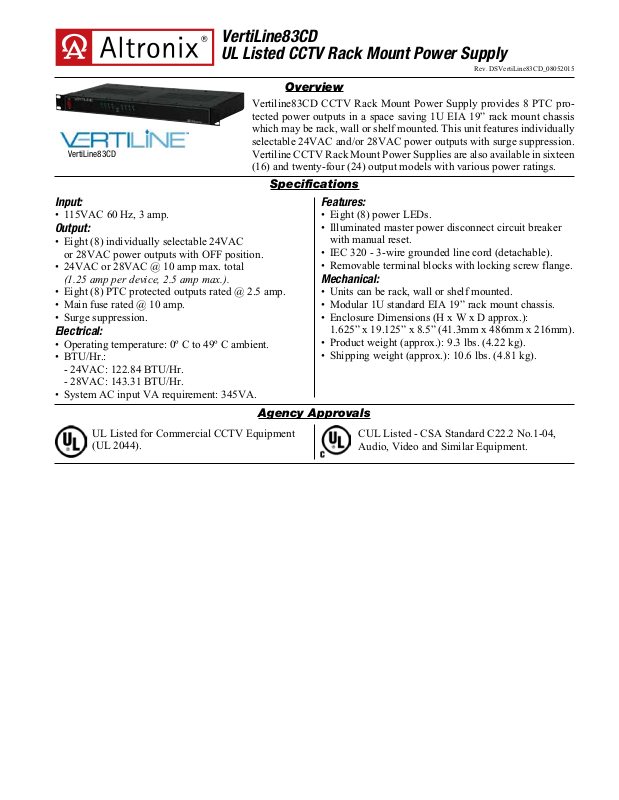

Altronix VertiLine83CD Specsheet

VertiLine83CD

VertiLine83CD
UL Listed CCTV Rack Mount Power Supply

Rev. DSVertiLine83CD_08052015

Overview

Vertiline83CD CCTV Rack Mount Power Supply provides 8 PTC pro­tected power outputs in a space saving 1U EIA 19” rack mount chassis
which may be rack, wall or shelf mounted. This unit features individually
selectable 24VAC and/or 28VAC power outputs with surge suppression.
Vertiline CCTV Rack Mount Power Supplies are also available in sixteen
(16) and twenty-four (24) output models with various power ratings.

Specifications

Input:

• 115VAC 60 Hz, 3 amp.

Output:

• Eight (8) individually selectable 24VAC
or 28VAC power outputs with OFF position.

• 24VAC or 28VAC @ 10 amp max. total

(1.25 amp per device, 2.5 amp max.).

• Eight (8) PTC protected outputs rated @ 2.5 amp.

• Main fuse rated @ 10 amp.

• Surge suppression.

Electrical:

• Operating temperature: 0º C to 49º C ambient.

• BTU/Hr.:

- 24VAC: 122.84 BTU/Hr.

- 28VAC: 143.31 BTU/Hr.

• System AC input VA requirement: 345VA.

Agency Approvals

UL Listed for Commercial CCTV Equipment
(UL 2044).

Features:

• Eight (8) power LEDs.

• Illuminated master power disconnect circuit breaker
with manual reset.

• IEC 320 - 3-wire grounded line cord (detachable).

• Removable terminal blocks with locking screw flange.

Mechanical:

• Units can be rack, wall or shelf mounted.

• Modular 1U standard EIA 19” rack mount chassis.

• Enclosure Dimensions (H x W x D approx.):

1.625” x 19.125” x 8.5” (41.3mm x 486mm x 216mm).

• Product weight (approx.): 9.3 lbs. (4.22 kg).

• Shipping weight (approx.): 10.6 lbs. (4.81 kg).

CUL Listed - CSA Standard C22.2 No.1-04,
Audio, Video and Similar Equipment.

1.625”

(41.275mm)

8.5”

(215.9mm)

Enclosure Dimensions (H x W x D approximate):

1.625” x 19.125” x 8.5” (41.3mm x 486mm x 216mm)

17.125”

(434.97mm)

Main Fuse

1-8

NPNPNPN

56781234

P

NPNPNPN

P

AC POWER

0.95”

(24.13mm)

RESET

1

34 5

2

OFF

28VAC

OFF

24VAC

78

6

19.125”

(485.775mm)
