Altronix TROVE3V3, TROVE1V1 Installation Guide
SIGNALING
Access & Power Integration
Trove1V1
- Trove1 enclosure with Altronix/HID VertX® backplane (TV1)
TV1
- Altronix/HID VertX® backplane only
Trove2V2
- Trove2 enclosure with Altronix/HID VertX® backplane (TV2)
TV2
- Altronix/HID VertX® backplane only
TMV2
- Altronix/HID VertX® Door Backplane. Fits Trove2 and Trove3 enclosures
Trove3V3 (not evaluated by UL)
- Trove3 enclosure with Altronix/HID VertX® backplane (TV3)
TV3 (not evaluated by UL)
- Altronix/HID VertX® backplane only
Installation Guide
All registered trademarks are property of their respective owners. More than just power.™
Rev. THID011117
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
Overview:
Snap on Standoff Metal or Nylon Standoff 7/8” Pan Head Screw 5/16” Pan Head Screw Lock Nut
Altronix Trove1V1, Trove2V2 and Trove3V3 accommodate various combinations of HID VertX® boards with or without Altronix power
supplies and sub-assemblies for access systems.
Specifications:
Trove1V1
Trove1 enclosure with TV1 Altronix/HID VertX® backplane.
• 16 Gauge grey enclosure with ample knockouts for convenient access.
• Includes: tamper switch, cam lock, lock nuts and mounting hardware.
Enclosure Dimensions (H x W x D): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm).
TV1
Altronix/VertX® backplane.
• 16 Gauge backplane.
• Includes mounting hardware.
Dimensions (H x W x D): 16.625” x 12.5” x 0.3125” (422.3mm x 317.5mm x 7.9mm).
See TV1 Sub-Assembly Position Chart on Pg. 3 for the list of compatible sub-assemblies.
Trove2V2
Trove2 enclosure with TV2 Altronix/VertX® backplane.
• 16 Gauge grey enclosure with ample knockouts for convenient access.
• Includes: tamper switch, cam lock, lock nuts and mounting hardware.
Enclosure Dimensions (H x W x D): 27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm).
TV2
Altronix/HID VertX® backplane only.
• 16 Gauge backplane.
• Includes: lock nuts and mounting hardware.
Dimensions (H x W x D): 25.375” x 19.375” x 0.3125” (644.5mm x 492.1mm x 7.9mm).
See TV2 Sub-Assembly Position Charts on Pgs. 5, 7 for the list of compatible sub-assemblies.
TMV2 - Optional Door Backplane
• Fits Altronix Trove2 enclosure door.
Dimensions (H x W x D): 23.75” x 18.125” x 0.3125” (603.3mm x 460.4mm x 7.9mm).
See TMV2 Sub-Assembly Position Chart on Pg. 8 for the list of compatible sub-assemblies.
Trove3V3
Trove3 enclosure with TV3 Altronix/VertX® backplane.
• 16 Gauge grey enclosure with ample knockouts for convenient access.
• Includes: two (2) tamper switches, cam lock, lock nuts and mounting hardware.
Enclosure Dimensions (H x W x D): 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm).
TV3
Altronix/HID VertX® backplane only.
• 16 Gauge backplane.
• Includes: lock nuts and mounting hardware.
Dimensions (H x W x D): 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm).
See TV3 Sub-Assembly Position Charts on Pgs. 9, 11 for the list of compatible sub-assemblies.
Battery Backup:
• Trove1 enclosure accommodates up to two (2) 12VDC/7AH batteries.
• Trove2 enclosure accommodates up to two (2) 12VDC/12AH batteries.
• Trove3 enclosure accommodates up to four (4) 12VDC/12AH batteries.
For more detailed information refer to Trove Installation Guide, Rev. 101817.
Hardware:
- 2 - Trove / HID VertX
Installation Instructions for Trove1, Trove2, Trove3:
Edge of
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Honeywell
model # 112
Tamper Switch
or equivalent
(provided)
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
Fig. 1
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure.
Install two/three upper fasteners and screws in the wall with the screw heads protruding.
Place the enclosure’s upper keyholes over the two/three upper screws, level and secure.
Mark the position of the lower two/three holes. Remove the enclosure. Drill the lower holes
and install the two/three fasteners. Place the enclosure’s upper keyholes over the two/three
upper screws. Install the two/three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Honeywell Model 112 or equivalent) in desired
location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure
approximately 2” from the right side (Fig. 1, pg. 3). Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
TV1 Sub-Assembly Position Chart for the Following Models:
Altronix Power Supplies/Sub-Assemblies
Sub-Assembly Pem Mounting Input Rating Output Rating
AL400ULXB2
AL600ULXB 115VAC, 60Hz, 3.5A 12VDC or 24VDC @ 6A
AL1012ULXB 115VAC, 60Hz, 2.6A 12VDC @ 10A
AL1024ULXB2 115VAC, 60Hz, 4.2A 24VDC @ 10A
eFlow4NB* 120VAC, 60Hz, 3.5A 12VDC or 24VDC @ 4A
A
eFlow6NB* 120VAC, 60Hz, 3.5A 12VDC or 24VDC @ 6A
eFlow102NB* 120VAC, 60Hz, 3.5A 12VDC @ 10A
eFlow104NB* 120VAC, 60Hz, 4.5A 24VDC @ 10A
115VAC, 60Hz, 3.5A 12VDC @ 4A or 24VDC @ 3A
Altronix Sub-Assemblies
Sub-Assembly Pem Mounting Current Draw
ACM4(CB)
MOM5 12-24VDC @ 55mA max.
PD4UL(CB) N/A
B
12VDC @ 0.4A max. or 24VDC @ 0.2A max.
PD8UL(CB) N/A
LINQ2* C 12-24VDC @ 100mA max.
HID VertX® Sub-Assemblies
Sub-Assembly Pem Mounting Current Draw
V100
12VDC @ 60mA
V200 12VDC @ 50mA
V300 12VDC @ 60mA
D
V1000 12/24VDC @ 1000mA
V2000 12/24VDC @ 1000mA
*LINQ2 can be installed when utilizing eFlow power supply/charger boards.
Trove / HID VertX - 3 -
Installation Instructions for Sub-Assemblies to TV1:
N
y
Altronix Power Supplies/Chargers and/or Sub-Assemblies:
1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly
boards (positions (A) and (B), Fig. 2, pg. 4). Use snap on nylon standoffs for the upper two mounting holes in the board.
Use metal standoffs for the bottom mounting holes to provide sufficient grounding for the board.
2. Affix boards to standoffs (Fig. 2, pg. 4) by pressing down the upper mounting holes onto snap on standoffs.
Use provided mounting screws to affix the lower mounting holes. Make sure that boards are locked onto standoffs.
3. For detailed information about installing and connecting Altronix sub-assemblies refer to the individual Installation Instructions
and Trove Installation Guide, Rev. 101817.
HID VertX® Sub-Assemblies:
4. Fasten standoffs (provided) onto metal pems configuration (D) of backplane (Fig. 2, pg. 4).
5. Mount boards to standoffs utilizing 7/8” pan head screws (provided) (Fig. 2a, pg. 4).
6. Fasten backplane to Trove1 enclosure utilizing lock nuts (provided).

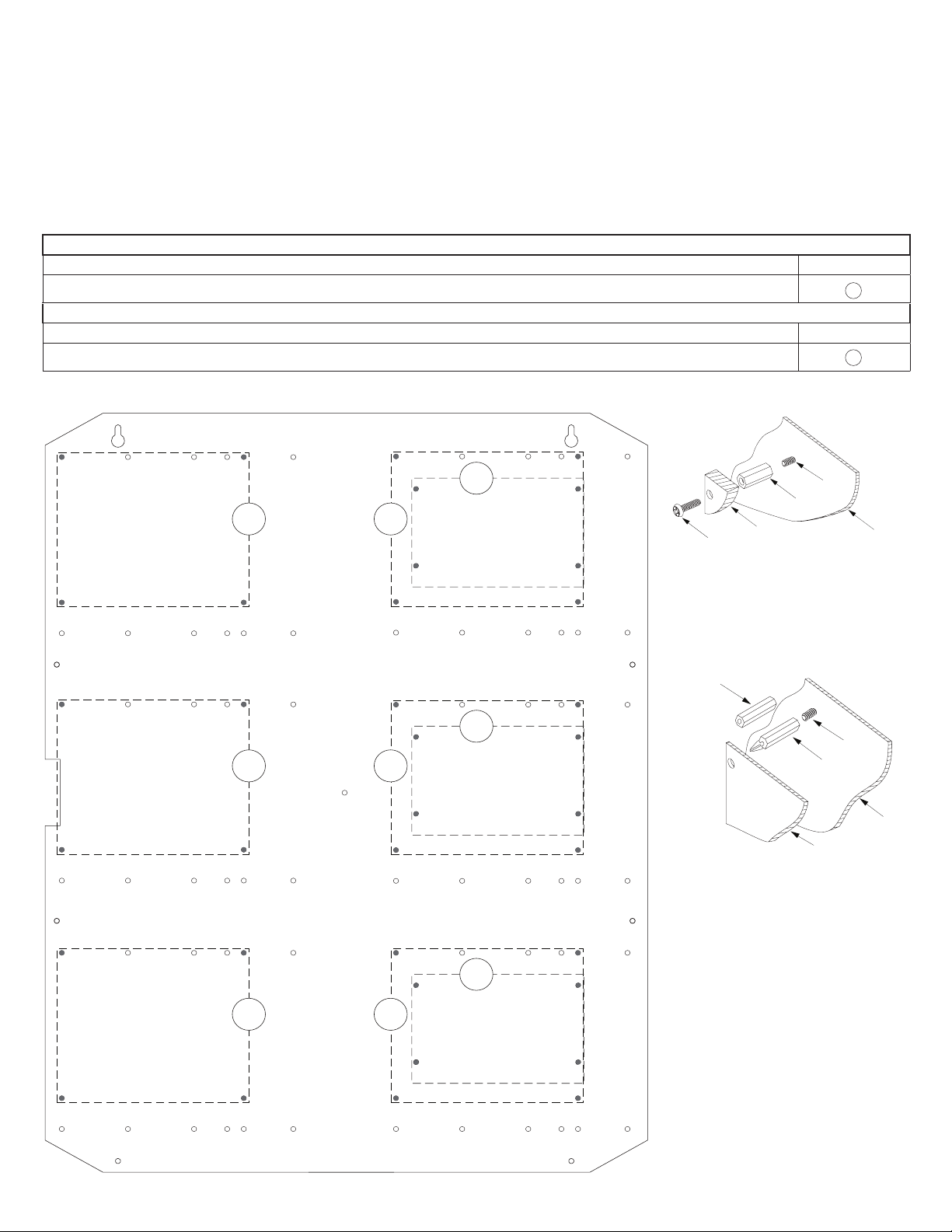

Fig. 2 - Refer to TV1 Sub-Assembly Position Chart, Pg. 3.
C
D D
Metal Standoff
Placement
for Altronix
Power Supplies
A
D D
ylon or Metal
Standoff
Fig. 2a
Pem
Snap on
Standoff
Backplane
Sub-Assembl
B
- 4 - Trove / HID VertX
TV2 Sub-Assembly Position Chart for the Following Models:
Altronix Power Supplies/Sub-Assemblies
Sub-Assembly Pem Mounting Input Rating Output Rating
AL400ULXB2
AL600ULXB 115VAC, 60Hz, 3.5A 12VDC or 24VDC @ 6A
AL1012ULXB 115VAC, 60Hz, 2.6A 12VDC @ 10A
AL1024ULXB2 115VAC, 60Hz, 4.2A 24VDC @ 10A
eFlow4NB* 120VAC, 60Hz, 3.5A 12VDC or 24VDC @ 4A
A
eFlow6NB* 120VAC, 60Hz, 3.5A 12VDC or 24VDC @ 6A
eFlow102NB* 120VAC, 60Hz, 3.5A 12VDC @ 10A
eFlow104NB* 120VAC, 60Hz, 4.5A 24VDC @ 10A
Sub-Assembly Pem Mounting Current Draw
ACM4(CB)
MOM5 12-24VDC @ 55mA max.
PD4UL(CB) N/A
B
PD8UL(CB) N/A
LINQ2* C 12-24VDC @ 100mA max.
Adapter Pem Mounting Current Draw
GB1 D Genetec™ Synergis™ Cloud Link adapter plate
115VAC, 60Hz, 3.5A 12VDC @ 4A or 24VDC @ 3A
Altronix Sub-Assemblies
12VDC @ 0.4A max. or 24VDC @ 0.2A max.
Altronix Adapters
*LINQ2 can be installed when utilizing eFlow power supply/charger boards.
