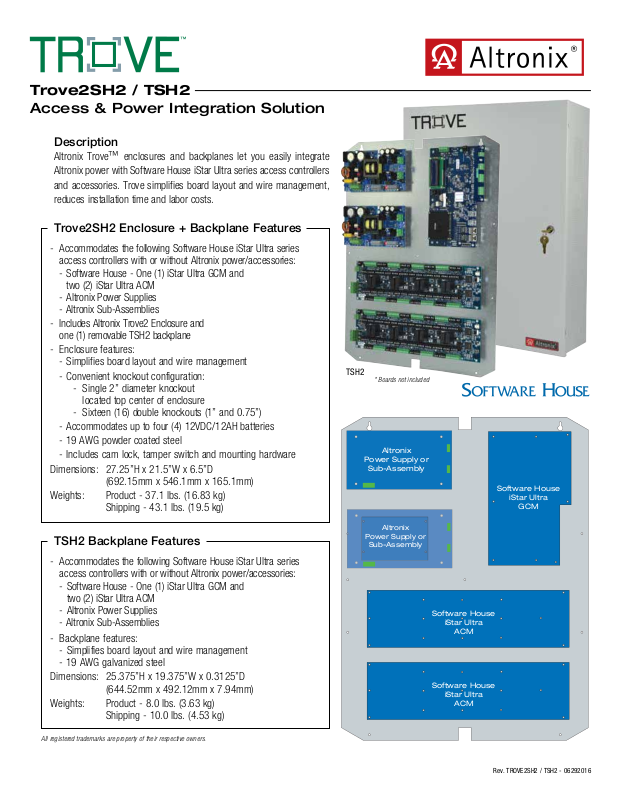

Altronix TROVE2SH2, TSH2 Specsheet
Trove2SH2 / TSH2
Access & Power Integration Solution
Description
Altronix Trove™ enclosures and backplanes let you easily integrate
Altronix power with Software House iStar Ultra series access controllers
and accessories. Trove simplifies board layout and wire management,
reduces installation time and labor costs.
Trove2SH2 Enclosure + Backplane Features
- Accommodates the following Software House iStar Ultra series
access controllers with or without Altronix power/accessories:
- Software House - One (1) iStar Ultra GCM and
two (2) iStar Ultra ACM
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Includes Altronix Trove2 Enclosure and
one (1) removable TSH2 backplane
- Enclosure features:
- Simplifies board layout and wire management
- Convenient knockout configuration:
- Single 2” diameter knockout
located top center of enclosure
- Sixteen (16) double knockouts (1” and 0.75”)
- Accommodates up to four (4) 12VDC/12AH batteries
- 19 AWG powder coated steel
- Includes cam lock, tamper switch and mounting hardware
Dimensions: 27.25”H x 21.5”W x 6.5”D
(692.15mm x 546.1mm x 165.1mm)
Weights: Product - 37.1 lbs. (16.83 kg)
Shipping - 43.1 lbs. (19.5 kg)
TSH2
* Boards not included
Altronix
Power Supply or
Sub-Assembly
Software House
iStar Ultra
GCM
TSH2 Backplane Features
- Accommodates the following Software House iStar Ultra series
access controllers with or without Altronix power/accessories:
- Software House - One (1) iStar Ultra GCM and
two (2) iStar Ultra ACM
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Backplane features:
- Simplifies board layout and wire management
- 19 AWG galvanized steel
Dimensions: 25.375”H x 19.375”W x 0.3125”D
(644.52mm x 492.12mm x 7.94mm)
Weights: Product - 8.0 lbs. (3.63 kg)
Shipping - 10.0 lbs. (4.53 kg)
All registered trademarks are property of their respective owners.
Altronix
Power Supply or
Sub-Assembly
Software House
iStar Ultra
ACM
Software House
iStar Ultra
ACM
Rev. TROVE2SH2 / TSH2 - 06292016
Trove2SH2
(
)
(
)
(
)
(
)
(
)
Access & Power Integration Solution
21.50”
(546.1mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
5.25”
(133.35mm)
3.50”
(88.9mm)
0.5625”
(14.29mm)
2.415”
(61.34mm)
3.50”
(88.9mm)
1.77”
(44.96mm)
5.25”
(133.35mm)
0.685”
(17.399mm)
Knockouts
1.125” (28.32mm)
0.885” (22.479mm)
6.25”
(158.75mm)
6.25”
(158.75mm)
1.25”
(31.75mm)
G
0.85”
(21.59mm)
1.5”
(38.1mm)
27.00”
(685.8mm)
19.80”
(502.92mm)
2.00”
(50.8mm)
6.75”
(171.45mm)
8.25”
(209.54mm)
0.85”
(21.59mm)
1.00”
(25.4mm)
2.00”
50.8mm
5.25”
133.35mm
7.00”
177.79mm
5.25”
133.35mm
2.00”
50.8mm
Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA
phone: +1 718.567.8181 | fax: +1 718.567.9056 | email: info@altronix.com | www.altronix.com
1.25”
(31.75mm)
1.25”
(31.75mm)
8.00”
(203.2mm)
2.00”
(50.8mm)
