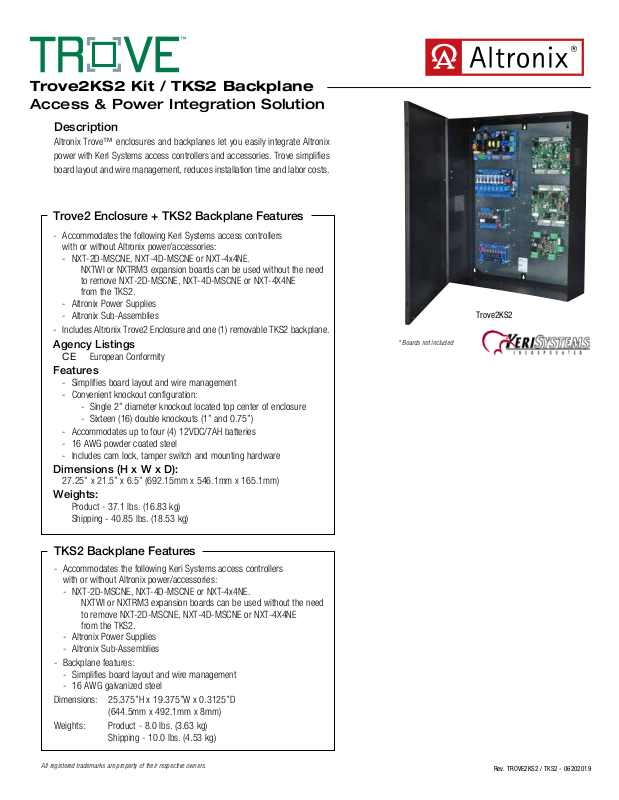

Trove2KS2 Kit / TKS2 Backplane
Access & Power Integration Solution
Description
Altronix Trove™ enclosures and backplanes let you easily integrate Altronix
power with Keri Systems access controllers and accessories. Trove simplifies
board layout and wire management, reduces installation time and labor costs.
Trove2 Enclosure + TKS2 Backplane Features
- Accommodates the following Keri Systems access controllers
with or without Altronix power/accessories:
- NXT-2D-MSCNE, NXT-4D-MSCNE or NXT-4x4NE.
NXTWI or NXTRM3 expansion boards can be used without the need
to remove NXT-2D-MSCNE, NXT-4D-MSCNE or NXT-4X4NE
from the TKS2.
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Includes Altronix Trove2 Enclosure and one (1) removable TKS2 backplane.
Agency Listings
CE European Conformity
Features
- Simplifies board layout and wire management
- Convenient knockout configuration:
- Single 2” diameter knockout located top center of enclosure
- Sixteen (16) double knockouts (1” and 0.75”)
- Accommodates up to four (4) 12VDC/7AH batteries
- 16 AWG powder coated steel
- Includes cam lock, tamper switch and mounting hardware
Dimensions (H x W x D):
27.25” x 21.5” x 6.5” (692.15mm x 546.1mm x 165.1mm)
Weights:
Product - 37.1 lbs. (16.83 kg)
Shipping - 40.85 lbs. (18.53 kg)
Trove2KS2
* Boards not included
TKS2 Backplane Features
- Accommodates the following Keri Systems access controllers
with or without Altronix power/accessories:
- NXT-2D-MSCNE, NXT-4D-MSCNE or NXT-4x4NE.
NXTWI or NXTRM3 expansion boards can be used without the need
to remove NXT-2D-MSCNE, NXT-4D-MSCNE or NXT-4X4NE
from the TKS2.
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Backplane features:
- Simplifies board layout and wire management
- 16 AWG galvanized steel
Dimensions: 25.375”H x 19.375”W x 0.3125”D
(644.5mm x 492.1mm x 8mm)
Weights: Product - 8.0 lbs. (3.63 kg)
Shipping - 10.0 lbs. (4.53 kg)
All registered trademarks are property of their respective owners.
Rev. TROVE2KS2 / TKS2 - 06202019
Altronix
Power Supply
Trove2KS2 Interior Backplane - Optional Mounting Configurations
Keri Systems
NXT-4X4NE
Altronix
Power Supply
Altronix
Power Supply or
Sub-Assembly
Altronix
Power Supply or
Sub-Assembly
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
Keri Systems
NXT-4X4NE
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
Keri Systems
NXT-4X4NE
Keri Systems
NXT-2D-MSCNE or
NXT-4D-MSCNE
(
)
(
)
(
)
(
)
(
)
Trove2KS2
Access & Power Integration Solution
21.50”
(546.1mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
5.25”
(133.35mm)
3.50”
(88.9mm)
0.5625”
(14.29mm)
2.415”
(61.34mm)
3.50”
(88.9mm)
1.77”
(44.96mm)
5.25”
(133.35mm)
0.685”
(17.399mm)
Knockouts
1.125” (28.32mm)
0.885” (22.479mm)
6.25”
(158.75mm)
6.25”
(158.75mm)
1.25”
(31.75mm)
G
0.85”
(21.59mm)
1.5”
(38.1mm)
27.00”
(685.8mm)
19.80”
(502.92mm)
2.00”
(50.8mm)
6.75”
(171.45mm)
8.25”
(209.54mm)
8.00”
(203.2mm)
0.85”
(21.59mm)
1.00”
(25.4mm)
2.00”
50.8mm
5.25”
133.35mm
7.00”
177.79mm
5.25”
133.35mm
2.00”
50.8mm
Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA
phone: +1 718.567.8181 | fax: +1 718.567.9056 | email: info@altronix.com | www.altronix.com
1.25”
(31.75mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
