Trove1AG1R & TAG1R
Access & Power Integration Solution
Description
Altronix Trove™ rack enclosure and backplane let you easily integrate
Altronix power with AMAG Symmetry M4000 access controllers and
accessories. Trove simplifies board layout and wire management,
reduces installation time and labor costs.
Trove1R Enclosure + TAG1R Backplane Features
Trove1AG1R
- Accommodates the following AMAG M4000 boards
with Altronix power/accessories:
- Up to two (2) M4000-DEC4, M4000-IOC20/16.
- Altronix Power Supply/Charger;
- Altronix Sub-Assemblies.
- Includes Altronix Trove1R Rack Enclosure and
one (1) removable TAG1R backplane.
Agency Listings
CE European Conformity.
Features
- Power status LED for use where power and access control
boards share the same enclosure.
- Simplifies board layout and wire management.
- Convenient knockout configuration:
- Six (6) 1.25” diameter knockouts located on the back
of enclosure.
TAG1R Backplane Features
- Accommodates the following AMAG M4000 boards
with Altronix power/accessories:
- Up to two (2) M4000-DEC4, M4000-IOC20/16.
- Altronix Power Supply/Charger;
- Altronix Sub-Assemblies.
Features (cont’d)
- 2U drawer on extendable rails.
- Included Z Bracket facilitates ease of wiring.
- Black powder coated steel enclosure.
- Includes cam lock, tamper switch, IEC320 connector and
mounting hardware.
Dimensions (H x W x D):
Modular 2U standard EIA 19” rack mount chassis.
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm).
Weights:
Product - 18 lbs. (8.16 kg)
Shipping - 23 lbs. (10.43 kg)
Dimensions (H x W x D):
18.5” x 15.25” x 0.375” (469.9mm x 3 87. 4mm x 9.5mm).
Weights:
Product - 4.5 lbs. (2.04 kg)
Shipping - 5.2 lbs. (2.36 kg)
Optional Accessories
RE2:
Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries.
WM5, WM25, WM100:
Magnetic Cable Tie Mounts (5, 25, 100 counts).
LC3:
6 ft. three-wire line cord.
All registered trademarks are property of their respective owners.
Rev. Trove1AG1R / TAG1R - 07272020
TAG1R
Access & Power Integration Solution

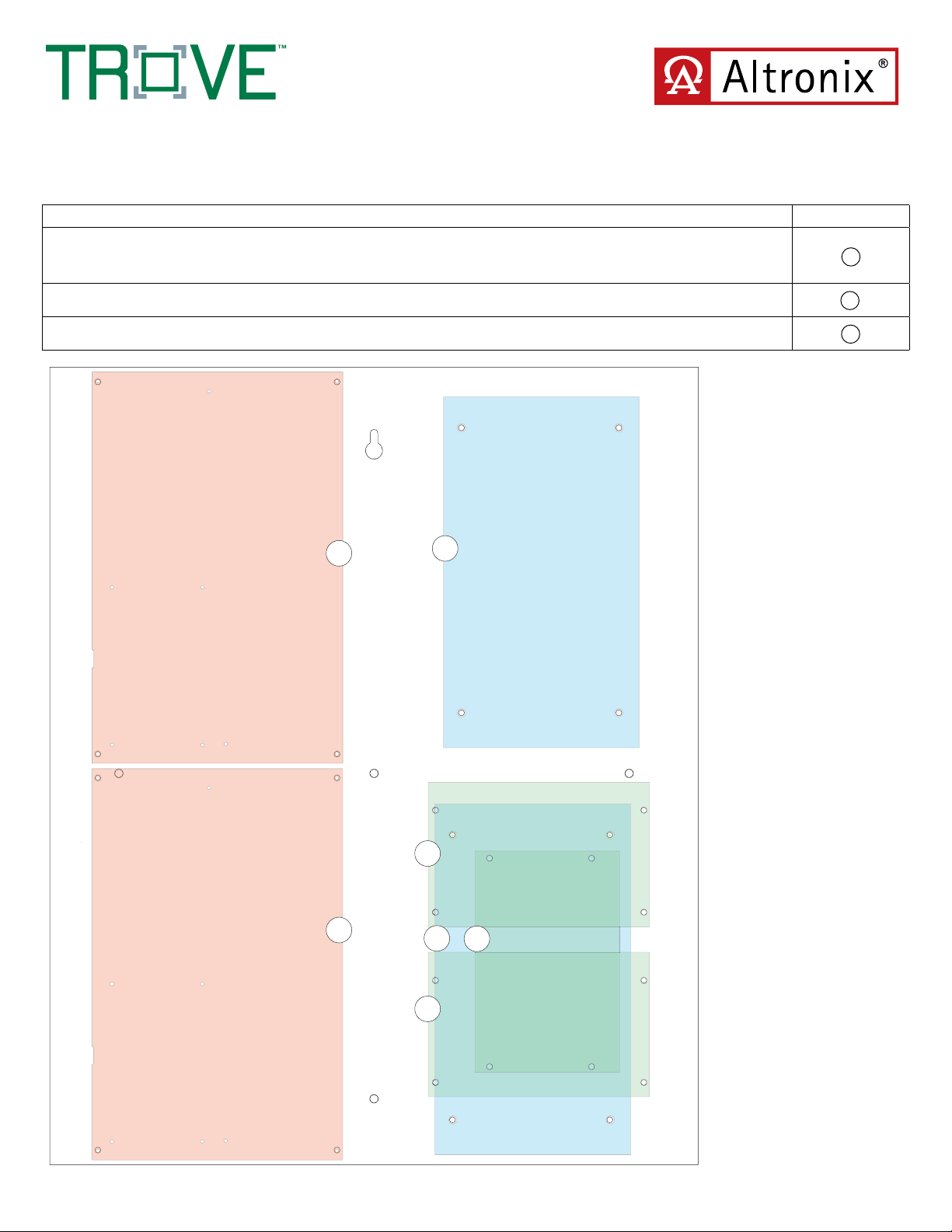

Access Controller Position Chart for the Following Models:
Altronix / AMAG 4000 Pem Mounting
AL400ULXB2, AL400ULXB2V, AL600ULXB, AL600ULXBV, AL1012ULXB, AL1012ULXBV, AL1024ULXB2,
AL1024ULXB2V, eFlow4NB, eFlow4NBV, eFlow6NB, eFlow6NBV, eFlow102NB, eFlow102NBV, eFlow104NB,
eFlow104NBV
ACM4, ACM4CB, LINQ8PD, LINQ8PDCB, MOM5, PD4UL, PD4ULCB, PD8UL, PD8ULCB, PDS8, PDS8CB, VR6 B
M4000-DEC4, M4000-IOC20/16 C
A
C
C
B
A
A
B
B

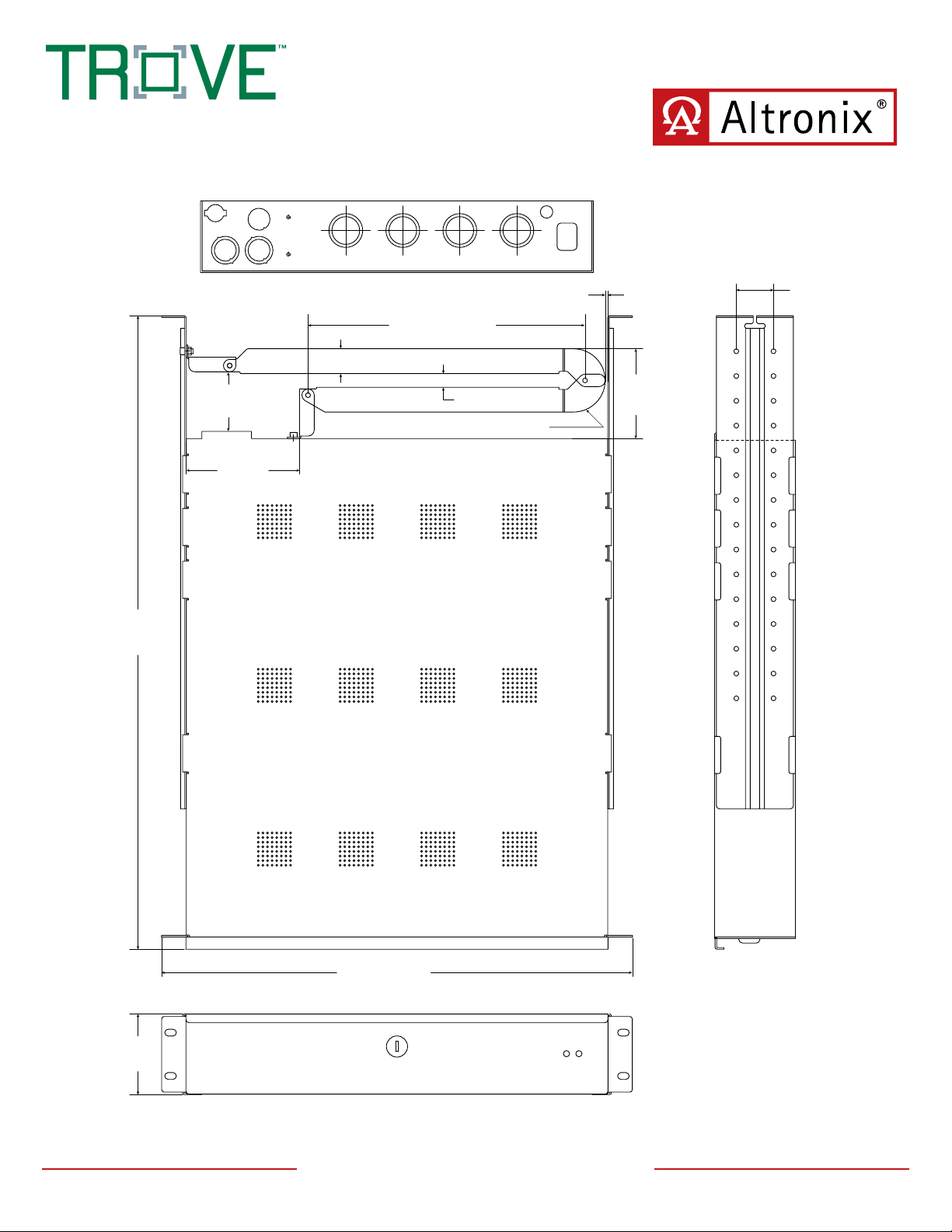

Trove1AG1R
Access & Power Integration Solution
26.5”
673.1mm
2.4”
61mm
4.57”
116.1mm
1” (25.4mm)
11.175” (283.8mm)
0.55” (14mm)
R 1.27” (32.3mm)
0.1”
2.5mm
3.62”
92mm
1.5”
38.1mm
3.25”
82.3mm
19” (482.6mm)
