Altronix TROVE1AG1R Installation Guide

Access & Power Integration

Trove1AG1R

- Trove rack enclosure with AMAG M4000/Altronix backplane (TAG1R)

Installation Guide

All registered trademarks are property of their respective owners. More than just power.™

Rev. TAGR110419

Installing Company: _____________________ Service Rep. Name: __________________________________________

Address: ________________________________________________________ Phone #: _________________________

Overview:

Altronix Trove1AG1R rack mount access & power integration solution accommodates AMAG Symmetry M4000 boards with Altronix
power supplies and sub-assemblies for access systems.

Specifications:

Agency Listings:

• CE European Conformity.

Trove1AG1R

Trove1R rack mount enclosure with
TAG1R Altronix/AMAG backplane.

• 16 Gauge black enclosure with ample knockouts for
convenient access.

• Modular 2U standard EIA 19” drawer with
extendable slides up to 48”.

• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”
(82.6mm x 482.6mm x 673.1mm).

• Includes tamper switch (Altronix Model TS112 or equivalent)
and cam lock.

Backplane Accommodates a Combination of the Following:

Altronix:

• One (1) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB,
ACMS8(CB) or ACM8(CB).

• Up to two (2) ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB),
PDS8(CB), or VR6.

Hardware and Accessories:

Spacer | 5/16” Pan Head Screw | Lock Nut

TAG1R

Altronix/AMAG backplane.

• 16 Gauge backplane.

• Dimensions (H x W x D): 18.5” x 15.25” x 0.3125”
(469.9mm x 387.4mm x 7.9mm).

Optional Accessories:

• RE2: Rack Mount Battery Enclosure accommodates up to four (4)
12VDC/7AH batteries

• WM5, WM25, WM100: Magnetic Cable Tie Mounts
(5, 25, 100 counts).

• LC3: 6 ft. three-wire line cord.

AMAG:

• Up to two (2) M4000-DEC4, M4000-IOC20/16.

- 2 - Trove1AG1R

Assembling and Attaching Z Bracket Wire Management Accessory (included):

Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.

1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).

2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).

3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.

4. Make sure that all nuts are tightened.

Hardware (included):

Ten (10) bolts and eight (8) lock nuts

Fig. 1a

5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).

6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).

Fig. 2

Fig. 1

Two (2)

Fig. 1b

Fig. 2a

Trove1AG1R - 3 -

Installation Instructions for Trove1R:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent), turn the enclosure upside down.
Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 4).
Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors inside
the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.

3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.

4. Utilizing proper fasteners attach front ears to the rack rails.

5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.

6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete before mounting backplane back
into enclosure.

7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.

Fig. 3

Back of the drawer,

viewed from outside.

Tamper Switch mounting location

- 4 - Trove1AG1R

TAG1R:

Configuration of Altronix Power Supply and/or Sub-Assembly Boards and AMAG Boards

1. Fasten spacers onto metal pems configuration (A), (B), (C), (D) or (E) of backplane depending on the board (Fig. 4, pg. 5).

2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 4a, pg. 5).

3. Mount backplane to enclosure with hardware.

Position Chart for the Following Models:

Altronix Power Supply/Charger or Sub-Assembly Pem Mounting

eFlow4NB, eFlow6NB, eFlow102NB, or eFlow104NB

ACM8(CB), ACMS8(CB)

ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), PD16W(CB) or VR6

AMAG Controllers Pem Mounting

M4000-DEC4, M4000-IOC20/16

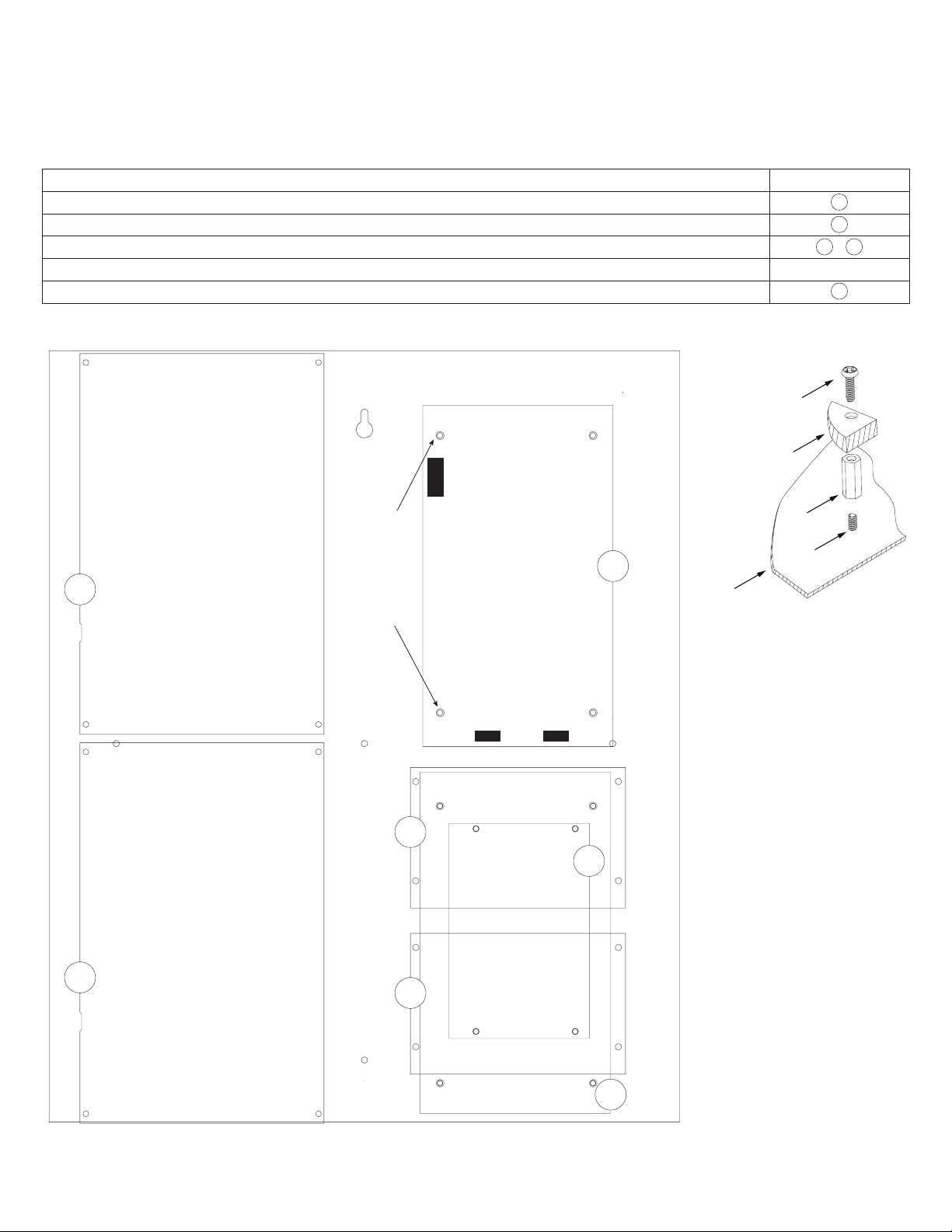

Fig. 4

Pan Head Screw

Power Supply or
Sub-Assembly

A

B

C D

E

Fig. 4a

E

Metal

Spacer
Placement
for Altronix

Power

Supplies

D

Spacer

Pem

A

Backplane

C

E

D

B

Trove1AG1R - 5 -

Notes:

- 6 - Trove1AG1R

TAG1R Enclosure Dimensions (H x W x D):

18.5” x 15.25” x 0.3125” (469.9mm x 387.4mm x 7.9mm)

15.25” (387.4mm)

18.5”

469.9mm

Trove1AG1R - 7 -

Trove1R Enclosure Dimensions (H x W x D):

3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.

26.5”

673.1mm

2.4”

61mm

4.57”

116.1mm

1” (25.4mm)

11.175” (283.8mm)

0.55” (14mm)

R 1.27” (32.3mm)

0.1”

2.5mm

3.62”

92mm

1.5”

38.1mm

19” (482.6mm)

3.25”

82.3mm
