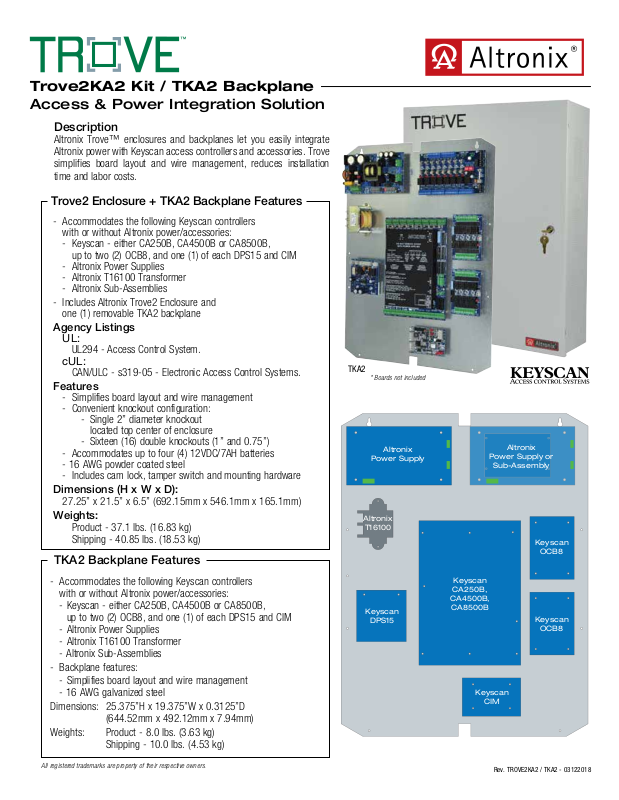

Altronix TKA2 Specsheet
Trove2KA2 Kit / TKA2 Backplane
Access & Power Integration Solution
Description
Altronix Trove™ enclosures and backplanes let you easily integrate
Altronix power with Keyscan access controllers and accessories. Trove
simplifies board layout and wire management, reduces installation
time and labor costs.
Trove2 Enclosure + TKA2 Backplane Features
- Accommodates the following Keyscan controllers
with or without Altronix power/accessories:
- Keyscan - either CA250B, CA4500B or CA8500B,
up to two (2) OCB8, and one (1) of each DPS15 and CIM
- Altronix Power Supplies
- Altronix T16100 Transformer
- Altronix Sub-Assemblies
- Includes Altronix Trove2 Enclosure and
one (1) removable TKA2 backplane
Agency Listings
UL:
UL294 - Access Control System.
cUL:
CAN/ULC - s319-05 - Electronic Access Control Systems.
Features
- Simplifies board layout and wire management
- Convenient knockout configuration:
- Single 2” diameter knockout
located top center of enclosure
- Sixteen (16) double knockouts (1” and 0.75”)
- Accommodates up to four (4) 12VDC/7AH batteries
- 16 AWG powder coated steel
- Includes cam lock, tamper switch and mounting hardware
Dimensions (H x W x D):
27.25” x 21.5” x 6.5” (692.15mm x 546.1mm x 165.1mm)
Weights:
Product - 37.1 lbs. (16.83 kg)
Shipping - 40.85 lbs. (18.53 kg)
TKA2 Backplane Features
TKA2
* Boards not included
Power Supply
Altronix
T16100
Altronix
Altronix
Power Supply or
Sub-Assembly
Keyscan
OCB8
- Accommodates the following Keyscan controllers
with or without Altronix power/accessories:
- Keyscan - either CA250B, CA4500B or CA8500B,
up to two (2) OCB8, and one (1) of each DPS15 and CIM
- Altronix Power Supplies
- Altronix T16100 Transformer
- Altronix Sub-Assemblies
- Backplane features:
- Simplifies board layout and wire management
- 16 AWG galvanized steel
Dimensions: 25.375”H x 19.375”W x 0.3125”D
(644.52mm x 492.12mm x 7.94mm)
Weights: Product - 8.0 lbs. (3.63 kg)
Shipping - 10.0 lbs. (4.53 kg)
All registered trademarks are property of their respective owners.
Keyscan
DPS15
Keyscan
CA250B,
CA4500B,
CA8500B
Keyscan
OCB8
Keyscan
CIM
Rev. TROVE2KA2 / TKA2 - 03122018
Trove2KA2
(
)
(
)
(
)
(
)
(
)
Access & Power Integration Solution
21.50”
(546.1mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
5.25”
(133.35mm)
3.50”
(88.9mm)
0.5625”
(14.29mm)
2.415”
(61.34mm)
3.50”
(88.9mm)
1.77”
(44.96mm)
5.25”
(133.35mm)
0.685”
(17.399mm)
Knockouts
1.125” (28.32mm)
0.885” (22.479mm)
6.25”
(158.75mm)
6.25”
(158.75mm)
1.25”
(31.75mm)
G
0.85”
(21.59mm)
1.5”
(38.1mm)
27.00”
(685.8mm)
19.80”
(502.92mm)
2.00”
(50.8mm)
6.75”
(171.45mm)
8.25”
(209.54mm)
0.85”
(21.59mm)
1.00”
(25.4mm)
2.00”
50.8mm
5.25”
133.35mm
7.00”
177.79mm
5.25”
133.35mm
2.00”
50.8mm
