Trove2HN2 Kit / THN2 Backplane
Access & Power Integration Solution
Description
Altronix Trove™ enclosures and backplanes let you easily integrate
Altronix power with Honeywell NetA XS access controllers and accessories. Trove simplifies board layout and wire management, reduces
installation time and labor costs.
Trove2 Enclosure + THN2 Backplane Features
- Accommodates the following Honeywell NetAXS
access controllers with or without Altronix power/accessories:
- NX4PCB, NetAXS-123, NXD1 or NXD2, NX4IN or NX4OUT.
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Includes Altronix Trove2 Enclosure and
one (1) removable THN2 backplane
Features
- Simplifies board layout and wire management
- Convenient knockout configuration:
- Single 2” diameter knockout
located top center of enclosure
- Sixteen (16) double knockouts (1” and 0.75”)
- Accommodates up to four (4) 12VDC/7AH batteries
- 16 AWG powder coated steel
- Includes cam lock, tamper switch and mounting hardware
Dimensions (H x W x D):
27.25” x 21.5” x 6.5” (692.15mm x 546.1mm x 165.1mm)
Weights:
Product - 37.1 lbs. (16.83 kg)
Shipping - 40.85 lbs. (18.53 kg)
THN2
* Boards not included
THN2 Backplane Features
- Accommodates the following Honeywell NetAXS
access controllers with or without Altronix power/accessories:
- NX4PCB, NetAXS-123, NXD1 or NXD2, NX4IN or NX4OUT.
- Altronix Power Supplies
- Altronix Sub-Assemblies
- Backplane features:
- Simplifies board layout and wire management
- 16 AWG galvanized steel
Dimensions: 25.375”H x 19.375”W x 0.3125”D
(644.52mm x 492.12mm x 7.94mm)
Weights: Product - 8.0 lbs. (3.63 kg)
Shipping - 10.0 lbs. (4.53 kg)
All registered trademarks are property of their respective owners.
Rev. TROVE2HN2 / THN2 - 07172018
Altronix
Power Supply
Trove2HN2 Interior Backplane - Optional Mounting Configurations
Altronix
Power Supply or
Sub-Assembly
Altronix
Power Supply or
Sub-Assembly
Altronix
Power Supply or
Sub-Assembly
Honeywell
NX4PCB
Honeywell
NX4PCB
Honeywell
NX4PCB
Honeywell
NX4PCB
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
NXD1 or NXD2
NetAXS-123
Honeywell
NX4IN or NX4OUT
Honeywell
NX4IN or NX4OUT
Honeywell
NX4IN or NX4OUT
Honeywell
NX4IN or NX4OUT
(
)
(
)
(
)
(
)
(
)

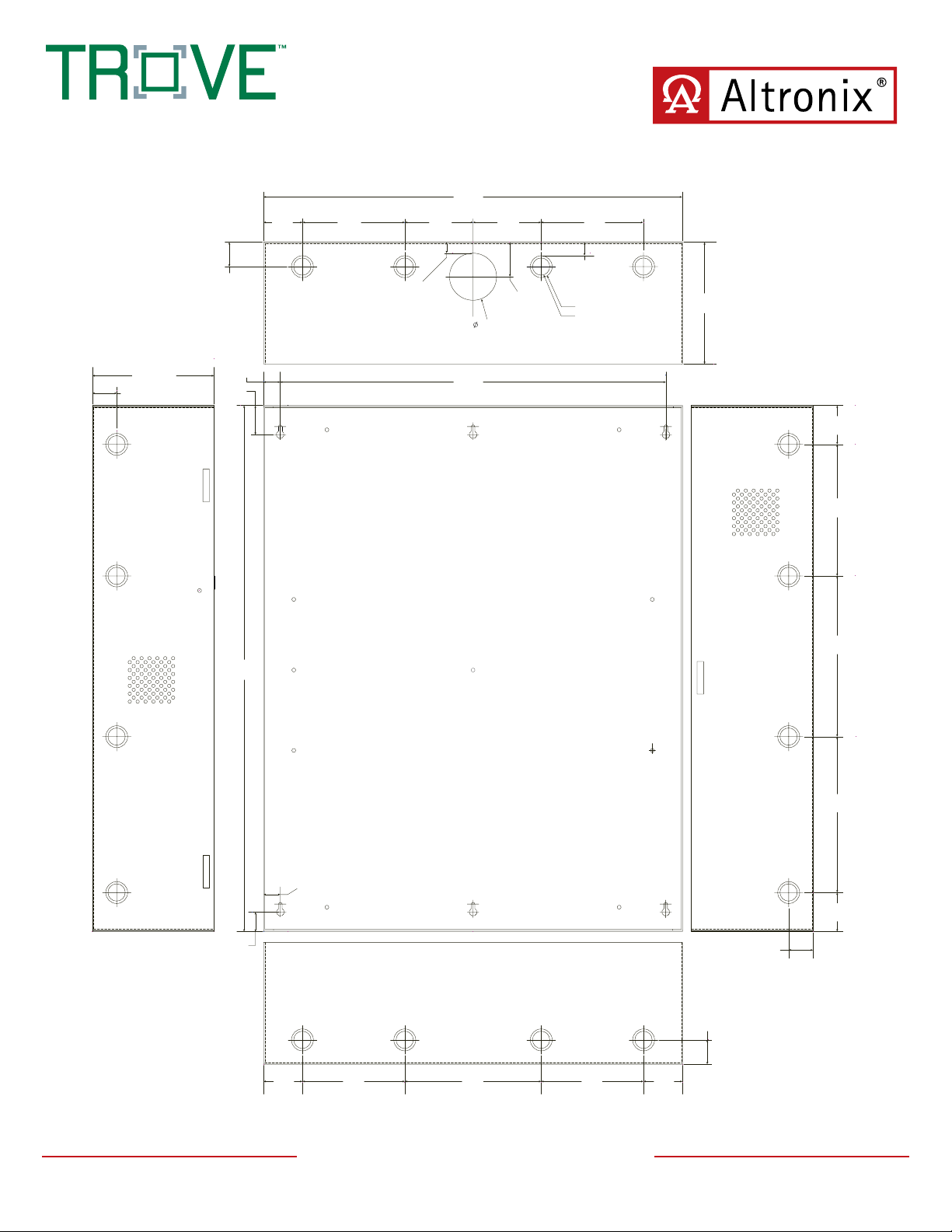

Trove2HN2
Access & Power Integration Solution
21.50”
(546.1mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
5.25”
(133.35mm)
3.50”
(88.9mm)
0.5625”
(14.29mm)
2.415”
(61.34mm)
3.50”
(88.9mm)
1.77”
(44.96mm)
5.25”
(133.35mm)
0.685”
(17.399mm)
Knockouts
1.125” (28.32mm)
0.885” (22.479mm)
6.25”
(158.75mm)
6.25”
(158.75mm)
1.25”
(31.75mm)
G
0.85”
(21.59mm)
1.5”
(38.1mm)
27.00”
(685.8mm)
19.80”
(502.92mm)
2.00”
(50.8mm)
6.75”
(171.45mm)
8.25”
(209.54mm)
8.00”
(203.2mm)
0.85”
(21.59mm)
1.00”
(25.4mm)
2.00”
50.8mm
5.25”
133.35mm
7.00”
177.79mm
5.25”
133.35mm
2.00”
50.8mm
Altronix Corporation | 140 58th St | Brooklyn, NY 11220 USA
phone: +1 718.567.8181 | fax: +1 718.567.9056 | email: info@altronix.com | www.altronix.com
1.25”
(31.75mm)
1.25”
(31.75mm)
2.00”
(50.8mm)
