Altronix TANGO8AP, TANGO8APCB Installation Guide

PoE Driven Multi-Output
Power Supply/Charger
With Access Power Controller

Models Include:

Tango8AP

- 12VDC and/or 24VDC selectable by output @ 65W max.

- Eight (8) selectable Fail Safe, Fail-Secure fused outputs or Form “C” dry outputs

- Fire Alarm Disconnect selectable by output

- Eight (8) additional fused outputs

- Built-in Lithium Iron Phosphate Battery Charger

Tango8APCB

- 12VDC and/or 24VDC selectable by output @ 65W max.

- Eight (8) selectable Fail Safe, Fail-Secure PTC outputs or Form “C” dry outputs

- Fire Alarm Disconnect selectable by output

- Eight (8) additional PTC outputs

- Built-in Lithium Iron Phosphate Battery Charger

Installation Guide

Rev. TANGO8AP-083019

More than just power.

TM

Table of Contents:

Overview .................................................................................................pg. 3

Specifications ..................................................................pg. 3

Stand-by Specifications ..........................................................pg. 4

Installation Instructions ..........................................................pg. 5

Wiring ........................................................................pg. 7

LED Diagnostics ................................................................pg. 7

Terminal Identification ..........................................................pg. 8

Typical Application Diagram for ACMS8(CB) ......................................pg. 10

ACMS8(CB) Hook-Up Diagrams ..................................................pg. 11

Enclosure Dimensions ...........................................................pg. 12

- 2 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

Altronix Tango8AP(CB) PoE Driven Multi-Output Power Supply/Charger With Access Power Controller con­verts an IEEE802.3bt PoE input into eight (8) regulated 24VDC and/or 12VDC outputs and eight (8) protected
24VDC and/or 12VDC outputs up to 65W. It eliminates the need for a high voltage inside of an enclosure.
Tango8AP(CB) is designed to support a single 12VDC LiFePO4 (Lithium Iron Phosphate) battery for 12VDC
and 24VDC backup.

Specifications:

Inputs:

Tango1B:

• 802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W.

ACMS8/ACMS8CB:

• Eight (8) trigger inputs:
a) Normally open (NO) inputs (dry contacts).
b) Normally closed (NC) inputs (dry contacts).
c) Open collector sink inputs.
d) Wet Input (5VDC - 24VDC) with 10K resistor
e) Any combination of the above.

Outputs:

Tango1B:

• 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W).
Combined output not to exceed 65W.

• When charging batteries:
12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
Combined output not to exceed 55W.

• ACMS8:

- Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.

• ACMS8CB:

- PTC protected outputs rated @ 2A per output, Class 2 power-limited. Total output 16A max.
Do not exceed the individual power supply ratings. See Input/Output Voltage Ratings, pg. 6.
Total output current should not exceed max. current rating of the power supplies employed on each input.
See Maximum Output of Altronix Power Supplies.

• Eight (8) selectable independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs
(see below for ratings):
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” relays rated @ 2.5A. 5, 12, 24VDC, 0.6 Power Factor (ACMS8 only).
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.

• Individual outputs may be set to OFF position for servicing (output jumper set to middle position).
Does not apply to Dry Contact applications.

• Any of the eight (8) fuse/PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Output voltage of each output is the same as the input voltage of the input selected.

See Input/Output Voltage Ratings, pg. 6.
PDS8:

• Fuse protected outputs rated @ 3A per output, non power-limited.
PDS8CB:

• PTC protected outputs rated @ 2A per output, Class 2 power-limited.

• Surge suppression.

Fuse/PTC Ratings:

• ACMS8(CB)

- Main input fuses rated 15A/32V each.

- ACMS8: output fuses are rated 3A/32V.

- ACMS8CB: Output PTCs are rated 2A.

• PDS8(CB):

- Main input fuses rated @ 10A/32V each.

- PDS8: output fuses rated @ 3A/32V each.

- PDS8CB: output PTCs rated @ 2A each.

• TANGO1B: battery fuse rated @ 10A/32V each.

Ethernet Output (Tango1B):

• Pass-through Ethernet Port (data only).

• 100/1G.

Overview:

Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller - 3 -

Battery (Tango1B):

• 12VDC battery charger for Lithium Iron Phosphate Battery (LiFeP04 only).

• Unique technology allows for single battery to backup 12VDC and/or 24VDC systems.

• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of
nominal. Prevents deep battery discharge.

Supervision (Tango1B):

• Loss of PoE Input.

• Battery Supervision.

Fire Alarm Disconnect:

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the
eight (8) outputs.
Fire Alarm disconnect input options:
a) Normally open [NO] or normally closed [NC] dry contact input. Polarity reversal input from
FACP signaling circuit.

• FACP input WET is rated 5-30VDC 7mA.

• FACP input EOL requires 10K end of line resistor.

• FACP output relay [NC]: either Dry 1A/28VDC, 0.6 Power Factor or 10K resistance with [EOL JMP] intact.

Visual Indicators:

• Tango1B

- Input indicates input voltage is present.

- Battery status indicates battery trouble condition.

- PoE Class indicator.

- Supervision PoE Fail or BAT Fail.

• ACMS8(CB)

- Red LEDs indicate outputs are triggered.

- Blue LED indicates FACP disconnect is triggered.

- Individual voltage LED indicates 12VDC (Green) or 24VDC (Red).

• PDS8(CB)

- Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Green and Red).

Environmental:

• Operating temperature: 0ºC to 49ºC ambient.

• Humidity: 20 to 85%, non-condensing.

Enclosure Dimensions (approximate H x W x D):

15.5” x 12.25” x 4.5” (394mm x 311mm x 114mm).

Accessories:
Power Sourcing Equipment

NetWay1BT - Single Port Managed Hi-PoE Injector supplies 90W total power.
NetWaySP1BT - 802.3bt Media Converter/Injector supplies 90W total power.
NetWay4BT - 4-Port Managed Hi-PoE Midspan Injector supplies 480W total power.

NetWay8BT - 8-Port Managed Hi-PoE Midspan Injector supplies 480W total power.

Stand-by Specifications:

Battery Access Control Applications Stand-by

4AH 30 Mins.
7AH 45 Mins.
12AH 1.5 Hours

- 4 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, the Canadian

OFF
IN1
IN2

PWR1

PWR2

OFF

Installation Instructions:

Electrical Code and with all local codes and authorities having jurisdiction. Product is intended for indoor use only.

1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in
the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the
enclosure’s upper keyholes over the two upper screws, level and secure. Mark the position of the lower two
holes. Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper
keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pg. 12). Secure enclosure to earth ground.

Tango1B:

2. Connect IEEE802.3bt PSE from PoE source to RJ45 Jack marked [PoE+ Data Input] on the Tango1B board
(Fig. 1b, pg. 5). If Data pass-through is required, connect another IEEE802.3bt PSE to RJ45 Jack marked
[Data Output] (Fig. 1a, pg. 5).

CAUTION: Do not touch exposed metal parts.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.

3. When the use of stand-by batteries is desired, they must be Lithium Iron Phosphate (LiFePO4).
Connect batteries to the terminals marked [+ BAT –] on Tango1B (battery leads included) (Fig. 1f, pg. 5).

4. Connect appropriate signaling notification devices to terminals marked [C FAIL NC] (Fig. 1c, pg. 5)
supervisory relay output.

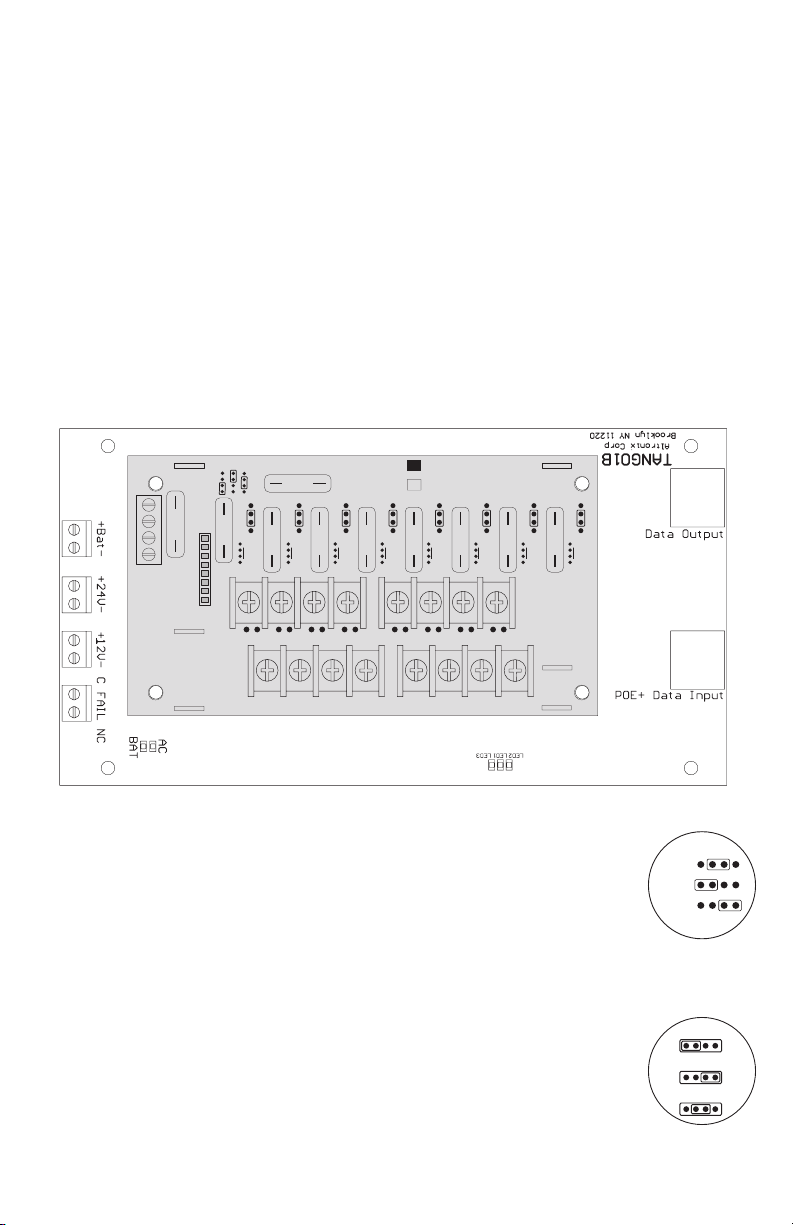

Fig. 1 - Tango1B with PDS8 stacked above

IN2

IN1

IN2 Fuse

OFF

IN1 Fuse

PDS8

10

PDS8CB

<

<

<

1 off 2

1 off 2

333333 33

Out1

Out2

>

>

<

1 off 2

1 off 2

Out3

Out4

>

>

Dual Voltage

Power Distribution

Module

<

<

1 off 2

1 off 2

Out5

>

>

<
1 off 2

Out6

>

Out7

PWR1 +

1a

<
1 off 2

Out8

>

PWR1 +

+ INP1

--

10

1f

+ INP2

--

1e

1d

1c

1g

COM (--- )

PWR2 +

P

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

N

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

COM (--- )

PWR2 +

PDS8(CB):

1. Ensure all output jumpers [OUT1 - OUT8] on PDS8(CB) are placed in the
OFF (center) position marked [•] (Fig. 2, pg. 5).

2. Set each output [OUT1 - OUT8] to route power from Input 1 or Input 2
(jumper position 1 or 2) (Fig. 1, 2, pg. 5, Fig. 3 pg. 6).
IN1 = 24VDC, IN2 = 12VDC.
Note: Measure output voltage before connecting devices.
This helps avoiding potential damage.

3. Connect devices to terminal pairs 1 to 8, marked [P (Positive) - OUT1-OUT8, N (Negative)]
(Fig. 1, pg. 5, Fig. 3 pg. 6).

ACMS8(CB):

1. Ensure all output jumpers [PWR1] - [PWR8] are placed in the
OFF (center) position (Fig. 3, pg. 5).

2. Set each output [OUT1] - [OUT8] to route power from Input 1 or 2 (Fig. 3, pg. 5).
Note: Measure output voltage before connecting devices.
This helps avoiding potential damage.

3. Turn power off before connecting devices.

Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller - 5 -

1b

Fig. 2

Fig. 3

4. Output options:

1
2
3
4

INP Logic

NC <-> NO

ON

FACP

EN

<-- >

DIS

1
2
3
4

ON

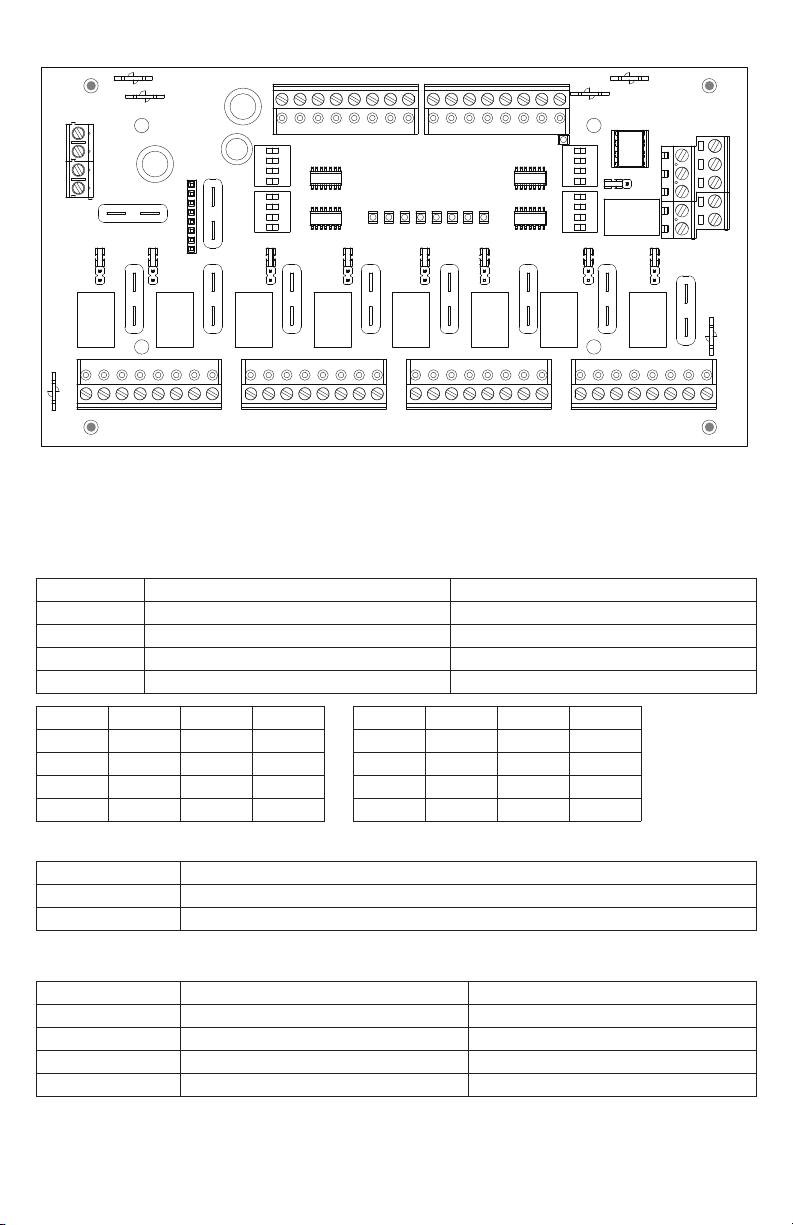

ACMS8(CB) will provide up to eight (8) switched power outputs or eight (8) dry form “C” outputs, or any
combination of both switched power and form “C” outputs, plus eight (8) unswitched auxiliary power outputs.
Switched Power outputs:
Connect the negative (–) input of the device being powered to the terminal marked [COM].

• For Fail-Safe operation connect the positive (+) input of the device being powered to the terminal
marked [NC].

• For Fail-Secure operation connect the positive (+) input of the device being powered to the terminal
marked [NO].
Form “C” outputs:
When form “C” outputs are desired, the corresponding jumper (1-8) must be placed in the OFF position
(Fig. 3, pg. 5). Alternatively, the corresponding output fuse (1-8) can be removed (Tango8AP only).
Connect negative (–) of the power supply directly to the locking device.
Connect the positive (+) of the power supply to the terminal marked [C].

• For Fail-Safe operation connect the positive (+) of the device being powered to the terminal
marked [NC].

• For Fail-Secure operation connect the positive (+) of the device being powered to the terminal
marked [NO].
Dry contacts rated @ 2.5A, 28VDC.
Auxiliary Power outputs (unswitched):
Connect positive (+) input of the device being powered to the terminal marked [C] and the negative (–)
of the device being powered to the terminal marked [COM]. Output can be used to provide power for
card readers, keypads etc.

5. Turn main power on after all devices are connected.

6. Input Trigger options:
Note: If Fire Alarm disconnect is not used, connect a 10K ohm resistor to terminals marked [GND and EOL],
plus connect a jumper to terminals marked [GND, RST].
Normally Open (NO) Input:
Slide input control logic DIP switch into the OFF position for [Switch 1-8]
(Fig. 4, on right). Connect your wires to terminals marked [+ INP1 –] to [+ INP8 –].
Normally Closed (NC) Input:
Slide input control logic DIP switch into the ON position for [Switch 1-8]
(Fig. 4, on right). Connect your wires to terminals marked [+ INP1 –] to [+ INP8 –].
Open Collector Sink Input:
Connect the open collector sink input to the terminal marked [+ INP1 –] to [+ INP8 –].
Wet (Voltage) Input Configuration:
Carefully observing polarity, connect the voltage input trigger wires and the supplied 10K resistor to
terminals marked [+ INP1 –] to [+ INP8 –].
If applying voltage to trigger input - set the corresponding INP Logic switch to the “OFF” position
If removing voltage to trigger input - set the corresponding INP Logic switch to the “ON” position.

7. Fire Alarm Interface options (See page 11):
A normally closed [NC], normally open [NO] input or polarity reversal input from
FACP signaling circuit will trigger selected outputs. To enable FACP Disconnect
for an output turn the corresponding DIP switch [SW1-SW8] ON.
To disable FACP disconnect for an output turn the corresponding DIP switch [SW1-SW8]
OFF. Switch is located directly to the left of the Fire Alarm Interface Terminals.
Normally Open Input:
Wire your FACP relay and 10K resistor in parallel on terminals marked [GND] and [EOL].
Normally Closed Input:
Wire your FACP relay and 10K resistor in series on terminals marked [GND] and [EOL].
FACP Signaling Circuit Input Trigger:
Connect the positive (+) and negative (–) from the FACP signaling circuit output to the terminals marked
[+ FACP –]. Connect the FACP EOL to the terminals marked [+ RET –] (polarity is referenced in an
alarm condition).
Non-Latching Fire Alarm Disconnect:
Connect a jumper to the terminals marked [GND, RST].

Latching Fire Alarm Disconnect:

Connect a NO normally open reset switch to terminals marked [GND, RST].

8. FACP Dry NC output:
Connect desired device to be triggered by the unit’s dry contact output to the terminals marked [NC] and [C].
When [EOL JMP] is kept intact, the output is of 0 Ohm resistance in a normal condition.
When [EOL JMP] is clipped, a 10k resistance will be passed to next device when in a normal condition.

- 6 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

Fig. 4

Fig. 5

Fig. 6 - ACMS8

+ PWR1

-­+ PWR2

--

COM -

Power 2

PWR1

PWR2

+

+

Power 1

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

5
6
7
8

INP Logic

<-->

NO

NC

+

PWR1

+

PWR2

FACP

1
2
3

ONON

4

5
6
7
8

FACP
<-->

EN

DIS

FACP

C GND GND -F -R

FACP

NC RST EOL +F +R

COM -

Output 1 Output 2

NO C NC COM NO C NC COM

Output 3 Output 4

NO C NC COM NO C NC COM

Output 5 Output 6

NO C NC COM NO C NC COM

Output 7 Output 8

NO C NC COM NO C NC COM

Wiring:

Use 18 AWG or larger for all low voltage power connections.

LED Diagnostics:

Tango1B

LED ON BLINKING

Input Input voltage is present. Input voltage not present.

Battery Normal operating condition. Battery is low or missing.

PoE Indicates Class. Refer to table below Classes 3-8

Supervision PoE Fail or BAT Fail. NC dry contact 30V 1A (not an LED)

Class Green Red Blue Class Green Red Blue

Class 1 – – – Class 5 On Off On

Class 2 – – – Class 6 On Off On

Class 3 Off Off Off Class 7 On On On

Class 4 Off On Off Class 8 On On On

PDS8:

LED ON

Green 12VDC Output.

Green and Red 24VDC Output.

ACMS8 and ACMS8CB Access Power Controller

LED ON OFF

LED 1- LED 8 (Red) Output relay(s) de-energized. Output relay(s) energized.

FACP FACP input triggered (alarm condition). FACP normal (non-alarm condition).

Green Output 1-8 12VDC –

Red Output 1-8 24VDC –

Terminal Identification:

Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller - 7 -

Tango1B

Terminal/RJ45 Legend Function/Description

PoE+ Data Input IEEE802.3bt Input (Fig. 2b, pg. 4).

Data Output Passes Data to Switch (Fig. 2a, pg. 4)

C FAIL NC Power and Battery Fail (Fig. 2c, pg. 4).

+ 12V – 12VDC output (Fig. 2d, pg. 4).

+ 24V – 24VDC output (Fig. 2e, pg. 4).

+ BAT – Lithium Iron Phosphate battery backup (Fig. 2f, pg. 4).

8-Pin Connector (Fig. 2g, pg. 4) Facilitates electrical connection to PDS8(CB).

PDS8(CB):

Terminal Legend Function/Description

+ INP1 – Factory connected to Tango1B. Do not use these terminals.

+ INP2 – Factory connected to Tango1B. Do not use these terminals.

P [OUT1-OUT8] Positive DC power outputs.

N [OUT1-OUT8] Negative DC power outputs.

ACMS8 and ACMS8CB Access Power Controller

Terminal Legend Function/Description

+ PWR1 – Factory connected. Do not use these terminals.

+ PWR2 – Factory connected. Do not use these terminals.

+ INP1 – through
+ INP8 –

C, NC

GND, RST

GND, EOL

– F, + F, – R, + R FACP Signaling Circuit Input and Return terminals. Class 2 power-limited.

Output 1 through
Output 8
NO, C, NC, COM

Eight (8) independently controlled Normally Open (NO), Normally Closed (NC),
Open Collector Sink or Wet Input Triggers.

FACP Dry NC output rated 1A/28VDC @ 0.6 Power Factor. Class 2 power-limited.
With EOL JMP intact, will provide 10k resistance in a normal state.

FACP interface latching or non-latching. NO dry input. Class 2 power-limited.
To be shorted for non-latching FACP interface or Latch FACP reset.

EOL Supervised FACP Input terminals for polarity reversal FACP function.
Class 2 power-limited.

Eight (8) selectable independently controlled outputs [Fail-Safe (NC) or Fail­Secure (NO)] and eight (8) independently controlled Form “C” Relay outputs.

- 8 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

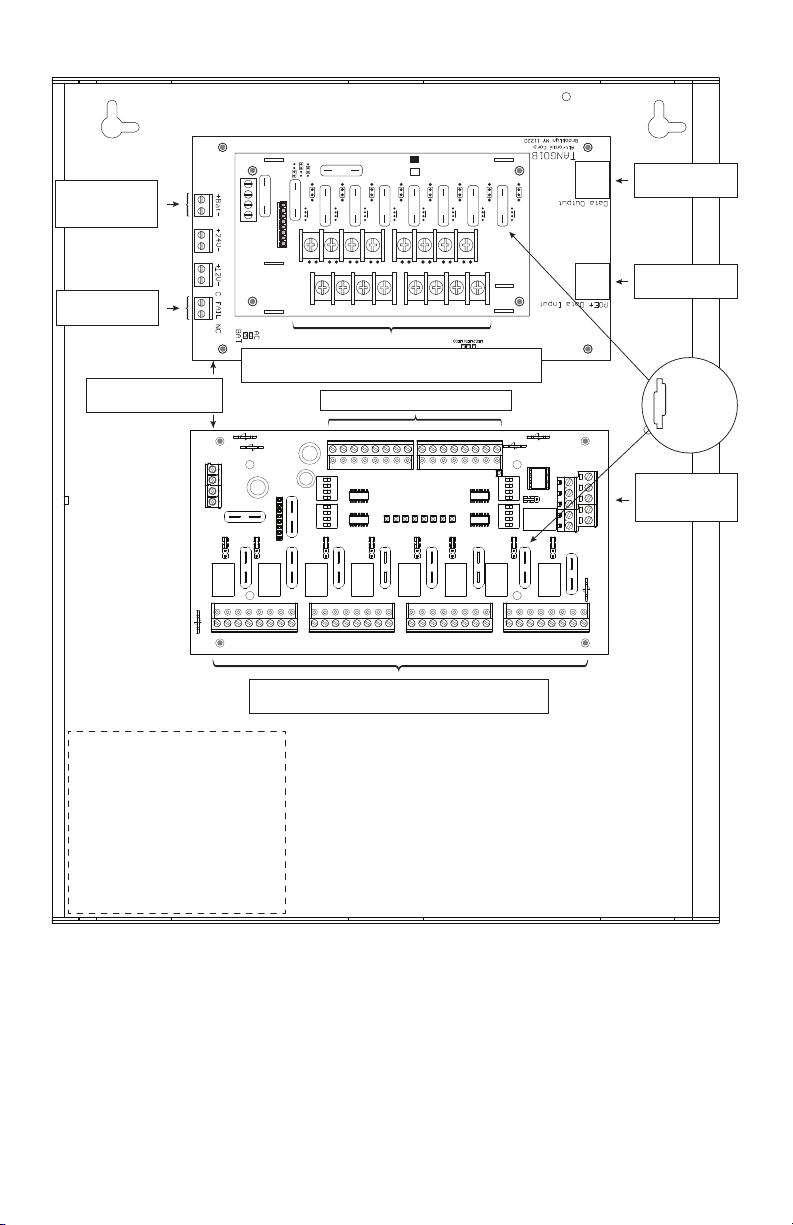

Fig. 7 - Tango8AP(CB)

LiFeP04 Battery

connection

(non power-limited)

Supervision

(power-limited)

IN2

IN1

PWR1 +

+ INP1

--

+ INP2

--

OFF

IN1 Fuse

PDS8

10

IN2 Fuse

10

<
1 off 2

>

PDS8CB

<

<

1 off 2

1 off 2

333 3 3 3 3 3

Out1

Out2

Out3

>

>

Dual Voltage

Module

PWR1 +

Data Pass-Through

<

<

<

1 off 2

1 off 2

1 off 2

Out6

Out7

>

Out8

>

>

Power Distribution

<

<

1 off 2

1 off 2

Out4

Out5

>

>

P

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

COM (--- )

N

PWR2 +

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

COM (--- )

PWR2 +

PoE Input

PDS8(CB) and ACMS8(CB)

are factory connected

Optional
LiFeP0

4

Battery

(Tango8AP - non power-limited, Tango8APCB - power-limited)

DC Output to devices

Independently controlled Input Triggers

+

PWR1

+

+ PWR1

-­+ PWR2

--

COM -

PWR2

Power 2

Output 1 Output 2

NO C NC COM NO C NC COM

(Tango8AP - non power-limited, Tango8APCB - power-limited)

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

5

Power 1

6
7
8

INP Logic

<-->

NO

NC

Output 3 Output 4

NO C NC COM NO C NC COM

DC Output to devices

NO C NC COM NO C NC COM

Output 5 Output 6

PWR1

FACP

1
2
3

ONON

4

5
6
7
8

FACP
<-->

EN

DIS

Output 7 Output 8

NO C NC COM NO C NC COM

PTC

Protected

Outputs on

+

+

PWR2

FACP

C GND GND -F -R

NC RST EOL +F +R

FACP

COM -

Tango8APCB

Supervision and

FACP Interface
(power-limited)

Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller - 9 -

Fig. 8

Power
Supply
(req'd.)

Power
Supply

(optional)

Access Control Panel

C

Output

NO

Relay

NC

DC

DC

Mag. Lock

Electric

Strike

Typical Application Diagram for ACMS8(CB):

Normally Open (N.O.)

Door Releasing Device

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

ON

5
6
7
8

ON

INP Logic

NO
PWR1

<-- >

PWR2

RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATING

Output 3 Output 4

NO C NC COM NO C NC COM

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

PWR1

<-- >

NC

<-- >

PWR2

3

3

OUT8

PWR1

<-- >

PWR2

3

3

Output 5 Output 6

NO C NC COM NO C NC COM

EN

+PWR1-- +PWR2--

ACMS8
ACMS8CB

Power 2

PWR1

PWR1

PWR2

OFF

<-- >

PWR2

Brooklyn, NY 11220

Altronix Corp.

COM--

Output 1 Output 2

NO C NC COM NO C NC COM

PWR2+

15

PWR1+

Power 1

15

3

3

PWR1+

PWR2+

FACP

1
2
3
4

ONON

EOL JMP

5
6
7
8

PWR1

FACP
<-- >

DIS

<-- >

PWR2

3

Output 7 Output 8

NO C NC COM NO C NC COM

FACP

(Fire Alarm

Control

Panel)

FACP

C GND GND -F -R

NC RST EOL +F +R

FACP

3

COM--

Electromagnetic

Door Holders

ACMS8CBACMS8

3

- 10 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

ACMS8(CB) Hook-Up Diagrams:

Fig. 9 - Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm conditiion).

Non-Latching.

Fig. 10 - Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm condition).
Latching.

FACP

EOL

+ --

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

Fig. 11 - Normally Closed trigger input
(Non-Latching).

FACP

10K
EOL

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

FACP

EOL

+ --

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Fig. 12 - Normally Closed trigger input
(Latching).

FACP

10K
EOL

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Fig. 13 - Normally Open trigger input
(Non-Latching).

FACP

N.O.

EOL

Switch

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller - 11 -

Fig. 14 - Normally Open trigger input
(Latching).

FACP

N.O.

EOL

Switch

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Enclosure Dimensions (BC400):

15.5” x 12.25” x 4.5” (394mm x 311mm x 114mm)

1.5”

(38.1mm)

2.0”

(50.8mm)

2.0”

(50.8mm)

5.0”

(127.0mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

4.5”

(114.3mm)

0.91”

(23.114mm)

1.5”

(38.1mm)

1.1”

(27.94mm)

4.615”

(117.22mm)

12.23”

(310.64mm)

4.615”

(117.22mm)

1.5”

(38.1mm)

(27.94mm)

(27.94mm)

1.75”

(44.45mm)

1.375”

(34.925mm)

1.125”

(28.575mm)

1.1”

0.91”

(23.114mm)

15.5”

(393.7mm)

0.79”

1.1”

(20.06mm)

4.5”

(114.3mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

1.5”

(38.1mm)

5.0”

(127.0mm)

1.75”

(44.45mm)

1.5”

(38.1mm)

4.615”

(117.22mm)

4.615”

(117.22mm)

1.5”

(38.1mm)

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
website: www.altronix.com | e-mail: [e-mail] | Lifetime Warranty | Made in U.S.A.
IITango8AP(CB) J21S

- 12 - Tango8AP(CB) - PoE Driven Multi-Output Power Supply/Charge With Access Power Controller

MEMBER
