Altronix TANGO8A, TANGO8ACB Installation Guide

Access Power Controller with
PoE Driven Power Supply

Installation Guide

Tango8A

- 12VDC and/or 24VDC selectable by output @ 65W max.

- Eight (8) fuse protected outputs

- Eight (8) selectable Fail Safe, Fail-Secure or Form “C” dry outputs

- Fire Alarm Disconnect selectable by output

- Built-in Lithium Iron Phosphate Battery Charger

Tango8ACB

- 12VDC and/or 24VDC selectable by output @ 65W max.

- Eight (8) Class 2 power-limited PTC protected outputs

- Eight (8) selectable Fail Safe, Fail-Secure or Form “C” dry outputs

- Fire Alarm Disconnect selectable by output

- Built-in Lithium Iron Phosphate Battery Charger

Rev. TANGO8A-083019

More than just power.

TM

Altronix Tango8A(CB) PoE Driven Power Supply with Access Power Controller converts an IEEE802.3bt
PoE input into eight (8) regulated 24VDC and/or 12VDC outputs up to 65W. It eliminates the need for a high
voltage inside of an enclosure. Tango8A(CB) is designed to support a single 12VDC LiFePO4 (Lithium Iron
Phosphate) battery for 12VDC and 24VDC backup.

Specifications:

Overview:

Inputs:

Tango1B:

• 802.3bt PoE up to 90W or 802.3at up to 30W
or 802.3af up to 15W.

ACMS8/ACMS8CB:

• Eight (8) trigger inputs:
a) Normally open (NO) inputs (dry contacts).
b) Normally closed (NC) inputs (dry contacts).
c) Open collector sink inputs.
d) Wet Input (5VDC - 24VDC) with 10K resistor
e) Any combination of the above.

Outputs:

Tango1B:

• 12VDC up to 5.4A (65W)
and/or 24VDC up to 2.7A (65W).
Combined output not to exceed 65W.

• When charging batteries:
12VDC up to 4.6A (55W) and/or
24VDC up to 2.3A (55W)
Combined output not to exceed 55W.

ACMS8:

• Fuse protected outputs rated @ 2.5A per output,
non power-limited. Total output 20A max.
Do not exceed the individual power supply ratings.

See Input/Output Voltage Ratings, pg. 6.
ACMS8CB:

• PTC protected outputs rated @ 2A per output,
Class 2 power-limited. Total output 16A max.
Do not exceed the individual power supply ratings.

See Input/Output Voltage Ratings, pg. 6.

Total output current should not exceed max. current
rating of the power supplies employed on each input.
See Maximum Output of Altronix Power Supplies.

• Eight (8) selectable independently controlled
outputs or eight (8) indepently controlled
Form “C” relay outputs (see below for ratings):
a) Fail-Safe and/or Fail-Secure power outputs.
b) Form “C” relays rated @ 2.5A. 5, 12,
24VDC, 0.6 Power Factor (ACMS8 only).
c) Auxiliary power outputs (unswitched).
d) Any combination of the above.

• Individual outputs may be set to OFF position for
servicing (output jumper set to middle position).
Does not apply to Dry Contact applications.

• Any of the eight (8) fuse/PTC protected power
outputs are selectable to follow power Input 1 or
Input 2. Output voltage of each output is the same
as the input voltage of the input selected.

See Input/Output Voltage Ratings, pg. 6.

• Surge suppression..

Fuse/PTC Ratings:

• ACMS8(CB)

- Main input fuses rated 15A/32V each.

- Output fuses are rated 3A/32V (ACMS8).

- Output PTCs are rated 2A (ACMS8CB).

• TANGO1B: battery fuse rated @ 10A/32V each.

Ethernet Output (Tango1B):

• Pass-through Ethernet Port (data only).

• 100/1G.

Battery (Tango1B):

• 12VDC battery charger for Lithium Iron
Phosphate Battery (LiFeP04 only).

• Unique technology allows for single battery
to backup 12VDC and/or 24VDC systems.

• Low power shutdown. Shuts down DC output
terminals if battery voltage drops below 80% of
nominal. Prevents deep battery discharge.

Supervision (Tango1B):

• Loss of PoE Input.

• Battery Supervision.

Fire Alarm Disconnect:

• Fire Alarm disconnect (latching or non-latching) is
individually selectable for any or all of the
eight (8) outputs.
Fire Alarm disconnect input options:
a) Normally open [NO] or normally closed [NC]
dry contact input. Polarity reversal input from
FACP signaling circuit.

• FACP input WET is rated 5-30VDC 7mA.

• FACP input EOL requires 10K end of line resistor.

• FACP output relay [NC]:
Either Dry 1A/28VDC, 0.6 Power Factor or
10K resistance with [EOL JMP] intact.

Visual Indicators:

• Tango1B

- Input indicates input voltage is present.

- Battery status indicates battery trouble condition.

- PoE Class indicator.

- Supervision PoE Fail or BAT Fail.

• ACMS8(CB)

- Red LEDs indicate outputs are triggered.

- Blue LED indicates FACP disconnect
is triggered.

- Individual voltage LED indicates
12VDC (Green) or 24VDC (Red).

Environmental:

• Operating temperature: 0ºC to 49ºC ambient.

• Humidity: 20 to 85%, non-condensing.

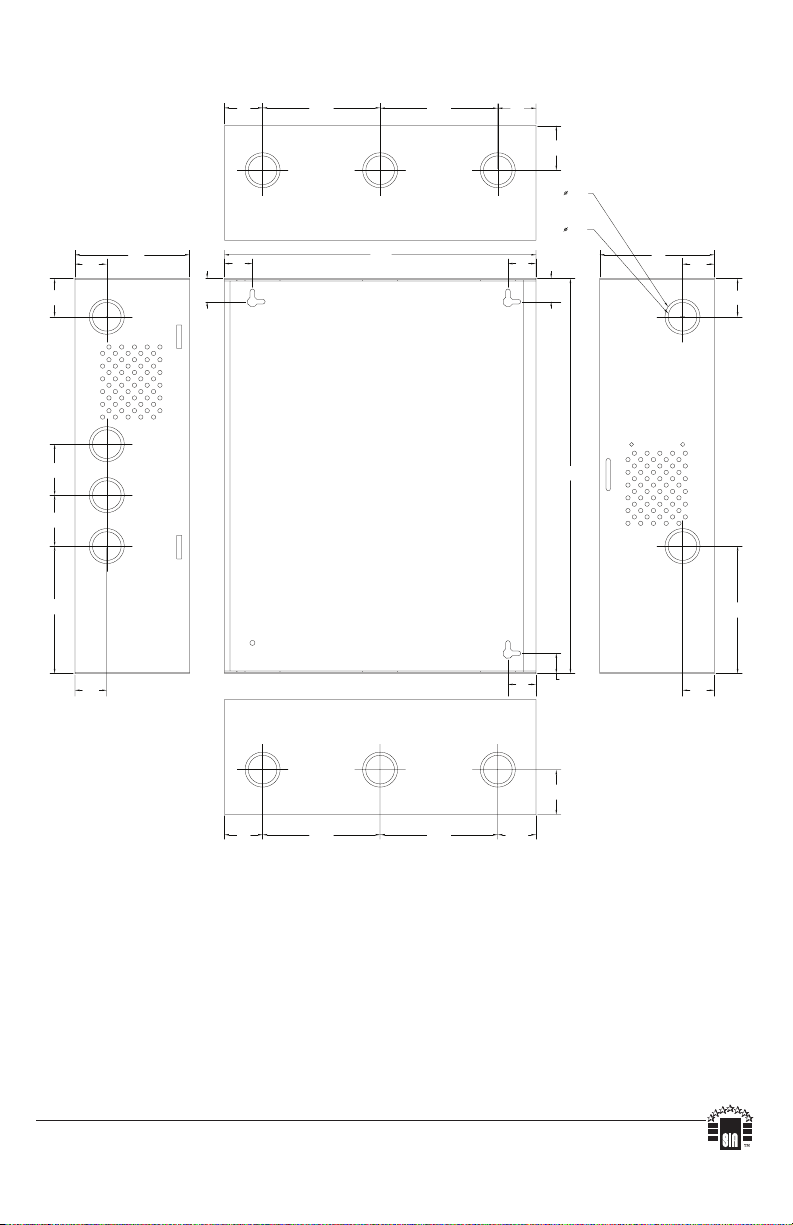

Enclosure Dimensions (approximate H x W x D):

15.5” x 12.25” x 4.5” (394mm x 311mm x 114mm).

Accessories:
Power Sourcing Equipment

NetWay1BT - Single Port Managed Hi-PoE
Injector supplies 90W total power.
NetWaySP1BT - 802.3bt Media Converter/
Injector supplies 90W total power.
NetWay4BT - 4-Port Managed Hi-PoE
Midspan Injector supplies 480W total power.
NetWay8BT - 8-Port Managed Hi-PoE
Midspan Injector supplies 480W total power.

- 2 - Tango8A(CB) - PoE Driven Access Controller

Stand-by Specifications:

Battery Access Control Applications Stand-by

4AH 30 Mins.
7AH 45 Mins.
12AH 1.5 Hours

Tango8A(CB) - PoE Driven Access Controller - 3 -

PWR1

PWR2

OFF

1
2
3
4

INP Logic

NC <-> NO

ON

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, the Canadian

Installation Instructions:

Electrical Code and with all local codes and authorities having jurisdiction. Product is intended for indoor use only.

1. Mount unit in desired location. Mark and predrill holes in the wall to line up with the top two keyholes in
the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the
enclosure’s upper keyholes over the two upper screws, level and secure. Mark the position of the lower two
holes. Remove the enclosure. Drill the lower holes and install the two fasteners. Place the enclosure’s upper
keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pg. 8). Secure enclosure to earth ground.

2. Ensure all output jumpers [PWR1] - [PWR8] are placed in the
OFF (center) position (Fig. 1, pg. 3).

3. Connect IEEE802.3bt PSE to RJ45 Jack marked PoE+ Data Input on the
Tango1B board (Fig. 4, pg. 5). If Data pass-through is required, connect another
IEEE802.3bt PSE to RJ45 Jack marked [Data Output] (Fig. 4, pg. 5).

CAUTION: Do not touch exposed metal parts.
There are no user serviceable parts inside. Refer installation and servicing to qualified service personnel.

4. Set each output [OUT1] - [OUT8] to route power from Input 1 or 2 (Fig. 1, pg. 3).
Note: Measure output voltage before connecting devices. This helps avoiding potential damage.

5. Turn power off before connecting devices.

6. Output options: Tango8A(CB) will provide up to eight (8) switched power outputs or eight (8) dry
form “C” outputs, or any combination of both switched power and form “C” outputs, plus eight (8)
unswitched auxiliary power outputs.
Switched Power outputs:
Connect the negative (–) input of the device being powered to the terminal marked [COM].

• For Fail-Safe operation connect the positive (+) input of the device being powered to the terminal
marked [NC].

• For Fail-Secure operation connect the positive (+) input of the device being powered to the terminal
marked [NO].
Form “C” outputs:
When form “C” outputs are desired, the corresponding jumper (1-8) must be placed in the OFF position
(Fig. 1, pg. 3). Alternatively, the corresponding output fuse (1-8) can be removed (Tango8A only).
Connect negative (–) of the power supply directly to the locking device.
Connect the positive (+) of the power supply to the terminal marked [C].

• For Fail-Safe operation connect the positive (+) of the device being powered to the terminal
marked [NC].

• For Fail-Secure operation connect the positive (+) of the device being powered to the terminal
marked [NO].
Dry contacts rated @ 2.5A, 28VDC.
Auxiliary Power outputs (unswitched):
Connect positive (+) input of the device being powered to the terminal marked [C] and the negative (–)
of the device being powered to the terminal marked [COM]. Output can be used to provide power for
card readers, keypads etc.

7. Turn main power on after all devices are connected.

8. Input Trigger options:
Note: If Fire Alarm disconnect is not used, connect a 10K ohm resistor to terminals marked [GND and EOL],
plus connect a jumper to terminals marked [GND, RST].
Normally Open (NO) Input:
Slide input control logic DIP switch into the OFF position for [Switch 1-8]
(Fig. 2, on right). Connect your wires to terminals marked
[+ INP1 –] to [+ INP8 –].
Normally Closed (NC) Input:
Slide input control logic DIP switch into the ON position for [Switch 1-8]
(Fig. 2, on right). Connect your wires to terminals marked [+ INP1 –] to [+ INP8 –].
Open Collector Sink Input:
Connect the open collector sink input to the terminal marked [+ INP1 –] to [+ INP8 –].
Wet (Voltage) Input Configuration:
Carefully observing polarity, connect the voltage input trigger wires and the supplied 10K resistor to
terminals marked [+ INP1 –] to [+ INP8 –].
If applying voltage to trigger input - set the corresponding INP Logic switch to the “OFF” position
If removing voltage to trigger input - set the corresponding INP Logic switch to the “ON” position.

- 4 - Tango8A(CB) - PoE Driven Access Controller

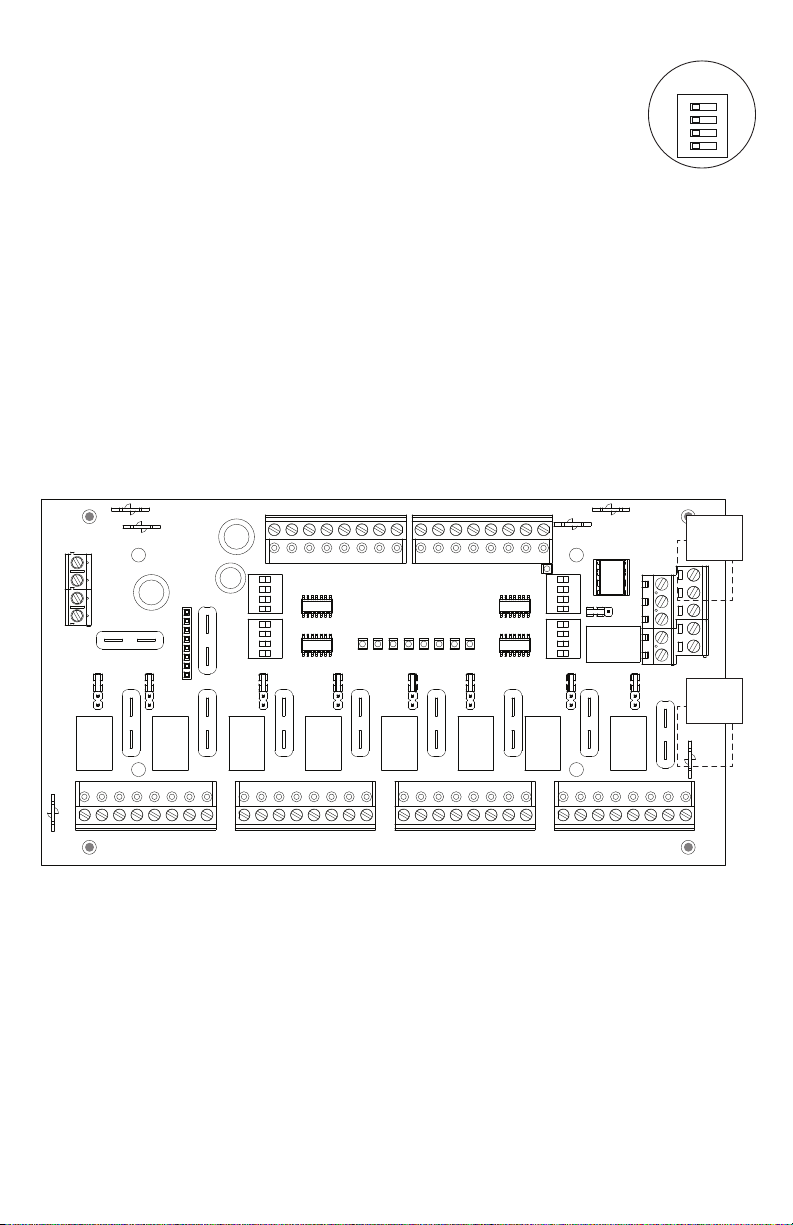

Fig. 1

Fig. 2

FACP

EN

<-- >

DIS

1
2
3
4

ON

9. Fire Alarm Interface options:

Fig. 3

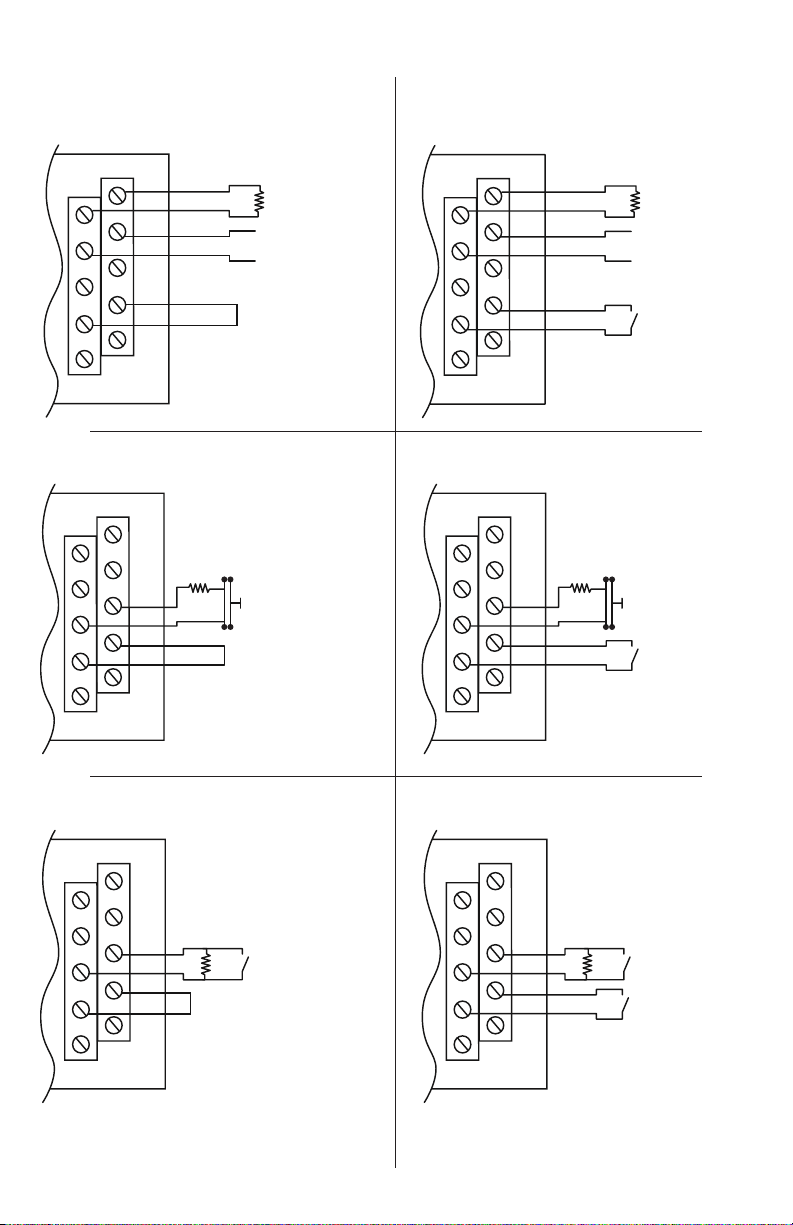

A normally closed [NC], normally open [NO] input or polarity reversal input from
FACP signaling circuit will trigger selected outputs. To enable FACP Disconnect for
an output turn the corresponding DIP switch [SW1-SW8] ON.
To disable FACP disconnect for an output turn the corresponding DIP switch
[SW1-SW8] OFF. Switch is located directly to the left of the
Fire Alarm Interface Terminals.

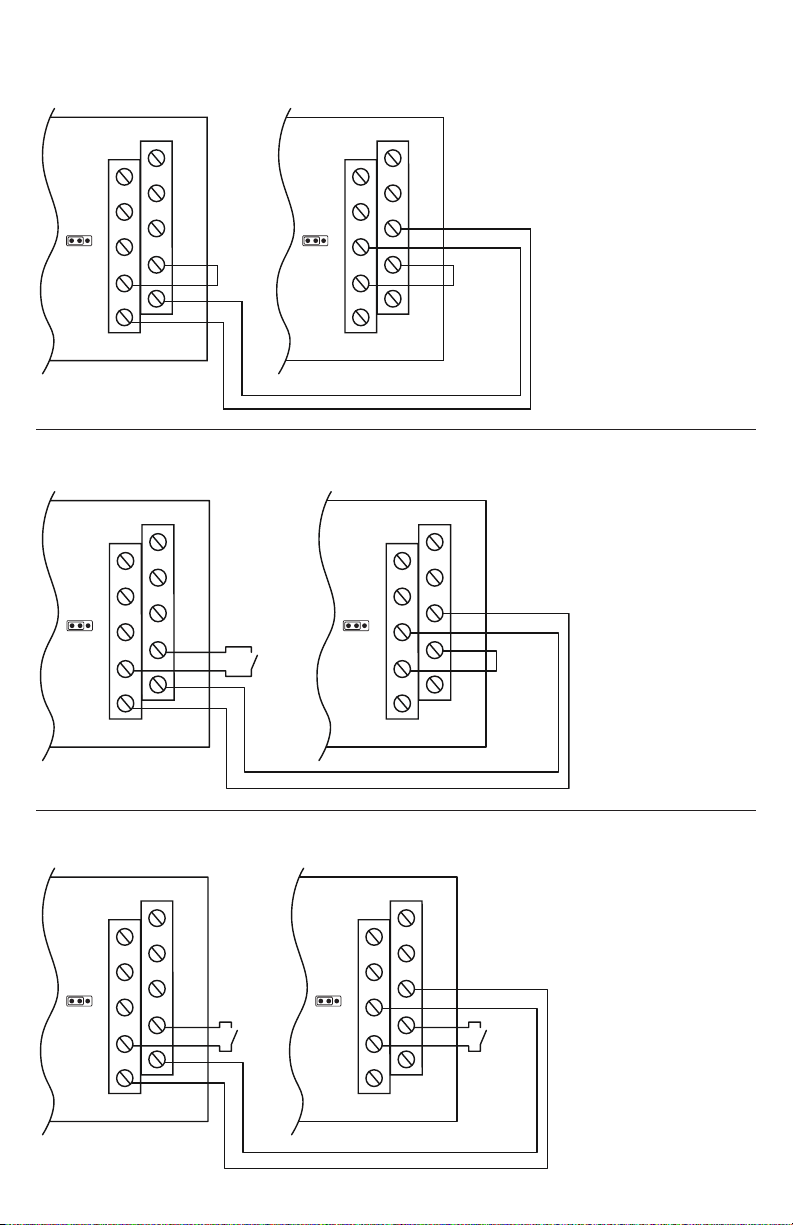

Normally Open Input:
Wire your FACP relay and 10K resistor in parallel on terminals marked [GND] and [EOL].
Normally Closed Input:
Wire your FACP relay and 10K resistor in series on terminals marked [GND] and [EOL].
FACP Signaling Circuit Input Trigger:
Connect the positive (+) and negative (–) from the FACP signaling circuit output to the terminals marked
[+ FACP –]. Connect the FACP EOL to the terminals marked [+ RET –] (polarity is referenced in an
alarm condition).
Non-Latching Fire Alarm Disconnect:
Connect a jumper to the terminals marked [GND, RST].

Latching Fire Alarm Disconnect:

Connect a NO normally open reset switch to terminals marked [GND, RST].

10. FACP Dry NC output:
Connect desired device to be triggered by the unit’s dry contact output to the terminals marked [NC] and [C].
When [EOL JMP] is kept intact, the output is of 0 Ohm resistance in a normal condition.
When [EOL JMP] is clipped, a 10k resistance will be passed to next device when in a normal condition.

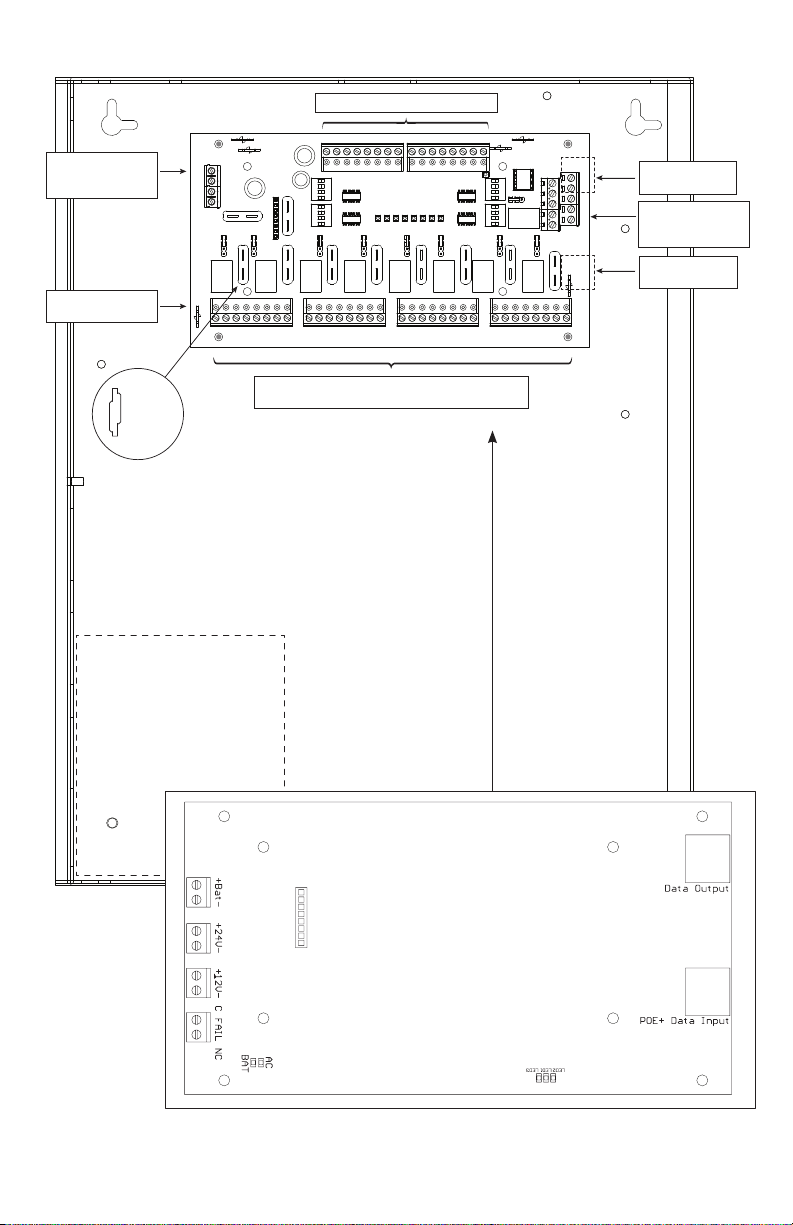

Fig. 4 - ACMS8 stacked above Tango1B.

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

5
6
7
8

INP Logic

<-->

NO

NC

+

PWR1

+

PWR2

FACP

1
2
3

ONON

4

5
6
7
8

FACP
<-->

EN

DIS

Data

Output

FACP

C GND GND -F -R

FACP

NC RST EOL +F +R

PoE+ Data

Input

+ PWR1

-­+ PWR2

--

Power 2

PWR1

PWR2

+

+

Power 1

COM -

COM -

Output 1 Output 2

NO C NC COM NO C NC COM

Output 3 Output 4

NO C NC COM NO C NC COM

Output 5 Output 6

NO C NC COM NO C NC COM

Output 7 Output 8

NO C NC COM NO C NC COM

Wiring:

Use 18 AWG or larger for all low voltage power connections.

Tango8A(CB) - PoE Driven Access Controller - 5 -

LED Diagnostics:

Tango1B

LED ON BLINKING

Input Input voltage is present. Input voltage not present.
Battery Normal operating condition. Battery is low or missing.
PoE Indicates Class. Refer to table below Classes 3-8
Supervision PoE Fail or BAT Fail. NC dry contact 30V 1A (not an LED)

Class Green Red Blue Class Green Red Blue

Class 1 – – – Class 5 On Off On
Class 2 – – – Class 6 On Off On
Class 3 Off Off Off Class 7 On On On
Class 4 Off On Off Class 8 On On On

ACMS8 and ACMS8CB Access Power Controller

LED ON OFF

LED 1- LED 8 (Red) Output relay(s) de-energized. Output relay(s) energized.

FACP FACP input triggered (alarm condition). FACP normal (non-alarm condition).

Green Output 1-8 12VDC –

Red Output 1-8 24VDC –

Terminal Identification:

Tango1B

Terminal/RJ45 Legend Function/Description

PoE+ Data Input IEEE802.3bt Input (Fig. 5b, pg. 7).
Data Output Passes Data to Switch (Fig. 5a, pg. 7)
C FAIL NC Power and Battery Fail (Fig. 5c, pg. 7).
+ 12V – 12VDC output (Fig. 5d, pg. 7).
+ 24V – 24VDC output (Fig. 5e, pg. 7).
+ BAT – Lithium Iron Phosphate battery backup (Fig. 5f, pg. 7).

8-Pin Connector

(Fig. 5g, pg. 7)

Factory connected to ACMS8(CB).

ACMS8 and ACMS8CB Access Power Controller

Terminal Legend Function/Description

+ PWR1 – Factory connected to Tango1B. Do not use these terminals.

+ PWR2 – Factory connected to Tango1B. Do not use these terminals.

+ INP1 – through
+ INP8 –

C, NC

GND, RST

GND, EOL

– F, + F, – R, + R FACP Signaling Circuit Input and Return terminals. Class 2 power-limited.

Output 1 through
Output 8
NO, C, NC, COM

- 6 - Tango8A(CB) - PoE Driven Access Controller

Eight (8) independently controlled Normally Open (NO), Normally Closed (NC),
Open Collector Sink or Wet Input Triggers.

FACP Dry NC output rated 1A/28VDC @ 0.6 Power Factor. Class 2 power-limited.
With EOL JMP intact, will provide 10k resistance in a normal state.

FACP interface latching or non-latching. NO dry input. Class 2 power-limited.
To be shorted for non-latching FACP interface or Latch FACP reset.

EOL Supervised FACP Input terminals for polarity reversal FACP function.
Class 2 power-limited.

Eight (8) selectable independently controlled outputs [Fail-Safe (NC) or Fail­Secure (NO)] and eight (8) independently controlled Form “C” Relay outputs.

Fig. 5 - Tango8A(CB)

LiFeP04 Battery

connection on Tango1B

(non power-limited)

Supervision on Tango1B

(power-limited)

+ PWR1

-­+ PWR2

--

Power 2

COM -

Output 1 Output 2

NO C NC COM NO C NC COM

+

PWR1

+

PWR2

Independently controlled Input Triggers

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

5

Power 1

6
7
8

INP Logic

<-->

NO

NC

Output 3 Output 4

NO C NC COM NO C NC COM

Output 5 Output 6

NO C NC COM NO C NC COM

PWR1

FACP

1
2
3

ONON

4

5
6
7
8

FACP
<-->

EN

DIS

NO C NC COM NO C NC COM

+

+

PWR2

Output 7 Output 8

FACP

C GND GND -F -R

FACP

COM -

NC RST EOL +F +R

Data Pass-Through

on Tango1B

Supervision and FACP

Interface on ACMS8(CB)

(power-limited)

PoE Input

on Tango1B

PTC

Protected

Outputs on

Tango8ACB

Optional
LiFeP0

Battery

5f

5e

5d

5c

(Tango8A - non power-limited, Tango8ACB - power-limited)

DC Output to devices

4

5g

Tango1B board mounted

5a

under ACMS8(CB)

5b

Tango8A(CB) - PoE Driven Access Controller - 7 -

Fig. 6

Power
Supply
(req'd.)

Power
Supply

(optional)

Access Control Panel

C

Output

NO

Relay

NC

DC

DC

Mag. Lock

Electric

Strike

+PWR1-- +PWR2--

ACMS8
ACMS8CB

Power 2

PWR1

PWR1

PWR2

OFF

<-- >

PWR2

Brooklyn, NY 11220

Altronix Corp.

COM--

Output 1 Output 2

NO C NC COM NO C NC COM

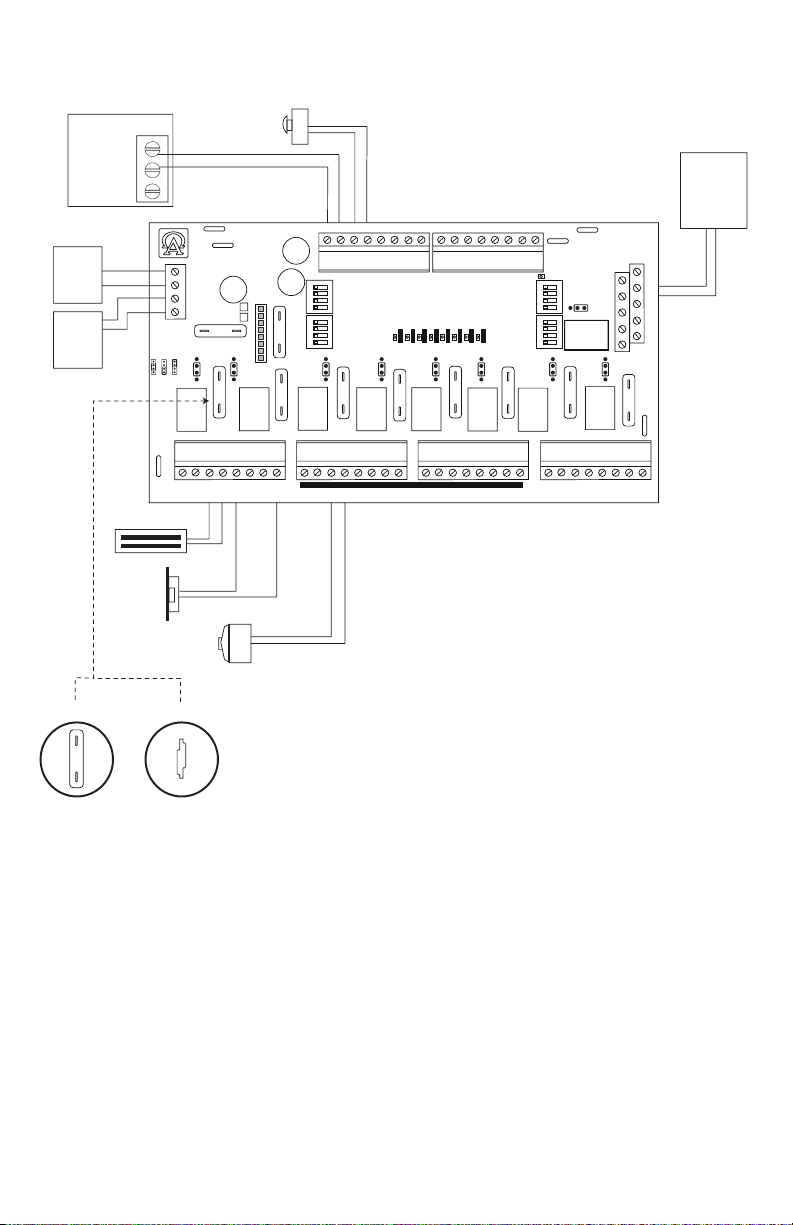

Typical Application Diagram:

Normally Open (N.O.)

Door Releasing Device

+INP2--+INP1-- +INP3-- +INP4-- +INP5-- +INP6-- +INP7-- +INP8--

1
2
3
4

ON

5
6
7
8

ON

INP Logic

NO
PWR1

<-- >

PWR2

RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATING

Output 3 Output 4

NO C NC COM NO C NC COM

OUT1

OUT2

PWR1

<-- >

NC

<-- >

PWR2

3

3

PWR2+

15

3

PWR1+

Power 1

15

3

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

PWR1

<-- >

PWR2

3

3

Output 5 Output 6

NO C NC COM NO C NC COM

PWR1+

PWR2+

FACP

1
2
3
4

ONON

5
6
7
8

PWR1

FACP
<-- >

EN

DIS

<-- >

PWR2

NO C NC COM NO C NC COM

EOL JMP

3

Output 7 Output 8

FACP

(Fire Alarm

Control

Panel)

FACP

C GND GND -F -R

NC RST EOL +F +R

FACP

3

COM--

Electromagnetic

Door Holders

ACMS8CBACMS8

3

- 8 - Tango8A(CB) - PoE Driven Access Controller

Hook-Up Diagrams:

Fig. 7 - Daisy-chaining one or more ACMS8(CB) units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Non-Latching.

FACP

EOL JMPEOL JMP

C GND GND -F -R

NC RST EOL +F +R

FACP

FACP

JumperJumper

C GND GND -F -R

NC RST EOL +F +R

FACP

Fig. 8 - Daisy-chaining one or more ACMS8(CB) units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Latching Single Reset.

FACP

FACP

N.O.

C GND GND -F -R

NC RST EOL +F +R

Switch

EOL JMPEOL JMP

FACP

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

Fig. 9 - Daisy chaining one or more ACMS8(CB) units.
EOL Jumper [EOL JMP] should be installed in the EOL position. Latching Individual Reset.

FACP

N.O.

Switch

C GND GND -F -R

NC RST EOL +F +R

FACP

- 9 - Tango8A(CB) - PoE Driven Access Controller

EOL JMPEOL JMP

FACP

FACP

N.O.

Switch

C GND GND -F -R

NC RST EOL +F +R

Hook-Up Diagrams:

Fig. 10 - Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm conditiion).

Non-Latching.

Fig. 11 - Polarity reversal input from FACP
signaling circuit output (polarity is
referenced in alarm condition).
Latching.

FACP

EOL

+ --

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

Fig. 12 - Normally Closed trigger input
(Non-Latching).

FACP

10K
EOL

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

FACP

EOL

+ --

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Fig. 13 - Normally Closed trigger input
(Latching).

FACP

10K
EOL

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Fig. 14 - Normally Open trigger input
(Non-Latching).

FACP

N.O.

EOL

Switch

Jumper

C GND GND -F -R

NC RST EOL +F +R

FACP

- 10 - Tango8A(CB) - PoE Driven Access Controller

Fig. 15 - Normally Open trigger input
(Latching).

FACP

N.O.

EOL

Switch

N.O.

C GND GND -F -R

NC RST EOL +F +R

FACP

Switch

Notes:

- 11 - Tango8A(CB) - PoE Driven Access Controller

Enclosure Dimensions (BC400):

15.5” x 12.25” x 4.5” (394mm x 311mm x 114mm)

1.5”

(38.1mm)

2.0”

(50.8mm)

2.0”

(50.8mm)

5.0”

(127.0mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

4.5”

(114.3mm)

0.91”

(23.114mm)

(38.1mm)

1.1”

(27.94mm)

1.5”

4.615”

(117.22mm)

12.23”

(310.64mm)

4.615”

(117.22mm)

1.5”

(38.1mm)

(27.94mm)

(27.94mm)

1.75”

(44.45mm)

1.375”

(34.925mm)

1.125”

(28.575mm)

1.1”

0.91”

(23.114mm)

15.5”

(393.7mm)

0.79”

1.1”

(20.06mm)

4.5”

(114.3mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

1.5”

(38.1mm)

5.0”

(127.0mm)

1.75”

(44.45mm)

1.5”

(38.1mm)

4.615”

(117.22mm)

4.615”

(117.22mm)

1.5”

(38.1mm)

Altronix is not responsible for any typographical errors.

140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
website: www.altronix.com | e-mail: [e-mail] | Lifetime Warranty | Made in U.S.A.
IITango8A(CB) J21S

- 12 - Tango8A(CB) - PoE Driven Access Controller

MEMBER
